GANZ - Fambo HR 2750 Hydraulic Impact Hammer

Piston Weight: 2,750 kg
Total Weight with Standard Pile Cap: 3,650 kg
Blows per Minute (steplessly adjustable) :: 0 - 100
Energy per Blow (steplessly adjustable) :: 0 - 32,500 Nm
Drop Height (steplessly adjustable) :: 0 - 1.2 m

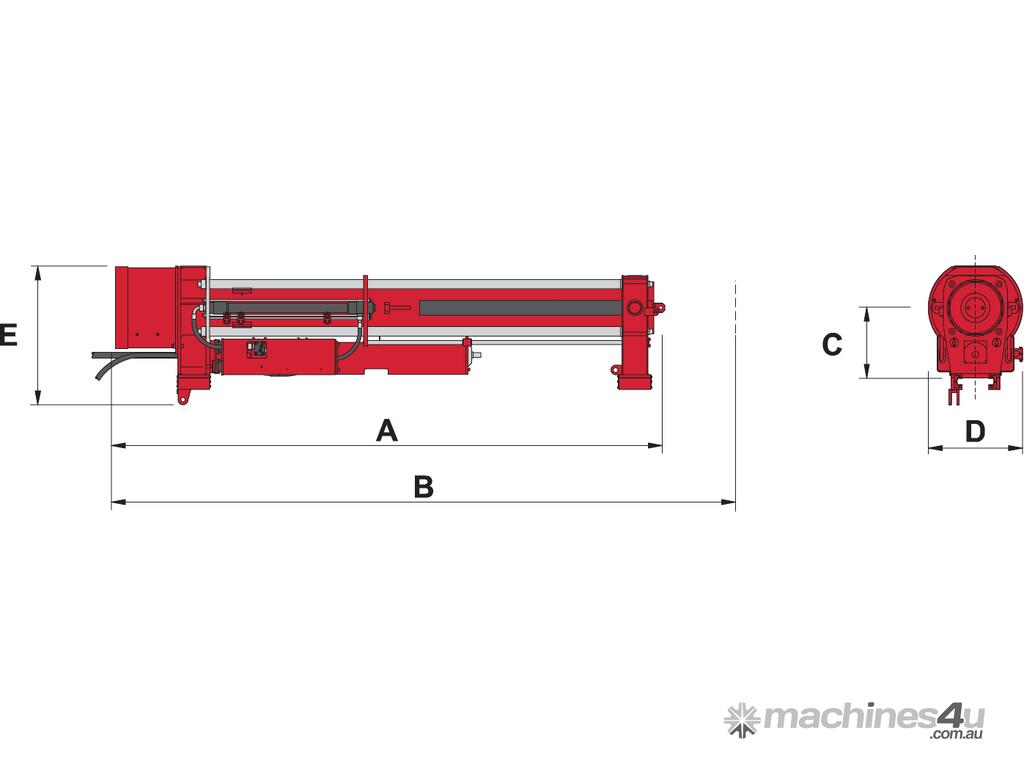

Dimensions:
Length :: 3,470 mm
Length :: 4,625 mm
Driving Axis :: 455 mm
Width :: 600 mm
Height :: 890 mm

Recommended Data for Excavators:Min. Weight: 40 t

Pressure: 330 bar
Oil Flow: 60-120 l/min
Hydraulic Pressure (required) :: 35-55 kW
Electrical Power: 24 V DC

Pile Sizes - The information refers to average values. Depending on nature of ground upwards or downwards variations may occur.:

Timber Piles -
Diameter: 40 cm max.
Weight: 150 kg/m max.

Concrete Piles -
Diameter: 30 x 30 cm max.
Weight: 250 kg/m max.

Steel Tubes:
Diameter: 40 cm max.
Weight: 250 kg/m max.

Steel Beams:
Dimensions: 360 HEA max.
Weight: 250 kg/m max.

Sheet Piles -
Weight: 250 kg/m max.
Maximum Weight: 6,000 kg

Standard Pile Cap:
Length : 245 mm
Outer Diameter :: 480 mm
Inner Diameter :: 400 mm
Depth :: 140 mm
Weight: 170 kg

Pile Caps Universal Adapters:
Length :: 323 mm

Outer Diameter : 592 mm
Distance :50 mm
Inner Diameter:: 306 mm
Hole Diameter :: 26 mm
Weight: 305 kg

At GANZ International, we provide years of experience, we provide the international equipment markets with top-quality products and unparalleled after-sales support.

We excel in supplying and servicing the world's finest new and used foundation and piling equipment. Our expertise spans Heavy Foundations, Construction, Material Handling, and Agricultural Equipment, making us industry leaders in versatile and problem-solving machinery. At GANZ, we bring innovation and technical know-how to every project, ensuring adaptability and overcoming any challenge. Partnering with us means having a passionate, experienced team at your side.

Go to the Ganz showroom on Machines4u to see the rest of our machinery, send Ganz a message about the item you are interested in discussing, or give Ganz International a call, we are happy to answer any of your questions.

* CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION *
