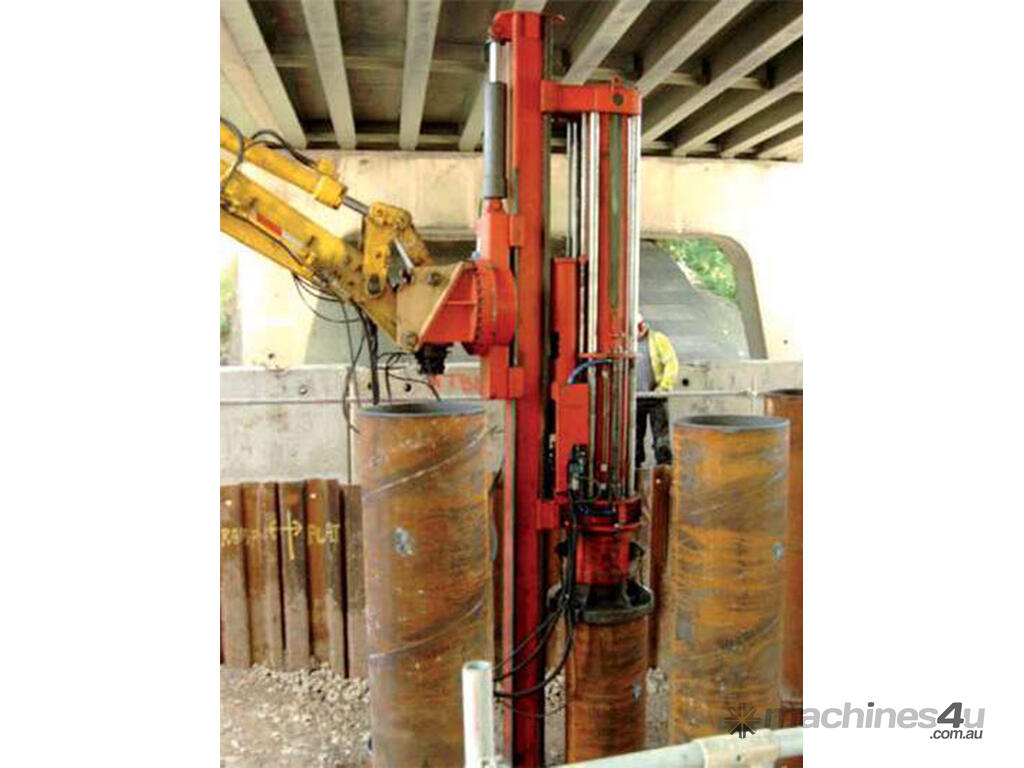

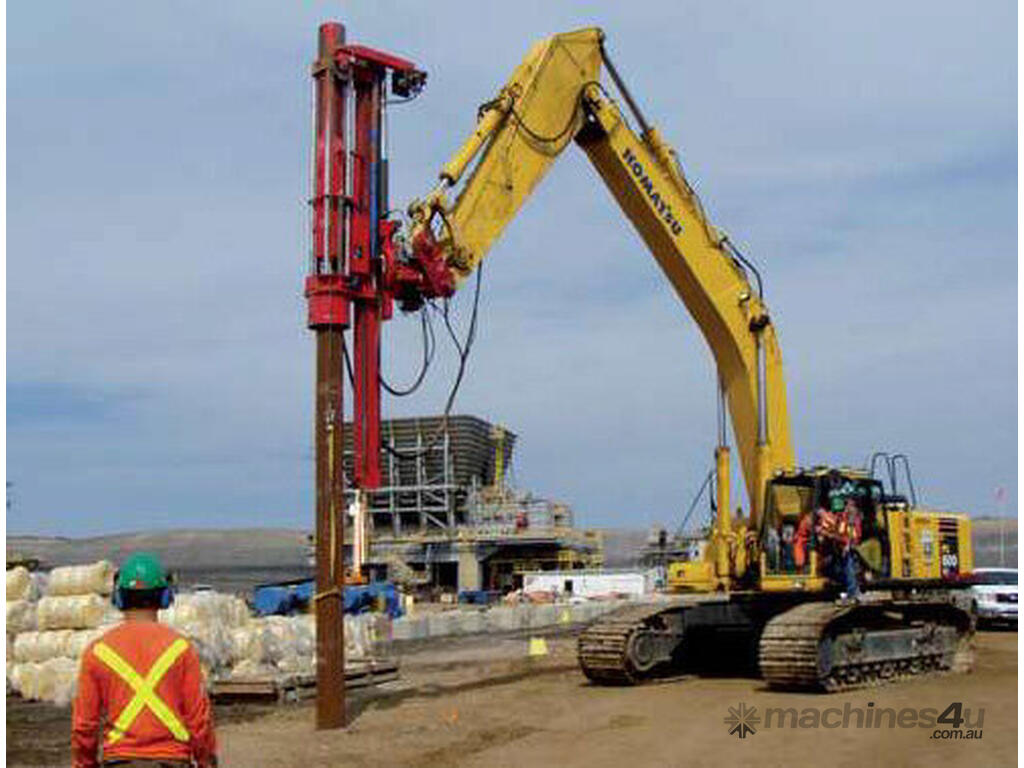

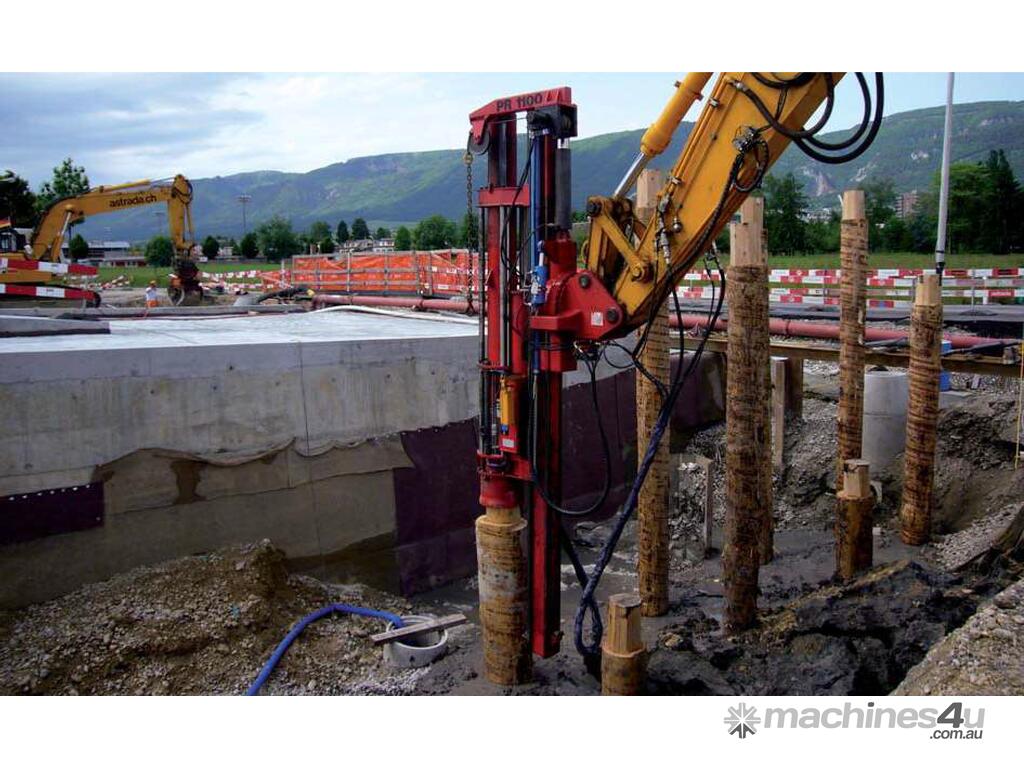

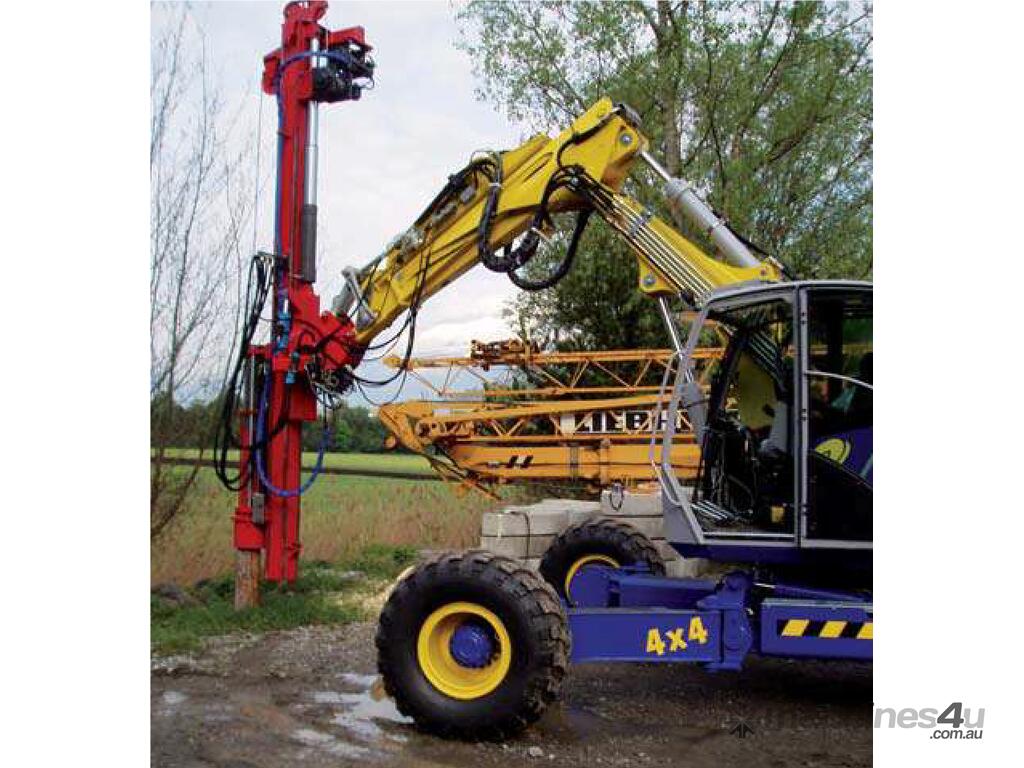

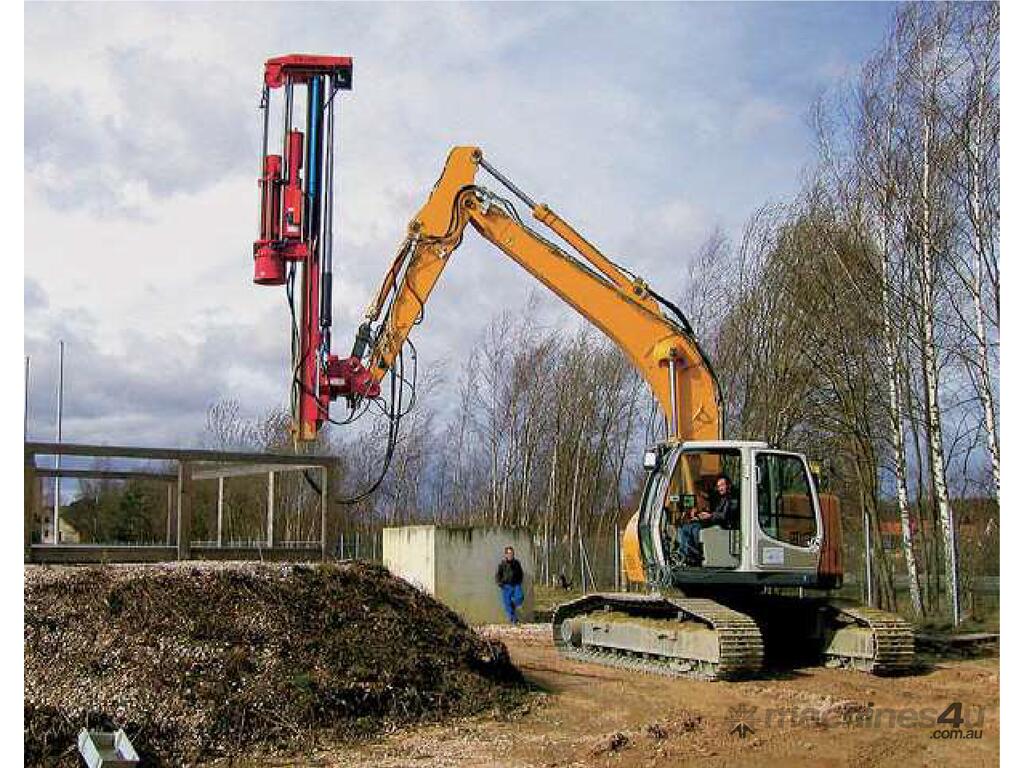

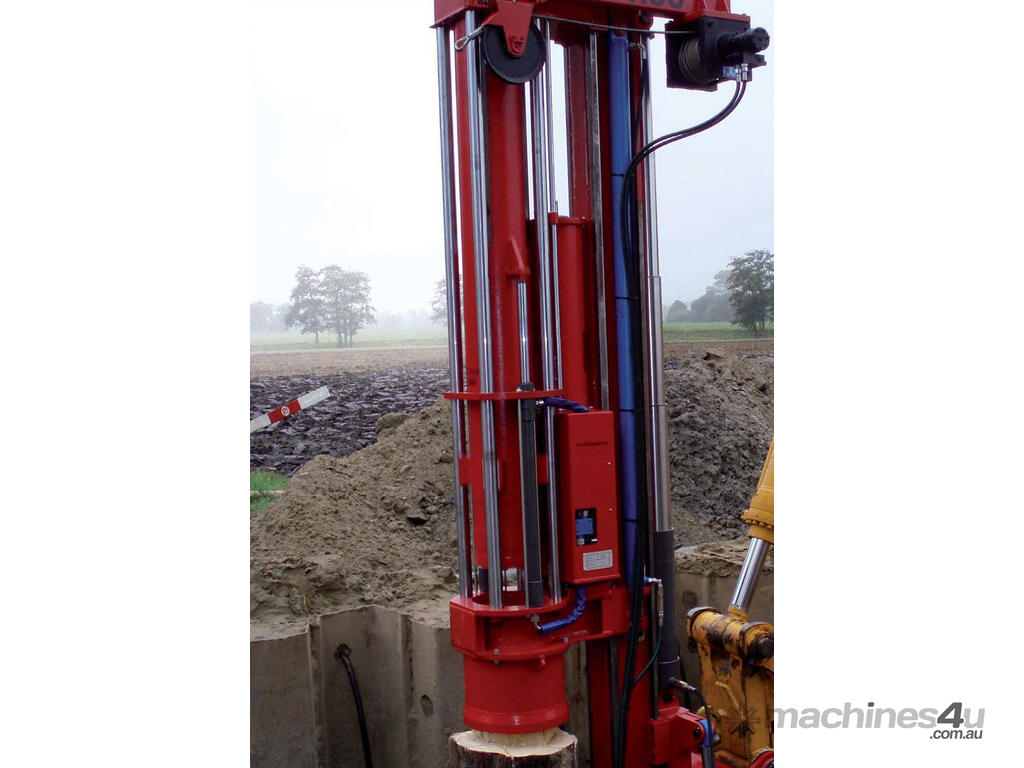

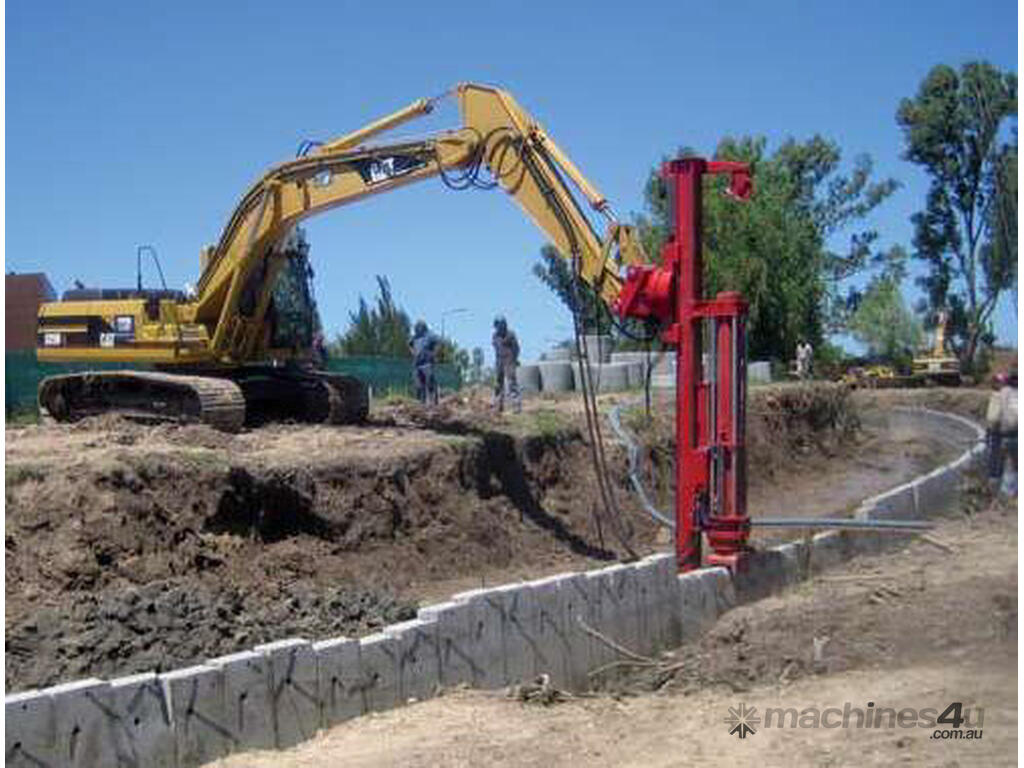

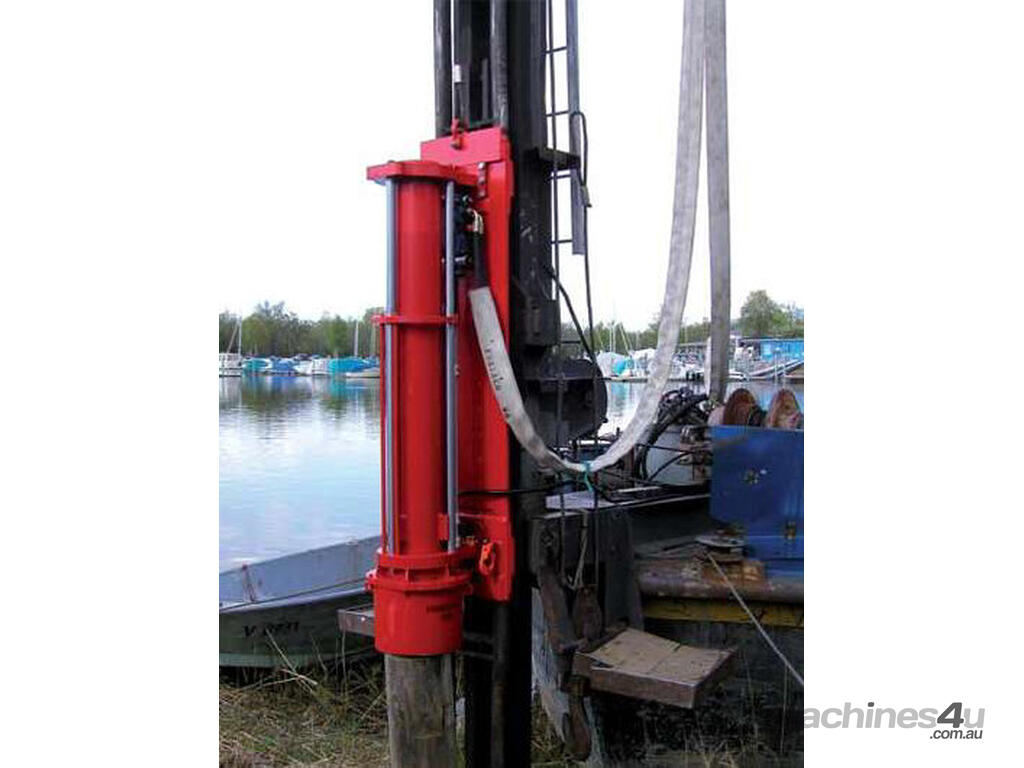

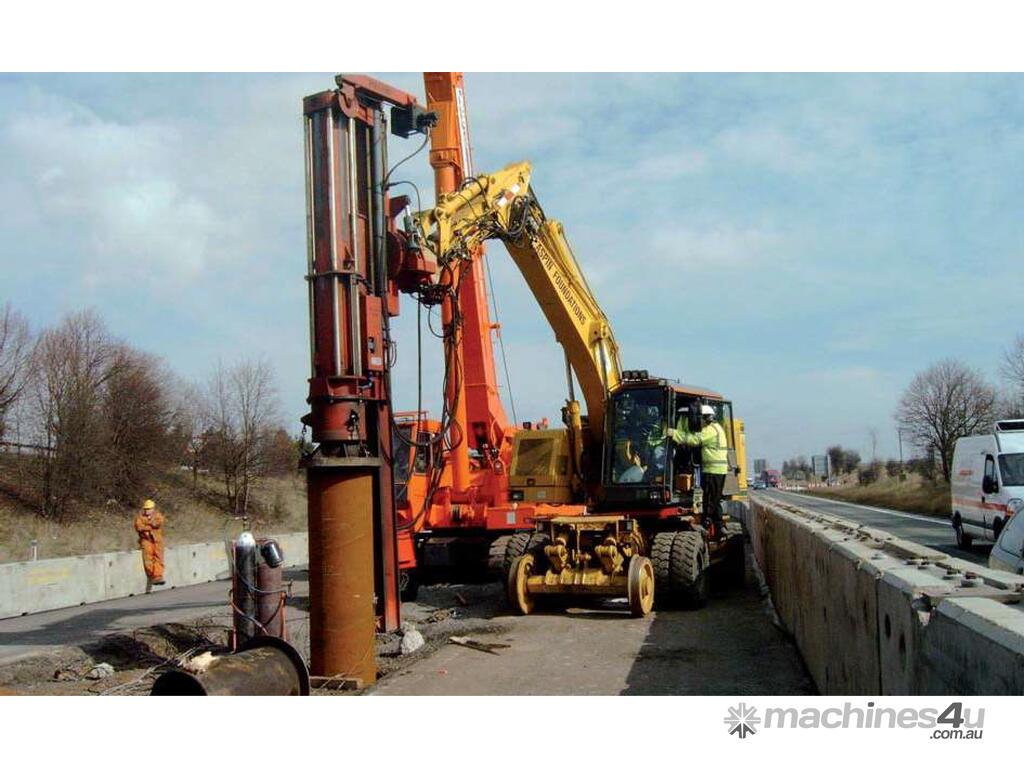

GANZ - Fambo HR 500 Hydraulic Impact Hammer

Piston Weight: 500 kg

Total Weight with Standard Pile Cap: 780 kg
Blows per Minute (steplessly adjustable) :: 0 - 100
Energy per Blow (steplessly adjustable) :: 0 - 4,800 Nm
Drop Height (steplessly adjustable) :: 0 - 1.0 m

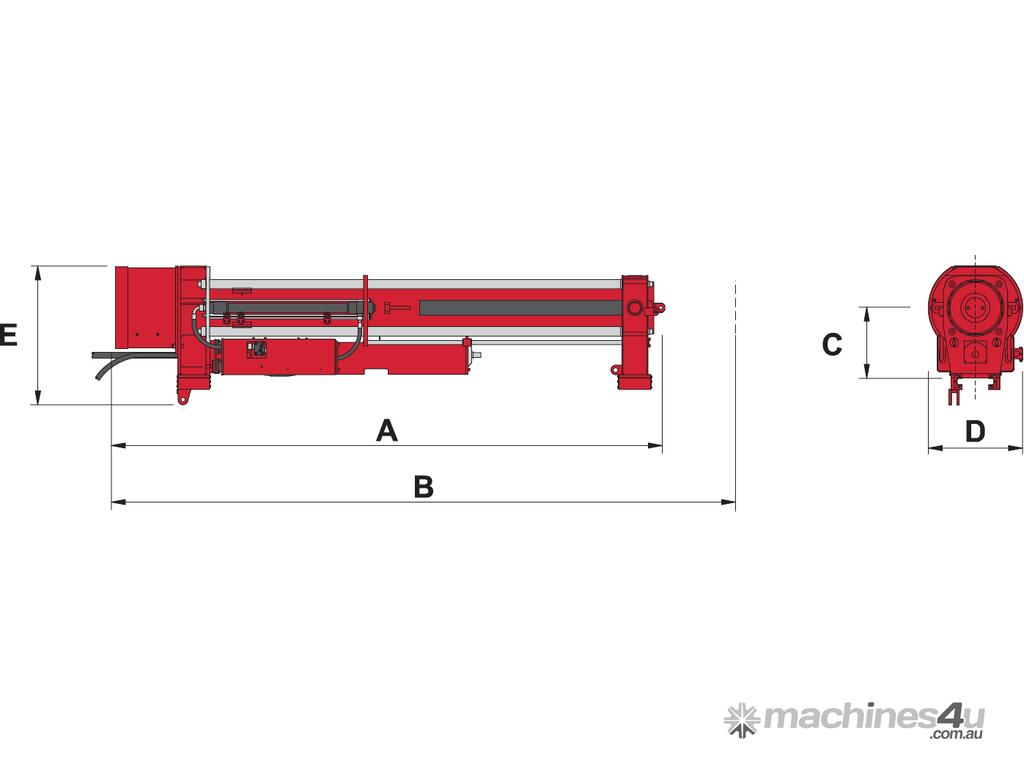

Dimensions:
Length :: 2,195 mm
Length :: 3,195 mm
Driving Axis :: 280 mm
Width :: 435 mm
Height :: 545 mm

Recommended Data for Excavators -
Min. Weight: 16 t
Pressure: 250 bar
Oil Flow: 40-75 l/min
Hydraulic Pressure (required) :: 30-50 kW
Electrical Power: 24 V DC

Pile Sizes - The information refers to average values. Depending on nature of ground upwards or downwards variations may occur.:

Timber Piles -
Diameter: 25 cm max.
Weight: 70 kg/m max.

Concrete Piles -
Diameter: 20 x 20 cm max.
Weight: 100 kg/m max.

Steel Tubes:
Diameter: 25 cm max.
Weight: 75 kg/m max.

Steel Beams:
Dimensions: 200 HEA max.
Weight: 75 kg/m max.

Sheet Piles -
Weight: 75 kg/m max.
Maximum Weight: 1200 kg
Standard Pile Cap:
Length :: 180 mm
Outer Diameter :: 345 mm
Inner Diameter 305 mm
Depth:: 120 mm
Weight: 56 kg



At GANZ International, we provide years of experience, we provide the international equipment markets with top-quality products and unparalleled after-sales support.

We excel in supplying and servicing the world's finest new and used foundation and piling equipment. Our expertise spans Heavy Foundations, Construction, Material Handling, and Agricultural Equipment, making us industry leaders in versatile and problem-solving machinery. At GANZ, we bring innovation and technical know-how to every project, ensuring adaptability and overcoming any challenge. Partnering with us means having a passionate, experienced team at your side.

Go to the Ganz showroom on Machines4u to see the rest of our machinery, send Ganz a message about the item you are interested in discussing, or give Ganz International a call, we are happy to answer any of your questions.

* CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION *
