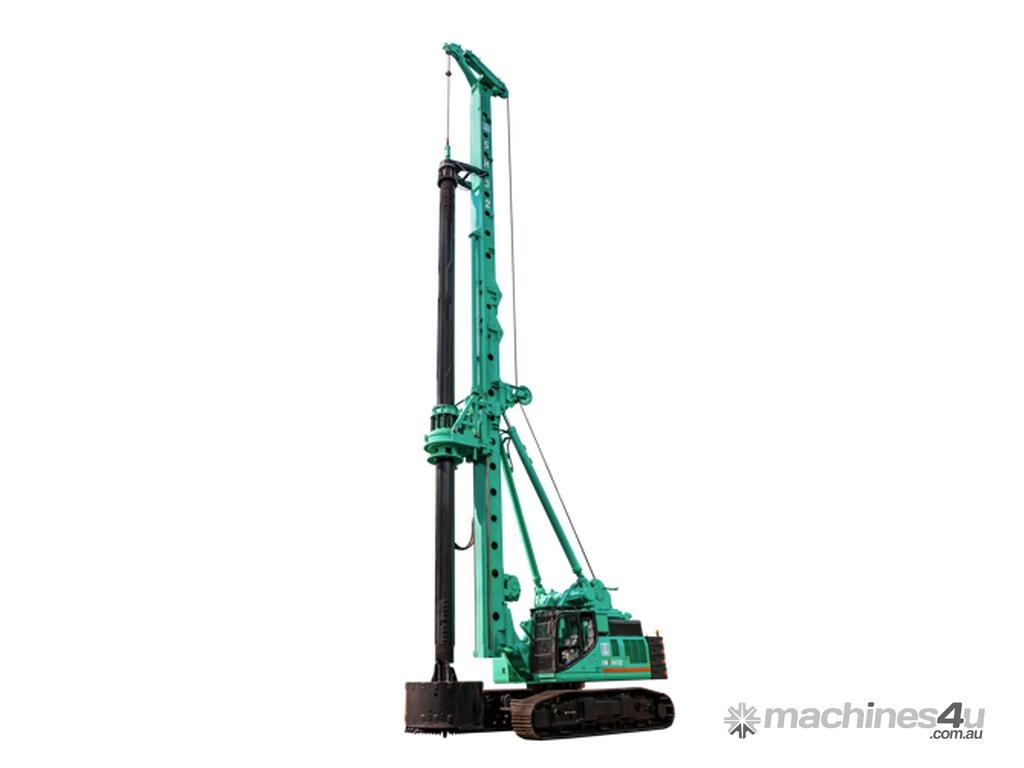

GANZ - Liugong SH32 Multi-Function Drilling Rig

The SH32 Multi-Function Drilling Rig, an upgrade from the renowned Jintai SH30, offers significant features and benefits. With its increased engine power, advanced hydraulic system, superb counterweight design, improved rock penetration, versatility, stability, operator comfort, reliability, durability, fuel efficiency, and reduced environmental impact, the SH32 stands as an ideal option for various drilling applications. Its cutting-edge features and LiuGong's commitment to quality ensure optimal performance and success in drilling operations.

FEATURES

UPGRADED ENGINE POWER
The SH32 features an upgraded engine that delivers increased power. This enhancement allows for improved drilling performance and efficiency, enabling the rig to handle a wider range of drilling applications, including those in challenging rock formations.

OPTIMUM COUNTERWEIGHT DESIGN
The SH32 has an optimally designed counterweight system that aids in maintaining balance during drill down and drill up operations. This improved counterweight design enables better penetration in rock formations, enhancing the rig's capability to handle challenging geological conditions.

STABILITY AND OPERATOR COMFORT

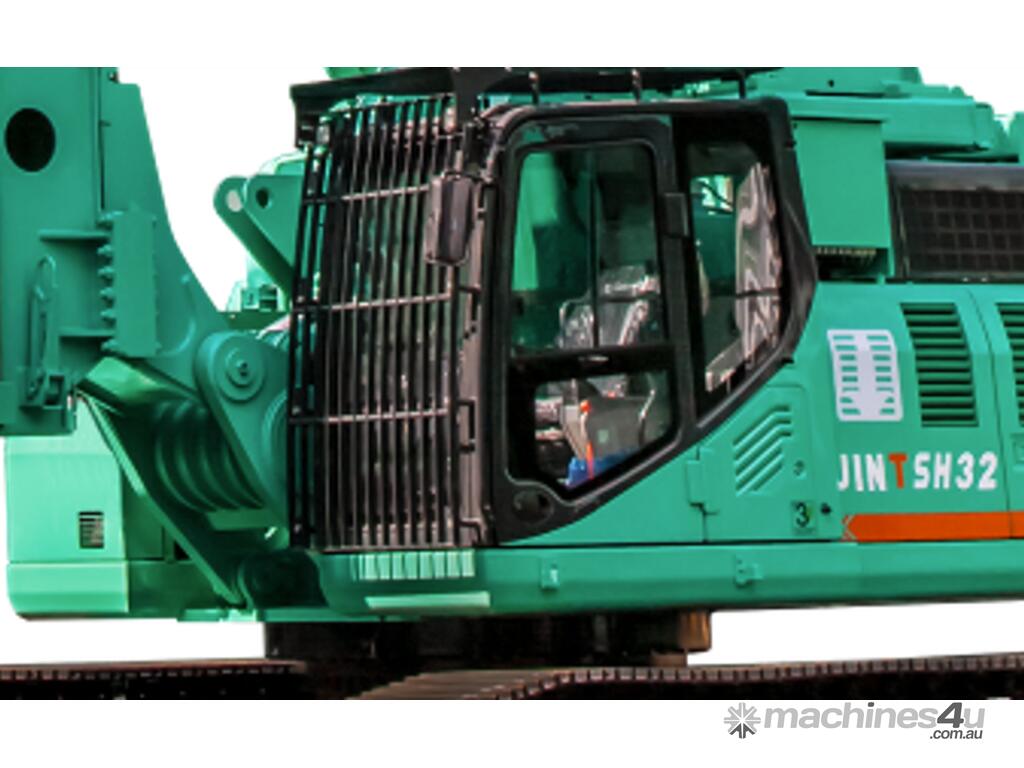

The SH32 prioritizes stability and operator comfort. It features a stable chassis design and a hydraulic leveling system that ensures stability even on uneven terrains. Additionally, the comfortable operator cabin provides a pleasant working environment for operators, minimizing fatigue during long hours of operation.

INCREASED PENETRATION IN ROCK FORMATIONS
The SH32's combination of upgraded engine power, advanced hydraulic system, and optimal counterweight design allows for improved penetration in rock formations. This feature is particularly beneficial for projects that require drilling in hard rock, such as mining or geotechnical drilling operations.

SPECIFICATIONS:

SH32

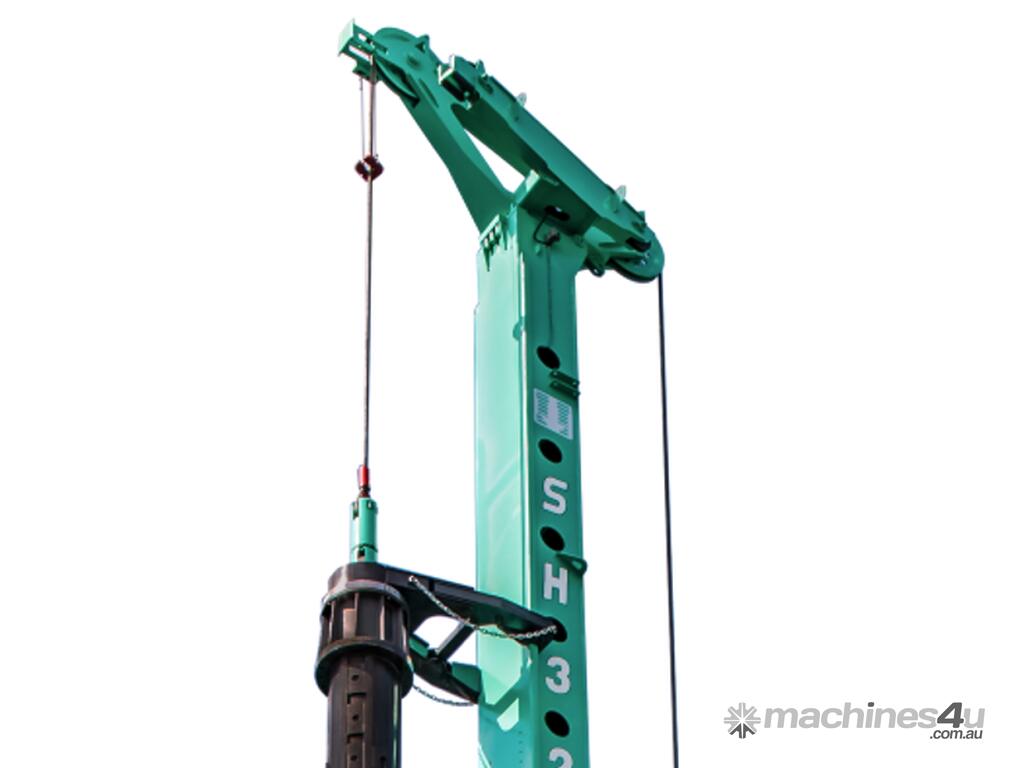

Mast height (mm) :24,340
Total weight without drill tools (kg) : 86,000
Upper undercarriage JS80
Diesel Engine :QSM11-Tier 3
Rated Power rating (kW/rpm) : 299/1900
Flow capacity of hydraulic system (L/min) :2×380+164
Hydraulic operating pressure (Mpa) : 33
Capacity of fuel tank(L) : 650
Capacity of hydraulic oil(L) : 420

Retractable undercarriage - JT85
Width of crawler shoe (mm) : 800
Length of crawler (mm) : 5,840
Width of crawler (retract/extend) : (mm) : 3400~4580
Traction force (kN) : 580
Travel speed (km/h) : 1.5

Rotary head -
Rotary torque (kNm) : 320
Rotation speed (rpm) : 6~30

Main winch -
Max. single line pull (kN) : 300
Wire rope diameter (mm) : 36
Max. hoisting speed (m/min) : 65

Aux. winch
Single line pull (kN) :75
Wire rope diameter (mm) : 18
Max. hoisting speed (m/min) :45

Crowd system cylinder type
Max. stroke (mm) : 5,700
Crowd force pull (kN) : 250
Crowd force push (kN) : 250
Crowd system pull down winch type (optional) :
Max. stroke (mm) : 10,000
Push force (kN) : 250
Pull force (kN) : 250

At GANZ International, we provide years of experience, we provide the international equipment markets with top-quality products and unparalleled after-sales support.

We excel in supplying and servicing the world's finest new and used foundation and piling equipment. Our expertise spans Heavy Foundations, Construction, Material Handling, and Agricultural Equipment, making us industry leaders in versatile and problem-solving machinery. At GANZ, we bring innovation and technical know-how to every project, ensuring adaptability and overcoming any challenge. Partnering with us means having a passionate, experienced team at your side.

Go to the Ganz showroom on Machines4u to see the rest of our machinery, send Ganz a message about the item you are interested in discussing, or give Ganz International a call, we are happy to answer any of your questions.

* CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION *
