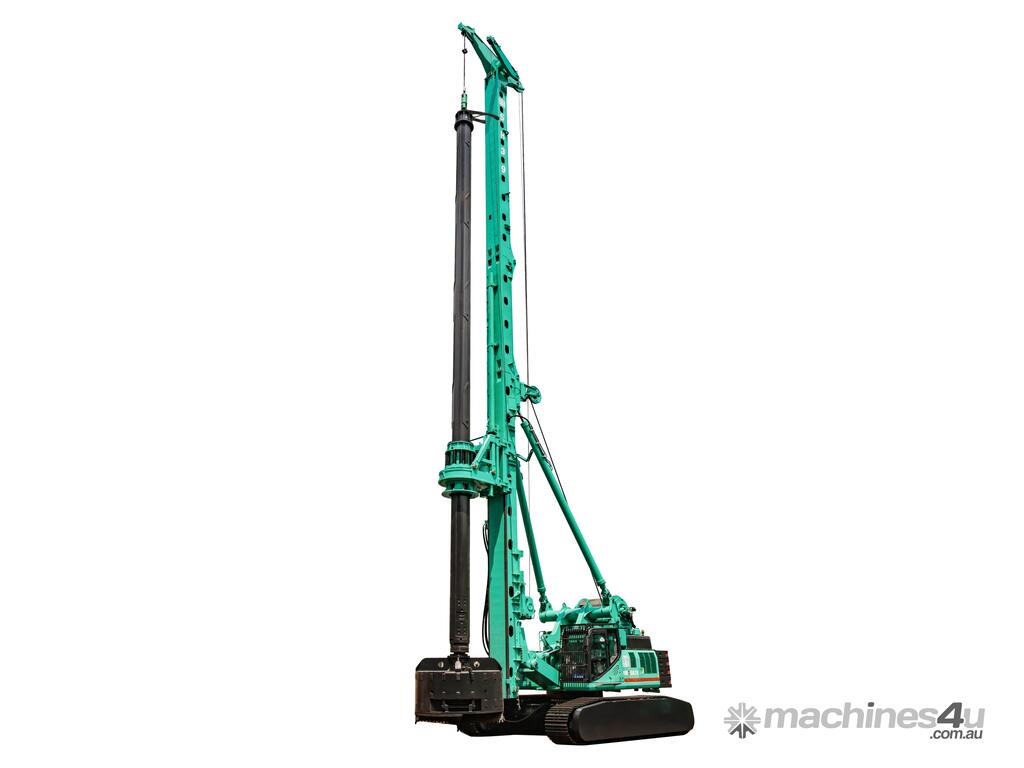

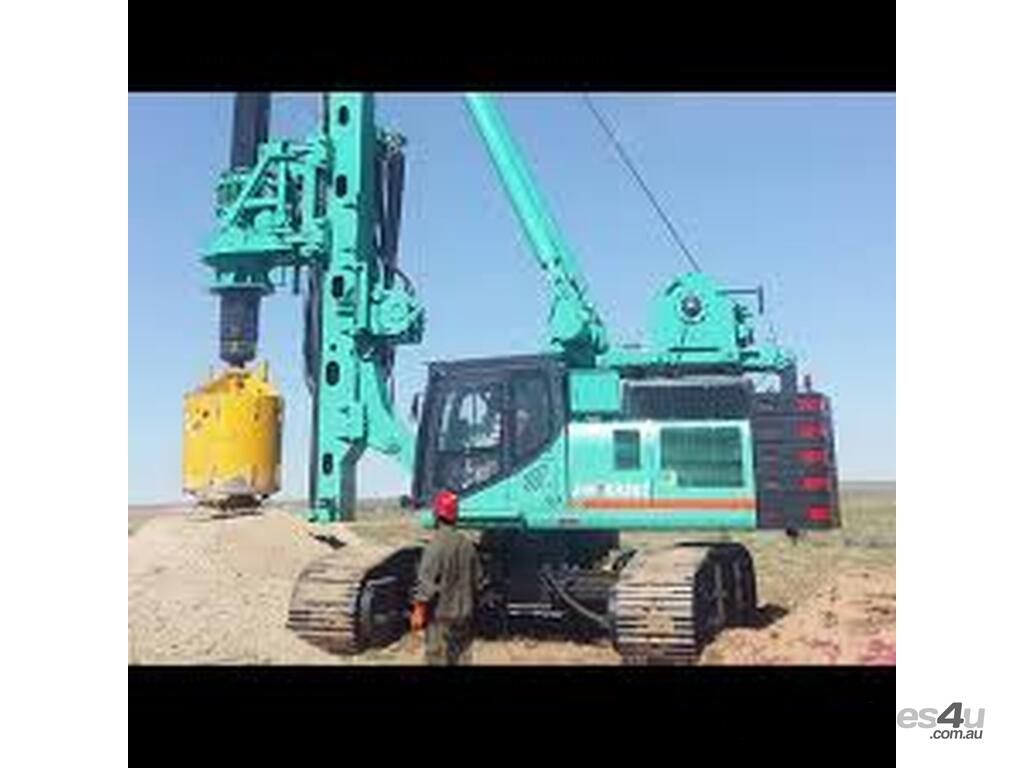

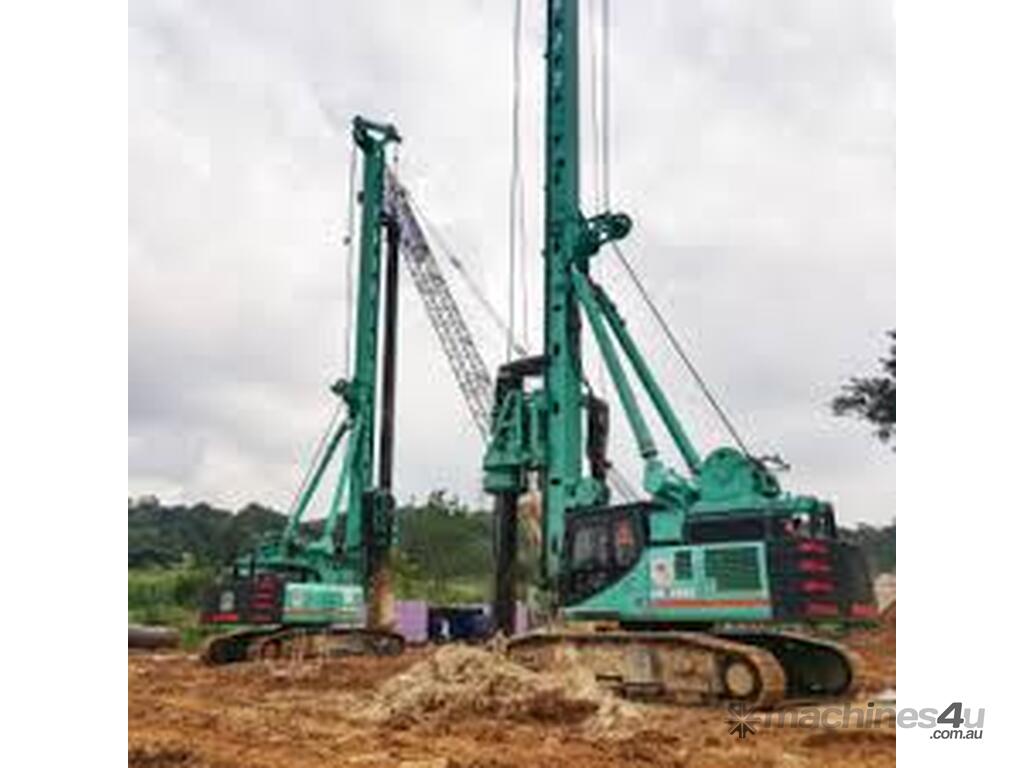

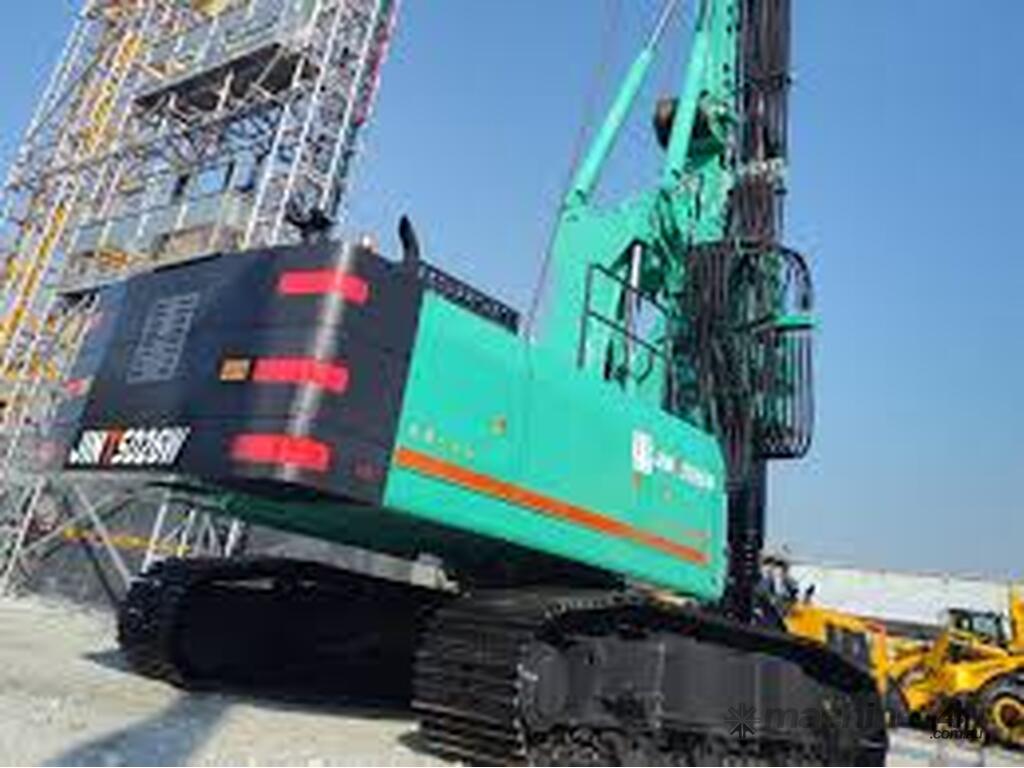

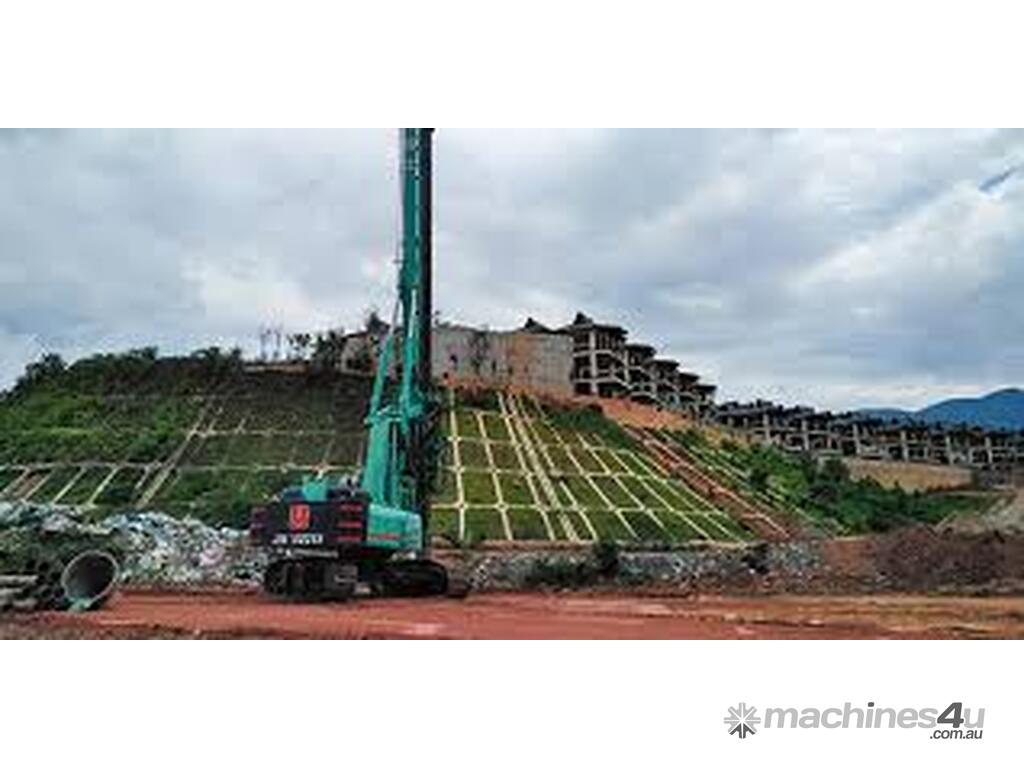

GANZ - Liugong SH39 Multi-Function Drilling Rig

LiuGong's SH39 Multi-Function Drilling Rig is a high-performance piling machine that combines a big triangle structure, advanced hydraulic system, increased output power, and a weighted undercarriage. With its large-capacity winch, advanced technology, and versatile functionality, the SH39 can effectively handle ultra-deep pile foundation construction and various challenging ground conditions. It provides operators with enhanced productivity, accuracy, and efficiency, ensuring successful and cost-effective project completion.

FEATURES

STABILITY, DURABILITY, AND STRENGTH
A big triangle structure provides stability, durability, and strength to support heavy-duty operations. This design ensures the rig's ability to handle complex piling tasks, including ultra-deep pile foundation construction.

INCREASED OUTPUT POWER
The SH39 is designed to increase its effective output power, allowing it to perform demanding piling tasks effectively. The enhanced power output enables the rig to tackle various soil conditions, stratum complexities, and project requirements.

WEIGHTED UNDERCARRIAGE & LARGE-CAPACITY SINGLE-LAYER WIRE ROPE MAIN WINCH
Weighted Undercarriage: The undercarriage of the SH39 is designed with increased weight, providing added stability and balance during operation. This weighted undercarriage enhances the rig's ability to maintain stability while performing deep pile foundation construction and other challenging tasks. The SH39 is equipped with a backward large-capacity single-layer wire rope main winch. This winch allows for efficient and effective lifting and lowering of heavy loads, contributing to the rig's high construction capability and versatility.

ADVANCED TECHNOLOGY & VERSATILE FUNCTIONALITY
The SH39 incorporates new technology and processes in modern hydraulic piling machinery. This integration ensures that the rig is equipped with advanced features and capabilities to address the evolving needs of the industry. It allows for efficient and optimized operations on construction sites. The SH39 is a multi-function drilling rig, offering versatility in various piling techniques and construction methods. It is capable of rotary drilling and can be adapted for different foundation construction applications, making it suitable for a wide range of projects.

SPECIFICATIONS:

SH39 Mast height (mm) :27,020
Total weight without drill tools (kg) : 115,000
Upper carrier JS80

Engine -CUMMINS QSM11-Tier3
Rated Power (kW/rpm) : 2991900
Hydraulic system flow (L/min) : 2×380+164
Hydraulic system pressure (Mpa) :33
Capacity of fuel tank (L) : 650
Capacity of hydraulic oil tank (L) : 420
Retractable undercarriage - JT90
Crawler shoes width (mm) : 800
Crawler length (mm) : 6,020
Crawler width(retract/extend) : (mm) : 3450~4600
Traction force (kN) : 650
Travel speed (km/h) : 1.5

Rotary head -
Rotary torque (kNm) : 390
Rotary speed (rpm) : 6~22

Main winch -
Max. single line pull (kN) : 450
Wire rope diameter (mm) : 40
Max. lifting speed (m/min) : 55

Auxiliary winch -
Single line pull (kN) : 75
Wire rope diameter (mm) : 18
Max. lifting speed (m/min) : 45

Crowd system -
Stroke (mm) : 6,000
Crowd force (kN) : 300
Pulling force (kN) : 300

At GANZ International, we provide years of experience, we provide the international equipment markets with top-quality products and unparalleled after-sales support.

We excel in supplying and servicing the world's finest new and used foundation and piling equipment. Our expertise spans Heavy Foundations, Construction, Material Handling, and Agricultural Equipment, making us industry leaders in versatile and problem-solving machinery. At GANZ, we bring innovation and technical know-how to every project, ensuring adaptability and overcoming any challenge. Partnering with us means having a passionate, experienced team at your side.

Go to the Ganz showroom on Machines4u to see the rest of our machinery, send Ganz a message about the item you are interested in discussing, or give Ganz International a call, we are happy to answer any of your questions.

* CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION *
