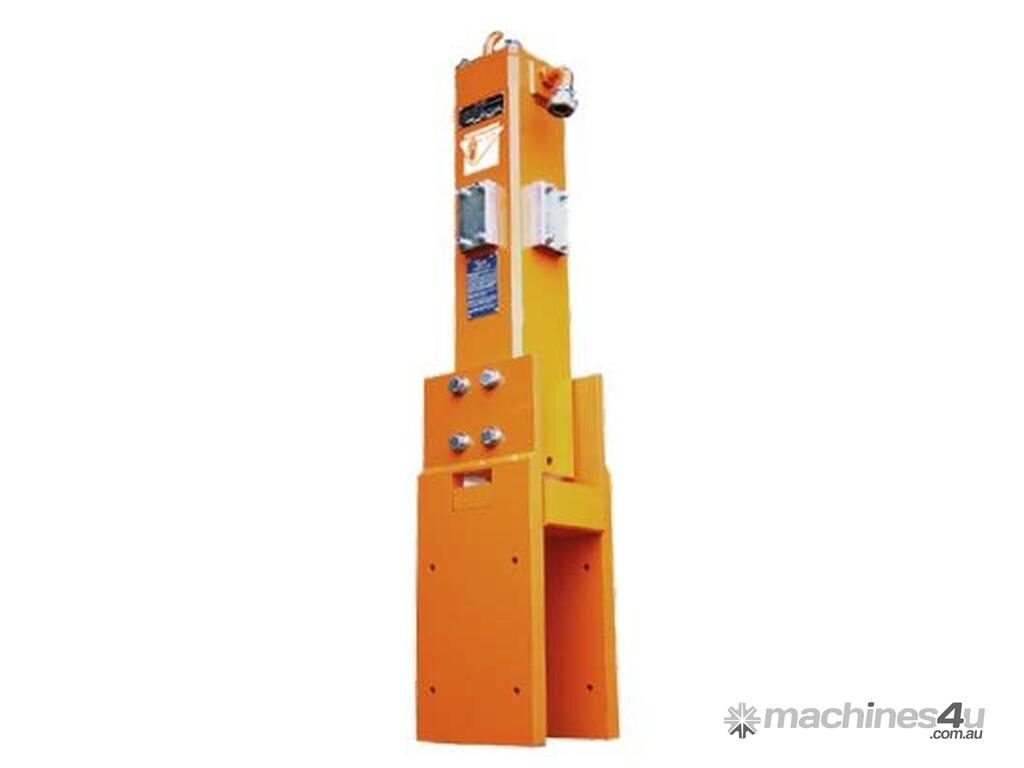

GANZ - Pajot 300 Air Pile Hammer

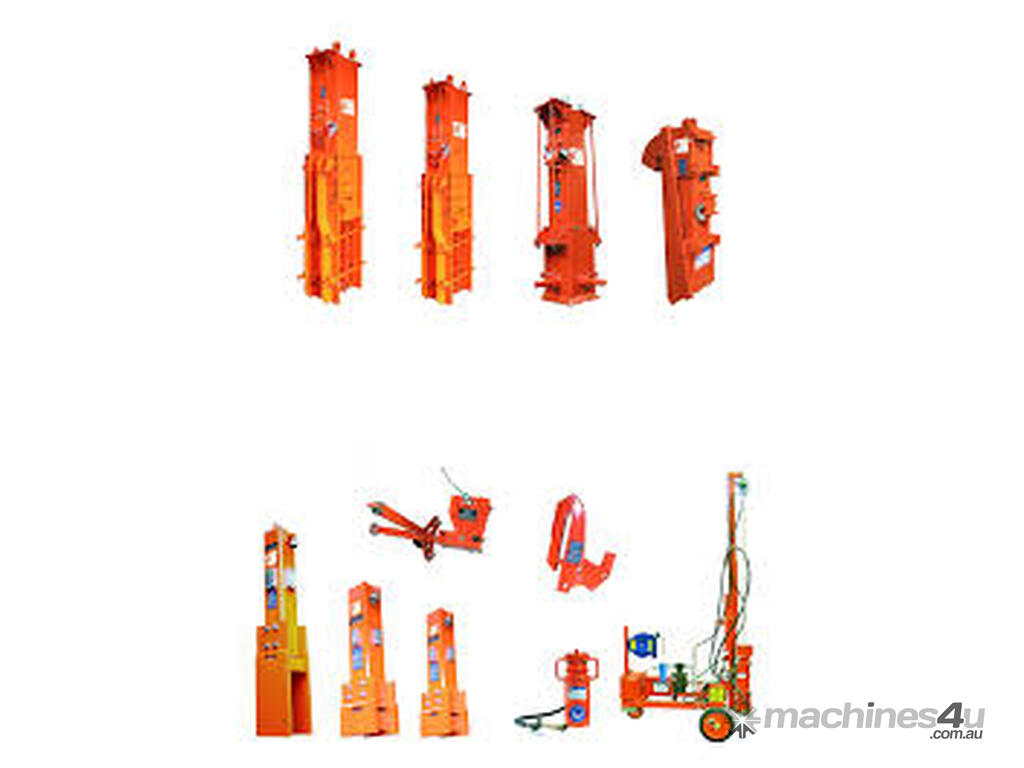

Our range of pneumatic pile drivers with power outputs of 20 to 2,334 kg.m provides the most cost-effective and easiest solution for driving profiles into sites with limited space.

Characteristics of the S.G.D.G. patented Automatic Impact Hammers use in pile driving (1) ::

Approx No. of blows per minute: 420
Approx compressed air flow m3./min: 3.5
Power in KGM/BLOW ( 7 bar) :: 110
Inner diameter of intake pipe: 25 mm
Approximate outer dimensions: 1.250 x0.175 x0.175 m

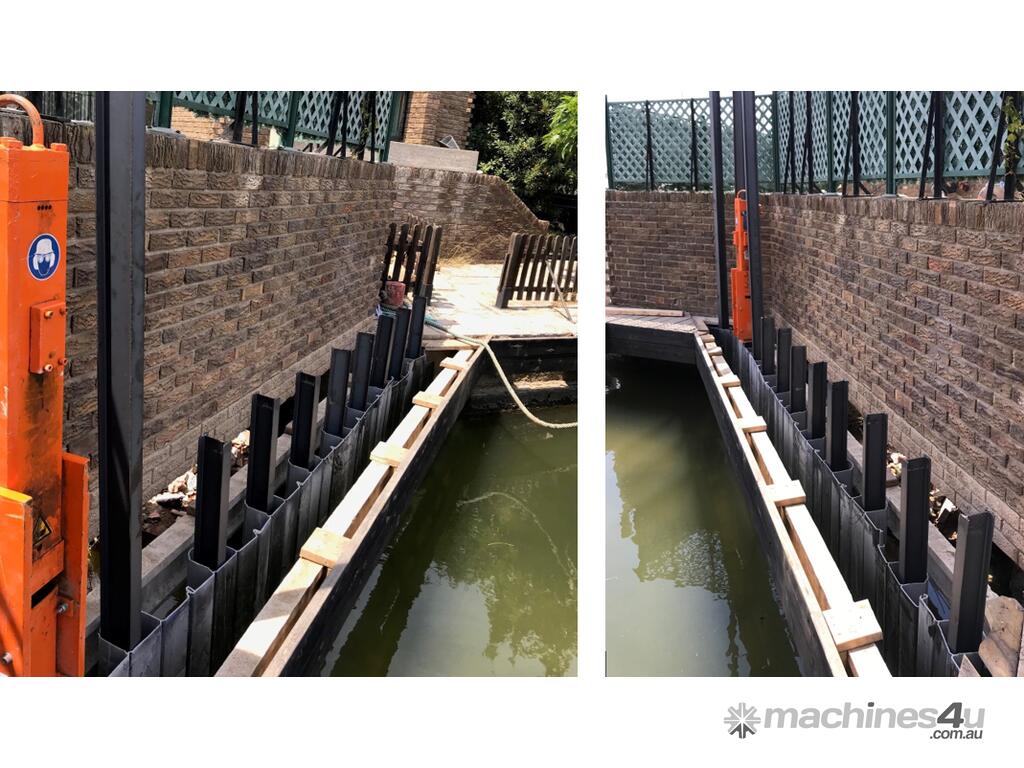

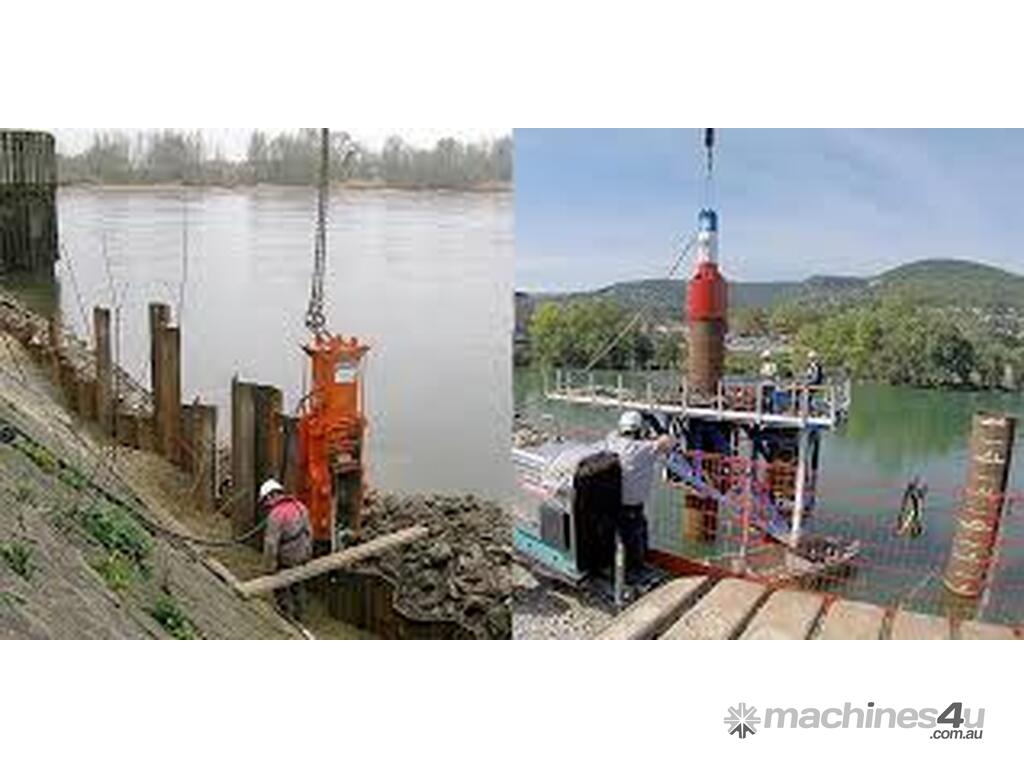

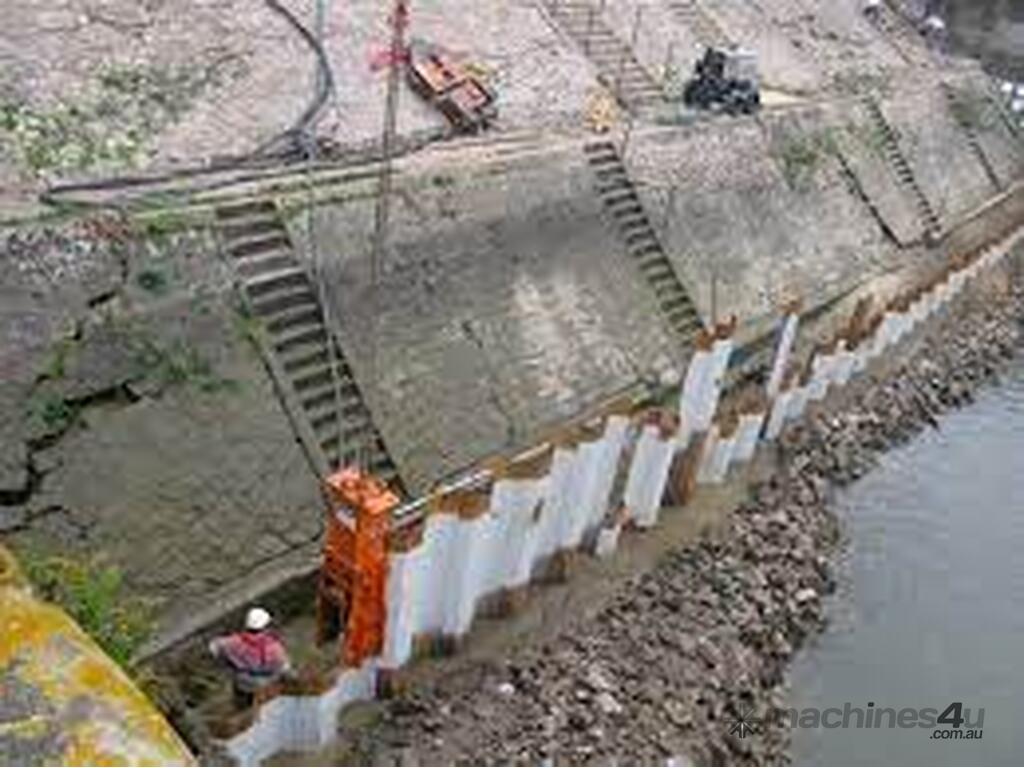

Pile driving work suitable for the PAJOT 300 impact Hammer (2) :: Metal Sheet Piles
Width: 300 to 400 mm
Pile height: 2 to 3 m

Square or round wooden piles -
Width: 100 x 200 mm planks
Pile height: 2 - 3 m

The figures have been calculated on the basis of a motor fluid pressure of 5.6 kg of pressure and are provided for information only
In soil with a medium consistency.



At GANZ International, we provide years of experience, we provide the international equipment markets with top-quality products and unparalleled after-sales support.

We excel in supplying and servicing the world's finest new and used foundation and piling equipment. Our expertise spans Heavy Foundations, Construction, Material Handling, and Agricultural Equipment, making us industry leaders in versatile and problem-solving machinery. At GANZ, we bring innovation and technical know-how to every project, ensuring adaptability and overcoming any challenge. Partnering with us means having a passionate, experienced team at your side.

Go to the Ganz showroom on Machines4u to see the rest of our machinery, send Ganz a message about the item you are interested in discussing, or give Ganz International a call, we are happy to answer any of your questions.

* CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION *
