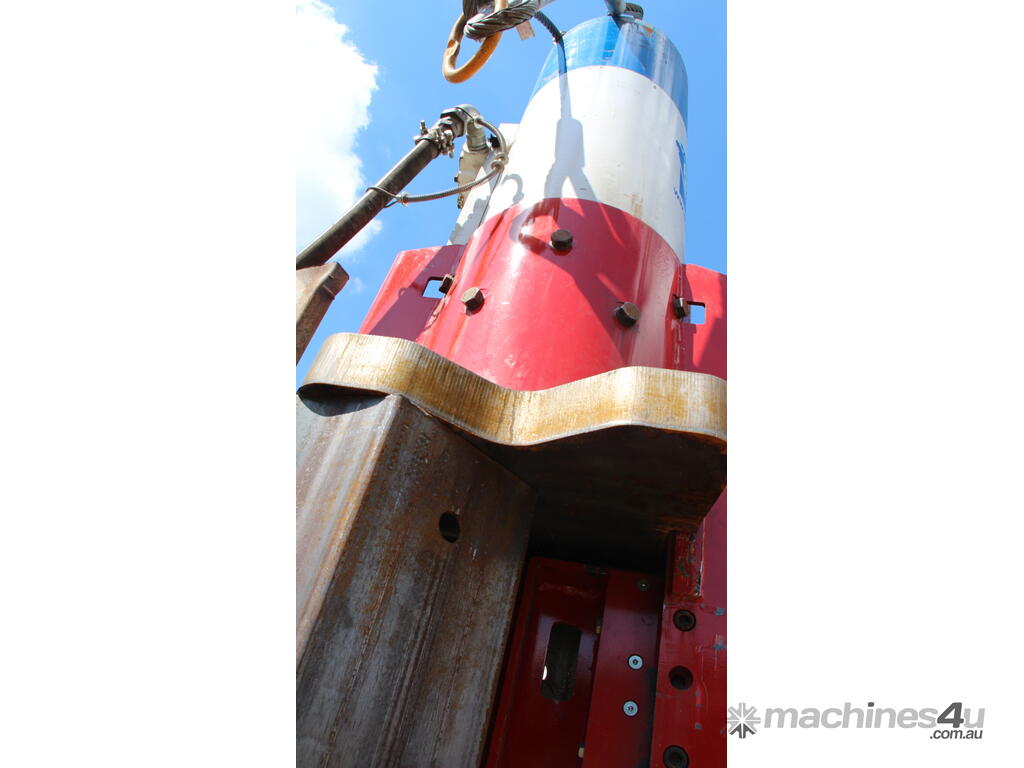

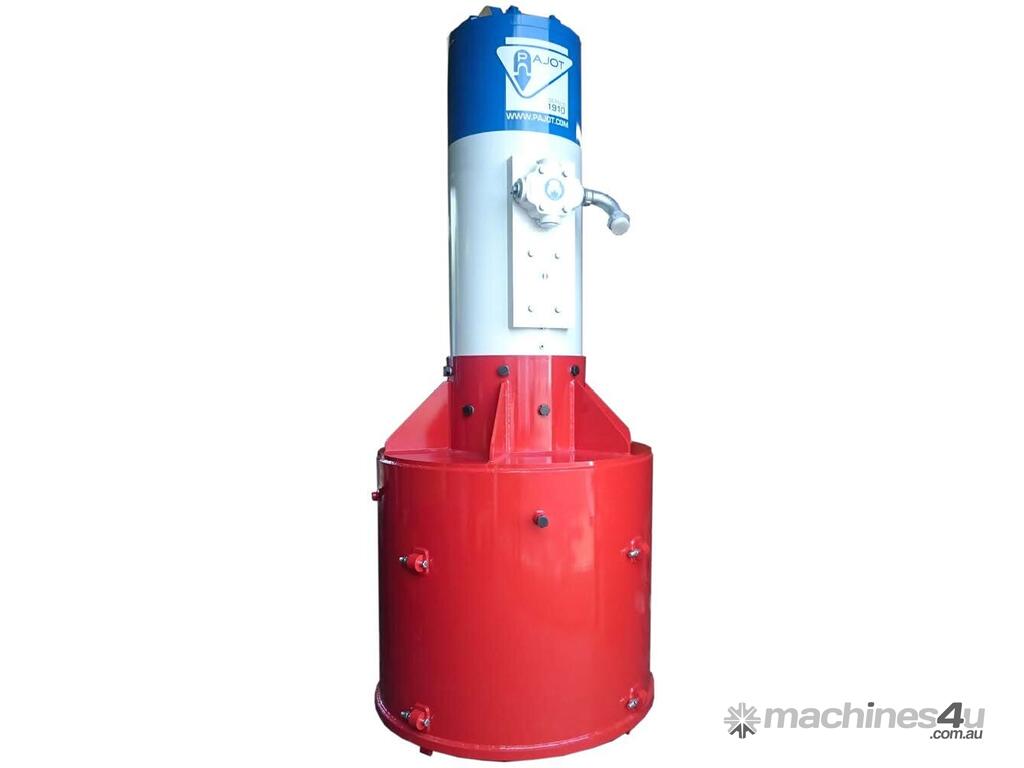

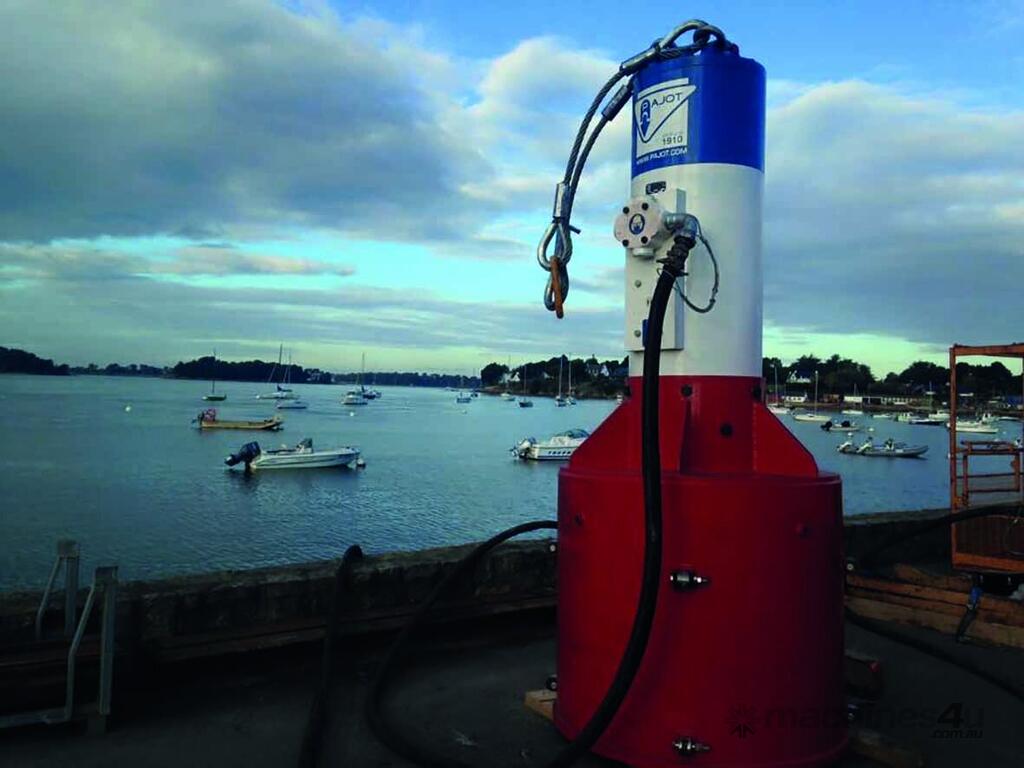

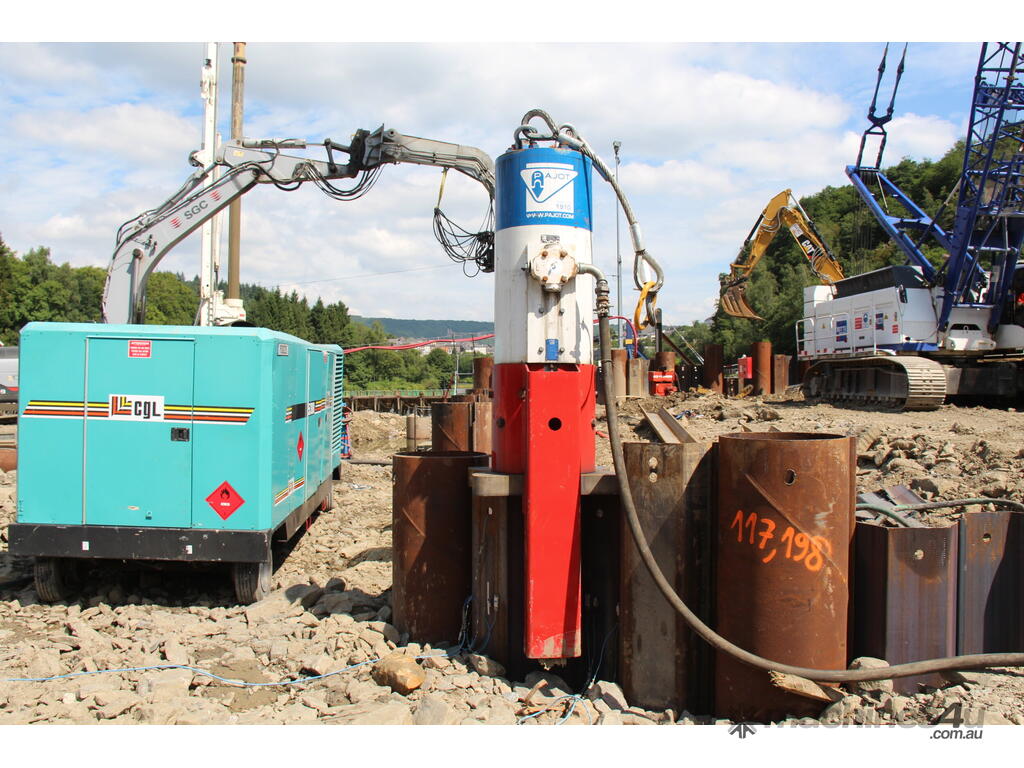

GANZ - Pajot 4200 C Cylindrical Hammer

The cylindrical design of these impact hammers not only gives them great strength, it also makes them easier to maintain and use. The power delivery of these pneumatic hammers has also been improved by the new design.

Advantages of the new pile drivers:
Eliminates the risk of breaking the pullers and retaining clamps
Reduced labor and difficulty during installation
Reduced number of parts / consumables
Easier and faster breakdown diagnostics
Stronger assembly needing less daily maintenance
Simplified guide system that can easily be adapted to fit all profile types (tube, H, single or pairs of sheet piles, etc.) :
Reduced manufacture lead times

Characteristics of the S.G.D.G. patented 4200 C Automatic Impact Hammer used in pile driving

Approx. No. of blows per minute: 140
Approx compressed air flow m3./min: 33
Power in KGM/BLOW ( 7 bar) :: 3600
Inner diameter of intake pipe: 50 mm

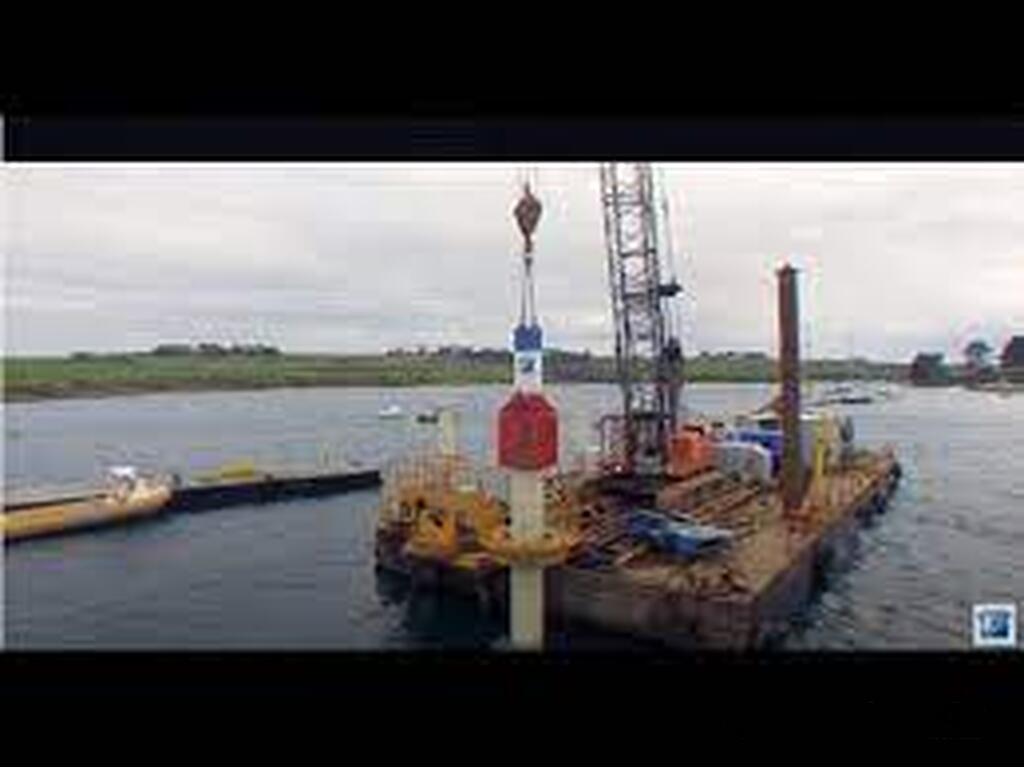

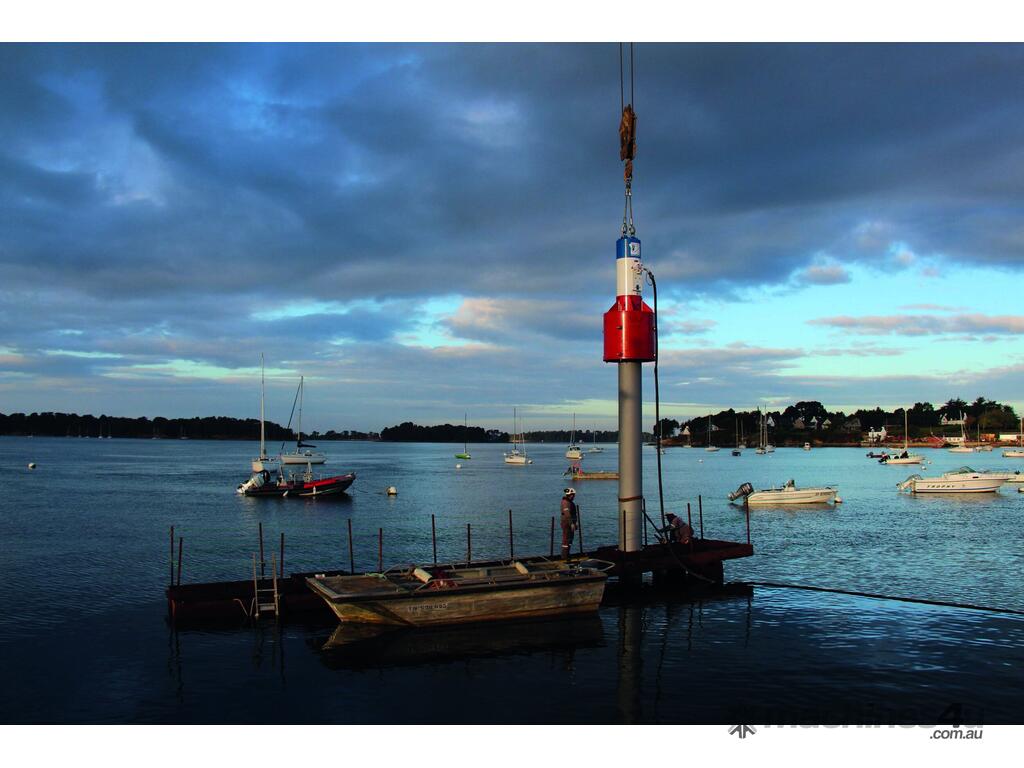

Pile driving work suitable for PAJOT 4200 C Impact Hammers

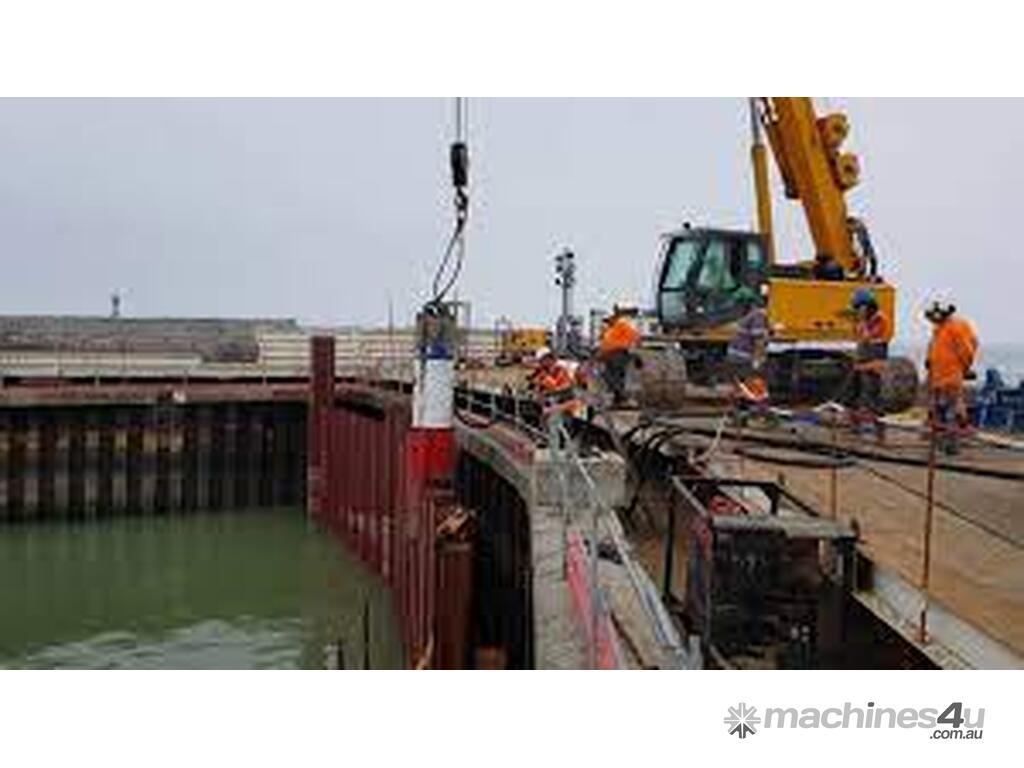

Metal Sheet Piles -
Width: Pair
Pile Height: 20 m

Square or round wooden piles -
Width: 1220 mm
Pile Height: 20 m

Reinforced concrete piles -
Width: 400 x 400 mm
Pile height: 20 m.


At GANZ International, we provide years of experience, we provide the international equipment markets with top-quality products and unparalleled after-sales support.

We excel in supplying and servicing the world's finest new and used foundation and piling equipment. Our expertise spans Heavy Foundations, Construction, Material Handling, and Agricultural Equipment, making us industry leaders in versatile and problem-solving machinery. At GANZ, we bring innovation and technical know-how to every project, ensuring adaptability and overcoming any challenge. Partnering with us means having a passionate, experienced team at your side.

Go to the Ganz showroom on Machines4u to see the rest of our machinery, send Ganz a message about the item you are interested in discussing, or give Ganz International a call, we are happy to answer any of your questions.

* CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION *
