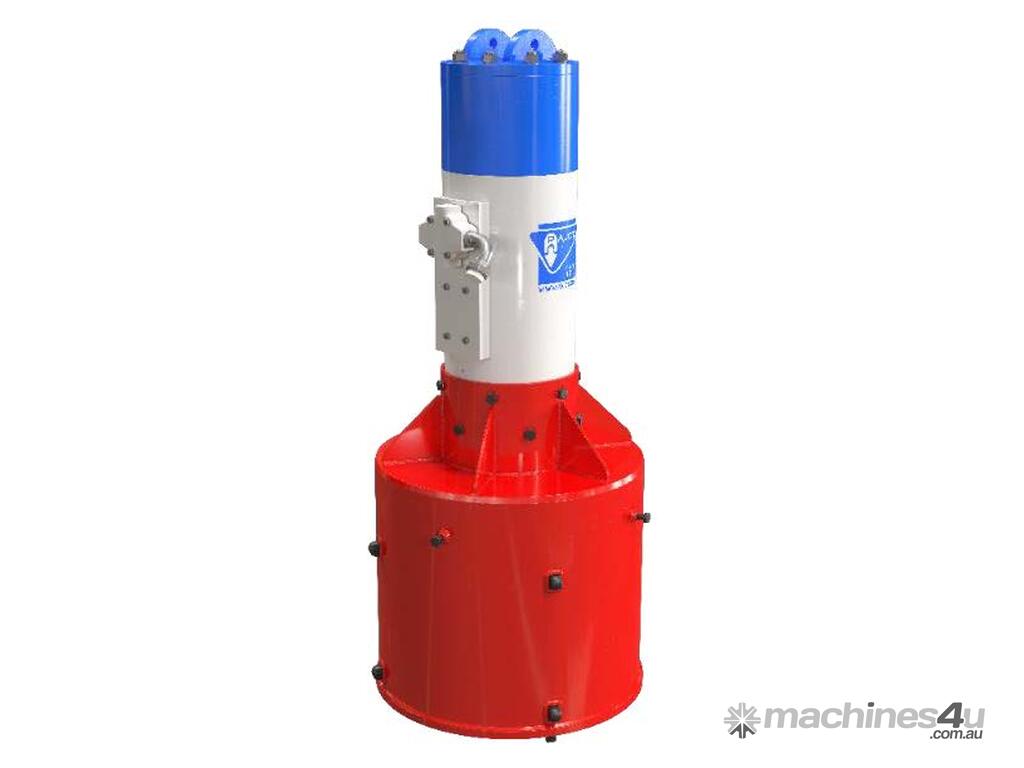

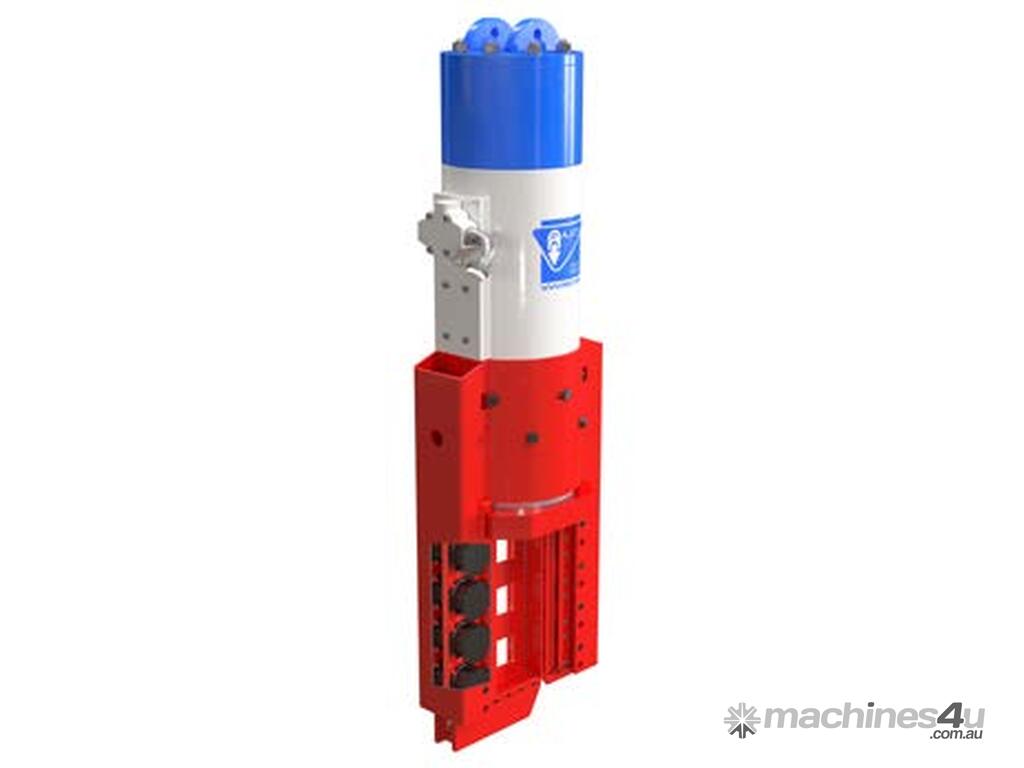

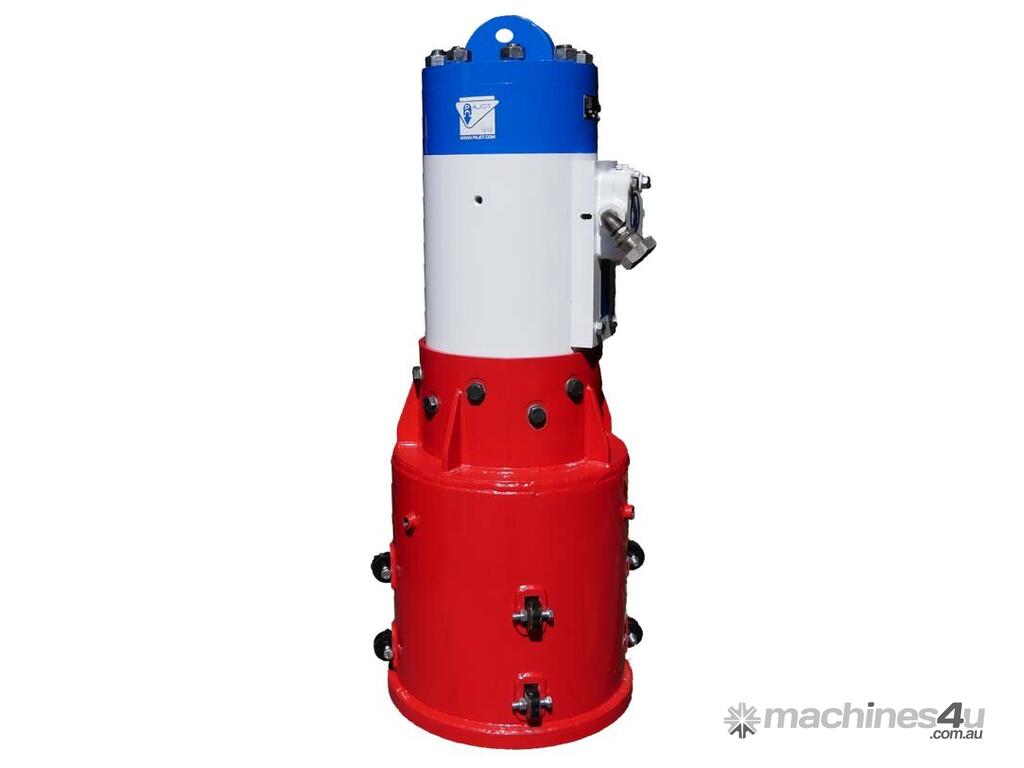

GANZ - Pajot 800 C Cylindrical Hammer

The cylindrical design of these impact hammers not only gives them great strength, it also makes them easier to maintain and use. The power delivery of these pneumatic hammers has also been improved by the new design.

Advantages of the new pile drivers:

Eliminates the risk of breaking the pullers and retaining clamps
Reduced labor and difficulty during installation
Reduced number of parts / consumables
Easier and faster breakdown diagnostics
Stronger assembly needing less daily maintenance

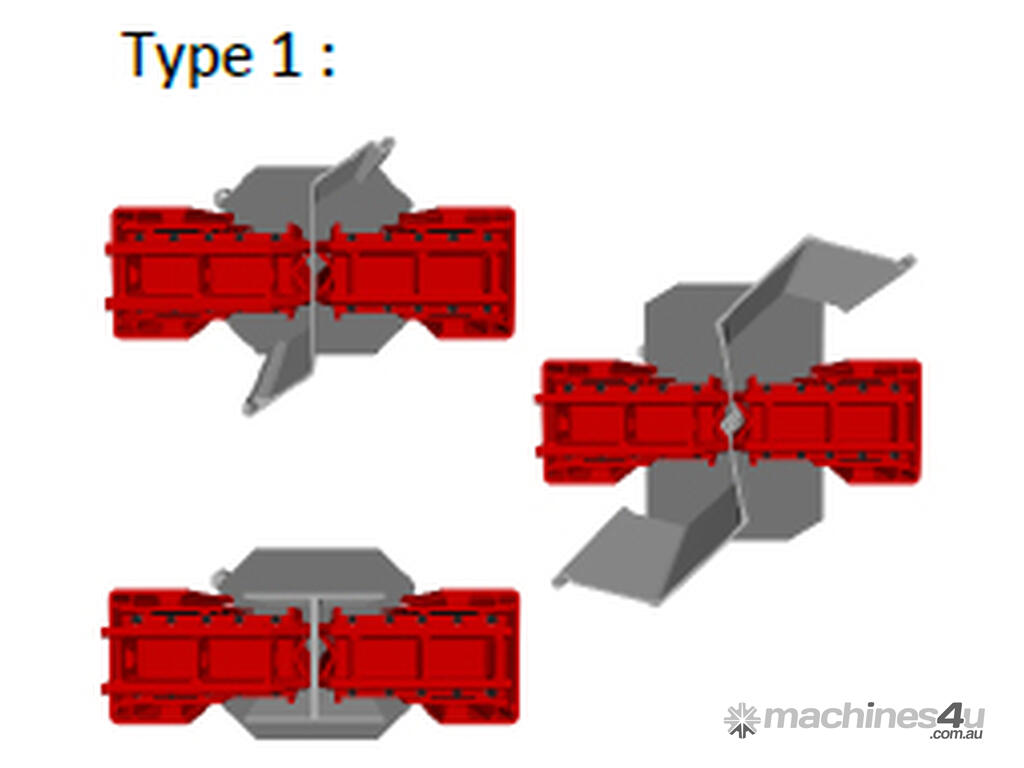

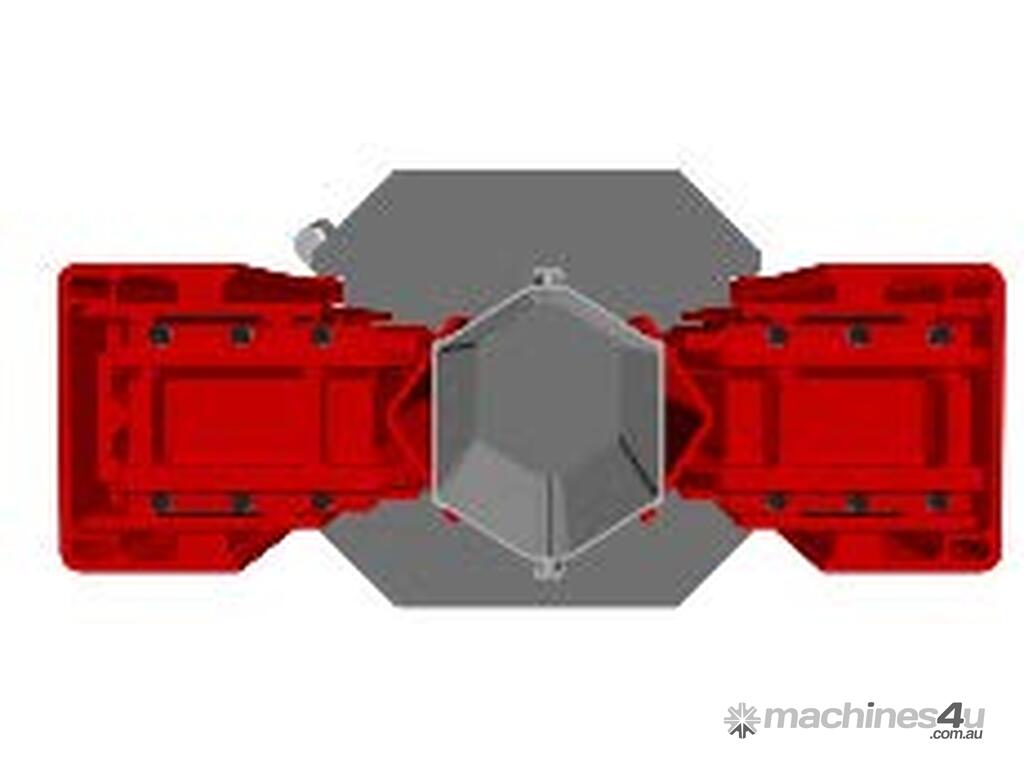

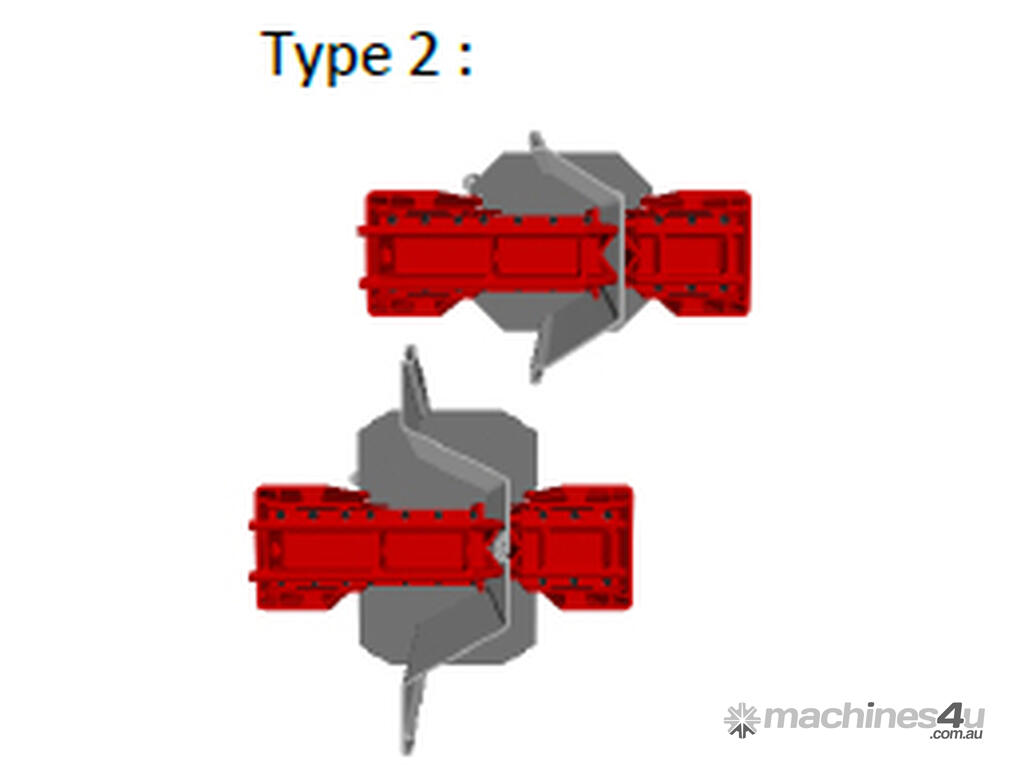

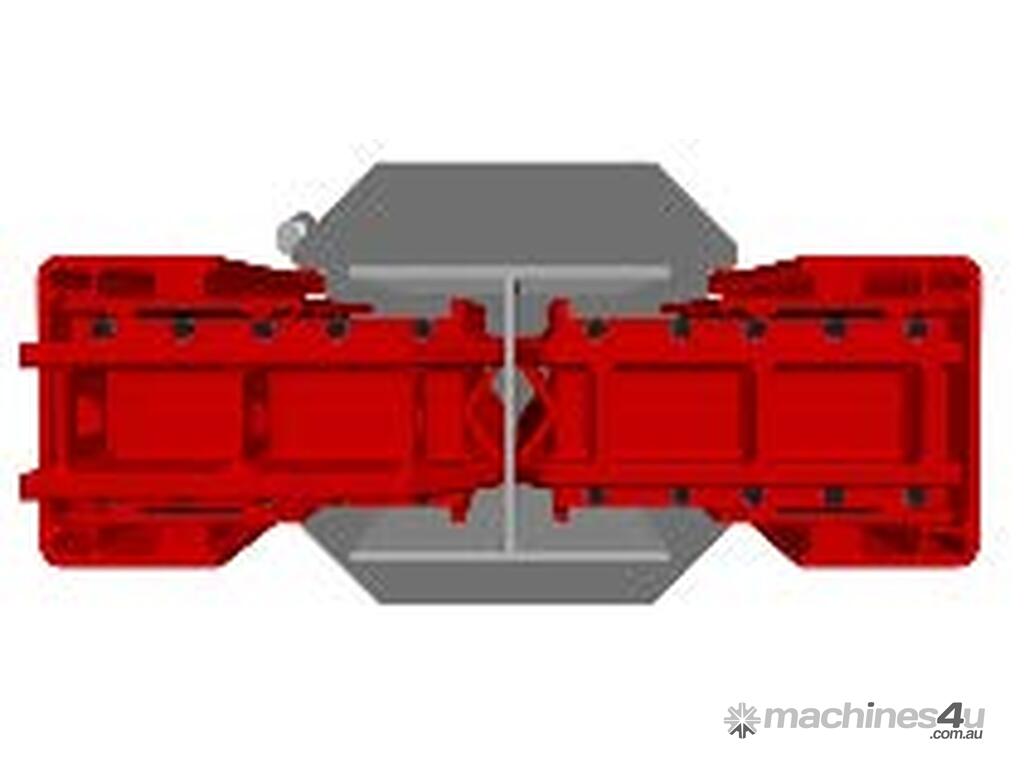

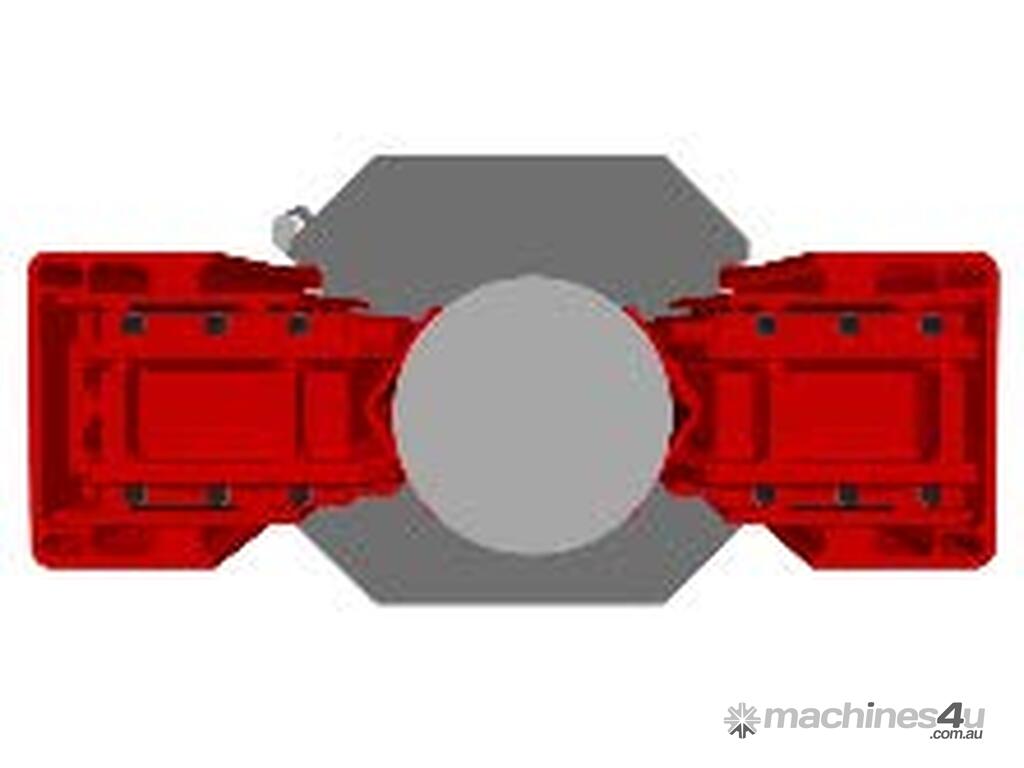

Simplified guide system that can easily be adapted to fit all profile types (tube, H, single or pairs of sheet piles, etc.) :
Reduced manufacture lead times

Characteristics of the S.G.D.G. patented 800 C Automatic Impact Hammer used in pile driving ::
Approx. No. of blows per minute: 240
Approx compressed air flow m3./min: 9
Power in KGM/BLOW ( 7 bar) :: 455

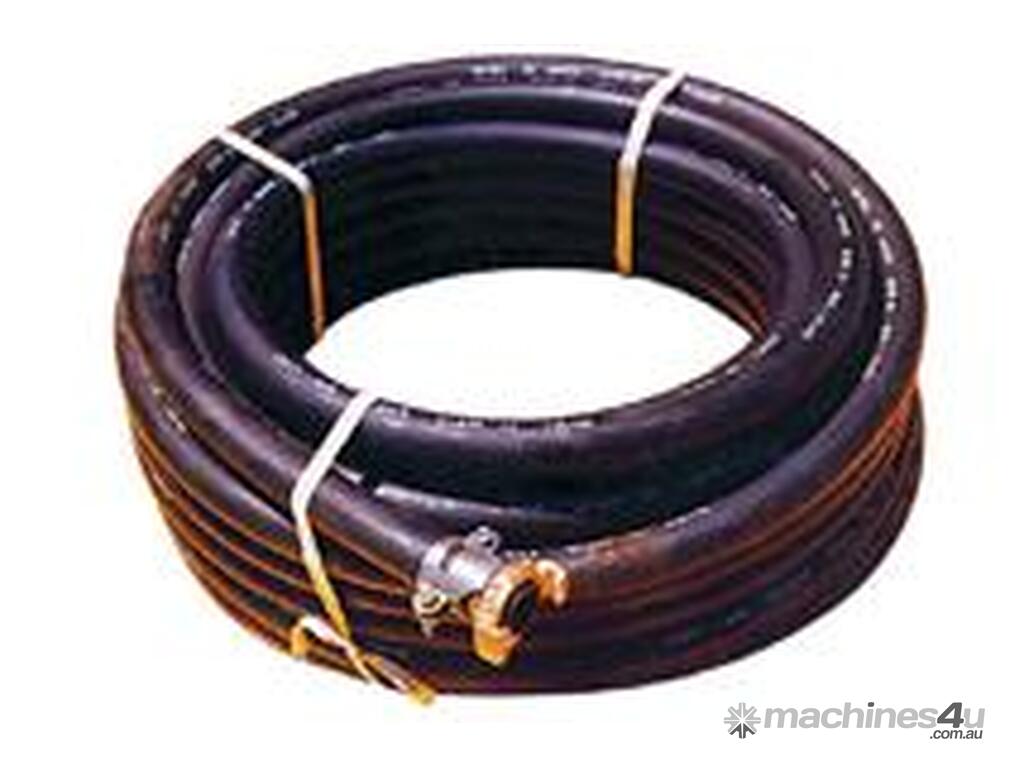

Inner diameter of intake pipe: 40 mm

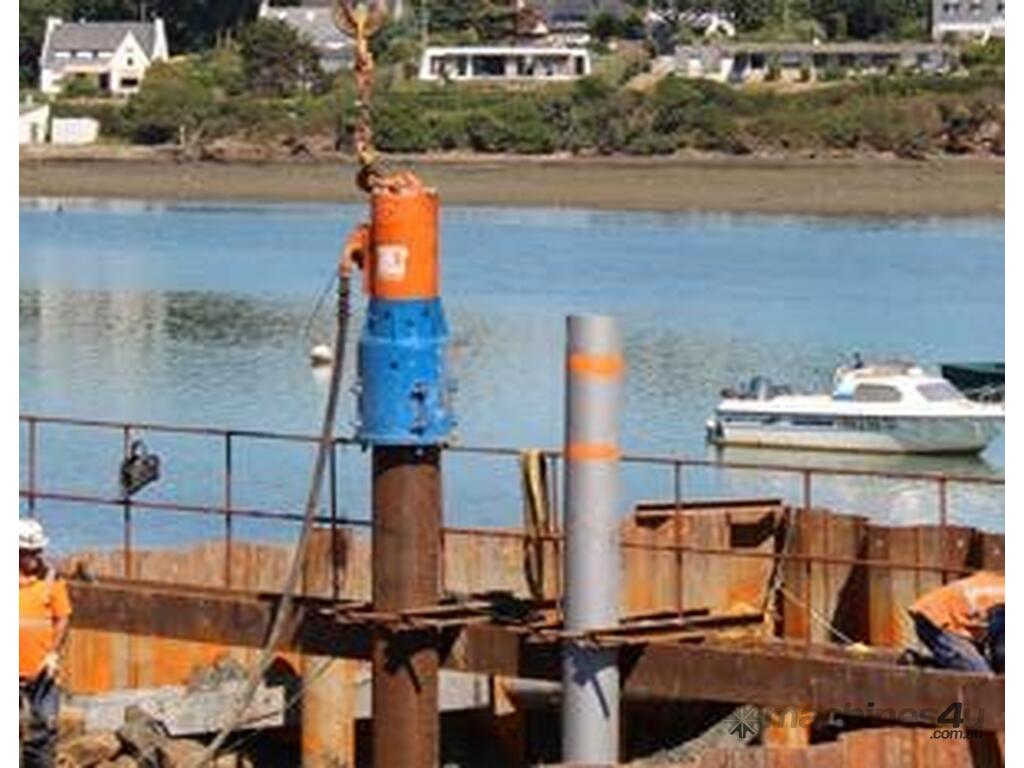

Pile driving work suitable for PAJOT 800 C Impact Hammers

Metal Sheet Piles -
Width: 300 to 600 mm
Pile Height: 6 to 8 m

Square or round wooden piles -
Width: 440 mm
Pile Height: 4 to 8 m

Reinforced concrete piles -
Width: 200 x 200 mm
Pile height: 4 to 6 m.
