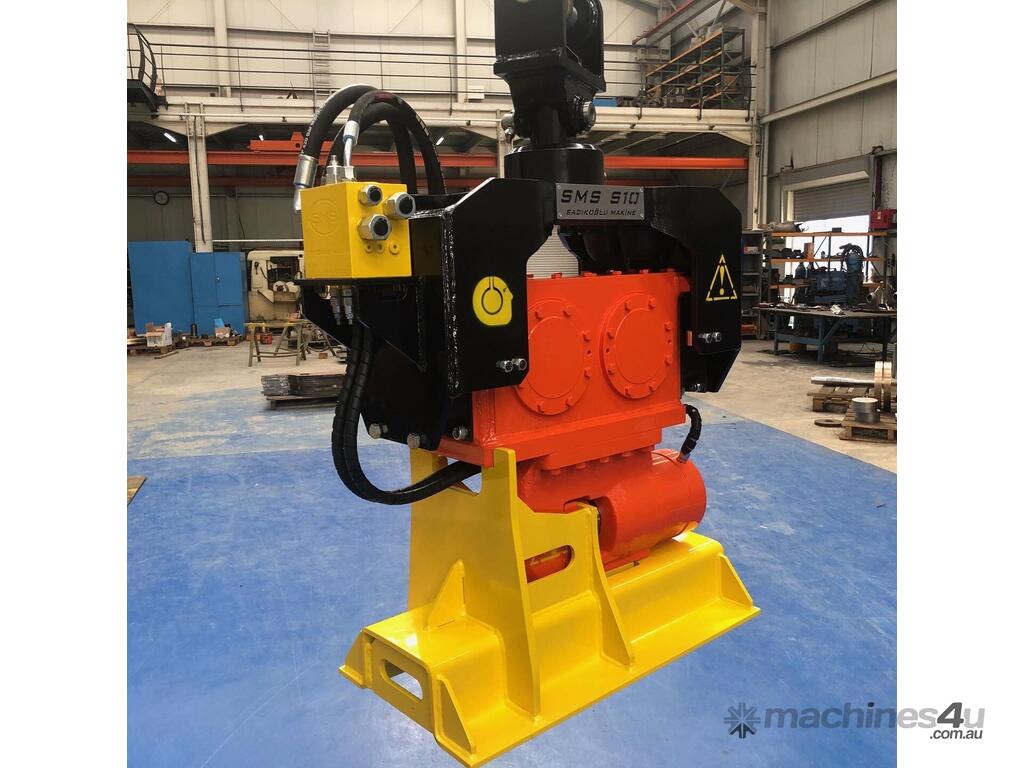

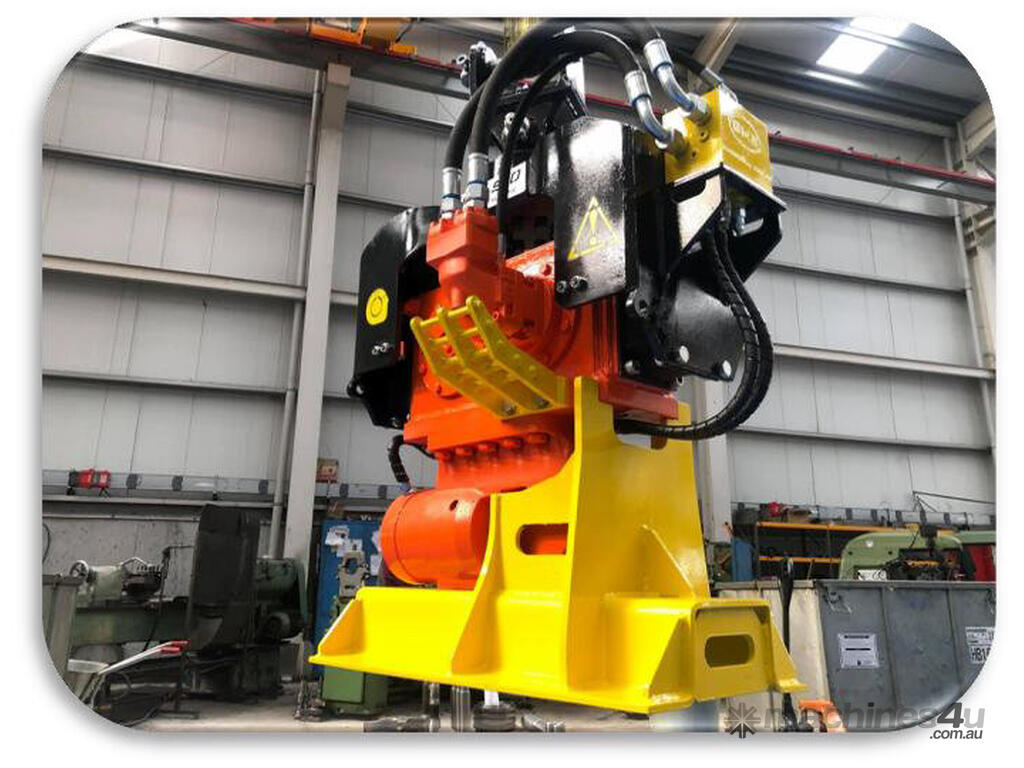

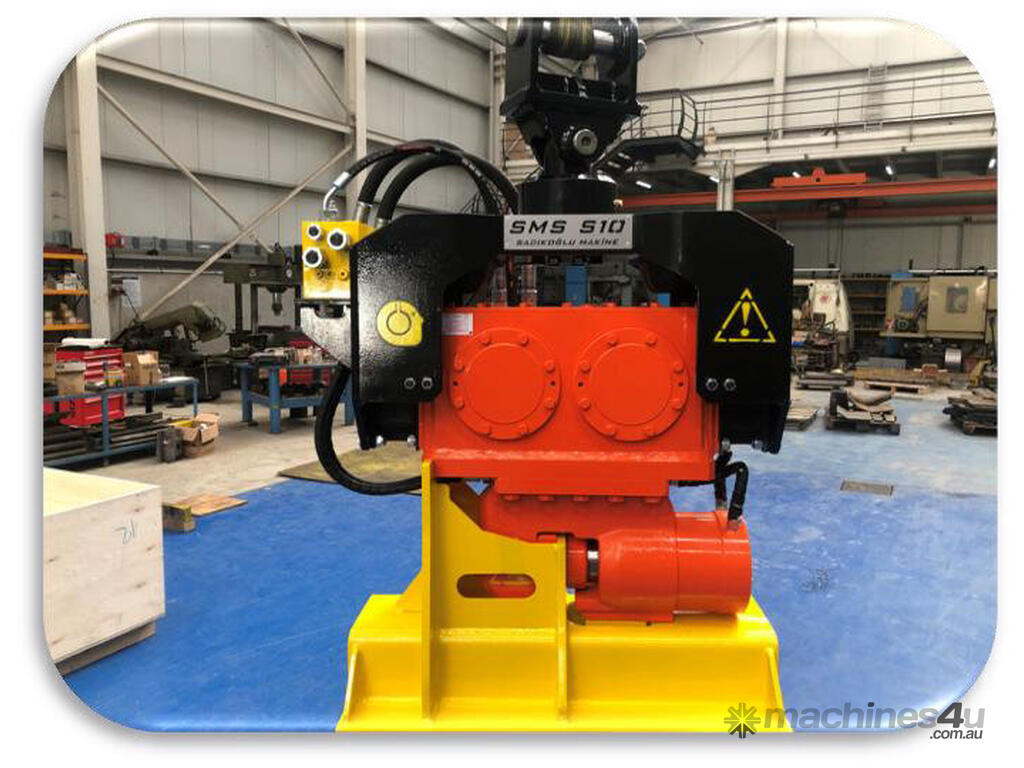

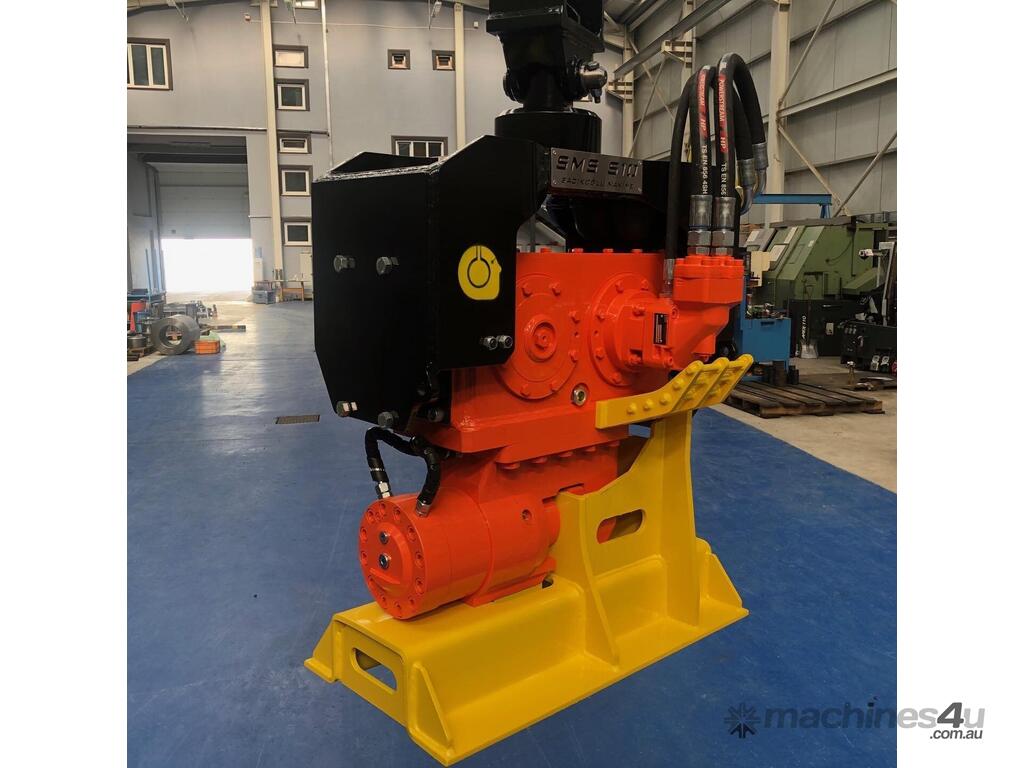

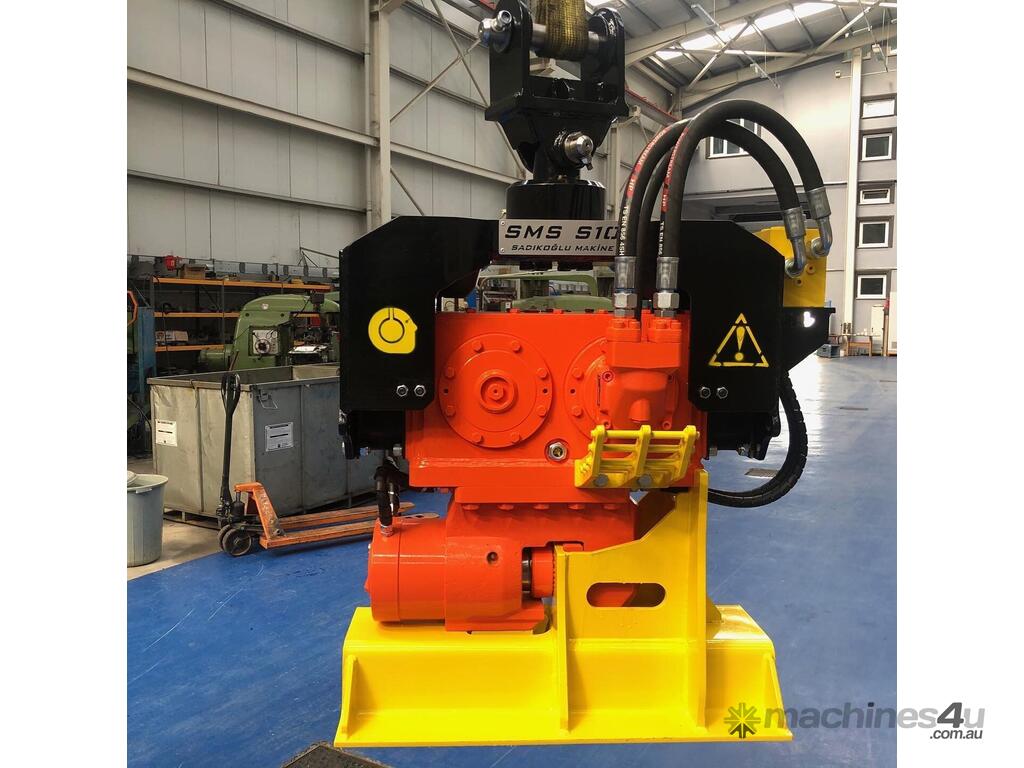

GANZ - SMS S-10 Lower Grip Mounted Vibratory Hammer

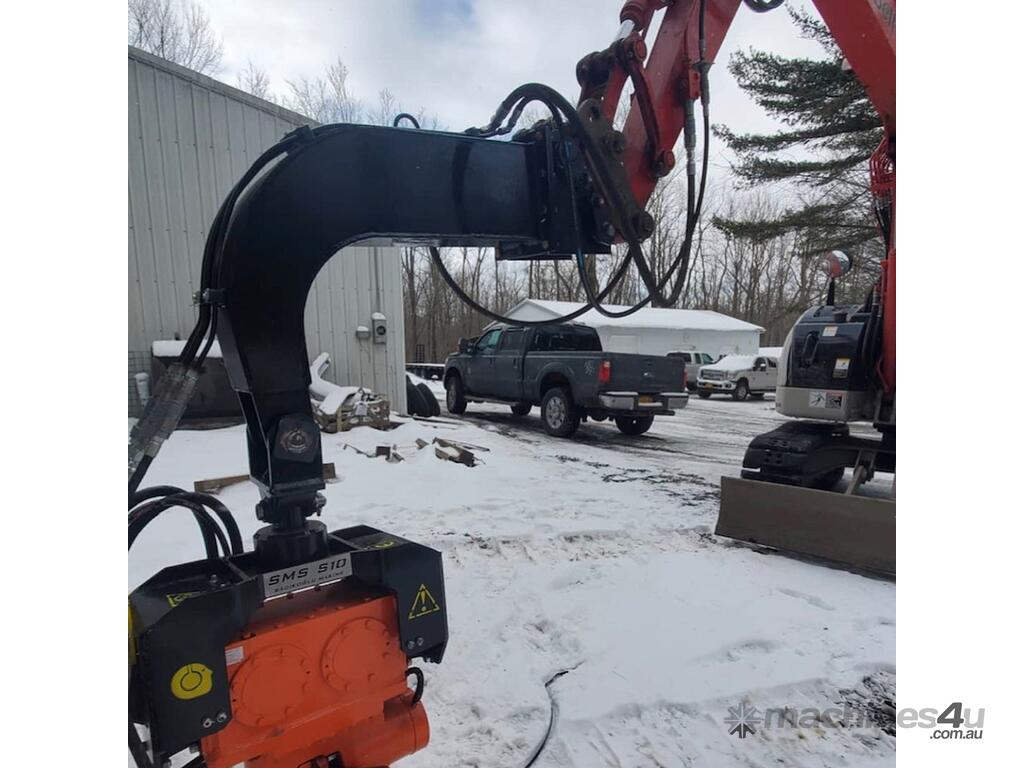

SMS vibratory hammer launched one of the smallest excavator mounted vibratory hammers in world. The SMS S-10 model Mini Vibro hammer is very unique and special for small size pile driving applications. Suitable for 4-10 ton class mini excavators, backhoe loaders and mini loaders.
The SMS S-10 is a unique solution for the contractors who drives short piles from barges or towpaths alongside rivers and canals.
SMS S-10 is the best suiting model for your small size H-Beam, PVC Vinyl Sheet piles, High Way Barriers, Solar Farm Profile driving projects.
Because of its small dimensions, SMS S-10 is perfect to be used in tight and covered areas.

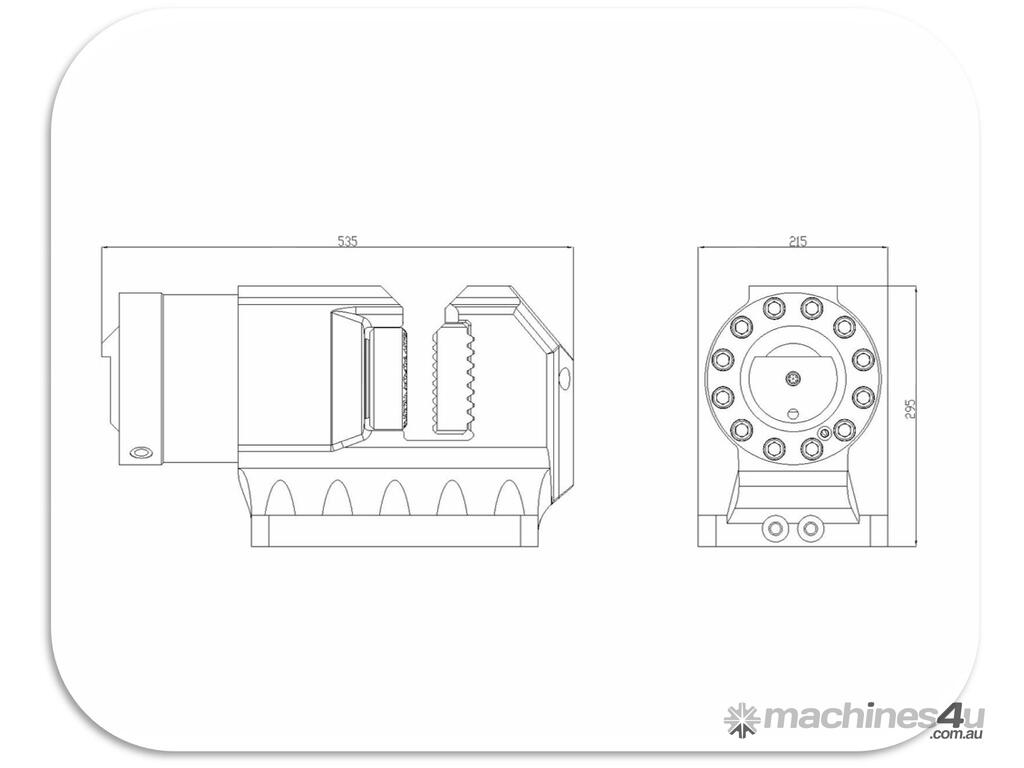

With its high strength clamp you can have maximum grip without damaging plastic and light weight sheet piles, profiles.

Max. Clamping Force ( Kn ) : 360
Max. Clamping Pressure ( bar ) : 300
Clamp Weight ( kg ) : 125
Eccentric Moment (Kgm) : 0.7
Centrifugal Force (kN) : 90
Speed (d/d) : Max. 3000
Max. Pulling Force (kN) : 36 Max.
Pushing Force (kN) : 34
Dynamic Weight (kg) : (with clamp) : 350
Weight (kg) : 510

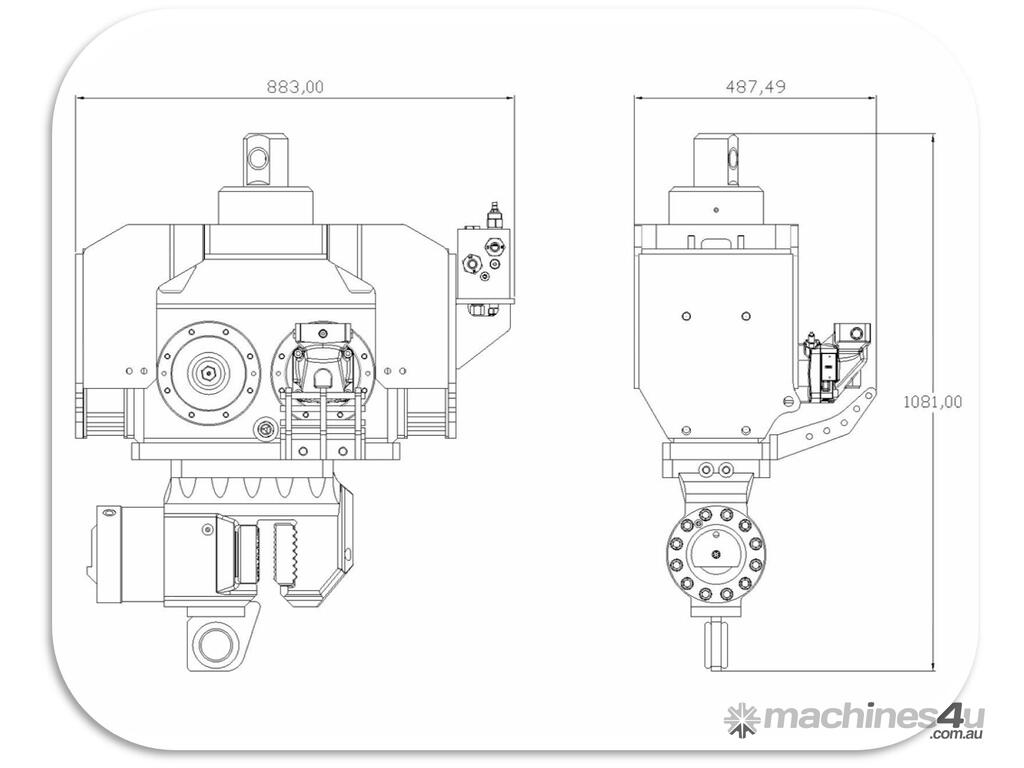

Total Length (mm) : 885
Total Width (mm) : 490
Total Height (mm) : 1080
Flow (Lt/min) : 100
Working Pressure (bar) : 350
Power (kW) : 60
Suitable Excavator Class 4-8 Tons

Please See the video to see an SMS Vibro in action.

At GANZ International, we provide years of experience, we provide the international equipment markets with top-quality products and unparalleled after-sales support.

We excel in supplying and servicing the world's finest new and used foundation and piling equipment. Our expertise spans Heavy Foundations, Construction, Material Handling, and Agricultural Equipment, making us industry leaders in versatile and problem-solving machinery. At GANZ, we bring innovation and technical know-how to every project, ensuring adaptability and overcoming any challenge. Partnering with us means having a passionate, experienced team at your side.

Go to the Ganz showroom on Machines4u to see the rest of our machinery, send Ganz a message about the item you are interested in discussing, or give Ganz International a call, we are happy to answer any of your questions.

* CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION *
