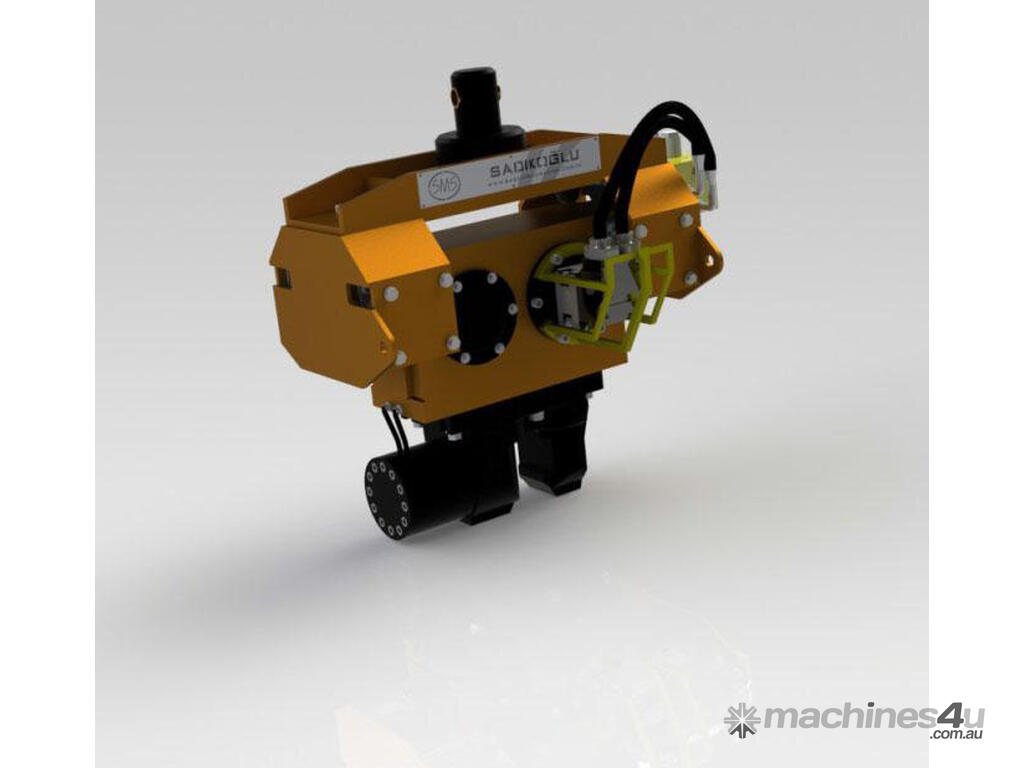

GANZ - SMS S30 Excavator Mounted Vibratory Hammer

Our range of SMS S Series excavator mounted vibratory hammers are specifically designed as an attachment for excavators to drive and extract a variety of profiles, such as:

Sheet piles,

H beams,

Casings,

Tubes with it’s specially designed clamps,

Concrete piles and wooden piles.

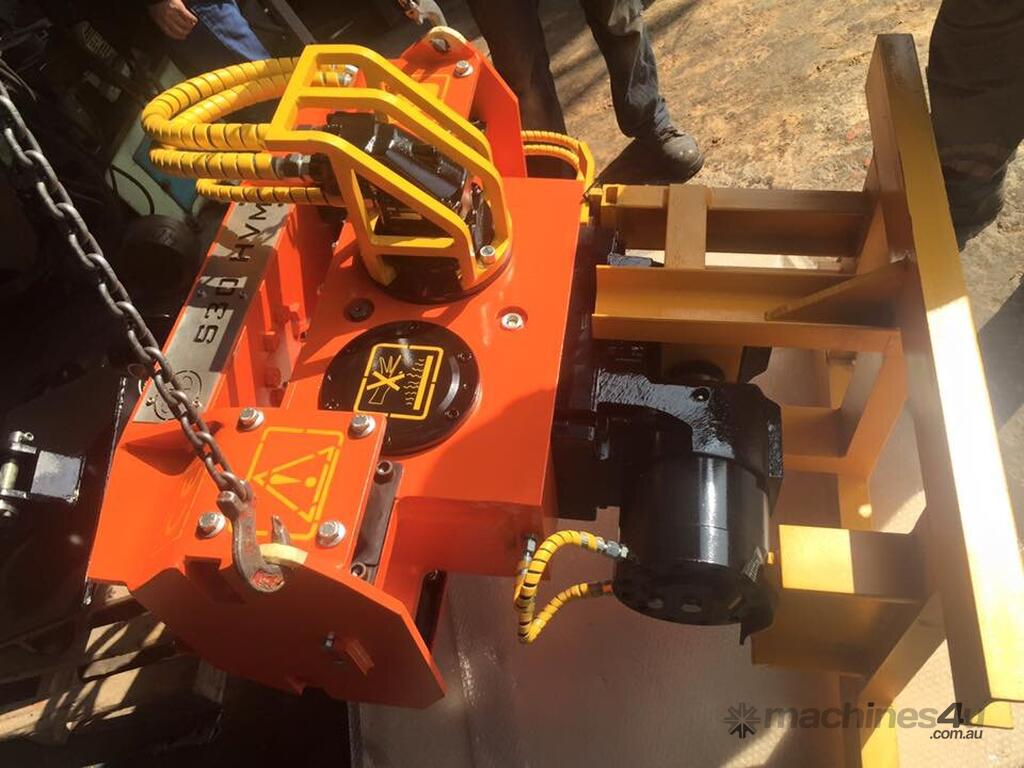

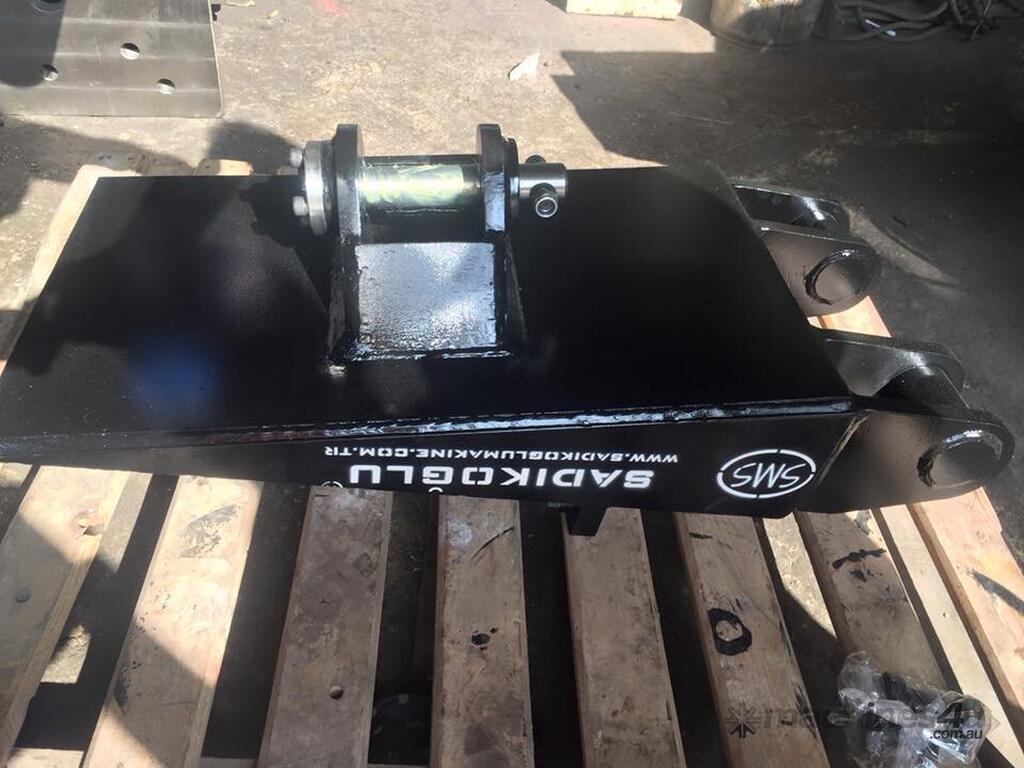

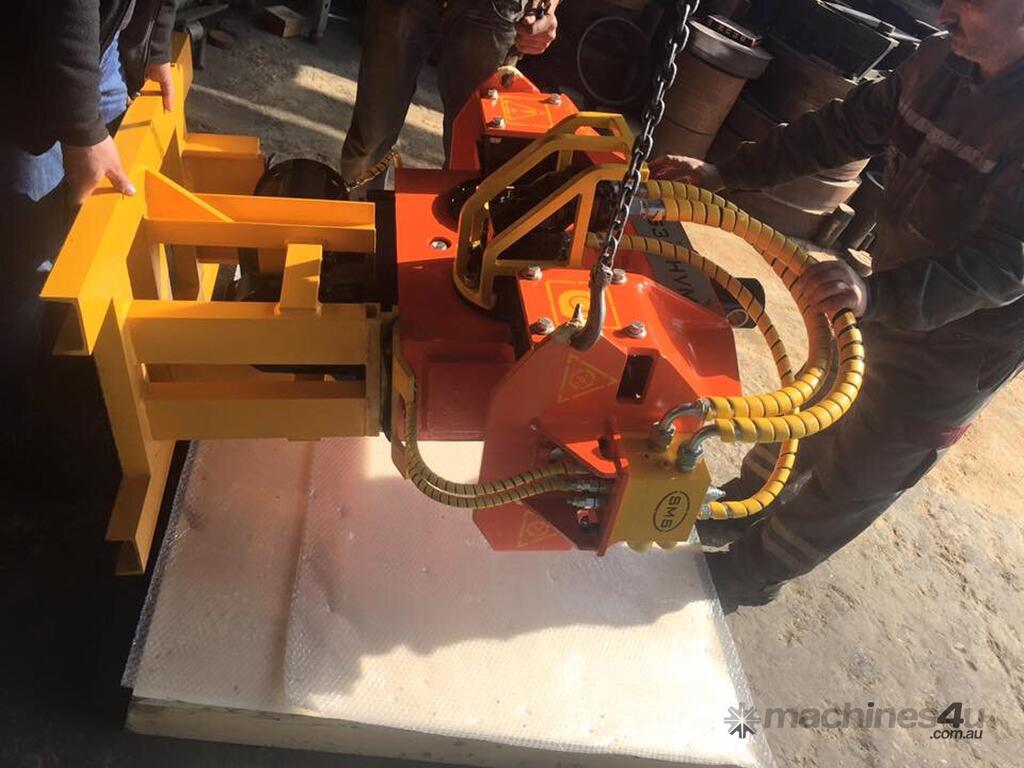

With the Excavator mounted vibrohammer, the pile can be lifted to a vertical position using the built-in lifting chain, where it is then gripped tightly in a powerful hydraulic jaw. SMS offers a wide range of EMV’s, the EMV’s range from 5kgm up to 12kgm and is a highly cost-efficient way of driving sheet piles and tubes. To extend reach and height, SMS can supply a “gooseneck” in various sizes. A gooseneck is an attachment which can be mounted on the jib of the excavator mounted vibratory hammer to extend its reach. SMS EMV hammers are an ideal combination with excavator capacities ranging from 4 to 45 ton capacity.

Eccentric Moment (Kgm) : 3

Centrifugal Force (kN) : 310

Max. Amplitude (mm) : 9

Speed (d/d) : 3000

Max. Pulling Force (kN) : 60

Max. Pushing Force (kN) : 40

Dynamic Weight (kg) : 600

Weight (kg) : 850

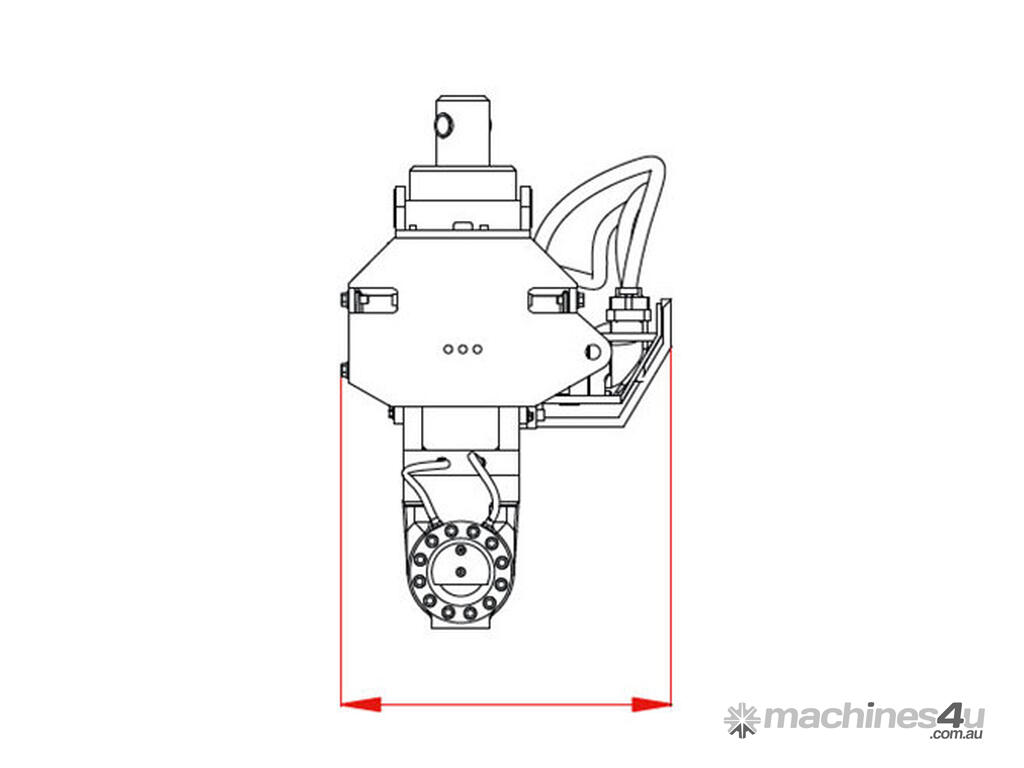

Total Length (mm) : 1100

Total Width (mm) : 1025

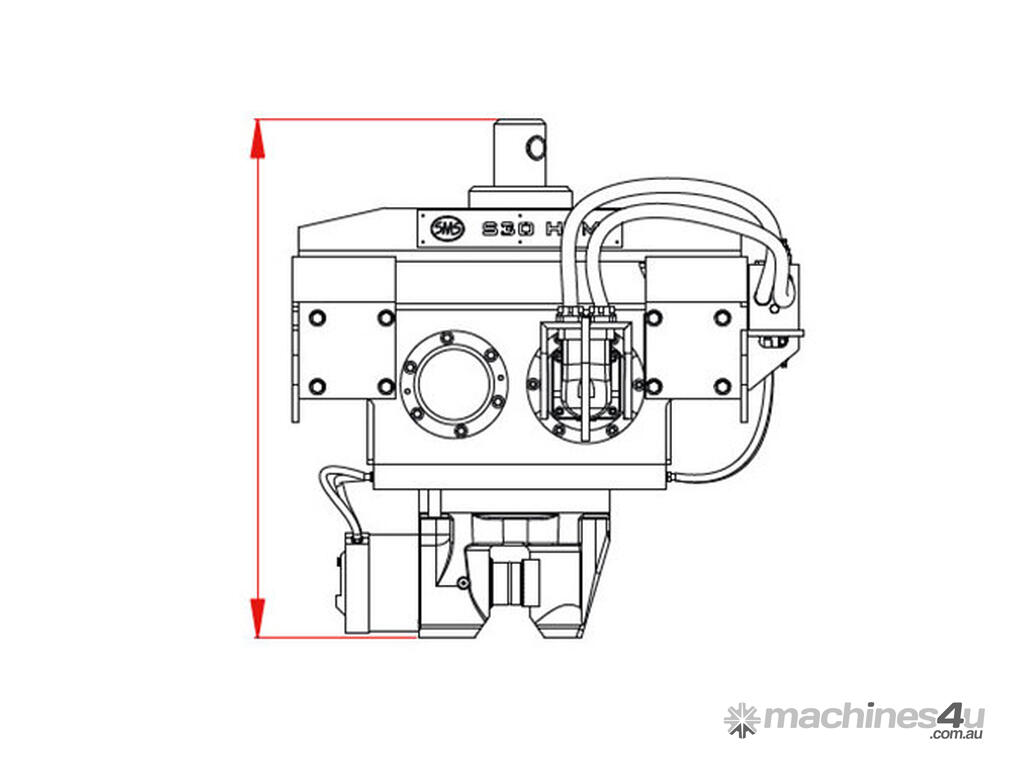

Total Height (mm) : 625

Flow (Lt/min) : 120

Working Pressure (bar) : 300

Power (kW) : 70

Hydromotor F12-40

Suitable Excavator Class 14-20 Tons

Please See the video to see an SMS Vibro in action.
