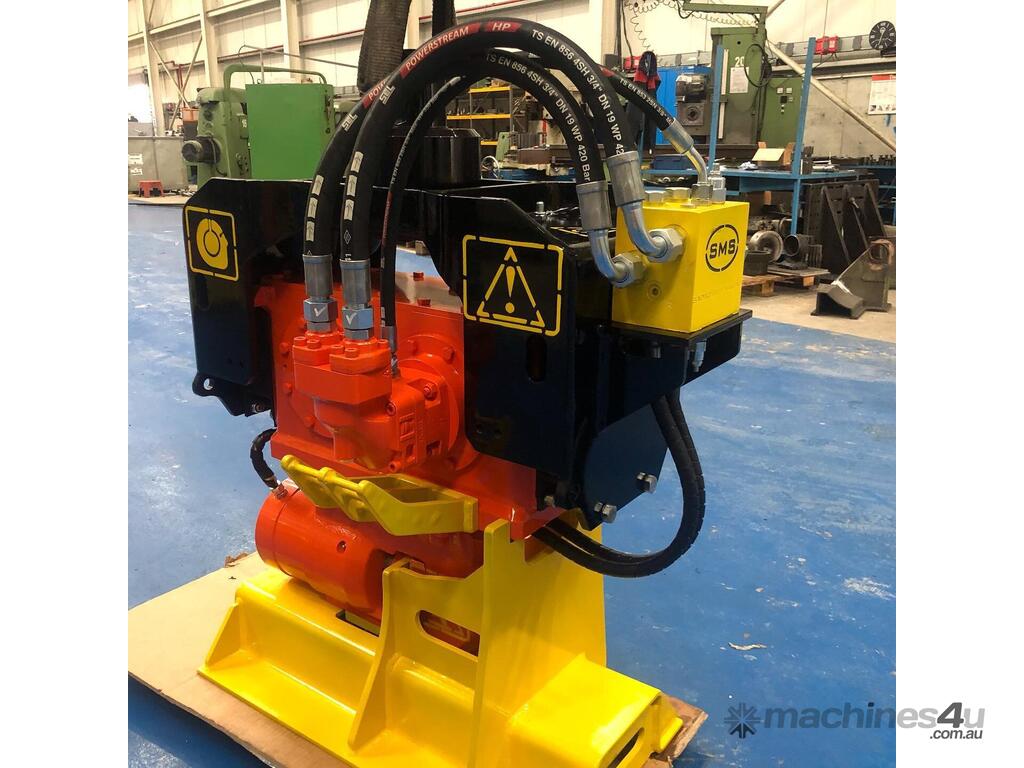

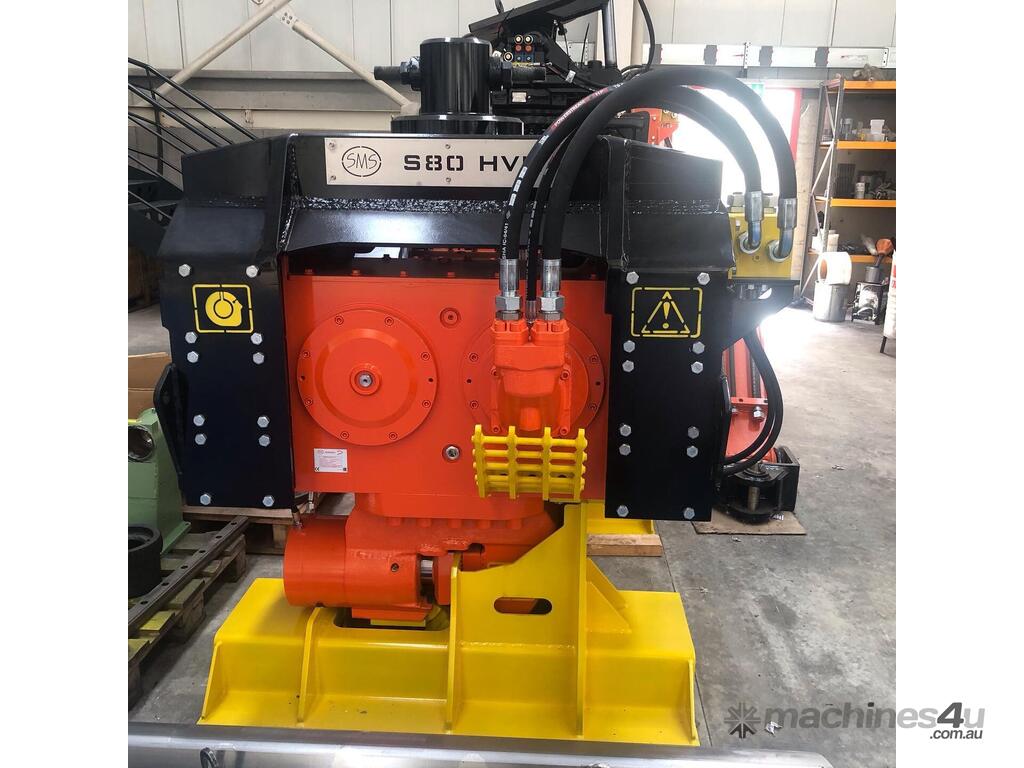

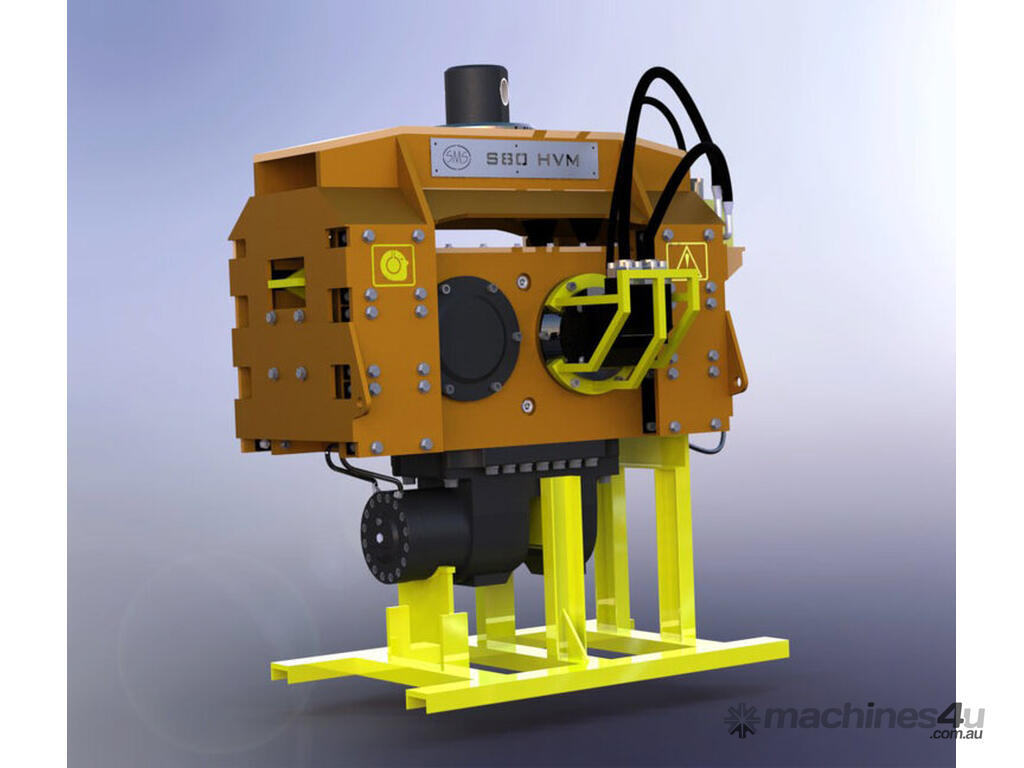

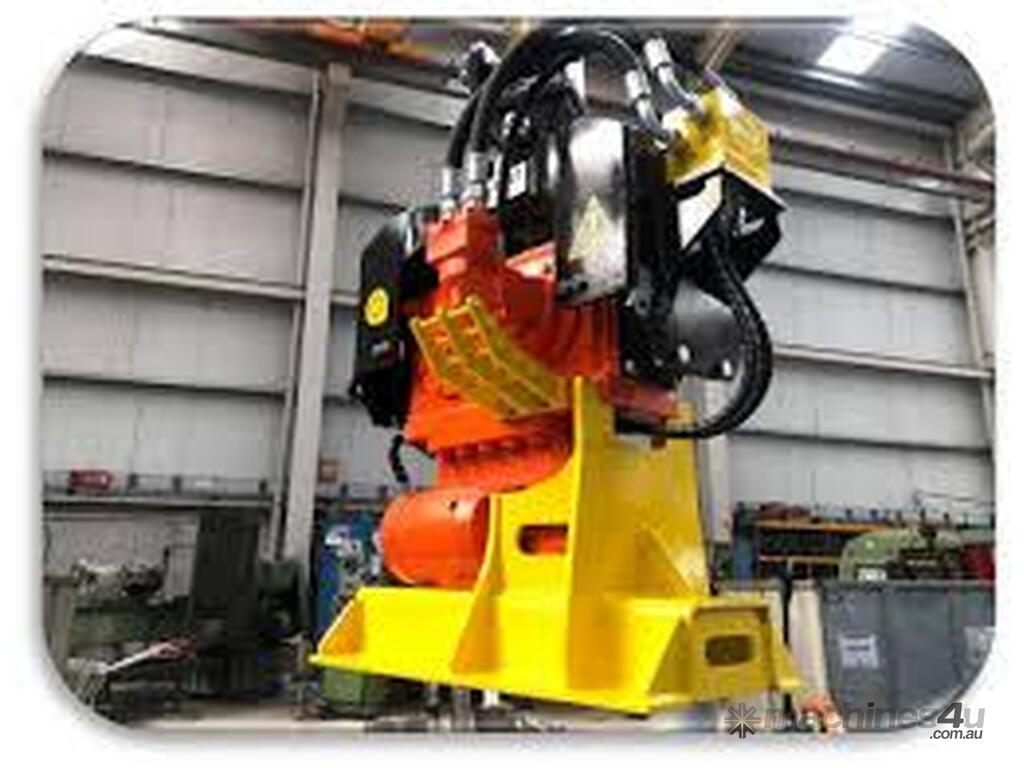

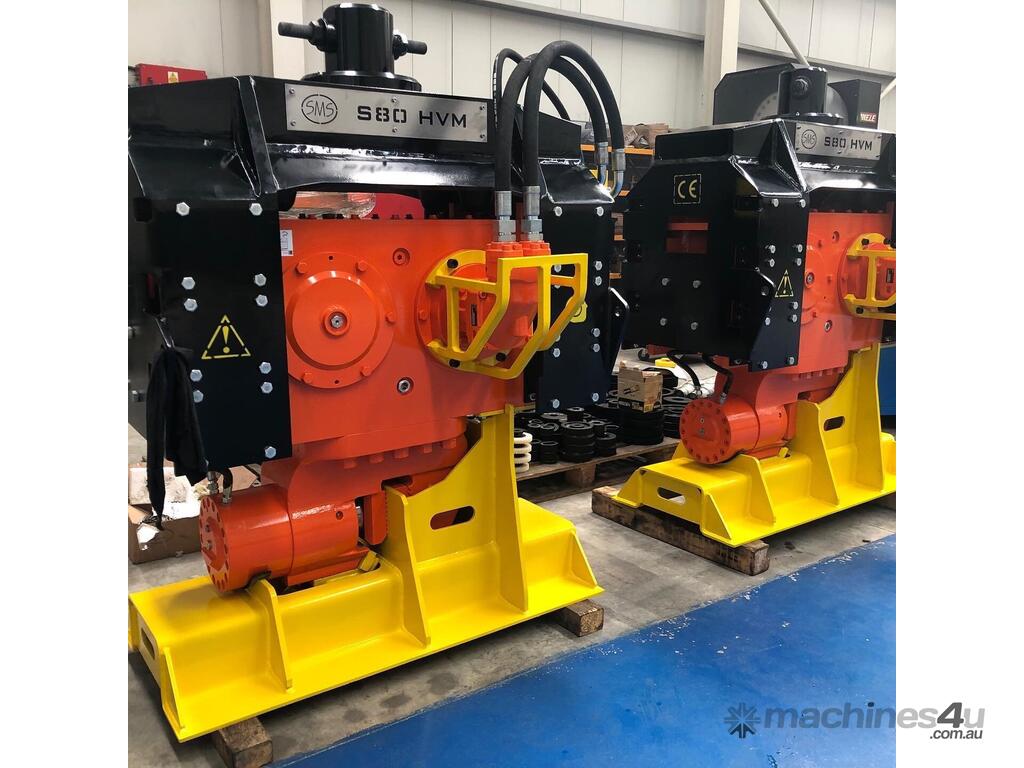

GANZ - SMS S80 Excavator Mounted Vibratory Hammer

Our range of SMS S Series excavator mounted vibratory hammers are specifically designed as an attachment for excavators to drive and extract a variety of profiles, such as:

Sheet piles,

H beams,

Casings,

Tubes with it’s specially designed clamps,

Concrete piles and wooden piles.

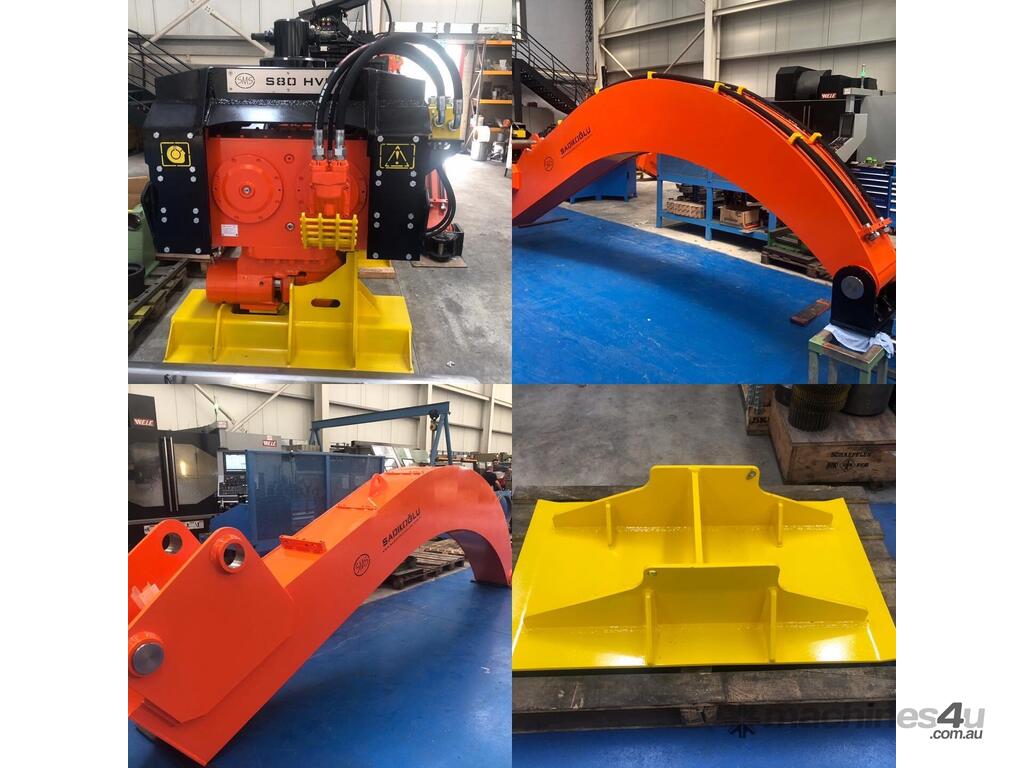

With the Excavator mounted vibrohammer, the pile can be lifted to a vertical position using the built-in lifting chain, where it is then gripped tightly in a powerful hydraulic jaw. SMS offers a wide range of EMV’s, the EMV’s range from 5kgm up to 12kgm and is a highly cost-efficient way of driving sheet piles and tubes. To extend reach and height, SMS can supply a “gooseneck” in various sizes. A gooseneck is an attachment which can be mounted on the jib of the excavator mounted vibratory hammer to extend its reach. SMS EMV hammers are an ideal combination with excavator capacities ranging from 4 to 45 ton capacity.

Eccentric Moment (Kgm) : 8

Centrifugal Force (kN) : 604

Max. Amplitude (mm) : 14.5

Speed (d/d) : 2500

Max. Pulling Force (kN) : 175

Max. Pushing Force (kN) : 90

Dynamic Weight (kg) : 1780

Total Weight (kg) : 2150

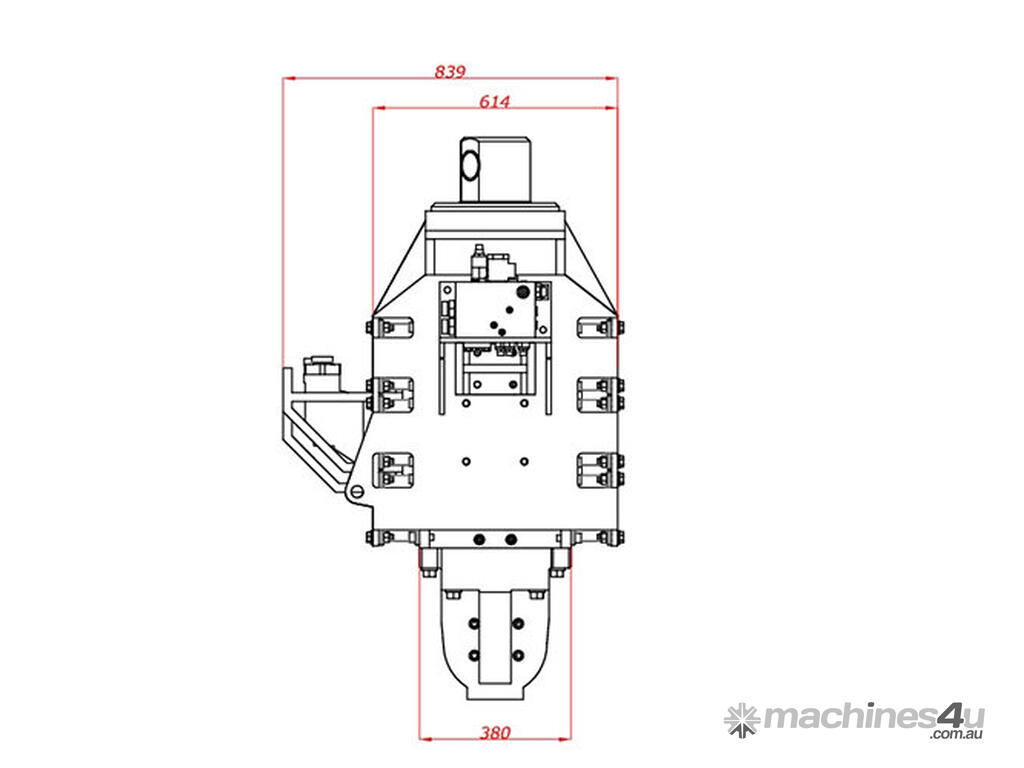

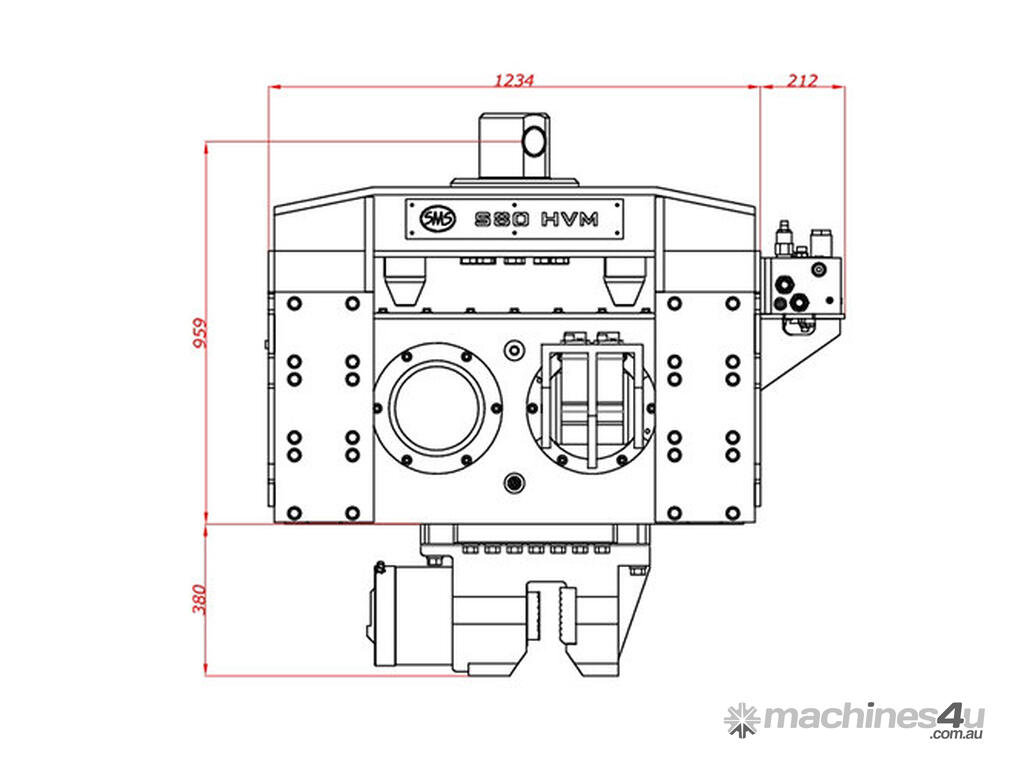

Total Length (mm) : 1190

Total Width (mm) : 1650

Total Height (mm) : 800

Flow (Lt/min) : 275

Working Pressure (bar) : 300

Power (kW) : 165

Hydromotor F12-110

Suitable Excavator Class 32 tons and Over

Please See the video to see an SMS Vibro in action.



At GANZ International, we provide years of experience, we provide the international equipment markets with top-quality products and unparalleled after-sales support.

We excel in supplying and servicing the world's finest new and used foundation and piling equipment. Our expertise spans Heavy Foundations, Construction, Material Handling, and Agricultural Equipment, making us industry leaders in versatile and problem-solving machinery. At GANZ, we bring innovation and technical know-how to every project, ensuring adaptability and overcoming any challenge. Partnering with us means having a passionate, experienced team at your side.

Go to the Ganz showroom on Machines4u to see the rest of our machinery, send Ganz a message about the item you are interested in discussing, or give Ganz International a call, we are happy to answer any of your questions.

* CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION *
