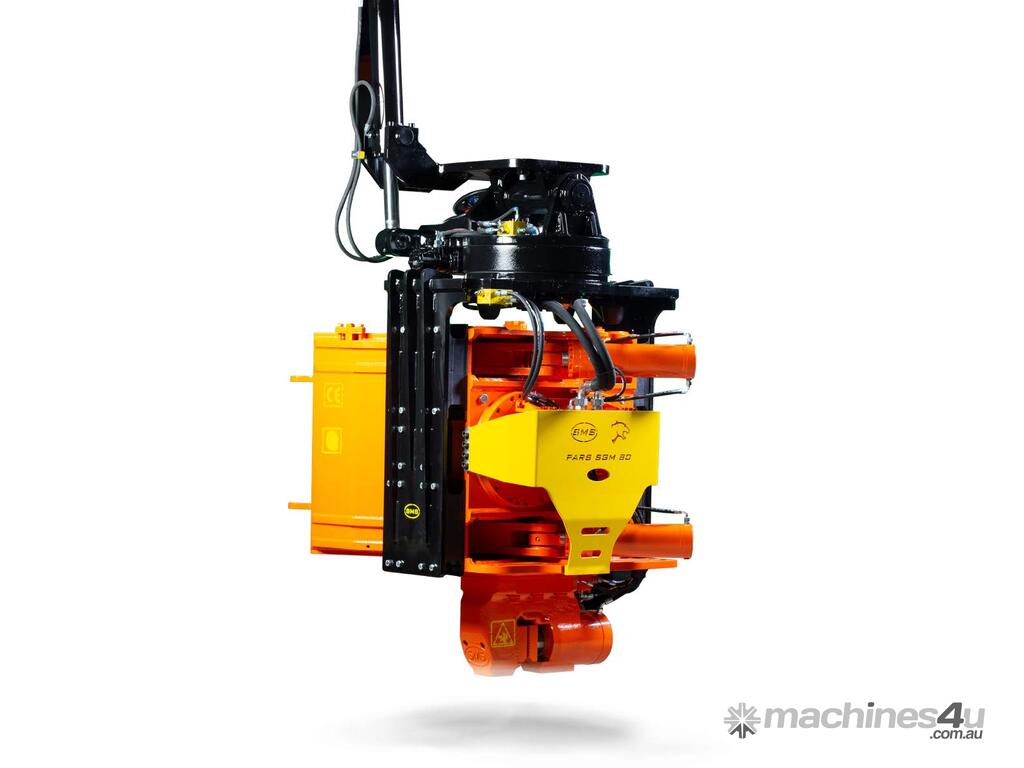

GANZ - SMS SG30 Side Grip Vibratory Hammer

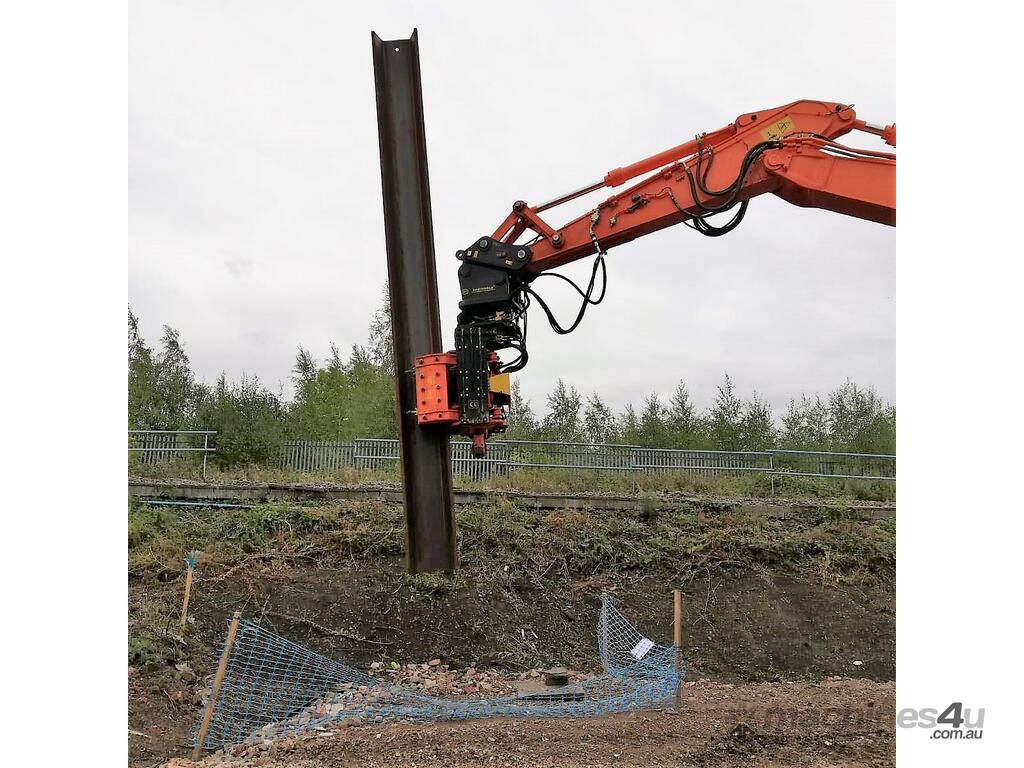

SMS Pars Side Grip Vibratory Hammer series enable sheet piles, tubular piles, H-beams, I-beams to be lifted from the ground, pitched and driven without the need for a crane, piling gates or in some cases banksman, making this piling system far more cost effective than the traditional methods.

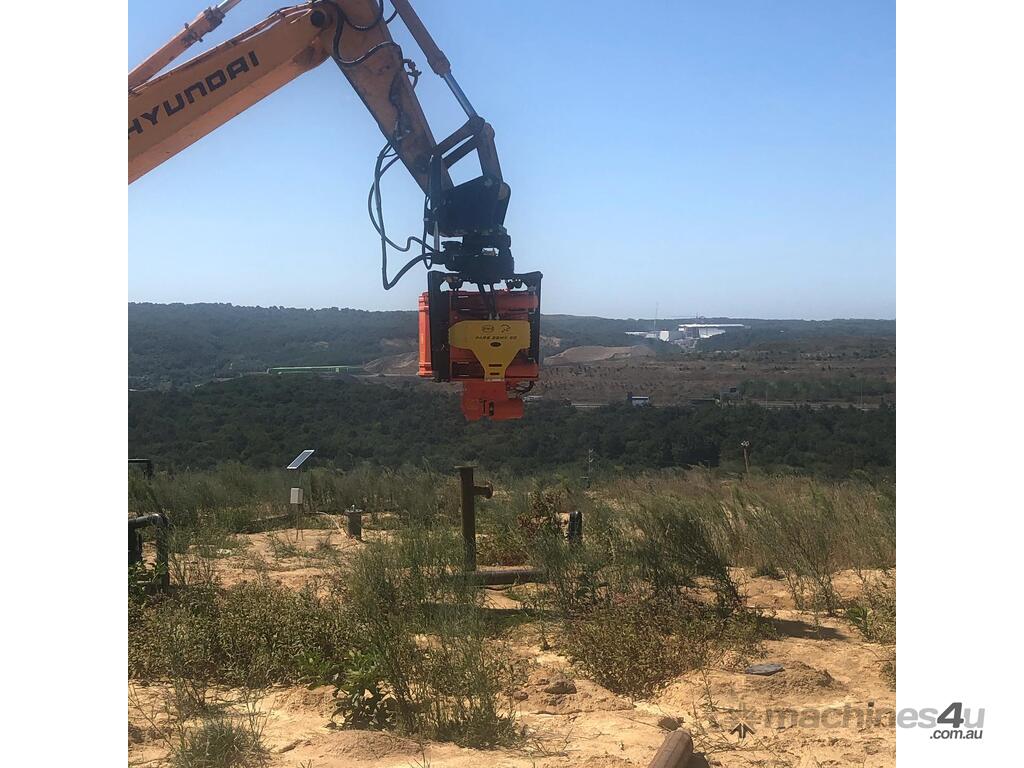

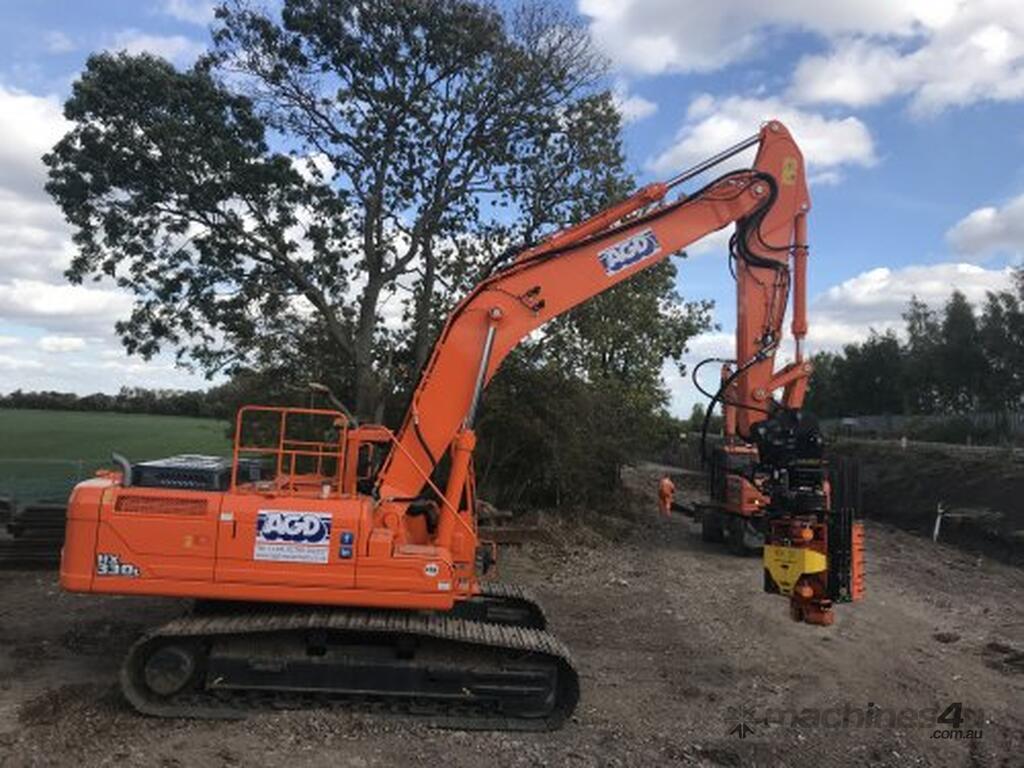

SMS Pars Side Grip Vibratory Hammer series are attached to the end of the dipper arm of an excavator. by an adaptor produced by SMS. SMS Pars Series are hydraulically driven by the excavator and easily controlled by the operator. The Vibratory unit can be rotated vertically and horizontally.

Eccentric Moment (Kgm) : 3
Centrifugal Force (kN) : 310
Speed (d/d) : 3000
Max. Pulling Force (kN) : 60
Max. Pushing Force (kN) : 40
Total Weight (kg) : 1650
Total Length (mm) : 1280
Total Width (mm) : 1100
Total Height (mm) : 2300
Flow (Lt/min) : 120
Working Pressure (bar) : 300
Power (kW) : 165
Hydromotor F12-40
Number of Cylinders 3
Rotation-Swing Angles(°) : 360-30
Suitable Excavator class 14-20 Tons

Sheet Piles -
400mm-600mm
4/6/8 meter length
Max 800 kg

H Beam
H180 - H500
4/6/8 meter length
Max 800 kg

Tubular Pile , Tubes -
80 mm - 325 mm
4/6/8 meter length
Max 800 kg

At GANZ International, we provide years of experience, we provide the international equipment markets with top-quality products and unparalleled after-sales support.

We excel in supplying and servicing the world's finest new and used foundation and piling equipment. Our expertise spans Heavy Foundations, Construction, Material Handling, and Agricultural Equipment, making us industry leaders in versatile and problem-solving machinery. At GANZ, we bring innovation and technical know-how to every project, ensuring adaptability and overcoming any challenge. Partnering with us means having a passionate, experienced team at your side.

Go to the Ganz showroom on Machines4u to see the rest of our machinery, send Ganz a message about the item you are interested in discussing, or give Ganz International a call, we are happy to answer any of your questions.

* CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION *
