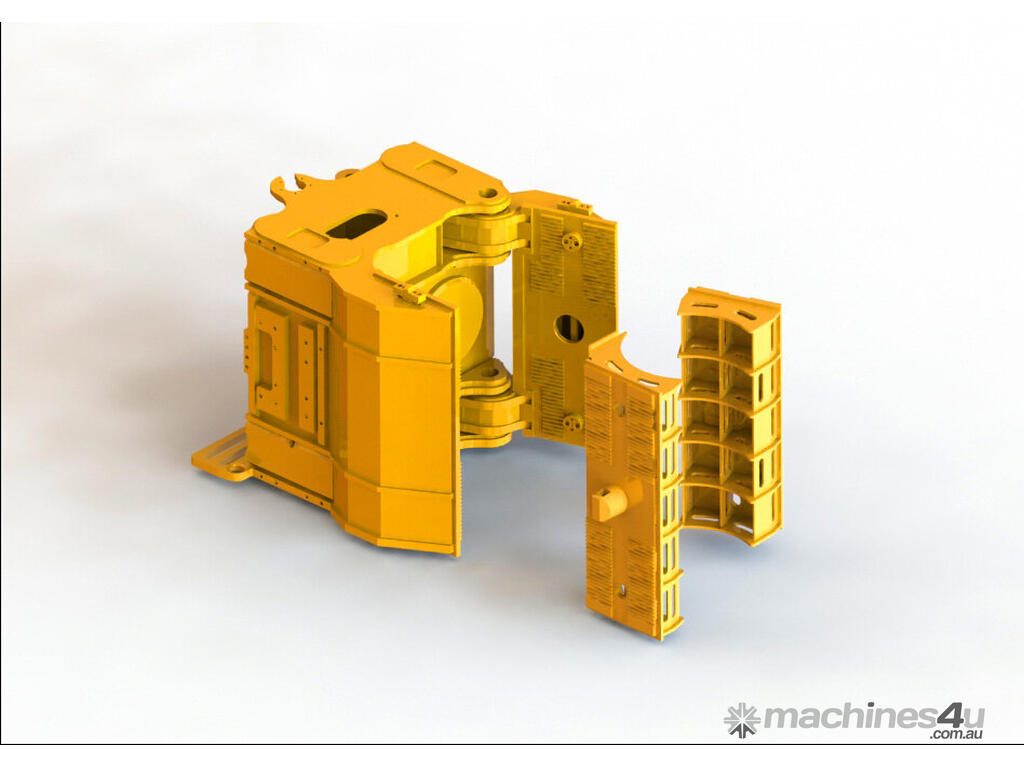

GANZ - SMS SG80 Side Grip Vibratory Hammer

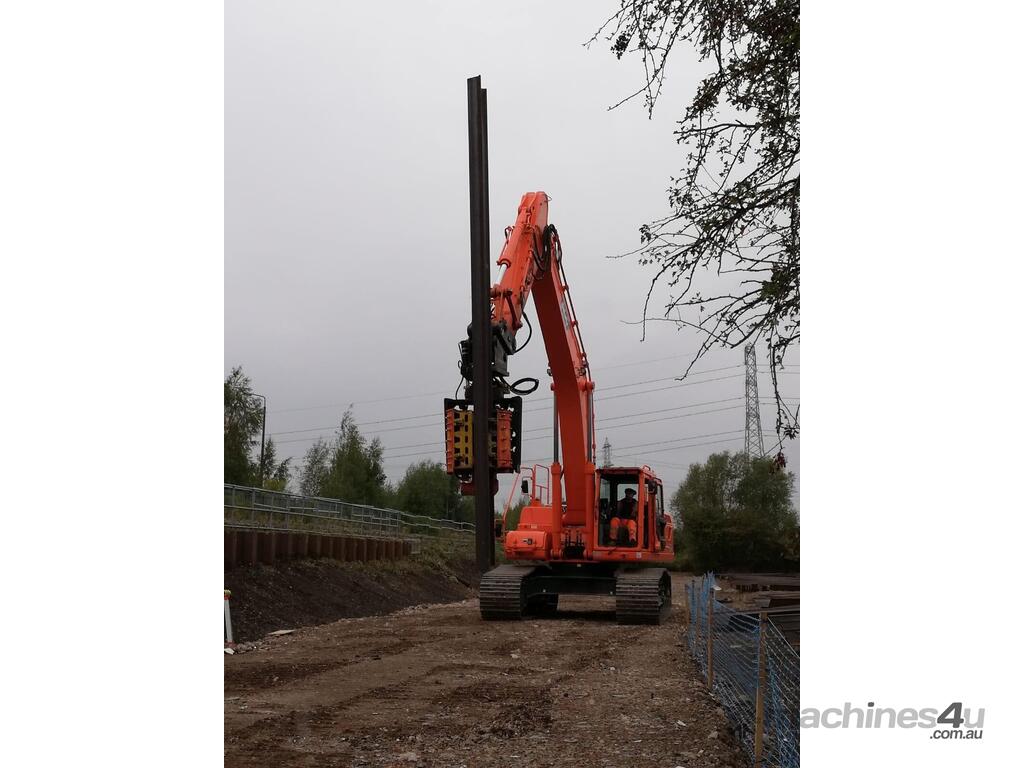

SMS Pars Side Grip Vibratory Hammer series enable sheet piles, tubular piles, H-beams, I-beams to be lifted from the ground, pitched and driven without the need for a crane, piling gates or in some cases banksman, making this piling system far more cost effective than the traditional methods.

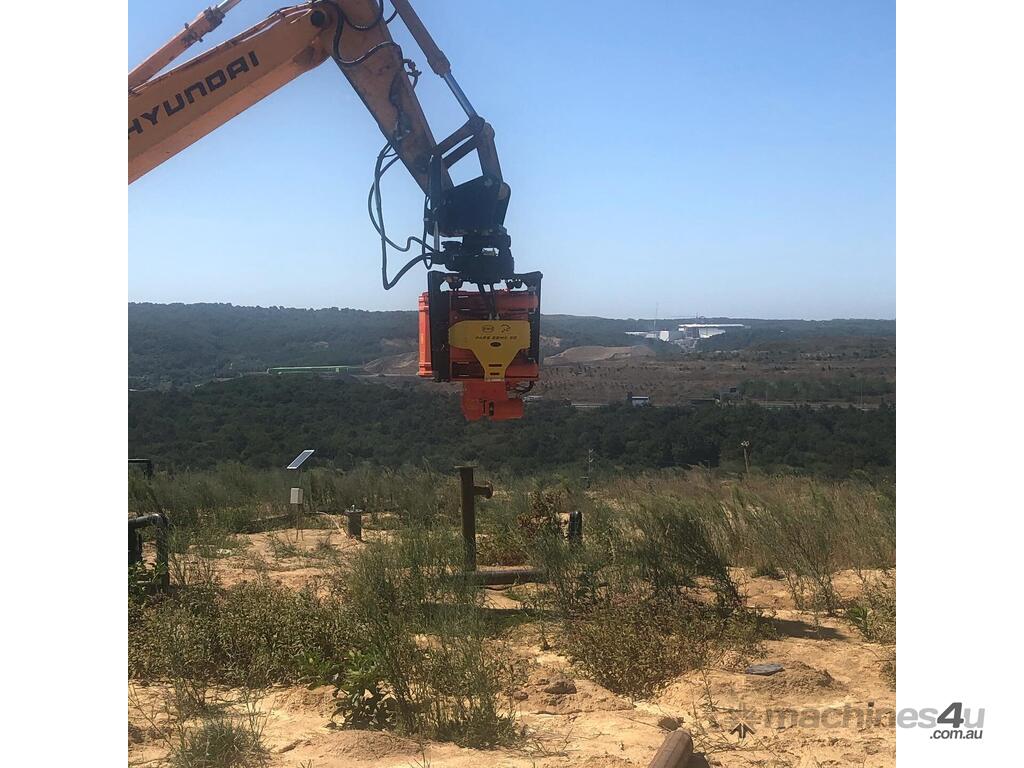

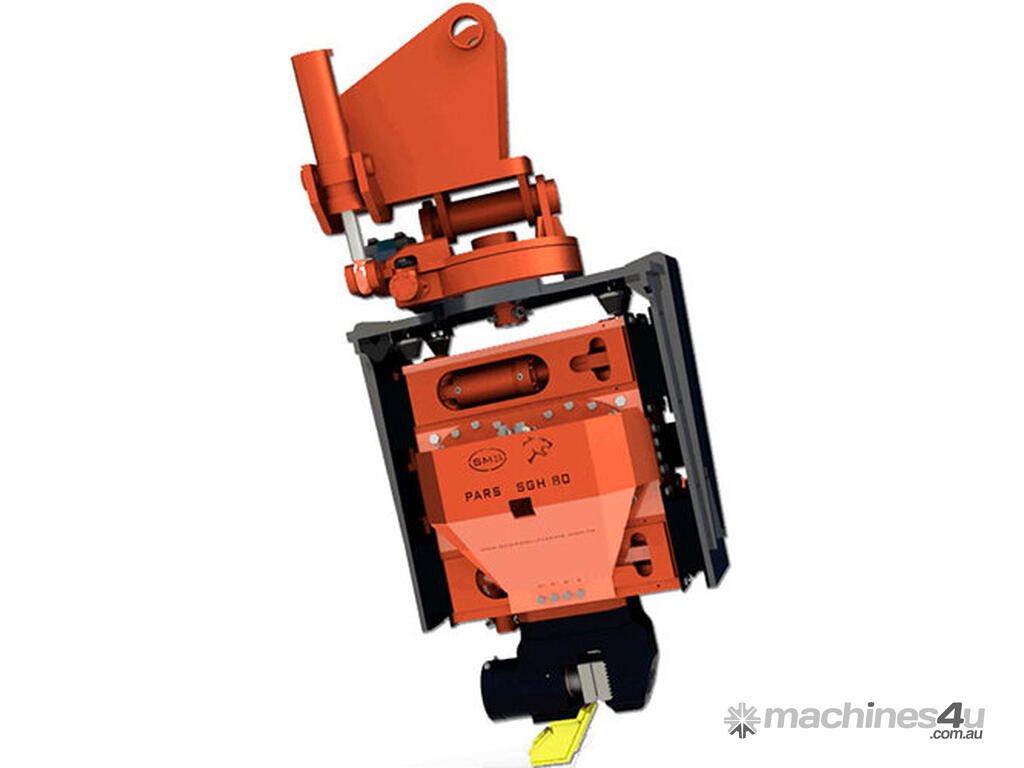

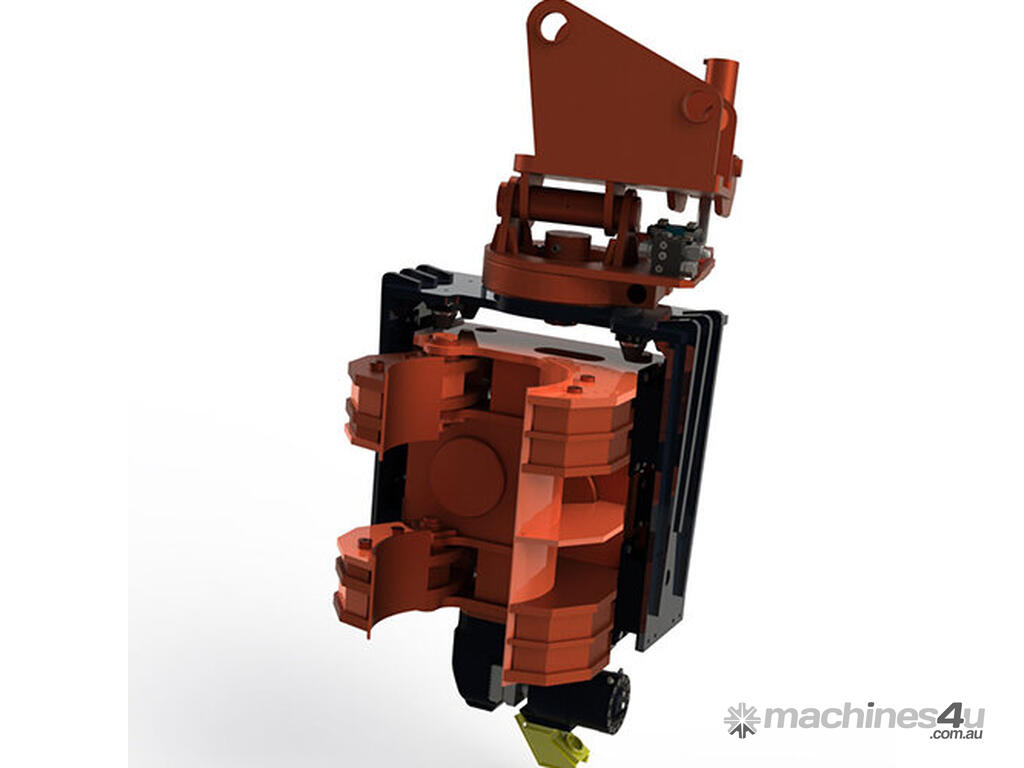

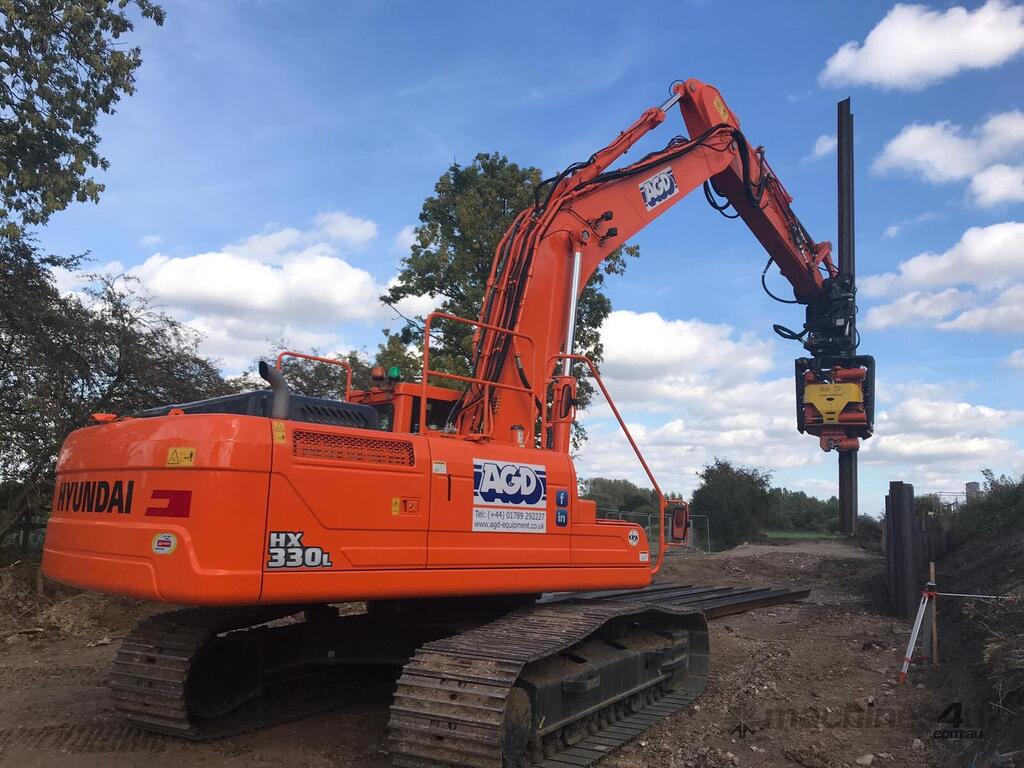

SMS Pars Side Grip Vibratory Hammer series are attached to the end of the dipper arm of an excavator. by an adaptor produced by SMS. SMS Pars Series are hydraulically driven by the excavator and easily controlled by the operator. The Vibratory unit can be rotated vertically and horizontally.

Eccentric Moment (Kgm) : 8
Centrifugal Force (kN) : 604
Speed (d/d) : 2500
Max. Pulling Force (kN) : 175
Max. Pushing Force (kN) : 90
Total Weight (kg) : 3500

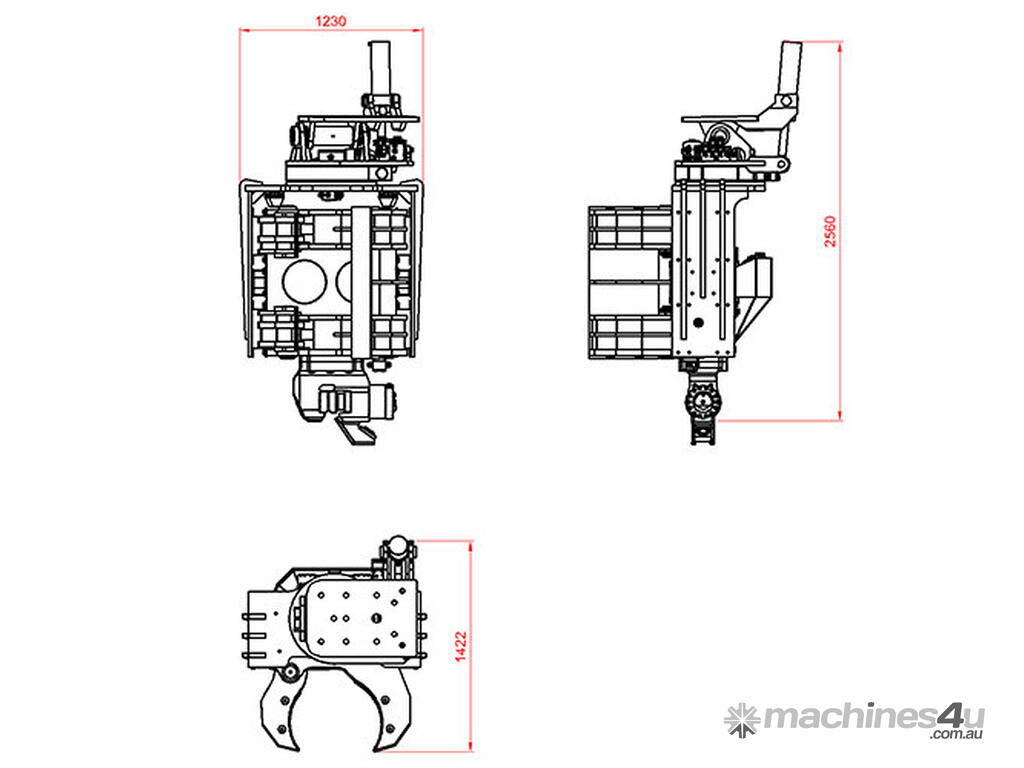

Total Length (mm) : 1350
Total Width (mm) : 1422
Total Height (mm) : 2560
Flow (Lt/min) : 240
Working Pressure (bar) : 300
Power (kW) : 165
Hydromotor F12-40 x 2 pieces
Number of Cylinders 3
Rotation-Swing Angles(°) : 360-30

Suitable Excavator Class - 32 Tons and Over

Sheet Piles
400mm-1200mm
12/16 meter length
Max 2850 kg

H Beam
H180 - H500
12/16 meter length
Max 2850 kg

Tubular Pile ,
Tubes 90 mm - 762 mm
12/16 meter length
Max 2850 kg

Wood Piles -
150 mm – 630 mm
8/10/12 meter length
Max 2850 kg


At GANZ International, we provide years of experience, we provide the international equipment markets with top-quality products and unparalleled after-sales support.

We excel in supplying and servicing the world's finest new and used foundation and piling equipment. Our expertise spans Heavy Foundations, Construction, Material Handling, and Agricultural Equipment, making us industry leaders in versatile and problem-solving machinery. At GANZ, we bring innovation and technical know-how to every project, ensuring adaptability and overcoming any challenge. Partnering with us means having a passionate, experienced team at your side.

Go to the Ganz showroom on Machines4u to see the rest of our machinery, send Ganz a message about the item you are interested in discussing, or give Ganz International a call, we are happy to answer any of your questions.

* CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION *
