GEMMA GROUP - CNC Cutting Machine - model: Bolero 4

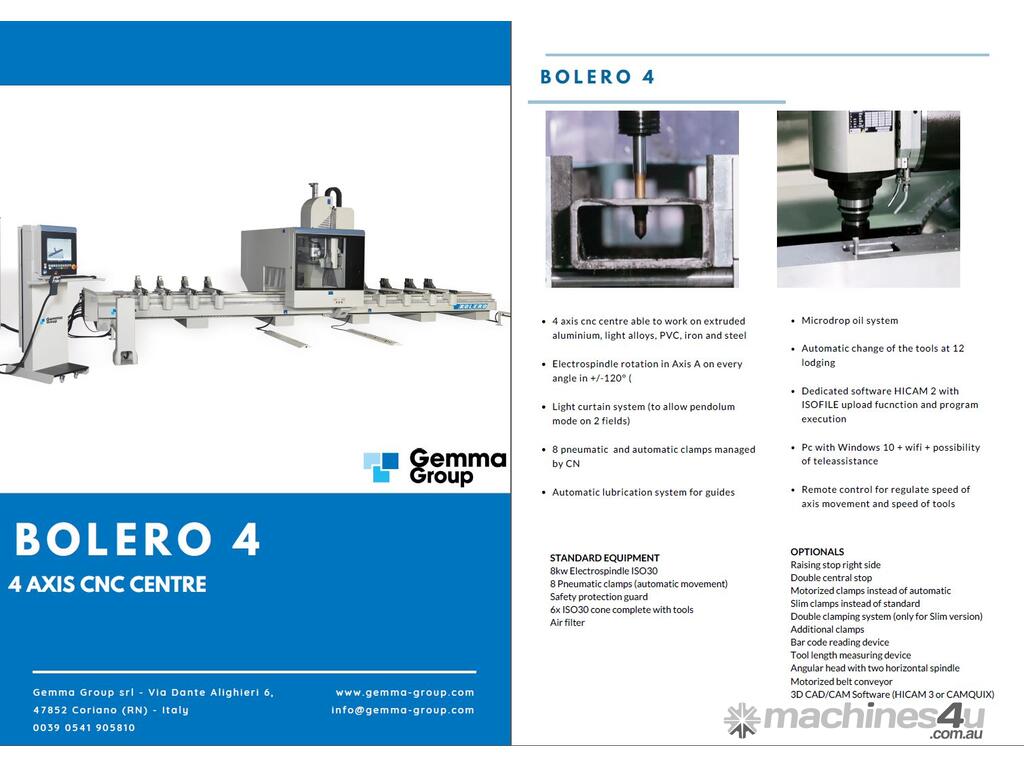

BOLERO 4
7.3M 4 axis vertical billing center with 12 tool changer.

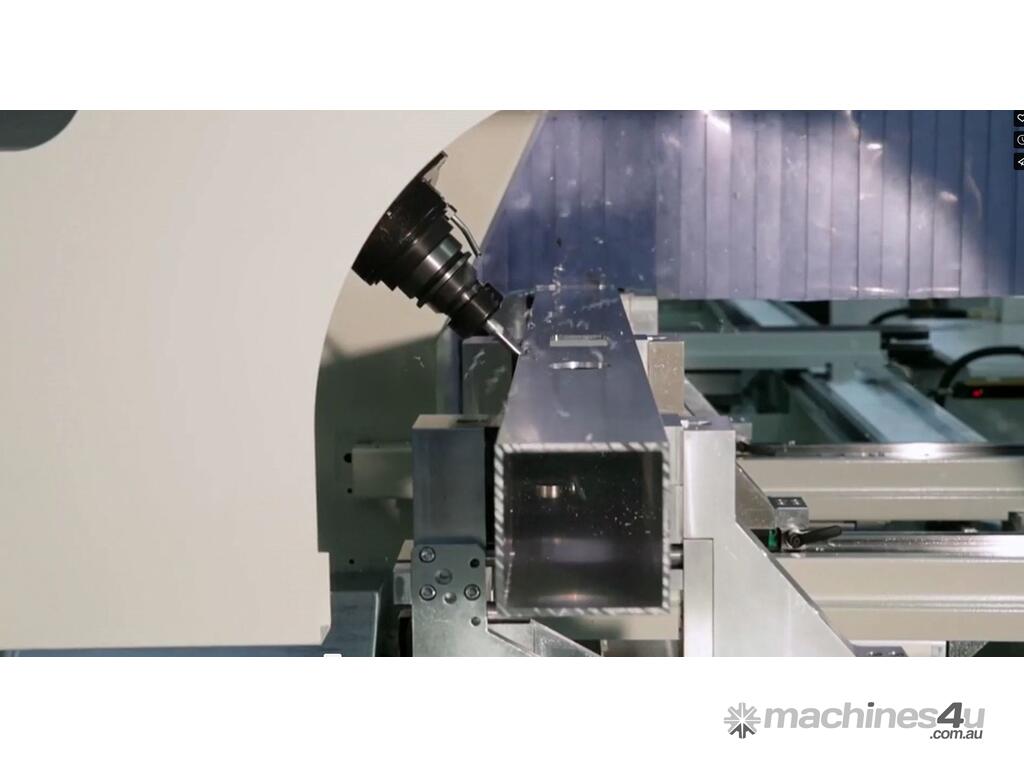

* 4 axis cnc centre able to work on extruded aluminium, light alloys, PVC, iron and steel

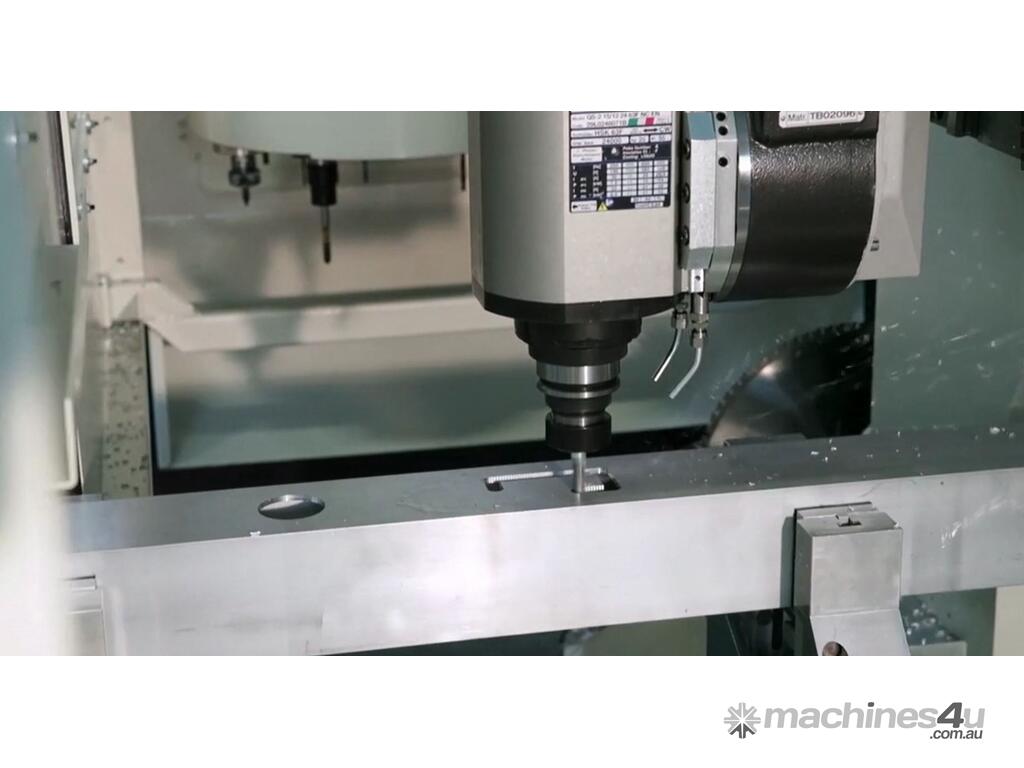

* Electrospindle rotation in Axis A on every angle in +/-120°
* Light curtain system (to allow pendolum mode on 2 fields)

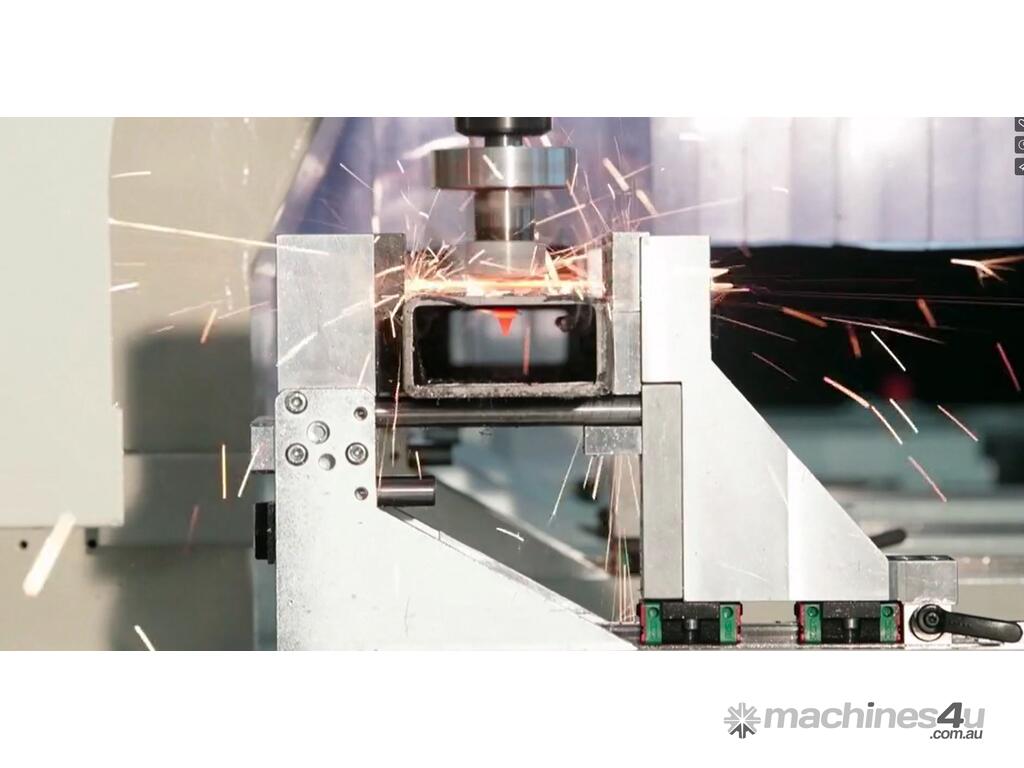

* 8 pneumatic and automatic clamps managed by CN
* Automatic lubrication system for guides
* Microdrop oil system

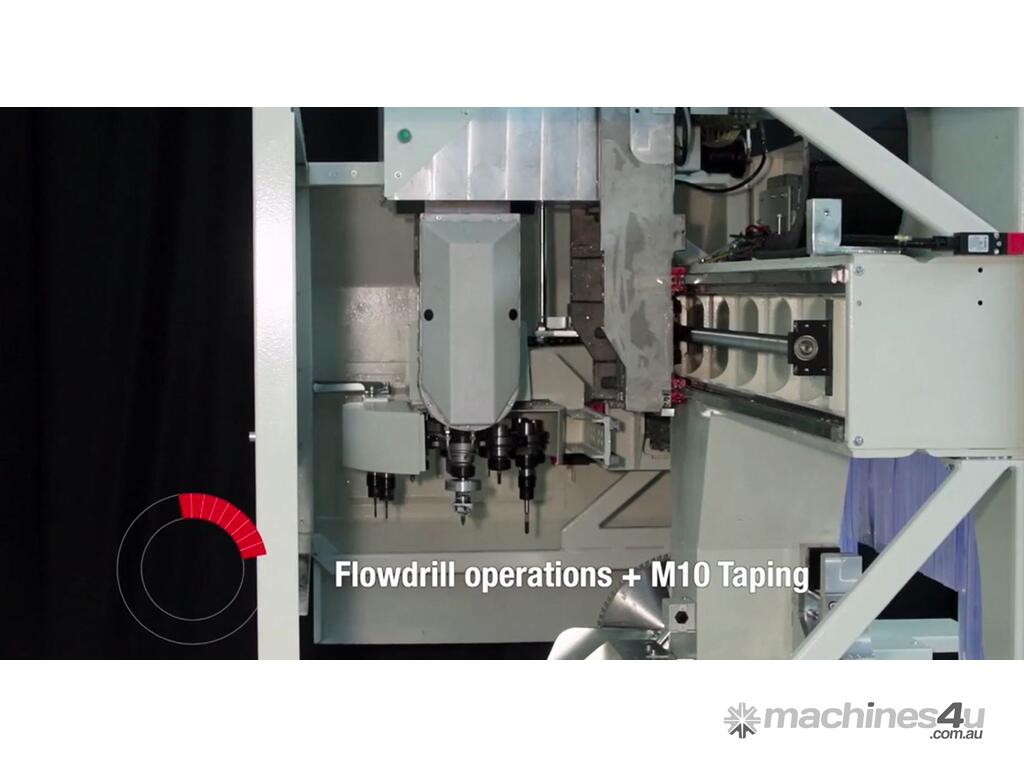

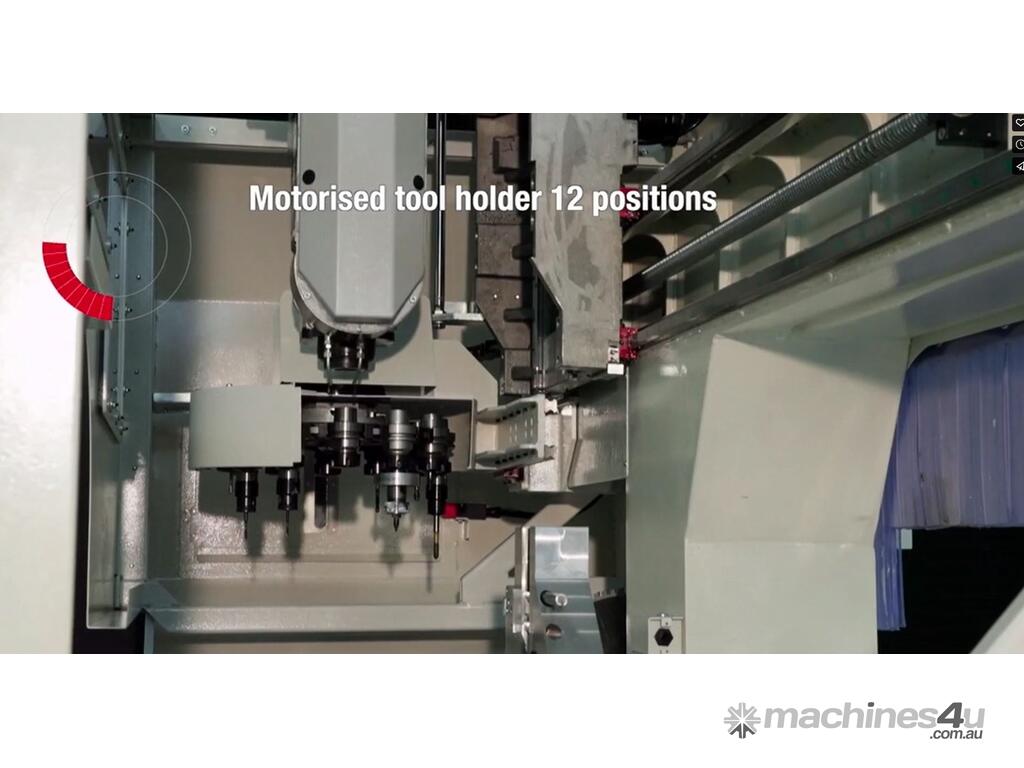

* Automatic change of the tools at 12 lodging

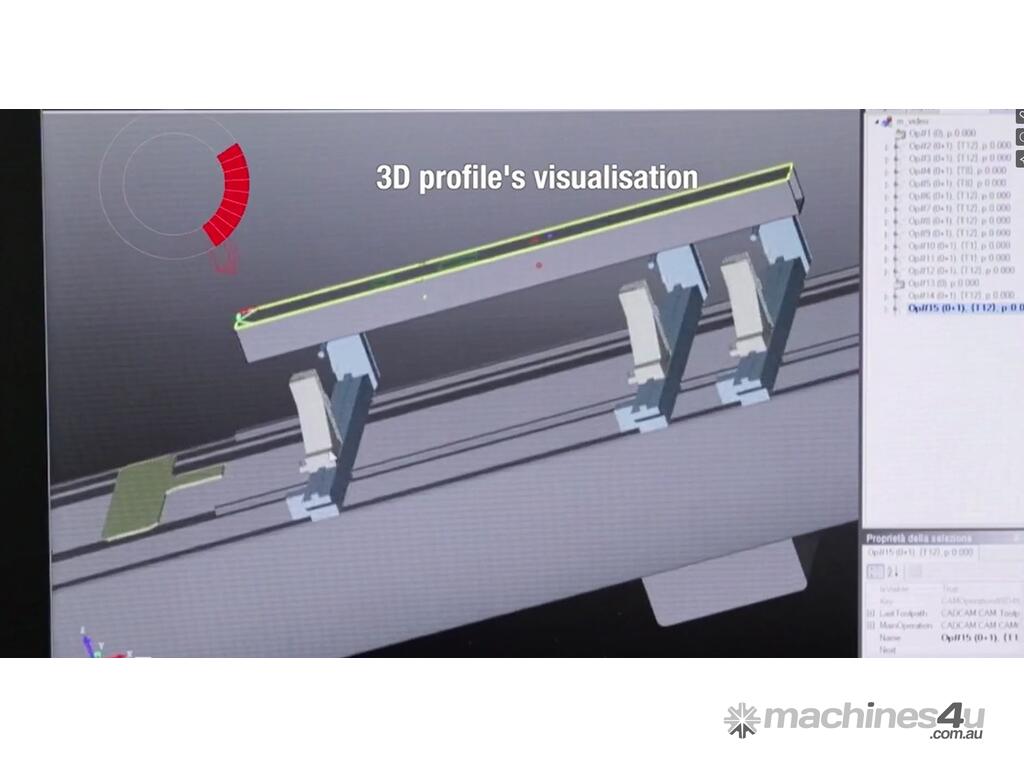

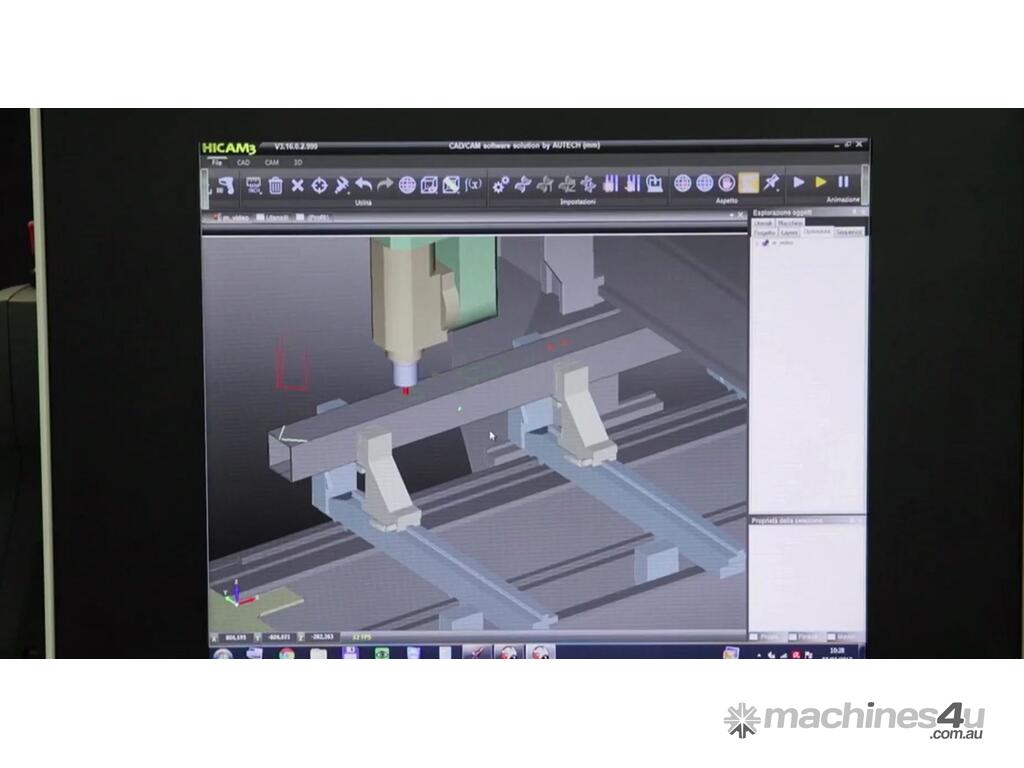

* Dedicated software HICAM 2 with ISOFILE upload fucnction and program execution
* Pc with Windows 10 + wifi + possibility of teleassistance
* Remote control for regulate speed of axis movement and speed of tools


STANDARD EQUIPMENT
* 8kw Electrospindle ISO30

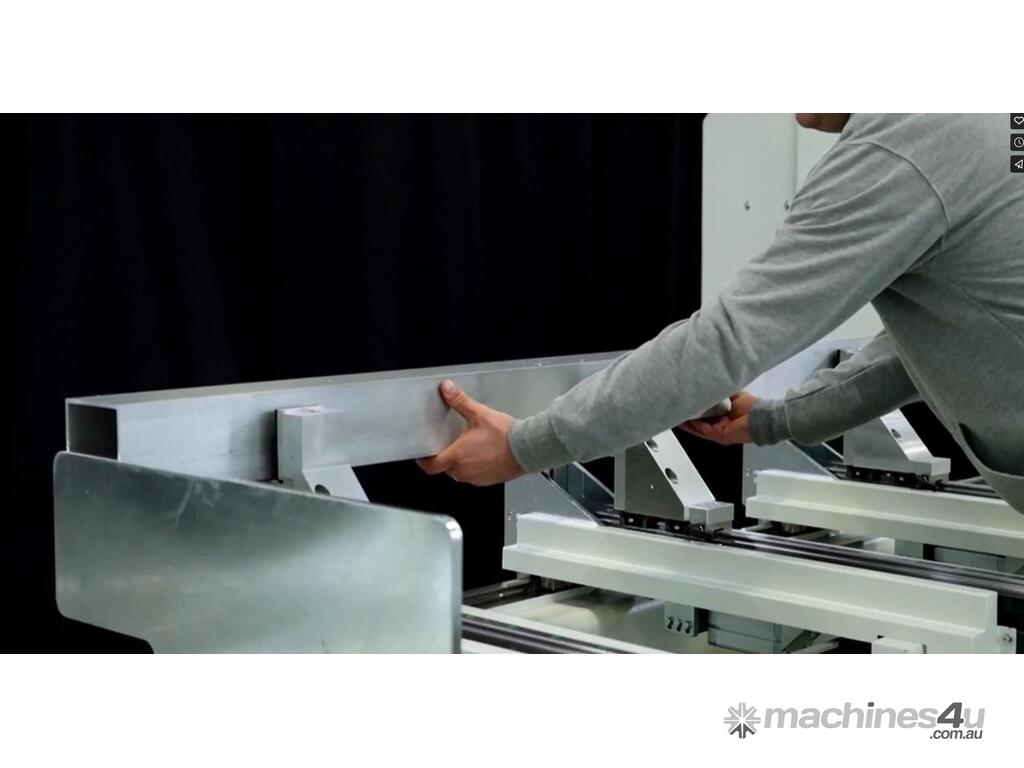

* 8 Pneumatic clamps (automatic movement)
* Safety protection guard
* 6x ISO30 cone complete with tools
* Air filter

OPTIONALS
* Raising stop right side
* Double central stop

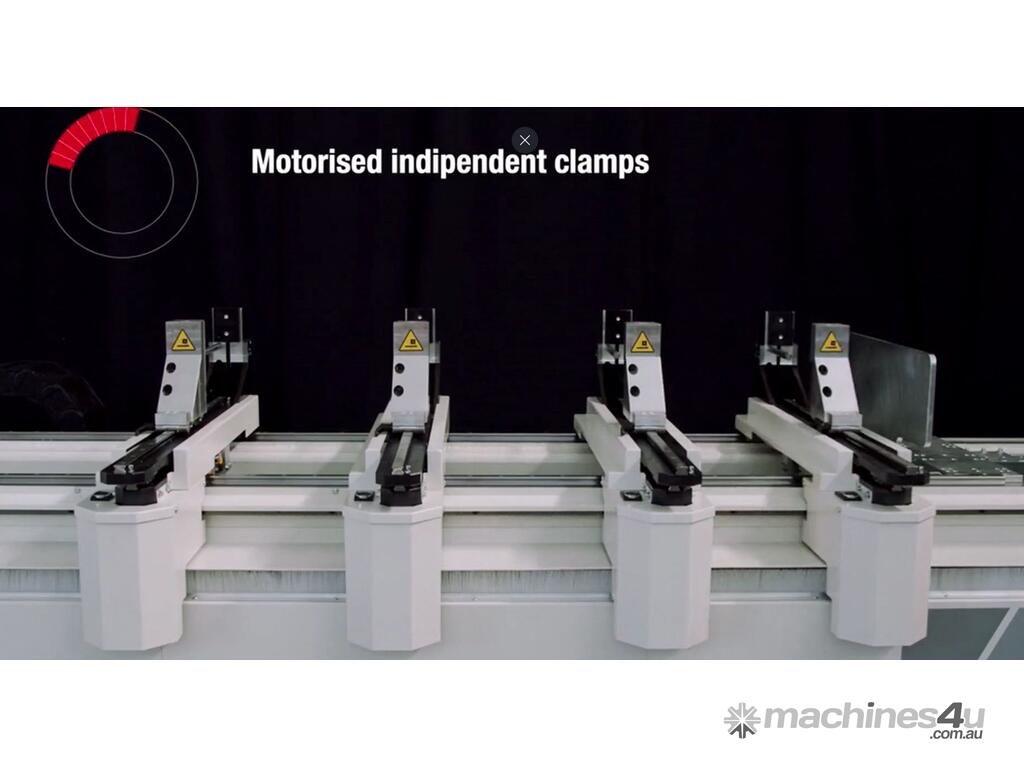

* Motorized clamps instead of automatic
* Slim clamps instead of standard
* Double clamping system (only for Slim version)
* Additional clamps
* Bar code reading device
* Tool length measuring device
* Angular head with two horizontal spindle
* Motorized belt conveyor

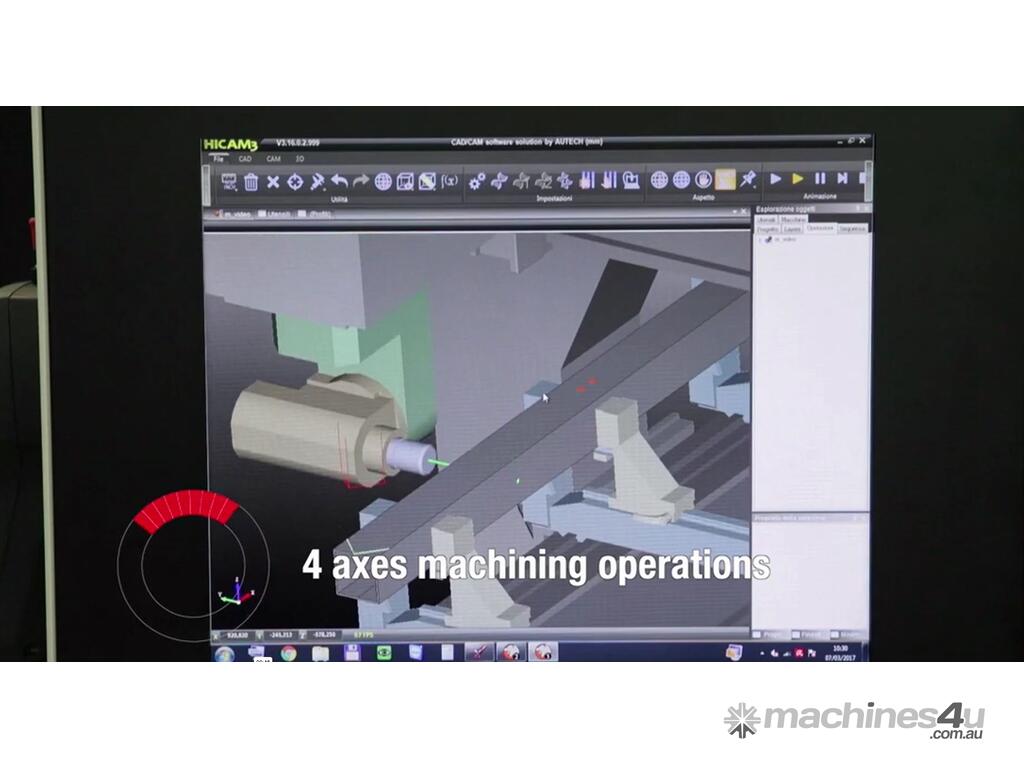

* 3D CAD/CAM Software (HICAM 3 or CAMQUIX)

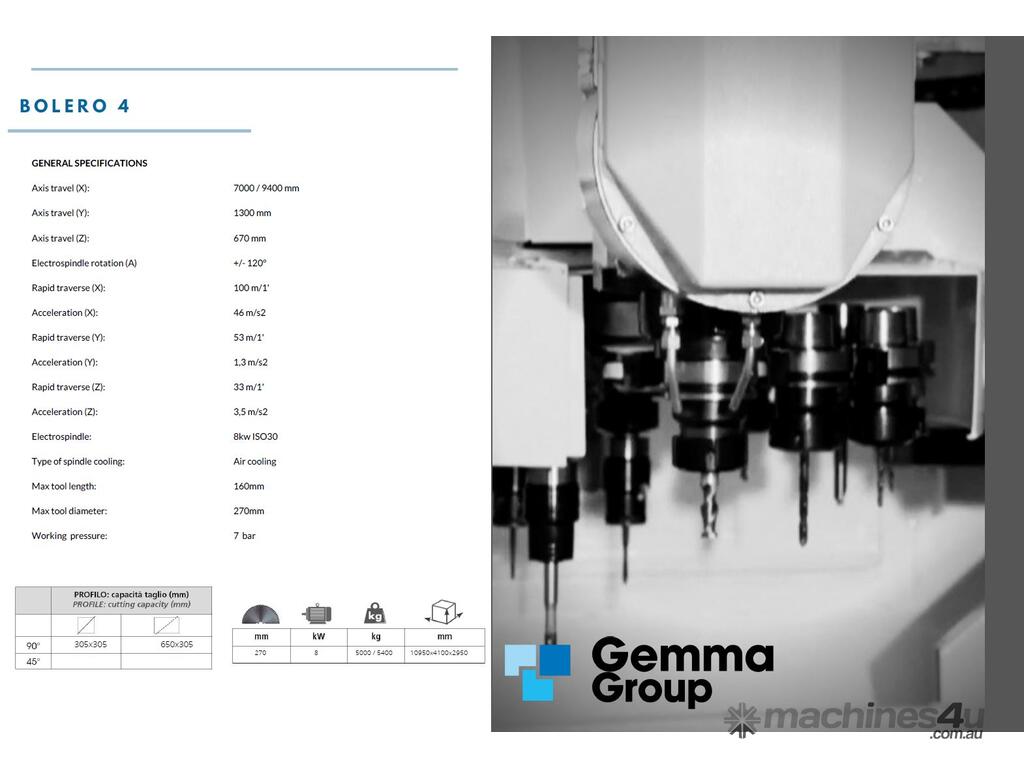

GENERAL SPECIFICATIONS
* Axis travel (x): 7000 / 9400 mm
* Axis travel (Y): 1300 mm
* Axis travel (z): 670 mm
* Electrospindle rotation (A): +/- 120°
* Rapid traverse (X): 100 m/1?
* Acceleration (X): 46 m/s2
* Rapid traverse (Y): 53 m/1?
* Acceleration (Y): 1,3 m/s2
* Rapid traverse (Z) 33 m/1?
* Acceleration (Z): 3,5 m/s2
* Electrospindle: 8kw ISO30
* Type of spindle cooling: Air cooling
* Max tool length: 160mm
* Max tool diameter: 270mm
* Working pressure: 7 bar
