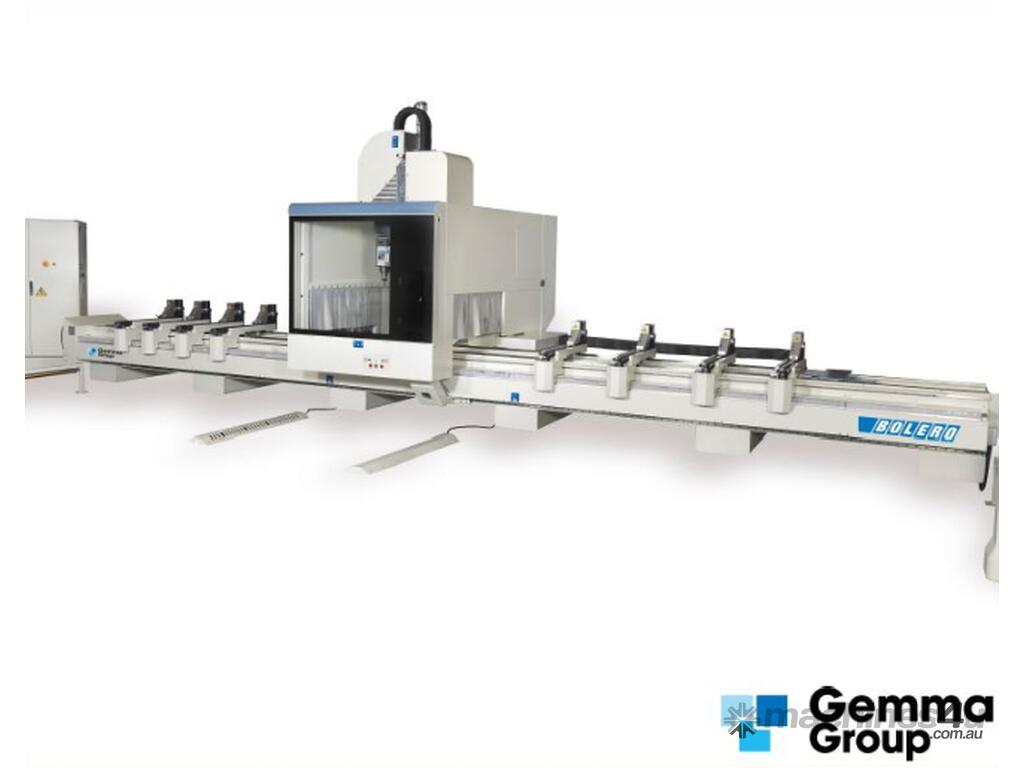

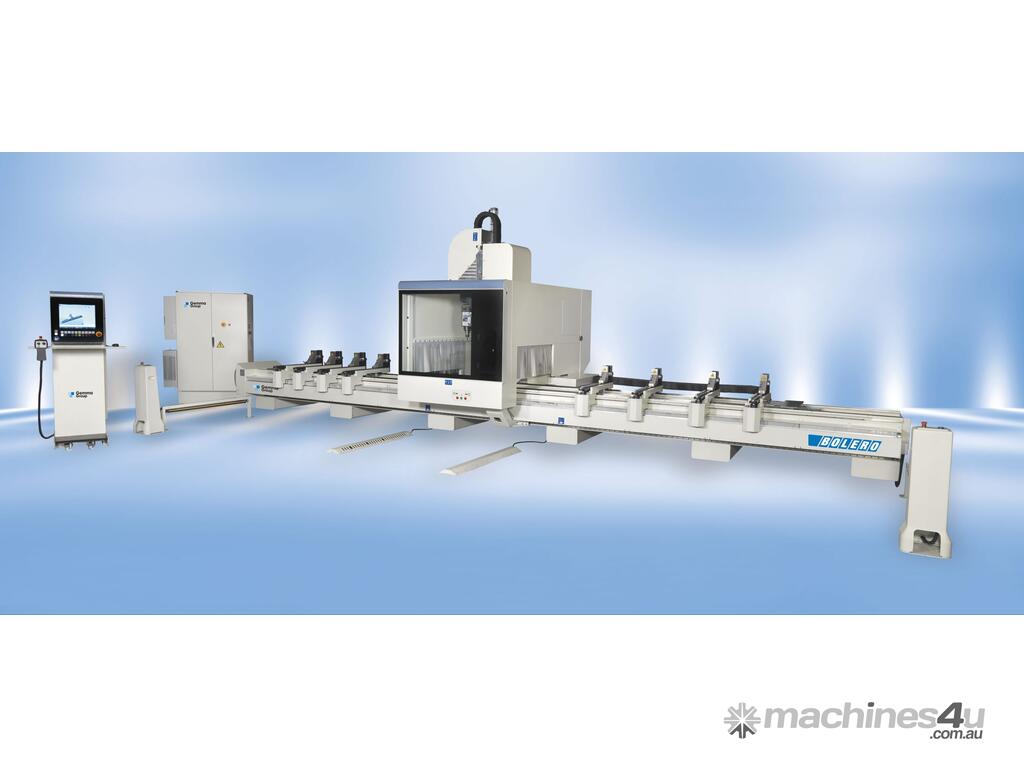

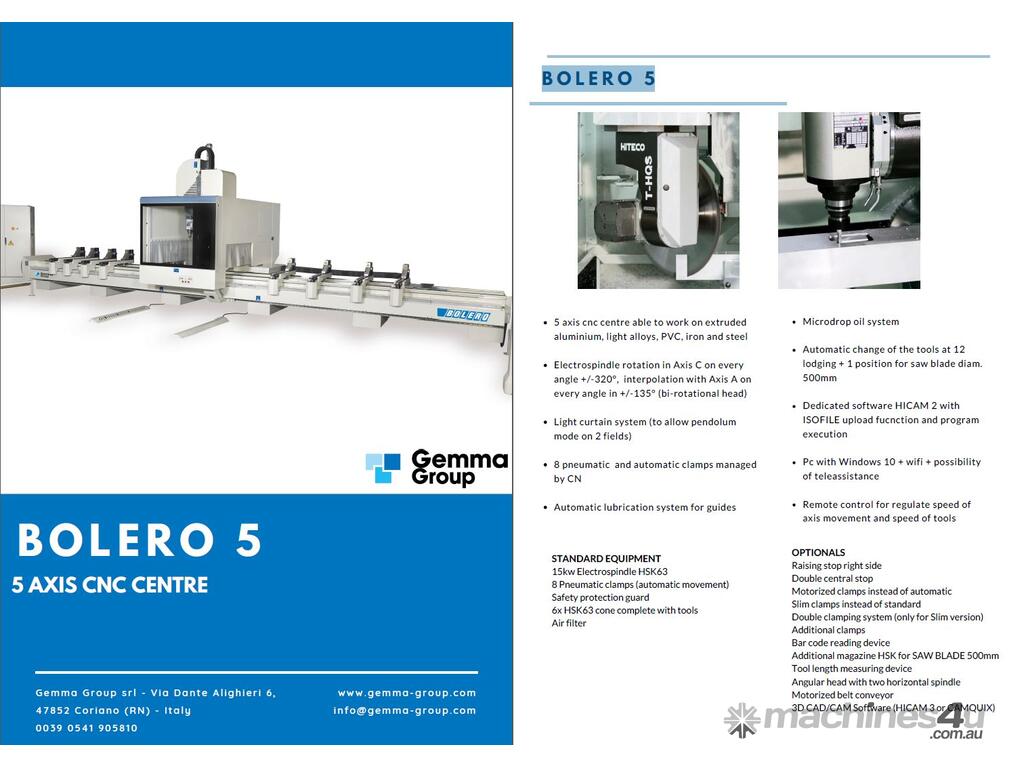

GEMMA GROUP - CNC Cutting Machine - model: Bolero 5

BOLERO 5
6.9M 5 axis vertical milling cente with 12 tool changer.

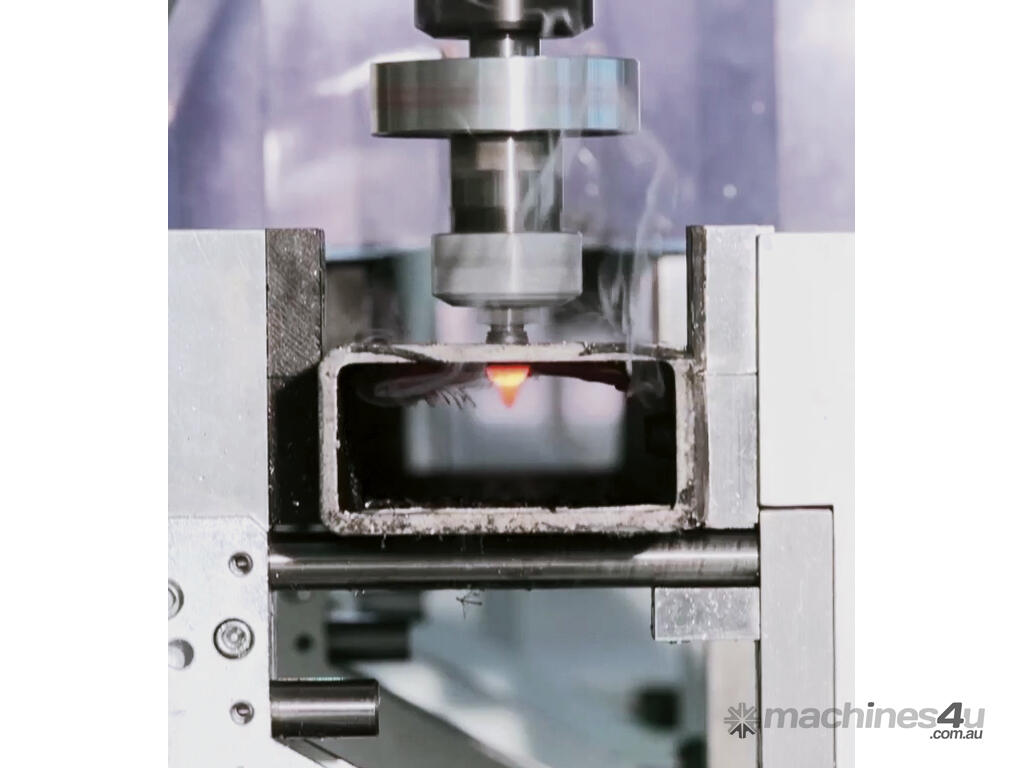

* 5 axis CNC centre able to work on extruded aluminum, light alloys, PVC, iron and steel
* Electrospindle rotation in Axis C on every angle +/-320°, interpolation with Axis A on every angle in +/-135° (bi-rotational head
* Light curtain system (to allow pendolum mode on 2 fields)

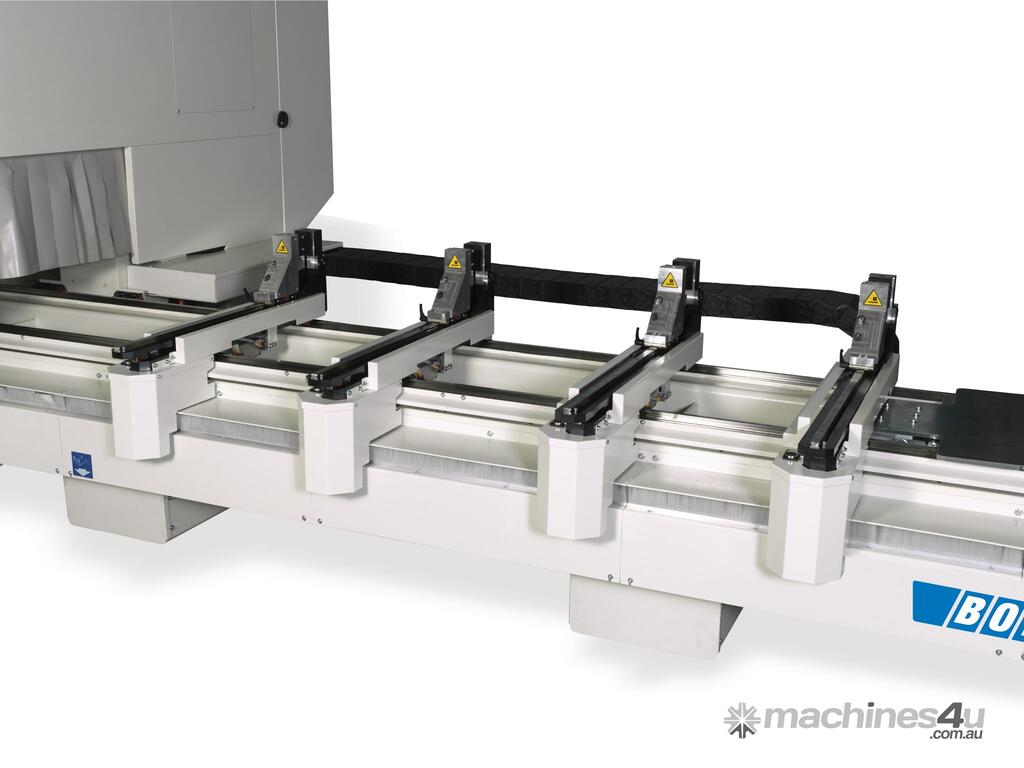

* 8 pneumatic and automatic clamps managed by CN
* Automatic lubrication system for guides
* Microdrop oil system

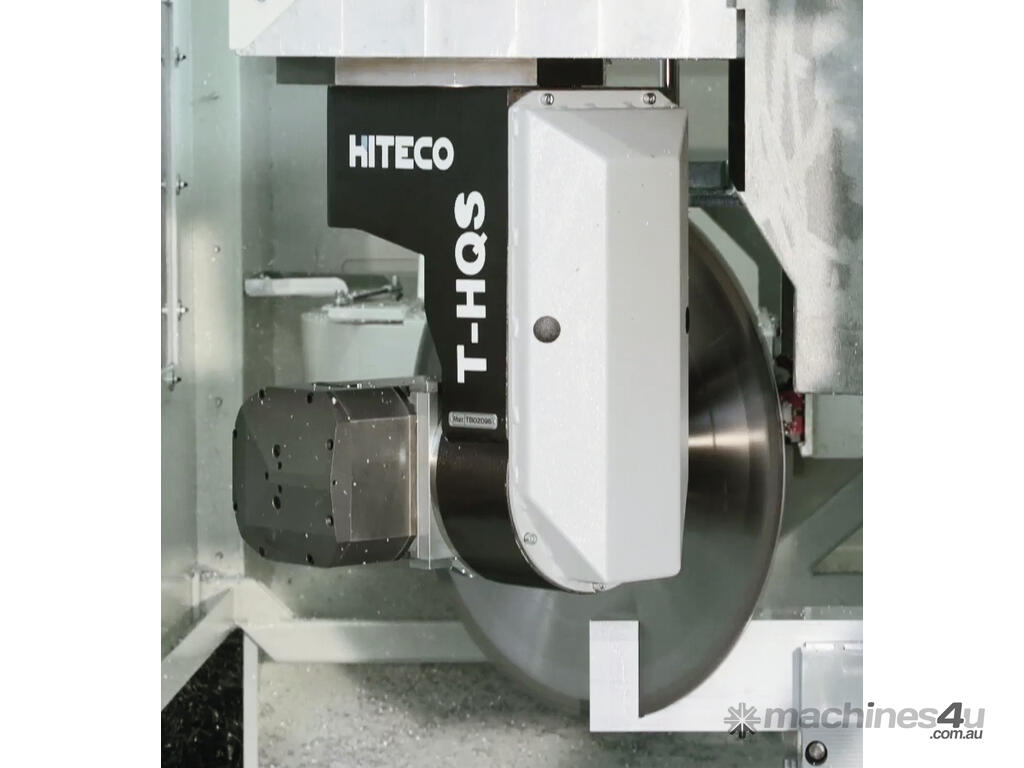

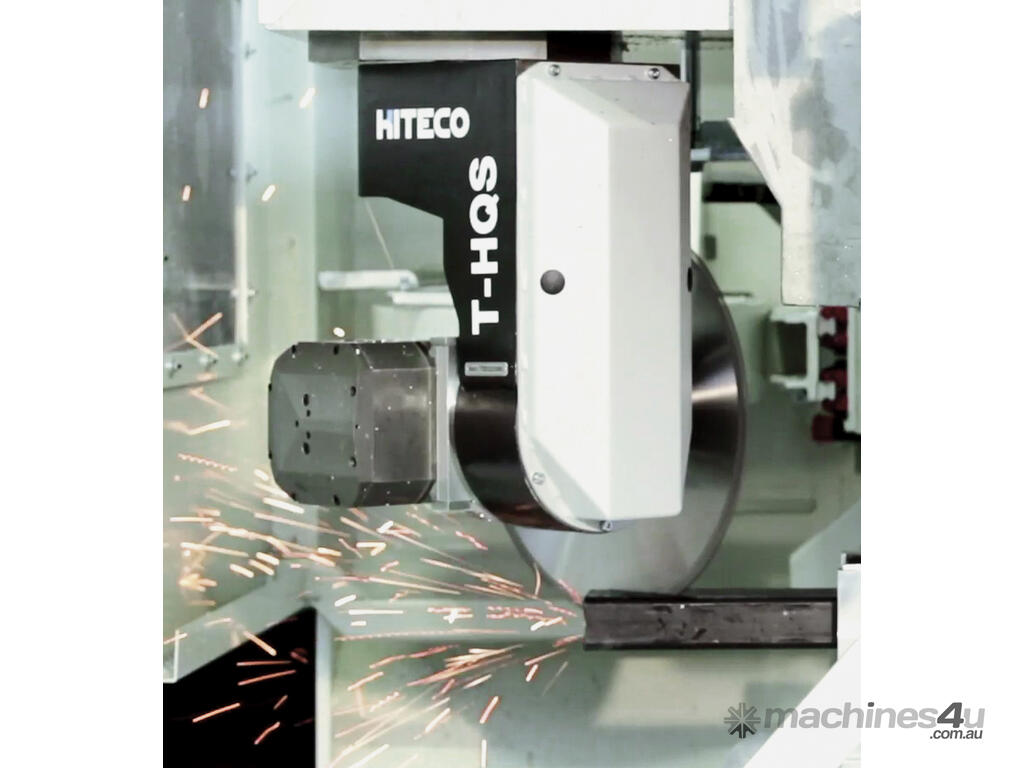

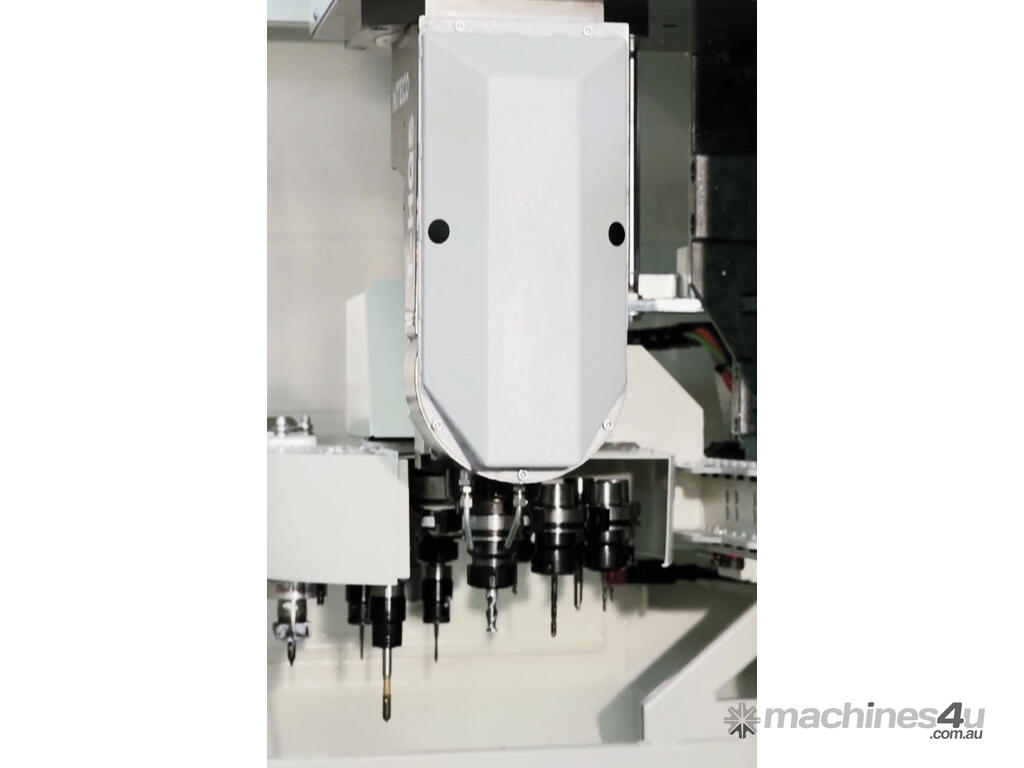

* Automatic change of the tools at 12 lodging + 1 position for saw blade diam. 500mm
* Dedicated software HICAM 2 with ISOFILE upload fucnction and program execution
* Pc with Windows 10 + wifi + possibility of teleassistance
* Remote control for regulating speed of axis movement and speed of tools


STANDARD EQUIPMENT

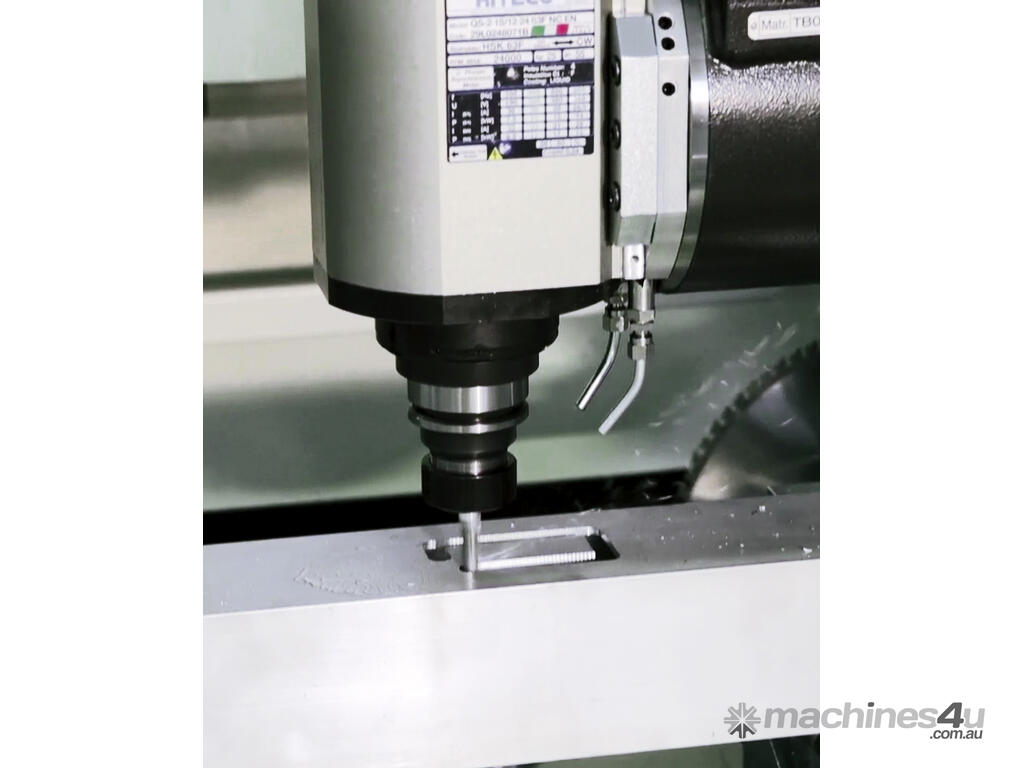

* 15kw Electrospindle HSK63
* 8 Pneumatic clamps (automatic movement)

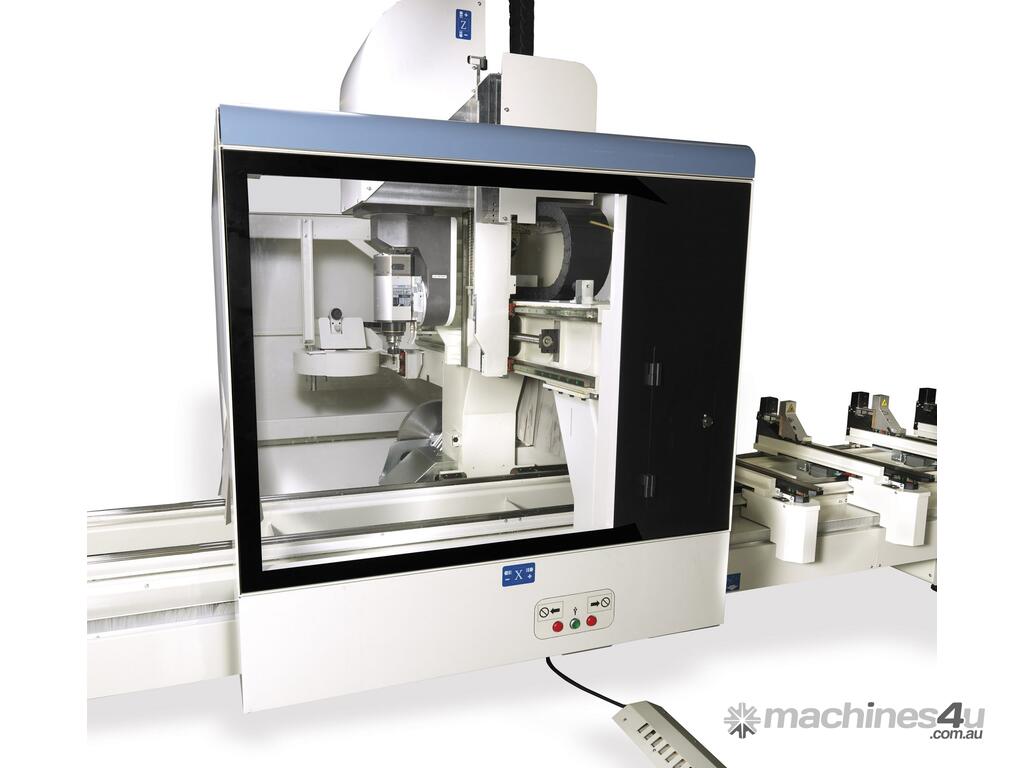

* Safety protection guard
* 6x HSK63 cone complete with tools
* Air filter

OPTIONALS
* Raising stop right side
* Double central stop
* Motorized clamps instead of automatic
* Slim clamps instead of standard
* Double clamping system (only for Slim version)
* Additional clamps
* Bar code reading device
* Additional magazine HSK for SAW BLADE 500mm
* Tool length measuring device
* Angular head with two horizontal spindle
* Motorized belt conveyor
* 3D CAD/CAM Software (HICAM 3 or CAMQUIX)

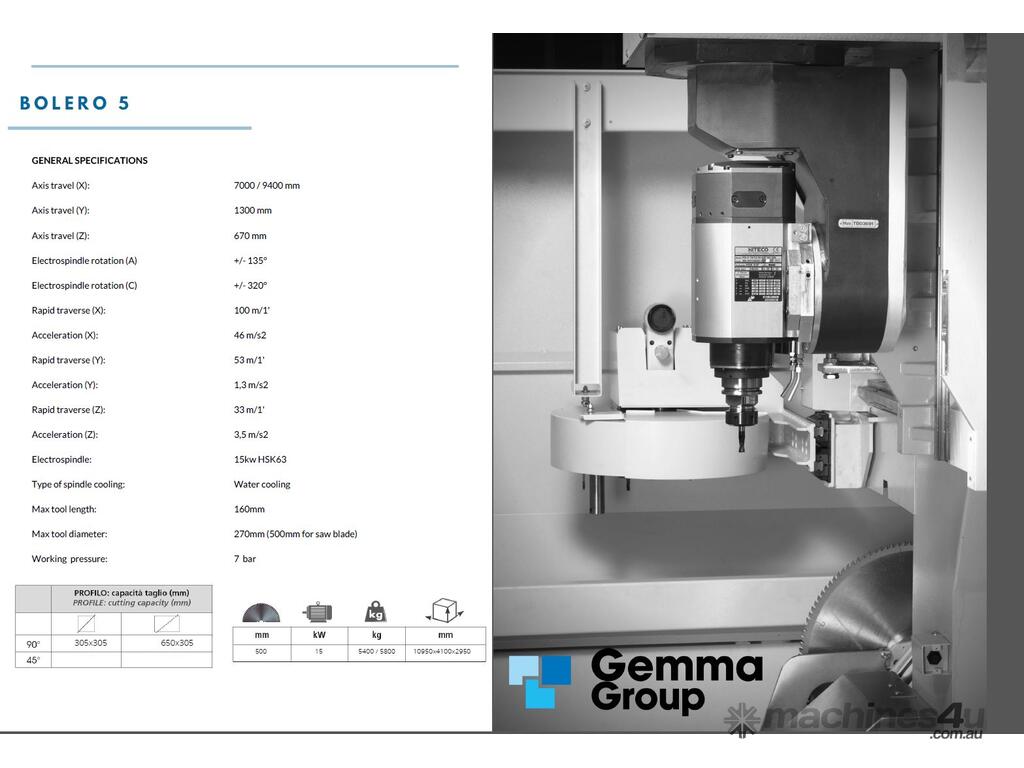

GENERAL SPECIFICATIONS
* Axis travel (x): 7000 / 9400 mm
* Axis travel (Y): 1300 mm
* Axis travel (z): 670 mm
* Electrospindle rotation (A): +/- 135
* Electrospindle rotation (C): +/- 320°
* Rapid traverse (X): 100 m/1?
* Acceleration (X): 46 m/s2
* Rapid traverse (Y): 53 m/1?
* Acceleration (Y): 1,3 m/s2
* Rapid traverse (Z) 33 m/1?
* Acceleration (Z): 3,5 m/s2
* Electrospindle: 15kw HSK63
* Type of spindle cooling: Water coolin
* Max tool length: 160mm
* Max tool diameter: 270mm (500mm for saw blade)
* Working pressure: 7 bar
