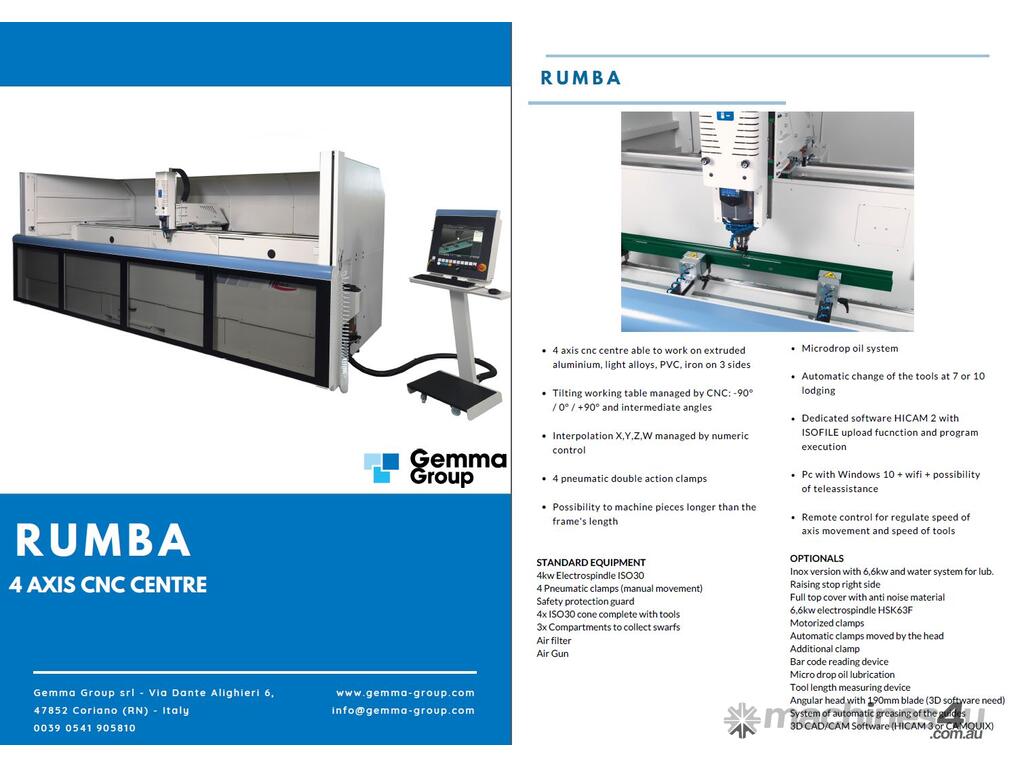

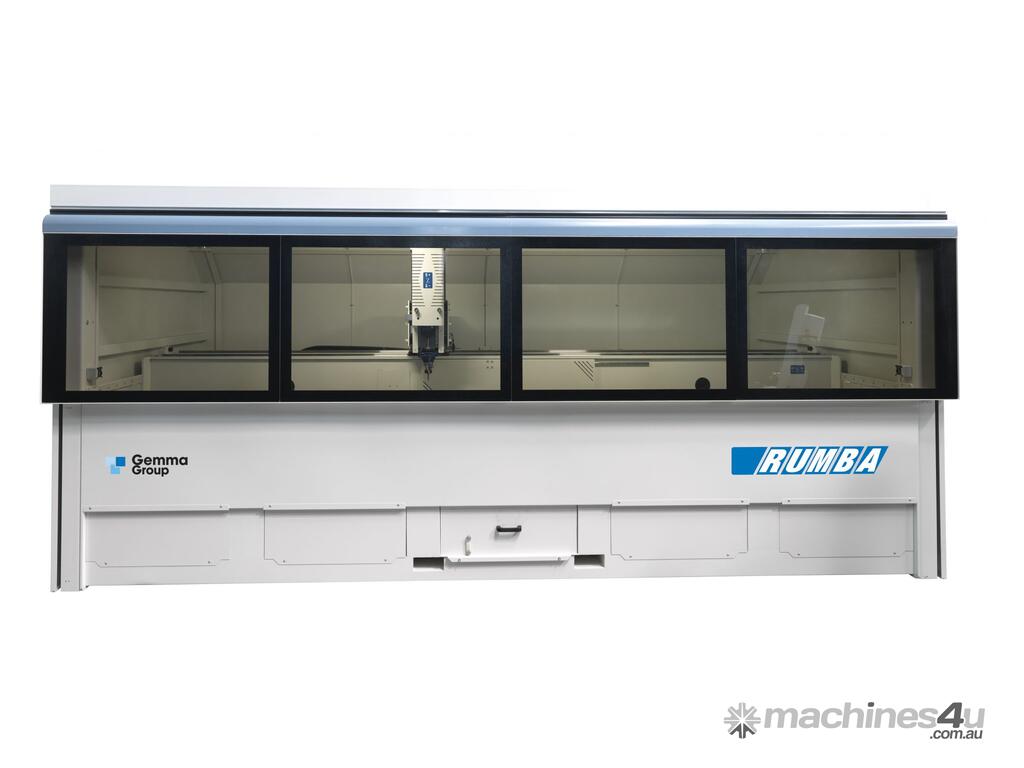

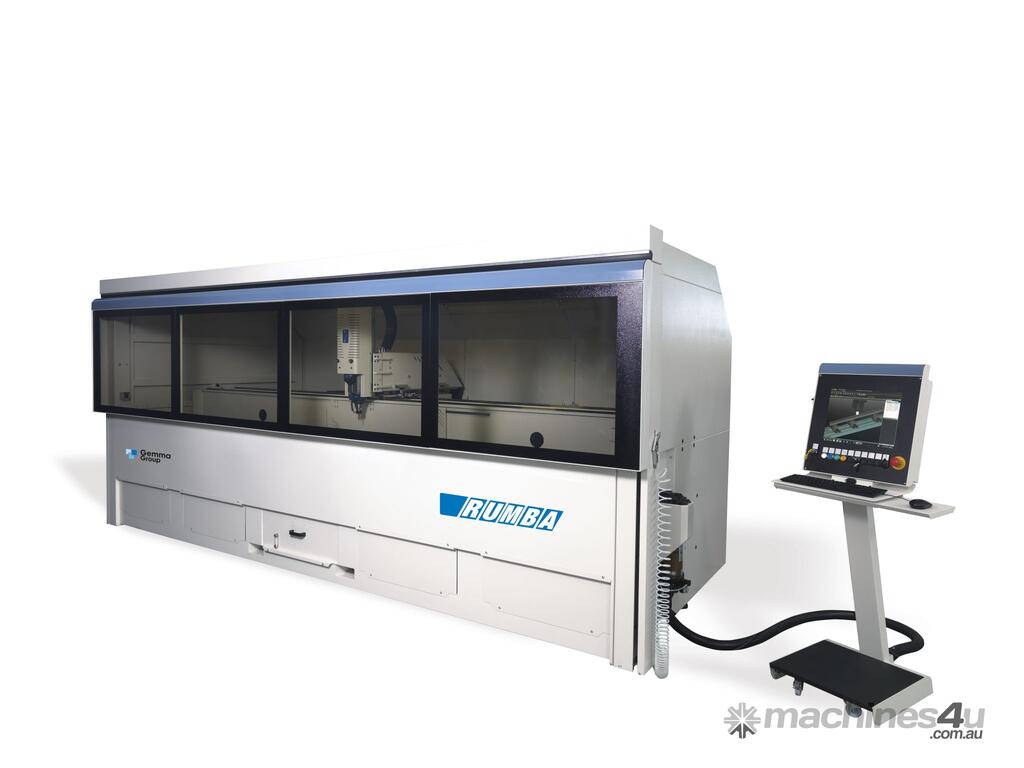

GEMMA GROUP - CNC Cutting Machine - model: Rumba

RUMBA
3M to 4M 4 axis lineal CNC milling center with rotating worktable.

* 4 axis CNC centre able to work on extruded aluminium, light alloys, PVC, iron on 3 sides
* Tilting working table managed by CNC: -90° / 0° / +90° and intermediate angles
* Interpolation X,Y,Z,W managed by numeric control

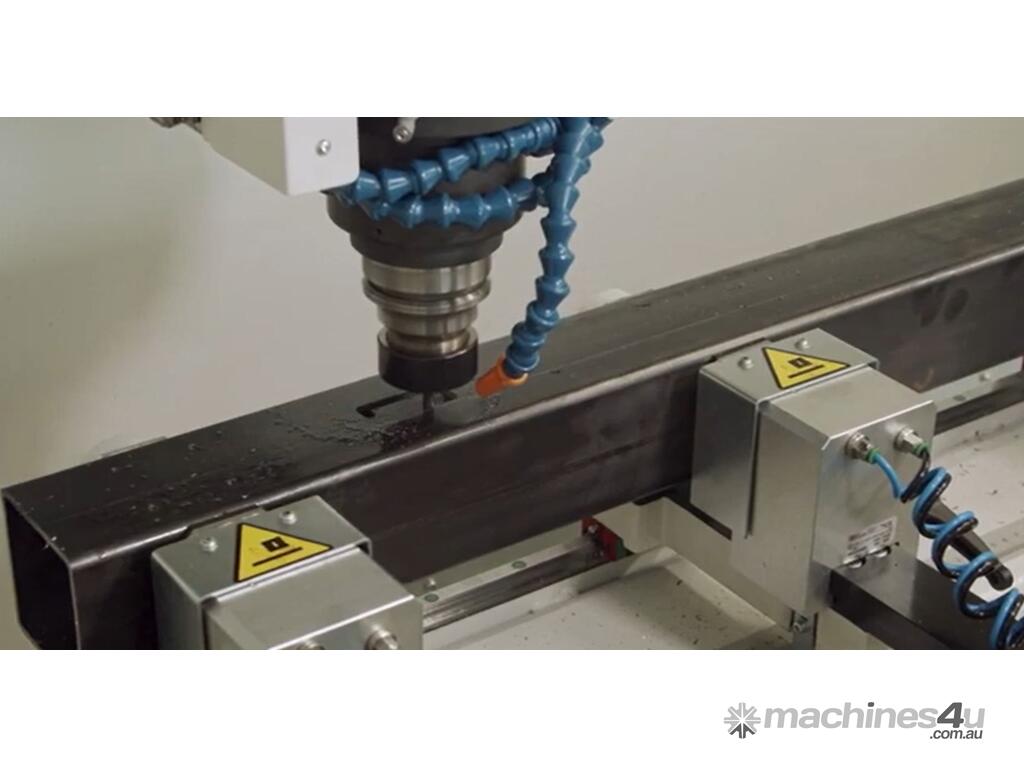

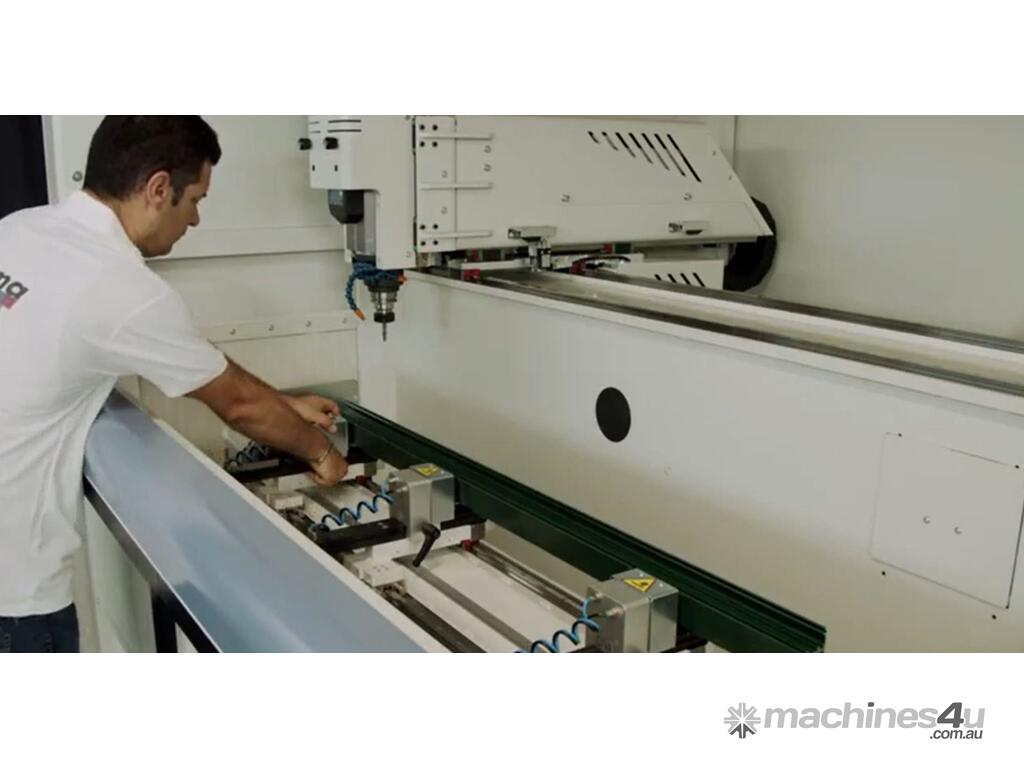

* 4 pneumatic double action clamps

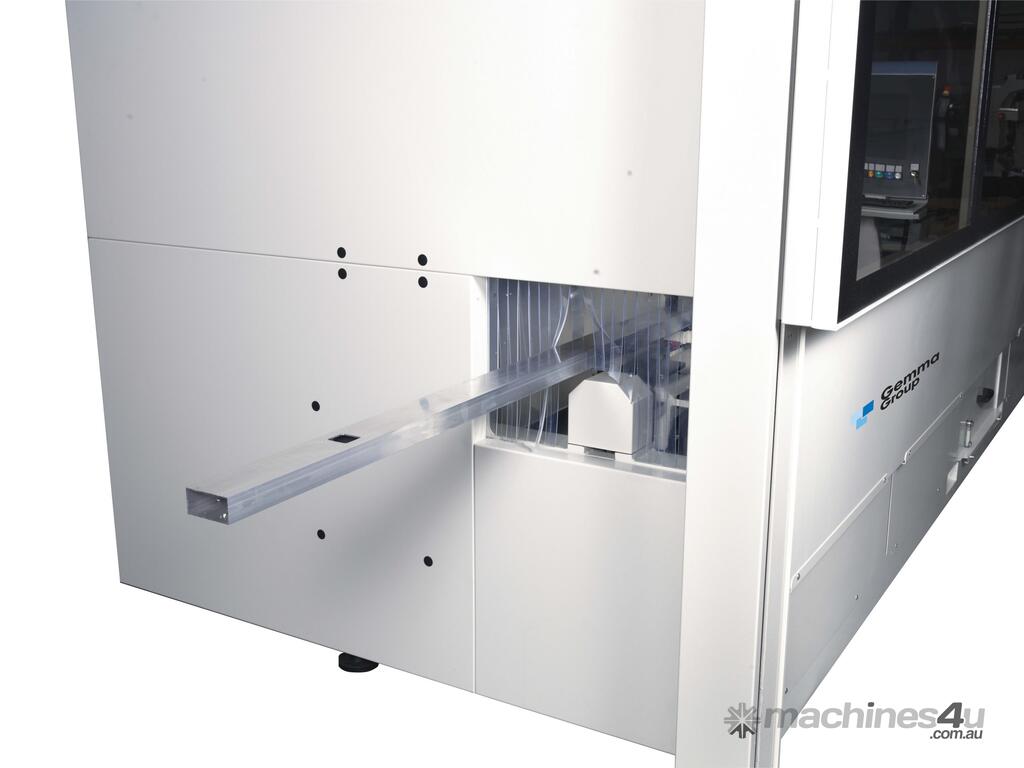

* Possibility to machine pieces longer than the frame’s length
* Microdrop oil system

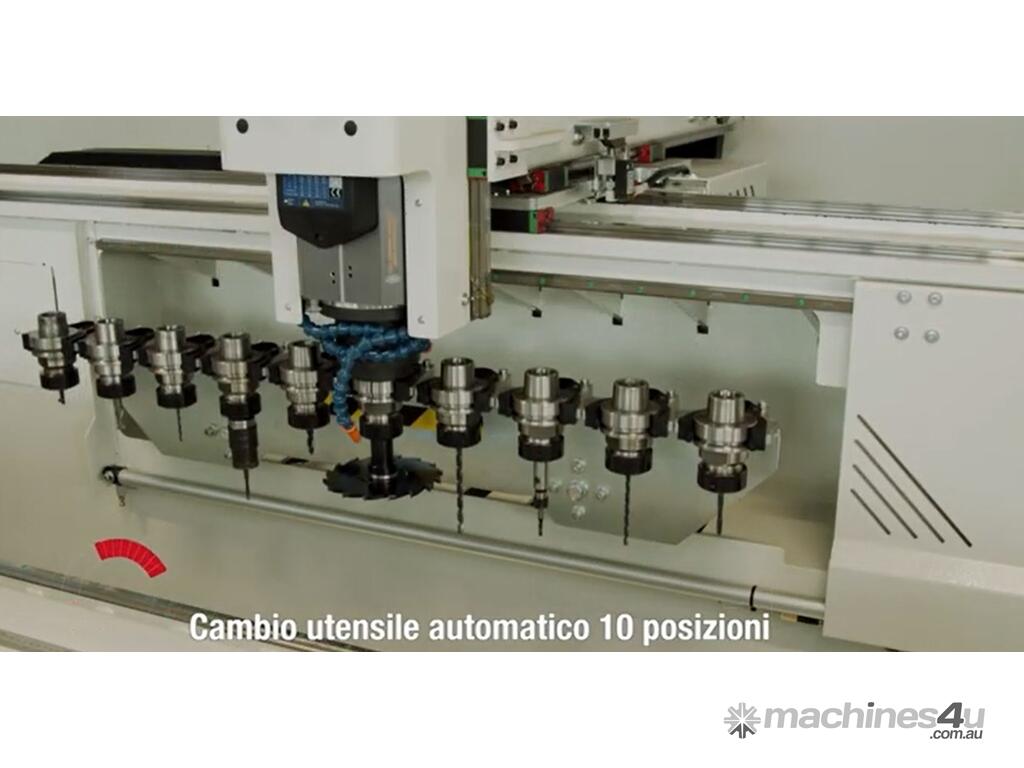

* Automatic change of the tools at 7 or 10 lodging

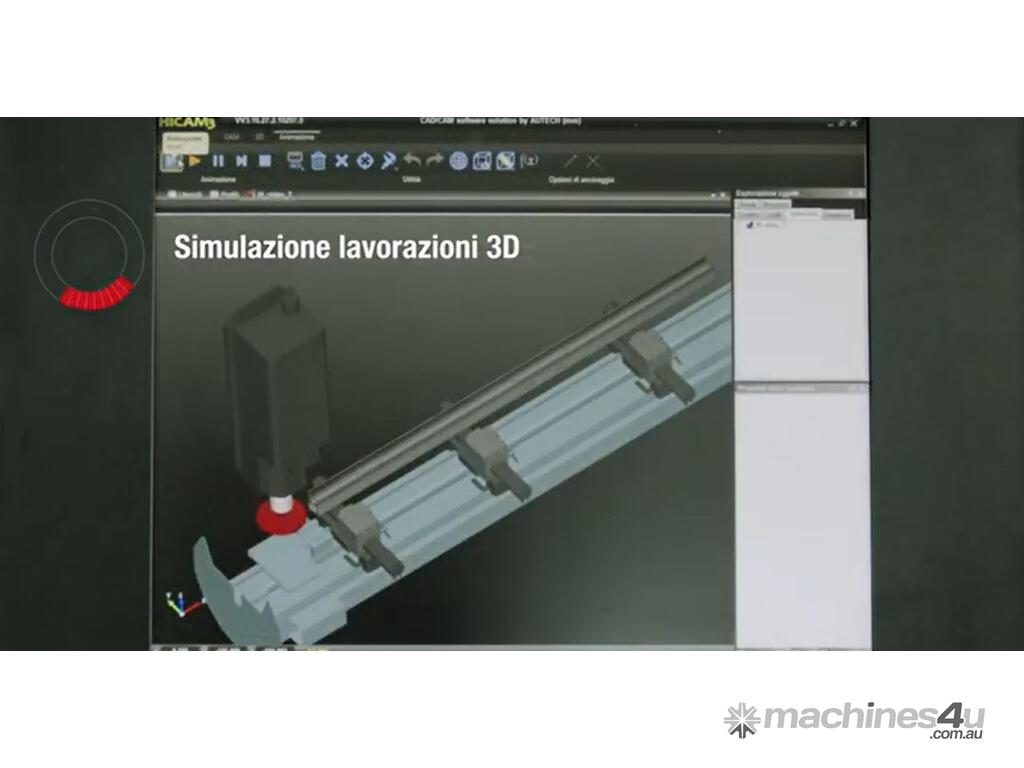

* Dedicated software HICAM 2 with ISOFILE upload function and program execution

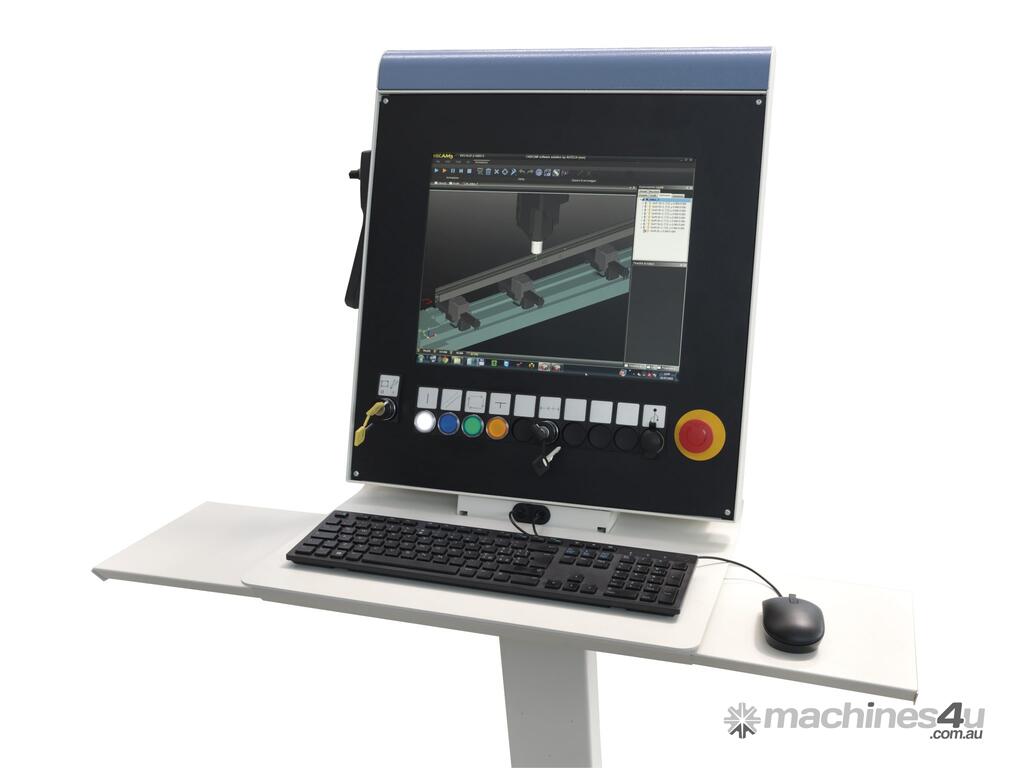

* Pc with Windows 10 + wifi + possibility of teleassistance
* Remote control for regulating speed of axis movement and speed of tools

STANDARD EQUIPMENT

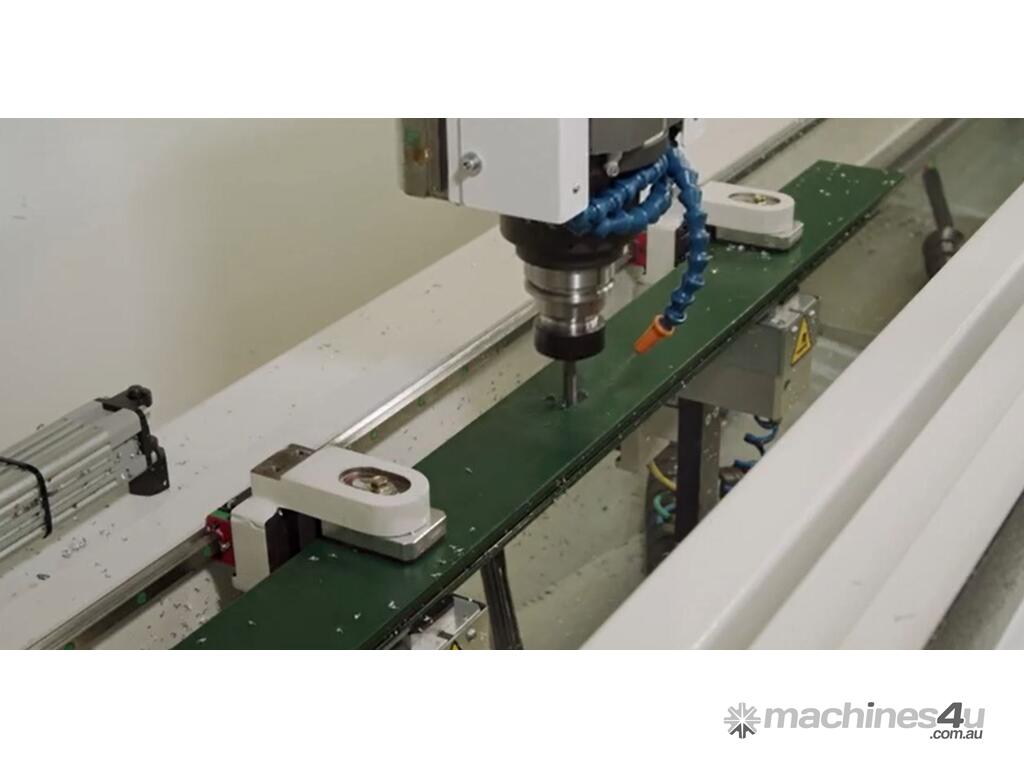

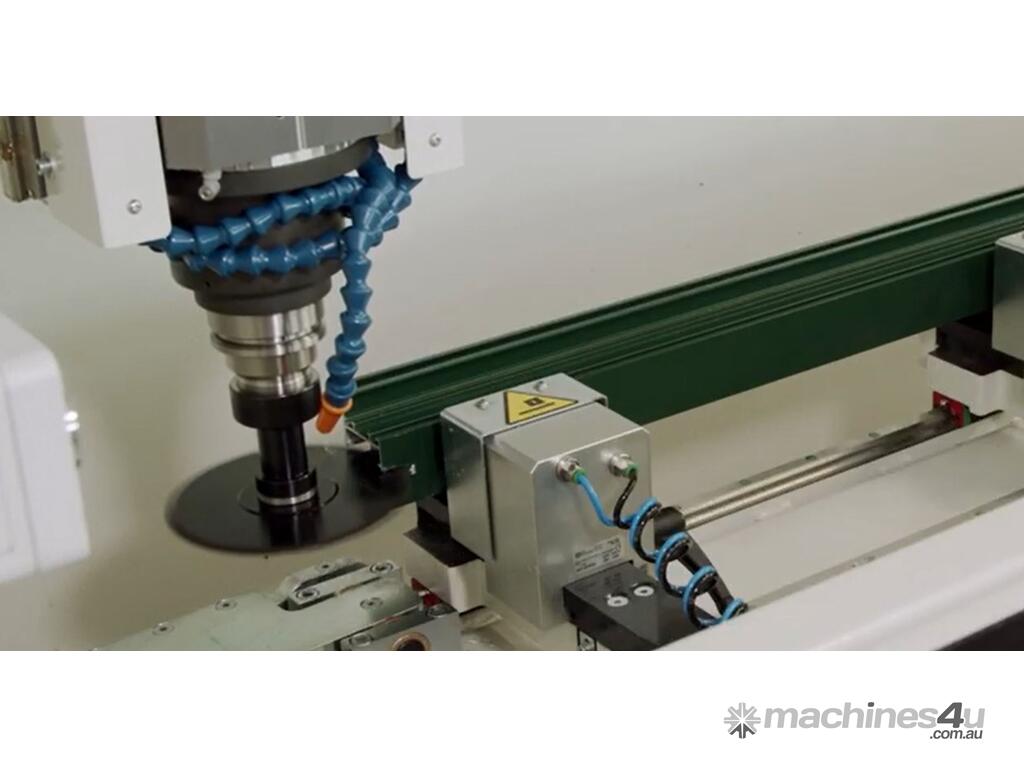

* 4kw Electrospindle ISO30
* 4 Pneumatic clamps (manual movement)

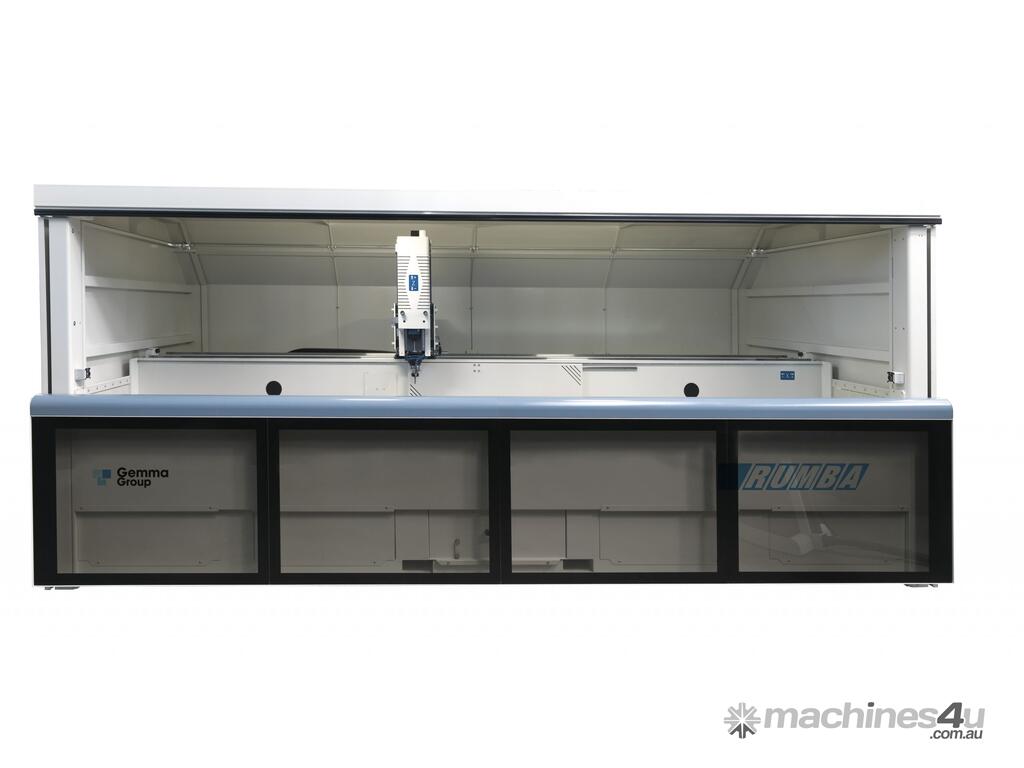

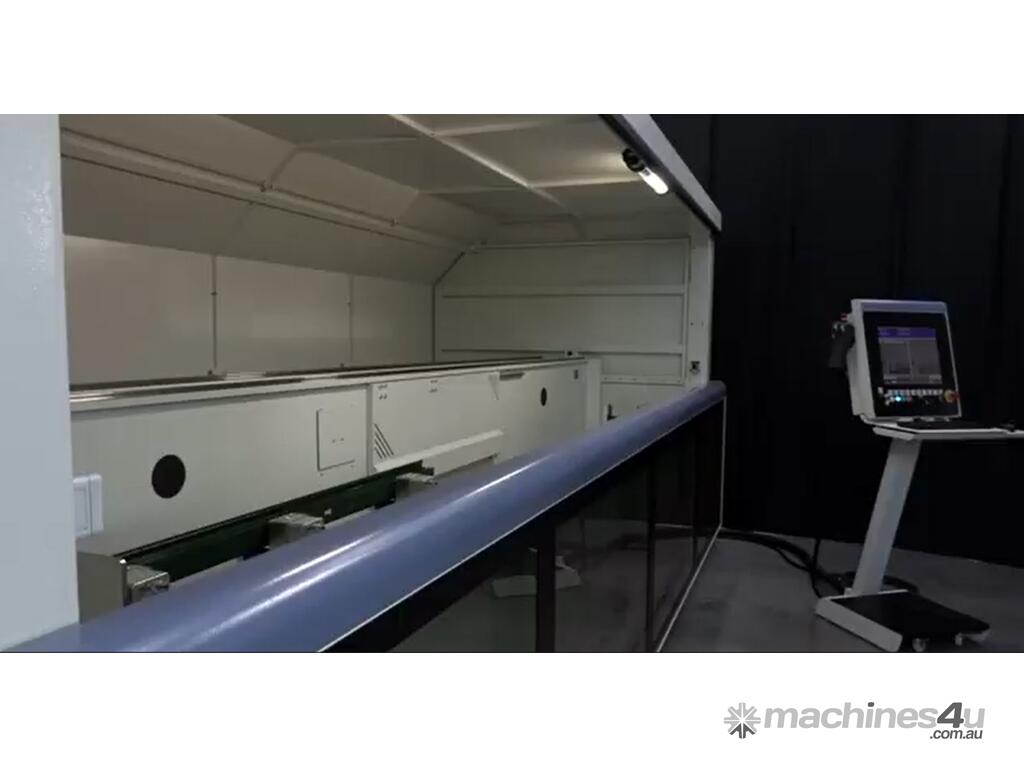

* Safety protection guard
* 4x ISO30 cone complete with tools
* 3x Compartments to collect swarfs
* Air filter
* Air GunM

OPTIONS
* Inox version with 6,6kw and water system for lub.
* Raising stop right side
* Full top cover with anti noise material
* 6,6kw electrospindle HSK63F
* Motorized clamps
* Automatic clamps moved by the head
* Additional clamp
* Bar code reading device
* Micro drop oil lubrication
* Tool length measuring device
* Angular head with 190mm blade (3D software need)
* System of automatic greasing of the guides
* 3D CAD/CAM Software (HICAM 3 or CAMQUIX)

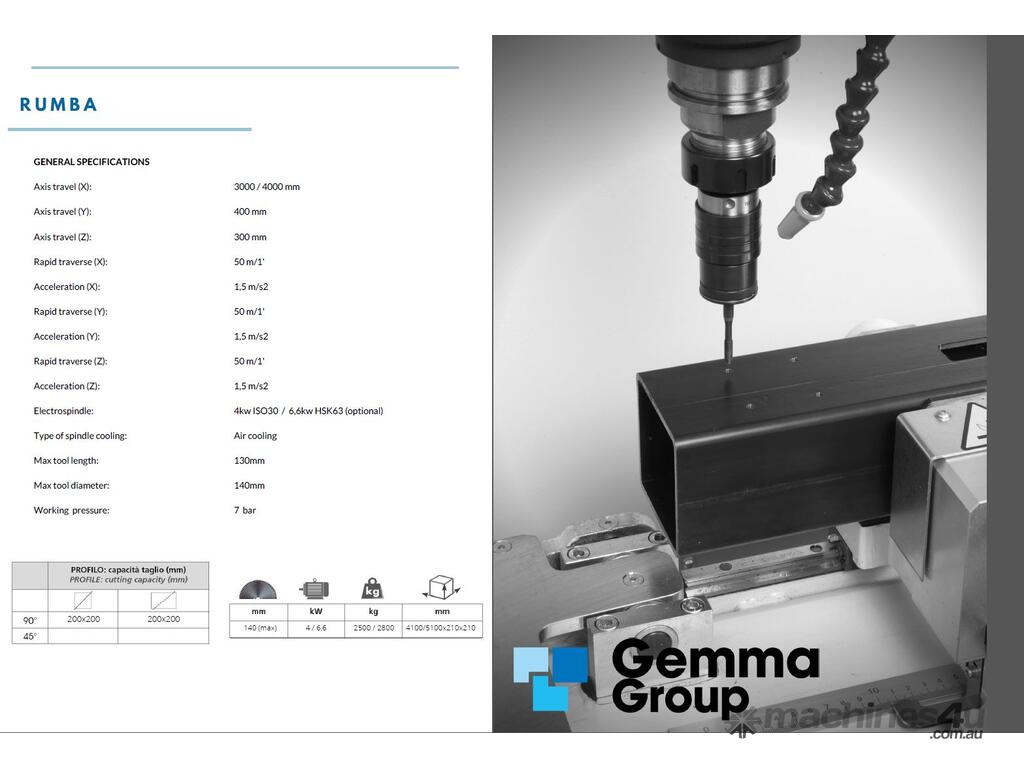

GENERAL SPECIFICATIONS
* Axis travel (X): 3000 / 4000 mm
* Axis travel (Y): 400 mm
* Axis travel (z): 300 mm
* Rapid traverse (X): 50 m/1?
* Acceleration (X): 1,5 m/s2
* Rapid traverse (Y): 50 m/1?
* Acceleration (Y): 1,5 m/s2
* Rapid traverse (Z) 50 m/1?
* Acceleration (Z): 1,5 m/s2
* Electrospindle: 4kw ISO30 / 6,6kw HSK63 (optional)
* Type of spindle cooling: Air cooling
* Max tool length: 130mm
* Max tool diameter: 140mm
* Working pressure: 7 bar
