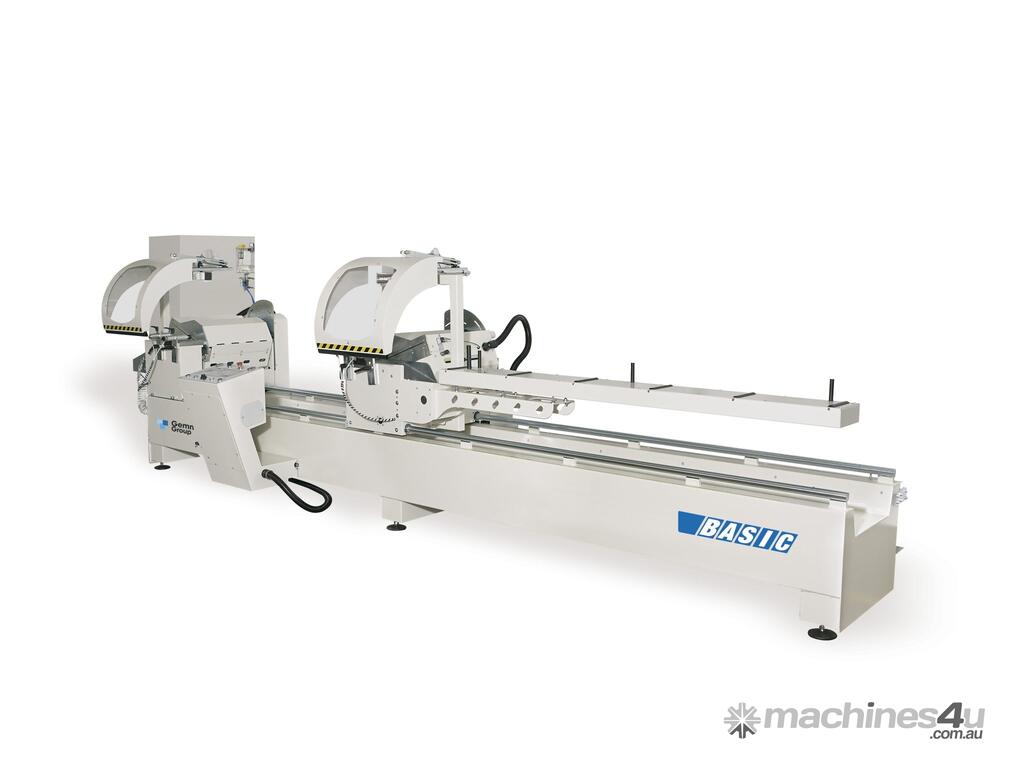

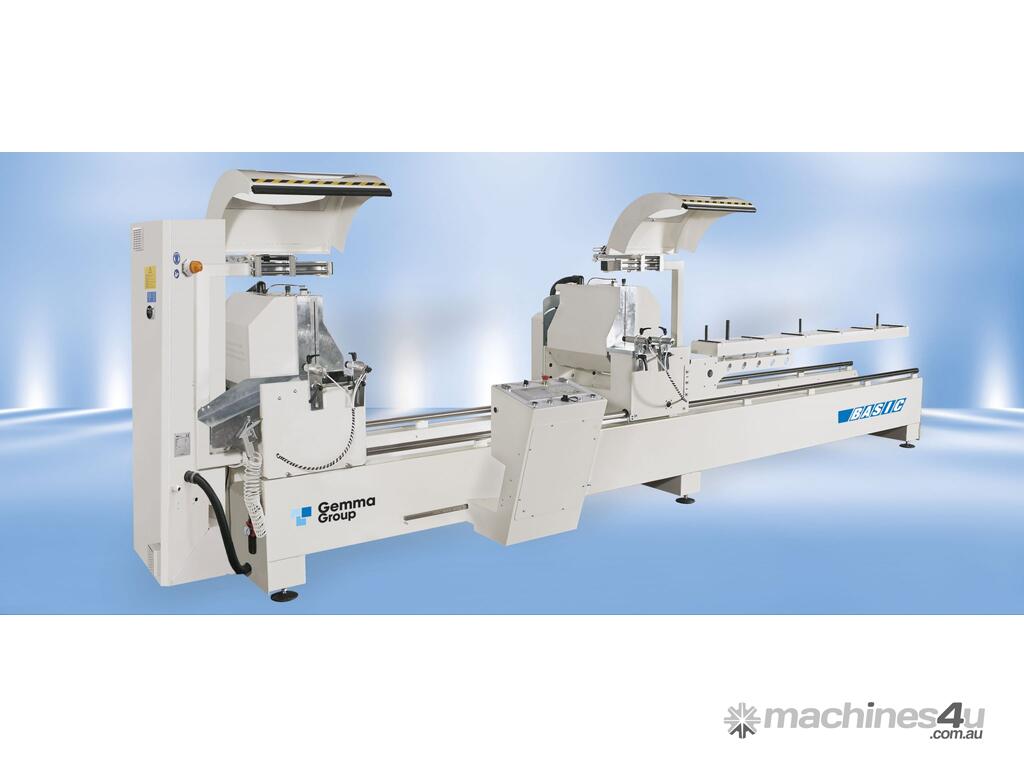

GEMMA GROUP - DoubleHead Cutting Machine - model: Basic A

BASIC A
4.6M double head cut off saw with fixed left and right mobile unit with automatic movement and automatic infinite adjustment of blade angle via servo drive.

* Double head cutting off machine with a fixed sawing head on the left and one movable on the right side.

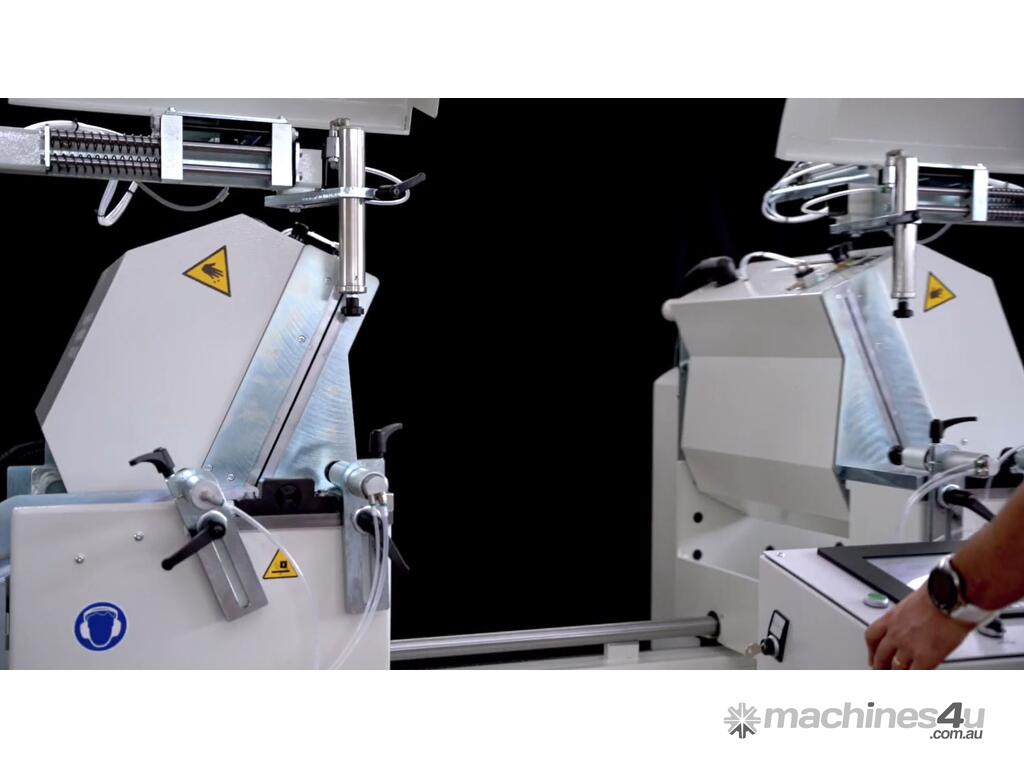

* Automatic positioning of the movable head and electronic tilting of the sawing units.
* Motorised tilting of the sawing heads ALL DEGREES between 20° / 135°.
* Lubrication by Micro Drop with pure oil.
* Brushless motor for axe positioning.

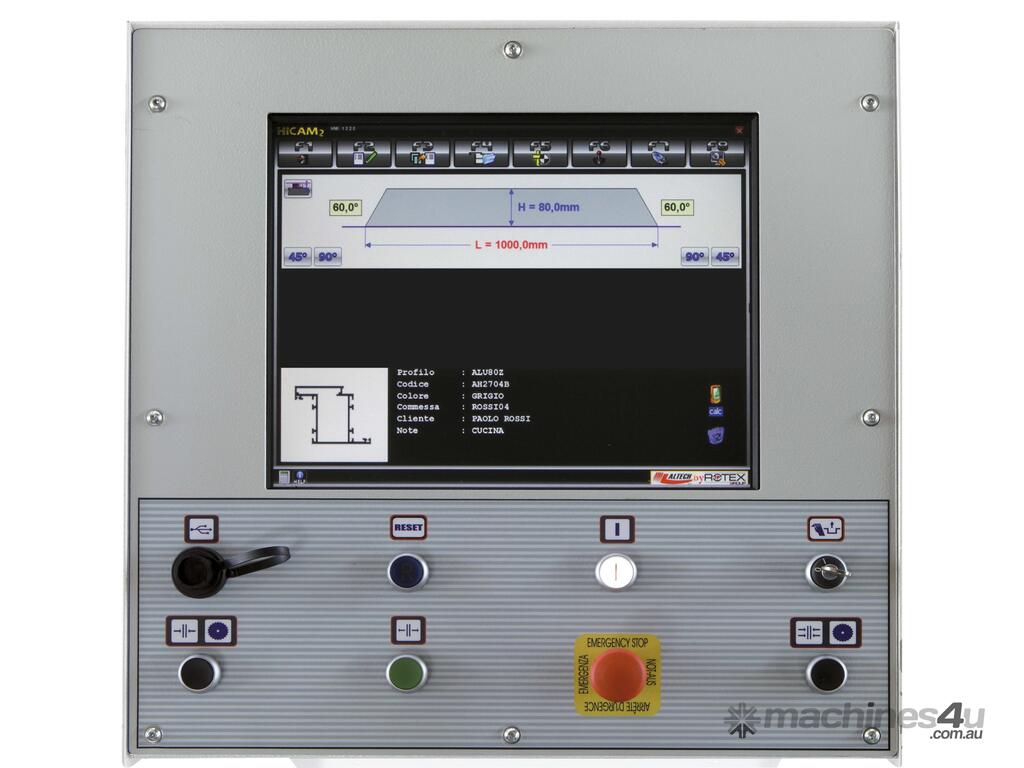

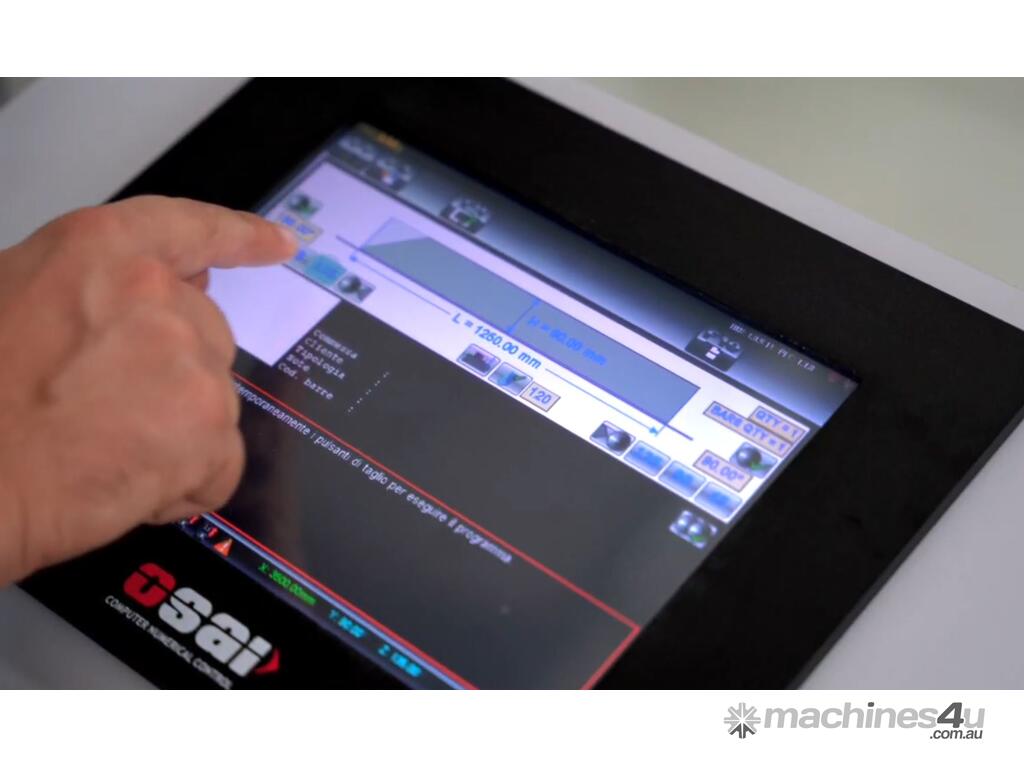

* Numerical control with 3 positioning axes of the latest generation integrated in the function of a personal computer with 10,4” colour display TOUCH SCREEN.
* Software HICAM 2 for creating and controlling, highly ergonomic and of easiest use.
* Possibility of tele-assistance via internet. Pc with Windows 10 + wifi.

STANDARD EQUIPMENT
* Nr. 2 TCT Saw Blades 500mm

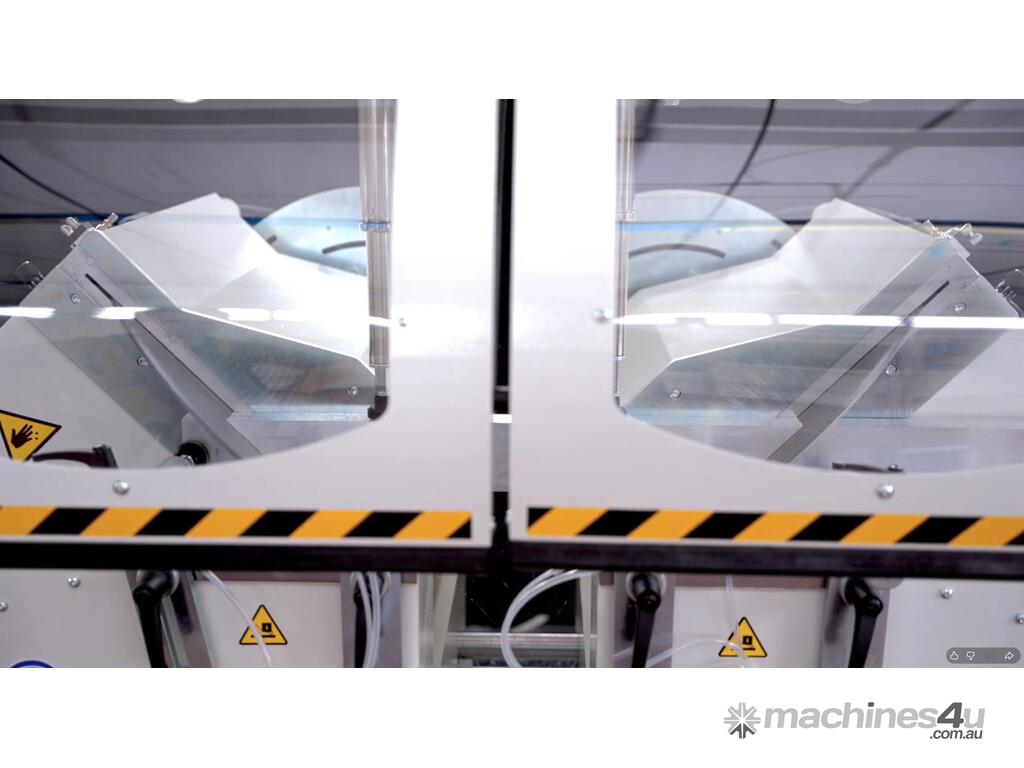

* Safe guards on the cutting area

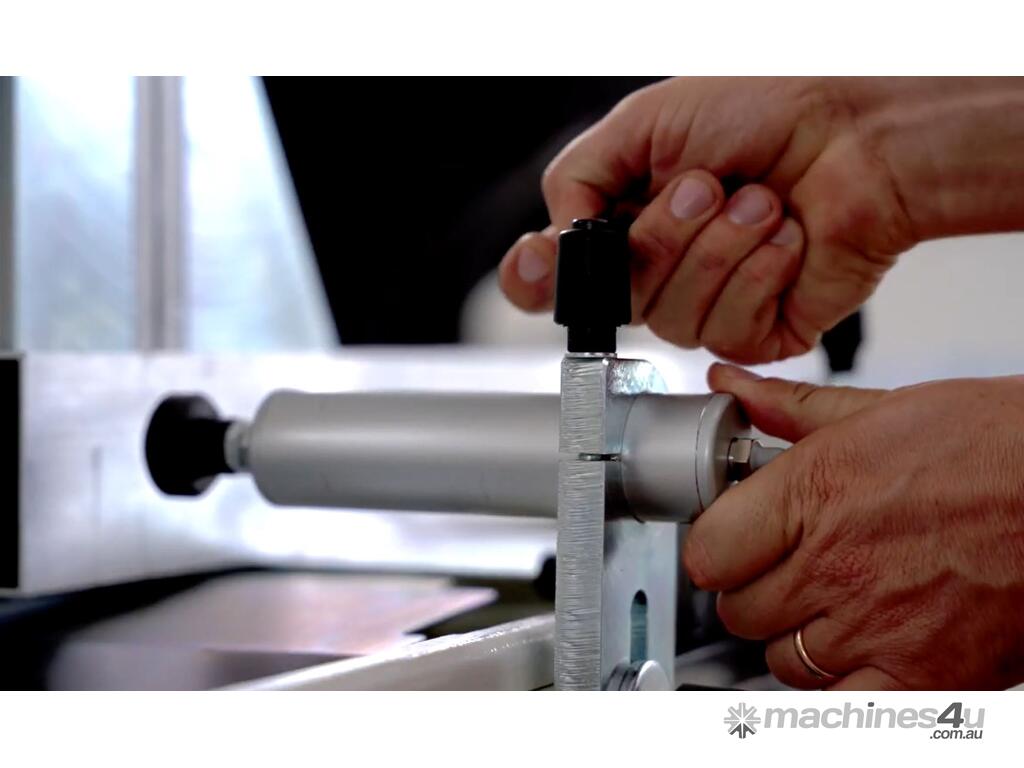

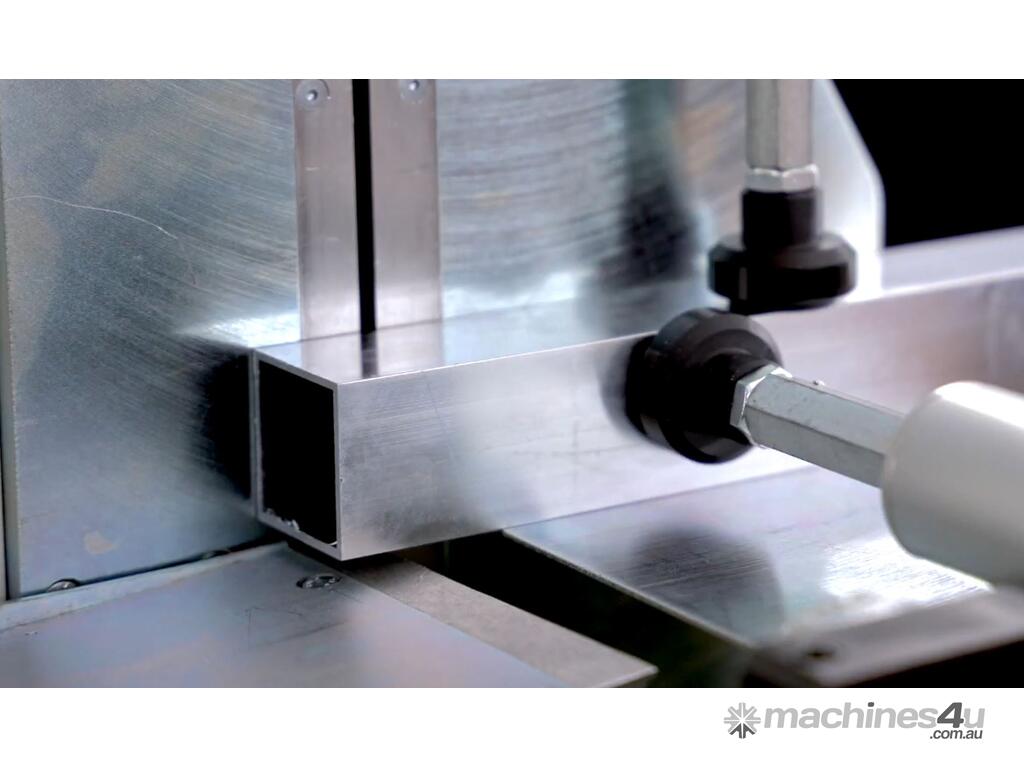

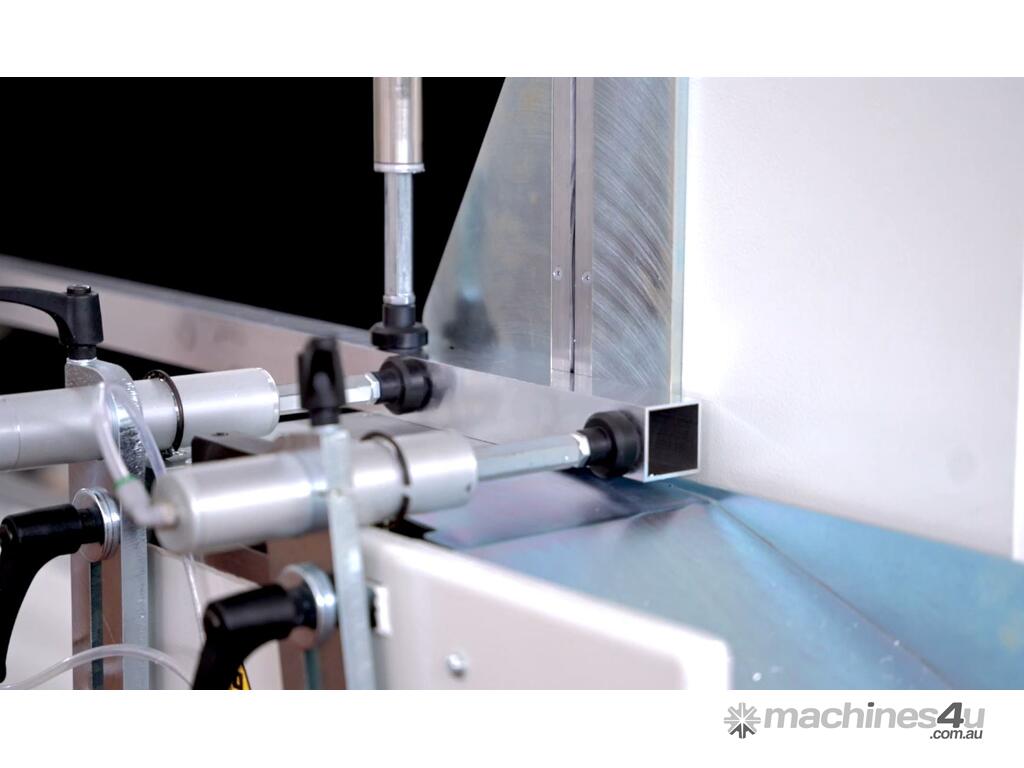

* Nr.4 Horizontal pneumatic clamps
* Micro drop oil lubrication
* Air gun 6mtrs length
* Movable side support
* Air filter

OPTIONALS
* TCT Saw Blade D.500mm (spare)
* Nr.2 Vertical pneumatic clamps
* Automatic device measuring profile height
* Label printer
* Motorized belt conveyor
* Pneumatic central support

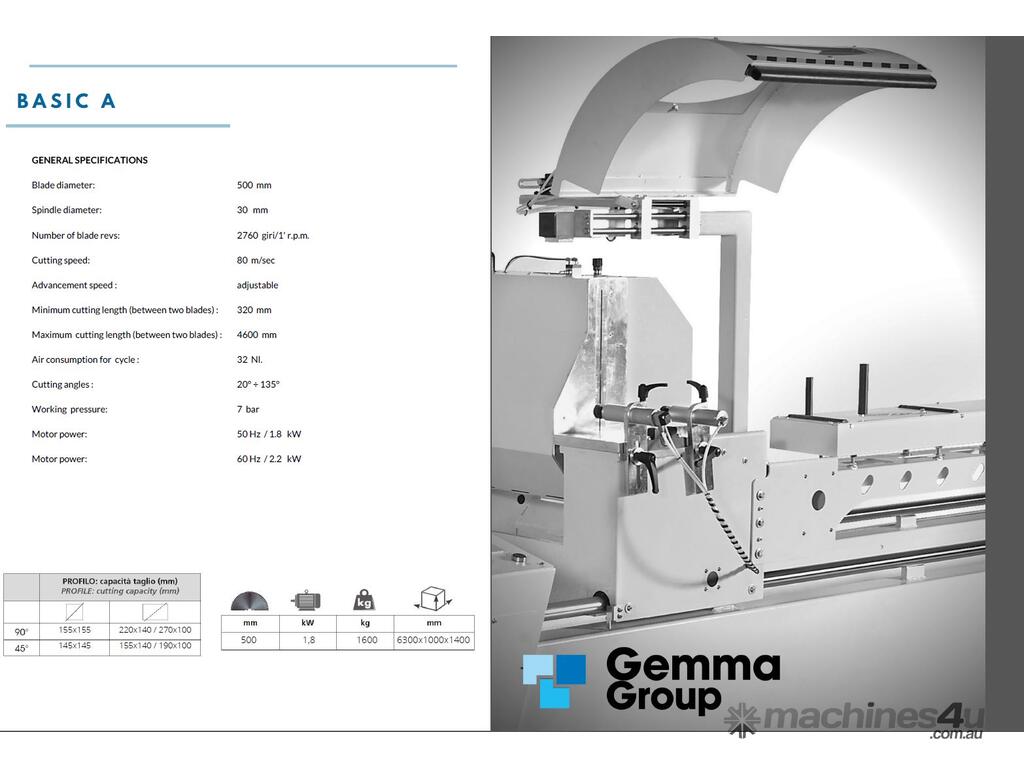

GENERAL SPECIFICATIONS
* Blade diameter: 500 mm
* Spindle diameter: 30 mm
* Number of blade revs: 2760 giri/1? r.p.m.
* Cutting speed: 80 m/sec
* Advancement speed: adjustable
* Minimum cutting length (between two blades) : 320 mm
* Maximum cutting length (between two blades) : 4600 mm
* Air consumption for cycle : 32 Nl.
* Cutting angles : 20° ÷ 135°.
* Working pressure: 7 bar
* Motor power: 50 Hz / 1.8 kW
* Motor power: 60 Hz / 2.2 kW
