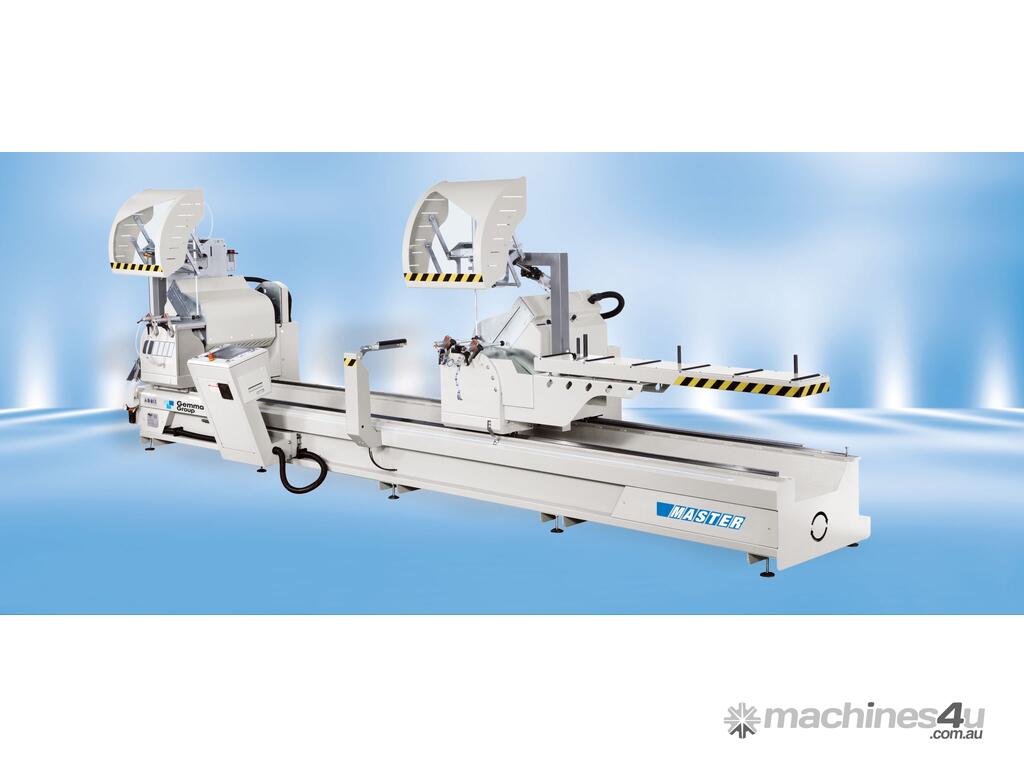

GEMMA GROUP - DoubleHead Cutting Machine - model: Master A

MASTER A
4M to 6M double head cut off saws with fixed left and right mobile head with automatic movement and automatic infinite adjustment of blade angle via servo drive.

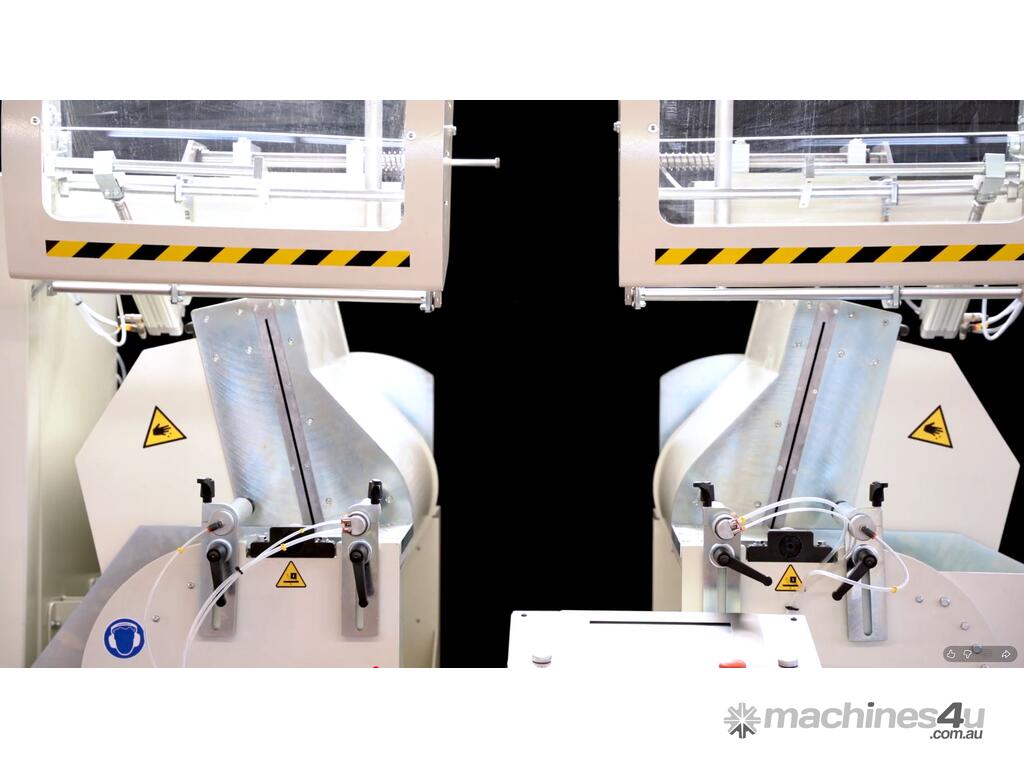

* Double head cutting off machine with a fixed sawing head on the left and one movable on the right side. Automatic positioning of the movable head
* Pneumatic tilting of the sawing units 20°/ 45° / 90° / 135° with mechanical stops for intermediate degrees

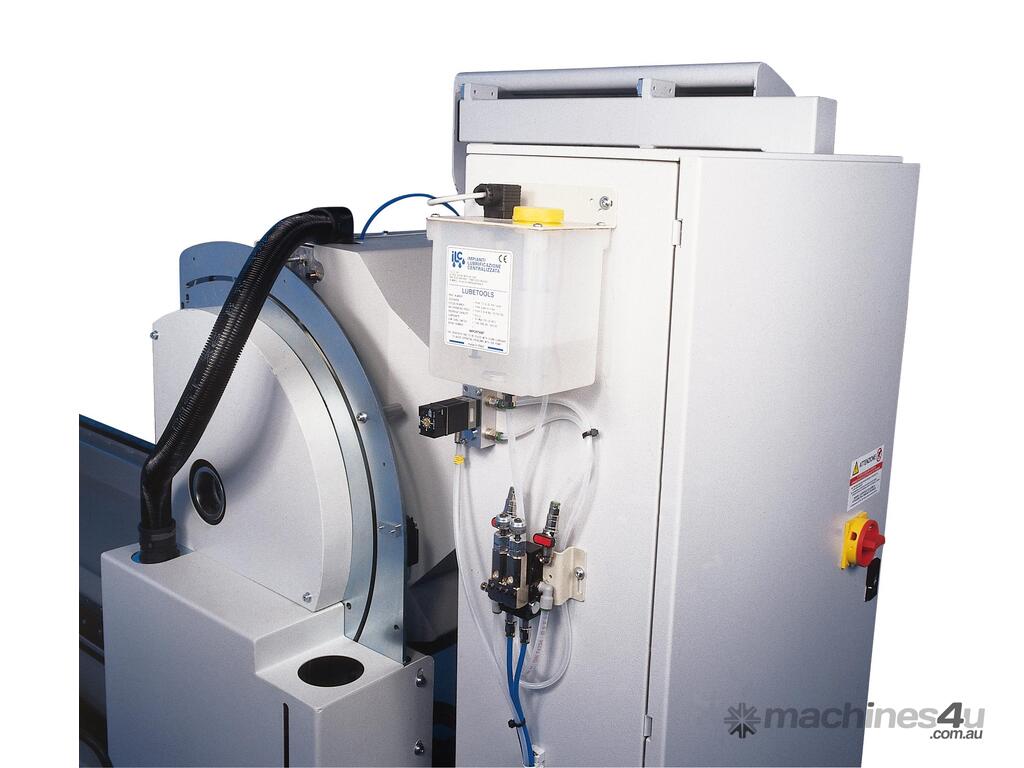

* Spray mist lubrication (Venturi)
* Brushless motor for axe positioning

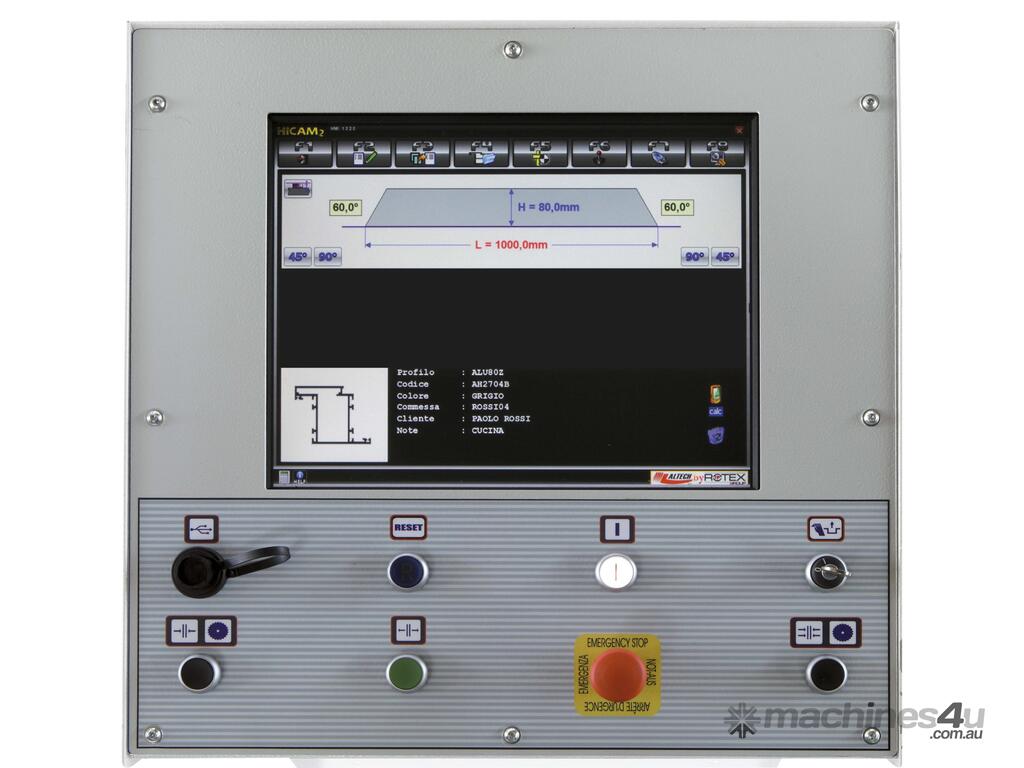

* Plc with 8? touch-screen for creation and management cuts
* Possibility to memorize and load cutting list via USB or Ethernet connection


STANDARD EQUIPMENT
* Nr. 2 TCT Saw Blades 600mm

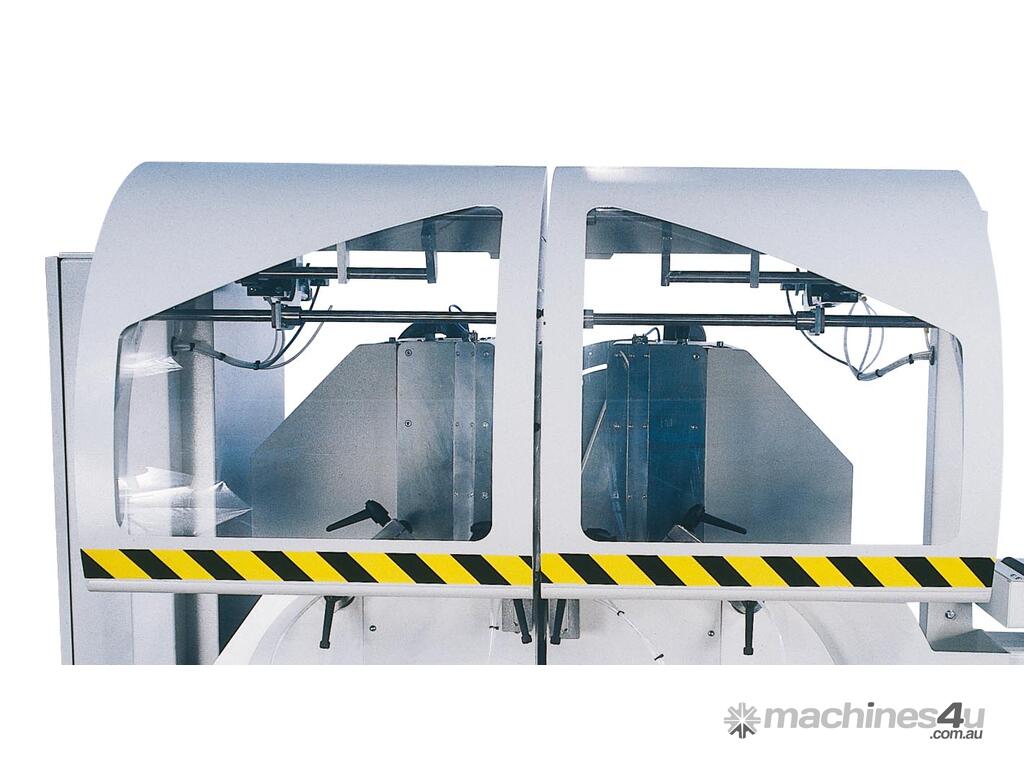

* Safe guards on the cutting area

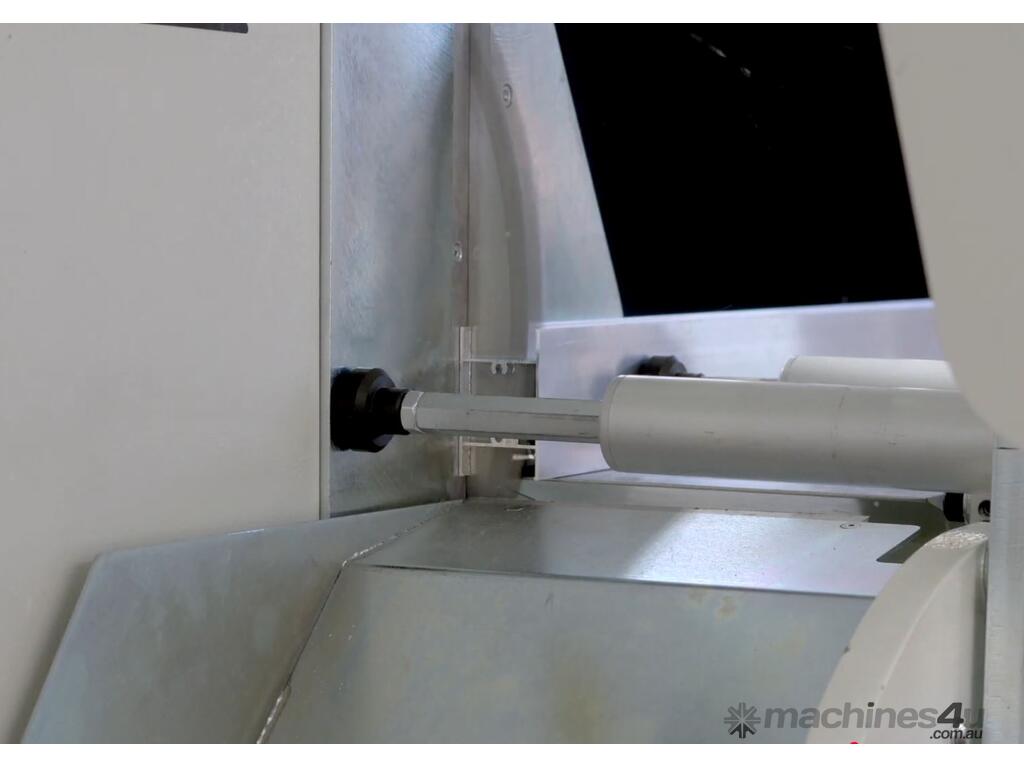

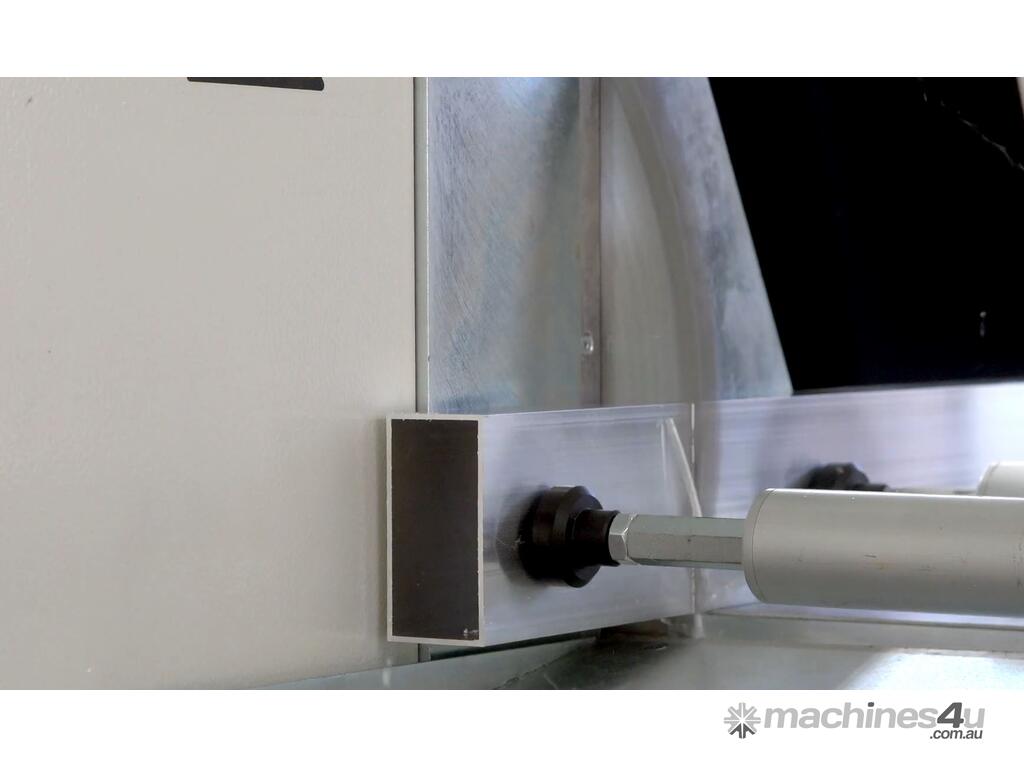

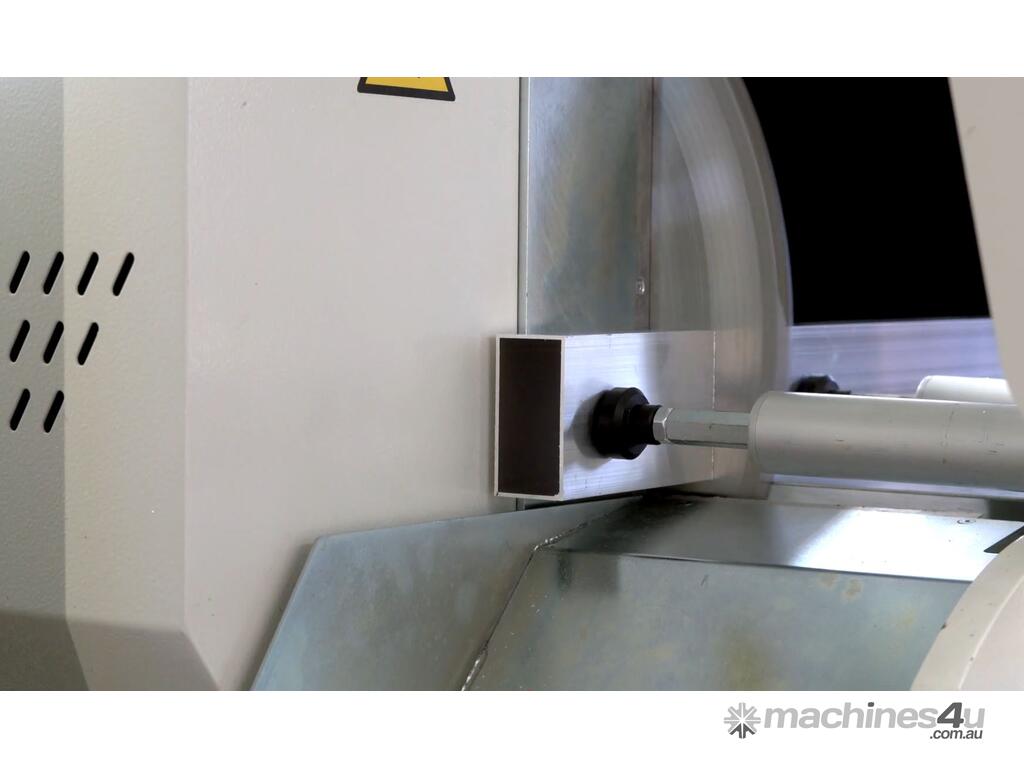

* Nr.4 Horizontal pneumatic clamps
* Micro drop oil lubrication
* Air gun 6mtrs length

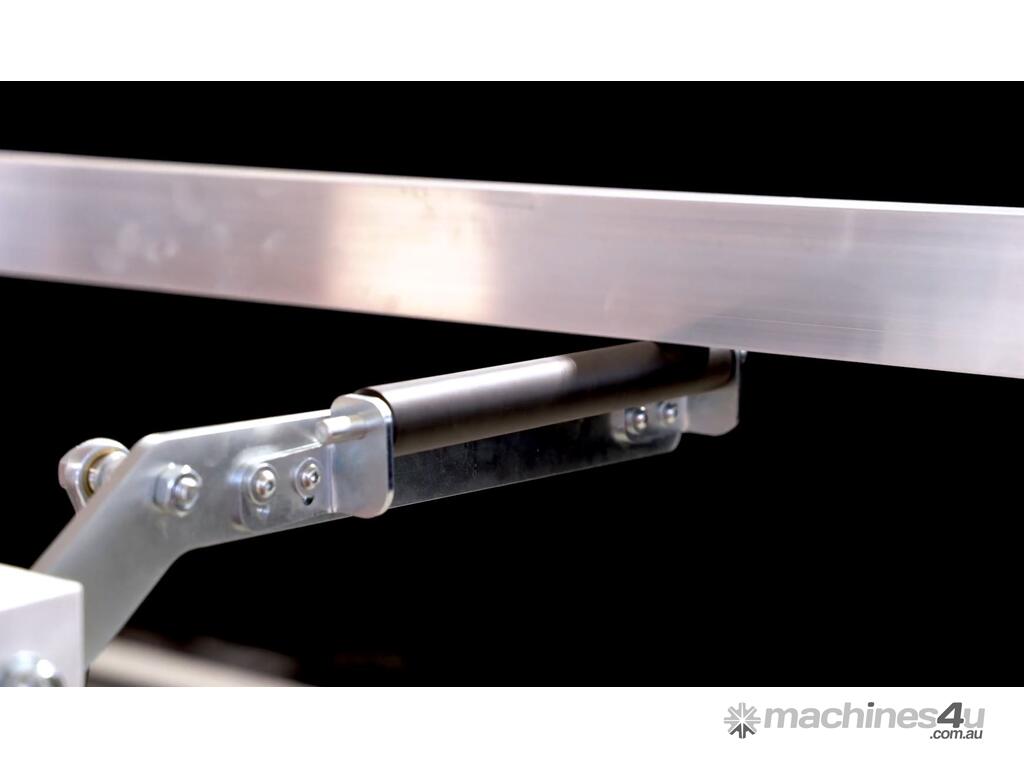

* Movable side support
* Pneumatic central support
* Air filter

OPTIONALS
* TCT Saw Blade D.600mm (spare)
* Nr.2 Vertical pneumatic clamps
* Automatic device measuring profile height
* Label printer

GENERAL SPECIFICATIONS
* Blade diameter: 600 mm
* Spindle diameter: 30 mm
* Number of blade revs: 2760 giri/1? r.p.m.
* Cutting speed: 80 m/sec
* Advancement speed: adjustable
* Minimum cutting length (between two blades) : 370 mm
* Minimum cutting length (between two blades) : 5000 mm
* Air consumption for cycle : 32 Nl.
* Cutting angles : 20° ÷ 135°
* Working pressure: 7 bar
* Motor power: 50 Hz / 3 kW
* Motor power: 60 Hz / 3.6 kW
