GEMMA GROUP - DoubleHead Cutting Machine - model: Selecta A

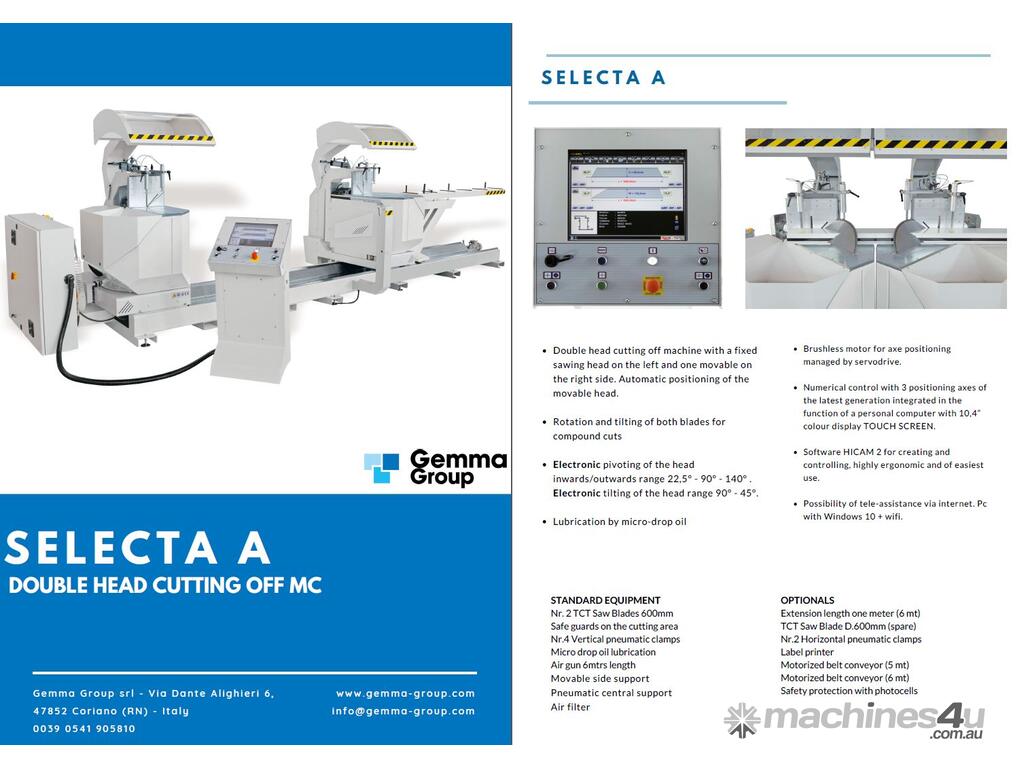

SELECTA A

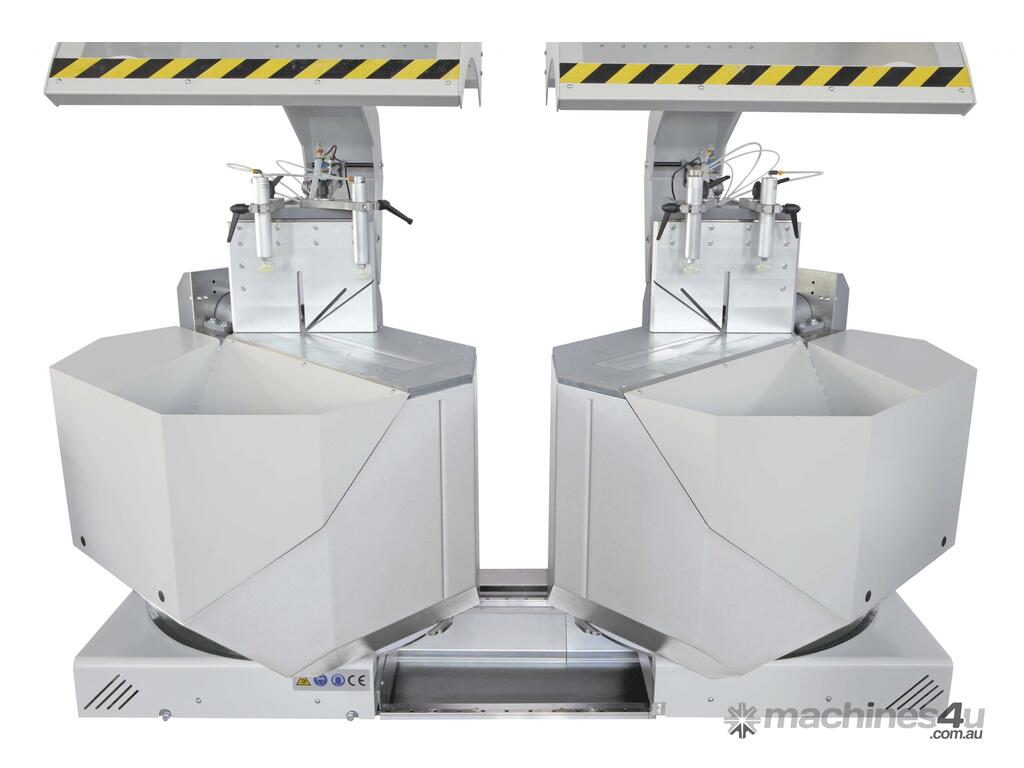

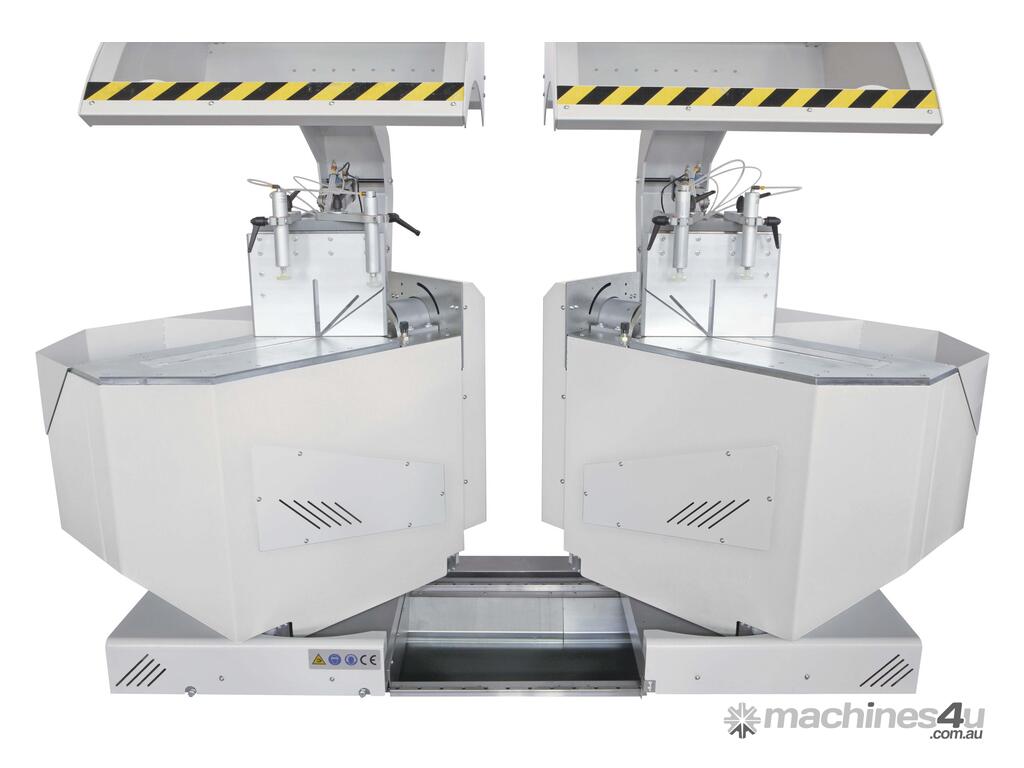

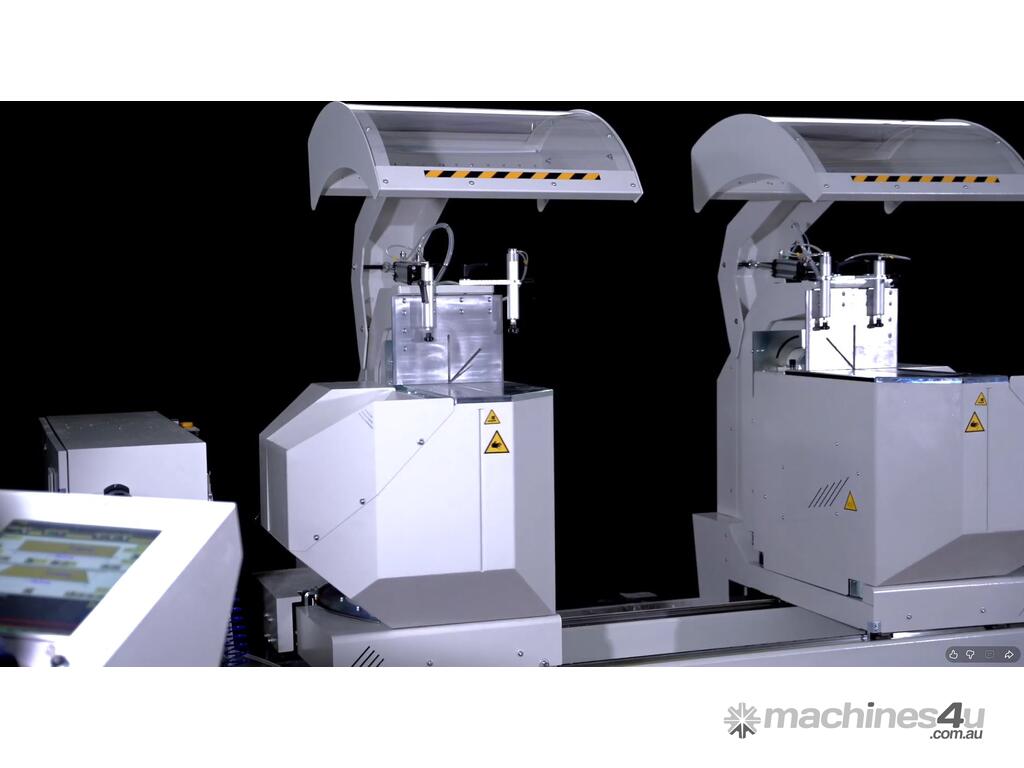

* High quality double head cutting off machine with a fixed sawing head on the left and automatic right head movable by numeric control with upstroke blades.
* Rotation and tilting of both blades for compound cuts.
* Brushless motor for the positioning of the movable head.
* Electronic pivoting inwards/outwards heads 22,5°-90°-140°.
* Electronic tilting range inwards of the saw blades 90°-45°, with 2 TCT Saw blades Ø600mm.

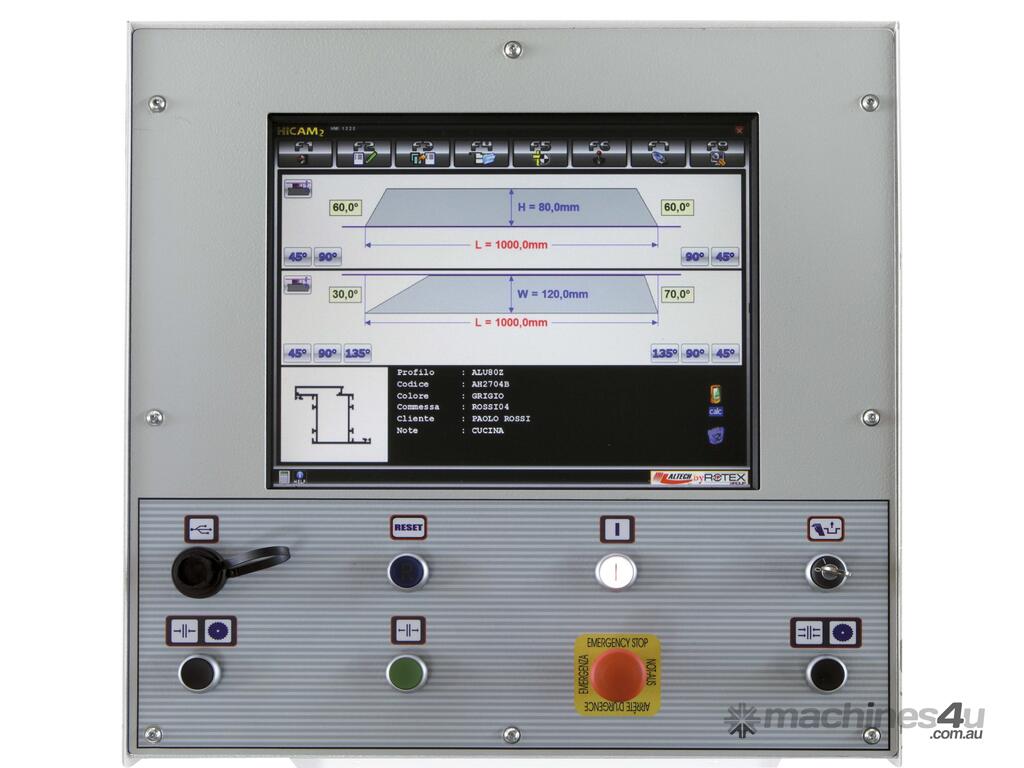

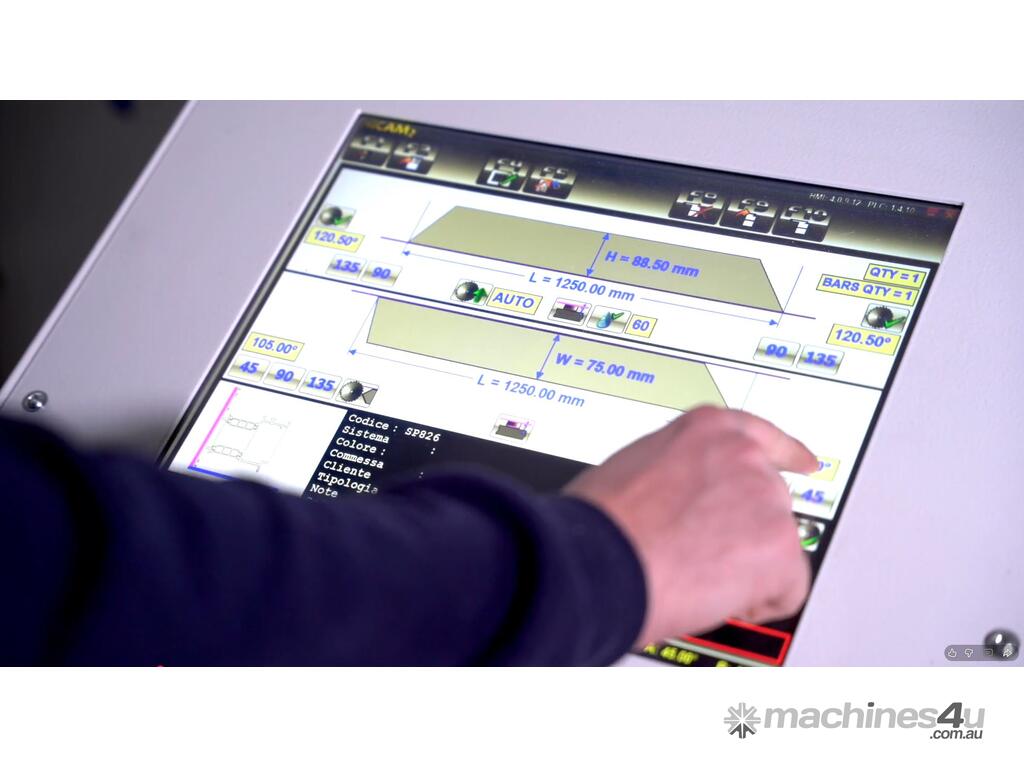

* Lubrication by micro drop with pure oil, full protections, cutting areas with automatic raising/closing safety head, kit vertical pneumatic clamps, software of the machine completely graphical-colour display Touch screen video 17’’.
* Ethernet connection to the main office or with other programs or connections with other CNC machines.
* Possibility of tele-assistance via internet.
* Pc with Windows 10 + wifi.

STANDARD EQUIPMENT

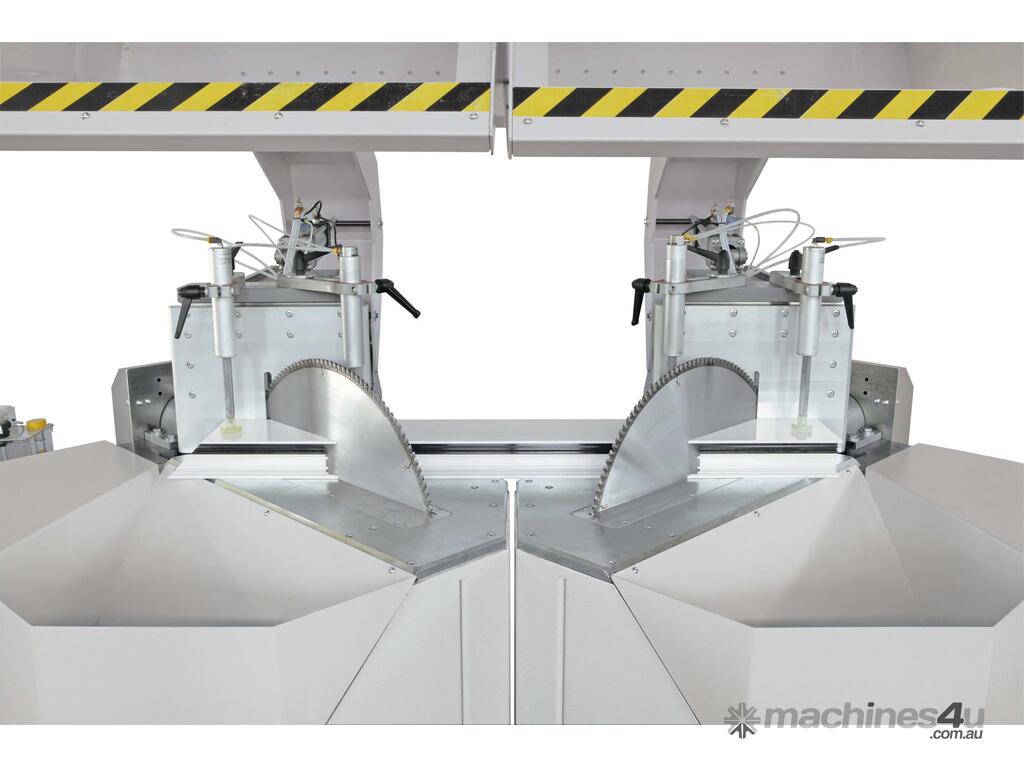

* Nr. 2 TCT Saw Blades 600mm

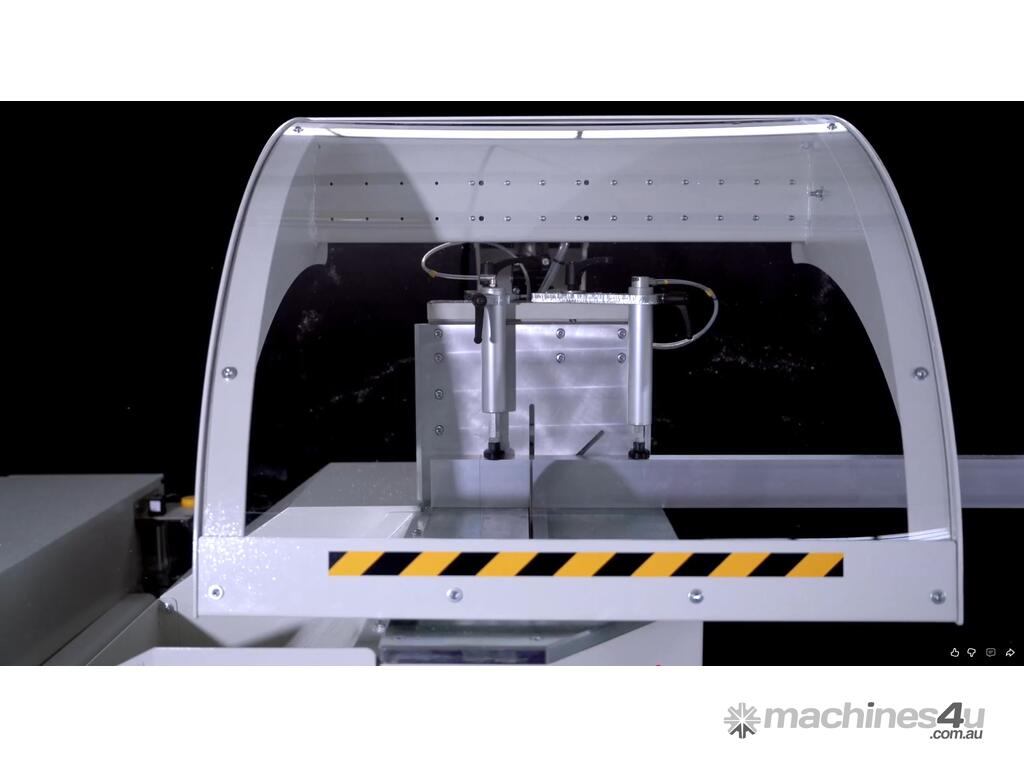

* Safe guards on the cutting area

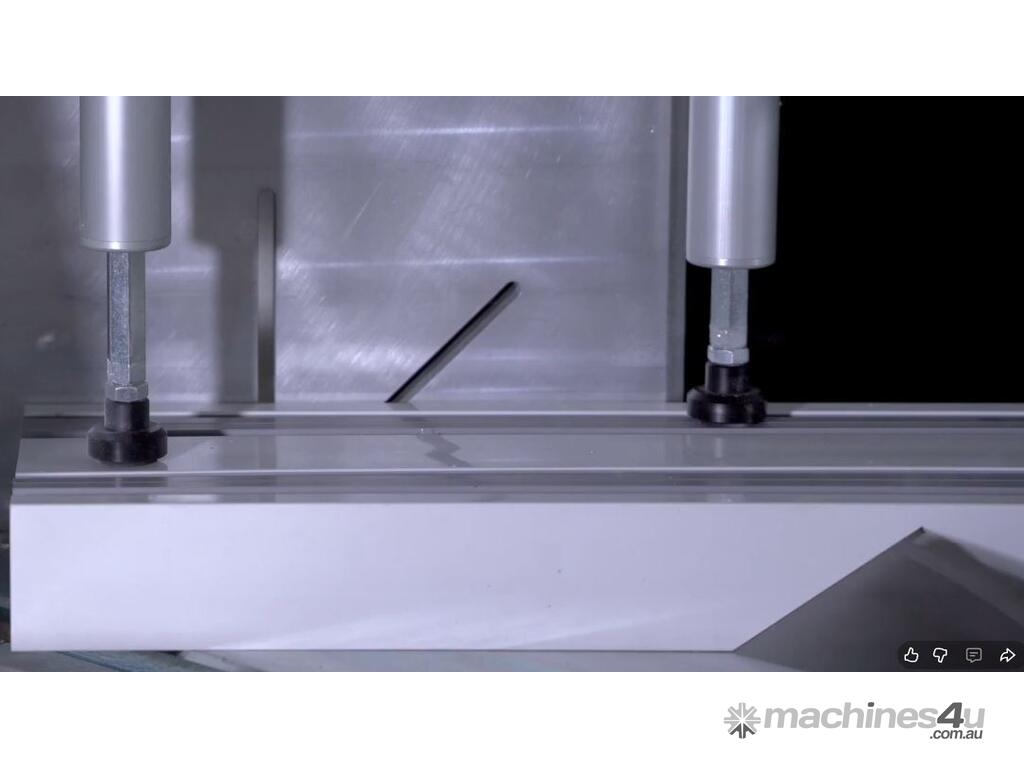

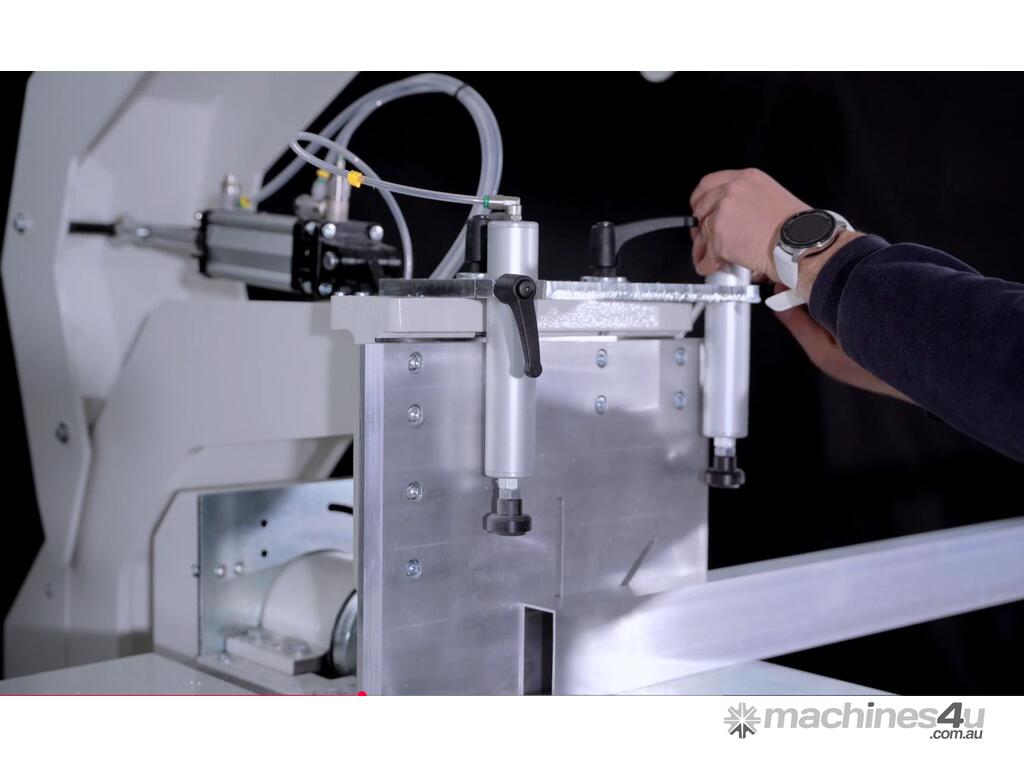

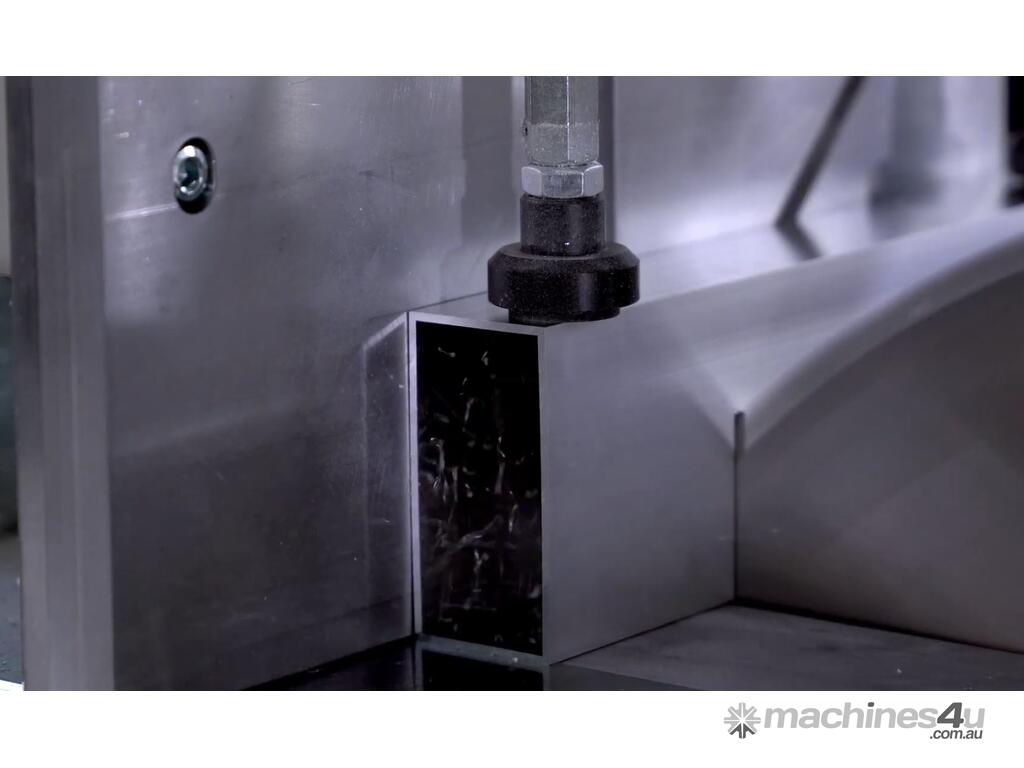

* Nr.4 Vertical pneumatic clamps
* Micro drop oil lubrication
* Air gun 6mtrs length

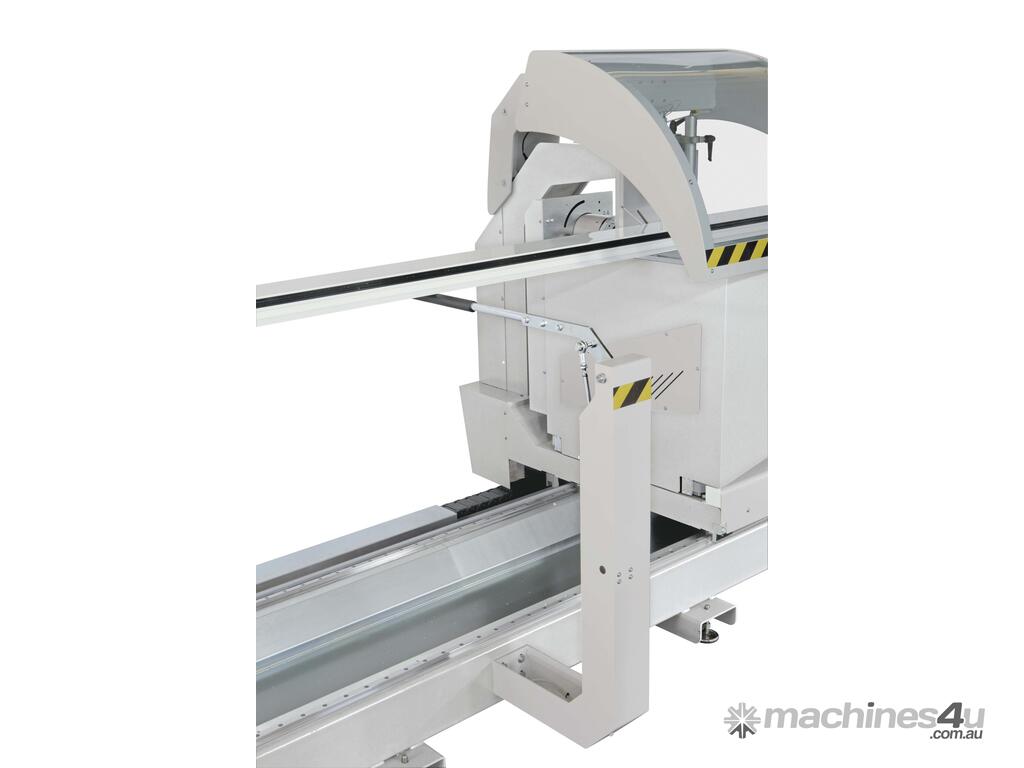

* Movable side support
* Pneumatic central support
* Air filter

OPTIONALS
* Extension length one meter (6 mt)
* TCT Saw Blade D.600mm (spare)
* Nr.2 Horizontal pneumatic clamps
* Label printer
* Motorized belt conveyor (5 mt)
* Motorized belt conveyor (6 mt)
* Safety protection with photocells

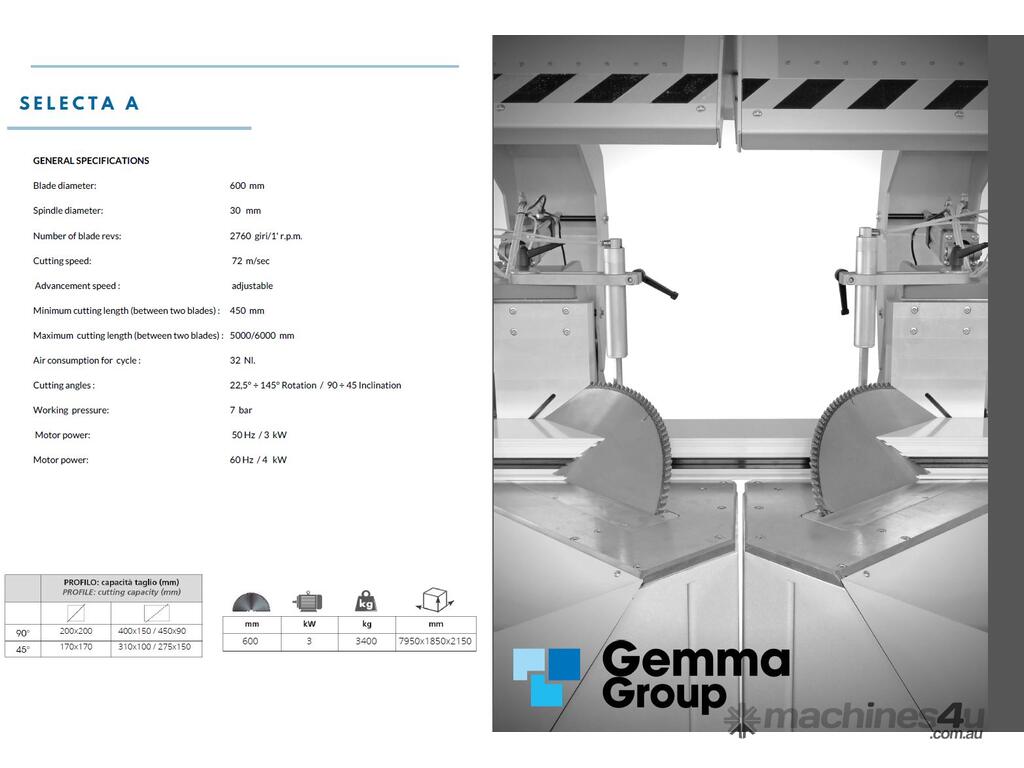

GENERAL SPECIFICATIONS
* Blade diameter: 600 mm
* Spindle diameter: 30 mm
* Number of blade revs: 2760 giri/1? r.p.m.
* Cutting speed: 72 m/sec
* Advancement speed: adjustable
* Minimum cutting length (between two blades) : 450 mm
* Minimum cutting length (between two blades) : 5000/6000 mm
* Air consumption for cycle : 32 Nl.
* Cutting angles : 22,5° ÷ 145° Rotation / 90 ÷ 45 Inclination
* Working pressure: 7 bar
* Motor power: 50 Hz / 3 kW
* Motor power: 60 Hz / 4 kW
