GEMMA GROUP - DoubleHead Cutting Machine - model: Selecta AL

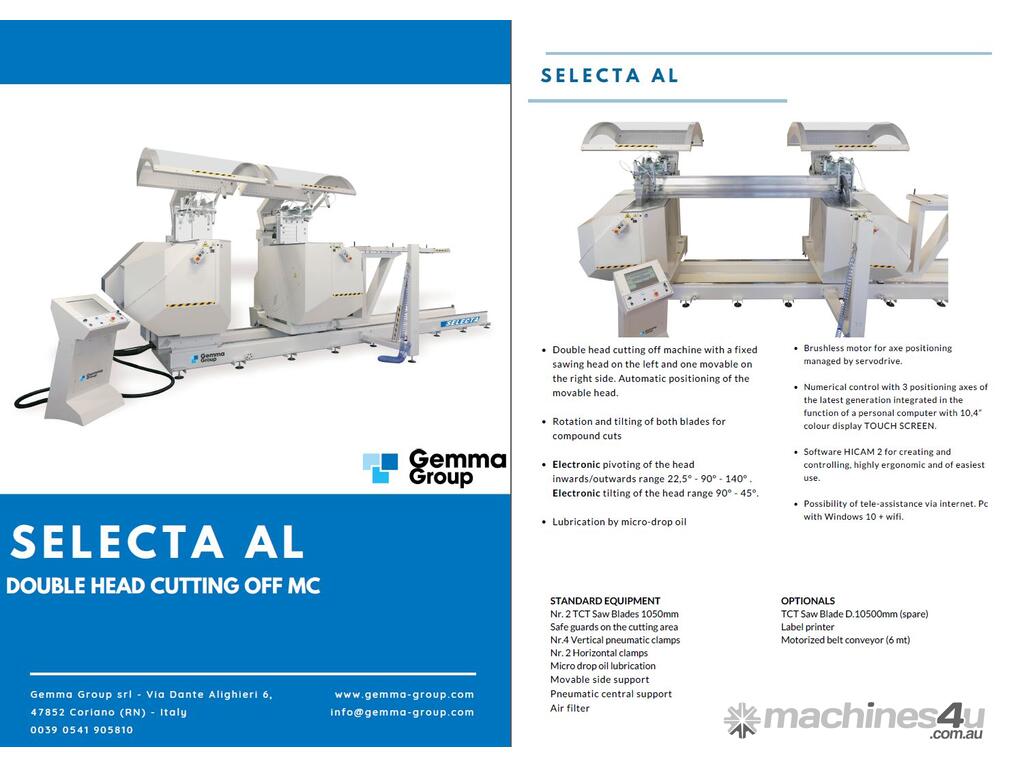

SELECTA AL

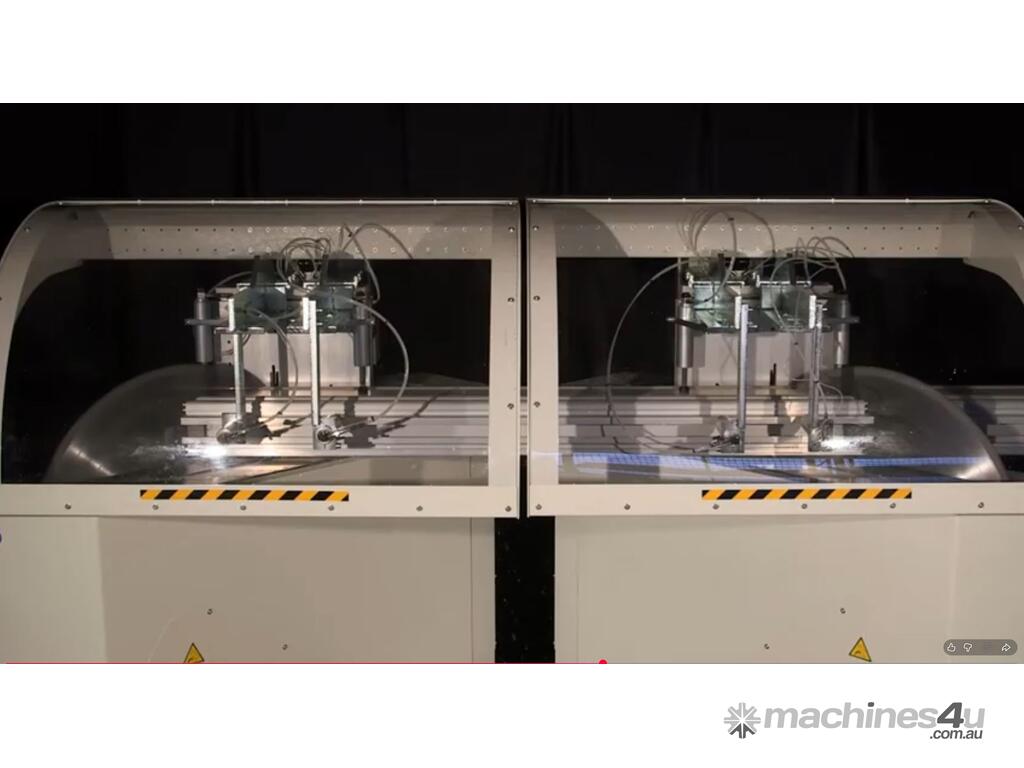

Two head mitre saw with ascending blades w automatic blade rotation and inclination.

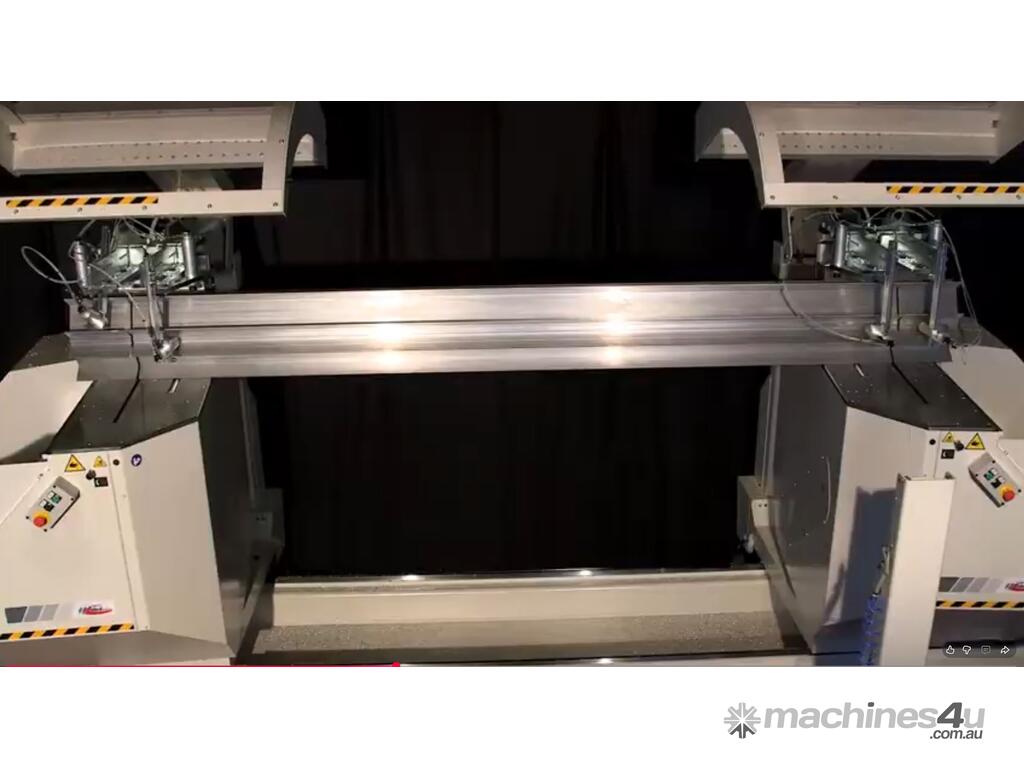

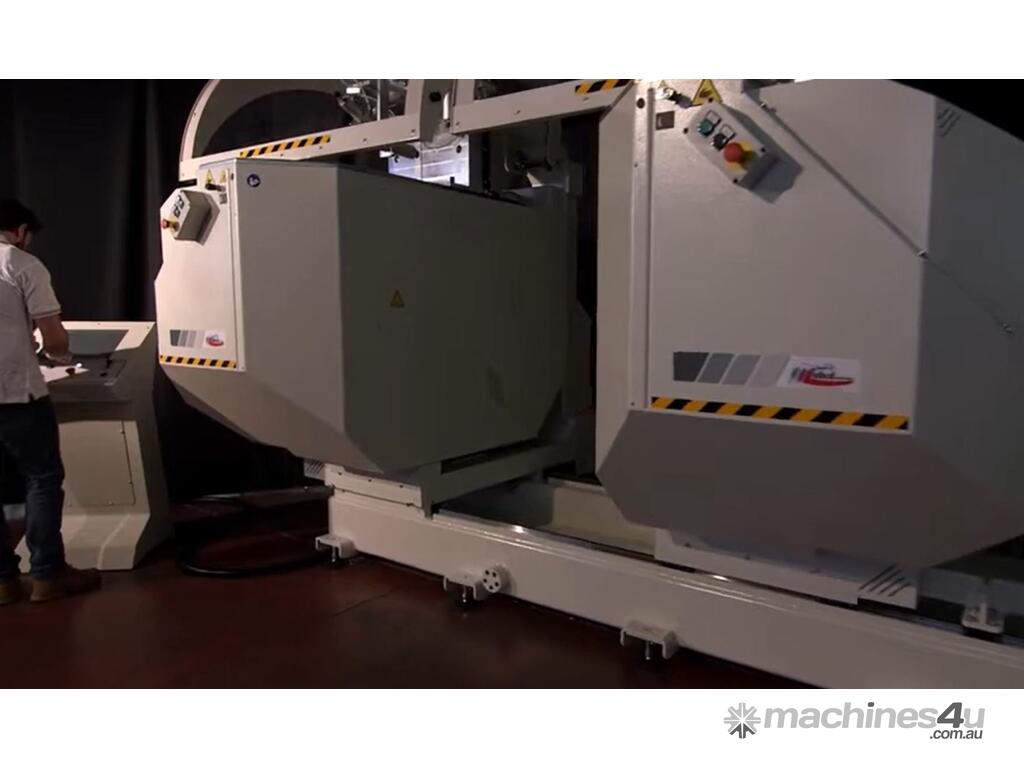

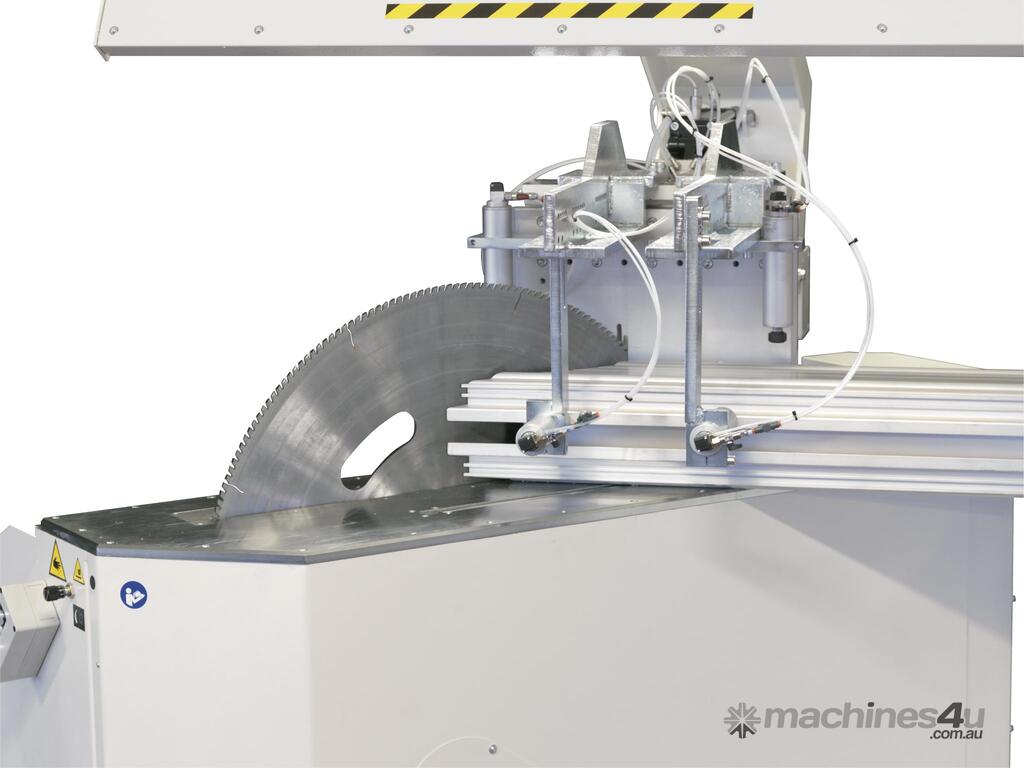

* High quality double head cutting off machine with a fixed sawing head on the left and automatic right head movable by numeric control with upstroke blades.

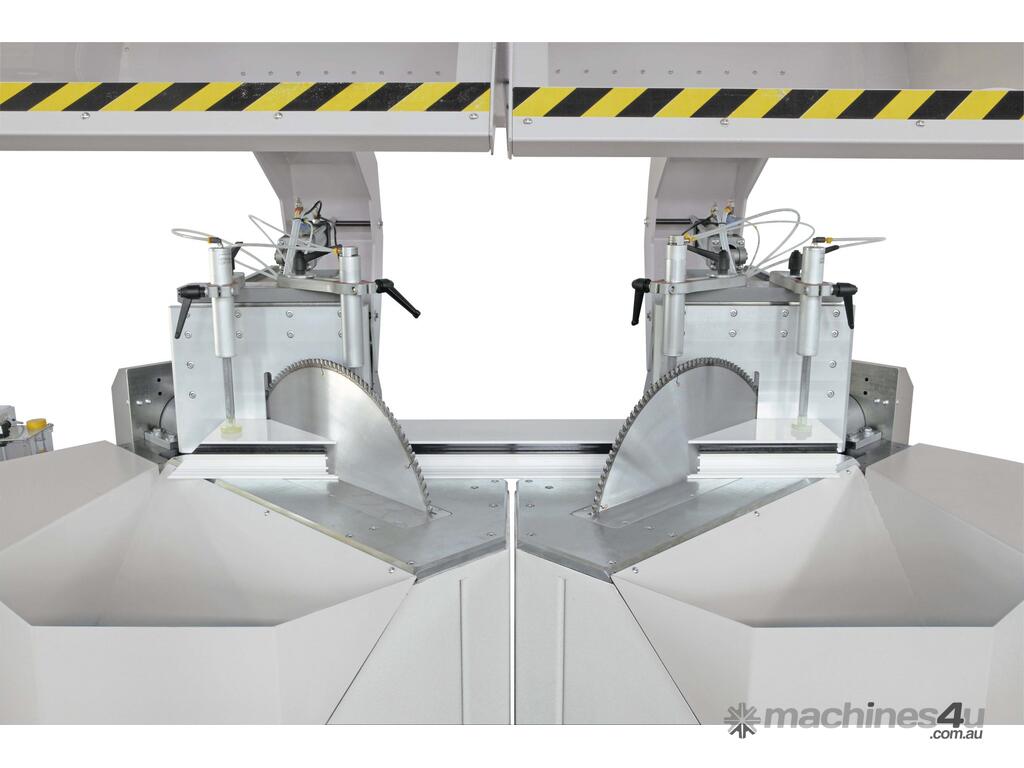

* Rotation and tilting of both blades for compound cuts.
* Brushless motor for the positioning of the movable head.
* Electronic pivoting inwards/outwards heads 22,5°-90°-140°.
* Electronic tilting range inwards of the saw blades 90°-45°, with 2 TCT Saw blades Ø1050mm.

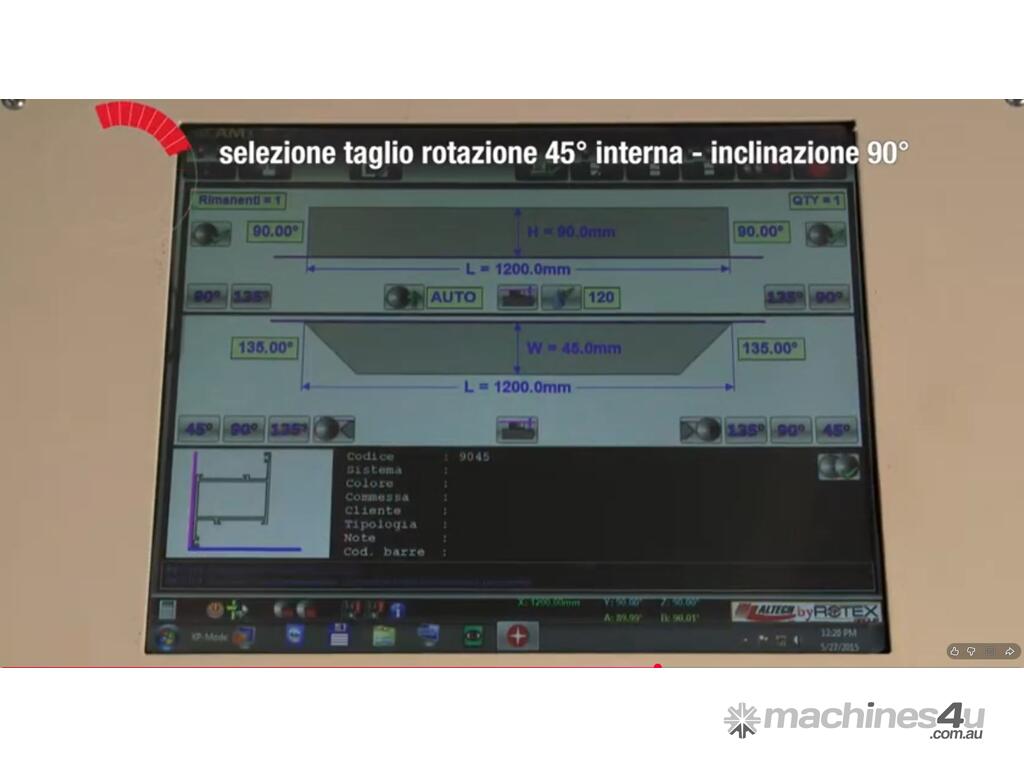

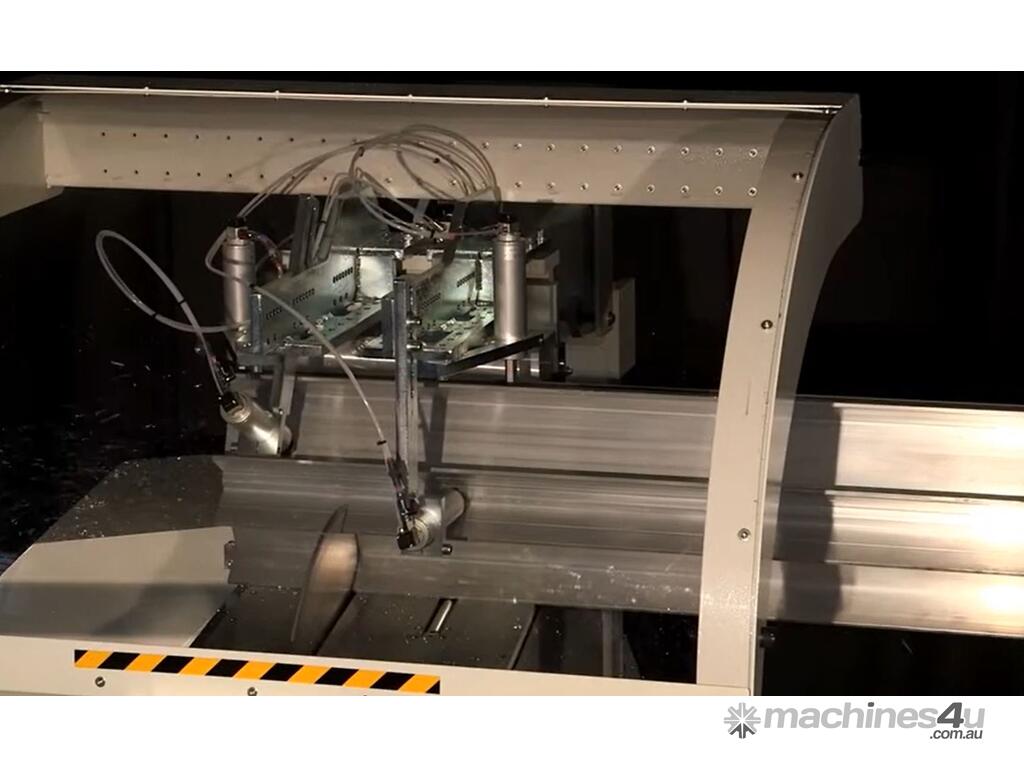

* Lubrication by micro drop with pure oil, full protections, cutting areas with automatic raising/closing safety head, kit vertical + horizontal pneumatic clamps, software of the machine completely graphical-colour display Touch screen video 17’’.
* Ethernet connection to the main office or with other programs or connections with other CNC machines.
* Possibility of teleassistance via internet.
* Pc with Windows 10 + wifi.

STANDARD EQUIPMENT
* Nr. 2 TCT Saw Blades 1050mm

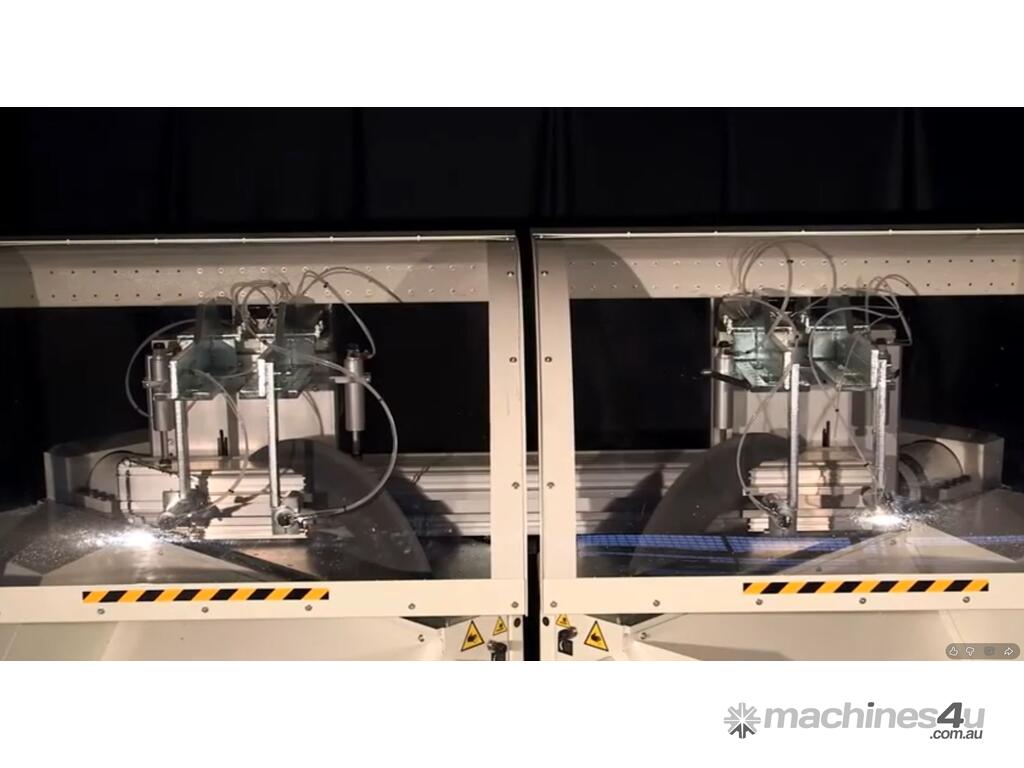

* Safe guards on the cutting area

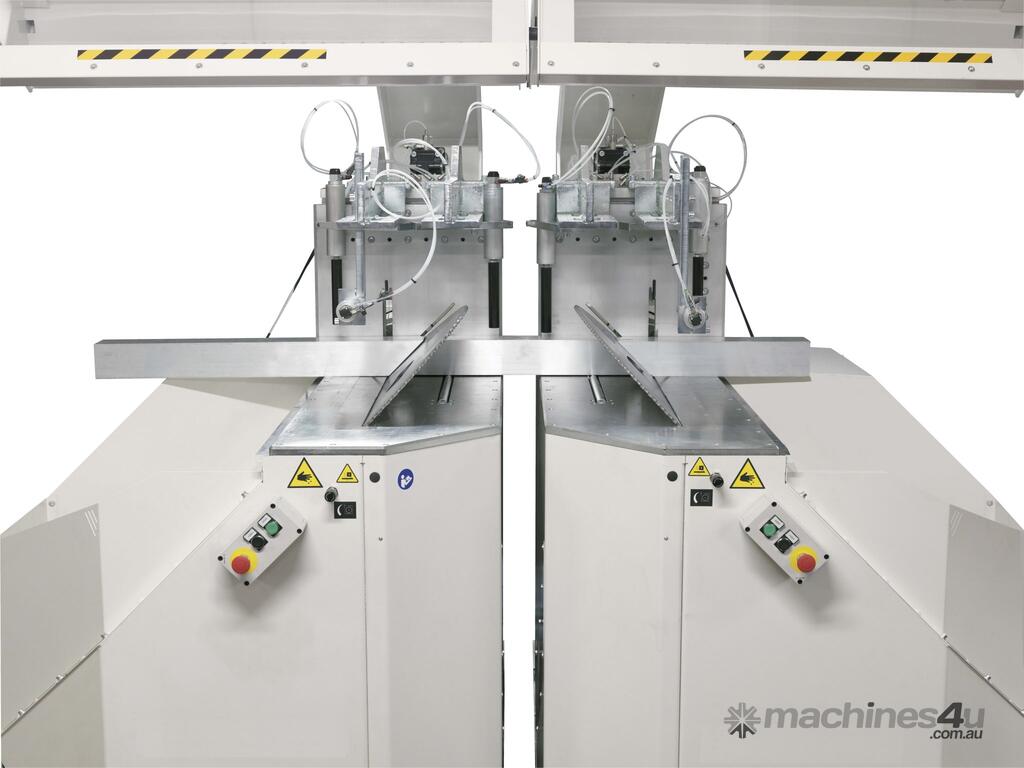

* Nr.4 Vertical pneumatic clamps
* Nr. 2 Horizontal clamps
* Micro drop oil lubrication
* Movable side support
* Pneumatic central support
* Air filter

OPTIONALS
* TCT Saw Blade D.10500mm (spare)
* Label printer
* Motorized belt conveyor (6 mt)

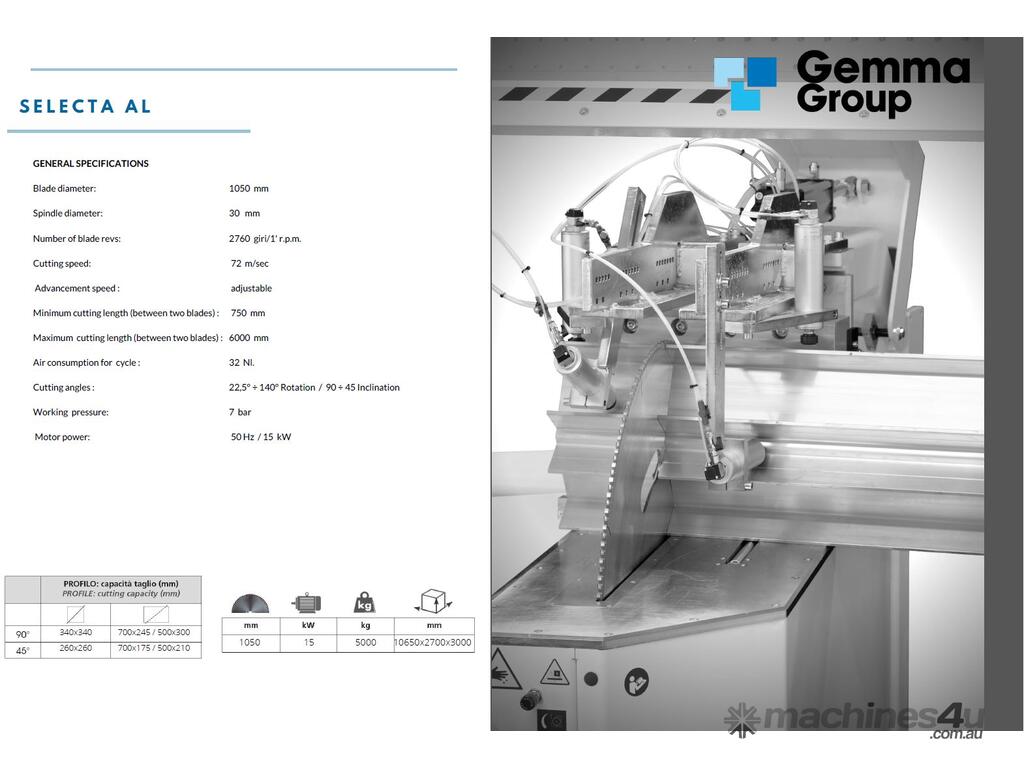

GENERAL SPECIFICATIONS
* Blade diameter: 1050 mm
* Spindle diameter: 30 mm
* Number of blade revs: 2760 giri/1? r.p.m
* Cutting speed: 72 m/sec
* Advancement speed: adjustable
* Minimum cutting length (between two blades) : 750 mm
* Minimum cutting length (between two blades) : 6000 mm
* Air consumption for cycle : 32 Nl.
* Cutting angles : 22,5° ÷ 140° Rotation / 90 ÷ 45 Inclination
* Working pressure: 7 bar
* Motor power: 50 Hz / 15 kW
