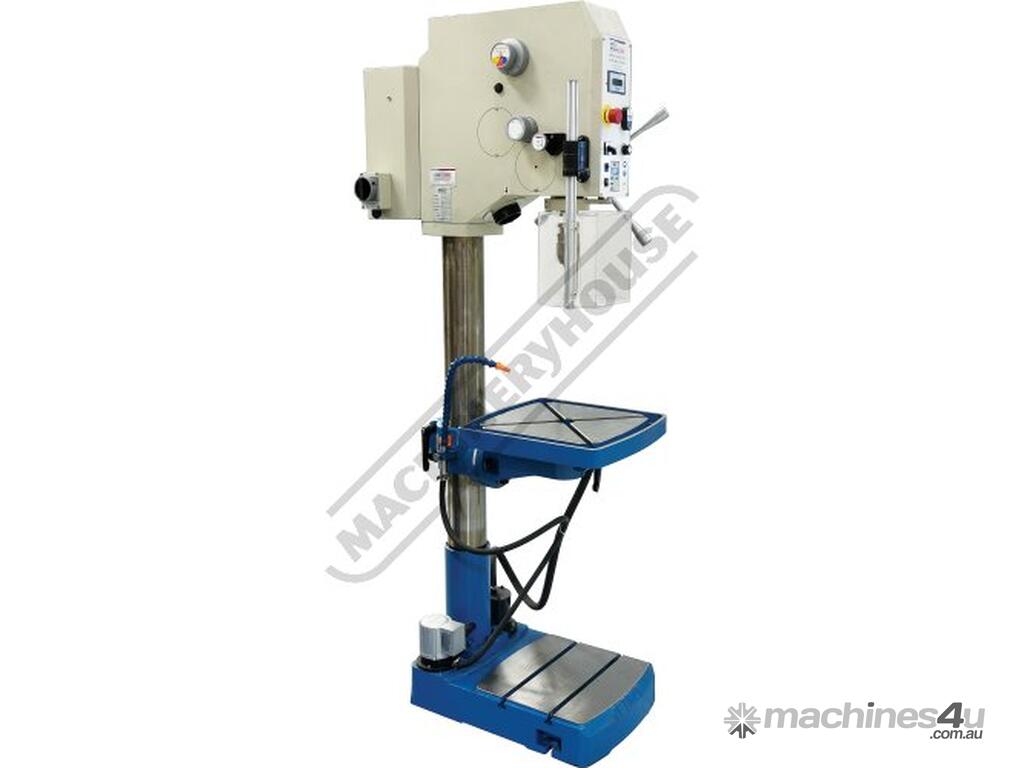

GHD-30V Industrial 3MT Geared Head & Variable Speed Drilling Machine Ø31.5mm Drilling Capacity Inclu

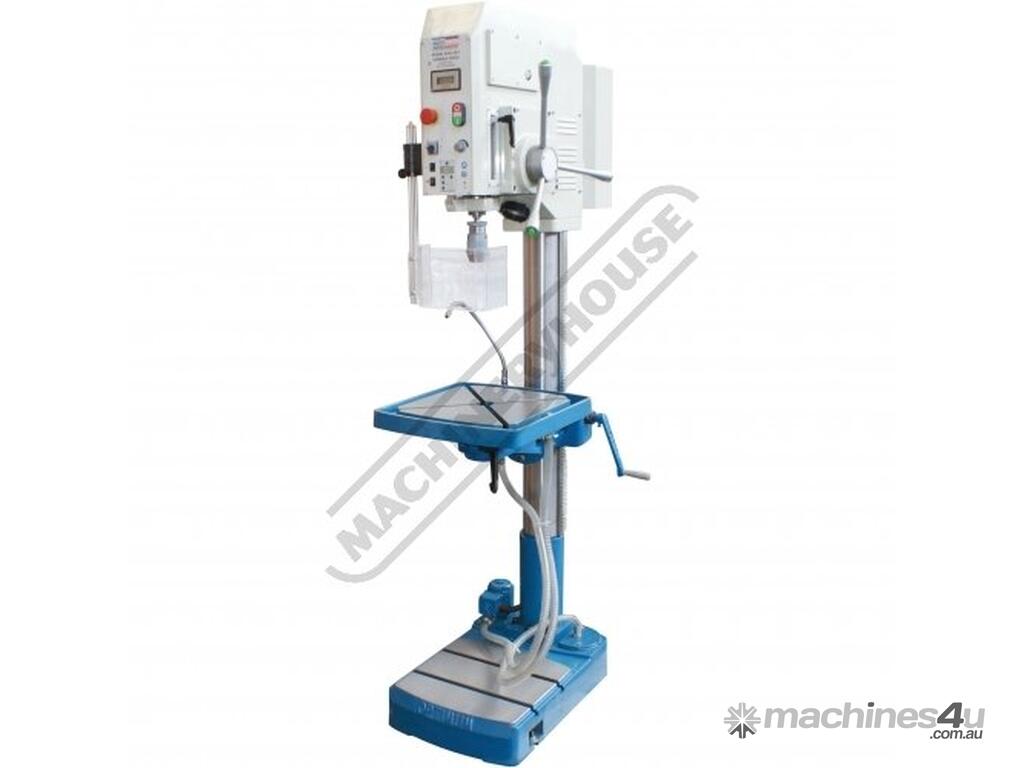

HAFCO-METALMASTER GHD-30V Industrial 3MT Geared Head & Variable Speed Drilling Machine Ø31.5mm Drilling Capacity Includes Automatic Feed & Tapping
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: D176

If you are seeking an industrial drilling machine but do not have the required 3 phase power (415V) connected in your workshop that most machines require, then you may like to consider our 240V GHD-30V Industrial 3MT Geared Head & Variable Speed Drilling Machine to drill all your holes up to 31.5mm.

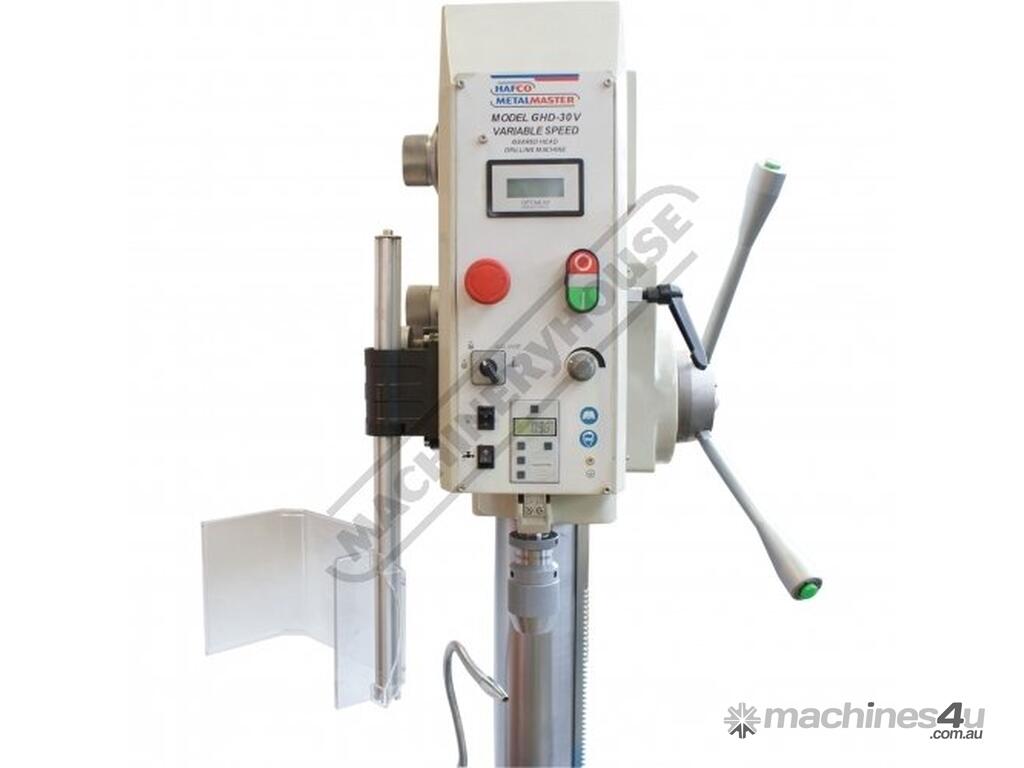

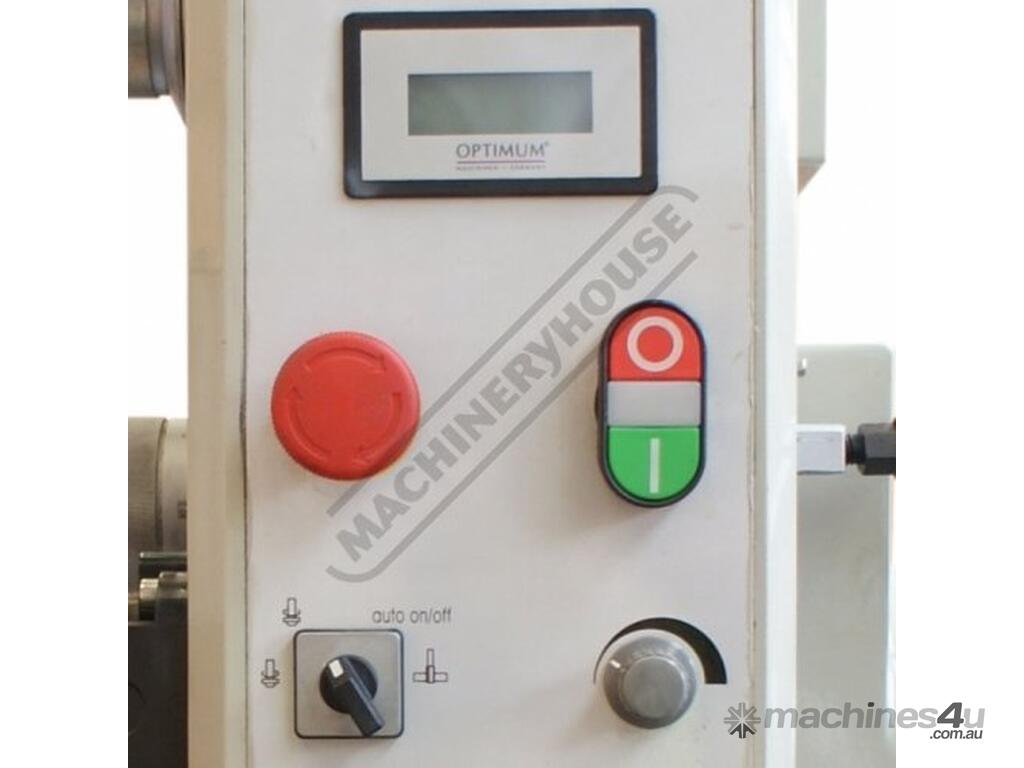

This machine is packed with plenty of great useful features to make drilling holes easier, the most popular that most operators seem to always point out first is that the electronic variable spindle speed dial connected to the digital speed readout display is easily adjusted from the control panel and can be fine tuned on the go. Second on the list is that the 3-speed auto power feed system certainly reduces the operator fatigue when drilling large holes all day. Thirdly is that tapping holes can be achieved easily now by selecting this function on the control panel, setting the depth stop and appropriate spindle speed, and once the tapping depth is reached the spindle will automatically revere and your tap will retract out of the hole. Just a few more to mention are, a work light that shines onto your job, the square work table tilts to ±45º & rotates 360º and the automatic start drill function sets this drill apart from our competitors.

Features:
31.5mm drill capacity with 125mm spindle travel

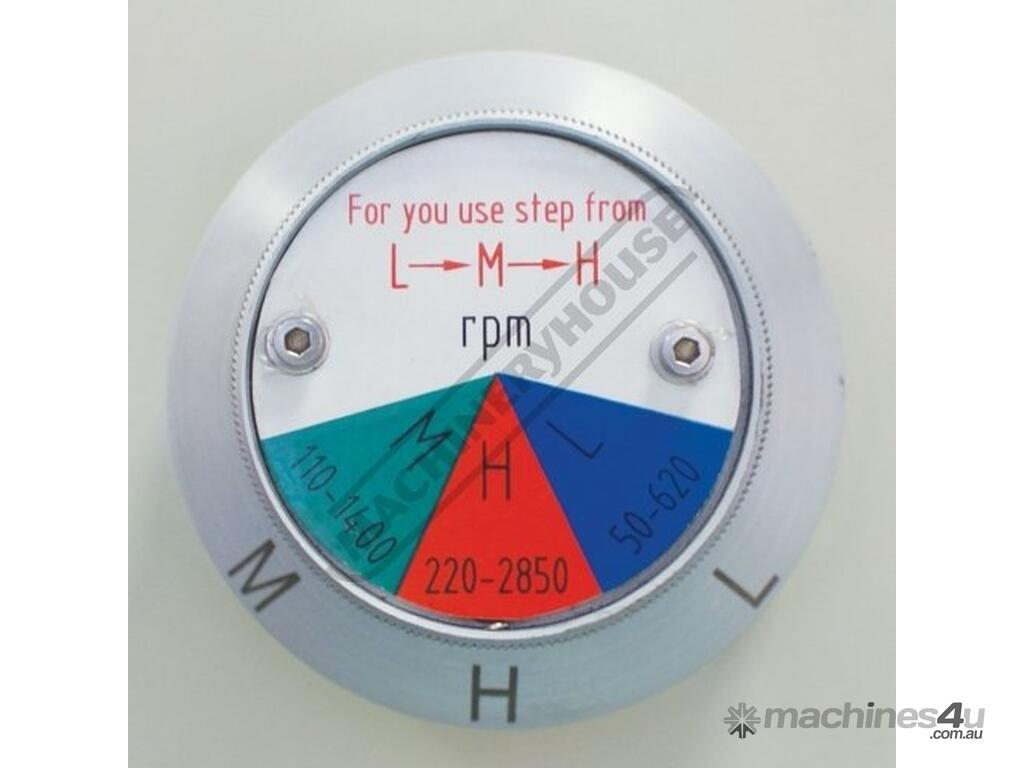

Geared head drilling machine with low medium & high selector
Electronic variable speed from 50-2850rpm with digital display

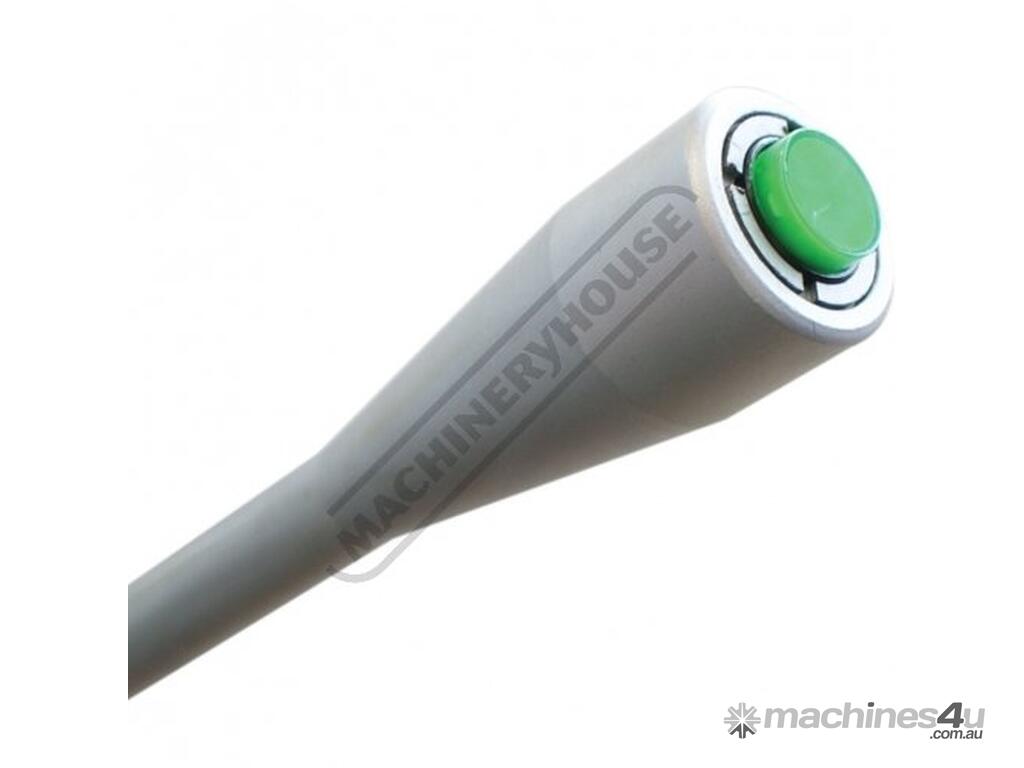

Automatic start drill function for repetition work

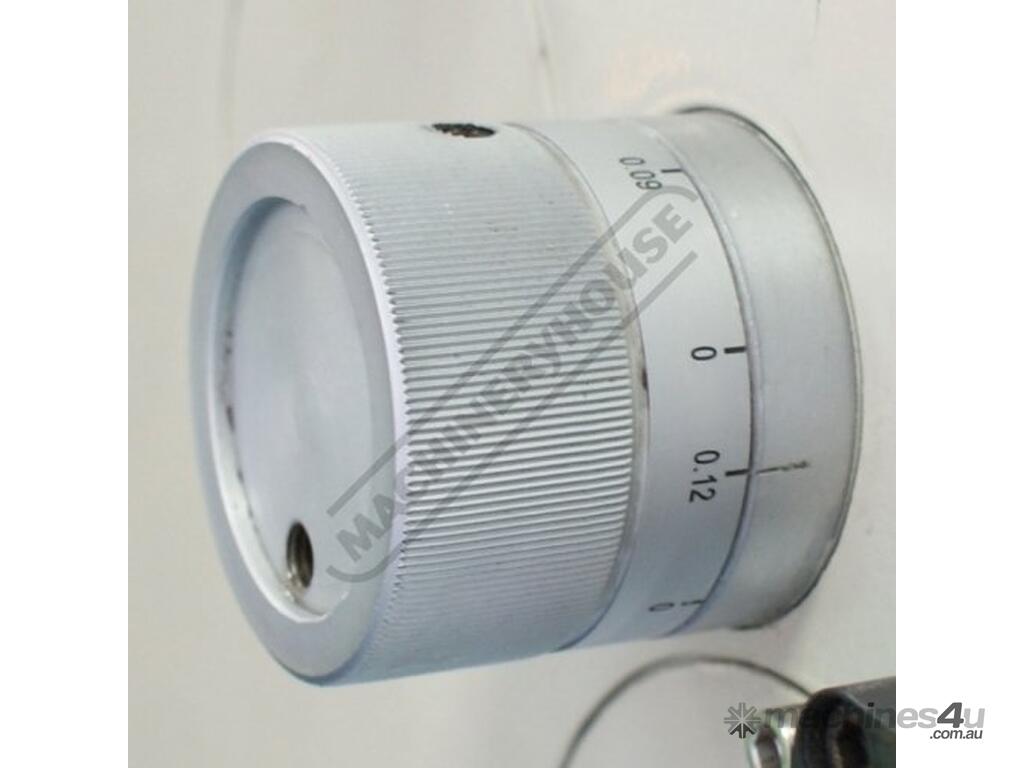

Automatic Power Feed with range of (0.06 0.09 0.12mm/rev)
Thread tapping with auto reverse

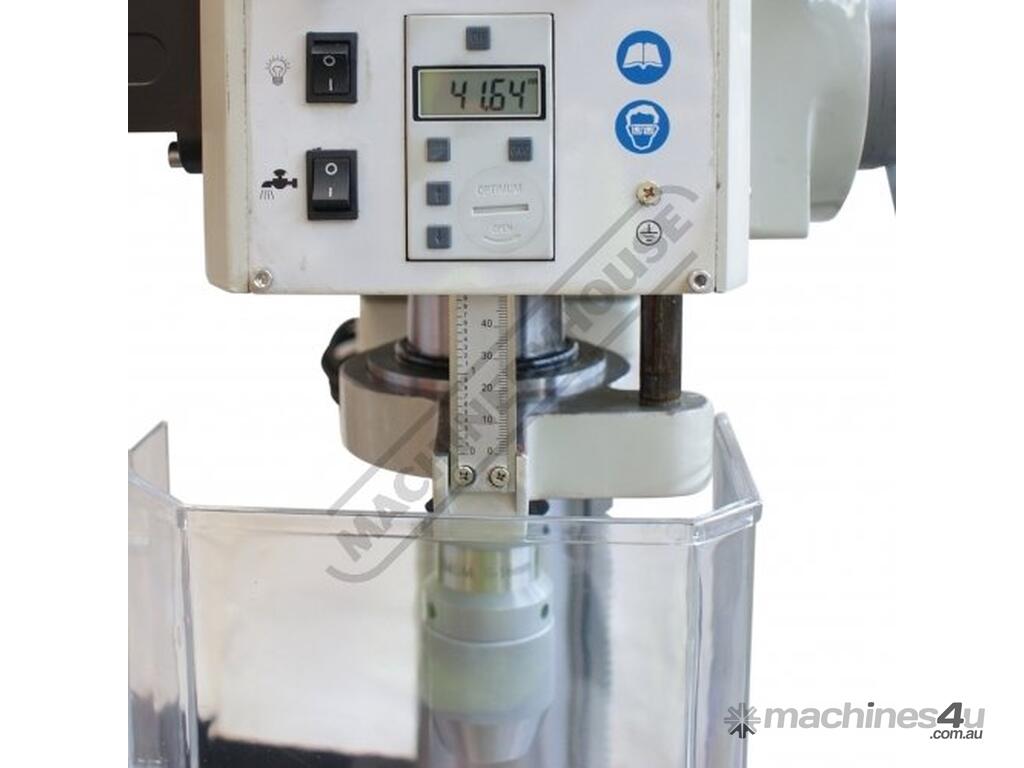

Digital readout depth gauge mounted on front panel

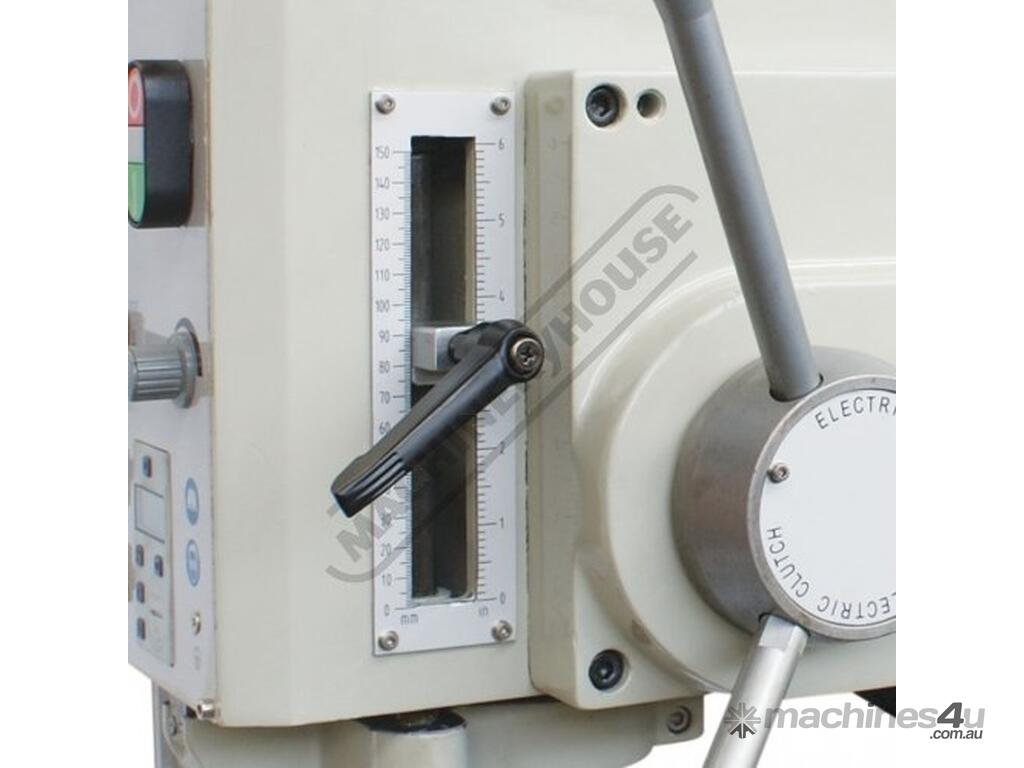

Adjustable accurate depth setting for increased productivity

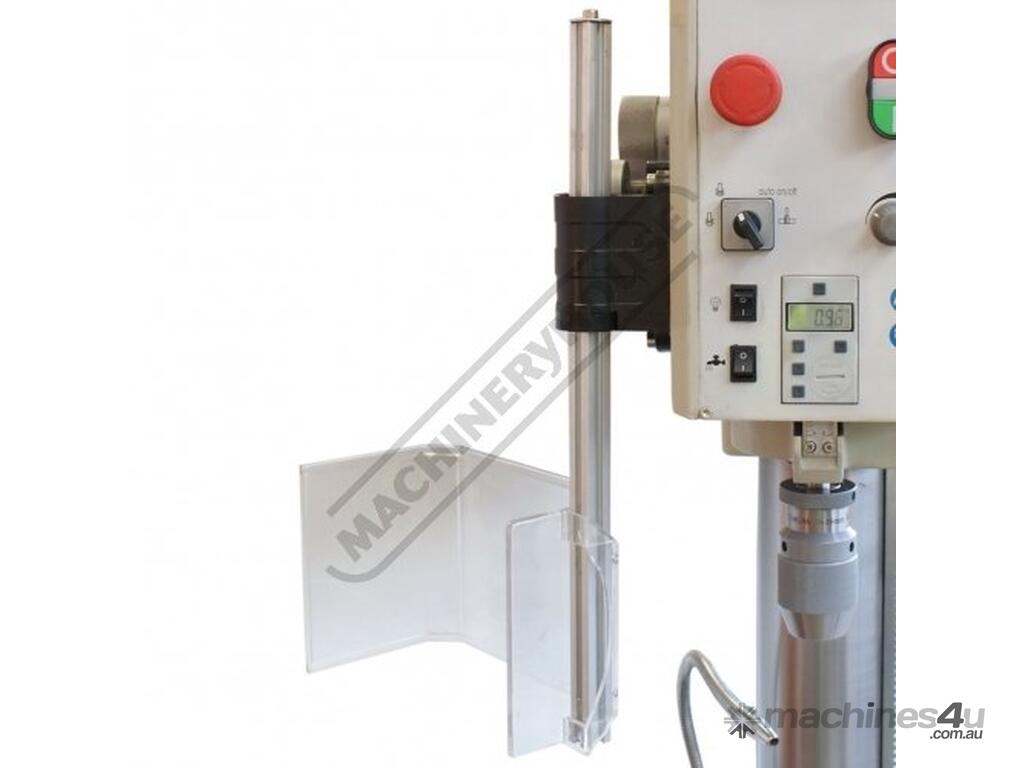

Interlocked spindle safety guard

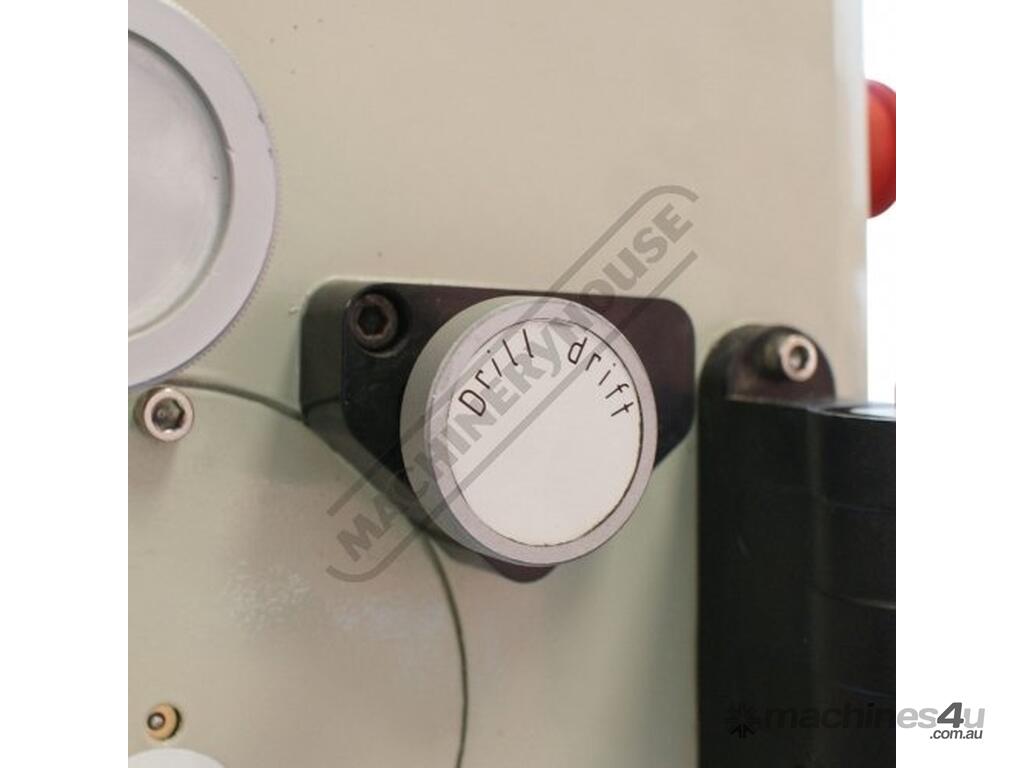

Drill ejector incorporated in machine

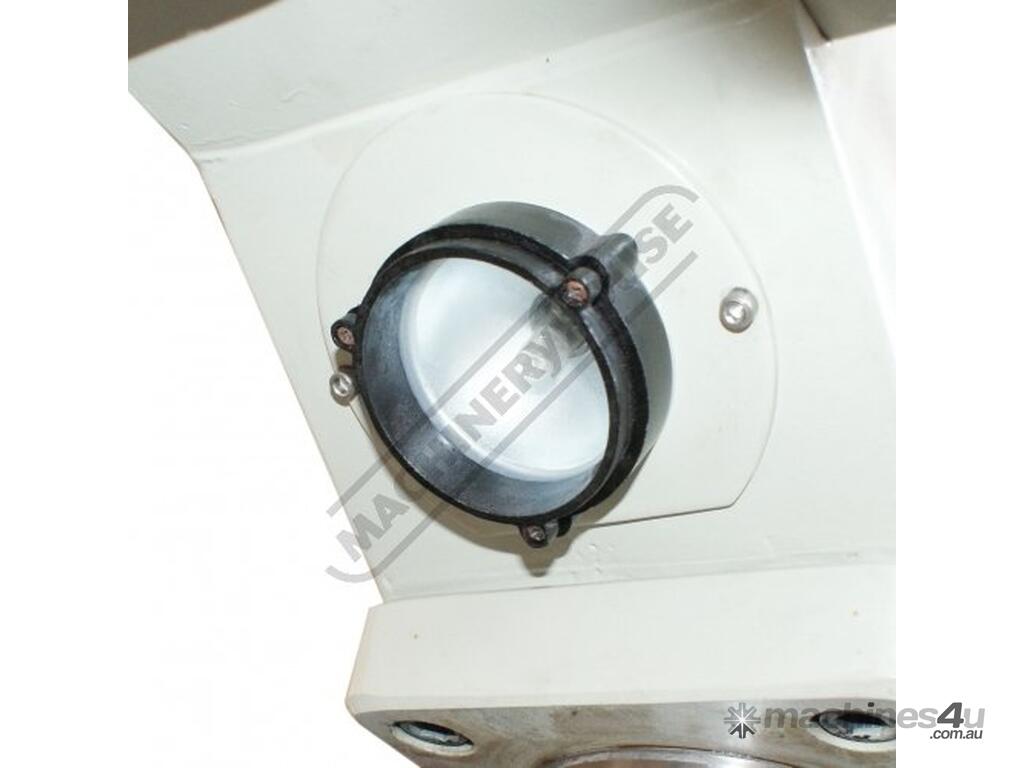

Work light mounted in convenient location
T slotted work table & base

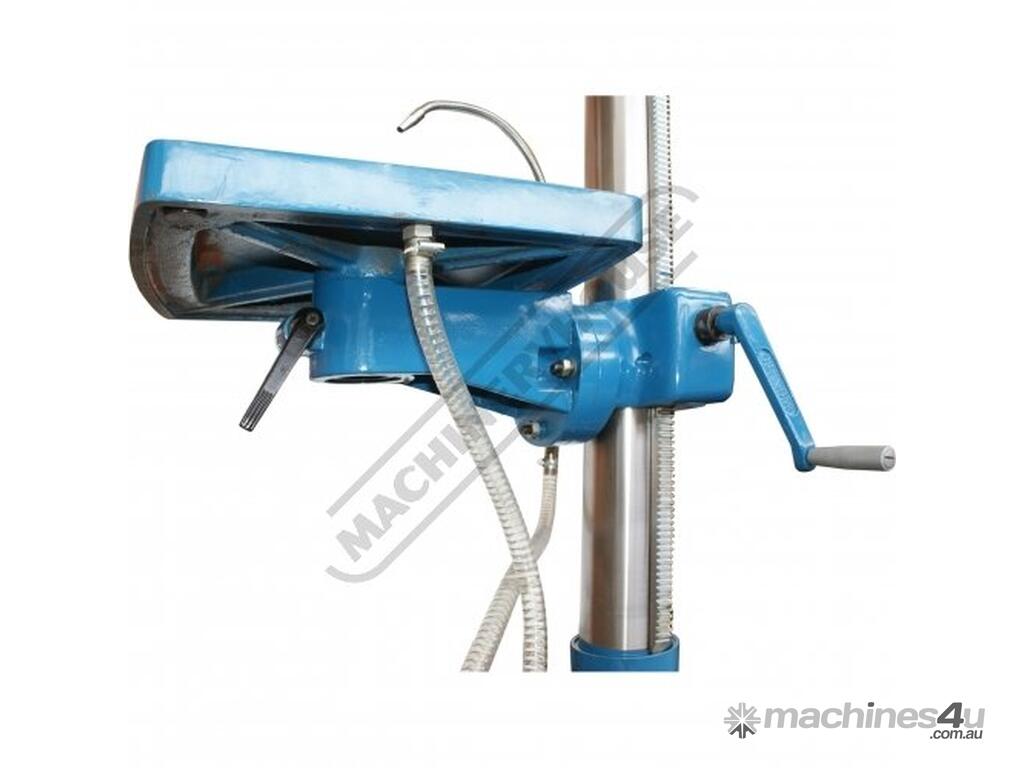

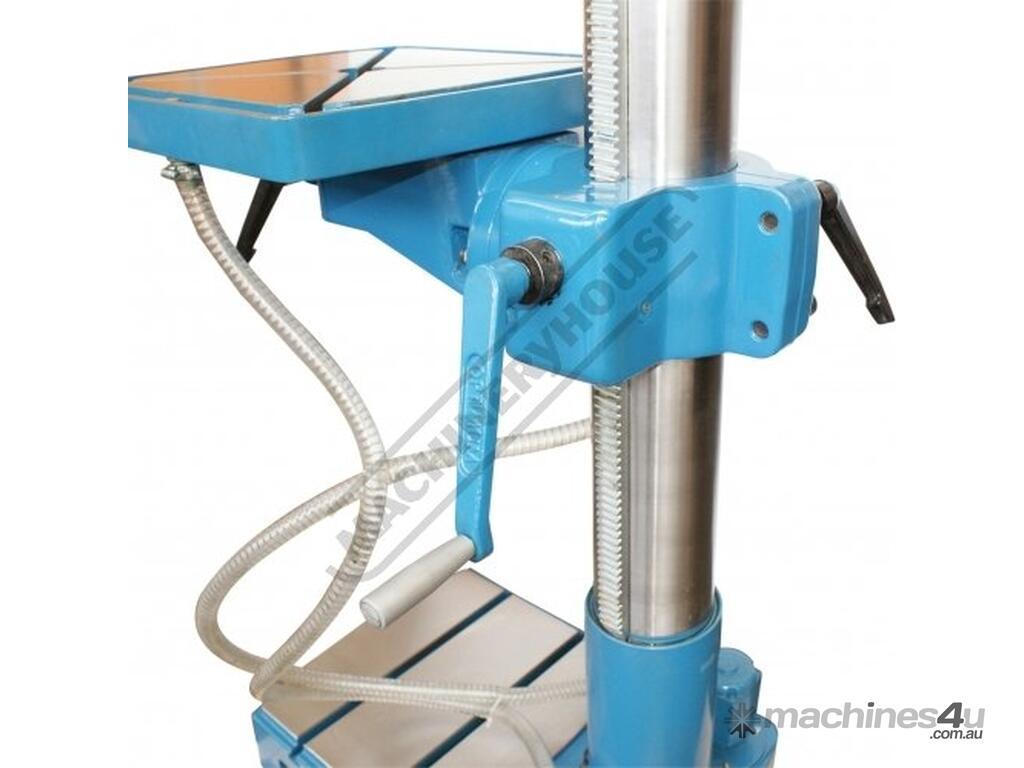

Rack & pinion wind-up table

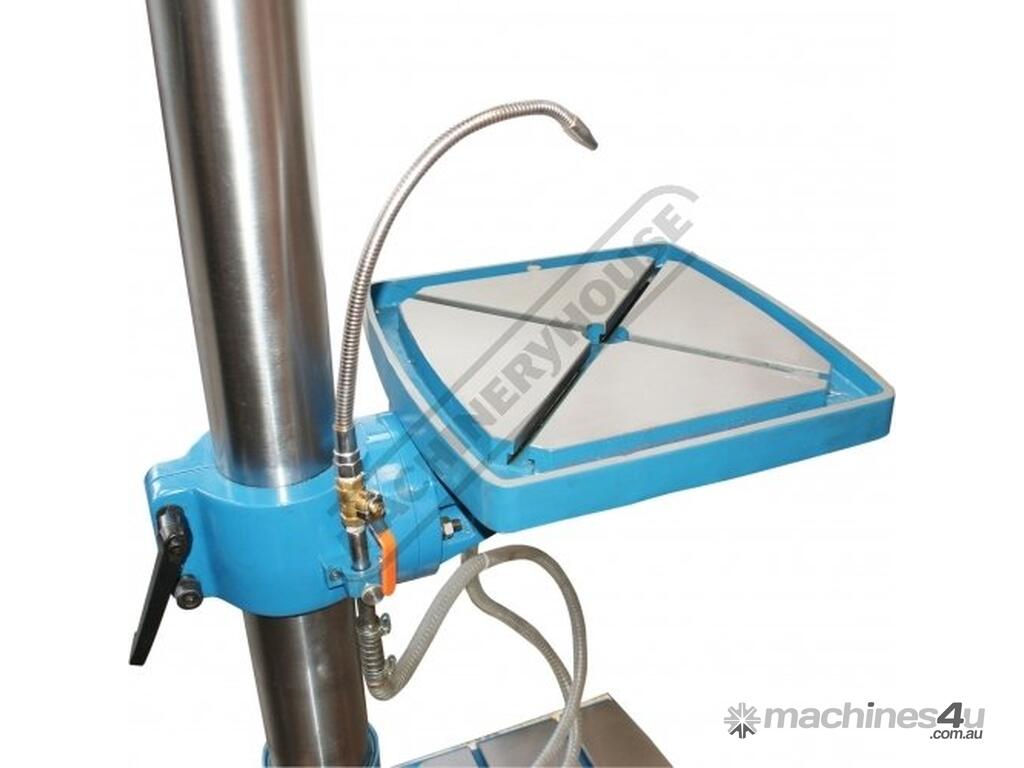

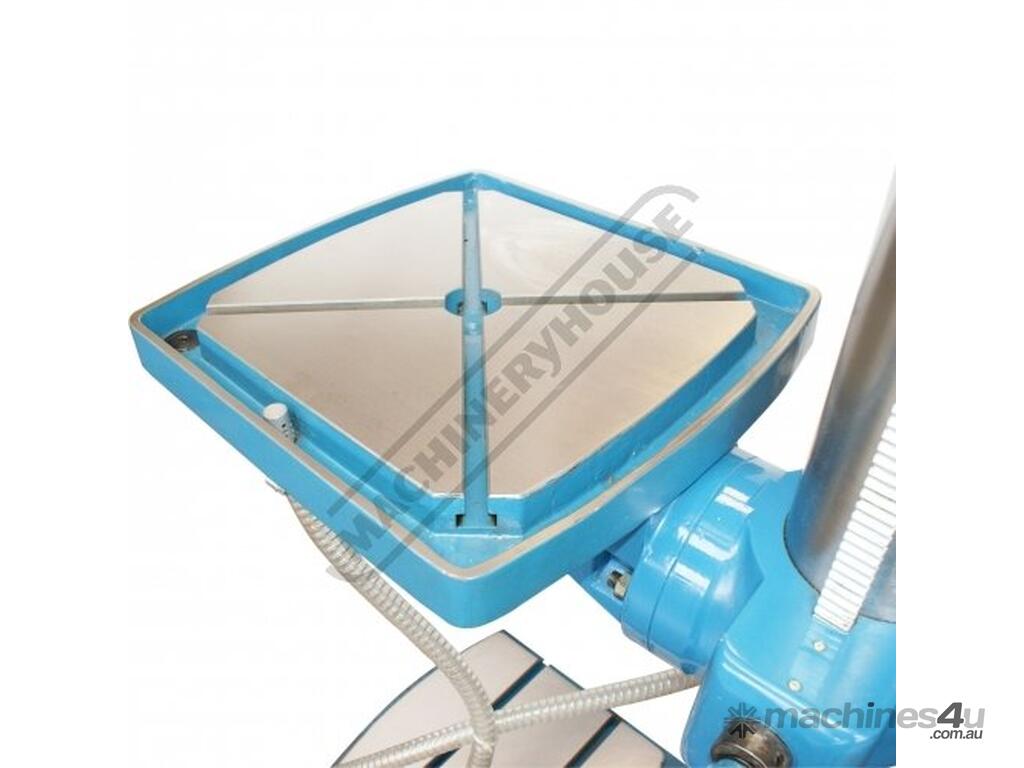

Square work table tilts to ±45º

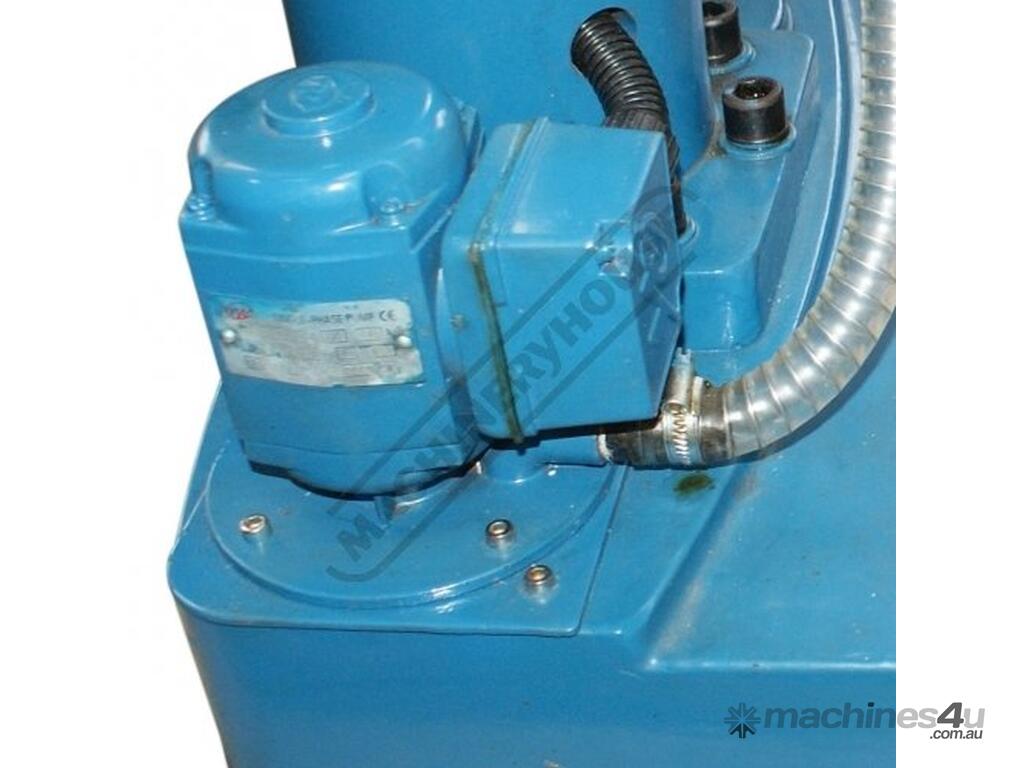

Coolant pump system with flexible hose
2.2kW / 3hp motor 240V

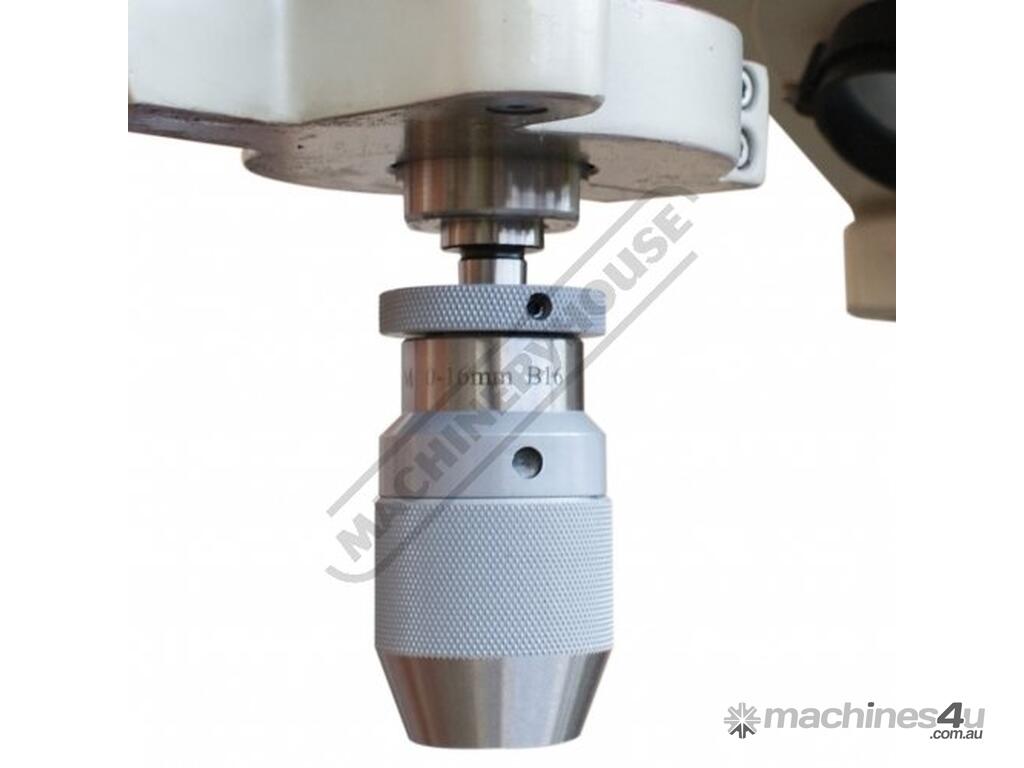

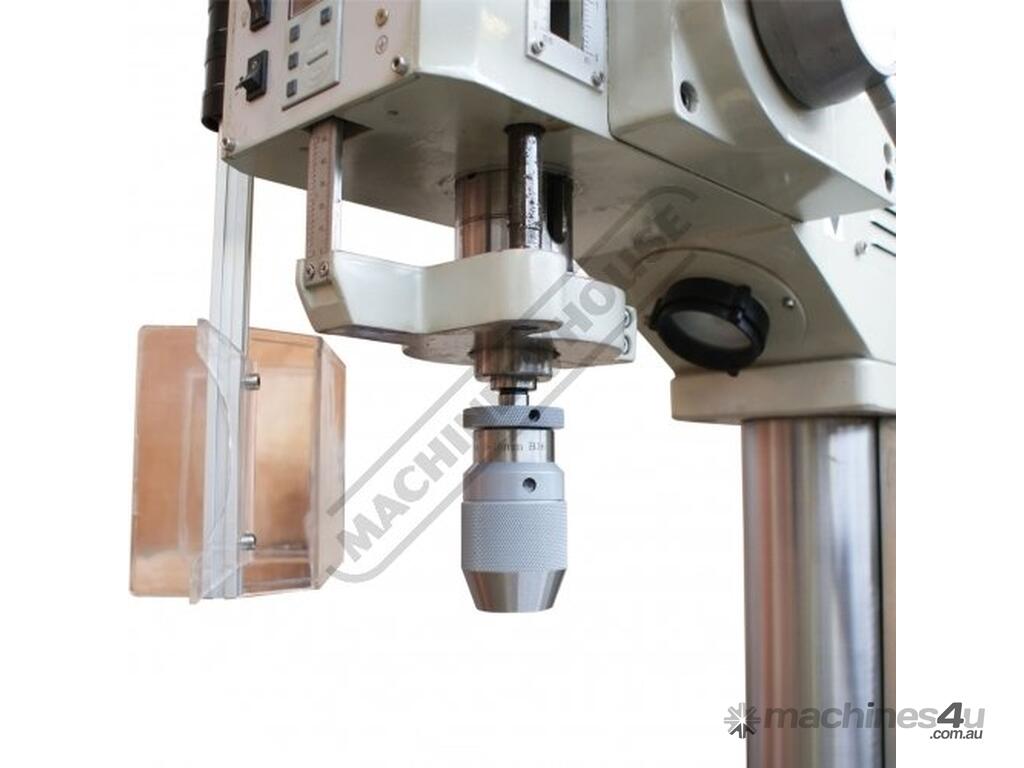

Includes 16mm keyless drill chuck and arbor

Includes:
- Coolant pump system
- 16mm keyless drill chuck and arbor
- Interlocked spindle safety guard



Specifications:
ORDER CODE: D176
MODEL: GHD-30V
Drilling Capacity (mm): Ø31.5
Thread Tapping Capacity (Metric): M20
Spindle Taper (MT): 3
Spindle Travel (mm): 125
Throat Depth (mm): 285
Quill Diameter (mm): 62
Column Diameter (mm): 115
Spindle To Table (mm): 790
Spindle To Base (mm): 1270
Table (Type): Rectangle
Table Size (mm): 426 x 400
T-Slot Size (mm): 14
Automatic Quill Feed (mm/rev): 0.06, 0.09, 0.12
Work Light (Includes): Yes
Coolant System (Includes): Yes
Spindle Speed Steps (No.): Variable (3 Steps)
Spindle Speed Range (rpm): 50 ~ 2850
Motor Power (kW / hp): 2.2 / 3
Voltage / Amperage (V / amp): 240 / 15
Full Height (mm): 1940
Nett Weight (kg): 344


To Purchase Online Please Visit The Machineryhouse & Search For 'D176'
