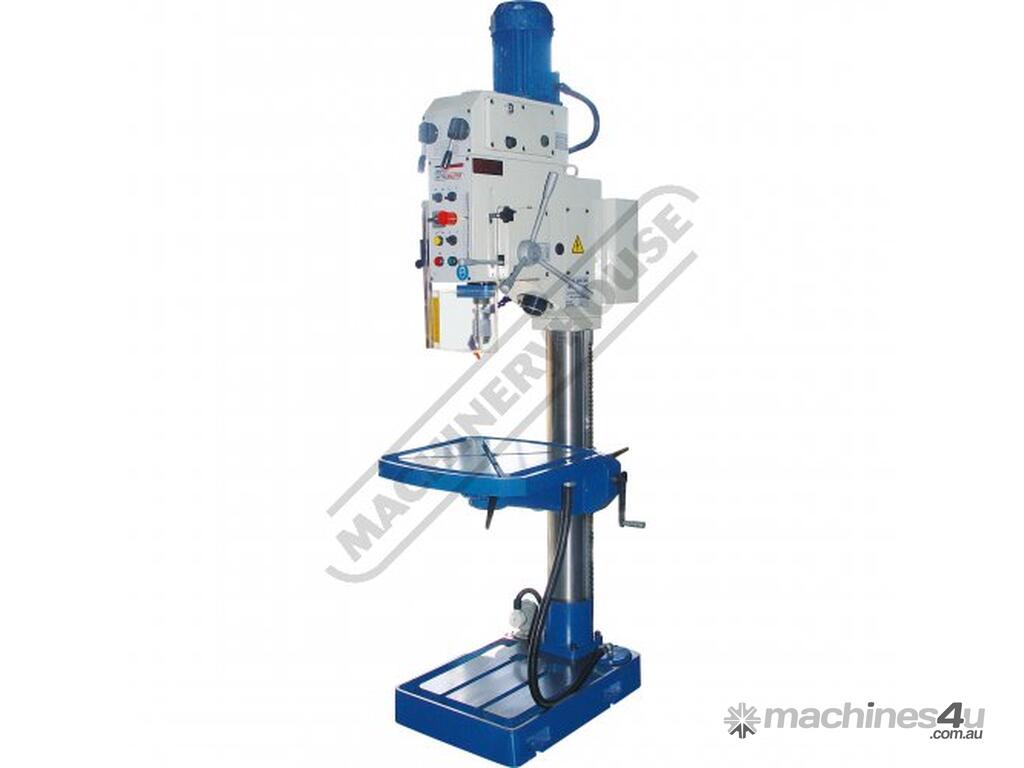

GHD-38B Industrial 4MT Geared Head Drilling Machine Ø40mm Drilling Capacity Includes Automatic Feed

HAFCO-METALMASTER GHD-38B Industrial 4MT Geared Head Drilling Machine Ø40mm Drilling Capacity Includes Automatic Feed & Tapping
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: D1325

If you are looking for a little more of a series industrial drilling machine with a 4 morse taper spindle, then the GHD-38B geared head drilling machine is what you will need in your workshop to tackle all those medium to large drilling jobs.

With a great selection of 18 drilling speeds ranging from 50 – 1450rpm, and a generous drilling depth of 180mm, you will be able to accomplish many jobs that are required in any engineering & manufacturing production shops. Like all good drilling machines we offer in the market, this also has all the great necessity features required to make drilling holes as easy as possible. For e.g. thread tapping up to M24, powered auto feeds, coolant pump system, work light to shine onto your work and all the electrics are made to European standards for extra piece of mind.

Features:
Ideal for industrial workshop use
Geared head drilling machine with 4 morse taper spindle
Thread tapping with auto reverse

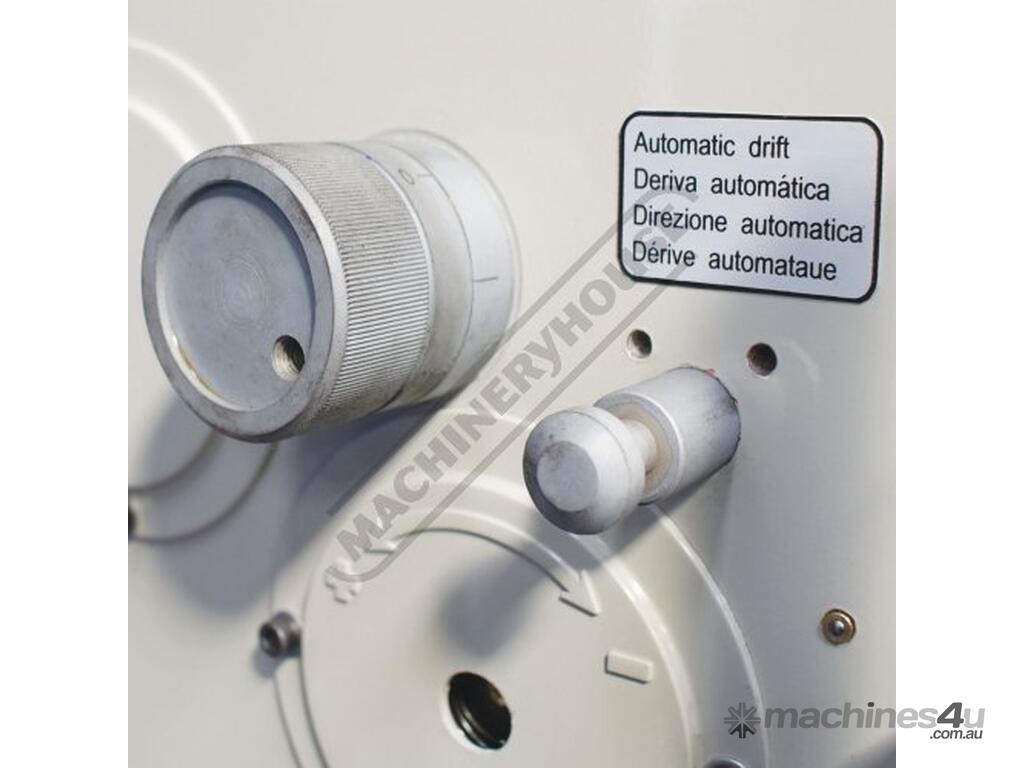

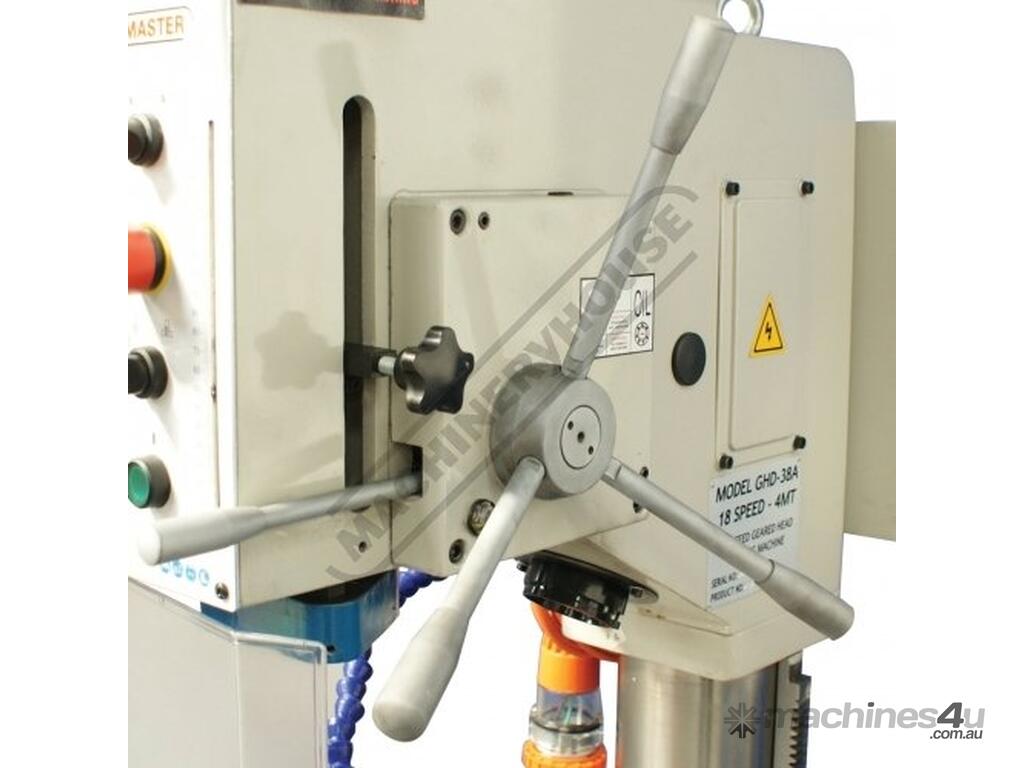

Automatic feed range (0.1 0.2mm/rev)

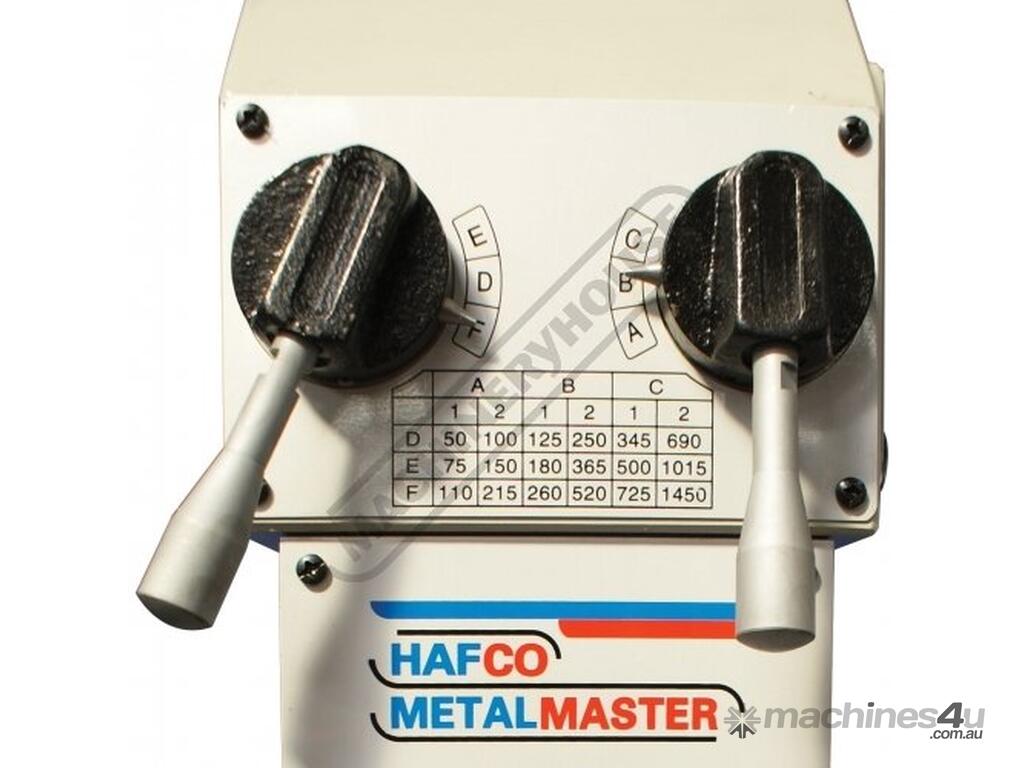

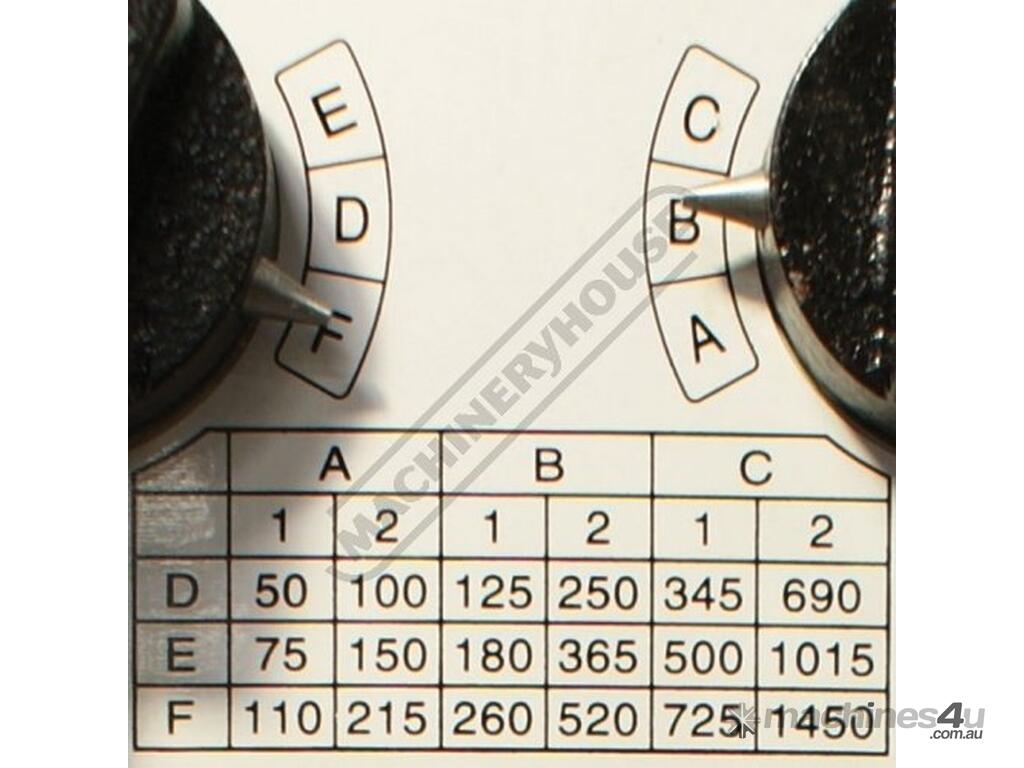

18 drilling speeds from 50-1450rpm

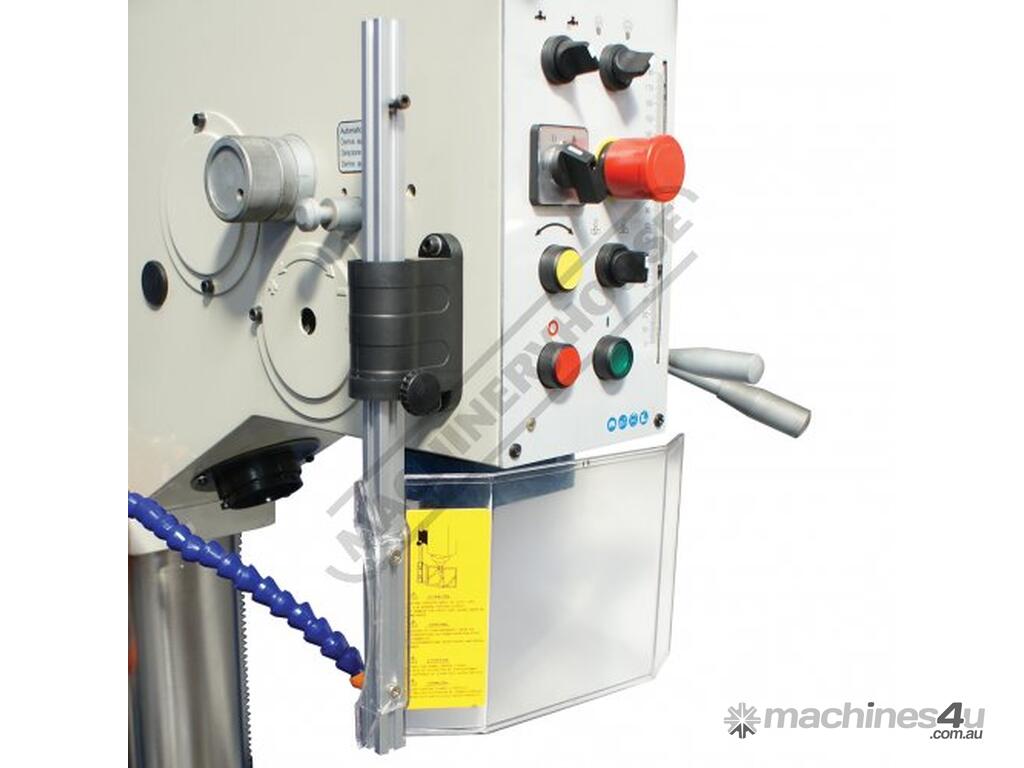

Interlocked Spindle Safety Guard
Drill ejector incorporated in machine

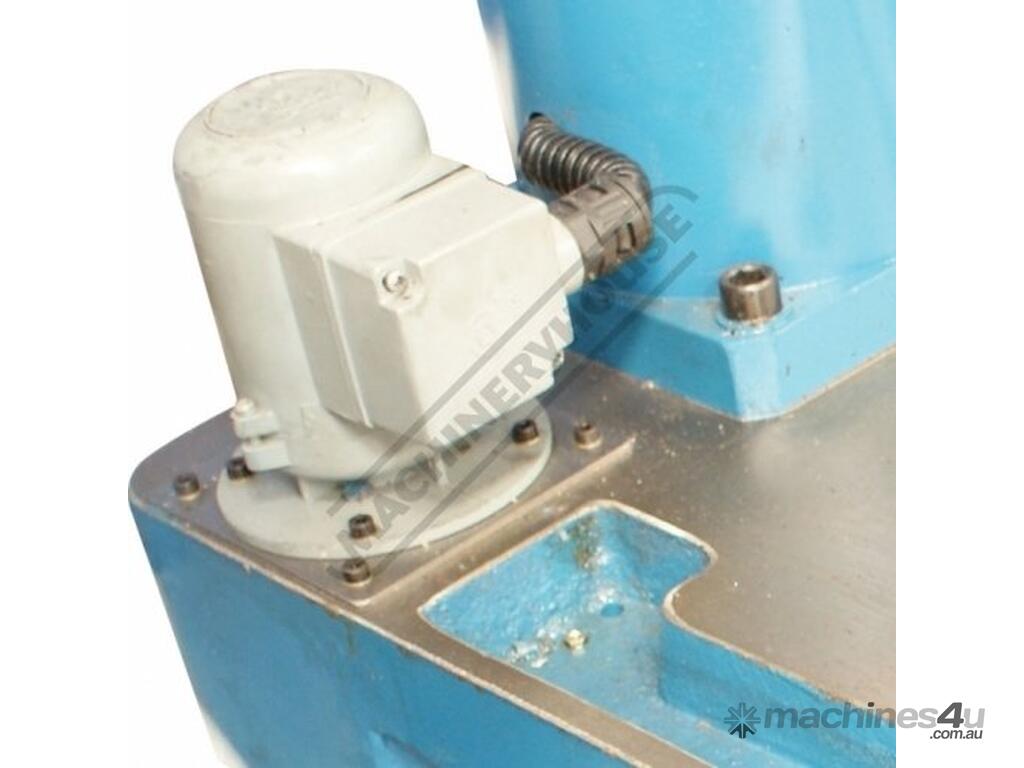

Coolant pump system with flexible hose

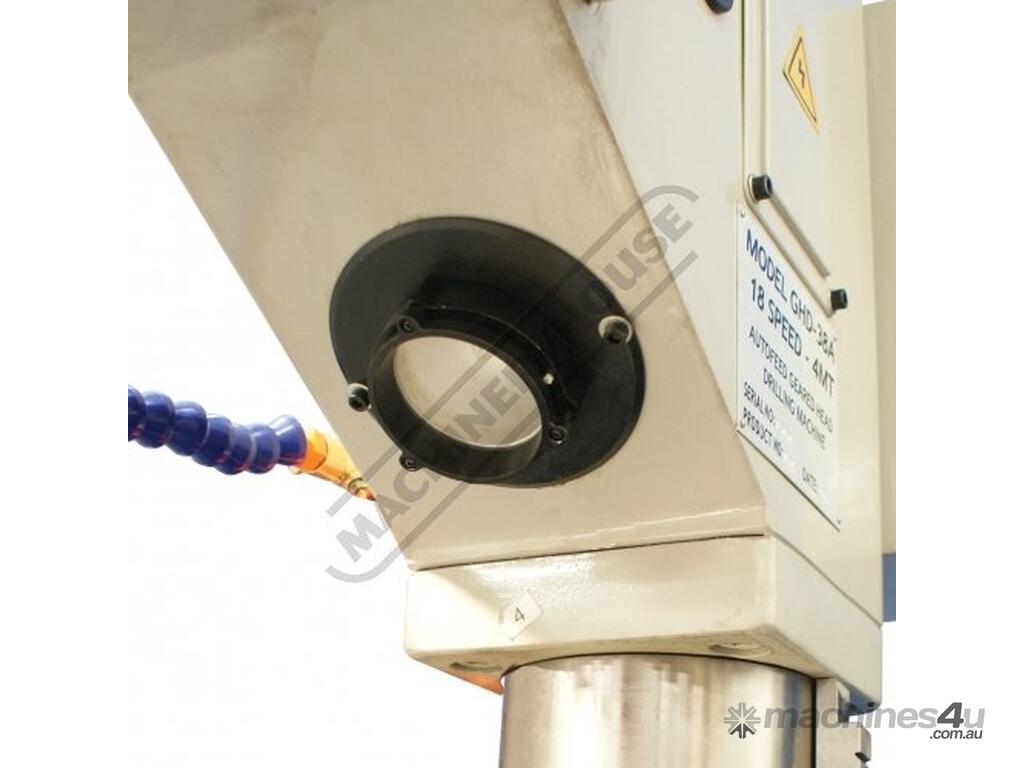

Work light mounted in convenient location
40mm drill capacity with 180mm of Spindle travel
Oil sight glass for geared head and feed gearbox
Modern electrics to european CE standards

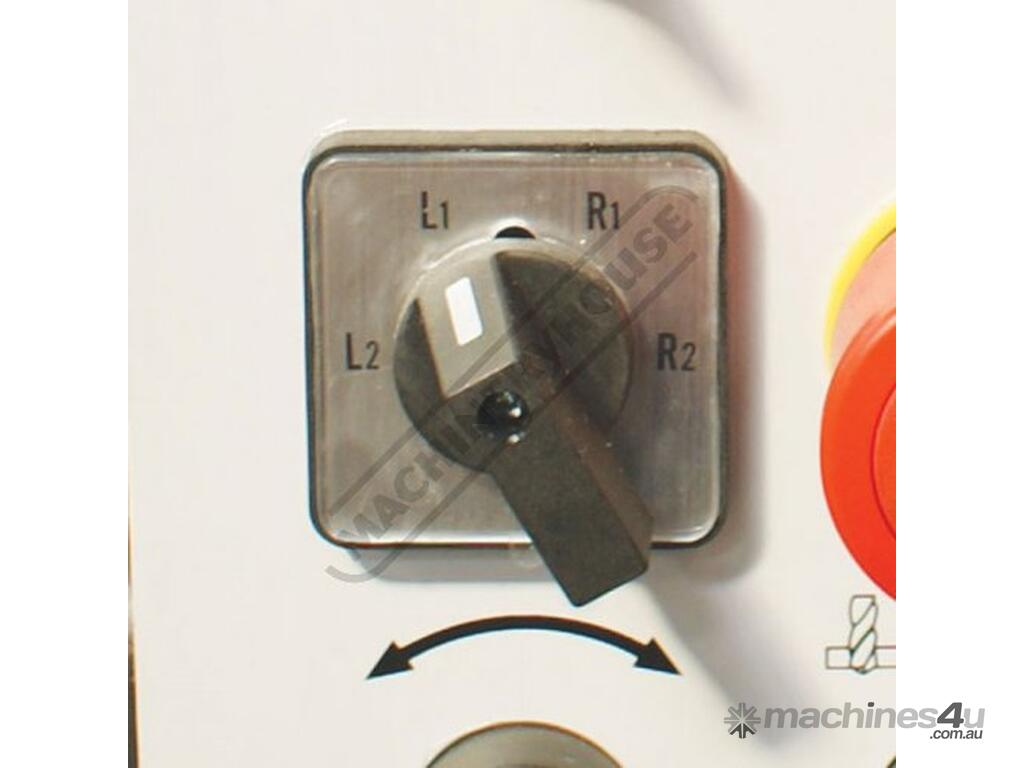

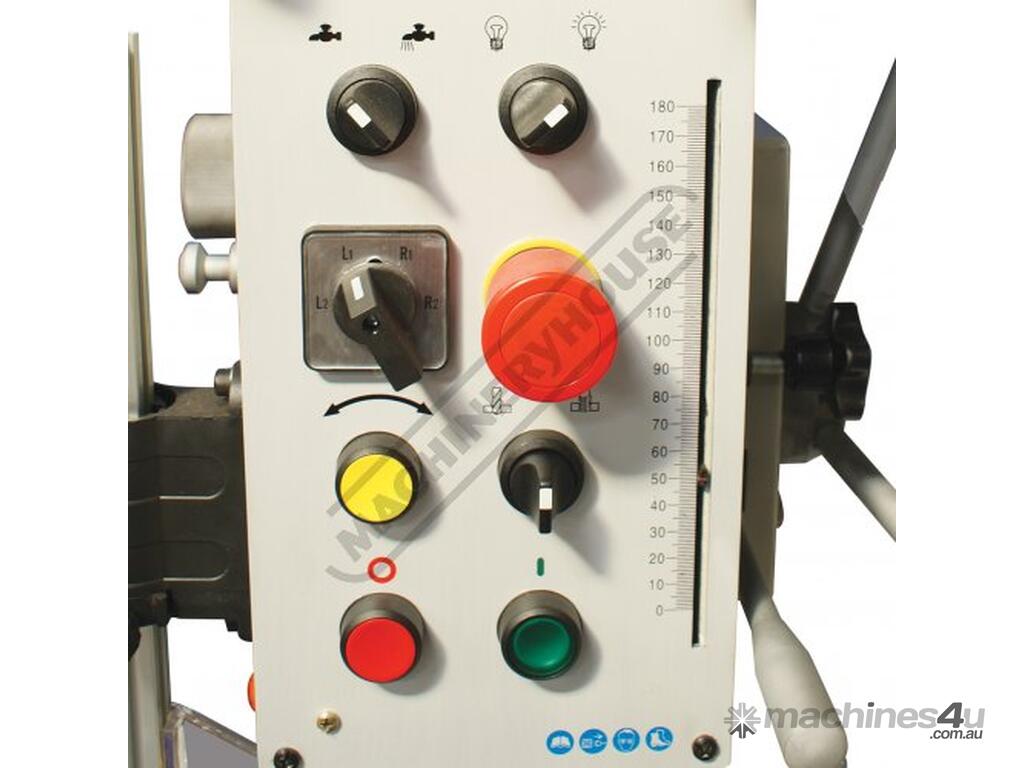

Forward and reverse spindle switch with high and low speeds

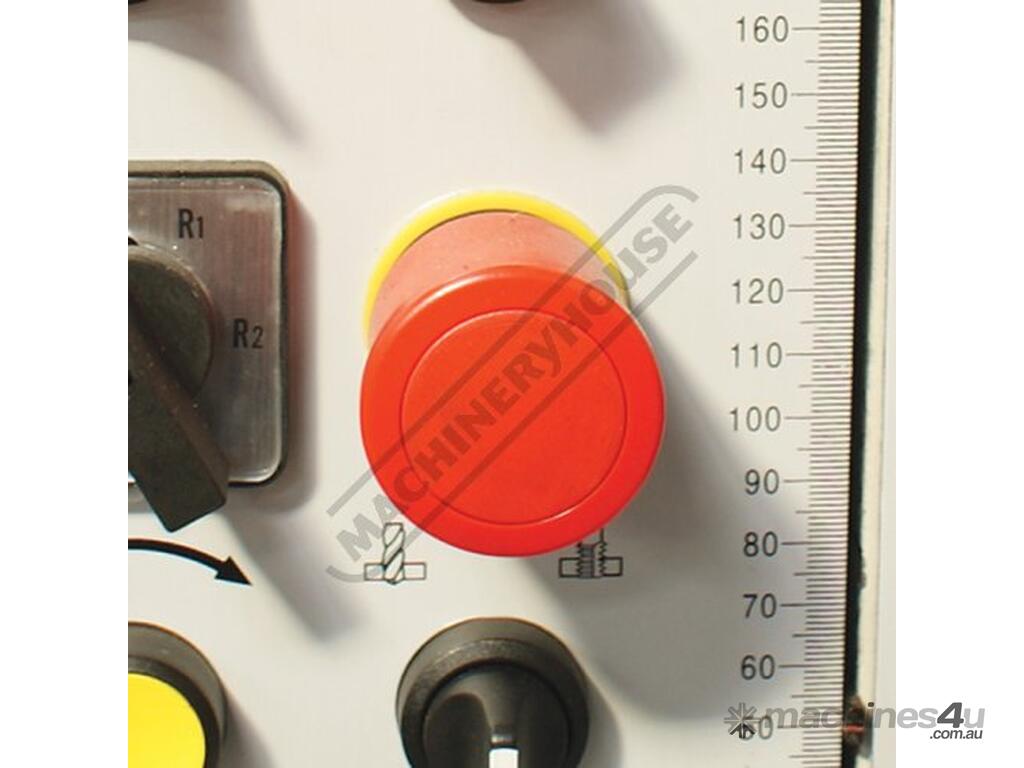

Emergency stop switch and overload protection
Substantial heavy walled column ensuring greater rigidity
Adjustable accurate depth setting with auto feed cut out for increased productivity

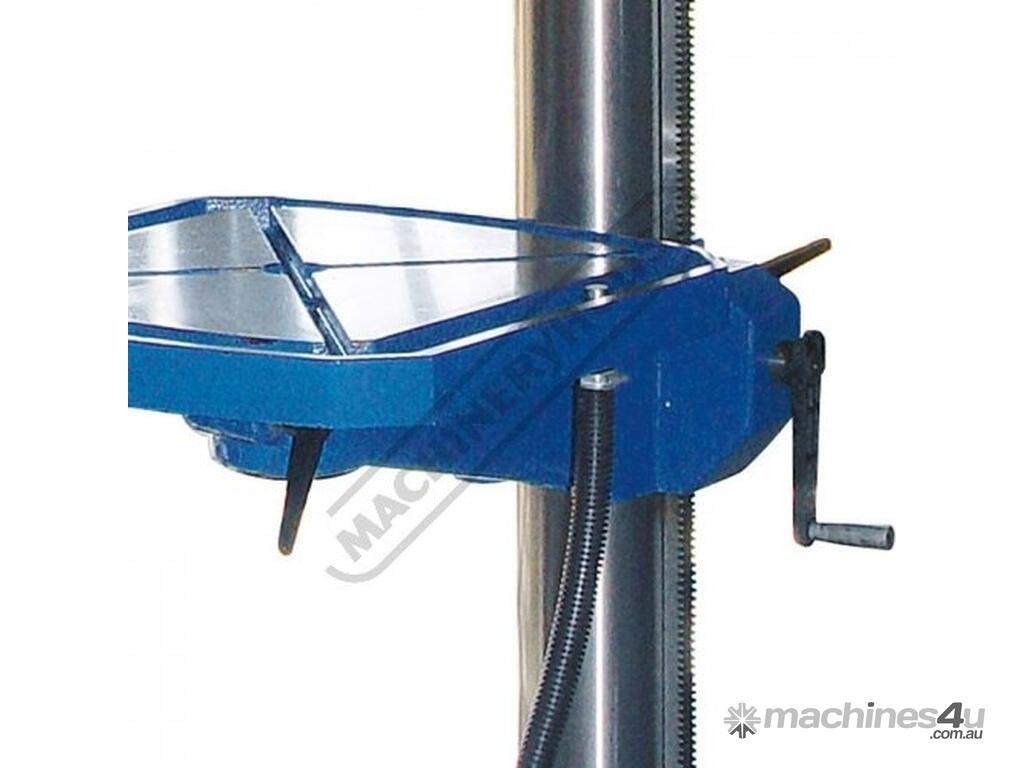

Rack and pinion wind-up table

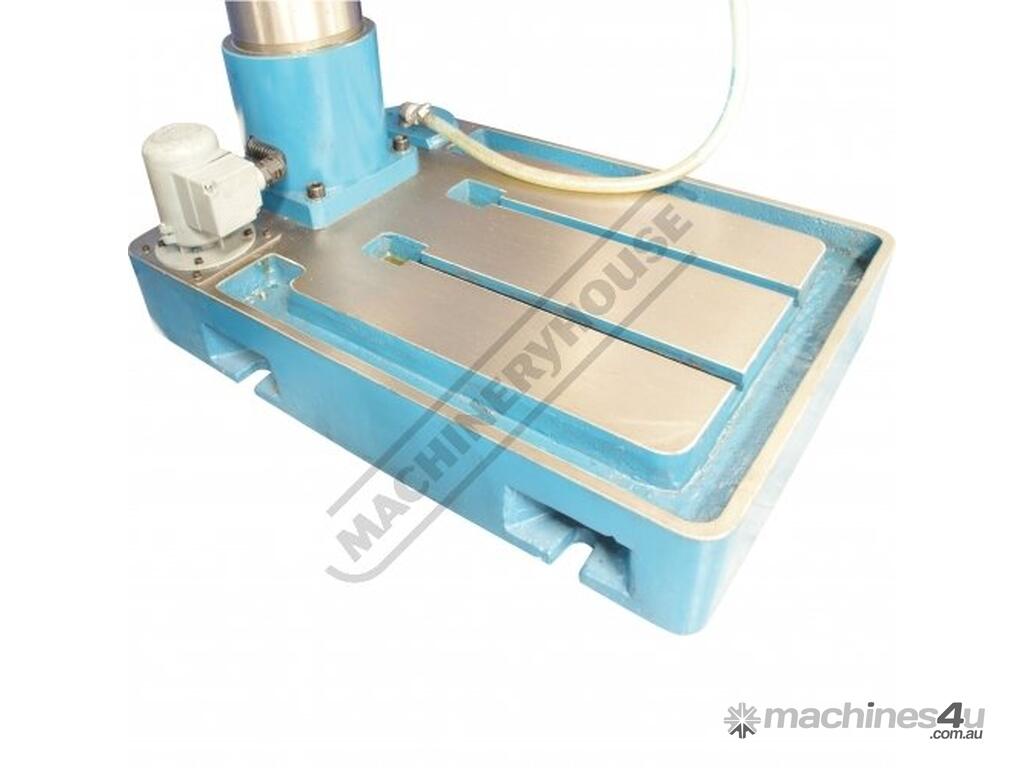

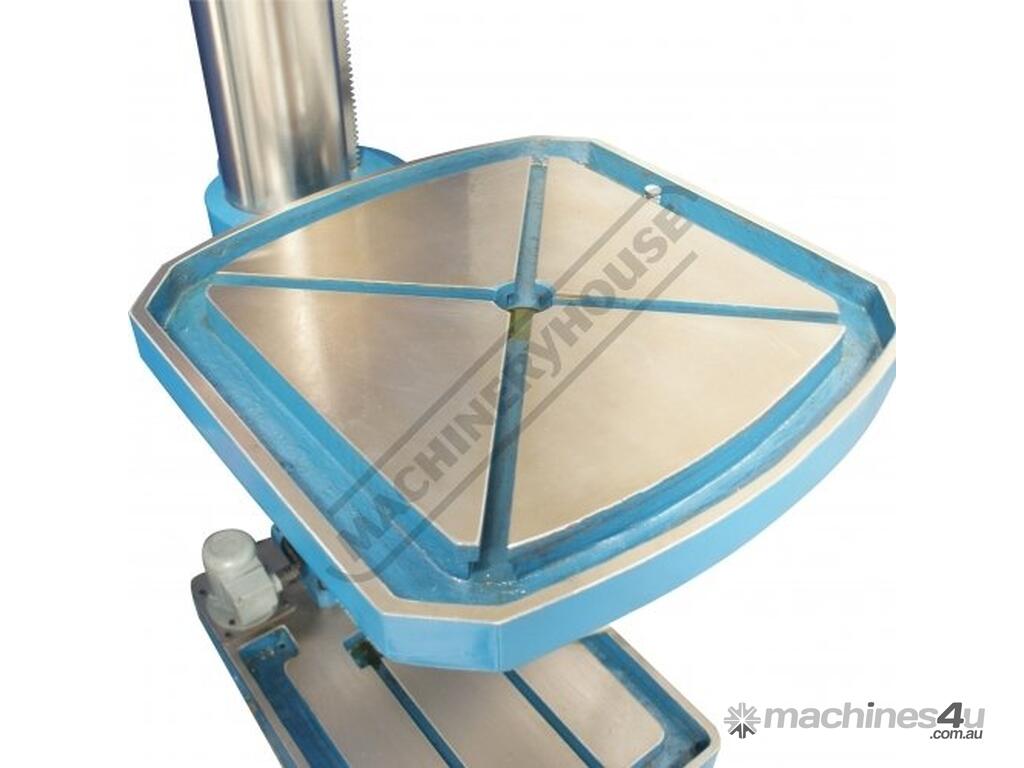

T slotted work table and base

Includes:
- 16mm drill chuck and arbor
- Coolant pump system
- Auto feed
- Tapping function
- Interlocked Spindle Safety Guard
- Work light



Specifications:
ORDER CODE: D1325
MODEL: GHD-38B
Drilling Capacity (mm): Ø40
Thread Tapping Capacity (Metric): M24
Spindle Taper (MT): 4
Spindle Travel (mm): 180
Throat Depth (mm): 350
Quill Diameter (mm): 75
Column Diameter (mm): 150
Spindle To Table (mm): 770
Spindle To Base (mm): 1320
Table (Type): Square
Table Size (mm): 560 x 560
T-Slot Size (mm): 16
Automatic Quill Feed (mm/rev): 0.1, 0.2
Work Light (Includes): Yes
Coolant System (Includes): Yes
Spindle Speed Steps (No.): 18
Spindle Speed Range (rpm): 50 ~ 1450
Motor Power (kW / hp): 1.5 / 2
Voltage / Amperage (V / amp): 415
Full Height (mm): 2220
Nett Weight (kg): 615


To Purchase Online Please Visit The Machineryhouse & Search For 'D1325'
