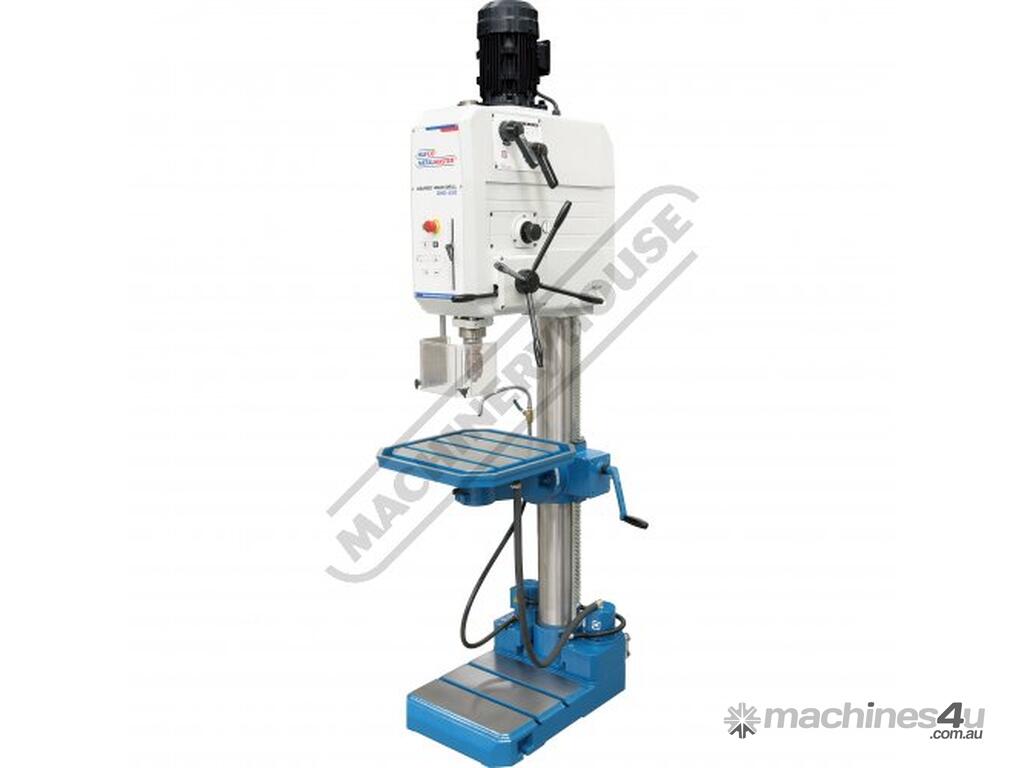

GHD-45G Industrial 4MT Geared Head Drilling Machine Ø45mm Drilling Capacity Includes Automatic Feed

HAFCO-METALMASTER GHD-45G Industrial 4MT Geared Head Drilling Machine Ø45mm Drilling Capacity Includes Automatic Feed & Tapping
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: D174

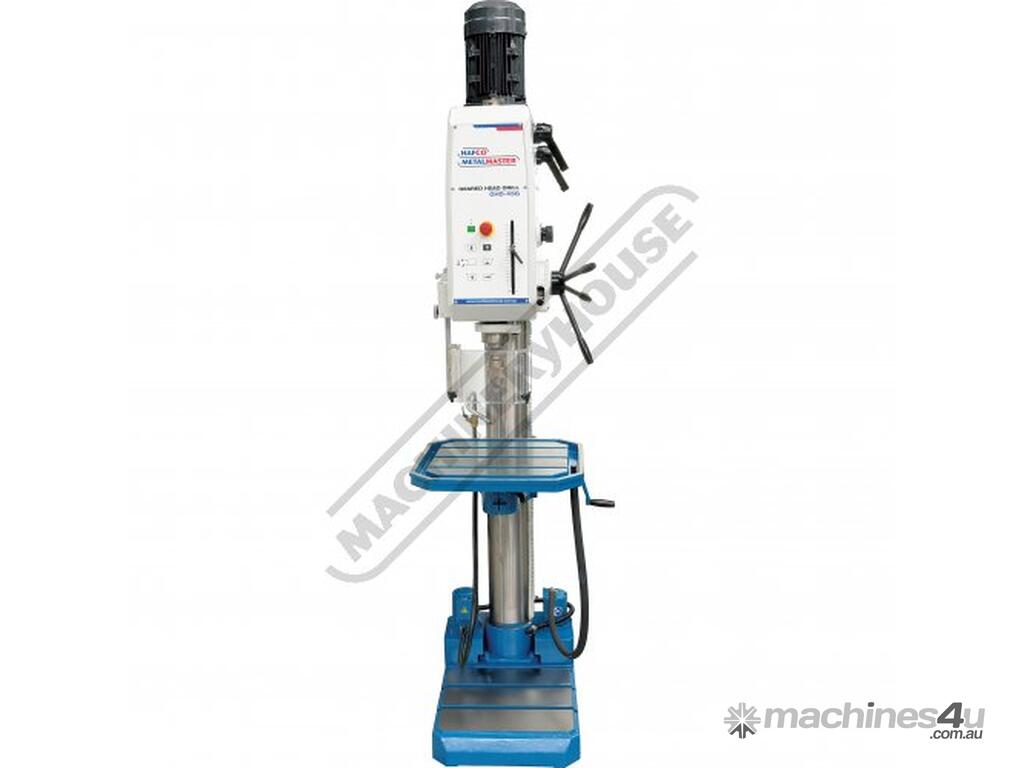

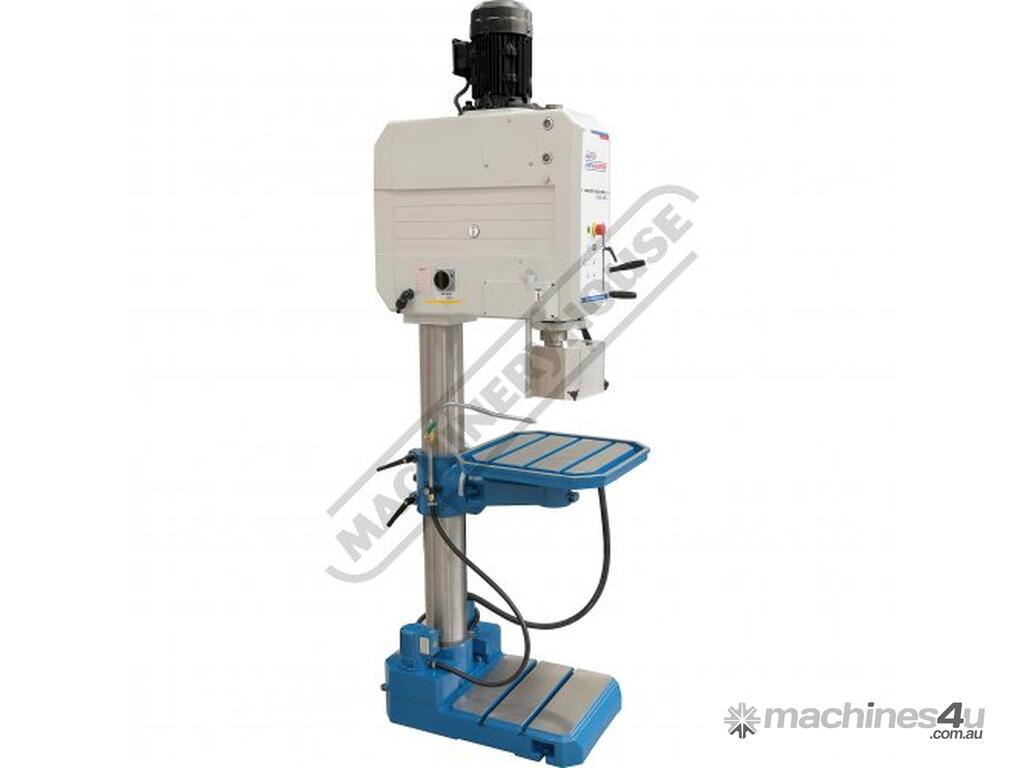

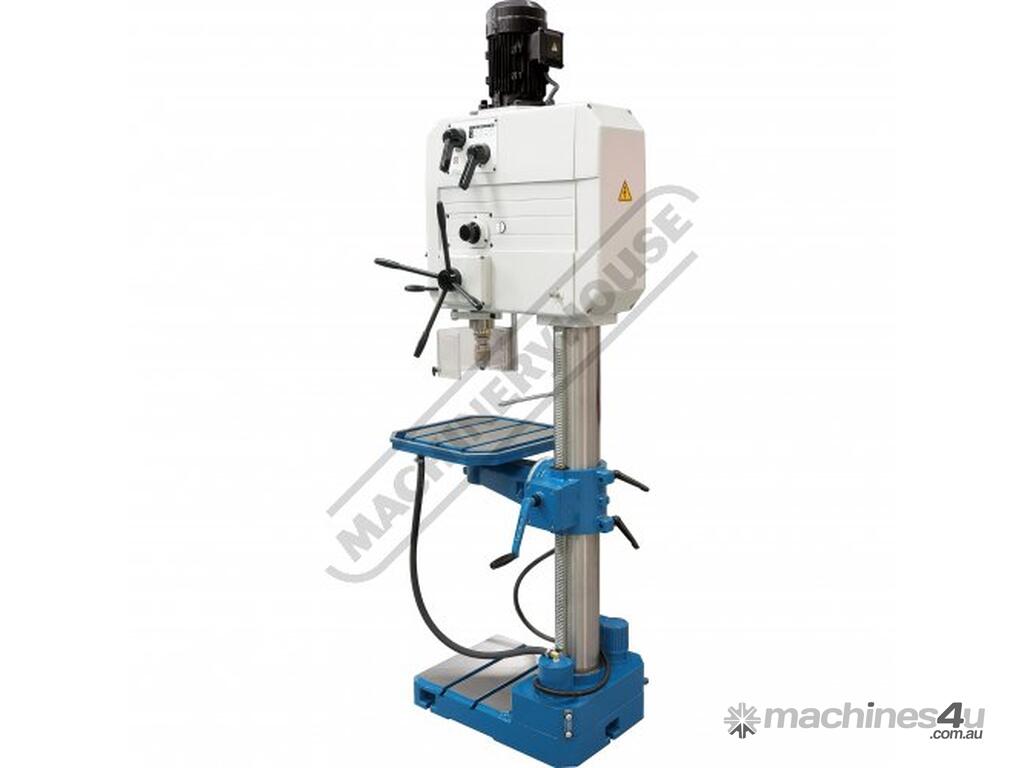

The GHD-45G is a heavy duty Industrial Geared Head Drilling Machine that has it all, and if you are wanting to drill small holes up to large holes, then look no further as this will be what you will need in your engineering workshop. With a hefty 4 morse taper spindle that can travel a huge 180mm in depth, and the extra-large head to house in those big drive gears with 8 speeds to drill through the toughest steels with ease. This machine also features an automatic drilling feed system, so you do not need to use human force at all to drill any holes.

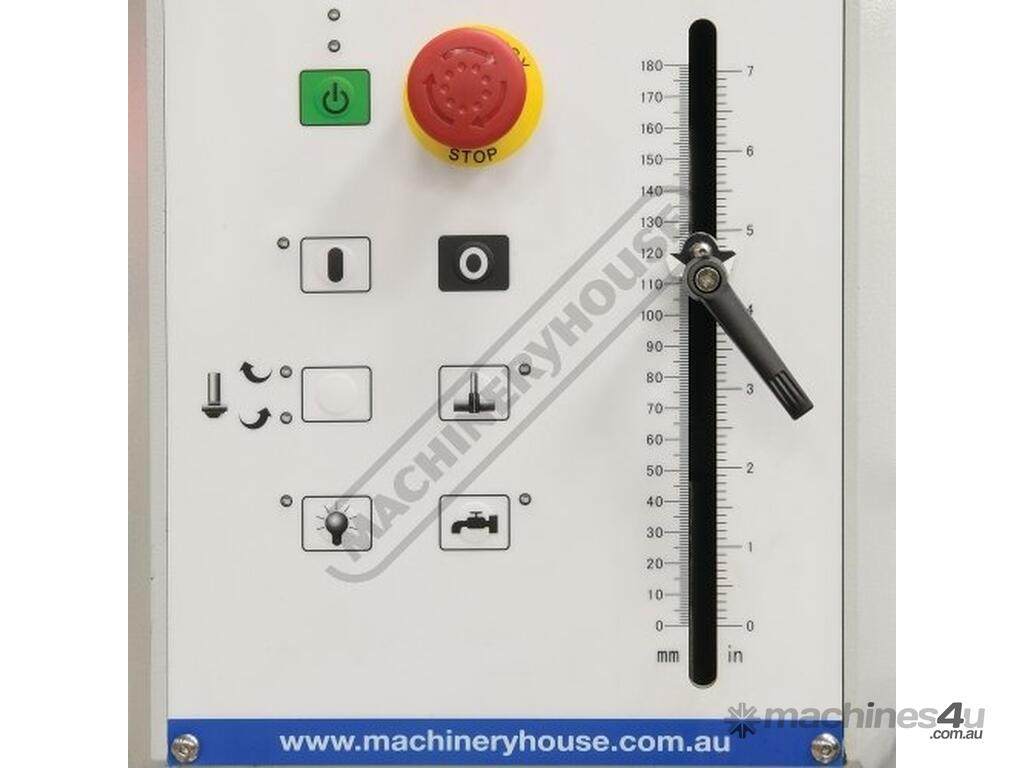

The work table also can rotate 360º, and tilts 90º left & 90º right to accommodate multitudes of endless drilling possibilities. Another notable and very useful feature to mention is that tapping holes can be achieved easily by selecting this function on the control panel, setting the depth stop and appropriate spindle speed, and once the tapping depth is reached the spindle will automatically revere and your tap will retract out of the hole.

Features:
Ideal for industrial workshop use
Geared head drilling machine with 4 morse taper spindle
Thread tapping with auto reverse

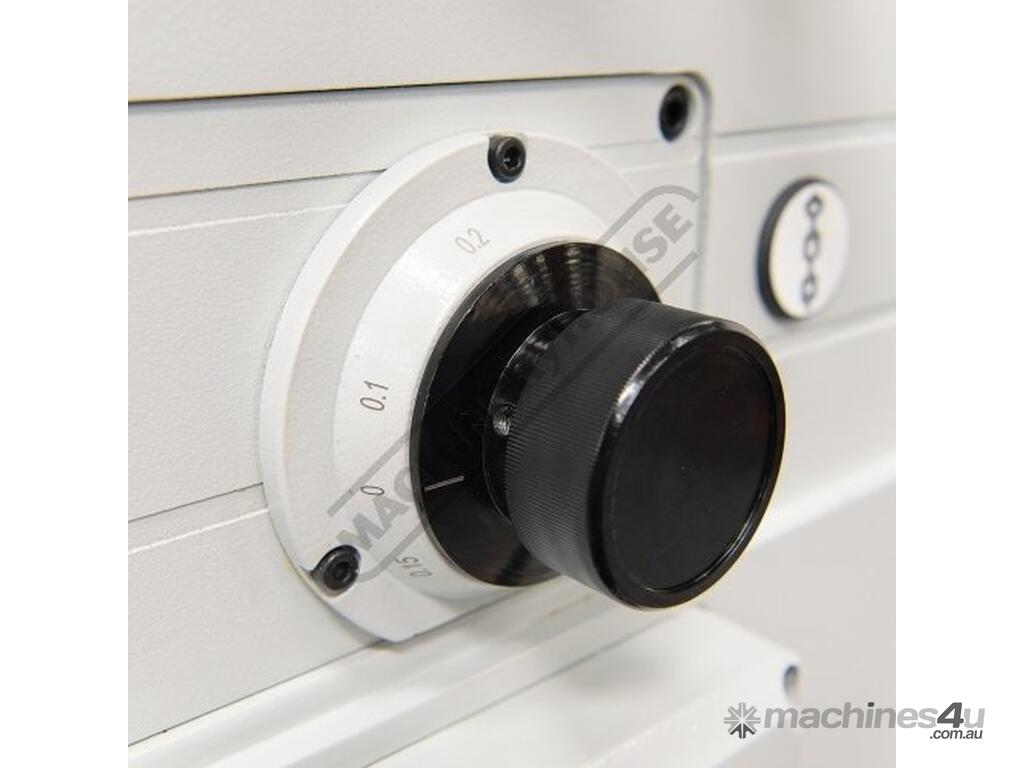

Automatic feed range (0.1 0.15 0.2mm/rev)

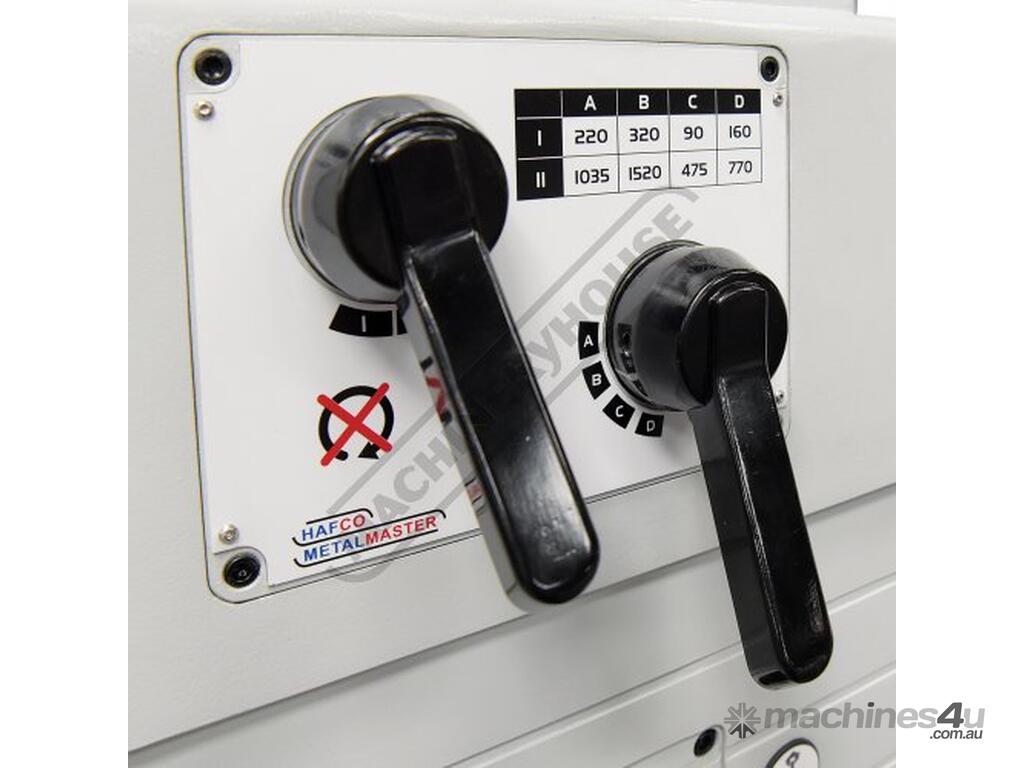

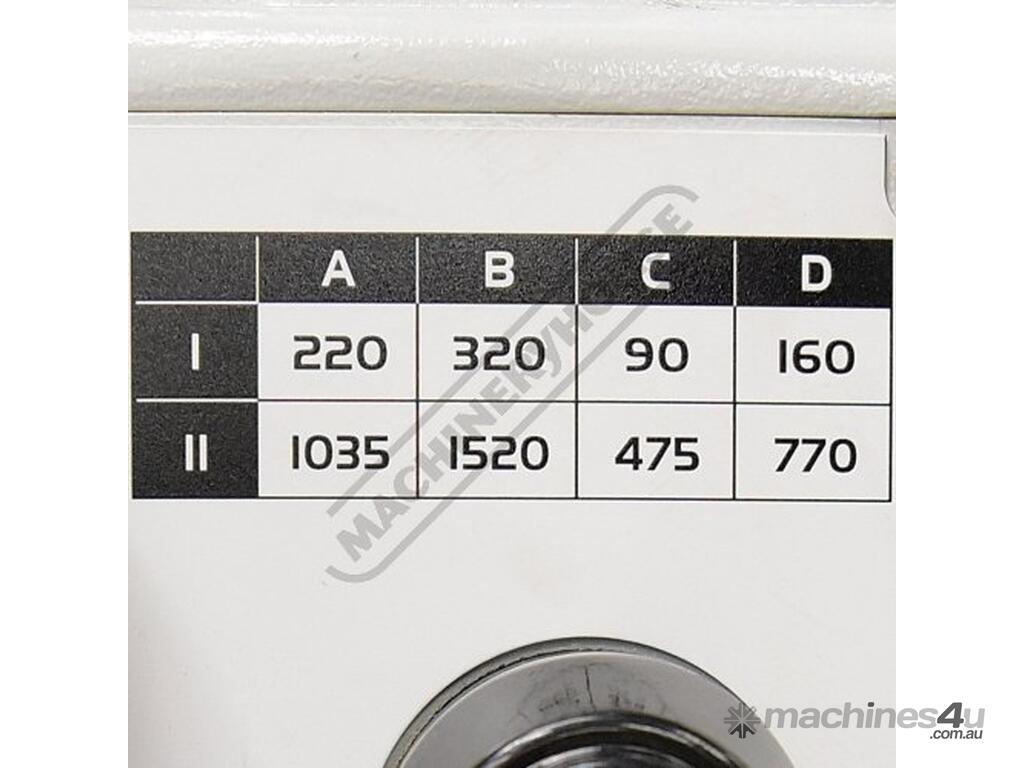

8 drilling speeds from 90-1520rpm

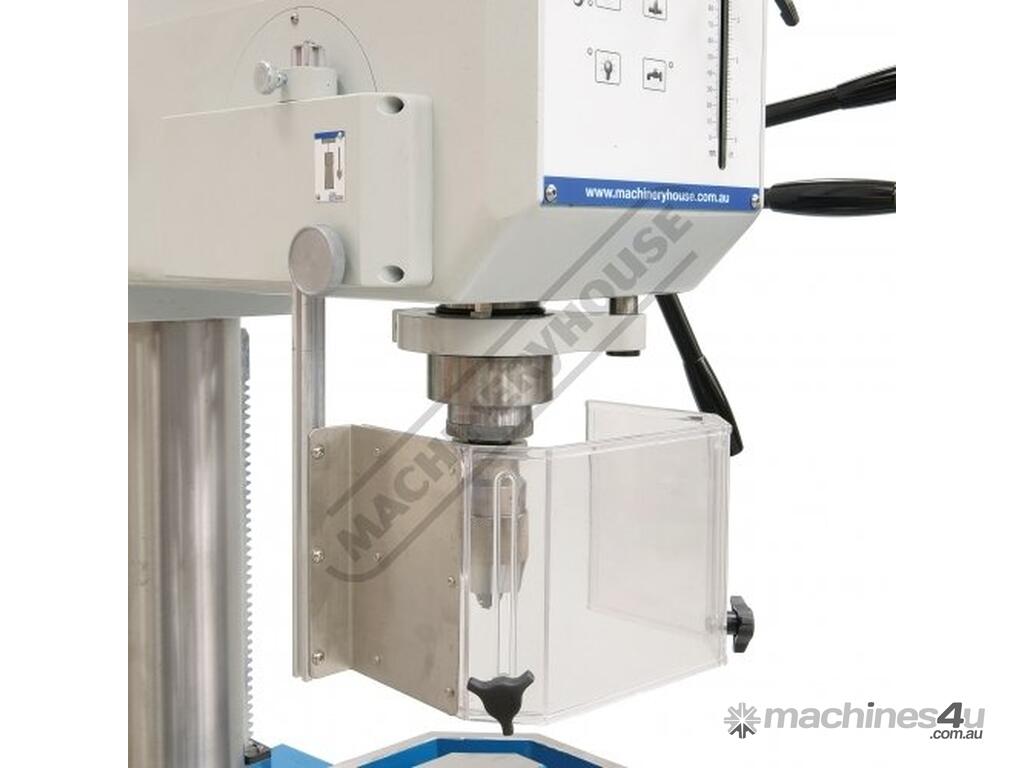

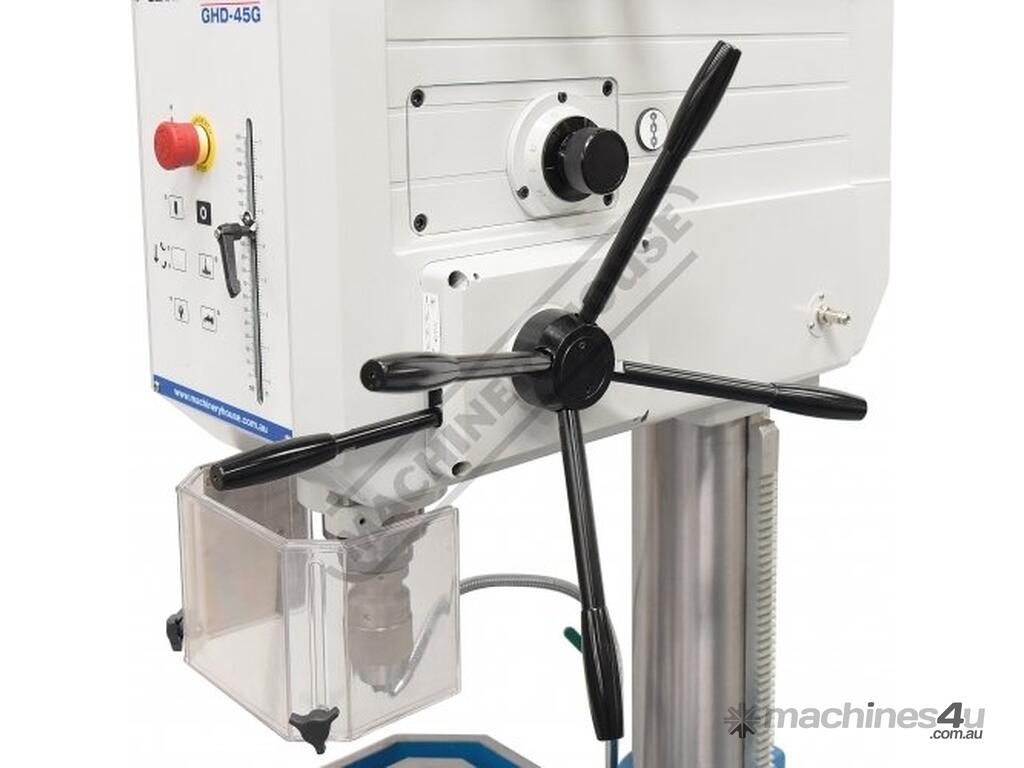

Interlocked spindle safety guard

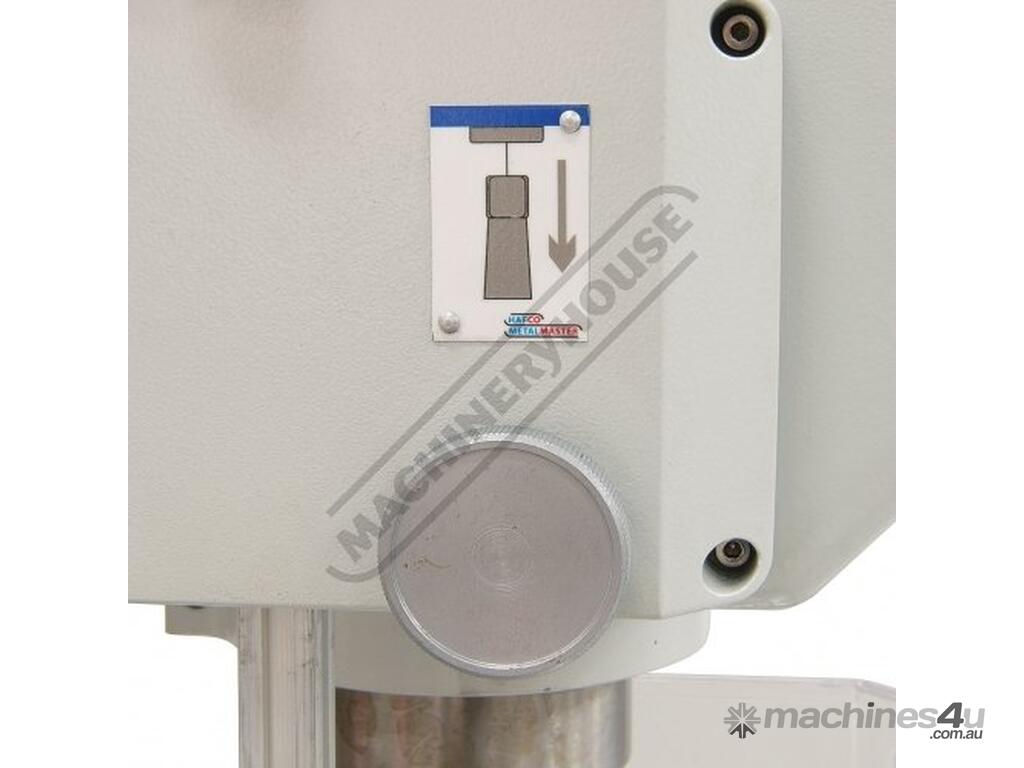

Drill ejector incorporated in machine

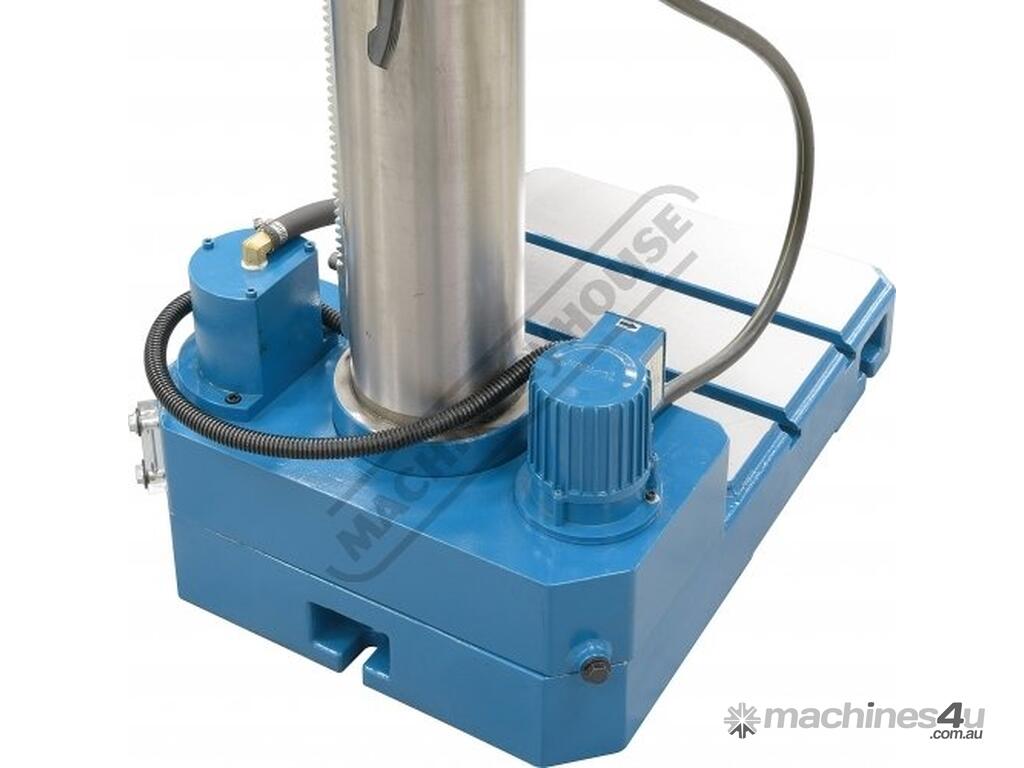

Coolant pump system with flexible hose
2 x LED work lights mounted in convenient location
45mm drill capacity with 180mm spindle travel

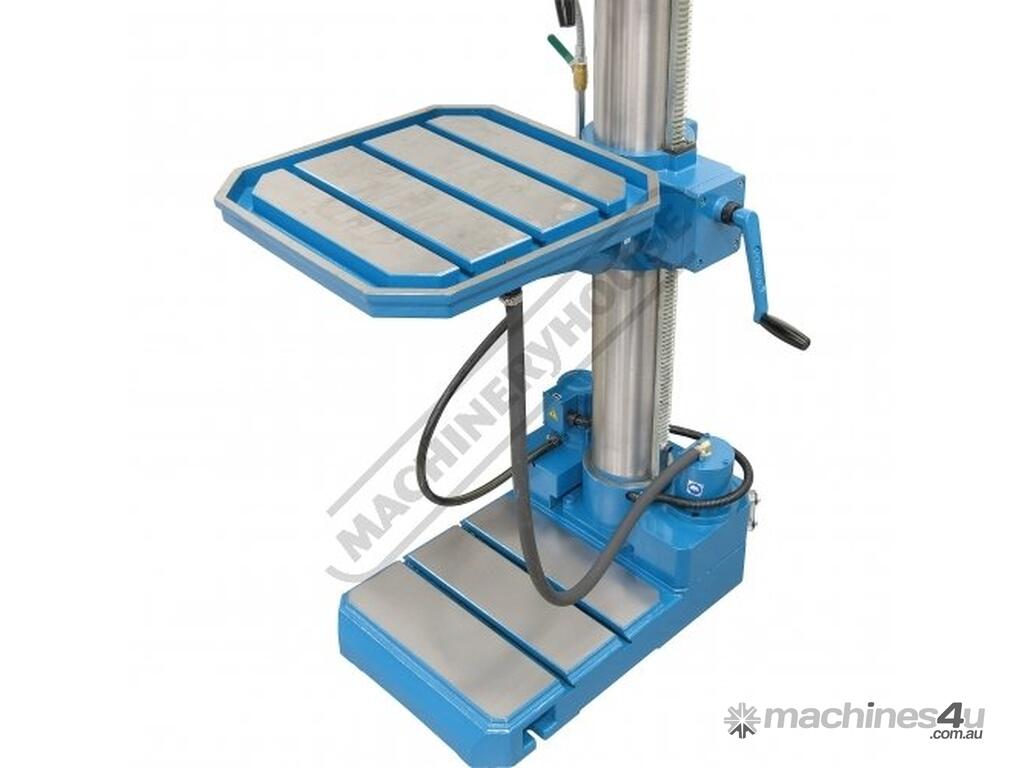

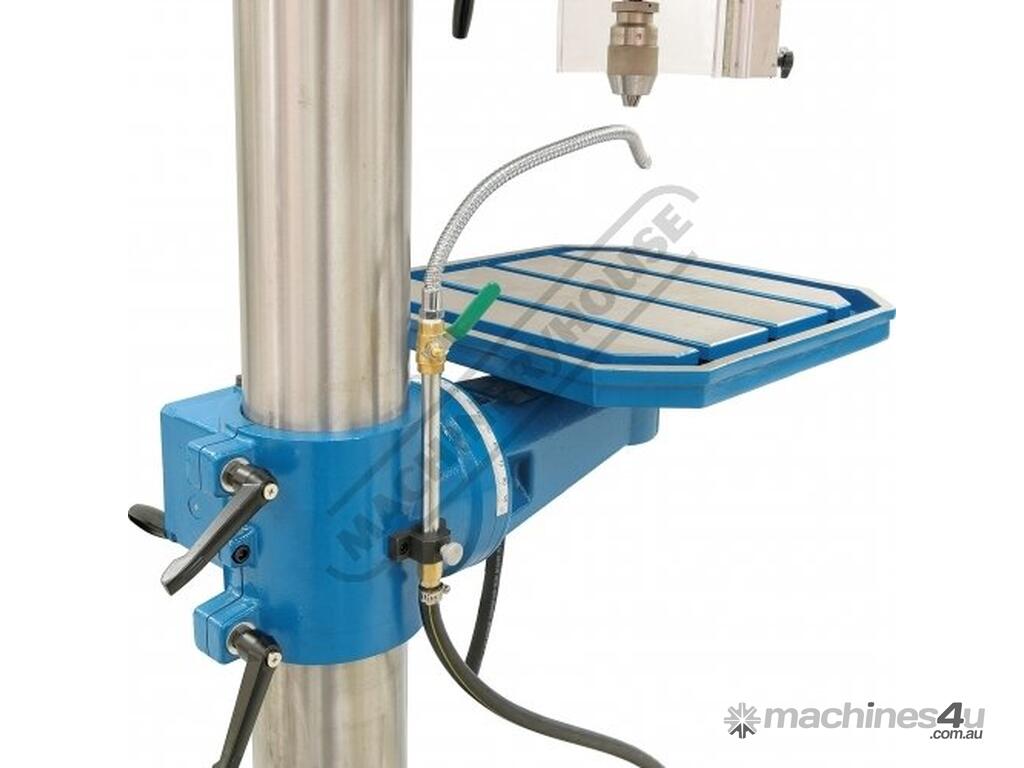

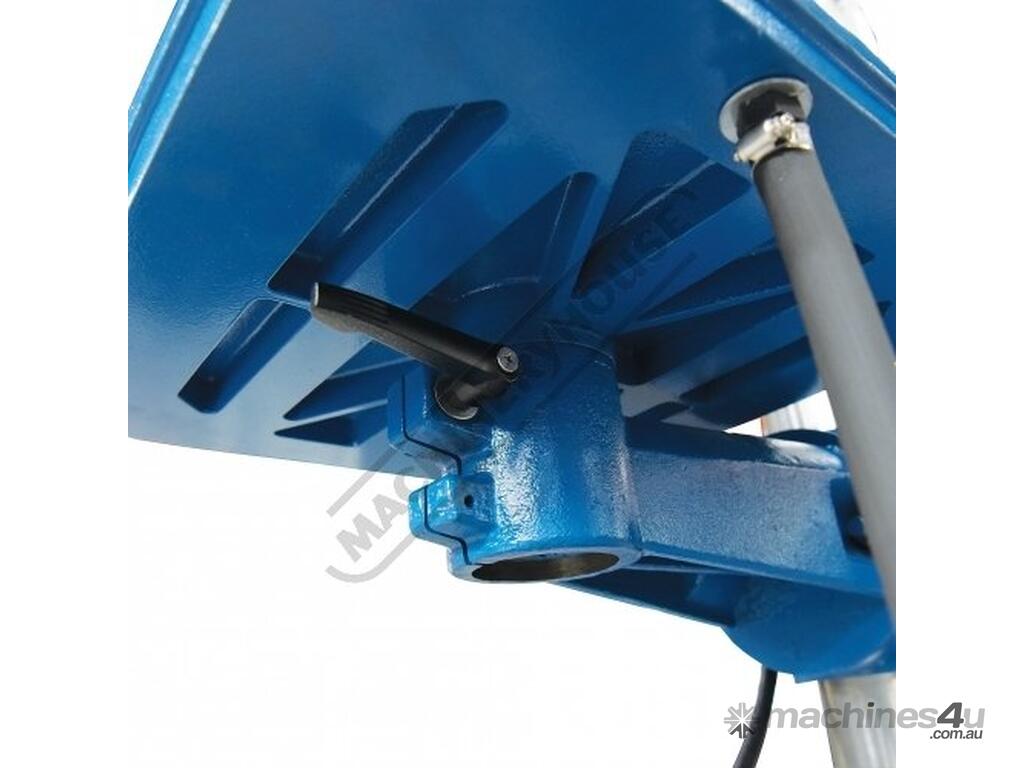

Table rotates 360º and tilts 90º left & 90º right
Oil sight glass for geared head and feed gearbox
Modern 24V DC electrics to european CE standards
Forward and reverse spindle speed switch
Emergency stop switch and overload protection
Substantial heavy walled column ensuring greater rigidity
Adjustable accurate depth sop setting with auto feed cut out

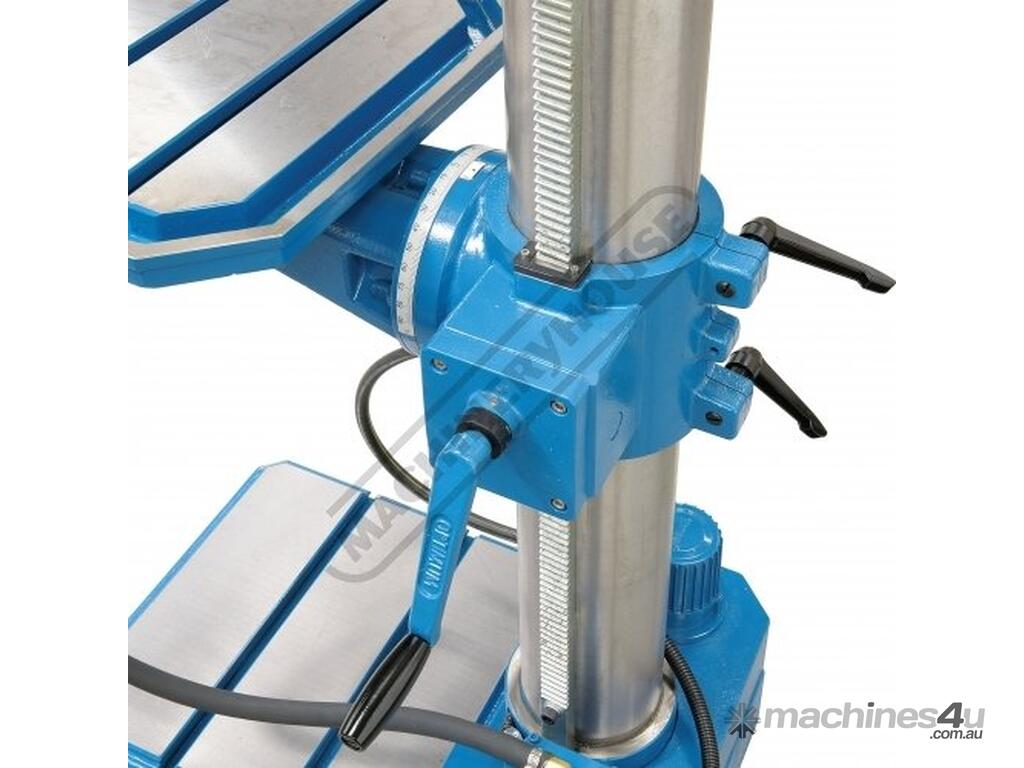

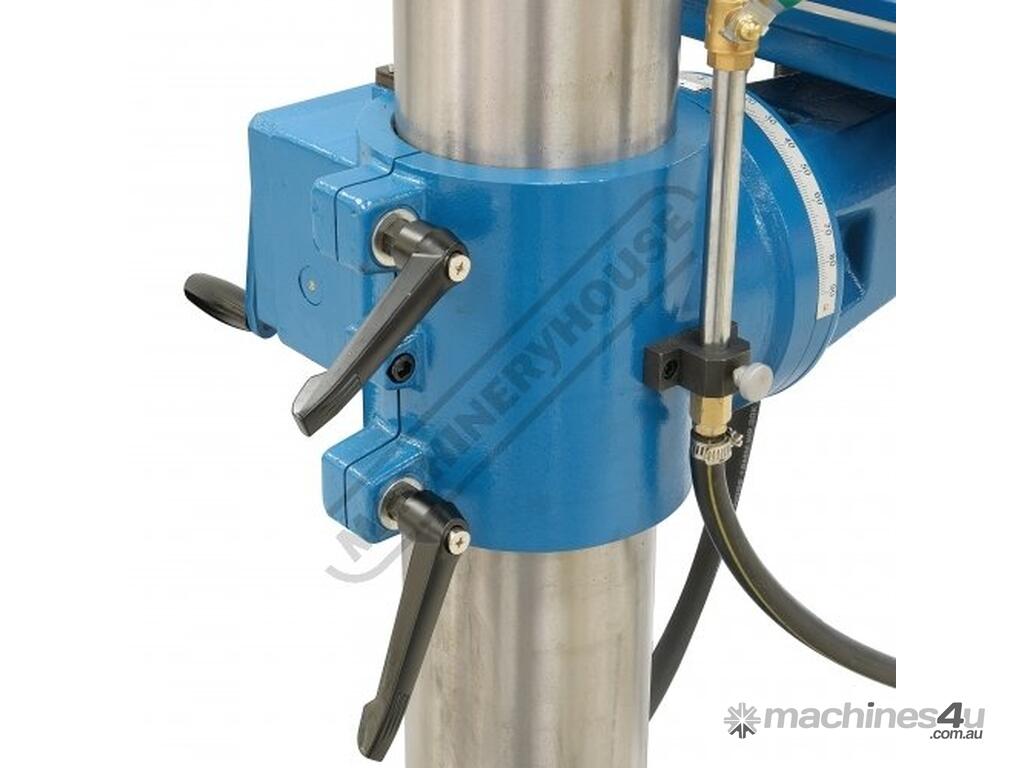

Rack and pinion wind-up table
T slotted work table and base

Includes:

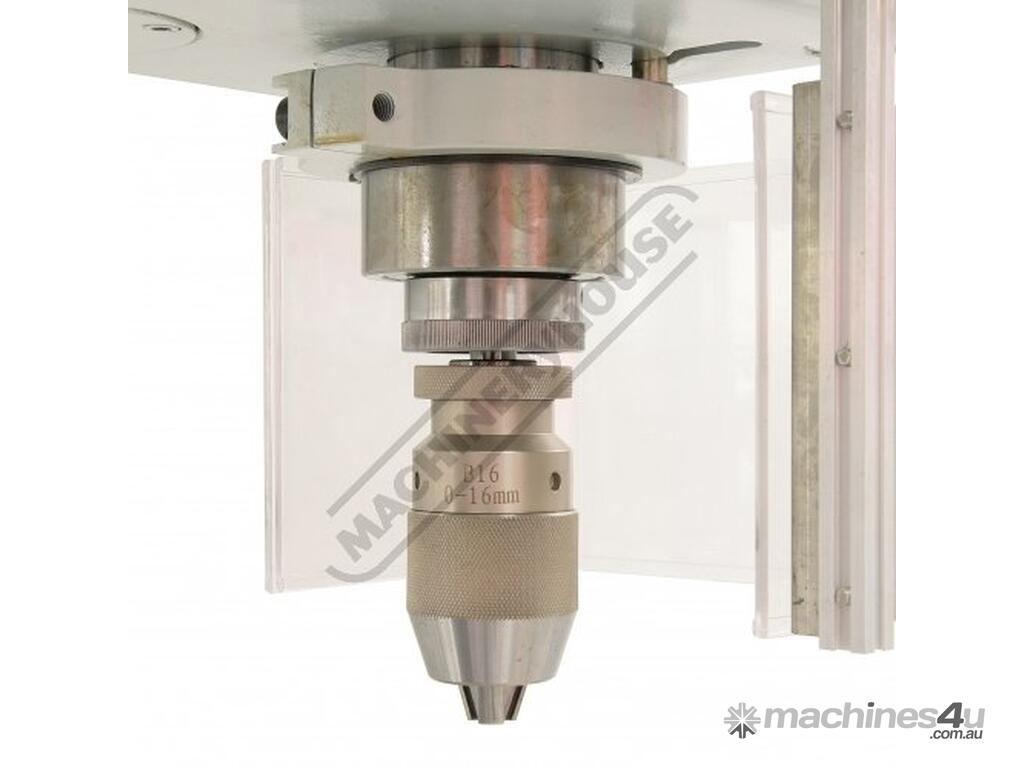

- 16mm keyless drill chuck and arbor
- Coolant pump system
- Auto drilling feed
- Tapping function
- Interlocked spindle safety guard
- LED work lights



Specifications:
ORDER CODE: D174
MODEL: GHD-45G
Drilling Capacity (mm): Ø45
Thread Tapping Capacity (Metric): M35
Spindle Taper (MT): 4
Spindle Travel (mm): 180
Throat Depth (mm): 350
Quill Diameter (mm): 70
Column Diameter (mm): 150
Spindle To Table (mm): 70 ~ 730
Spindle To Base (mm): 1210
Table (Type): Square
Table Size (mm): 530 x 530
T-Slot Size (mm): 18
Automatic Quill Feed (mm/rev): 0.1, 0.15, 0.2
Work Light (Includes): Yes
Coolant System (Includes): Yes
Spindle Speed Steps (No.): 8
Spindle Speed Range (rpm): 90 ~ 1520
Motor Power (kW / hp): 2.2 / 3
Voltage / Amperage (V / amp): 415
Full Height (mm): 2445
Nett Weight (kg): 670
