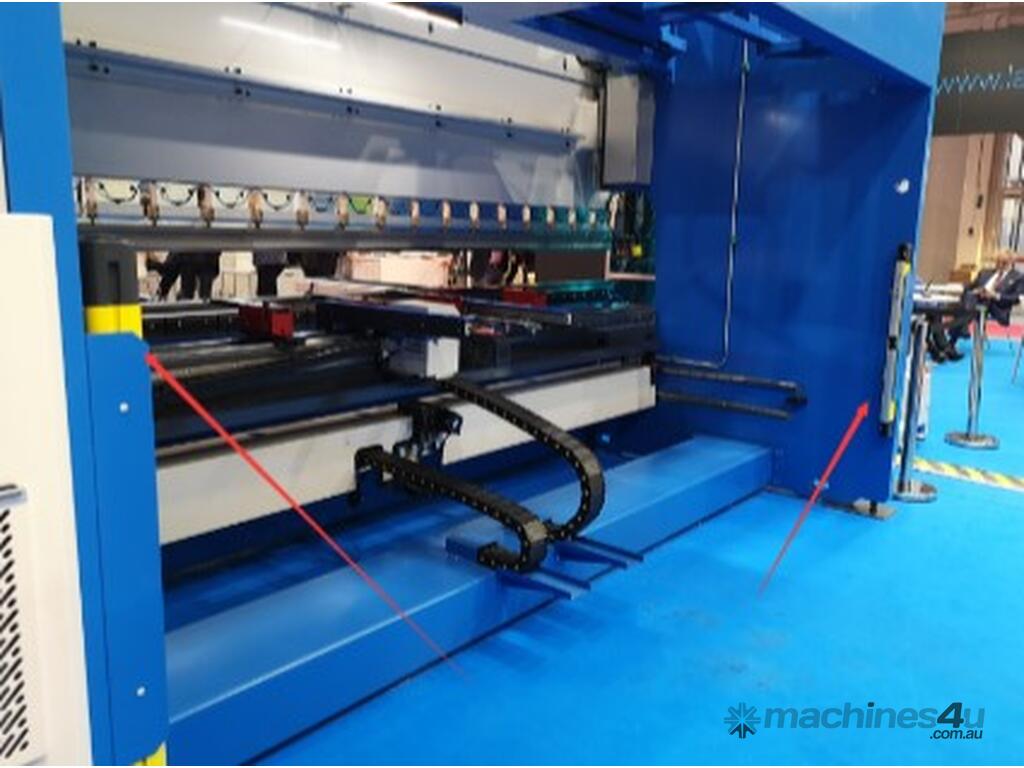

GHT 125-3000 Hydraulic CNC Press Brake

G-Press is a metal fabricating company located in China for 10 years and with manufacturing concept that follows European standards. Its technology comes from the precious cooperation with the historic partner Gasparini Italy.
Annual production capacity is approximately 650 press brakes including also robotized bending cells.

The GHT series press brakes are of heavy duty type. Like the GHT series they integrate Italian technology and are particularly suitable for bending medium and thick plates.
The current range starts from 125 up to 500 tons with lengths up to 6 meters. Upon specific request, larger models can be supplied.
It is also possible to connect a robot thus creating an automatic robotized cell.

FEATURES
- CNC control ESA mod S860/875 or DELEM DA66T/69T.
- Available from 6+1 axes (Y1-Y2-X-R-Z1-Z2+V).
- Bolted structure - no welding stress.

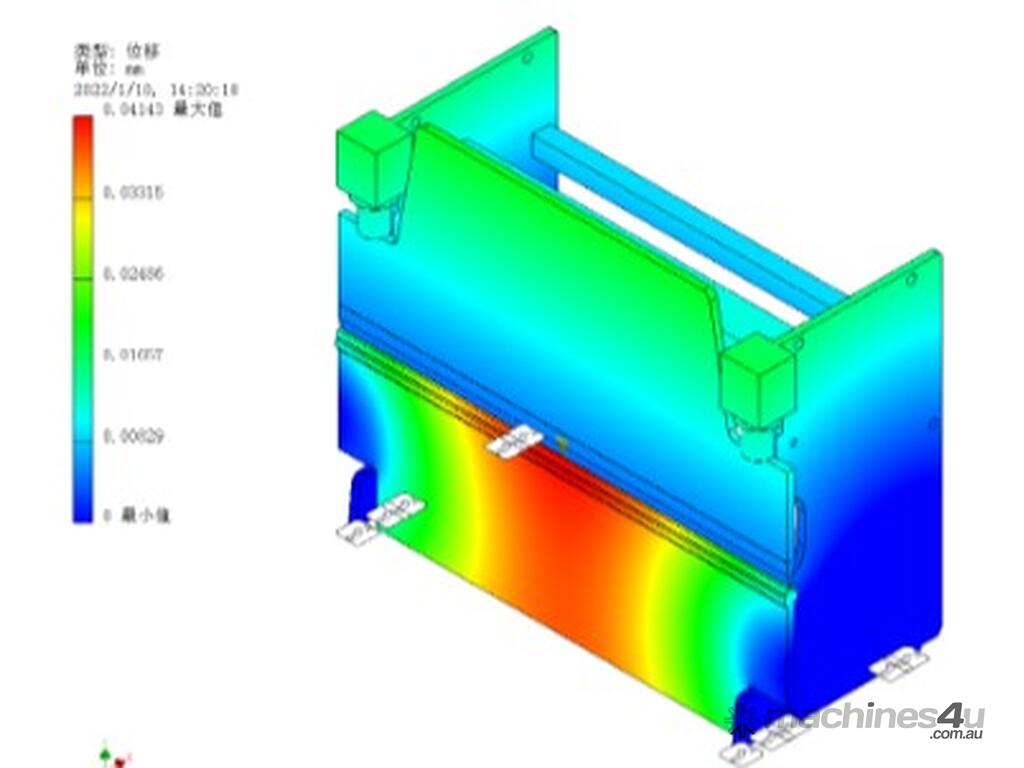

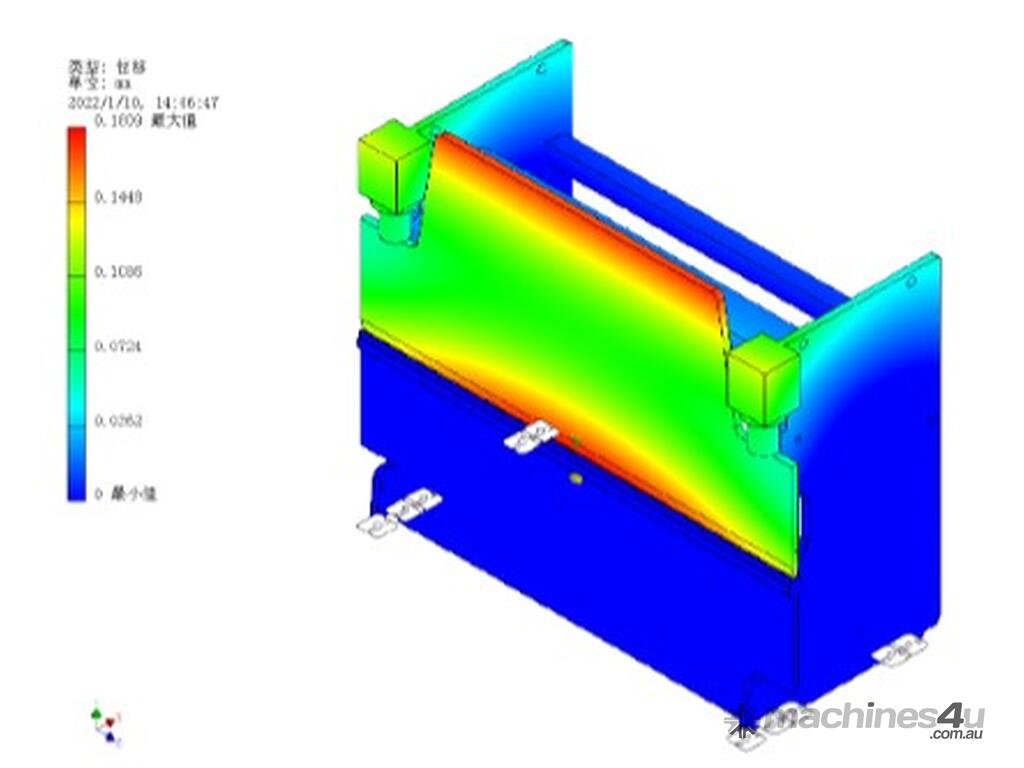

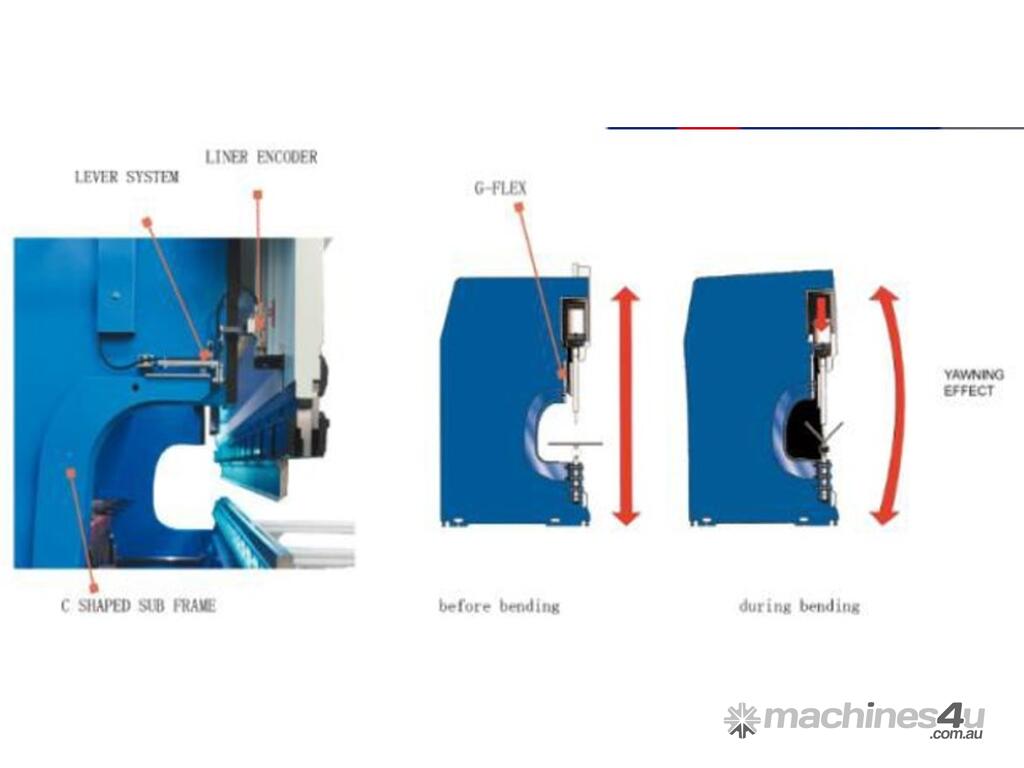

- “REFLEX” frame detection compensation system
- CNC real time automatic crowning system mode. G-CS
for high-precision bending parallelism.
- Safety device and PLC item.
- Heat exchanger and air conditioner.

OPTIONS AVAILABLE
- CNC sheet follower
- Front and rear pushing systems(especially for pole projects
- GFP-6 floor type back gauge system
- G-AMC angle control system

TECHNICAL DATA
Bending Force : 1250 Kn
Bending Length: 3,100 mm
Distance Between Side Frames: 2,600 mm
Throat Depth: 500 mm
Max. Stroke: 300 mm
Daylight: 500 mm
Approaching Speed: 200 mm/s
Working Speed 0-12 mm/s
Return Speed: 194 mm/s

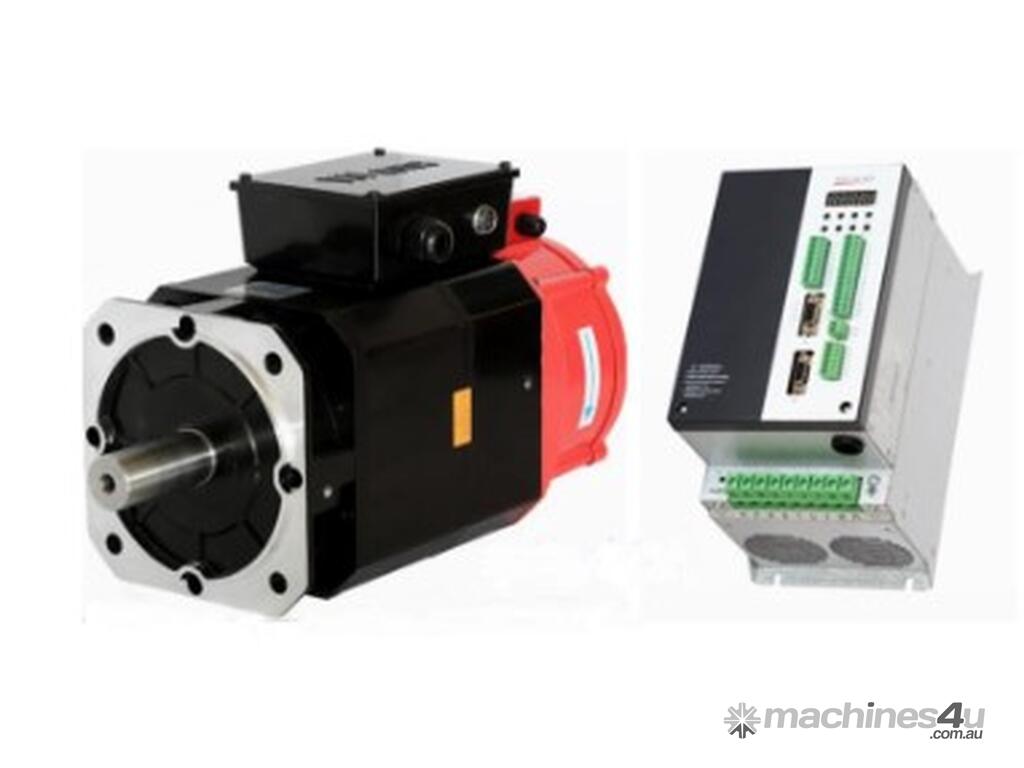

Main Servo Motor Power: 18 Kw
Dimensions: 4,000 mm x 3100 mm x 2,300 mm
Approx. Weight: 11.5 Ton

STANDARD EQUIPMENT

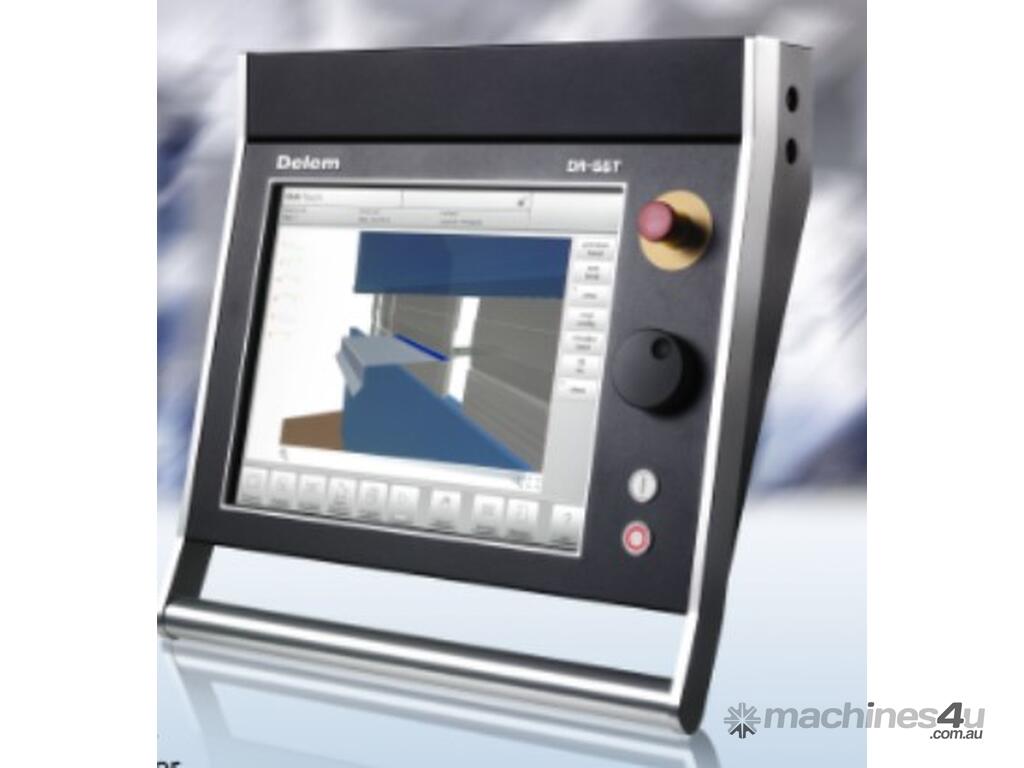

Numerical control DELEM DA66T
Axes Y1-Y2-X-R-Z1-Z2 +V

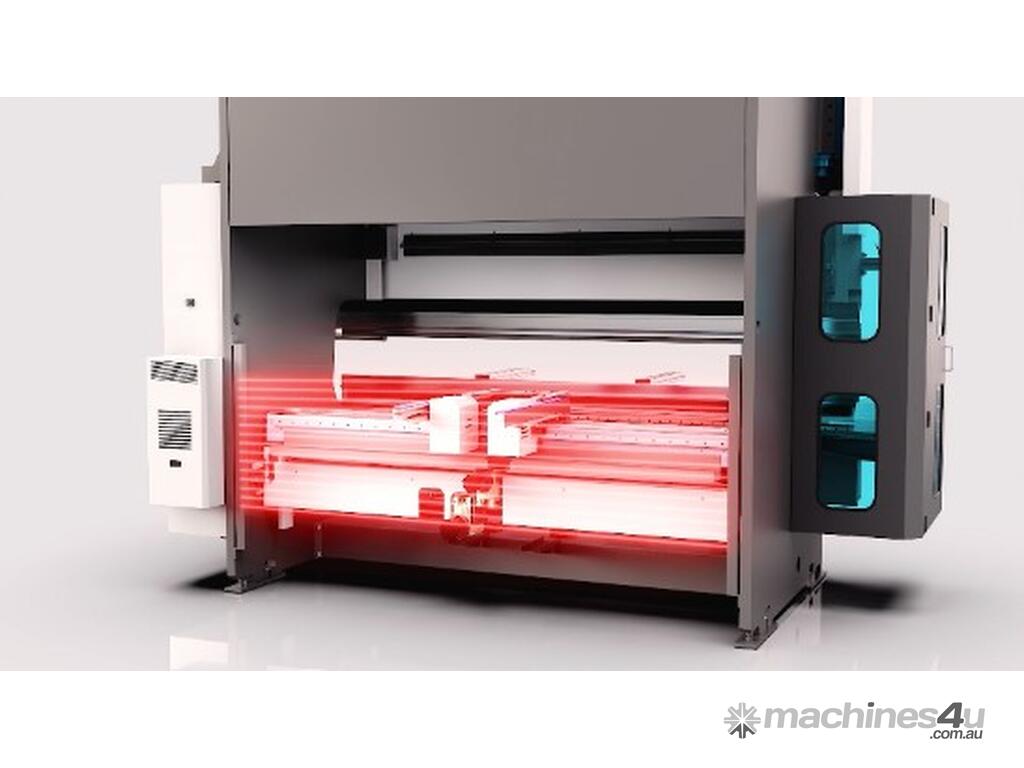

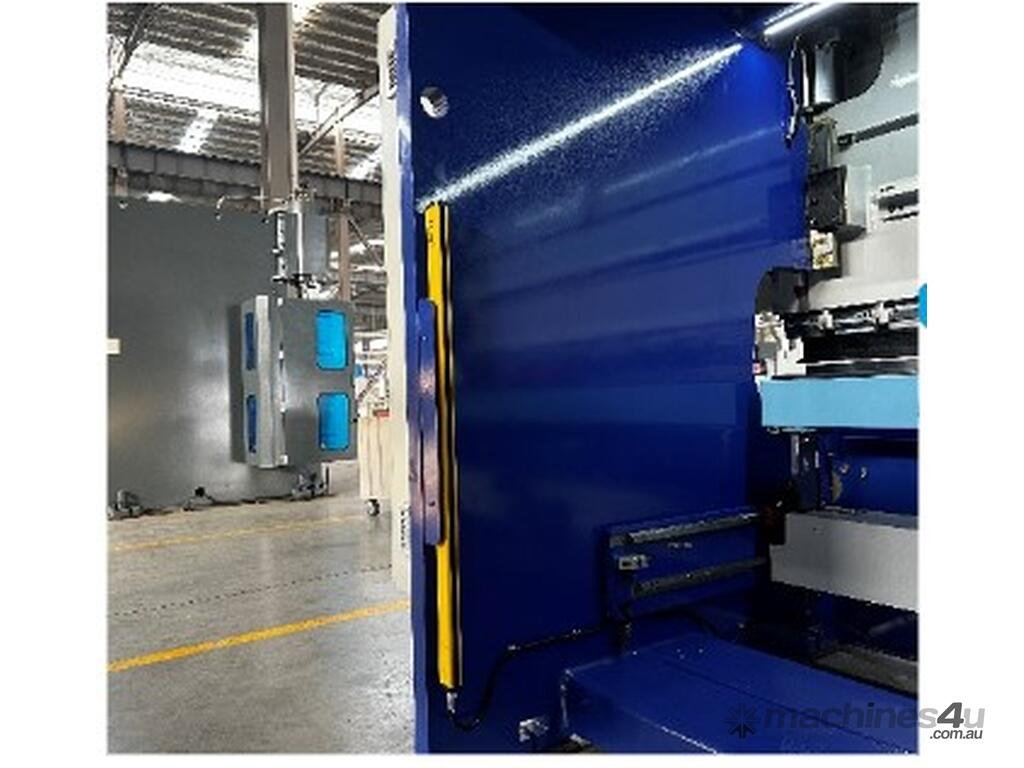

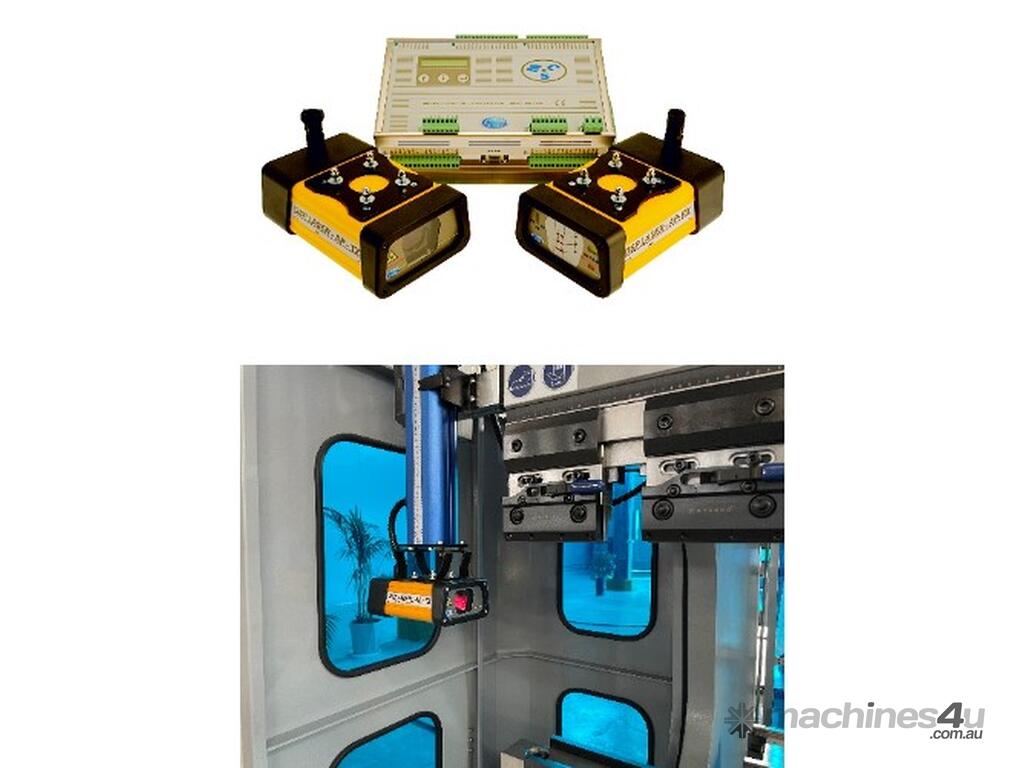

Safety light guard DSP AP+MCS

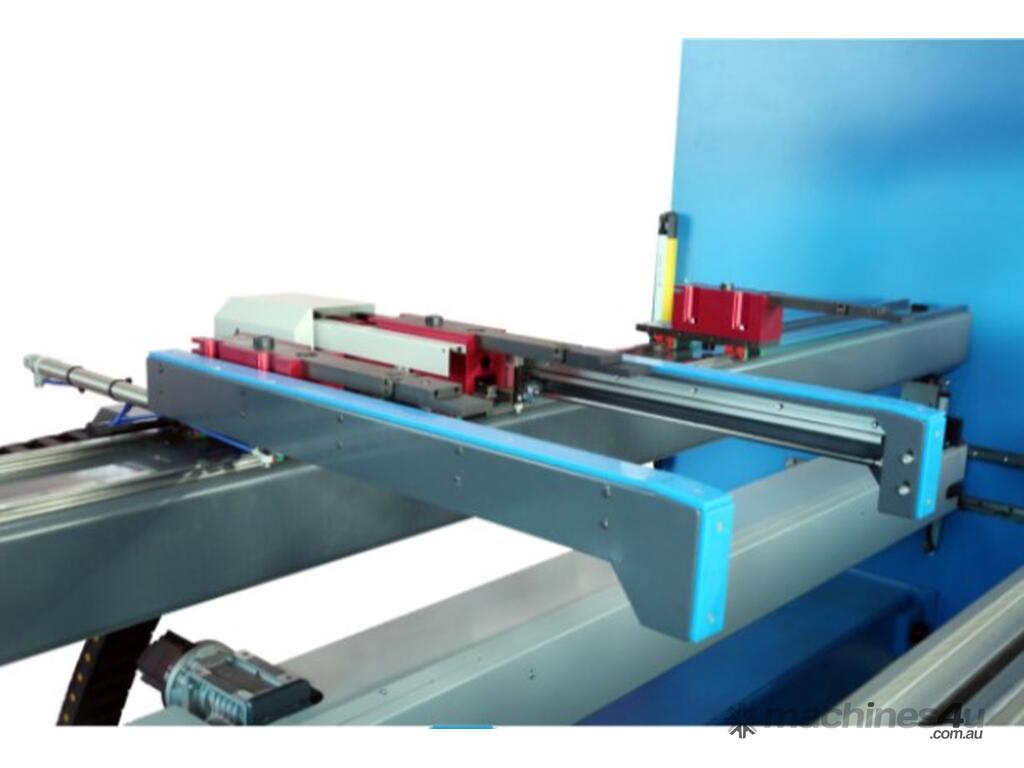

Front Support arms Model SP 2 Pieces

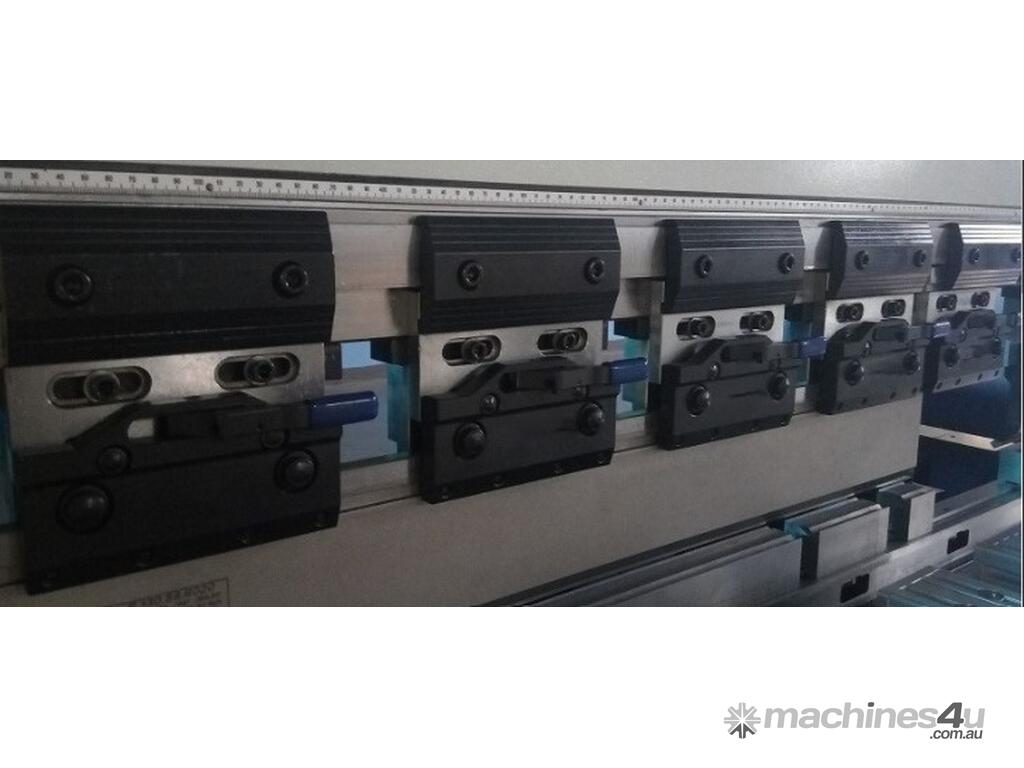

Top tools Clamps Model GS-T.M Manual
Bottom tools Clamps Model GS-B.P Pneumatic

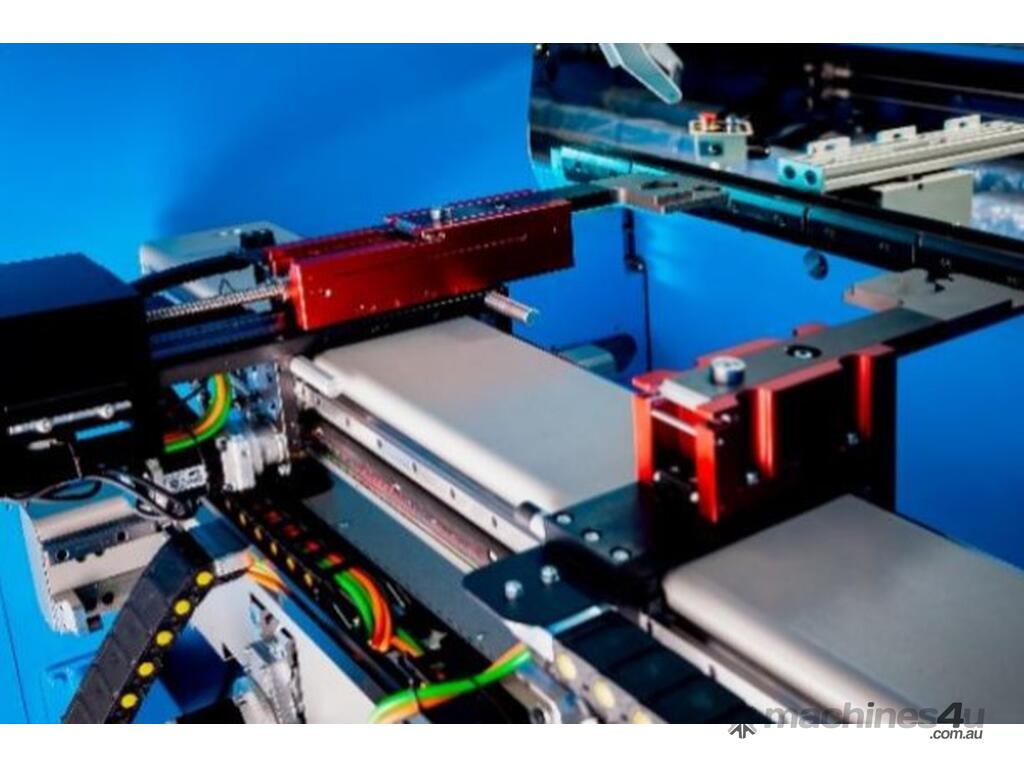

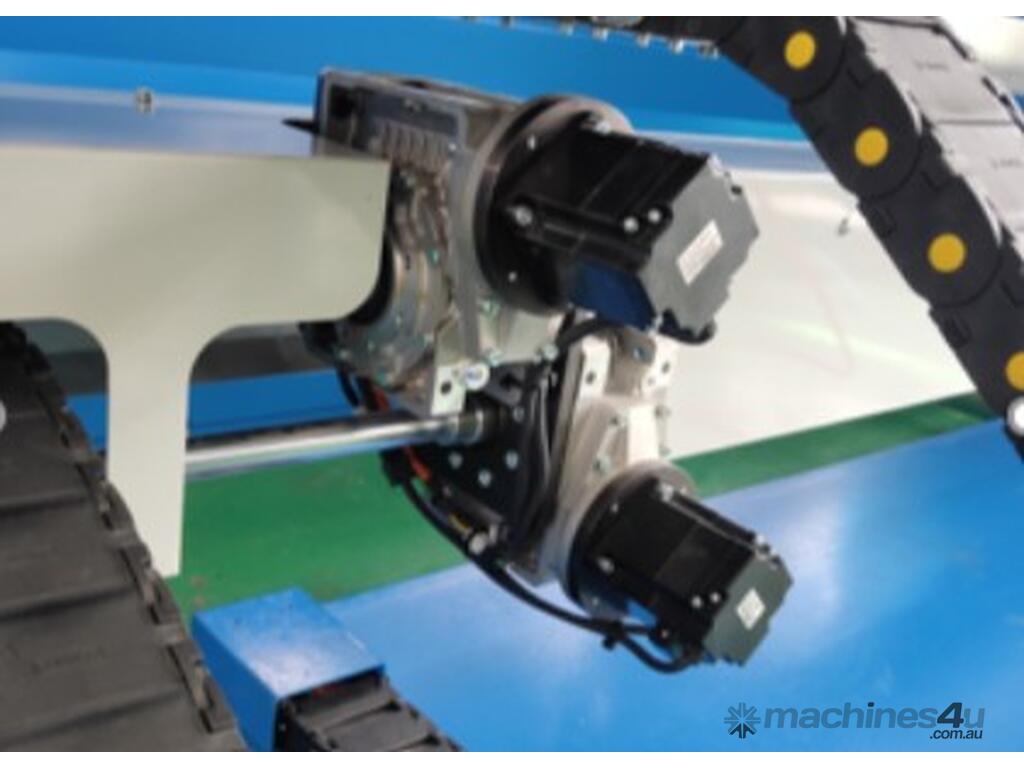

Back gauge system Model GHP-4 with pneumatic support
Back gauge fingers 4 pieces

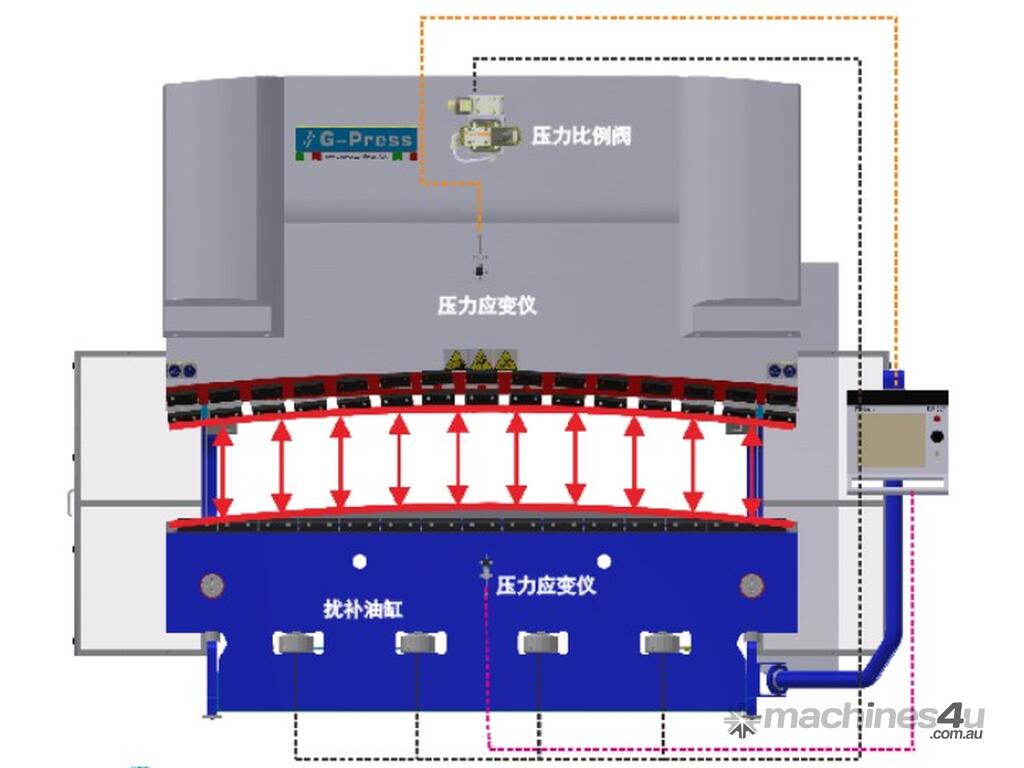

Real time hydraulic compensation system G-CS
Frame deflection compensation system G-Reflex
Heat exchanger Included
Air conditioner Included
One set standard tooling Included
Hydraulic oil Excluded
Maintenance tools Included
User manual Included
