G-Press is a metal fabricating company located in China for 10 years and with manufacturing concept that follows European standards. Its technology comes from the precious cooperation with the historic partner Gasparini Italy.
Annual production capacity is approximately 650 pressbrakes including also robotised bending cells.
PRESS BRAKE GHT185-4000
Description
Bending force - 2,500 KN
Usable bending length - 4,100 mm
Distance between side frames - 3,600 mm
Throat depth - 500 mm
Max. cylinders stroke - 300 mm
Daylight between top beam and bench - 500 mm
Speed
approaching - 175 mm/s
working - 0-10 mm/s
return - 150 mm/s
Servo Motor power - 22 kW
Overall Dimension - 4,970 mm x 3,320 mm x 2,270mm
Approx. Weight - 21 ton
Complete with:

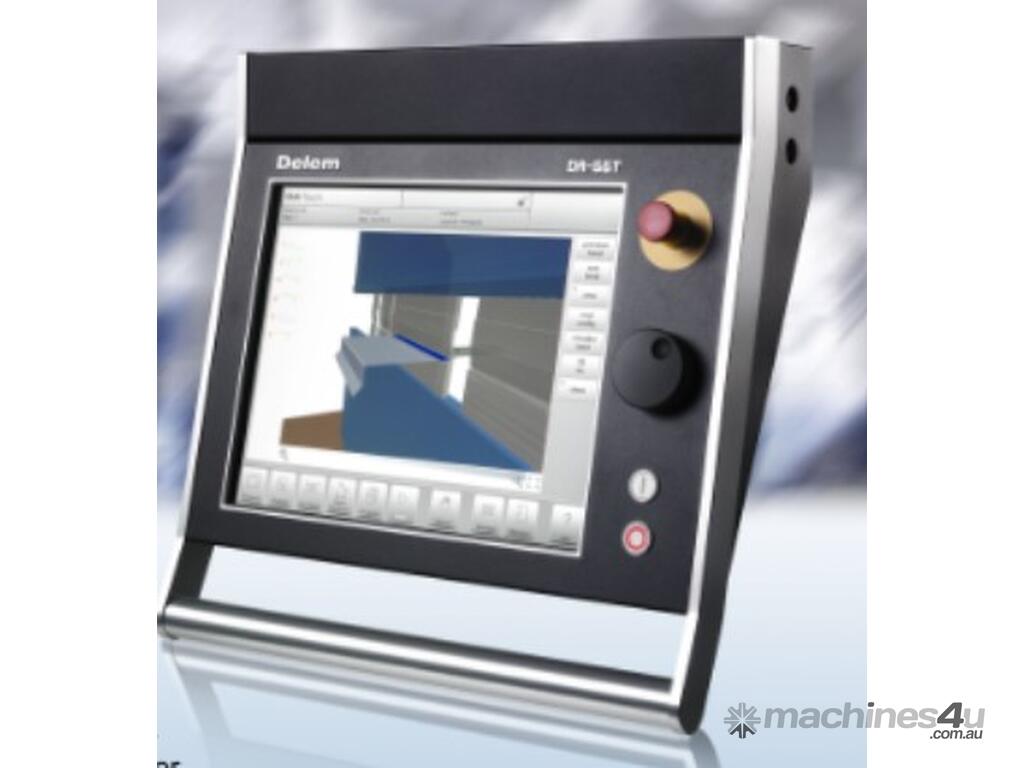

CNC control mod. DELEM DA66T
6+1 axes : Y1-Y2-X-R-Z1-Z2 +V

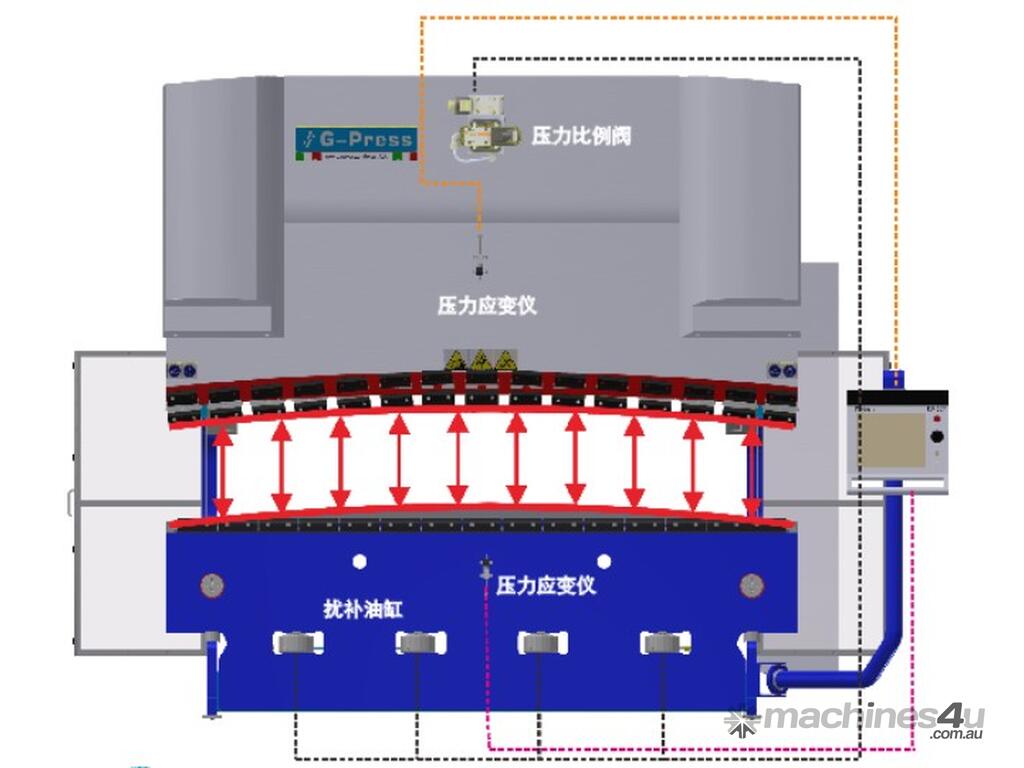

Real time Hydraulic crowing system: G-CS

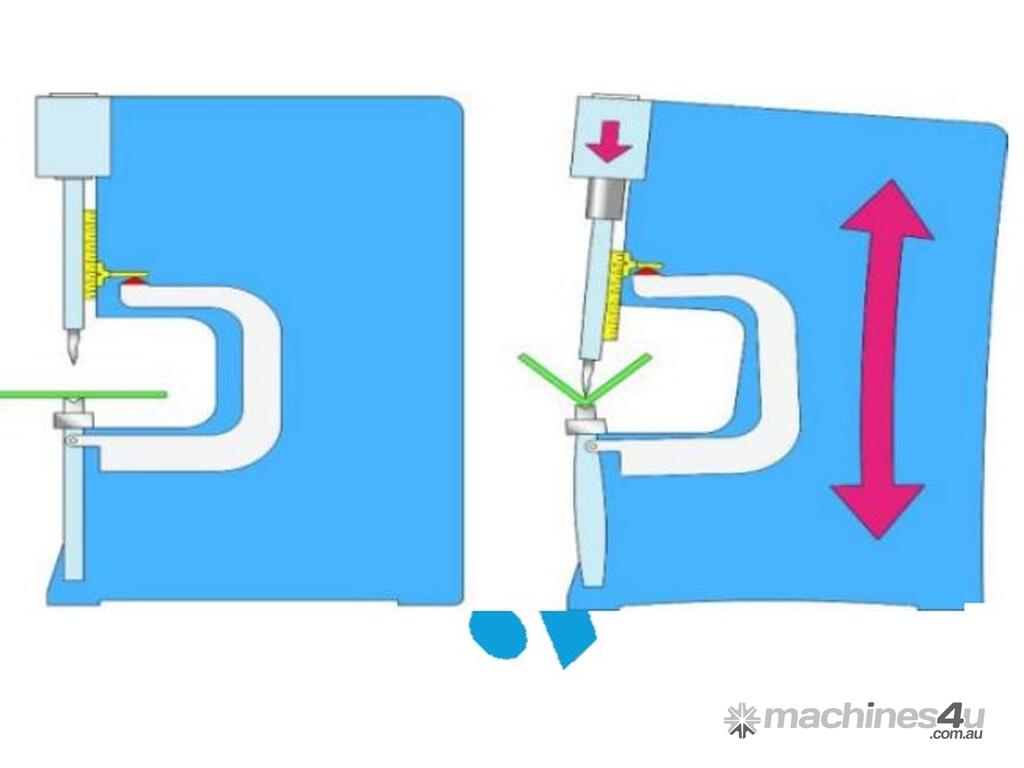

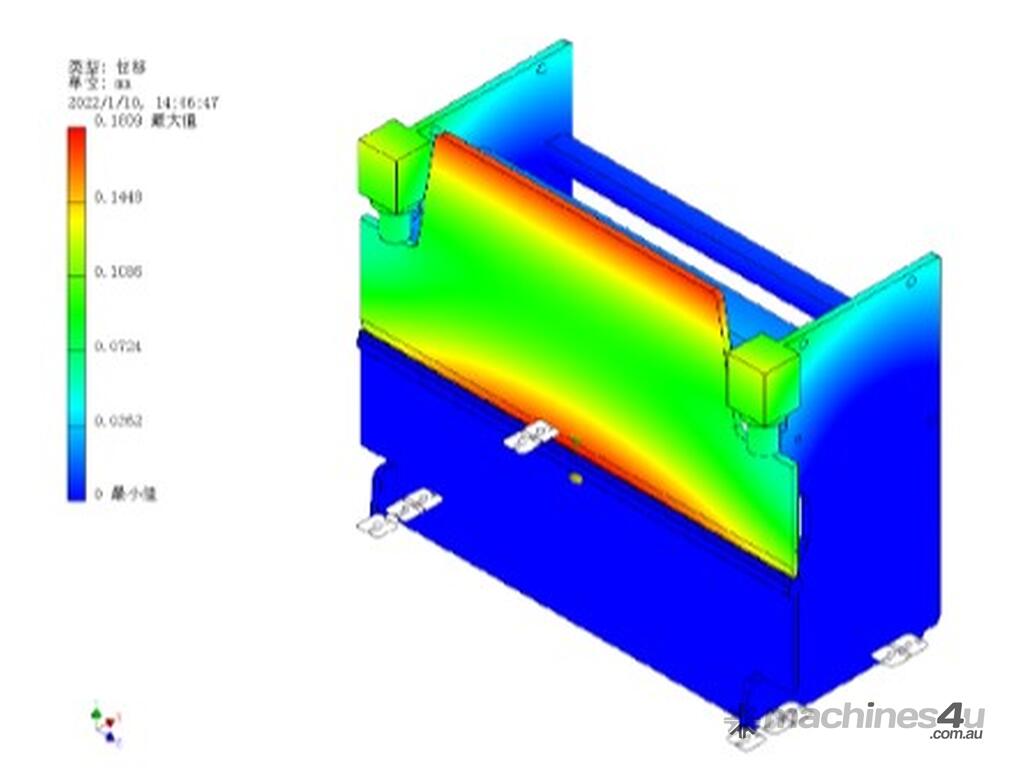

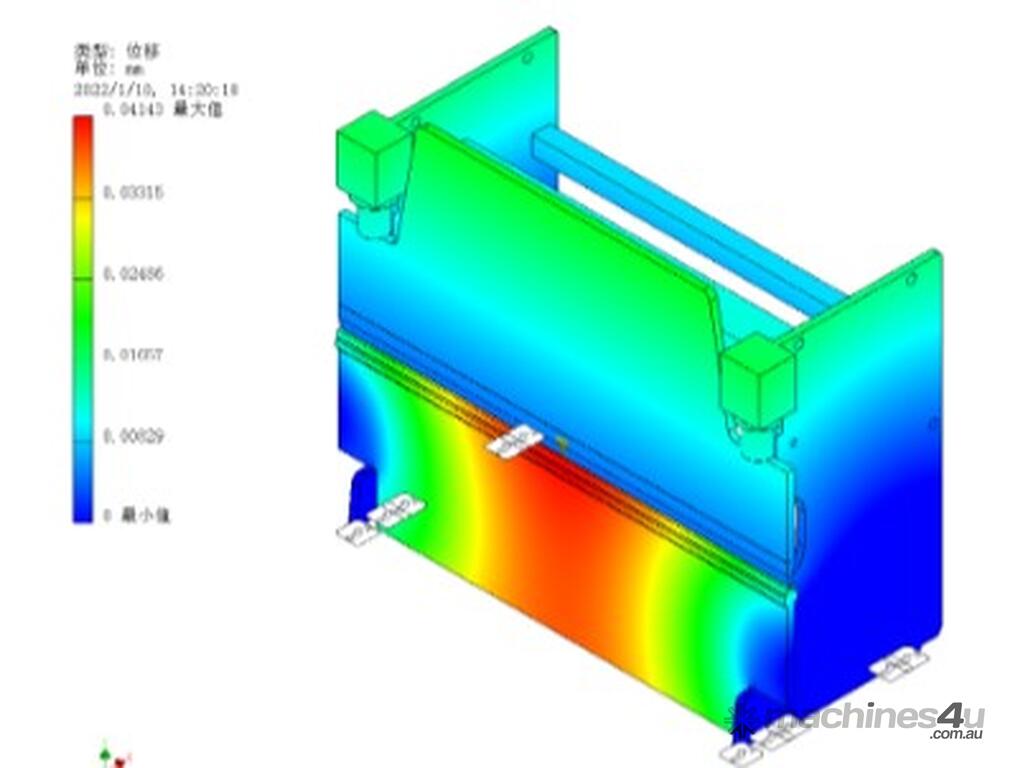

Frame deflection compensation system – G-REFLEX

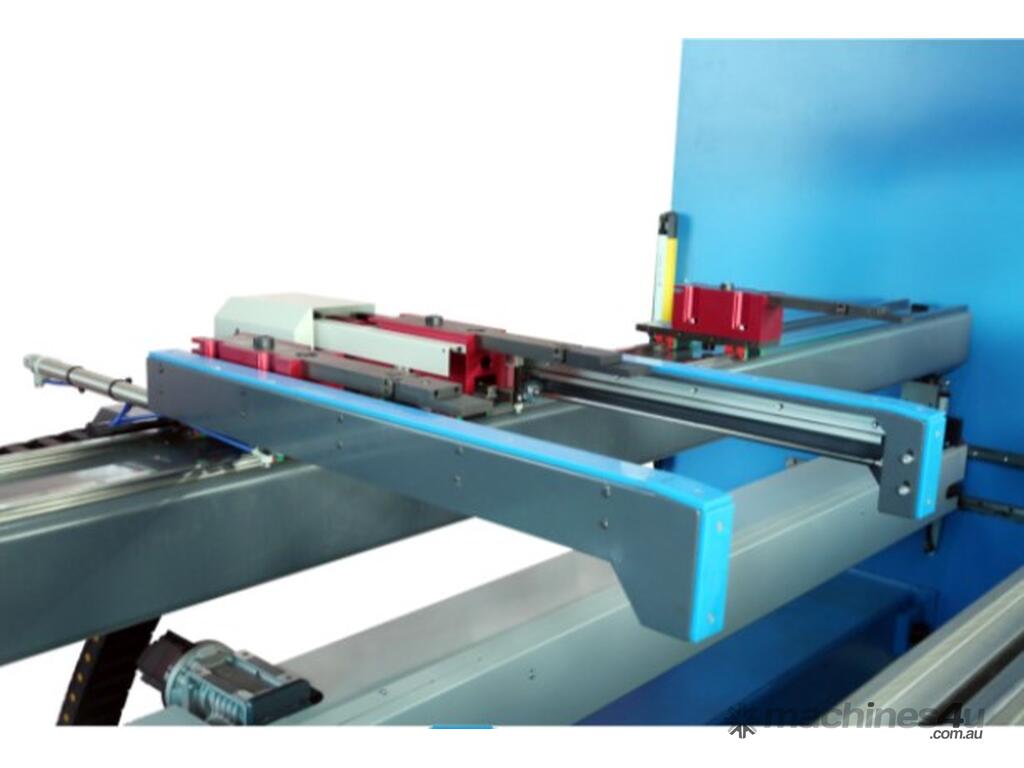

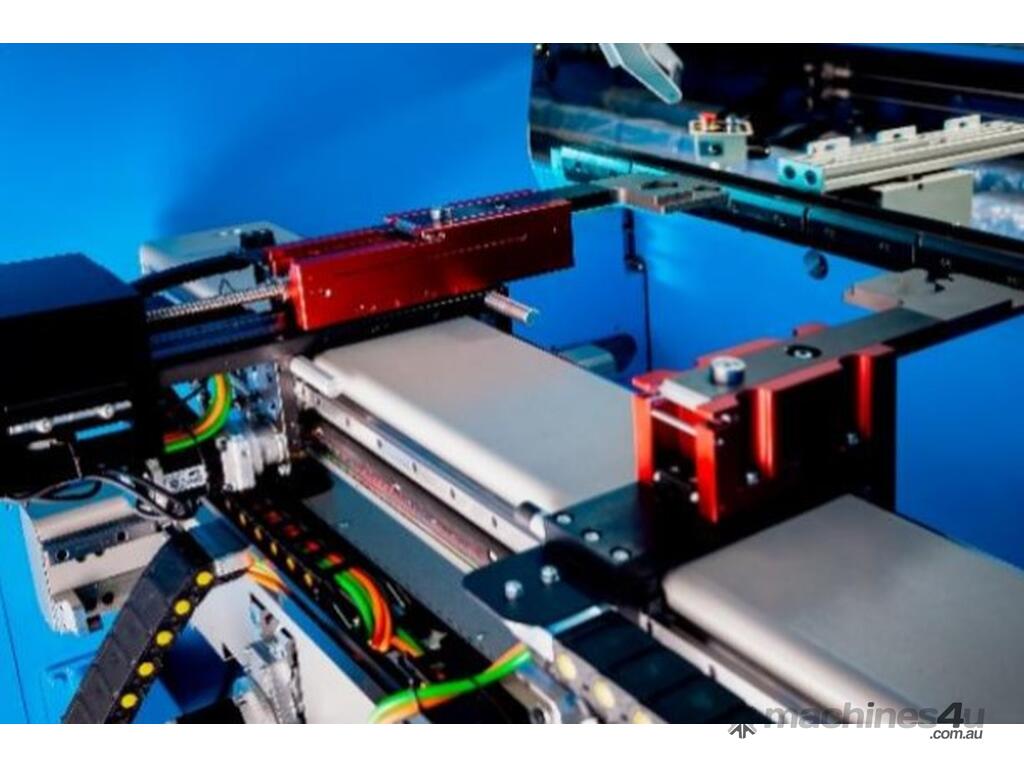

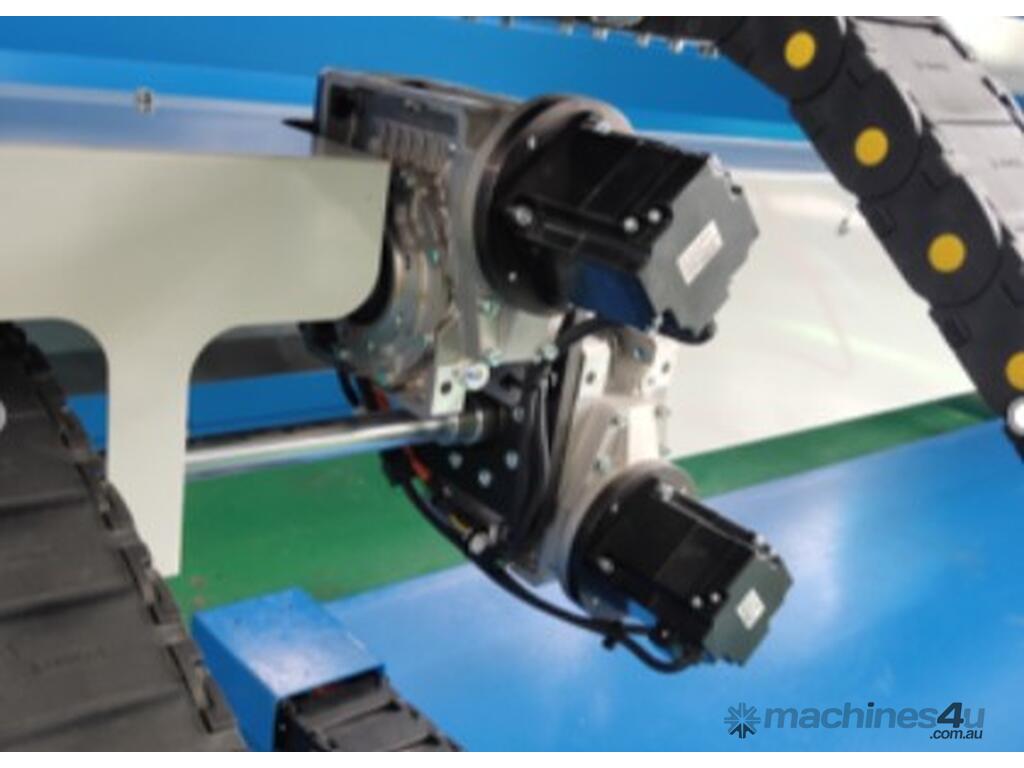

Back gauge system mod. GHP-4 with pneumatic support system

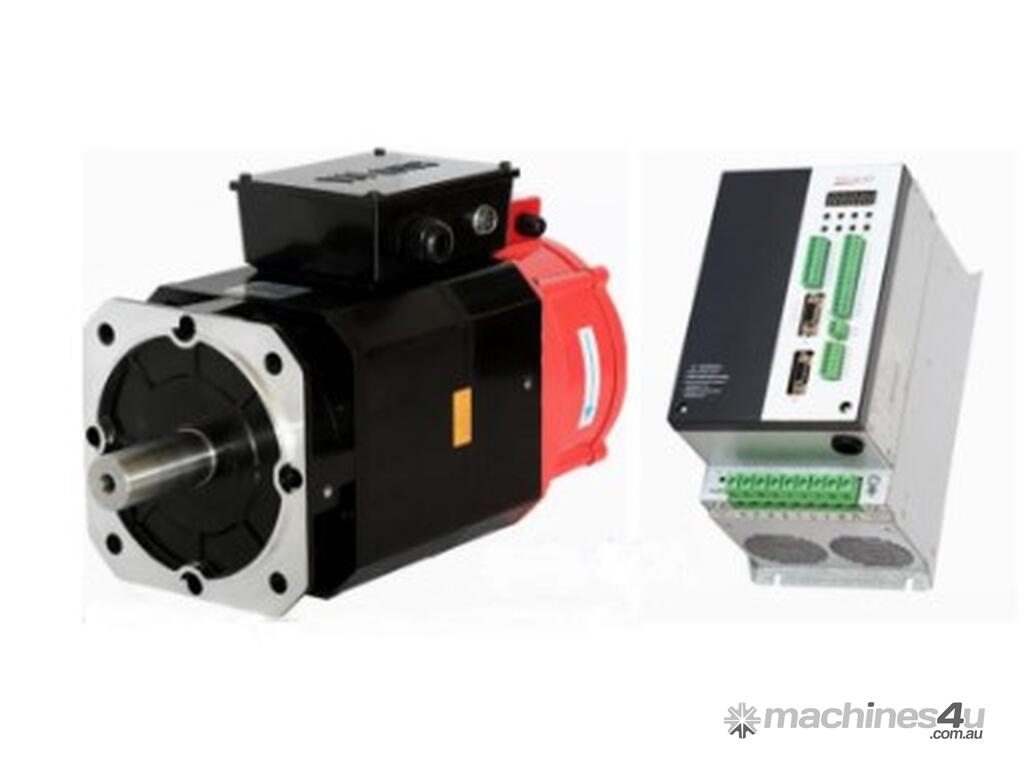

Servo Main motor

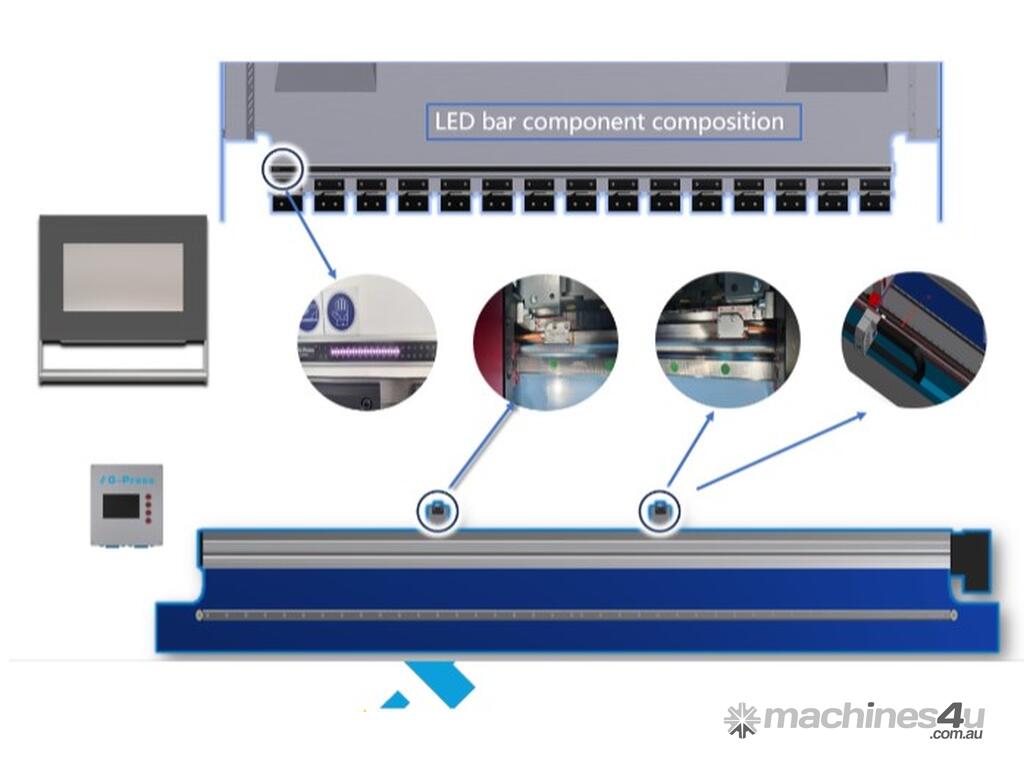

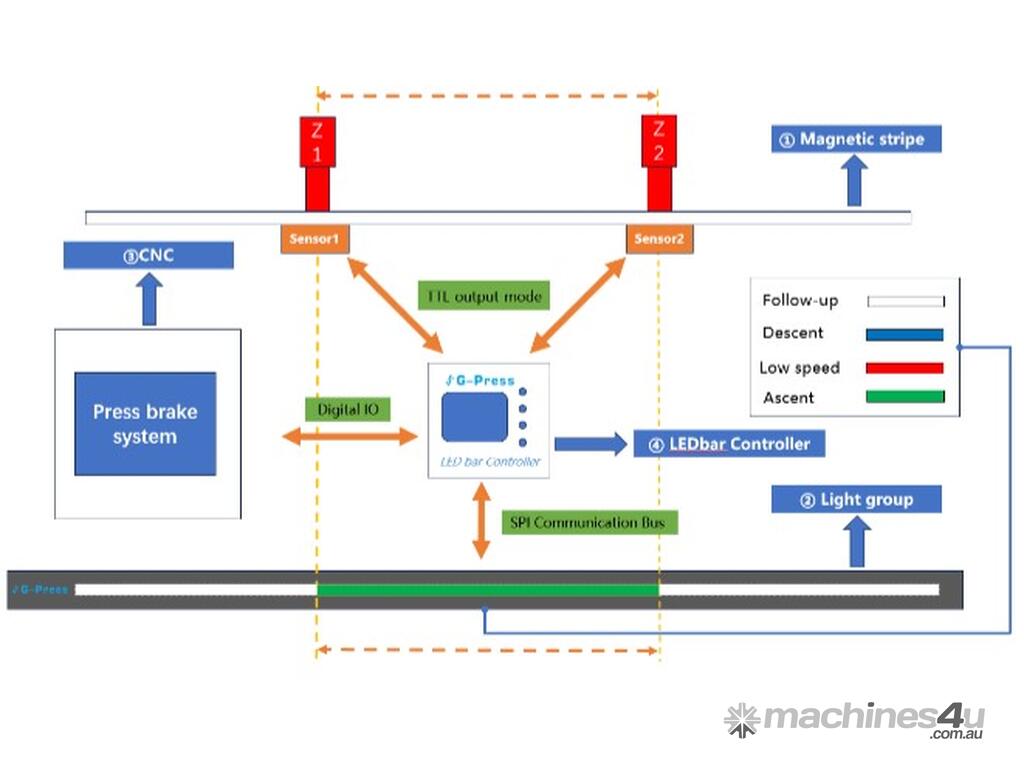

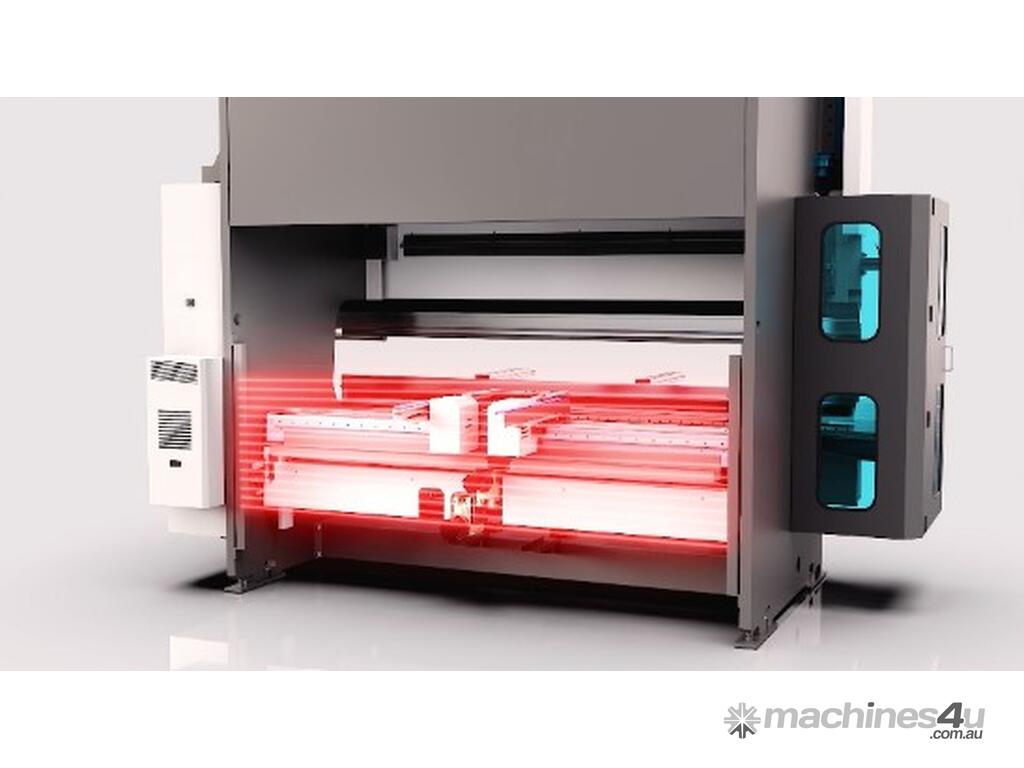

Led Bar to indicate back gauge position

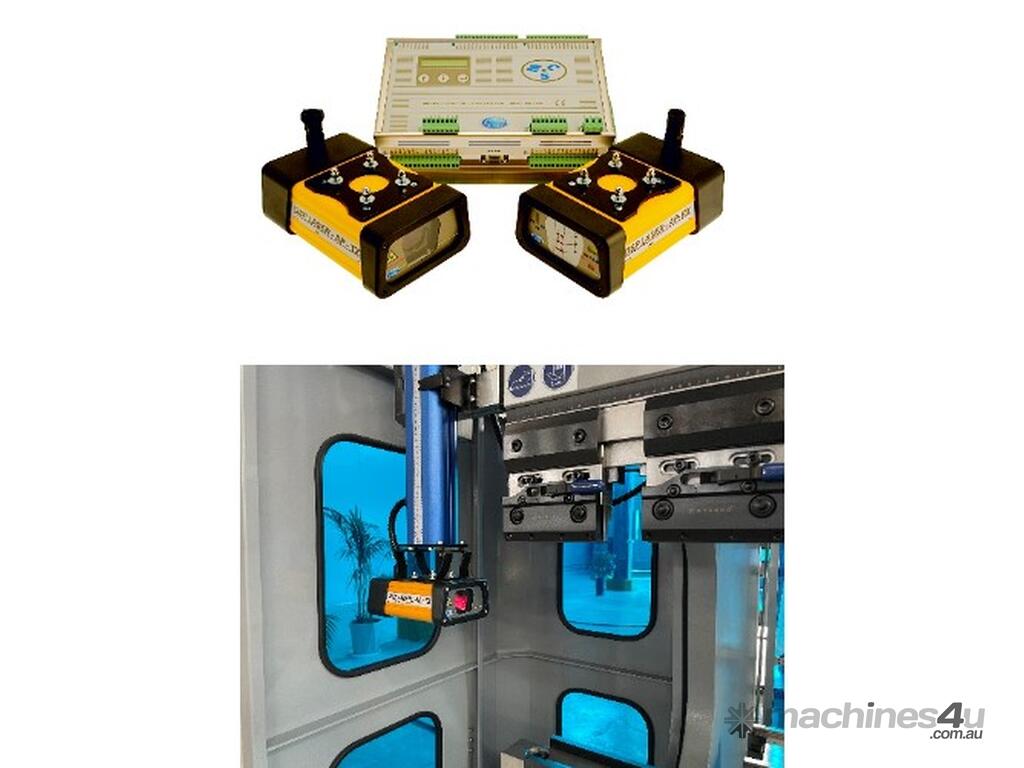

Safety devices: DSP AP+MCS
HAWE Hydraulic System
CE standard
Safety light guard DSP AP+MCS

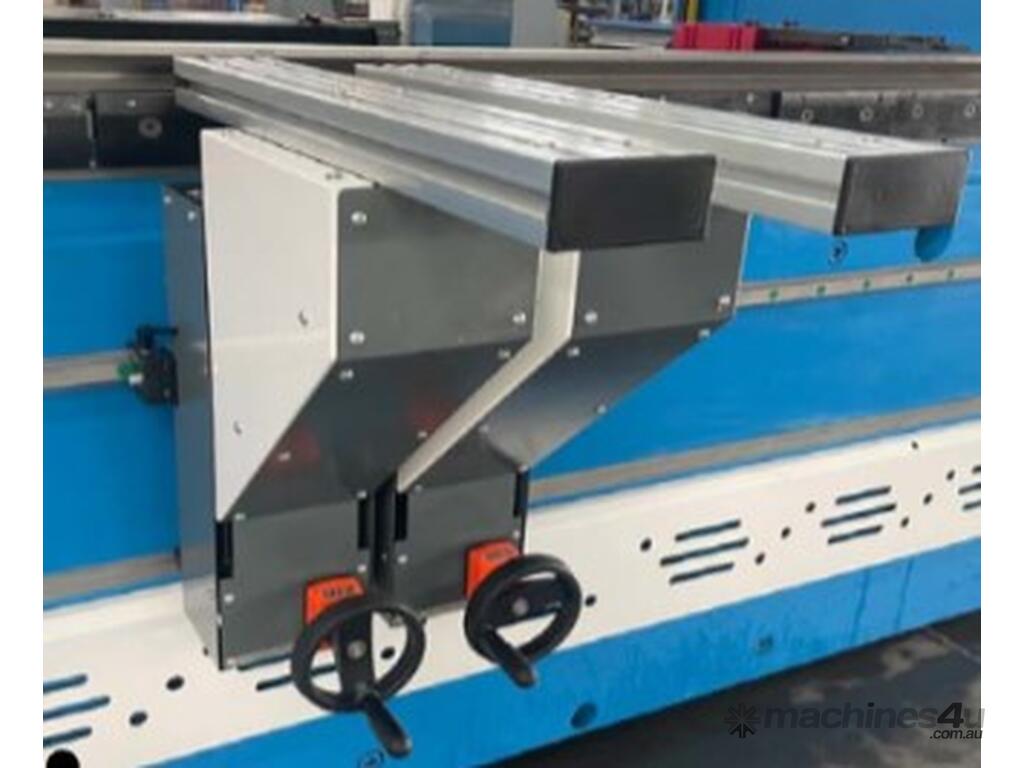

Front Support arms Model SP 2 Pieces

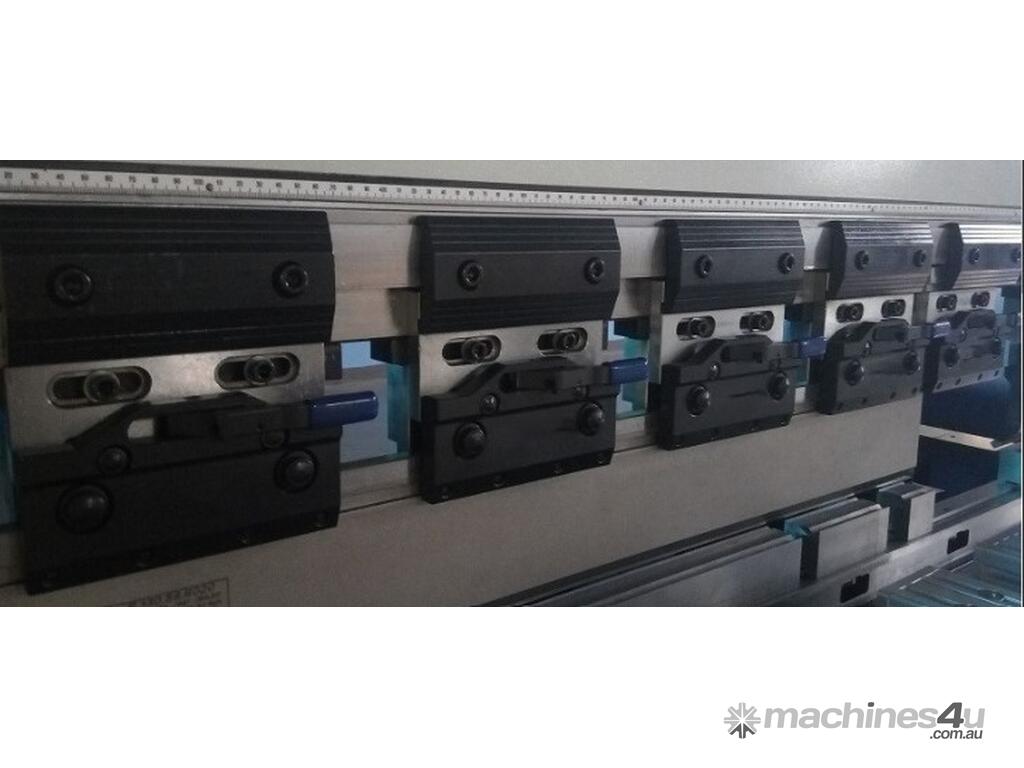

Top tools Clamps Model GS-T.M Manual
Bottom tools Clamps Model GS-B.P Pneumatic
Back gauge fingers 4 pieces

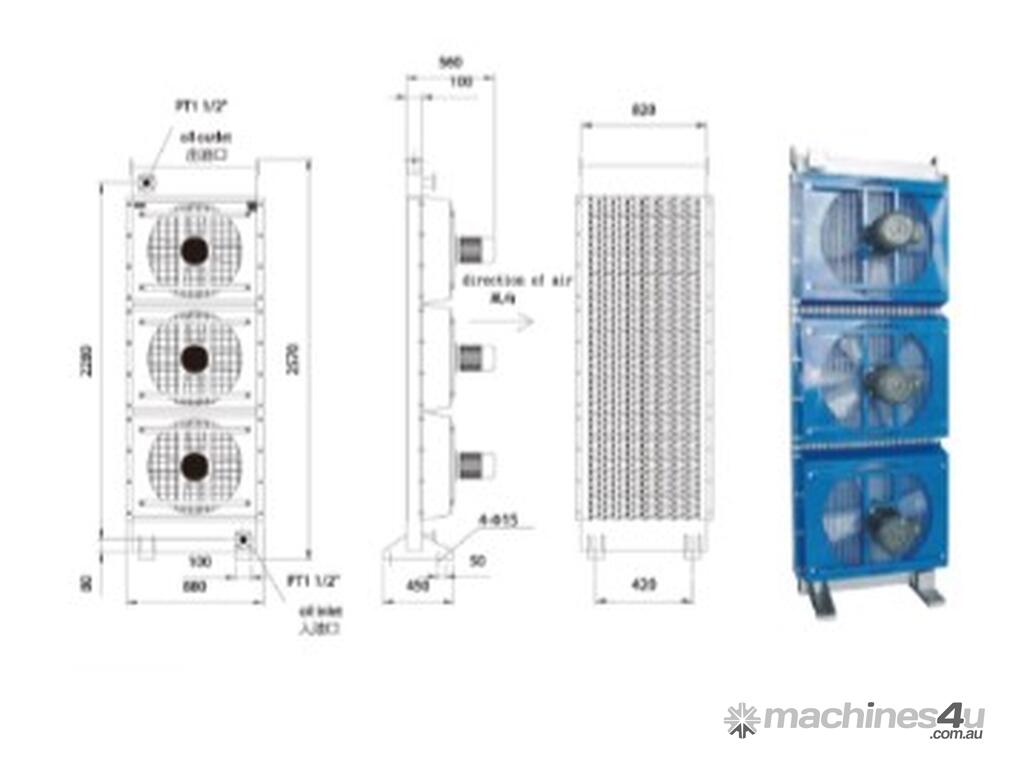

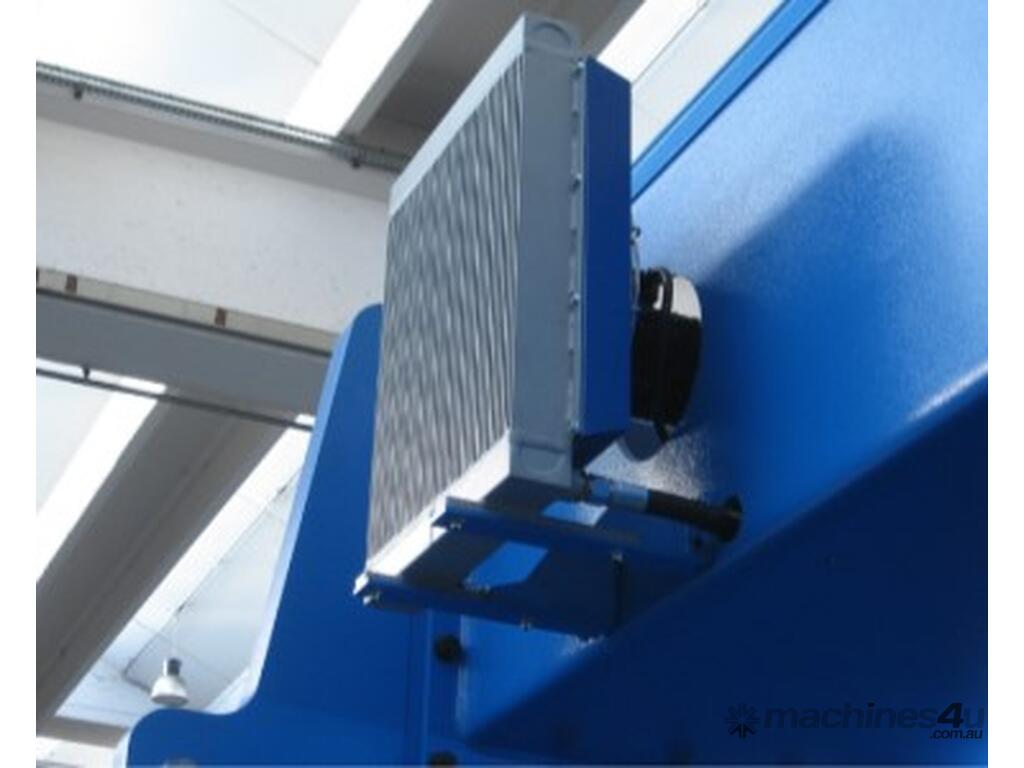

Heat exchanger Included
Air conditioner Included
One set standard tooling Included
Hydraulic oil Excluded
Maintenance tools Included
User manual Included
