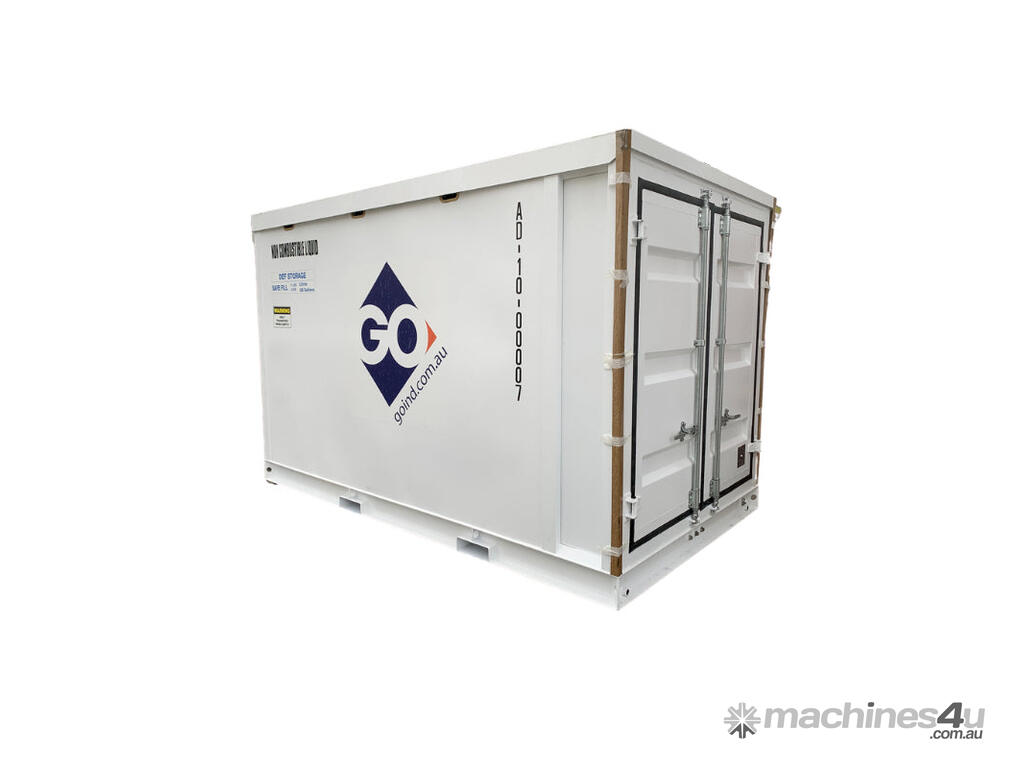

GO AdBlue HD Self Bunded Tanks - 11,000L

AB-11 11,000L Safe Fill 10,000L

The GO ADBLUE HD Self Bunded Tank Range is designed specifically for the storage and dispensing of Adblue. The tank features a 304 Stainless Primary Tank, 304 Stainless Steel Pipework, Insulation between the Primary and Secondary Tank and a Painted, Carbon Steel Secondary Tank. The design is truly 110% Bunded. The secondary tank is designed to hold 110% of the capacity of the primary tank.

The GO ADBLUE HD Self Bunded Tank Range has been designed for use in home base refuelling facilities or retail forecourt applic

Heavy Duty Insulated Self Bunded Tank designed specifically for the storage and dispensing of Adblue
304 Stainless Steel Primary Tank and Pipework
Lockable Bunded Pump Bay Housing
Small footprint perfect for use in your Home Base Refuelling or Retail Forecourt Application


UL LISTED
Approved to UL142 / ULC-S601

PRIMARY TANK DESIGN
full 304 stainless steel primary tank
all wetted parts are 304 stainless steel

INSULATED
the primary tank is fully insulated from the secondary tank and external environment to assist with maintaining the Adblue stored at an optimum temperature.
SELF BUNDED TANK (DOUBLE WALL)
Self Bunded Tank (Double Wall), true 110% bunded design. The primary tank can be removed from the secondary tank, over time, for inspection and maintenance.
the secondary tank will hold 110% of the capacity of the primary tank.
APPROVALS
Designed and approved to UL142, ULC-S601, BS799, AS1940, AS1692, AS1657

INTEGRATED VALVING
GO designed and manufactured 50mm (2") Anti Syphon Valve and Overfill Protection Valve.

OVERFILL ALARM
Battery Operated (12V) Overfill Alarm

FILL INLET
Supplied with 50mm (2") 304 Stainless Steel Fill Line including Sch 10 Pipe, Camlock Male Fitting with Dust Cap, Full Bore Ball Valve for isolation and Non Return Valve.

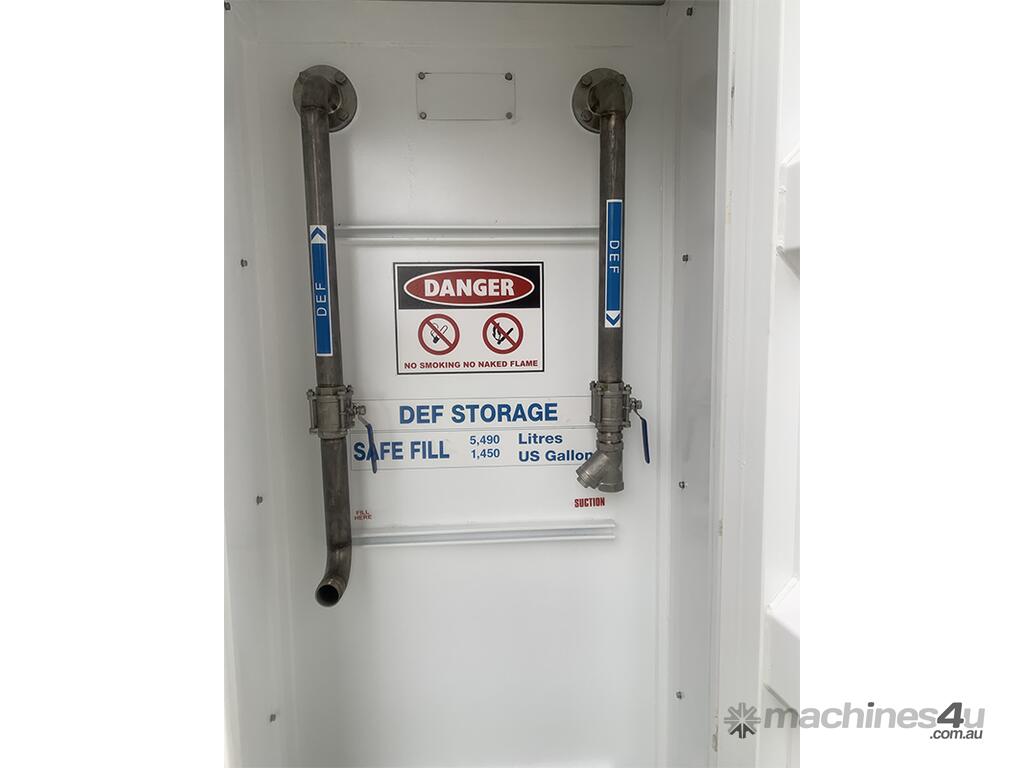

SUCTION OUTLET
supplied with 50mm (2") 304 Stainless Steel Suction Line including Sch 10 Pipe, terminating with a Y Strainer and Full Bore Ball Valve.

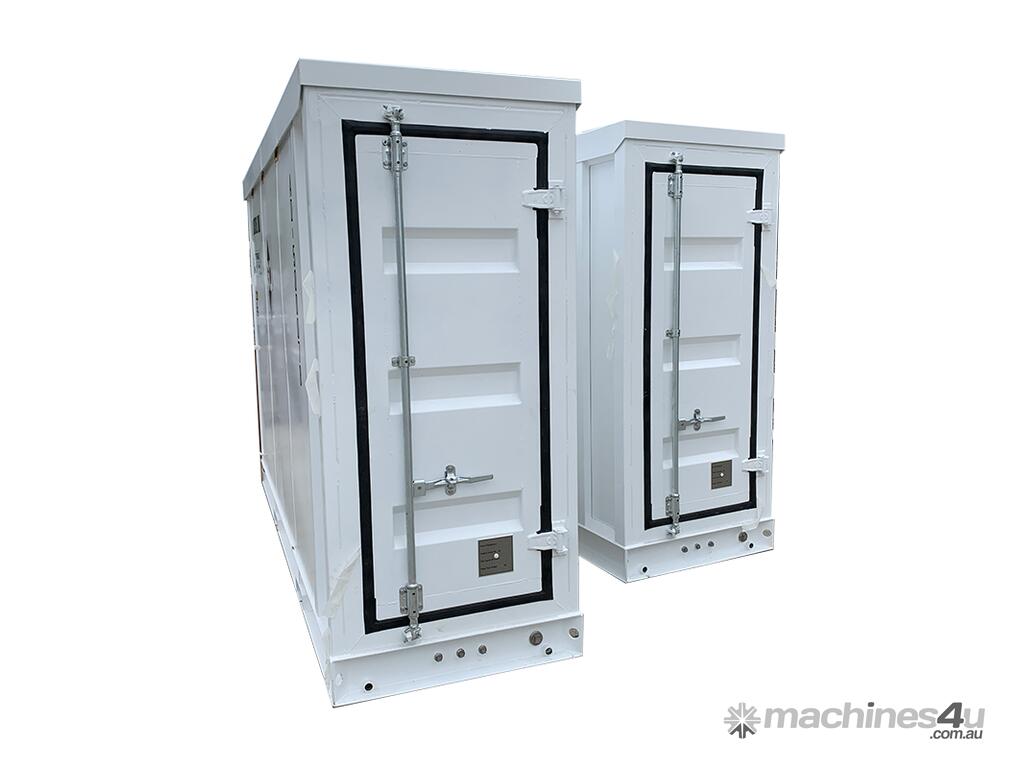

BUNDED PUMP BAY HOUSING
The bunded pump bay housing is supplied with heavy duty lockable doors with weather proof seals.

MANWAY
600mm Square Manway with Integrated Ladder down into the tank module to assist with degassing for future tank maintenance

PAINT SPECIFICATION - SECONDARY TANK
Paint Colour RAL9003 Signal White/ Tanks are sandblasted to SA2 Standard. Hempel Marine Paint 3 Stage process. Primer Hempadur 1530. 2nd Coat Hempadur Hi-Build 4520. Final Coat Hempathane Enamel 55100 Finished dry film thickness no less than 180 um

LIQUIDS COMPATIBILITY
Suitable for the storage and dispensing of adblue, water, diesel, lubricants, gasoline (petrol) or waste oil.


**Please see Brochure for full Specifications
