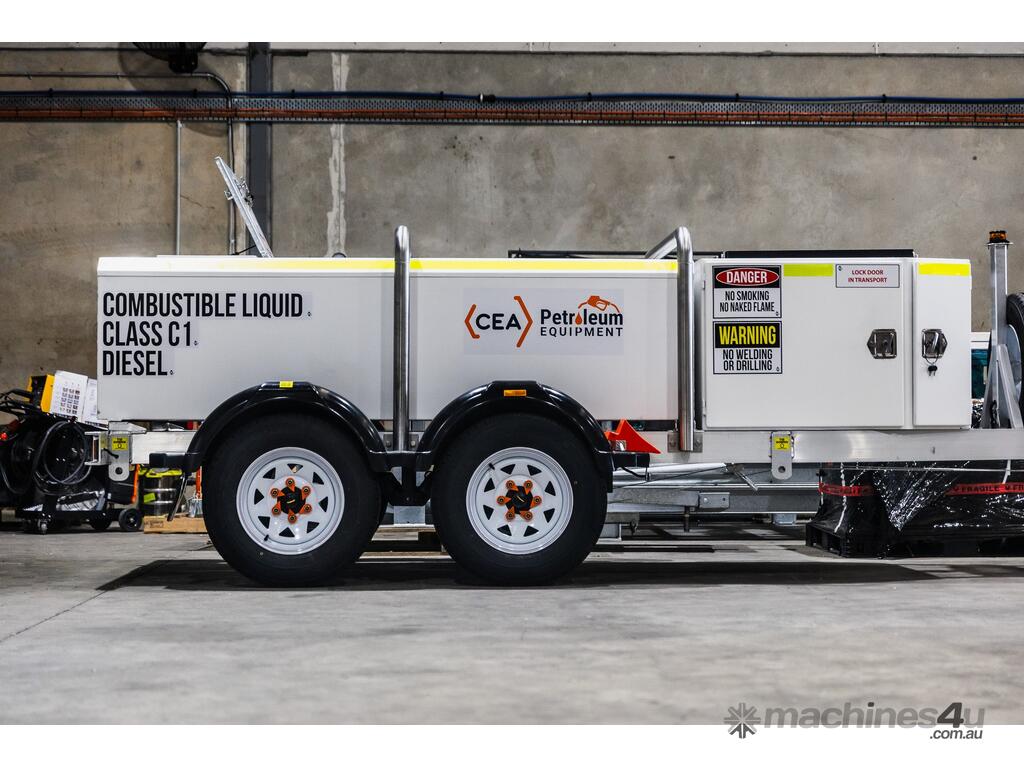

GO Fuel Trailer - Self Bunded Low Profile Dual Axle - 1250L with 12V 80LPM Dispensing Package

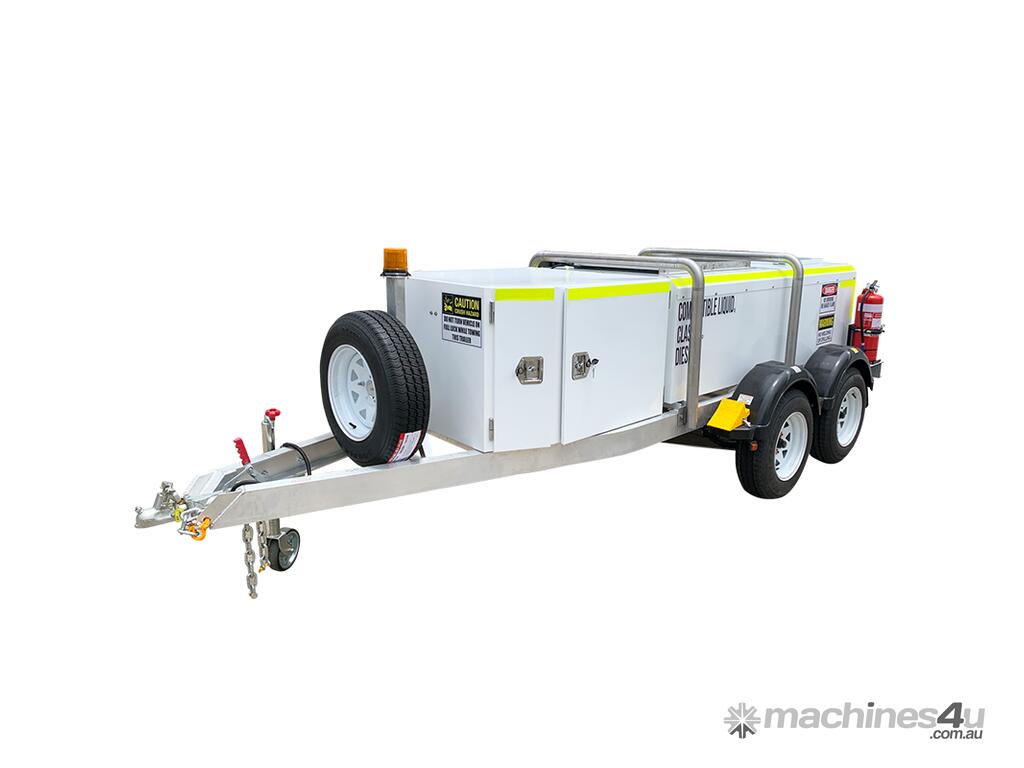

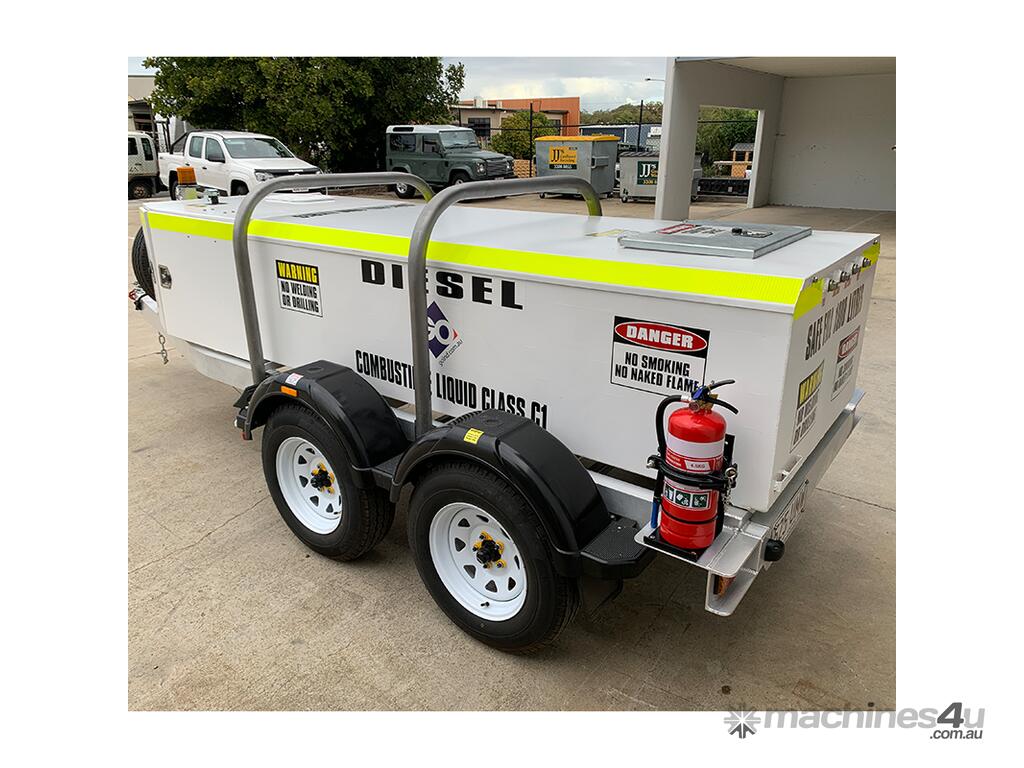

GO Industrial FUEL TRAILER 1250L Self Bunded Low Profile Dual Axle SBHD1250

Overview

Fully designed and manufactured in Australia, for Australia's unique conditions. The GO Industrial 1250L Self Bunded Fuel Trailer is an industry leading solution for the transportation and dispensing of diesel fuel.

The GO Industrial 1250L self bunded fuel trailer is the preferred design used by the major Hire Companies in Australia including Kennards Hire, Coates Hire and Onsite Group, to name a few.

The trailer design stands up to the rough and tumble treatment afforded by customers in the Construction, Civil Contracting, Contract Mining, Mining, Oil and Gas, Drilling and Exploration industries.


Specifications

- Self Bunded - True self bunded, tank in tank design.
- Dimensions - 4382mm L x 1810mm W x 1150mm H
- GTM - 2000 KG | ATM - 2150 KG | EST TARE 950 KG |
- Fully Approved - designed and approved to meet the requirements of AS1692, AS1940 and Australian Dangerous Goods Transport Regulations.
- Heavy Duty - designed for on and off road application - beware of cheaper imitations !!
- Removable Inner Tank - The primary tank module can be removed for maintenance
- Separate Tank and Trailer Chassis
- Baffled - our self bunded tank module is fully baffled ensuing stability when towing loaded.

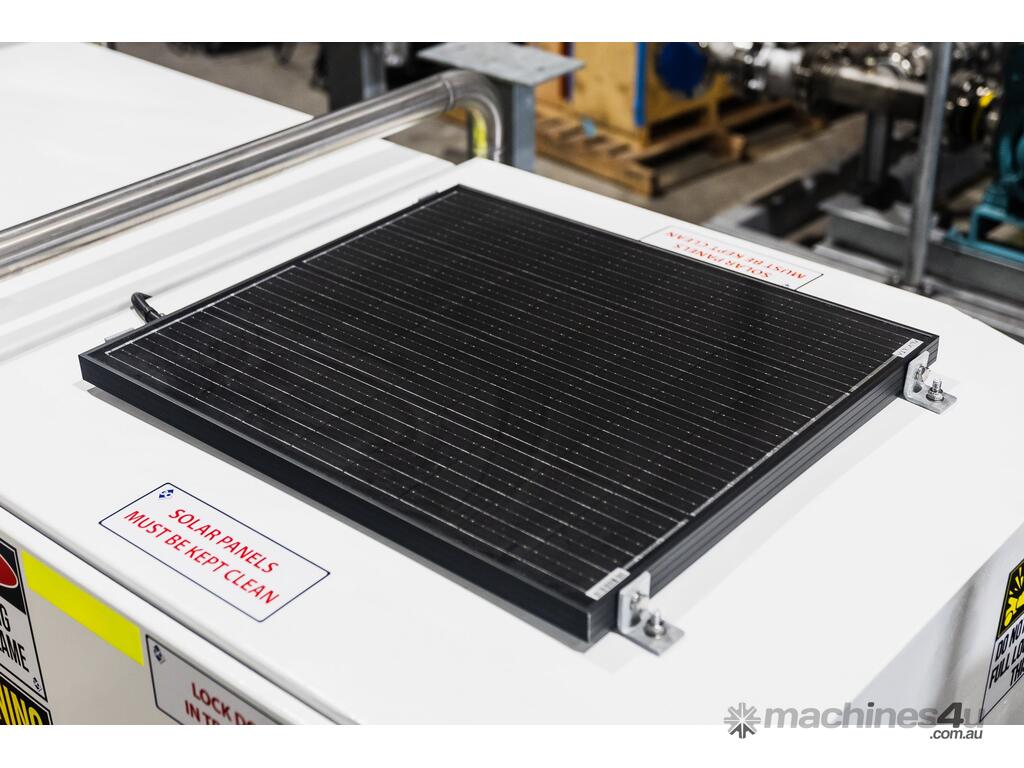

- Roof Mounting Options - The trailer roof allows for mounting of Spill Kit or Solar Panels

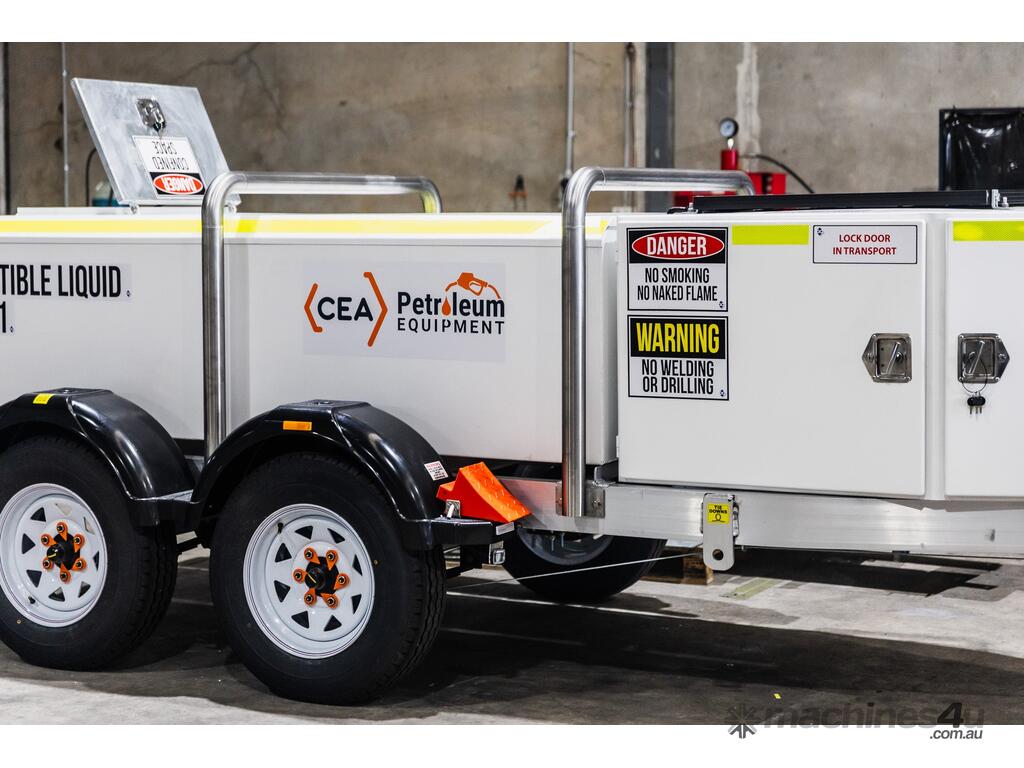

- Roll Bars - Supplied fitted with Heavy Duty Stainless Steel Roll Bars
- Running Gear - 195/15 Light Truck Tyres | 15" White Sunraysia Style Rims | 5 Stud Pattern | Spare Tyre with Spare Tyre mounting assembly.
- Fully Lockable - all aspects of the trailer can be locked, discouraging access and ensuing theft of fuel from the trailer
- Contents Management - Calibrated aluminium dipstick with optional mechanical dial type level indicator

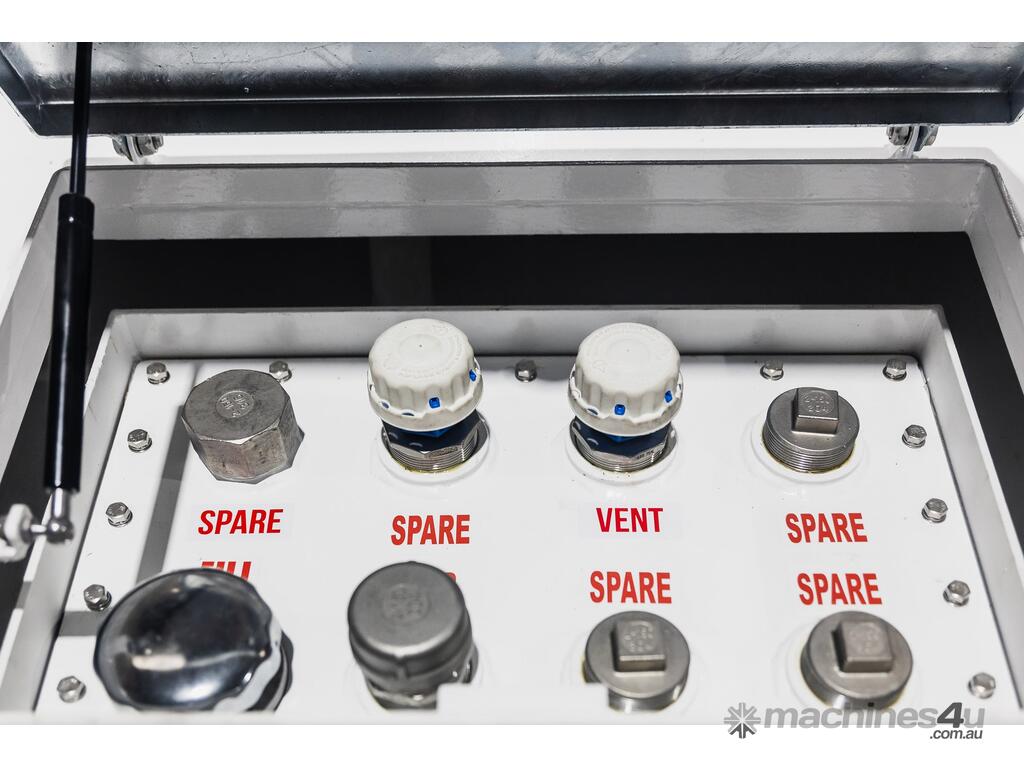

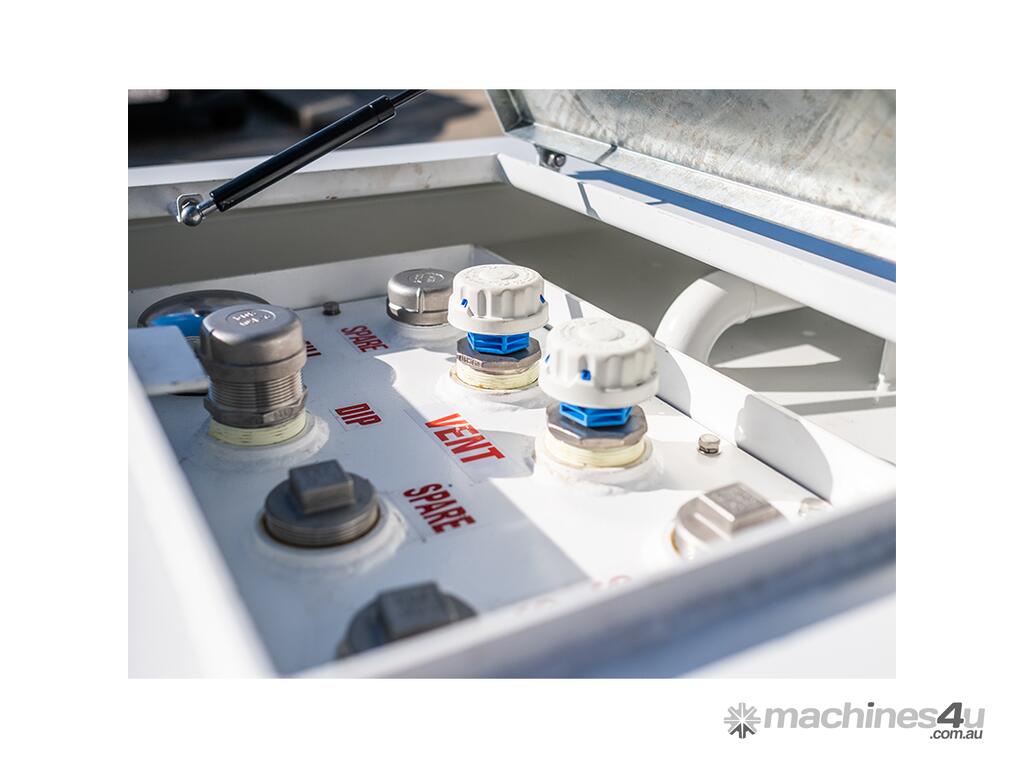

- Spare Ports - Numerous spare ports for connection of support equipment,
- Fill Tube - Anti static fill tube
- Bunded Fill Point - Fully bunded fill point to catch any drips and drops during refilling operations
- Removable Hatch - Removable hatch for access to the inside of the primary tank

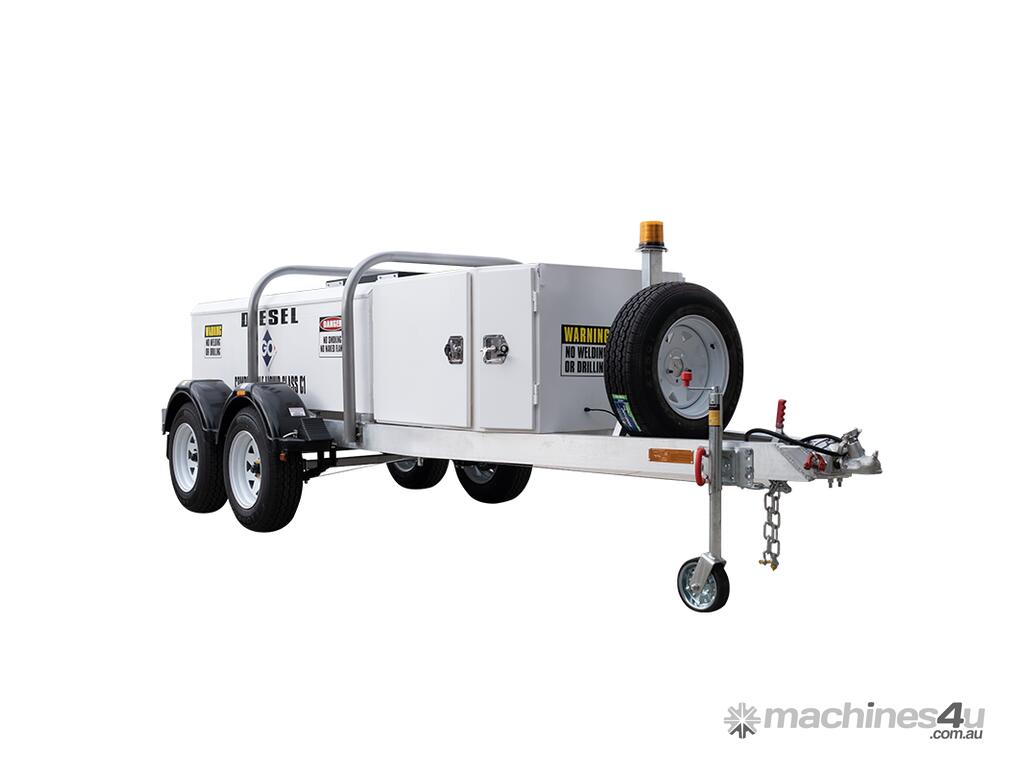

- Flashing Light - 12V Amber Flashing Light with extension pole to warm passing vehicle traffic of refuelling operations
- Easy to Tow - Low profile, aerodynamic style provides a low centre of gravity.
- Under 2 Tonne - Gross weight is less than 2 tonne
- Mechanical Override Braking - no need for any in vehicle braking controller / electrical braking system. The GO Industrial 1250L Self Bunded Fuel Trailer can be towed by any suitably rated vehicle. 9" Drum Mechanical Override Brakes.

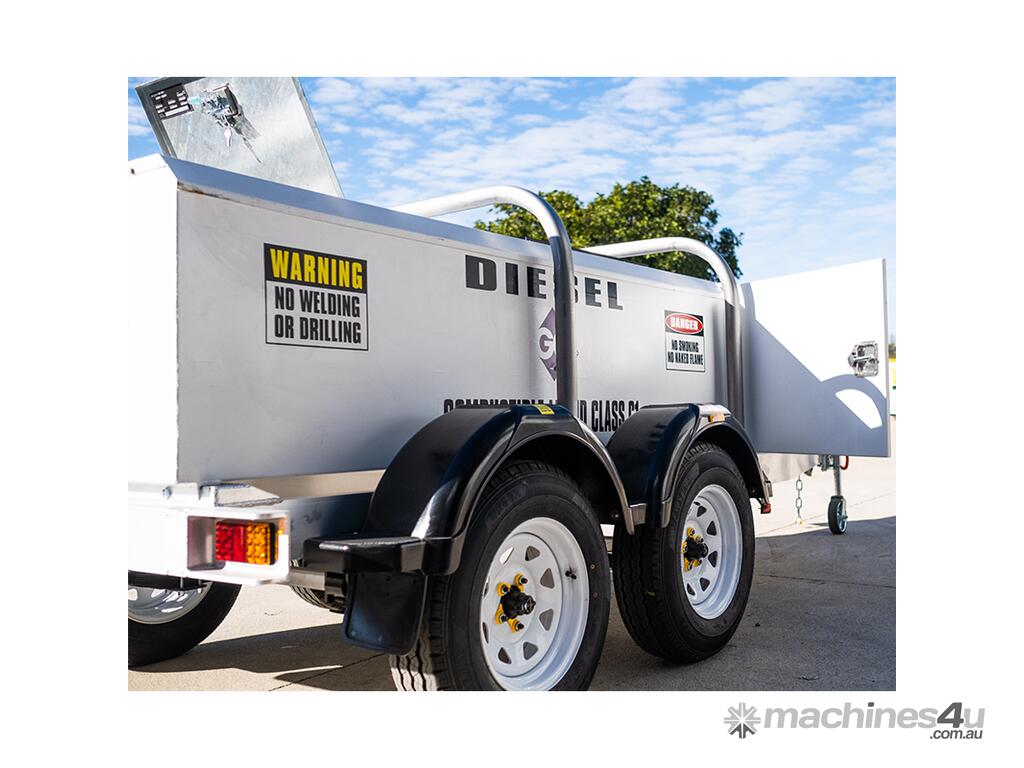

- Chassis - Lightweight yet strong aluminium, dual axle chassis with 7 Leaf rocker Roller suspension system
- Guards - Black Moulded Plastic
- Axles - 2 x 50mm Square Axles
- Lighting - LED Multi-Volt (12-24V ADR Approved) Trailer Lighting

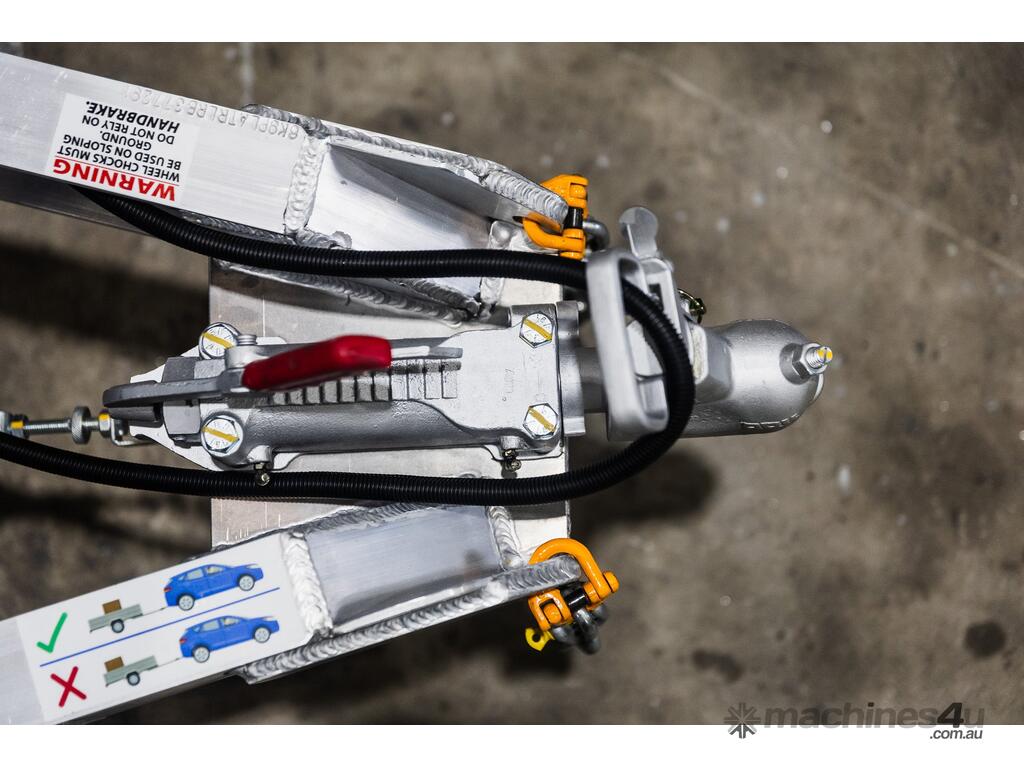

- Trailer Hitch - Override 3500 KG with Brake Plate

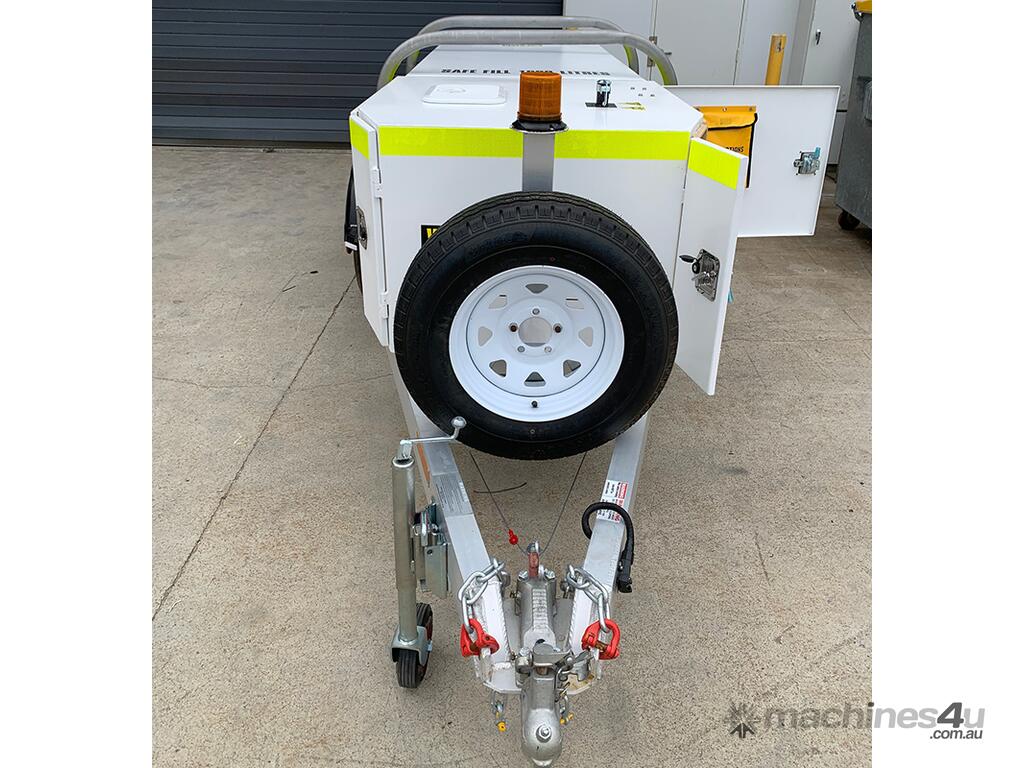

- Jockey Wheel - Heavy Duty Swing-away Jockey Wheel

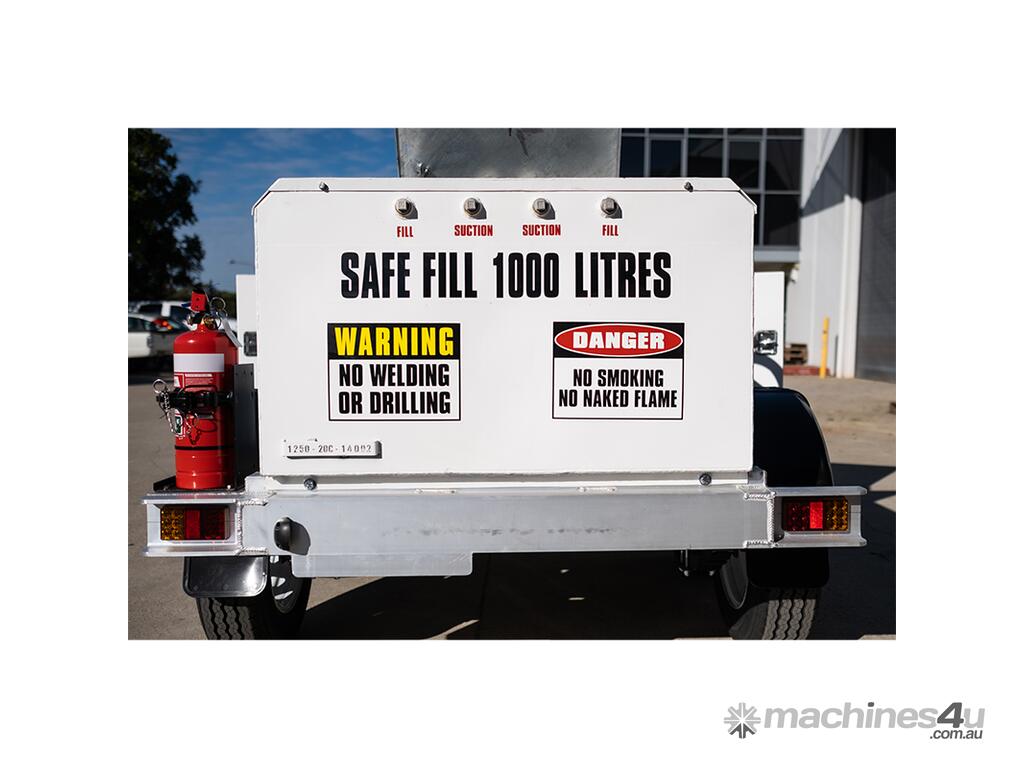

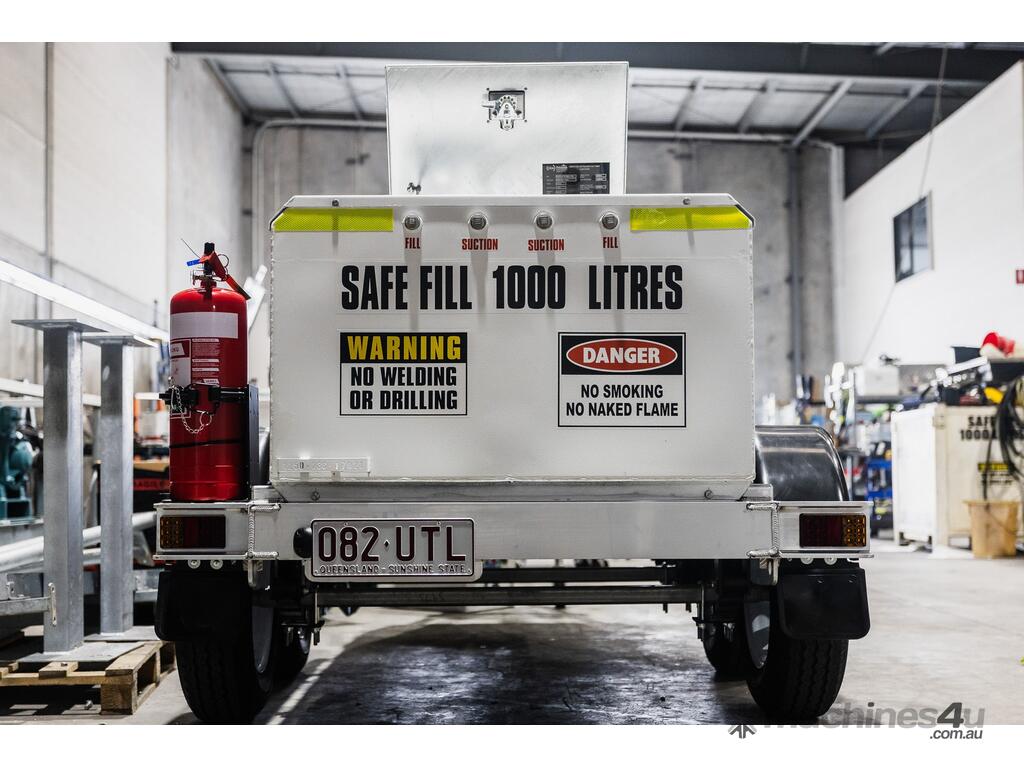

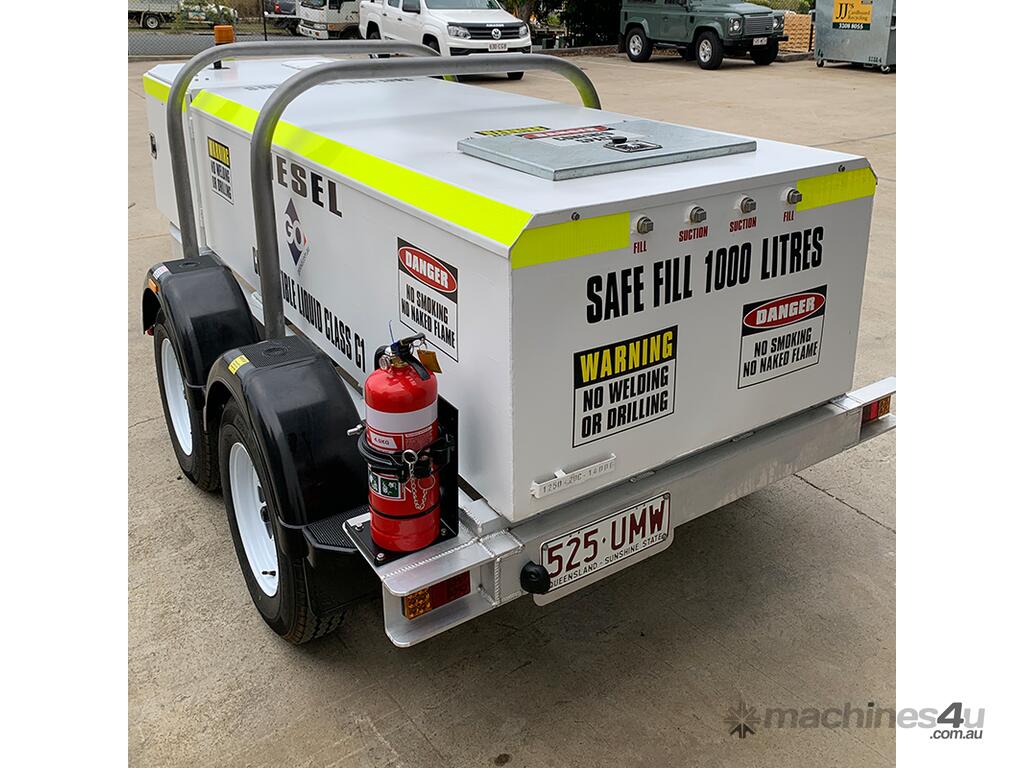

- Fire Protection - 9kg Fire extinguisher

Package Inclusions
- 1 x SBHD1250 Self Bunded 1250L Low Profile Fuel Trailer

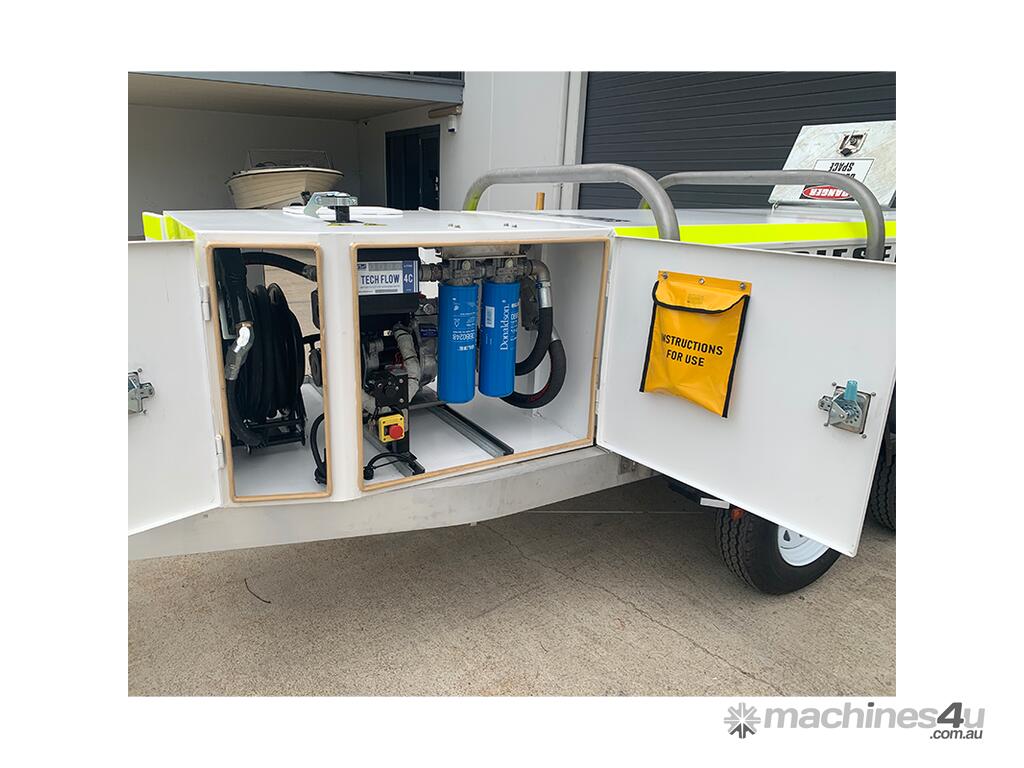

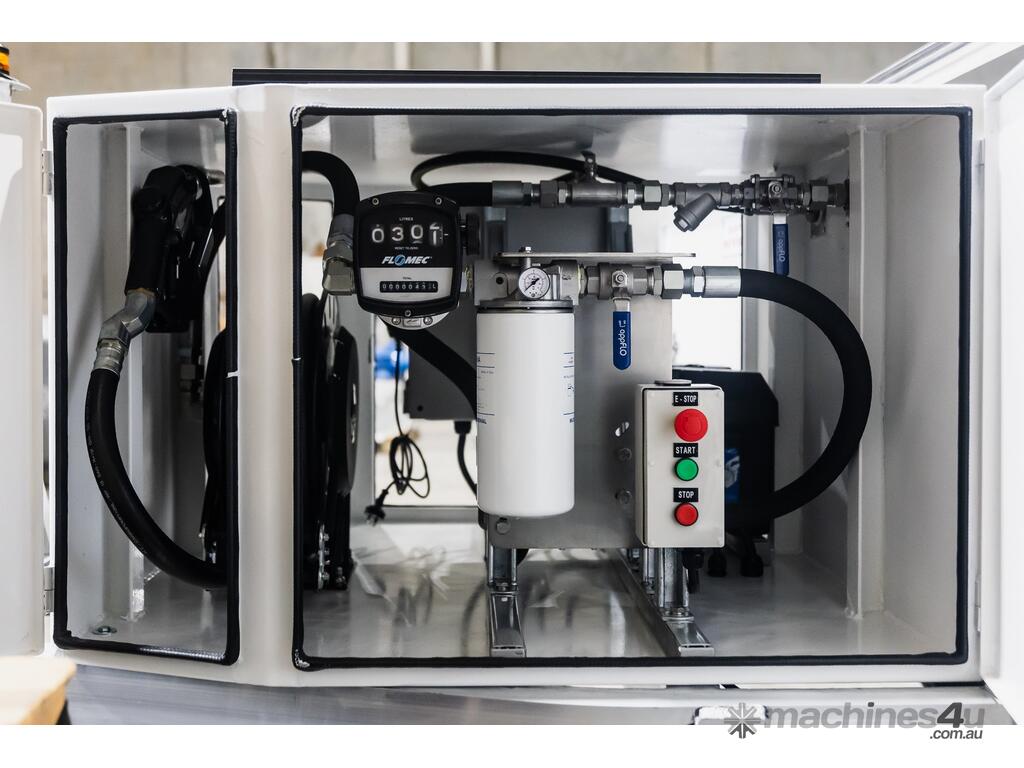

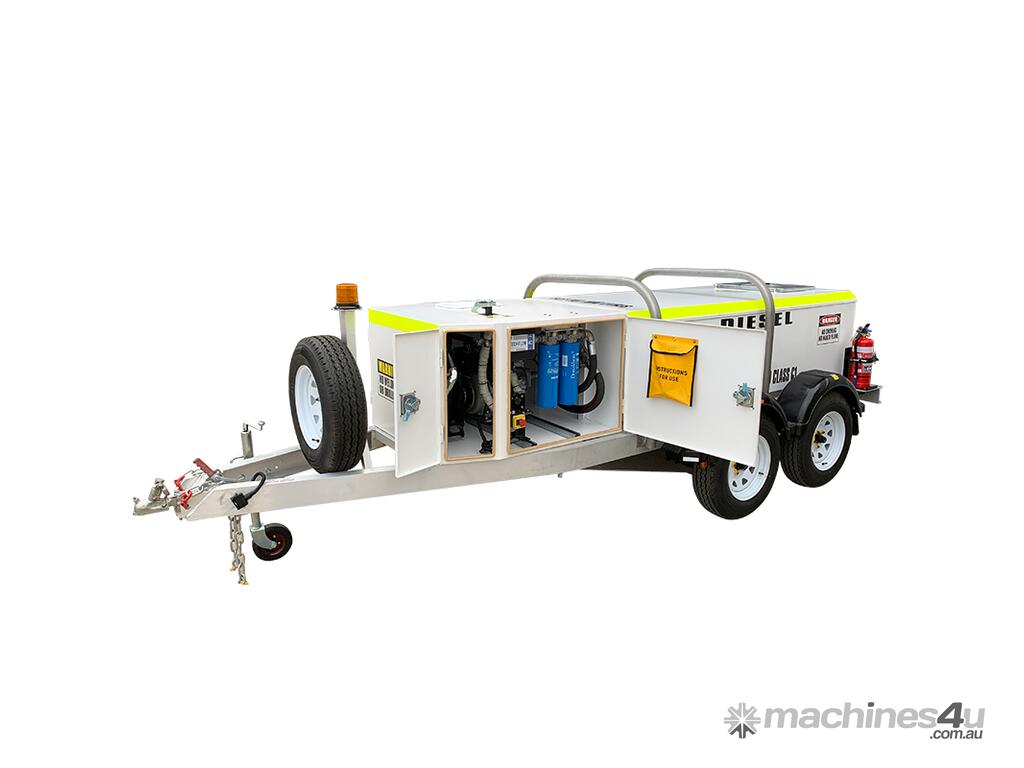

- 12V Dispensing Package - 80LPM Bi-Pump

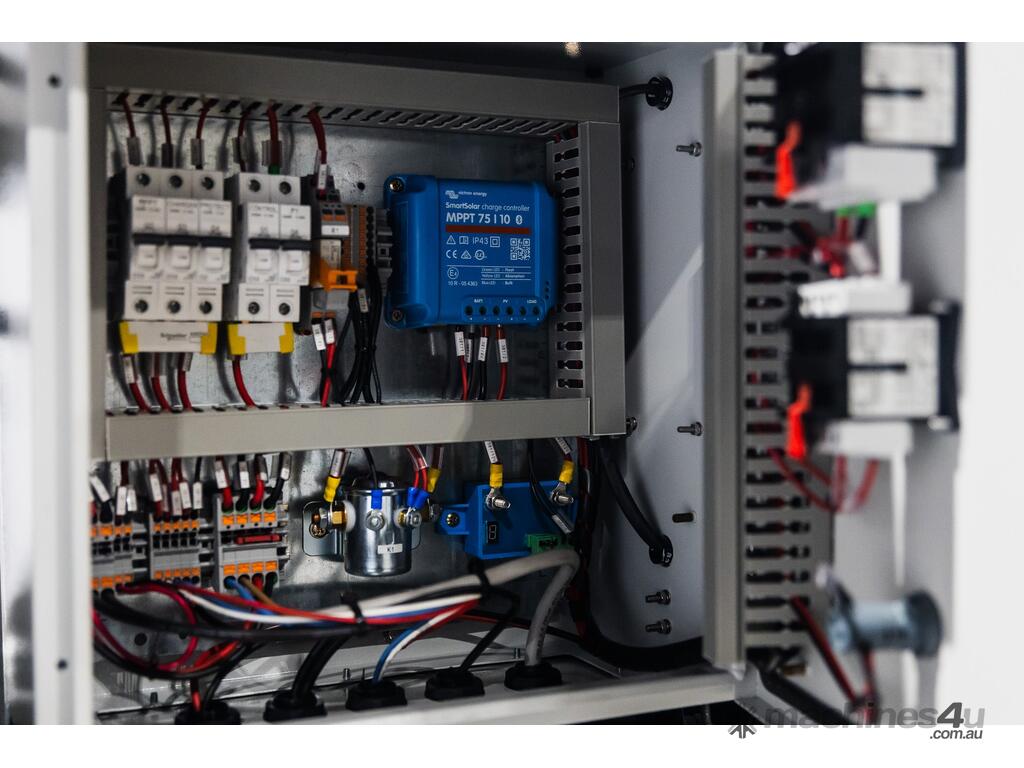

- Solar Charging Pack
- 12 Months QLD Registration
- 30L Hydrocarbon Spill Kit
- Turnkey Supply, ready to fill and dispense once delivered
