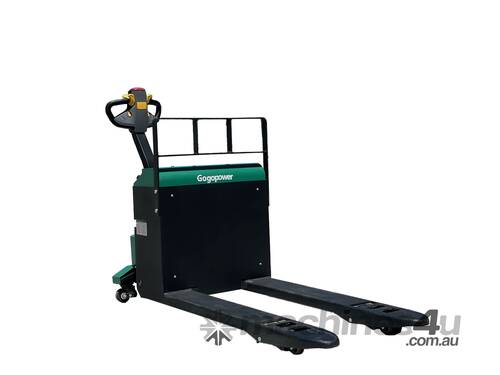

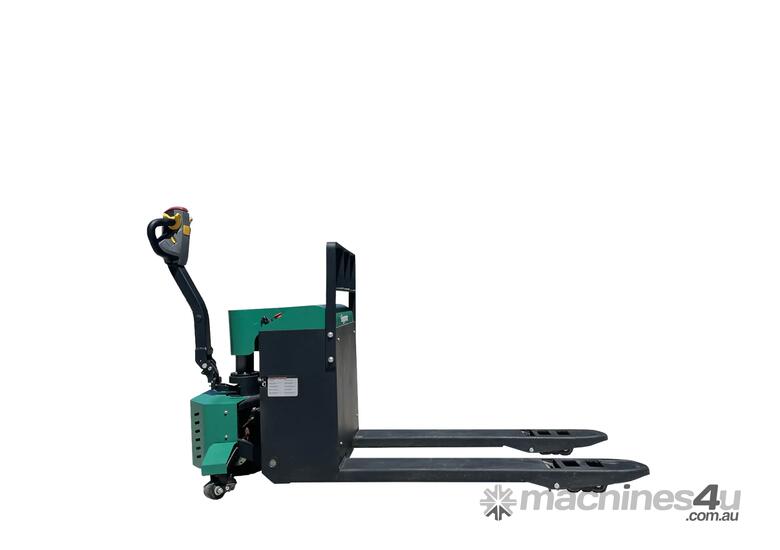

GOGOPOWER - CBD20 - 2000KG Electric Pallet Jack (Walking)

?Features

Fully automatic intelligent integrated handle, simple and fast operation.
High performance hydraulic system, low voice, low vibration, stable and reliable lifting.
High quality AC controller with stepless speed regulation and reverse braking function.
Electromagnetic and regenerative braking system to ensure the safe parking of vehicles on slopes.
Equipped with upright walking function, the operation in narrow space is more flexible and the work efficiency is improved.
Specifications

Product Model: CBD20
Drive Type: Full electric
Operator Type: Walking
Rated Load Capacity (kg): 2000
Load Centre Distance (mm): 500
Wheel Base (mm): 1,321
Travel Speed km/hr (laden/unladen): 4/4.5
Lifting Speed mm/s (laden/unladen): 30/40
Lowering Speed mm/s (laden/unladen): 60/40
Climbing Ability % (laden/unladen): 16/25
Braking Type: Electro-magnetic
Driving Motor Power (kW): 0.8
Lifting Motor Power (kW): 1
Battery Voltage/Capacity (V/AH): 24/80
Controller: 1212P-2501
Lifting Height (mm): 200
Fork Height (mm): 85
Min/Max Height of Handle when Driving (mm): 1030/1200
Two Forks Outer Width (mm): 550/685
Fork Length (mm): 1150/1200
Single Fork Width (mm): 170
Min Turning Radius (mm): 1550
Channel Width (800x1200 pallet) (mm): 2184
Channel Width (1000x1200 pallet) (mm): 2256
Self Weight with Battery (kg): 260
Warranty

Have peace of mind with Gogopower's Electric Pallet Truck during the warranty period. We offer Australia wide support on all our Gogopower electric material handling equipment with service contractors nationwide.

12 months warranty.
Delivery

We can ship direct to you Australia wide. Alternatively, it can be pick up from either our Smithfield warehouse in NSW or Kenwick warehouse in WA.

Contact Us

If you have any questions or require any assistance, do contact us on or us at enquirygogopower.
