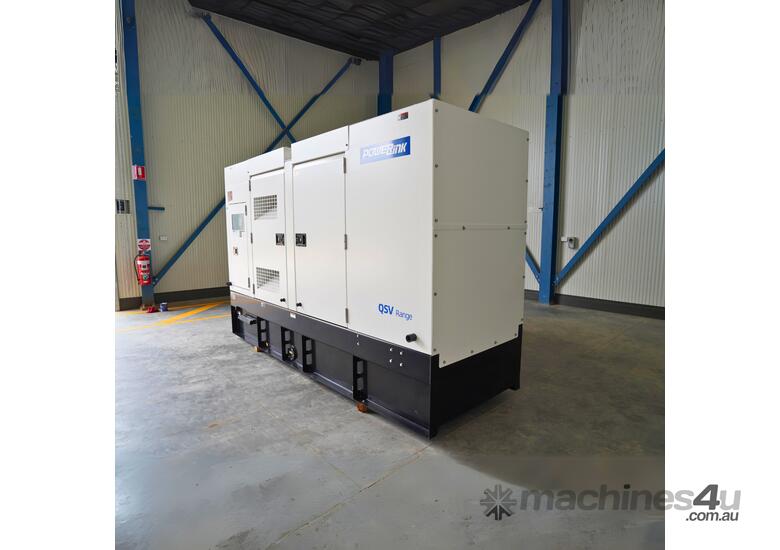

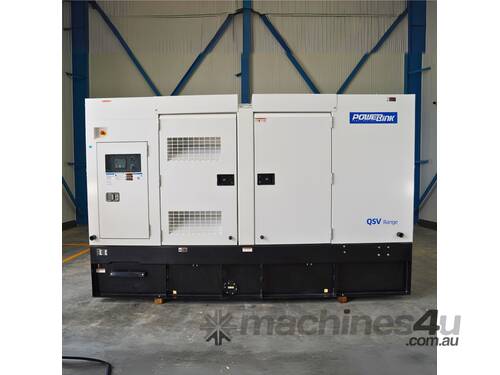

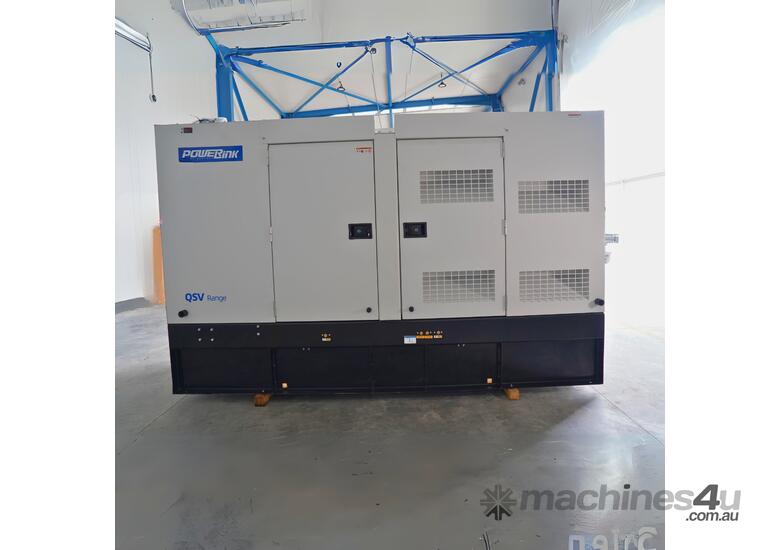

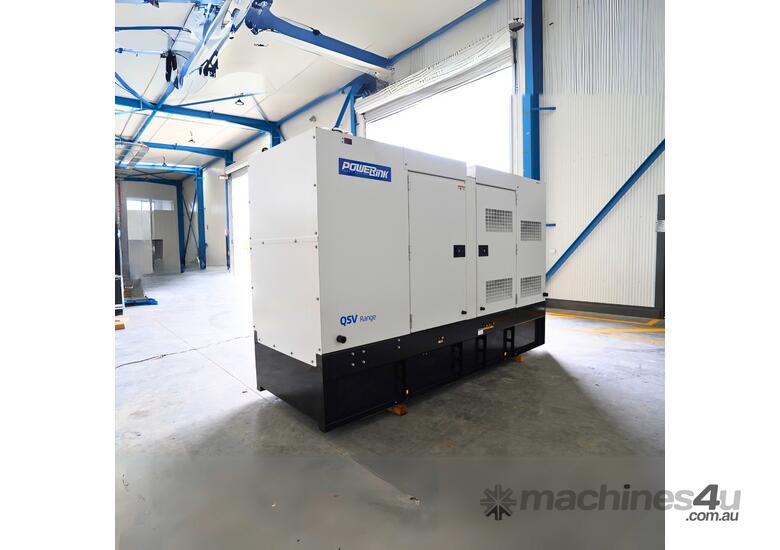

Gogopower's 220kVA diesel generator is a robust unit powered by Cummins engine ensuring the most stable electricity with the most optimum performance for stationary and prime power applications. It is a fully enclosed unit with a very compact design and water cooled. Diesel generator is able to run in Australian weather conditions perfectly. It comes with a quiet fully enclosed sound proof enclosure, remote start capable and automatic transfer switch plug.
This 220kVA diesel generator can be connected to both single phase and three phase appliances to the one generator-suitable for 240V and 415V appliances.
This diesel generator is mainly for loads that can be located in industrial sites to power tools, commercial, agriculture and construction sites.
Gogopower's range of Cummins Powered Diesel Generators provide heavy duty and reliable power for a range of residential applications and are backed by a generator of 12 months/ 2000 hours for prime application or 24 months/ 500 hours warranty whichever comes first.
Key Features
Product Model: DT200C5S
Cummins engine: 6CTAA8.3-G2
Brushless Stamford alternator: UCI274H
PLC-7420 Auto Mains Failure Control Module
320A Main Circuit Breaker
Prime Power: 200kVA/ 160KW
Standby Power: 220kVA/ 176KW
Voltage/ Ampere: 415V/ 278.2A
3 Phase
50Hz/ 1500 RPM
Dimensions L×W×H: 3400×1320×2297mm
Dry Weight: . 2925kg
Fuel Tank Capacity: 1200L
Fuel Consumption (at 100% load capacity): 45L/ hour
Base fuel tank: 27 hours 100% load capacity
Sockets: No outlets, but can be installed upon request.
Safety Features
Oil Pressure Level
Fuel Level
Coolant Level
Coolant Temperature Level
Emergency Stop Switch
Battery Isolator
ATS (automatic transfer switch) receptacle
Optional Extras
Automatic Transfer Switches- to be connected to the diesel generator and the switchboard which will allow for automatic switching from your mains power supply to your back up diesel generator supply when mains power fails.
Service Kit- contains all parts needed for scheduled servicing. Please refer to our maintenance page for the maintenance schedule interval. Gogopower has service kit for 250 hours service or the whole package of 2000 hours service kit.
Warranty
Be rest assured with Gogopower's Cummins Powered Diesel Generator during the warranty period. We offer Australia wide support on all our Gogopower diesel generators with service contractors nationwide.
Prime application: 2000 hours or 12 months. Whichever comes first.
Standby application: 500 hours or 24 months. Whichever comes first.
Delivery
We can ship direct to you Australia wide. Alternatively, it can be pick up from either our Smithfield warehouse in NSW or Kenwick warehouse in WA.
Contact Us
It is the utmost importance to ensure you have selected the right diesel generator size for your requirement. If you have any questions or require any assistance, do contact us.
Package contain
Generator
Documentation, ie: certificate of authenticity, test report, operational manual and wiring diagram
