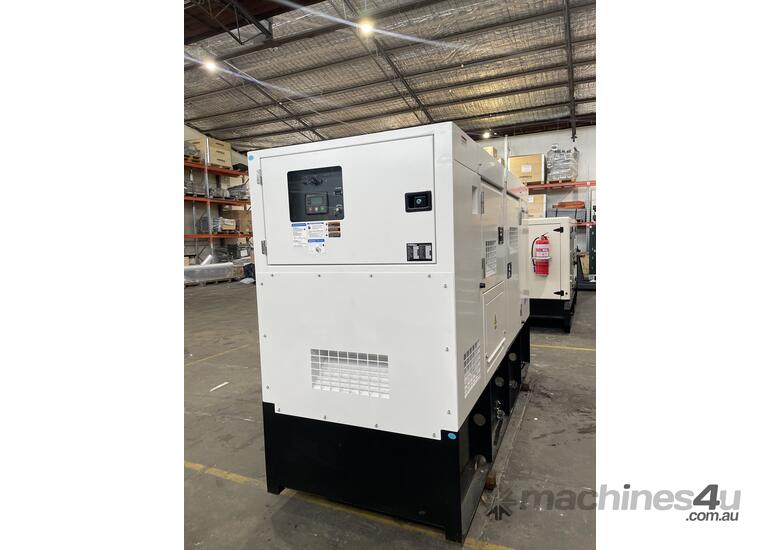

GOGOPOWER - YANMAR 11kVA Diesel Generator 240V

Gogopower's PP10YS-AU generator set is a sound-proof type designed for both outdoor and well-ventilated indoor installations. It features a YANMAR engine, a Leroy Somer alternator, and a microprocessor control module PLC-920. The generator set is compliant with various international standards, including CE, ISO8528-5:2005, and AS 3000-2018.


Model: PP10YS-AU
Tank Capacity: 100L
Dry Weight: 700kg
Dimensions (L×W×H: 1932x927x1308mm
Standby Power: 11kVA/8.8kW
Prime Power: 10kVA/8kW
Noise Level: 7m 64.7dBA
Voltage: 220V, 230V, 240V
Ampere: 45.5A, 43.5A, 41.7A
Fuel Consumption (50Hz): 0.2 L/h (at 25% load)
Alternator: Leroy Somer - LSA40S3
Engine: YANMAR - 3TNV76-GGE
Run Time: 40 hours at full load
Build-In: 4x single-phase convenience receptacle


Compliance:
CE
ISO8528-5:2005
GB/T2820.5-2009
AS 3000-2018
AS 3010-2017
Additional Features:

Microprocessor Control Module: PLC-920 for advanced engine control
Main Circuit Breaker: 63A
Emergency Stop Switch: Included
Automatic Transfer Switch (ATS) Receptacle: Available
Convenience Receptacles: 1P
Battery: 1x12V/72AH sealed for life maintenance-free
Lockable Battery Isolator Switch: Included
Powder Coated Canopy: For durability
Steel Base Frame with Forkslots: For easy transportation
Vibration Isolators: Between engine/alternator and base frame
Dry Type Air Filter: For cleaner operation
Base Fuel Tank: For 40 hours running
Drain Points: For fuel tank


Optional Extras

· Automatic Transfer Switches- to be connected to the diesel generator and the switchboard which will allow for automatic switching from your mains power supply to your back up diesel generator supply when mains power fails.

· Service Kit- contains all parts needed for scheduled servicing. Please refer to our maintenance page for the maintenance schedule interval. Gogopower has service kit for 250 hours service or the whole package of 2000 hours service kit.

Warranty
Be rest assured with Gogopower's PowerLink Powered Diesel Generator during the warranty period. We offer Australia wide support on all our Gogopower diesel generators with service contractors nationwide.

· Prime application: 1000 hours or 12 months. Whichever comes first.

· Standby application: 500 hours or 24 months. Whichever comes first.


Delivery
We can ship direct to you Australia wide. Alternatively, it can be pick up from either our Smithfield warehouse in NSW or Kenwick warehouse in WA.

Contact Us
It is the utmost importance to ensure you have selected the right diesel generator size for your requirement. If you have any questions or require any assistance, do contact us on or us at enquirygogopower

Package contain

· Generator

· Documentation, ie: certificate of authenticity, test report, operational manual and wiring diagram
