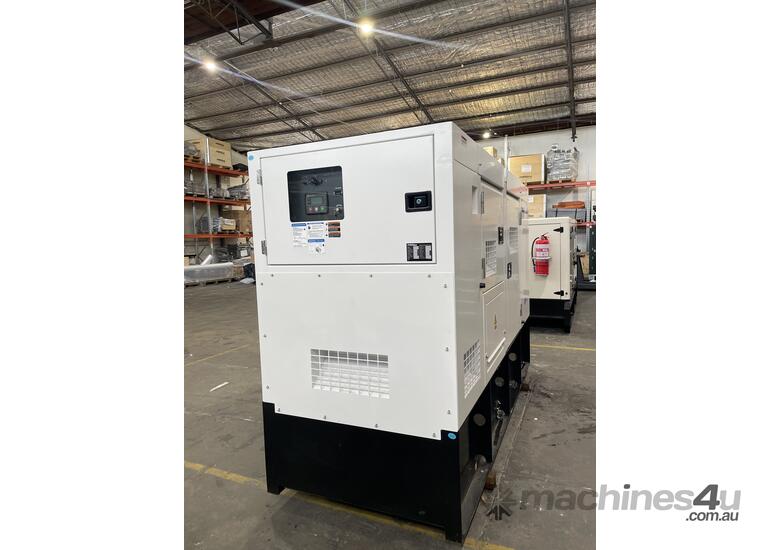

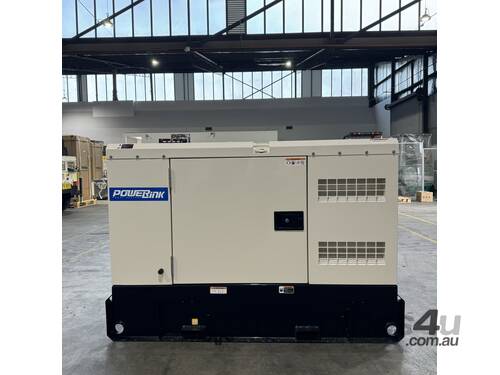

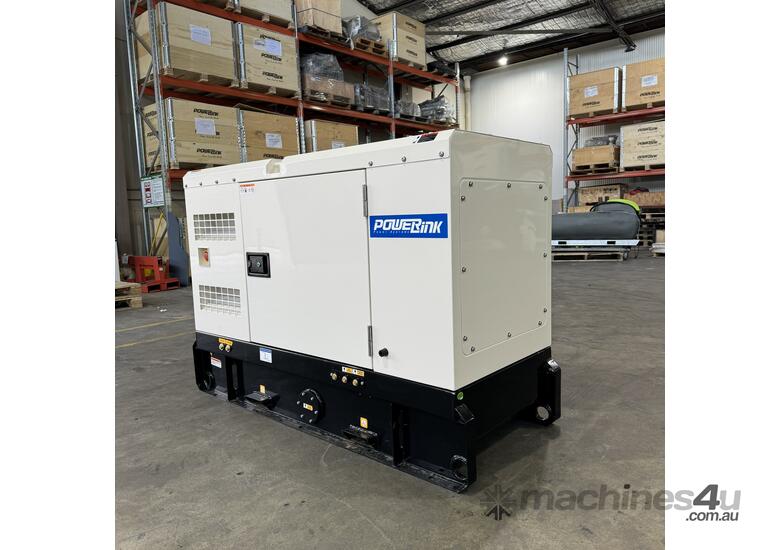

GOGOPOWER - YANMAR 11kVA Diesel Generator 415V

Gogopower's GMS10YS-AU generator set is a sound-proof type designed for both outdoor and well-ventilated indoor installations. It features a YANMAR engine, a Leroy Somer alternator, and a microprocessor control module PLC-920. The generator set is compliant with various international standards, including CE, ISO8528-5:2005, and AS 3000-2018.

Model: GMS10YS-AU
Tank Capacity: 120L
Dry Weight: 673kg
Dimensions (L×W×H): 1932x750x1209mm
Standby Power: 11kVA/9kW
Prime Power: 10kVA/8kW
Noise Level 7m: 64.7dBA
Voltage: 380V, 400V, 415V, 440V
Ampere: 15.2A, 14.4A, 13.9A, 13.1A
Fuel Consumption (50Hz): 0.2 L/h (at 25% load), 0.7 L/h (at 50% load), 1.5 L/h (at 75% load), 2.8 L/h (at 100% load)
Alternator: Leroy Somer - LSA40VS1
Engine: YANMAR - 3TNV76-GGE
Run Time: 42 hours at full load
Build-In: 3P and 1P convenience receptacles



Compliance:
· CE
· ISO8528-5:2005
· GB/T2820.5-2009
· AS 3000-2018
· AS 3010-2017


Additional Features:

Microprocessor Control Module: PLC-920 for advanced engine control
Main Circuit Breaker: 16A
Emergency Stop Switch: Included
Automatic Transfer Switch (ATS) Receptacle: Available
Convenience Receptacles: 3P and 1P
Battery: 1x12V/72AH sealed for life maintenance-free
Lockable Battery Isolator Switch: Included
Powder Coated Canopy: For durability
Steel Base Frame with Forkslots: For easy transportation
Vibration Isolators: Between engine/alternator and base frame
Dry Type Air Filter: For cleaner operation
Base Fuel Tank: For 42 hours running
Drain Points: For fuel tank
Optional Extras:

Automatic Transfer Switches: To be connected to the diesel generator and the switchboard for automatic switching from mains power to backup diesel generator supply when mains power fails.
Service Kit: Contains all parts needed for scheduled servicing. Service kits available for 250 hours or 2000 hours.
Warranty:

Prime application: 1000 hours or 12 months, whichever comes first.
Standby application: 500 hours or 24 months, whichever comes first.
Delivery:

We can ship direct to you Australia wide. Alternatively, it can be picked up from either our Smithfield warehouse in NSW or Kenwick warehouse in WA.

Contact Us:

It is of utmost importance to ensure you have selected the right diesel generator size for your requirement. If you have any questions or require any assistance, contact us on or us at enquirygogopower

Package contain

· Generator

· Documentation, ie: certificate of authenticity, test report, operational manual and wiring diagram

Established in 2016, Gogopower stands as a key distributor of Powerlink, Kubota and Cummins products in Australia. Committed to delivering quality and cost-effective energy generation solutions, our seasoned technicians offer installation and maintenance support, ensuring the longevity of your investment. Our 2000 m² Sydney supply center enables swift access to generator sets and accessories, minimizing energy downtime. Specializing in diesel-powered products ranging from 10kVA to 1250kVA, we cater to diverse residential and industrial needs. Clients benefit from comprehensive support, encompassing the entire lifecycle of their purchase, from acquisition to continuous assistance.
