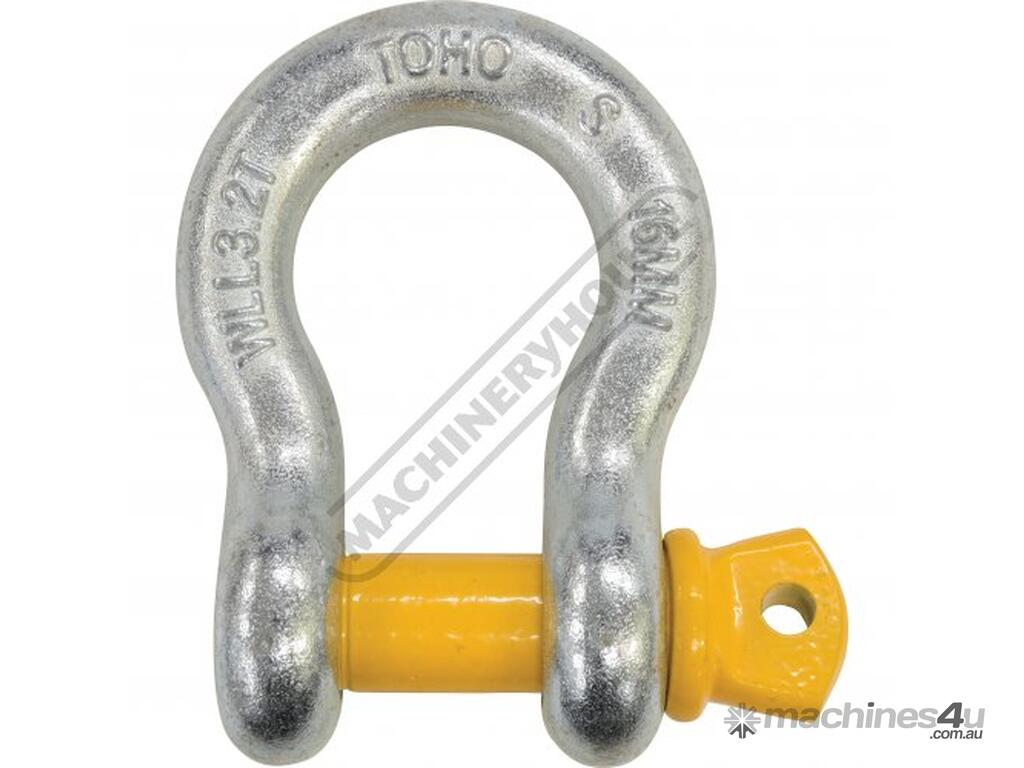

GSSB16 16mm 3.2T Grade S - Lifting Bow Shackle Galvanised Finish With Yellow Pin "Grade S" - Complia

GARRICK TOHO GSSB16 16mm 3.2T Grade S - Lifting Bow Shackle Galvanised Finish With Yellow Pin "Grade S" - Compliant & Meets The Requirement of AS2741
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: H354

- The most common shackles used in lifting applications, with a high strength to size ratio
- Easy and effective way of providing a connection of slings, chains and wire ropes
- Supplied in a galvanised finish with yellow painted pin
- Suitable applications: Marine, agricultural, towing, & general industrial
- Compliant & meets the requirement of AS 2741

Features:
3.2 Tonne working load limit
16mm Body Diameter
52mm Throat depth
27mm Throat opening
19mm Pin diameter


Specifications:
Order Code: H354
Model: GSSB16
W.L.L - Working Load Limit (Tonne): 3.2
Body Diameter (mm): 16
A - Throat Opening (mm): 27
B - Pin Diameter (mm): 19
C - Throat Depth (mm): 52
