GSSB29 29mm 9.5T Grade S - Lifting Bow Shackle Galvanised Finish With Yellow Pin "Grade S" - Complia

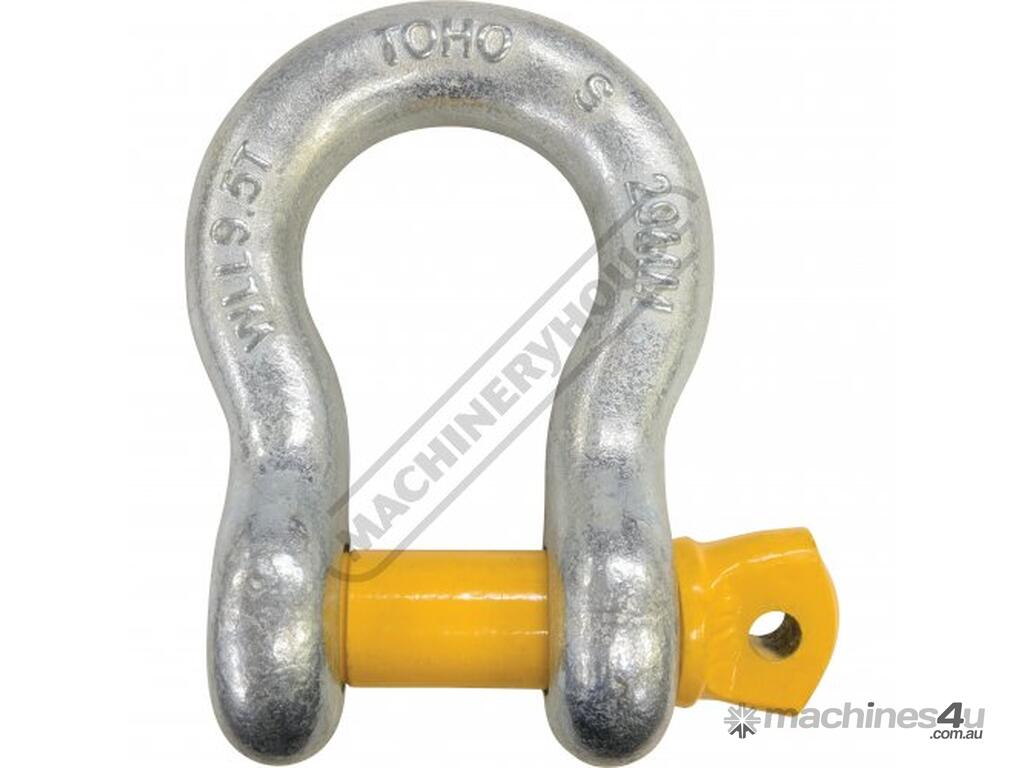

GARRICK TOHO GSSB29 29mm 9.5T Grade S - Lifting Bow Shackle Galvanised Finish With Yellow Pin "Grade S" - Compliant & Meets The Requirement of AS2741
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: H360

- The most common shackles used in lifting applications, with a high strength to size ratio
- Easy and effective way of providing a connection of slings, chains and wire ropes
- Supplied in a galvanised finish with yellow painted pin
- Suitable applications: Marine, agricultural, towing, & general industrial
- Compliant & meets the requirement of AS 2741

Features:
9.5 Tonne working load limit
29mm Body Diameter
92mm Throat depth
46mm Throat opening
32mm Pin diameter


Specifications:
Order Code: H360
Model: GSSB29
W.L.L - Working Load Limit (Tonne): 9.5
Body Diameter (mm): 29
A - Throat Opening (mm): 46
B - Pin Diameter (mm): 32
C - Throat Depth (mm): 92


To Purchase Online Please Visit The Machineryhouse & Search For 'H360'
