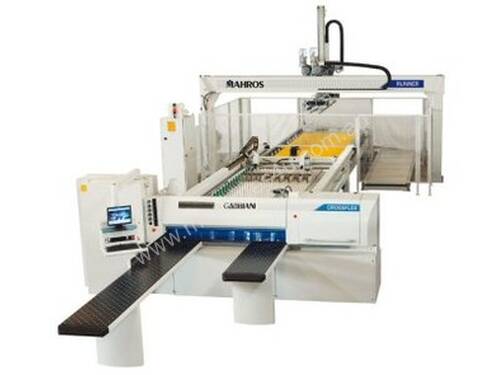

New gabbiani Beam Saw for sale - Gabbiani Crossflex

Designed for the large-scale woodworking company who needs a panel saw purpose-built for cutting post-formed strips individually or in packs. A wide choice of optional equipment is able to meet any requirement. The CROSSFLEX series is available in configurations suitable for a variety of production applications: manual loading, working cell operation or in-line operation.

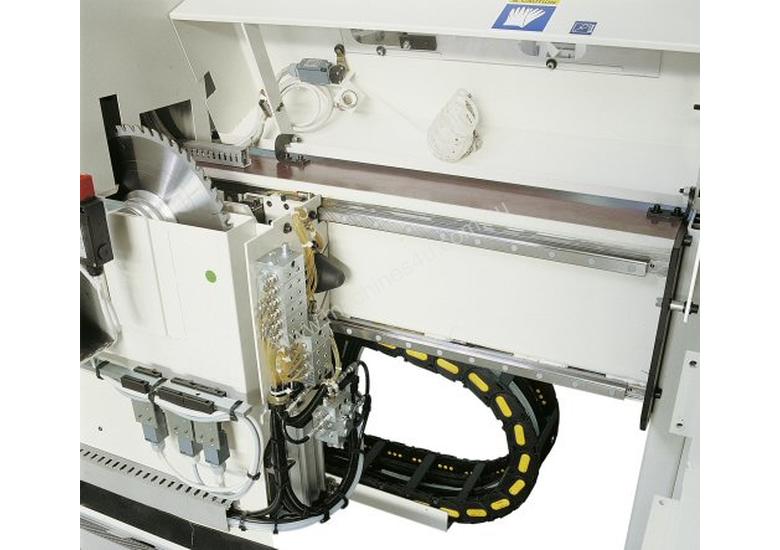

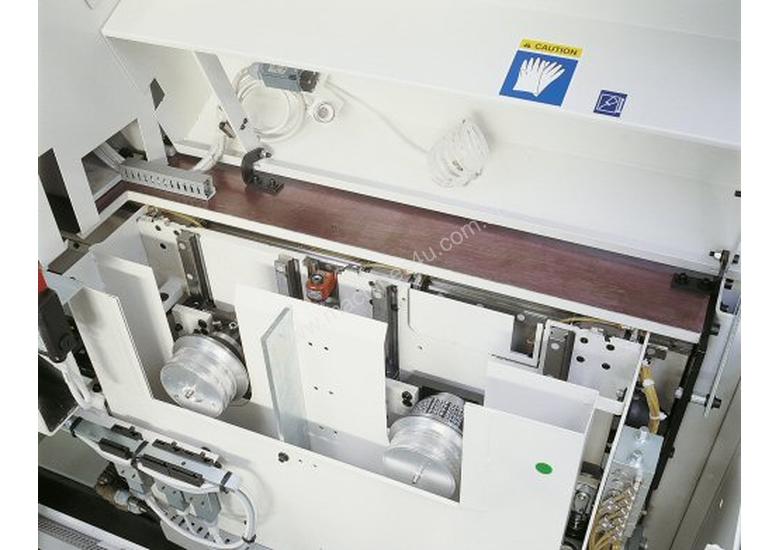

All Gabbiani machines are equipped with PRISMATIC GUIDES for both the movement of the saw carriage and the vertical movements of the blades.

Advantages:
1. Working continuos flow
2. Versatile and ergonomics
3. User friendly
4. Low cost
5. High productivity
6. The PRISMATIC GUIDES allows to obtain:
o high cutting precision
o maximum reliability
o maintenance free thanks to centralised and control monitored lubrication
o high resistance to mechanical stress

Technical data:
Technical data
Cutting dimension mm 1600x3200, 1600x3800
1600x4300 1600x5700
Blade protrusion mm 110 - 130
Main blade engine kW 11 - 18
Saw carriage speed m/min 170
Pusher speed m/min 135
