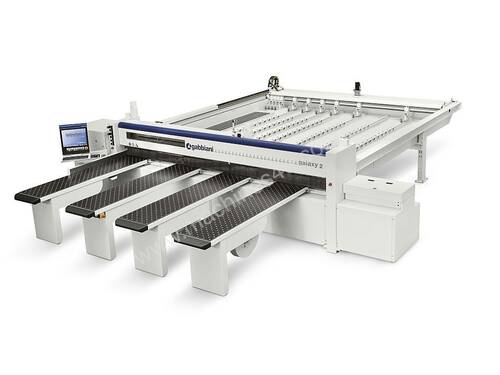

Gabbiani Galaxy 2 Tech

Galaxy 2 Tech is the best investment for the company that wants to satisfy any requirement of the changing market.

It represents the perfect synthesis between technology and flexibility in just one solution, maintaining the same level of performance as an industrial machine.

Galaxy 2 Tech is versatile and highly customizable, thanks to the rich standard features and a wide choice of options, it can also be integrated with automatic storage systems for time and materials savings and less operators requirement.

Advantages:

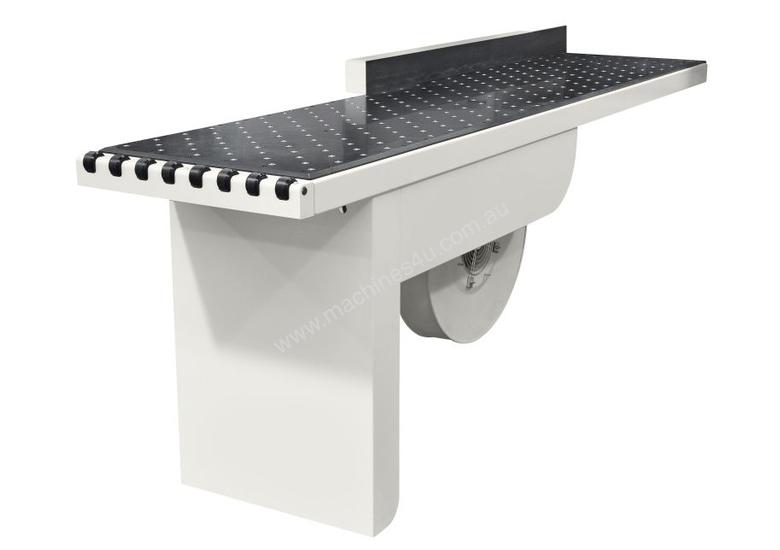

Selectable air blowing feature: an essential tool on front working tables and machine basement
The possibility to enable/disable the air blowing feature on each table section and basement via independent motors, ensuring optimal sliding of the panels only where it is needed and avoiding the accidental fall down of the panels already processed and temporaly stored on the tables.

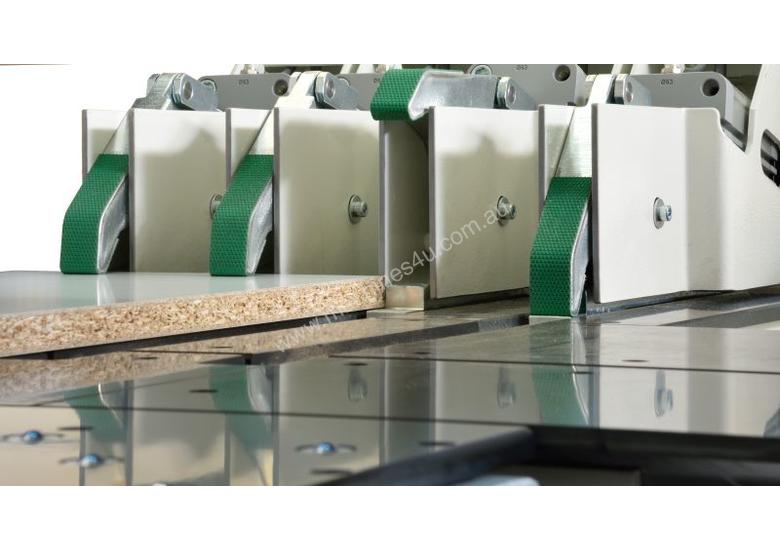

Floating clamps with selective closing: the guarantee of the result
The special shape of the clamps gently grips the panels giving the grip at the maximum speed while the selective closing avoid to ruin the panels which edges fall exactly in correspondance of the clamps.
Pusher speed on prismatic guides with recirculating spheres
High speeds, linearity and precision that lasts. Complete lack of maintenance due to the centralized lubrication system managed by the control system.
"Flexcut": cut more and faster
Increased productivity up to 30% thanks to two independent pushers that allow the simultaneous differentiated cuts or cross and longitudinal cuts of 2 strips.
Pressure beam with controlled axis height for any material, even for the softest one
The pressure beam with controlled axis is positioned at the cutting height entered by the operator at the PC ensuring a perfect pressure of the piece during cutting operations.

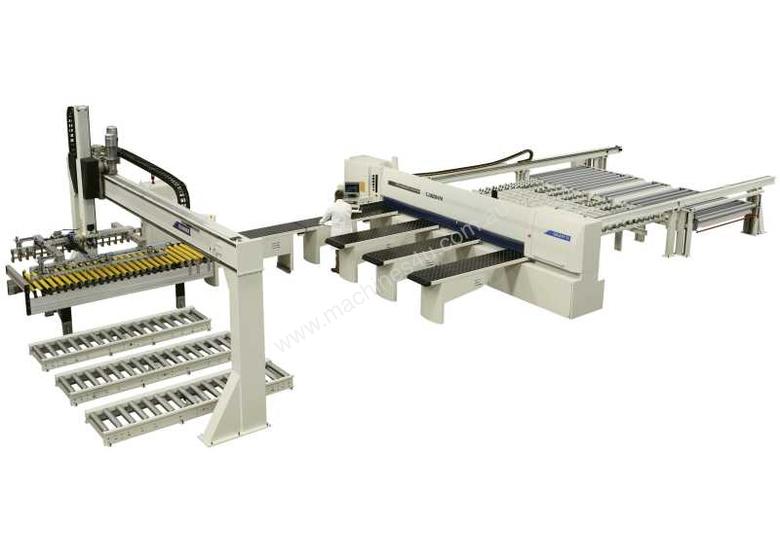

Storage system to be integrated: to satisfy all possible production requirements
High versatility thanks to the possible integration with Mahros loading and unloading systems.

Technical data:
GALAXY 2 90 GALAXY 2 110
Cutting dimension mm 3800x3800
4500x4300
Blade projection mm 95 115
Main blade motor kW 7,5 (opt. ) 9 (opt. -22)
Blade carriage speed m/min -135
Pusher speed m/min 70 (opz. 120) 70 (opz. 120)
Kit for plastic materials cutting Available Available
HI-TRONIC device vertical stroke - Available
FLEXCUT devices 1/S Full 1/S Full
