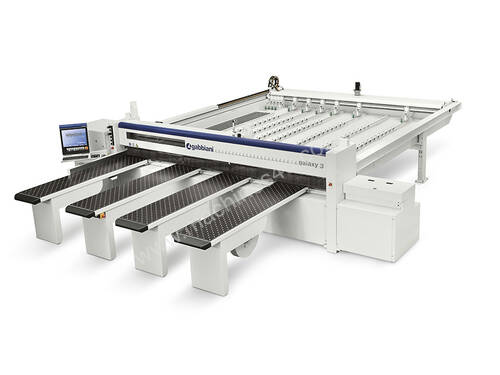

Gabbiani Galaxy 3 Plus

The advanced solution with complete standard equipment that guarantees the best price-performance ratio.

Speed, precision, flexibility and productivity mark out Galaxy 3 Plus.
It has been designed to assure high performance in a developed industrial context of just in time productions.
With its range of options it can be used to cut plastic, acrylic and synthetic panels.

Advantages:

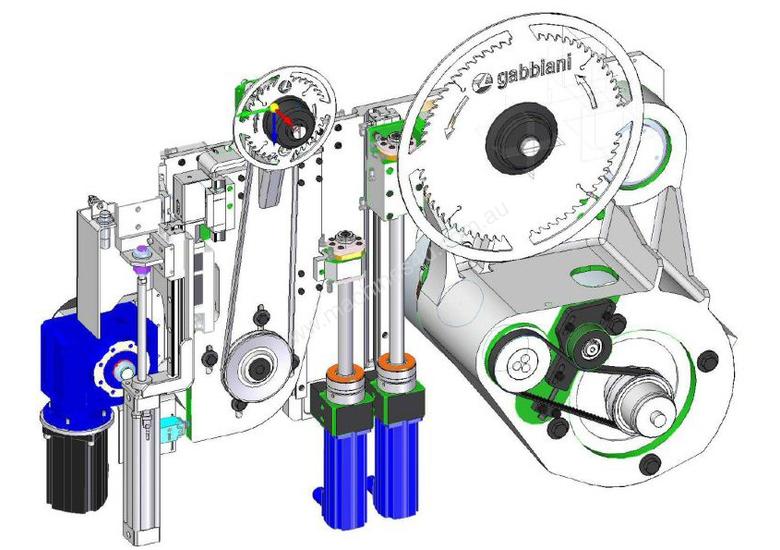

HI-TRONIC DEVICE : high technology on the saw carriage
Very high quality finishing cutting standards together with high speed and precision with the total electronic control
of the blades. SCM patented.
(only version 110)

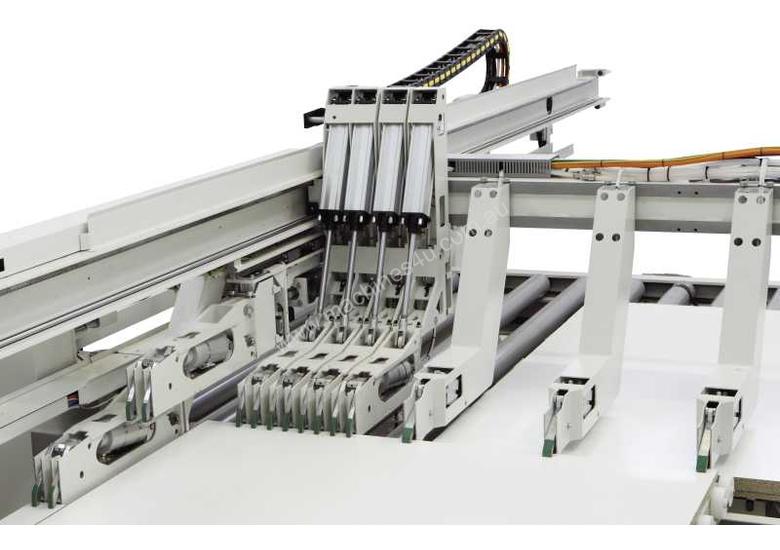

FLEXCUT 1/D and 1/S : more cuts in less time
High efficiency due to the use of 2 pushers with a completely independent stroke.
Drastic reduction in machining cycle times due to the simultaneous processing of several bars with different cuts.

In version 1/S, the unit is fitted with a single gripper, giving two independent cutting axes, at an extremely low price.

In version 1/D,extreme flexibility is achieved as the mobile unit is fitted with two grippers with double finger, the second gripper can be excluded, therefore guaranteeing a wide variability in the width of the strips that can be gripped.
(only version 110)

PRISMATIC GUIDES WITH RECIRCULATING SPHERES : maximum linearity and minimum friction
Increased productivity capacity both with high speed, that can be reached during the feeding stroke (100 m/min with a single sheet, 50 m/min with a panel stack), and a return stroke (up to 170 m/min).

The centralised lubrication, verified by the guides control, guarantees the complete lack of maintenance.

Technical data:
Technical data GALAXY 3 110 A GALAXY 3 125 A
Cutting dimension mm 3200x3200
3800x3800
4500x4300
Main blade projection mm 115 128
Main blade motor kW (Hp) 7,5 (10) -
Max. motor power with 100 hx kW (Hp) - 15 (20)
Saw carriage speed m/min 0 - 150
Pusher speed m/min 70
Kit for plastic materials cutting Available
HI-TRONIC device - Available
FLEXCUT devices 1/S 1/S - 1/D
