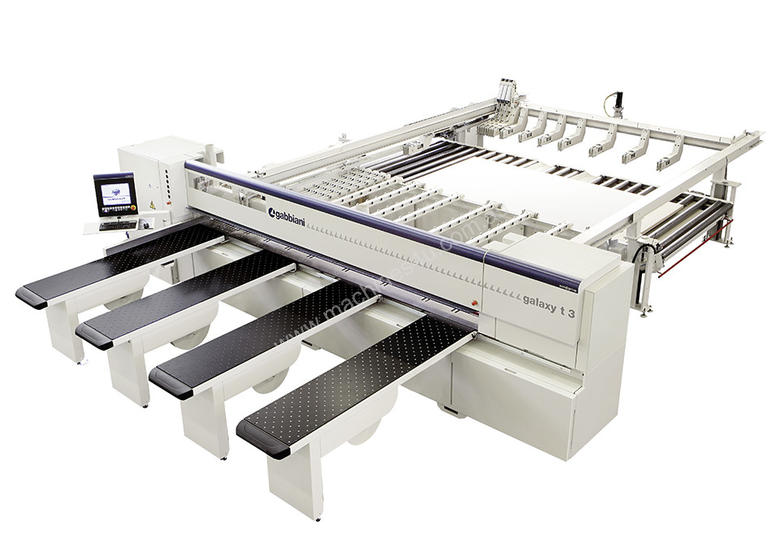

Gabbiani Galaxy T3 Plus

The advanced solution with complete standard equipment that guarantees the best price-performance ratio.

Speed, precision, flexibility and productivity mark out Galaxy T3 Plus. It has been designed to assure high performance in a developed industrial context of just in time productions. With its range of options it can be used to cut plastic, acrylic and synthetic panels.

Advantages:

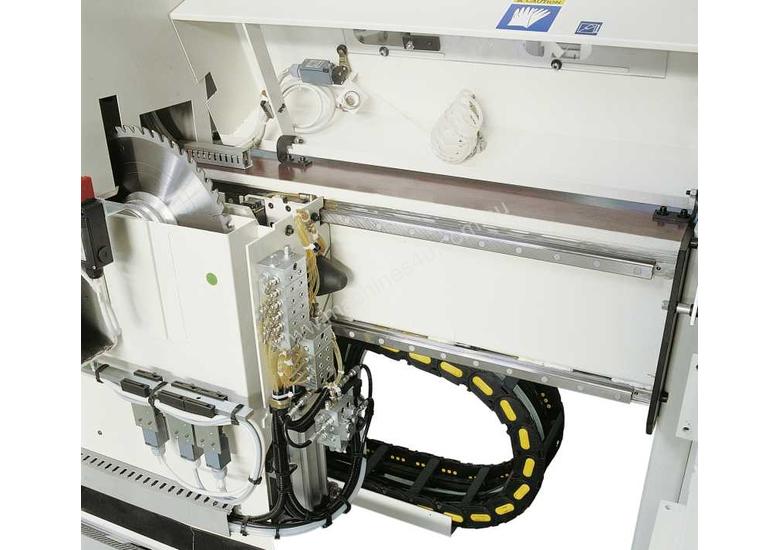

HI-TRONIC DEVICE : high technology on the saw carriage
Very high quality finishing cutting standards together with high speed and precision with the total electronic control
of the blades. SCM patented.

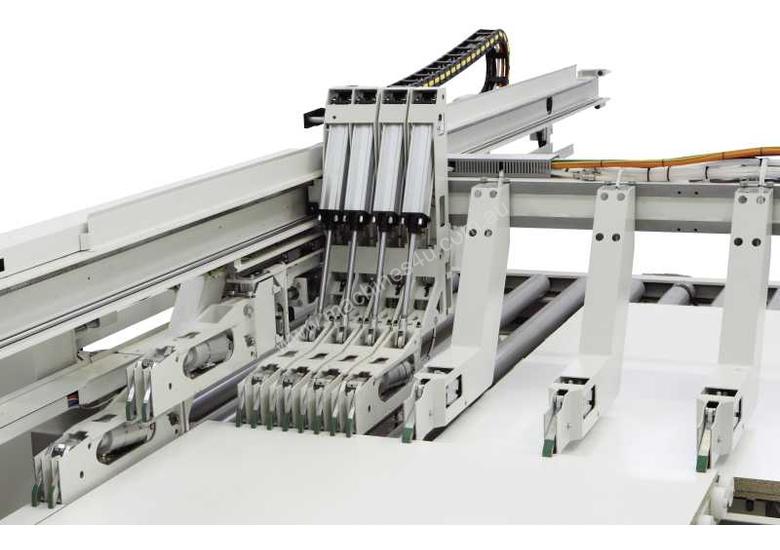

FLEXCUT 1/D and 1/S : more cuts in less time
High efficiency due to the use of 2 pushers with a completely independent stroke.
Drastic reduction in machining cycle times due to the simultaneous processing of several bars with different cuts.
In version 1/S, the unit is fitted with a single gripper, giving two independent cutting axes at an extremely low price.
In version 1/D, extreme flexibility is achieved as the mobile unit is fitted with two grippers, the second one can be excluded, therefore guaranteeing a wide variability in the width of the strips that can be gripped.

PRISMATIC GUIDES WITH RECIRCULATING SPHERES : maximum linearity and minimum friction
Increased productivity capacity both with high speed, that can be reached during the feeding stroke (100 m/min
with a single sheet, 50 m/min with a panel stack), and a return stroke (up to 170 m/min).
The centralized lubrication, verified by the guides control, guarantees the complete lack of maintenance.

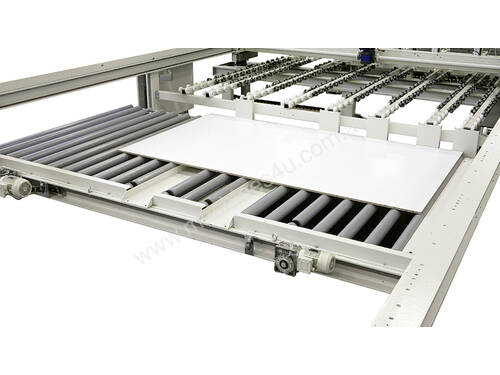

Loading platform: when sturdiness and precision make the difference
The lifting system, running on 4 large trapezoidal screws, as well as to maximize the load capacity in any material and format, always ensures parallel lifting of the stacks of panels avoiding downtime and achieving maximum productivity.

Technical data:
GALAXY T3 110 A GALAXY T3 125 A
Cutting dimension mm 3200x1850 (opt. 3200x2440)
mm 3800x1850 (opt. 3800x2440)
mm 4500x2440
Main blade projection mm 115 128
Max. height of panel stack on lifting table mm 600
Main blade motor kW (Hp) 7,5 (10) -
Max. motor speed 10 hz with inverter kW (Hp) - 15 (20)
Saw carriage speed m/min 0 - 150
Pusher speed m/min 80
Kit for plastic materials cutting Available
HI-TRONIC device - Available
FLEXCUT 1/S and 1/D devices 1/S 1/S - 1/D
