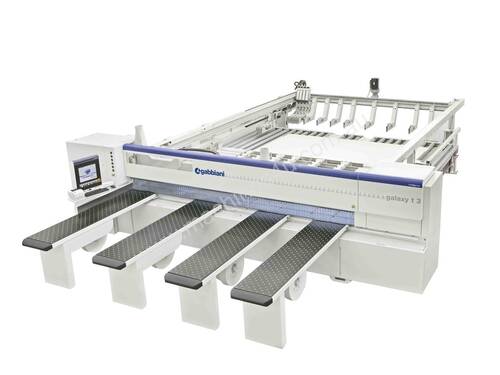

Gabbiani Galaxy T3 Top

Galaxy T3 Top
New single beam panel saw offers high performance in quality for cut finishing and working speed in order to meet the production needs of the furniture companies. Ideal solution for the company that requires to process medium-large batches. Galaxy t3 Top has a modular design and can be tailored to meet any customer requirement. Advance mechanical design, powerful motor units and electronic control are just some of the features that guarantee high production rates, flexibility, precision machining and a top quality cut finishing.
Advantages:

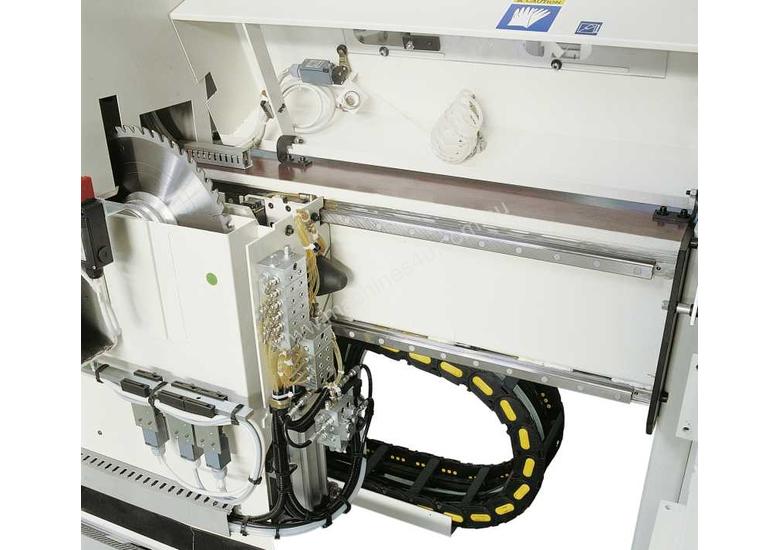

HI-TRONIC DEVICE : high technology on the saw carriage
Very high quality finishing cutting standards together with high speed and precision with the total electronic control
of the blades. SCM patented.
(Only on version 130)

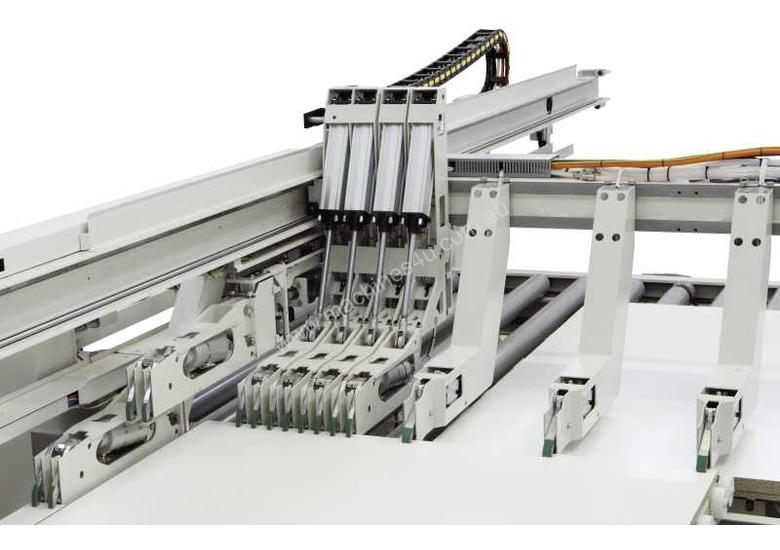

FLEXCUT 1/D: more cuts in less time
High efficiency due to the use of 2 pushers with a completely independent stroke.
Drastic reduction in machining cycle times due to the simultaneous processing of several bars with different cuts.
In version 1/D, extreme flexibility is achieved as the mobile unit is fitted with two grippers, one of which can be excluded, therefore guaranteeing a wide variability in the width of the strips that can be gripped.

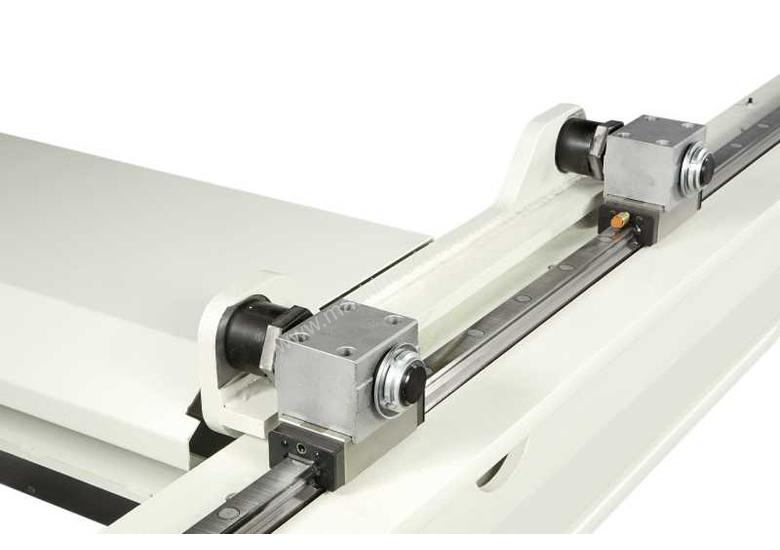

PRISMATIC GUIDES WITH RECIRCULATING SPHERES : maximum linearity and minimum friction.
Increased productivity capacity both with high speed, that can be reached during the feeding stroke (100 m/min with a single sheet, 50 m/min with a panel stack), and a return stroke (up to 170 m/min).
Centralised lubrication and verified by the guides control and guarantees the complete lack of maintenance.
PUSHER BEAM: maximum linearity and long time precision
Fast cycle times with high speeds in the return stroke (up to 135 m/min). Centralised and automated lubrication system that is managed by the PC (video monitoring ) ensures the lack of maintenance.
Loading platform: when sturdiness and precision make the difference
The lifting system, running on 4 large trapezoidal screws, as well as to maximize the load capacity in any material and format, always ensures parallel lifting of the stacks of panels avoiding downtime and achieving maximum productivity.
STORAGE SYSTEM TO BE INTEGRATED: to satisfy all possible production requirements
High versatility thanks to the possible integration with Mahros loading and unloading systems.

Technical data:

GALAXY T3 130 GALAXY T3 145
Cutting dimension mm 3200x1850 (opz. 3200x2440)
mm 3800x1850 (opz. 3800x2440)
mm 4500x2440
mm 5600x2440
Main blade projection mm 130 145
Max. height of panel stack on lifting table mm 600
Main blade motor kW 15 (20) 18 (25)
Saw carriage speed m/min 170
Pusher speed m/min 135
Kit for plastic material cutting Available
HI-TRONIC device Available
FLEXCUT device 1/D -
