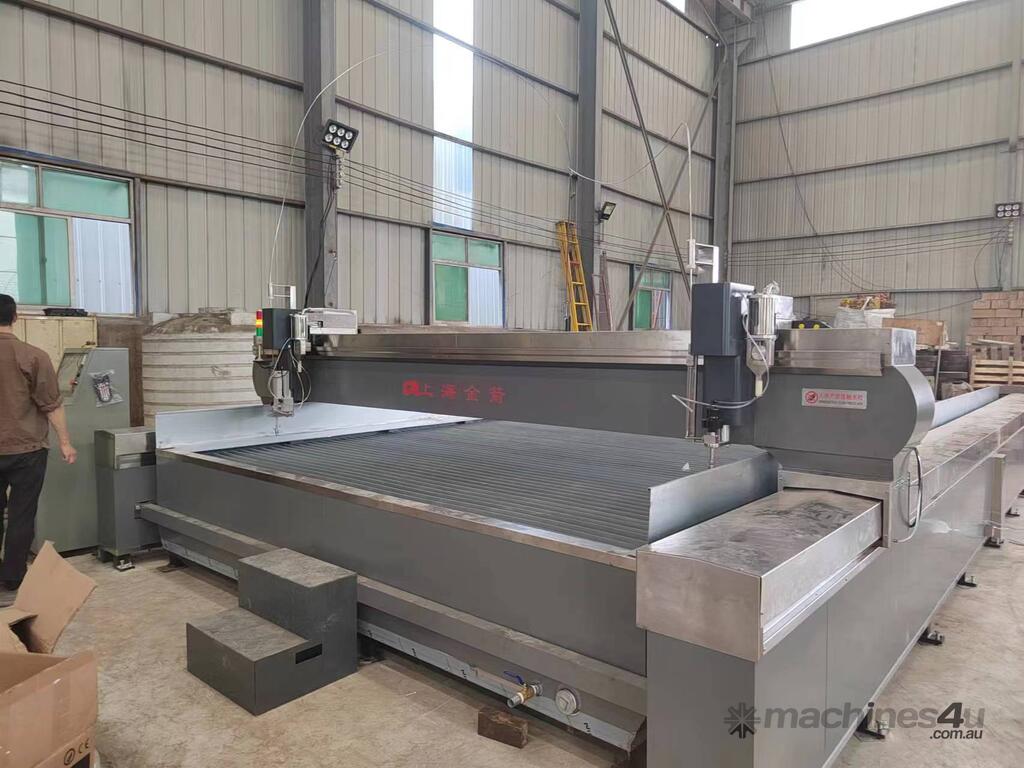

Gantry Waterjet System - special order

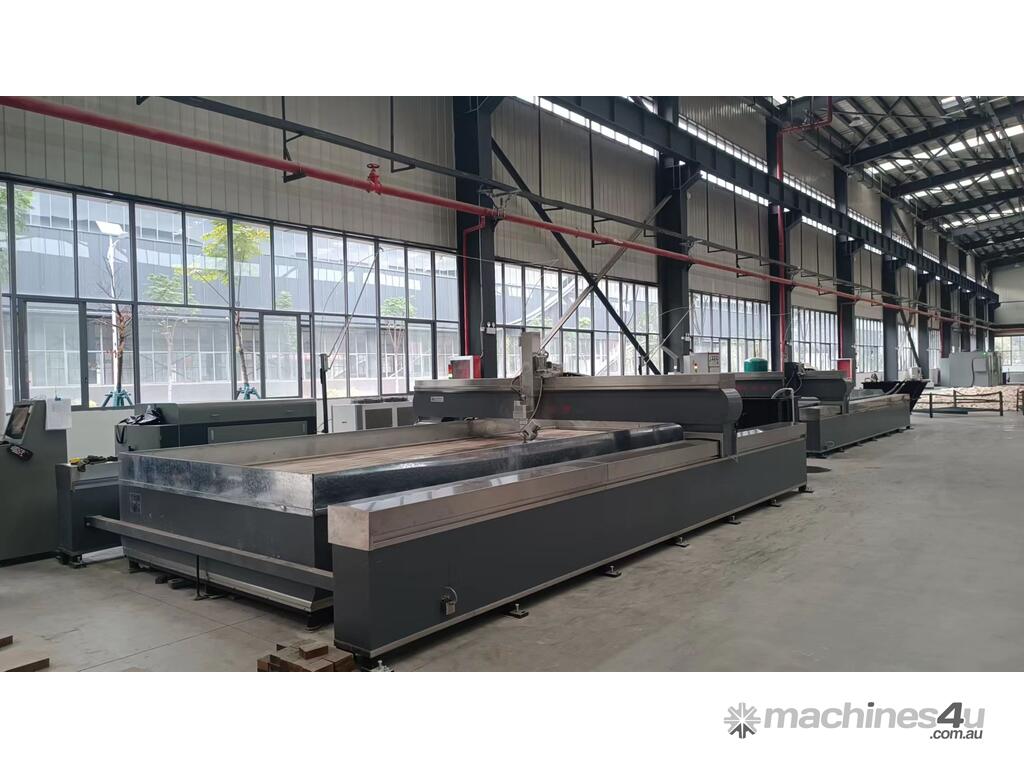

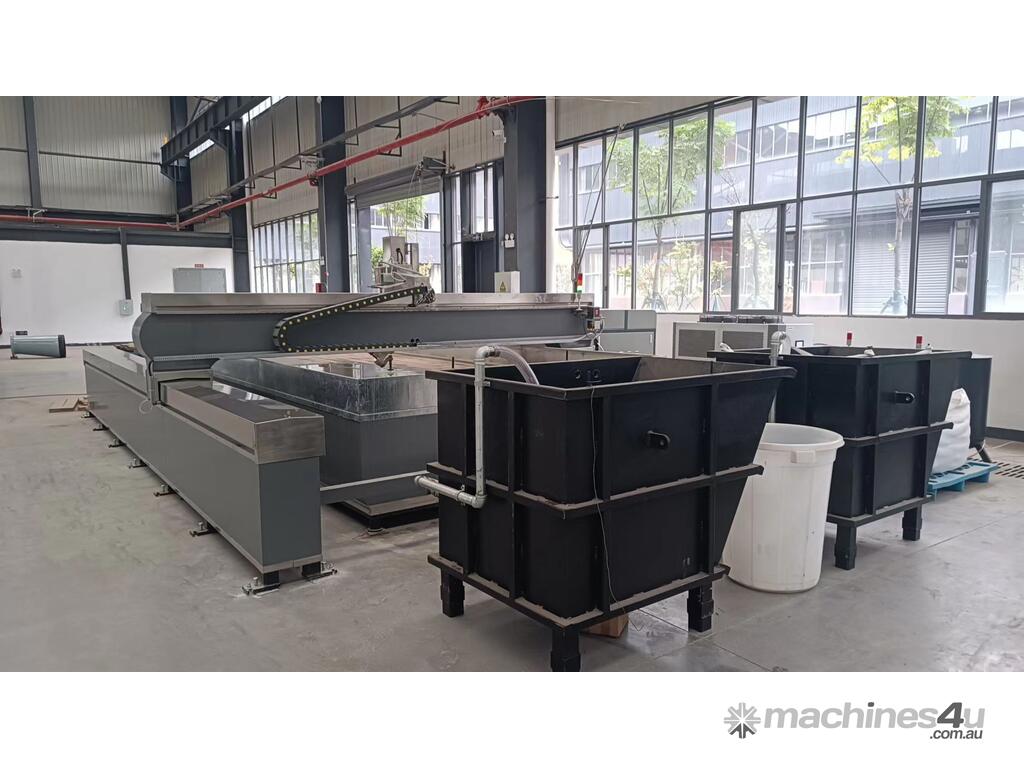

Gantry type is very firm waterjet structure. The bridge hanging the cutting head sits on two base beams which are completely separated from the working table. We recommend gantry type waterjet systems for the customers who need a bigger cutting table.

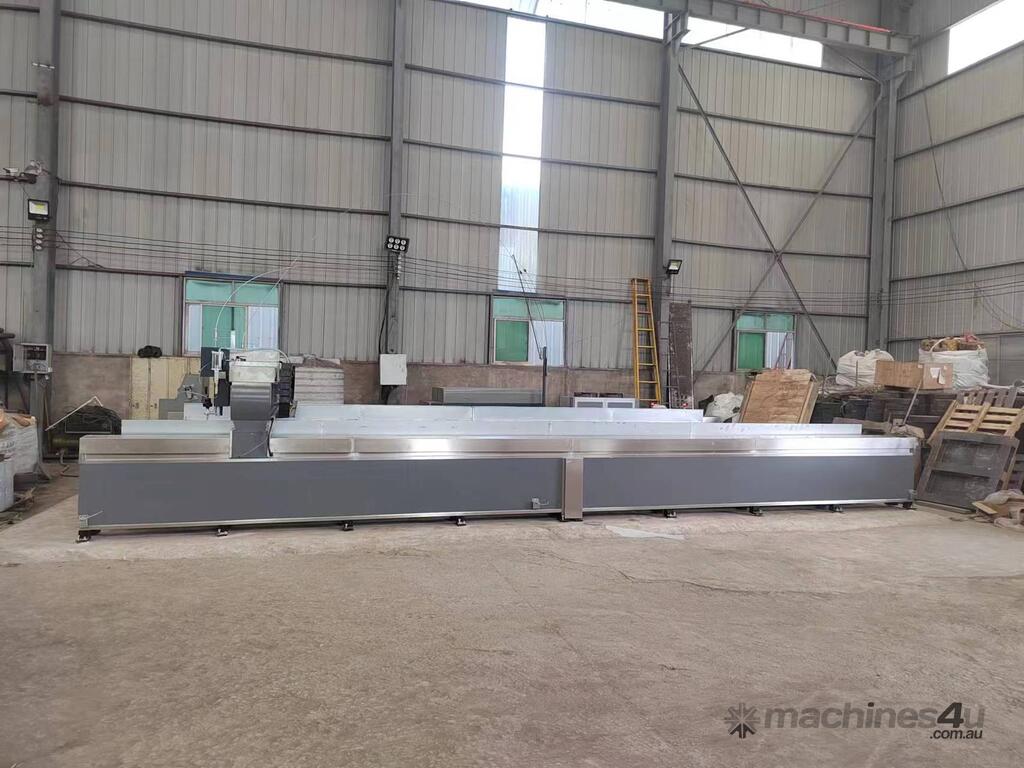

Machine structure:
Common sizes: 2000mm x 4000mm, 2000mm x 6000mm
2500mm x 4000mm, 3000mm x 6000mm
We also can customize the machine size upon customers' request
Compatible with 5 Axis cutting head

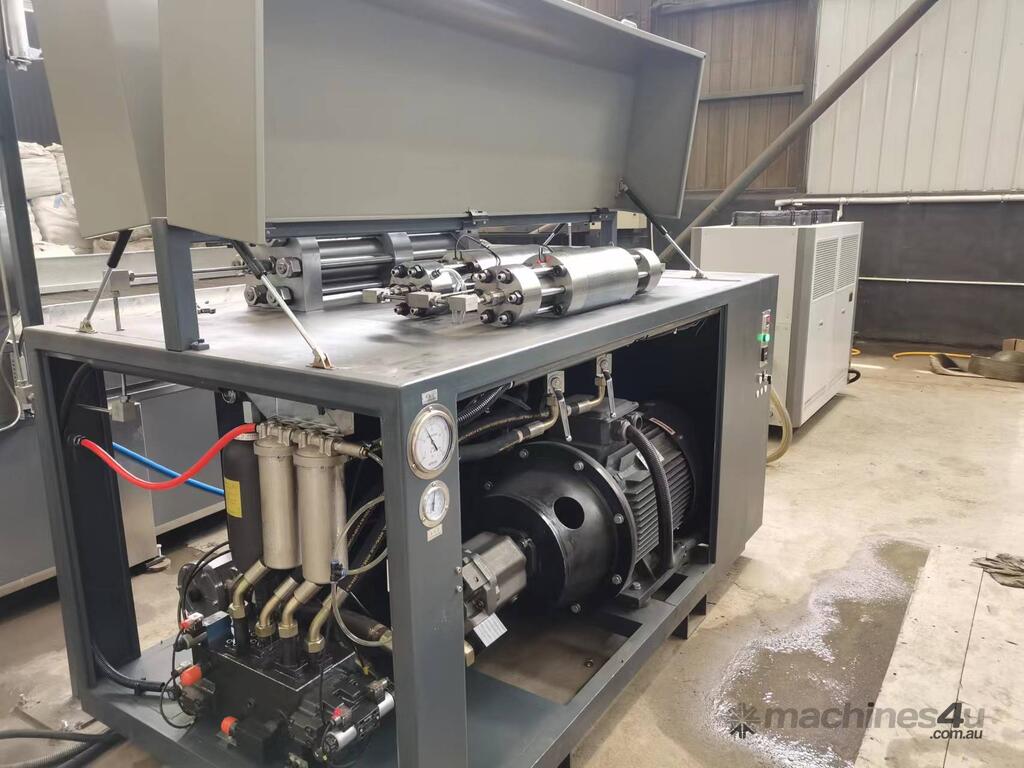

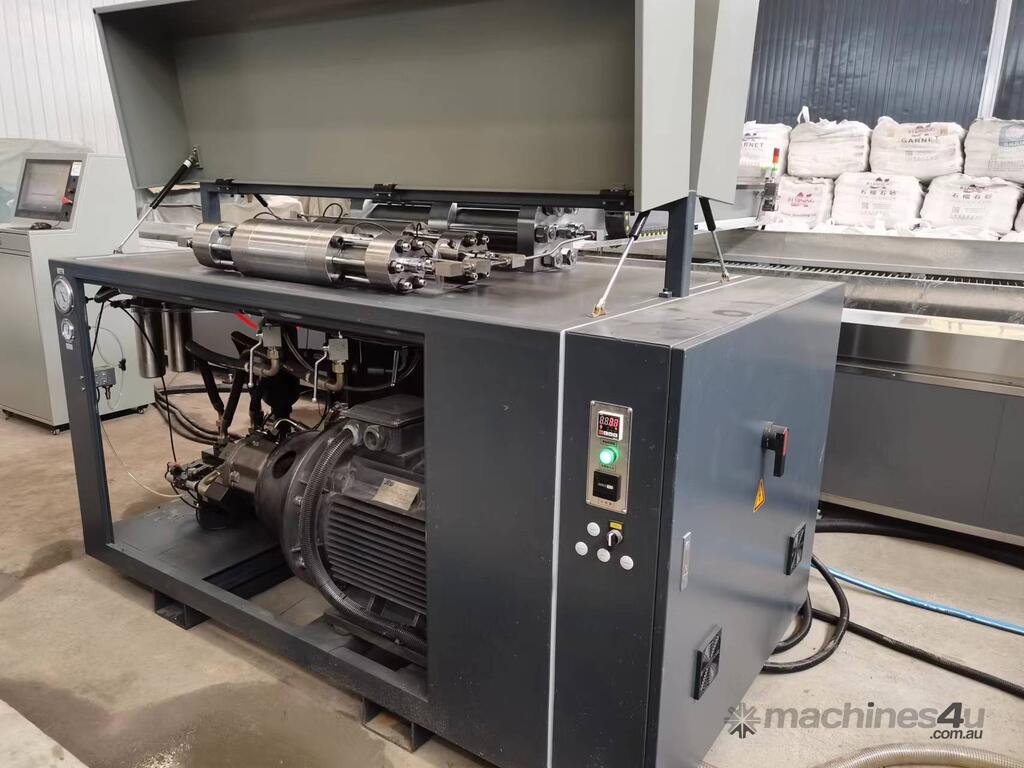

Intensifier Pump configuration
Max Pressure: 420 Mpa
Constant working pressure: 320Mpa
Hp intensifier component made in USA
Two stage water filter
Oil filter
Attenuator volume: 0.86L
Main motor power: 30Kw/37Kw
Piercing at low pressure, cutting at low pressure (designed from fragile materials such as glass and ceramics)

Garnet container capacity: 200 kg

Cutting head:
Travel distance: 150mm
Durable on/off seal kit

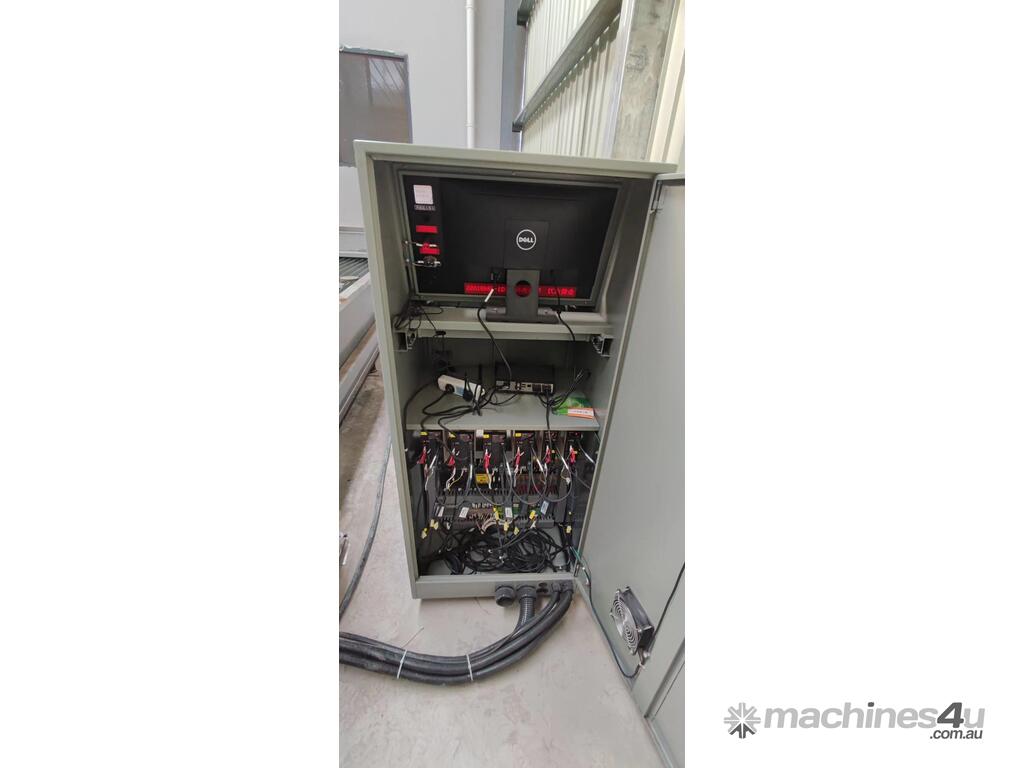

Controlling:
Programming software: integrated with basic CAD functions. Compatible with DXF file

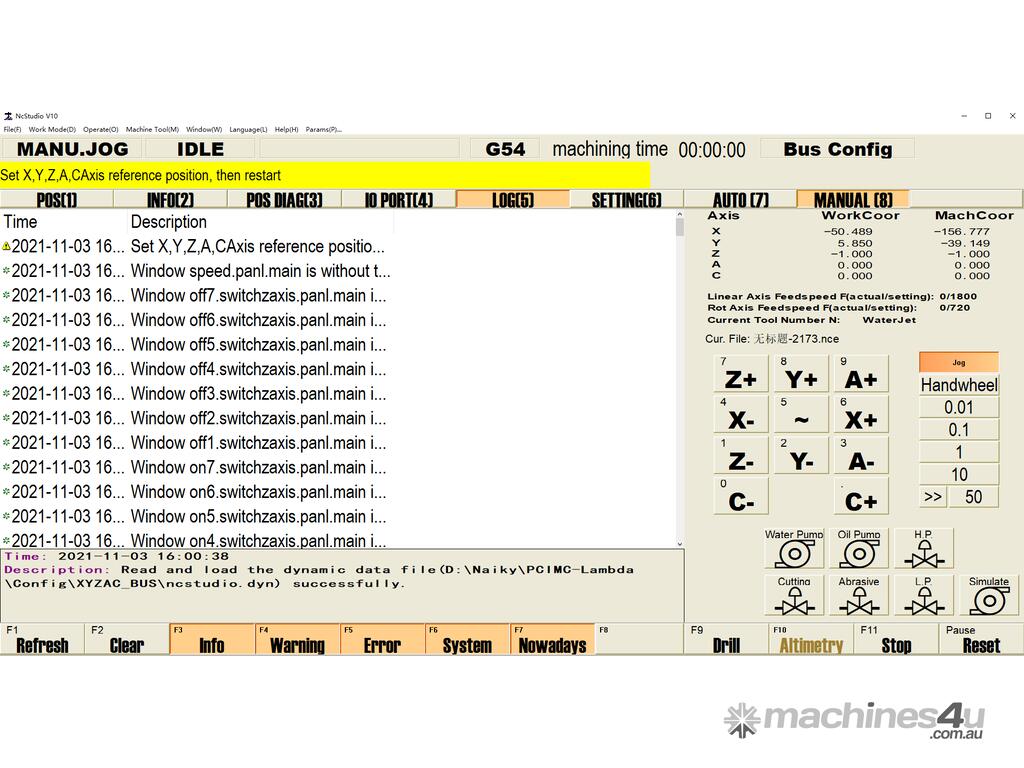

Controlling software:
ESA Italy or NcStudio (5 axis compatible)

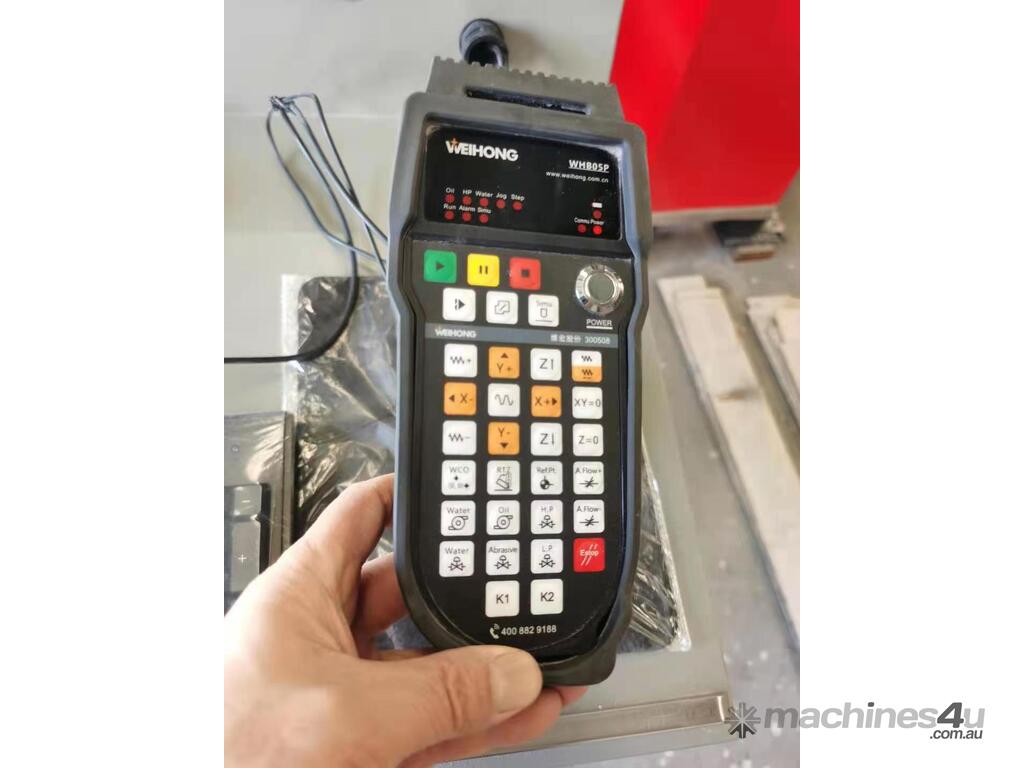

remote control available
resume cutting from stop point
easy to operate
