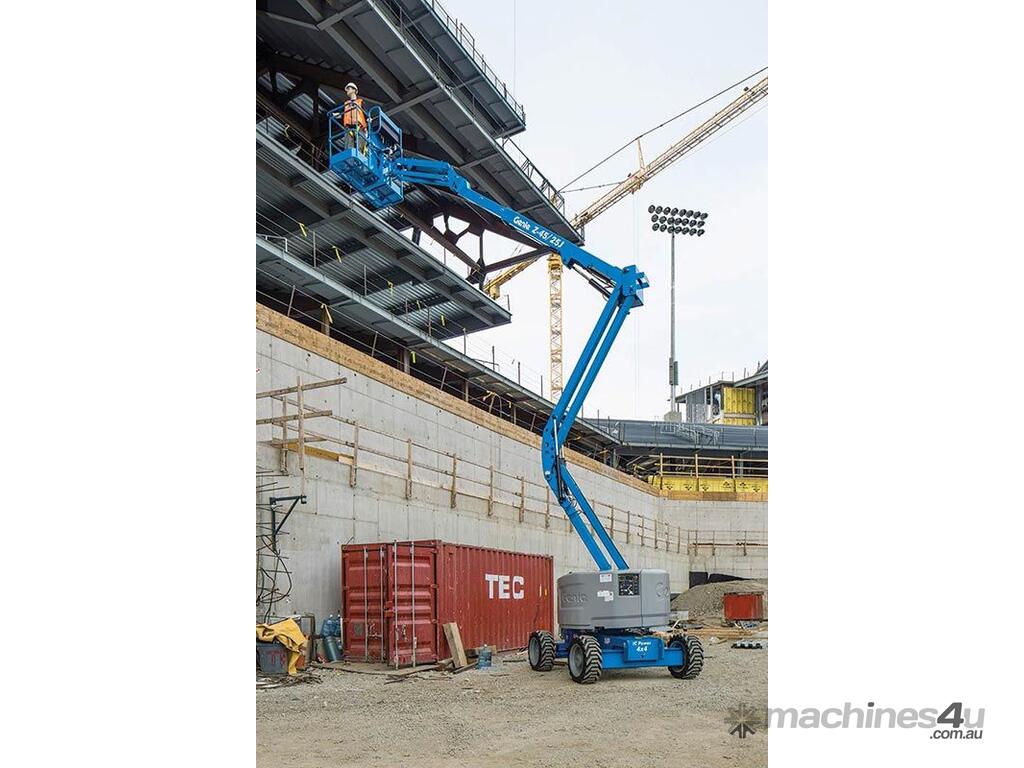

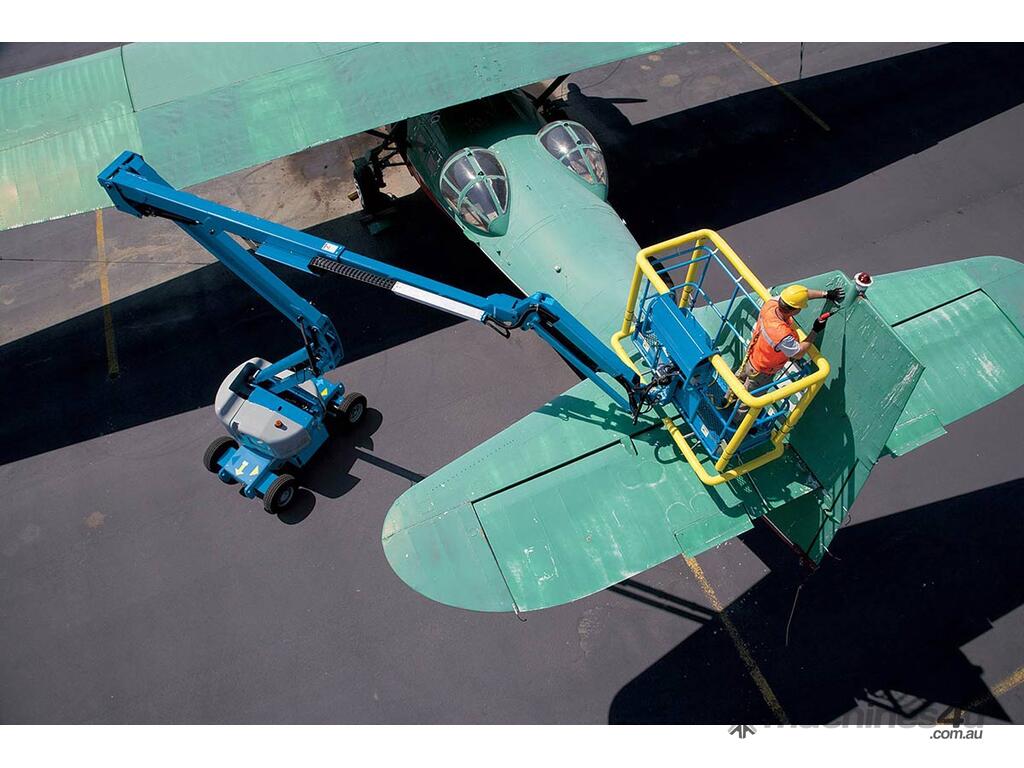

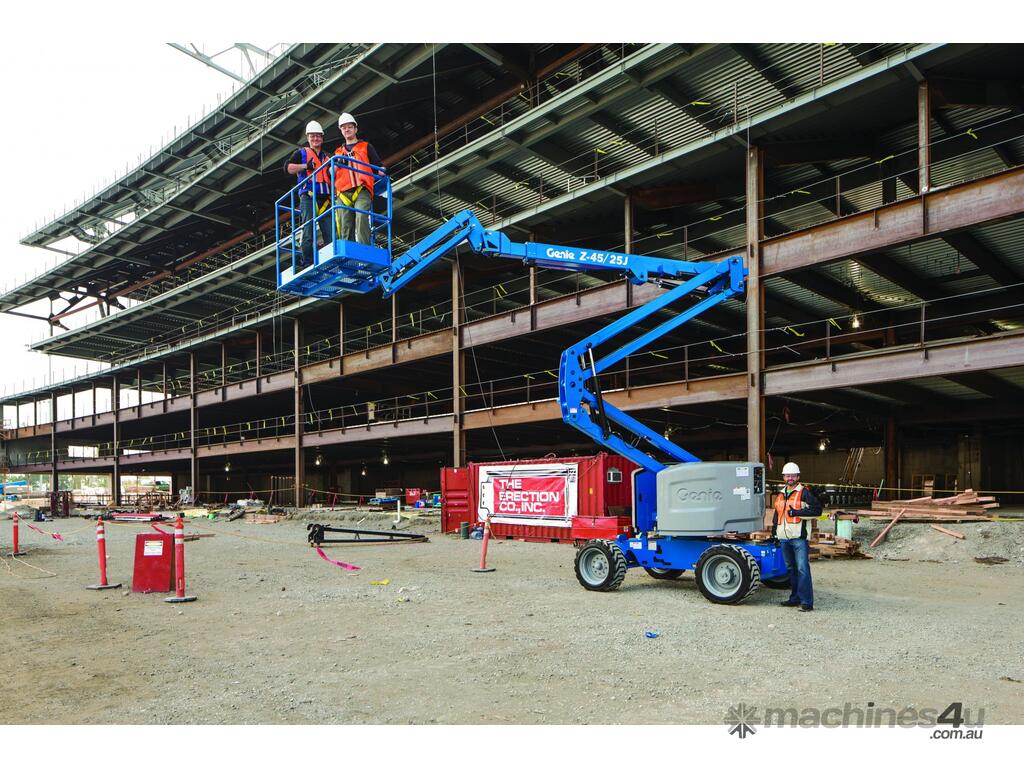

Genie Z-45/25J DC Articulated Boom Lift

The Genie® Z®-45/25J DC electric articulating boom lift offer quiet, emission-free operation. With this Genie electric boom lift, operators can easily work close to buildings or around obstacles, and access overhead work from aisles and other congested areas.

Overview

• Zero tailswing and tight turning radius for easy manoeuvring in confined jobsites
• 30% gradeability and 4.8 km/h (3 mph) travel speed for excellent drive performance
• 1.52 m (5 ft) articulating jib with a 135° vertical rotation to accurately position workers
• 160° hydraulic platform rotation and self-levelling platform for easy operation
• Large 1.83 m (6 ft) all-steel platform lifts up to 227 kg (500 lb)

Specifications
Max Working Height 51 ft 9 in | 15.94 m
Max Horizontal Reach 25 ft 1 in | 6.75 m
Max Up and Over Clearance (riser extended) 23 ft 9 in | 7.24 m
Platform Capacity 500 lb | 227 kg
