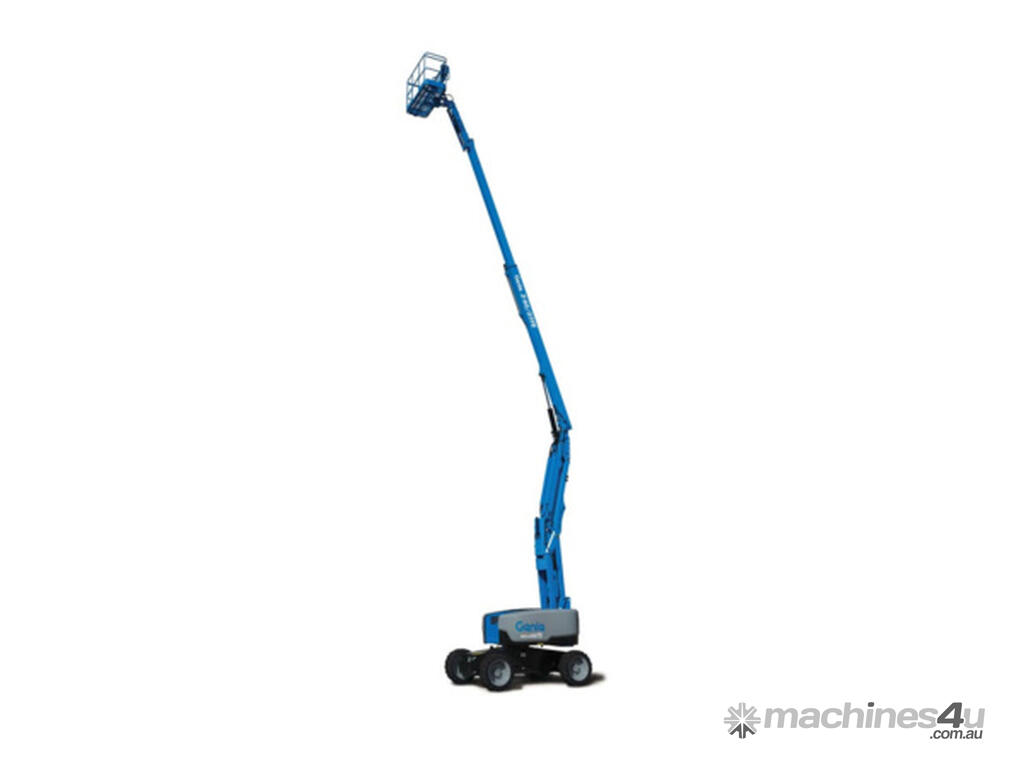

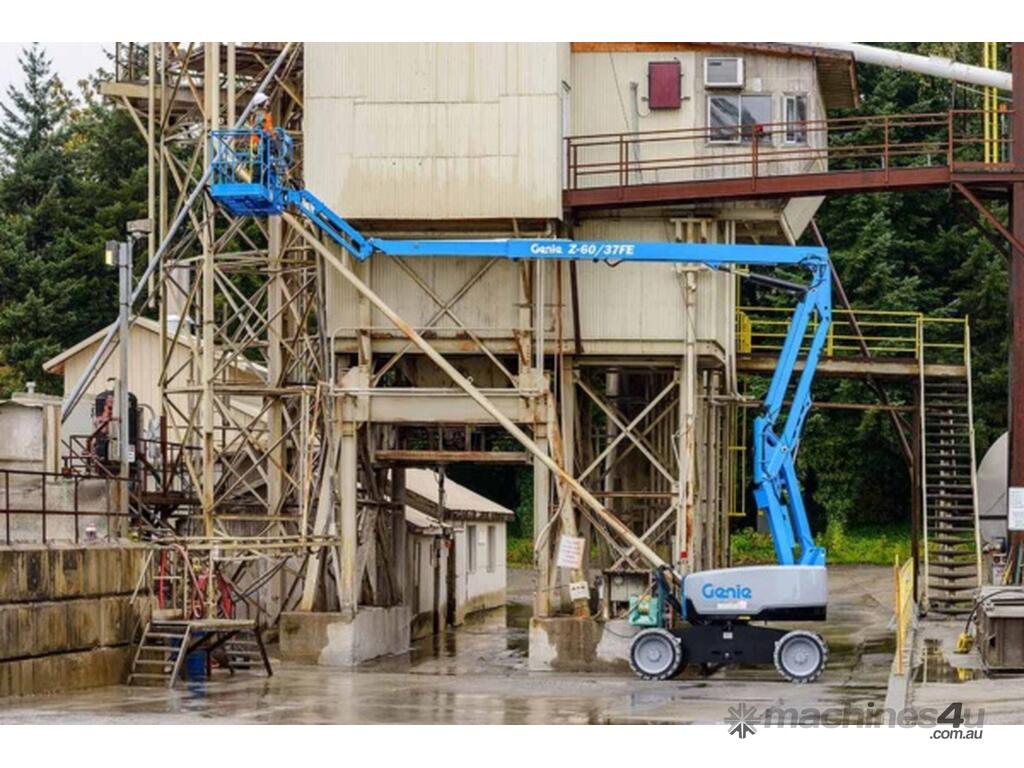

Genie Z-60 FE Boom Lift

Two machines in one, the Genie® Z®-60/37 FE hybrid articulating boom lift is the ideal, environment-friendly solution for increased efficiency and low cost of operation. In ‘all-electric’ mode it offers a full work day of emissions-free run time on a single battery charge. In ‘hybrid’ mode, it offers one week of run time with a single tank of diesel.

Specification Value
Max Working Height 65 ft 7 in | 20.16 m
Max Horizontal Reach 36 ft 7 in | 11.15 m
Max Up and Over Clearance (riser extended) 24 ft 3 in | 7.39 m
Below Ground Reach 8 ft 1 in | 2.46 m
Platform Capacity 500 lb | 227 kg
