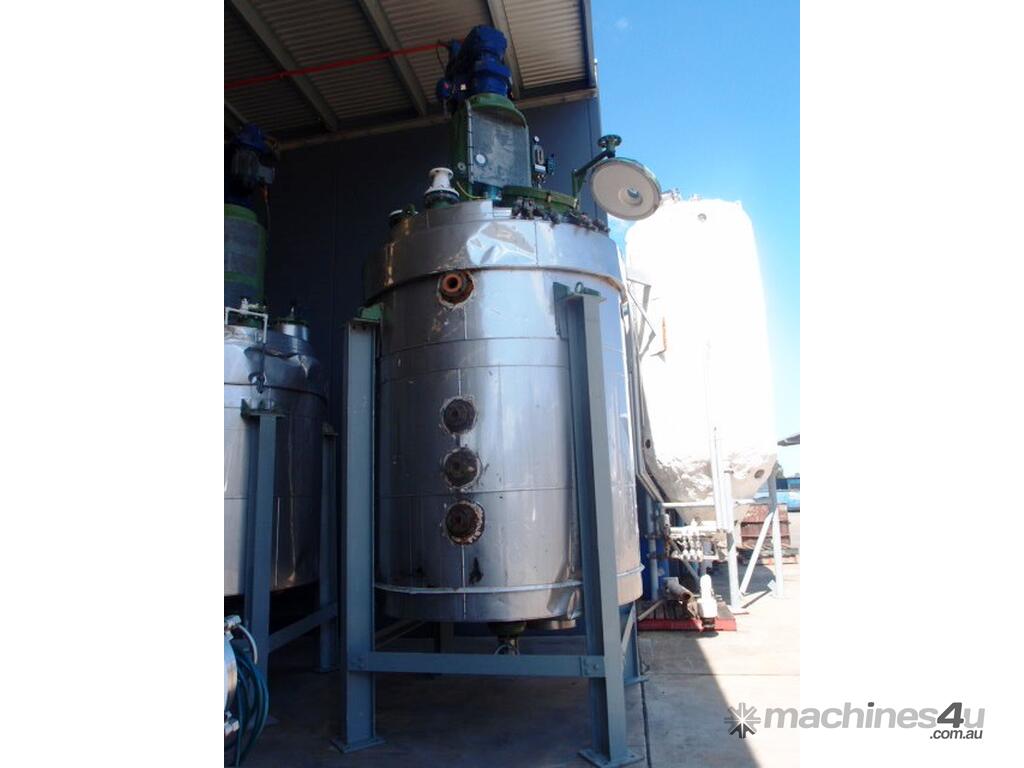

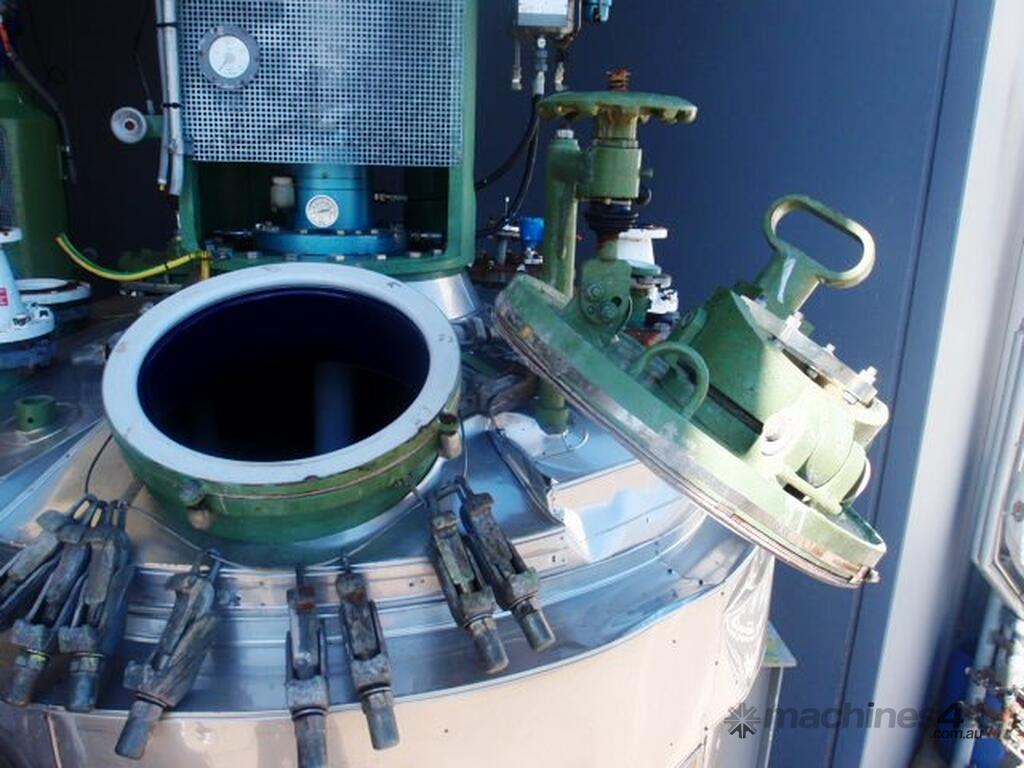

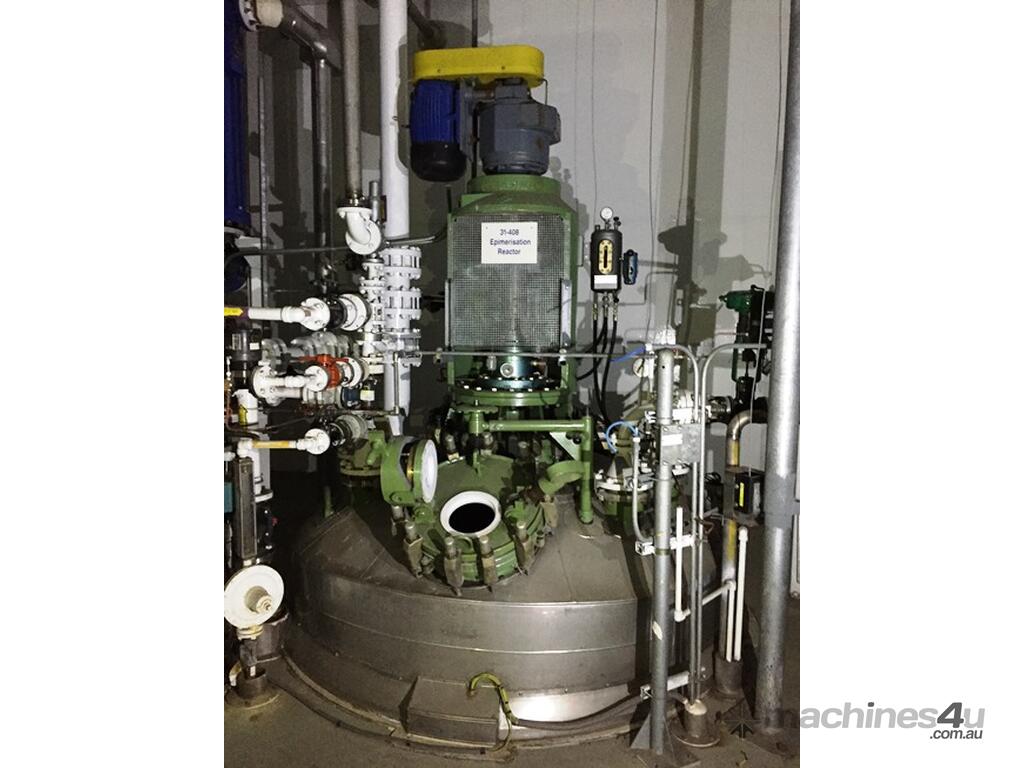

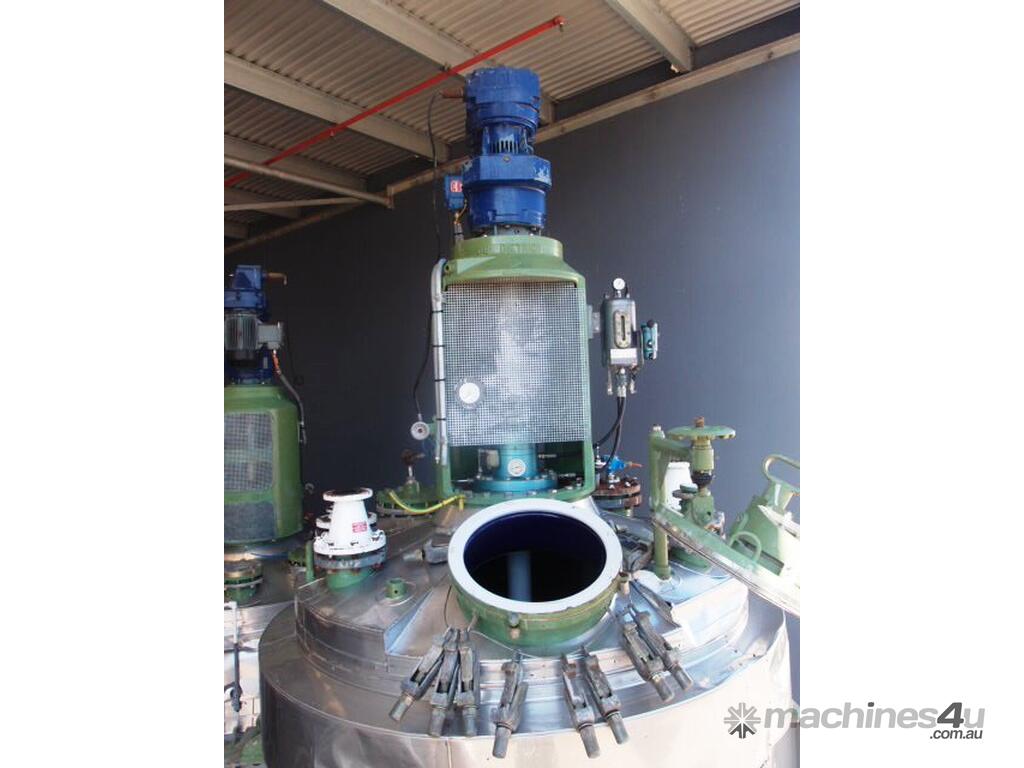

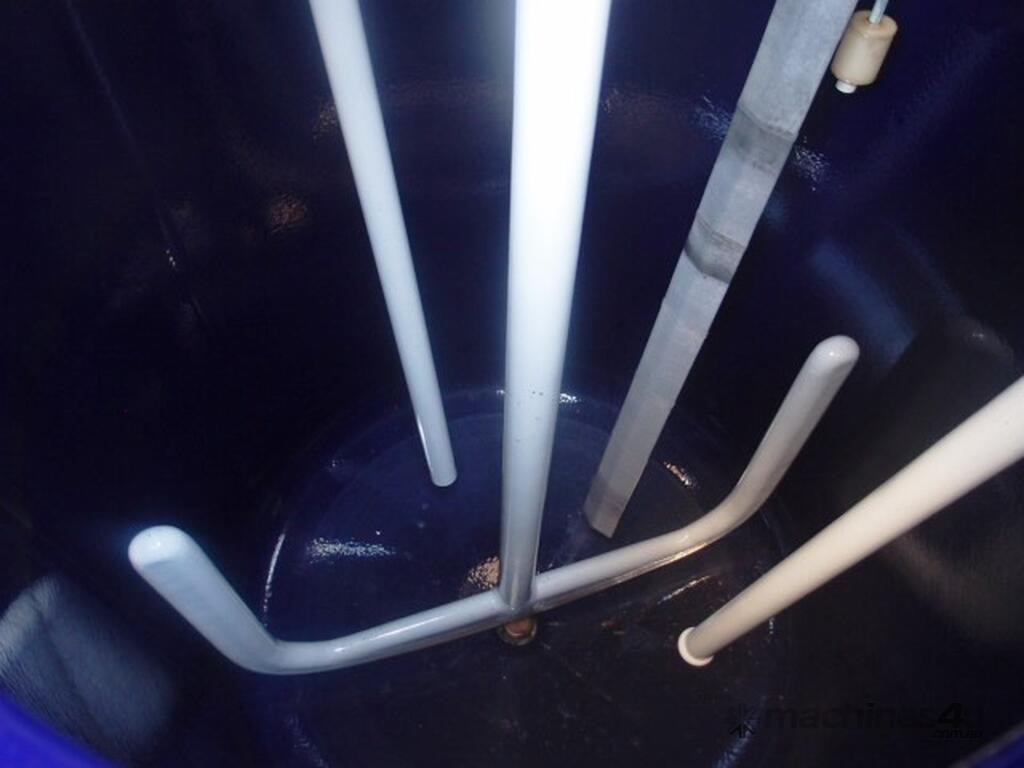

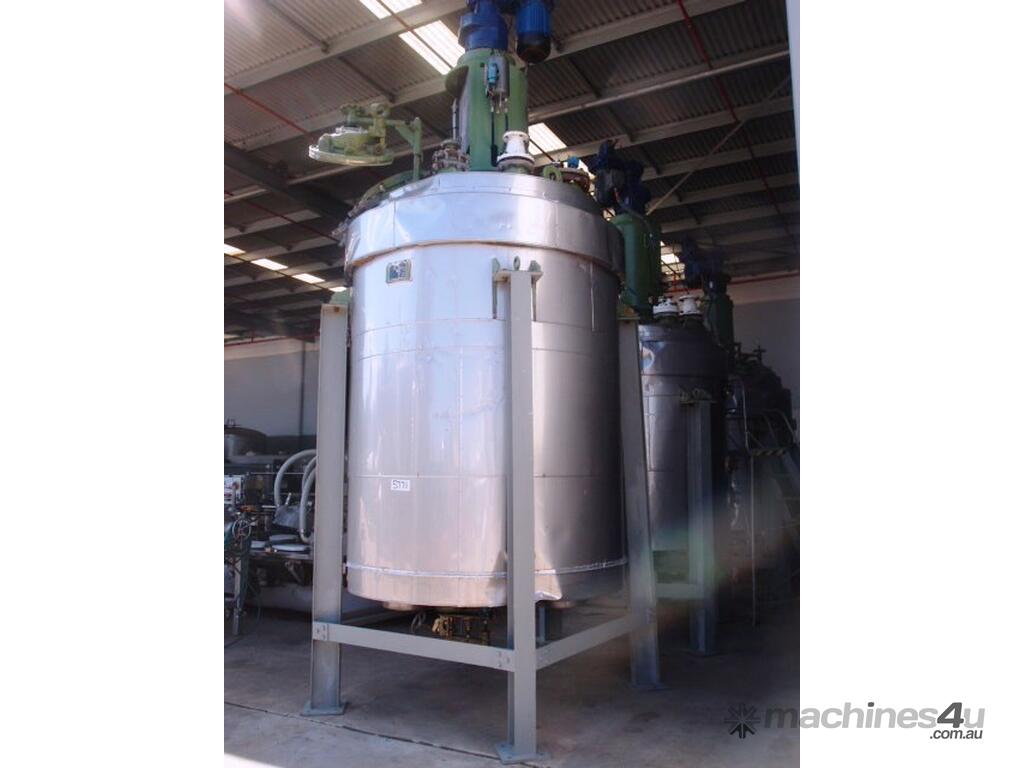

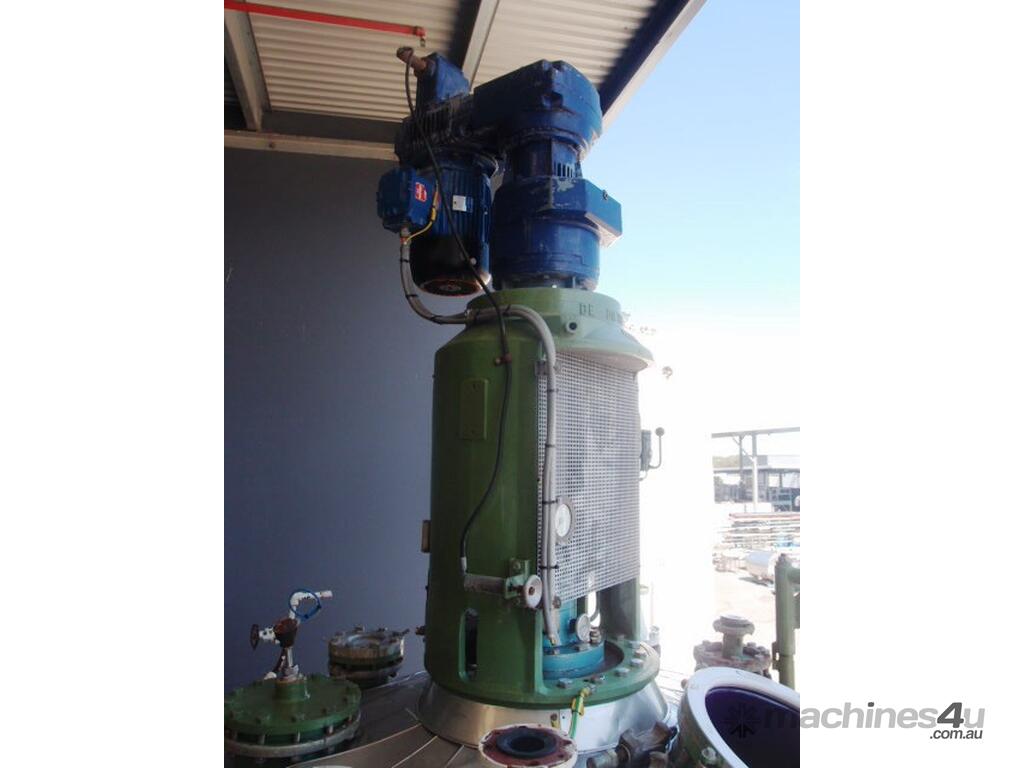

Pressure Vessel Tank (Glass Lined & Jacketed), Capacity: 6300Lt, Dimension: 2100mm Dia x 1860mm H, Brand: De Dietrich Unit is a glass lined jacketed mixing batch reactor with stainless steel pop riveted insulation. Unit is complete with Carbone Lorraine graphite condenser. The reactor is fitted with a center mounted anchor stirrer and is driven by a SEW 11Kw 6-33 RPM variable speed, 415V EXD flameproof gear motor.

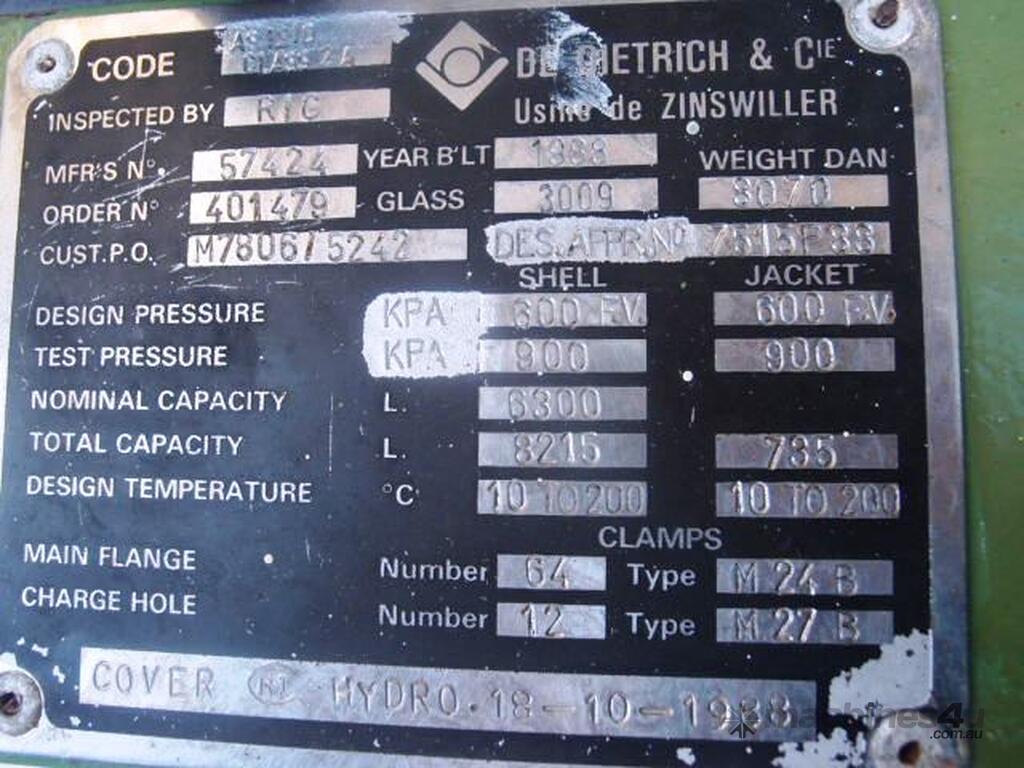

Plate Details: Year: 1988. Manufacturers No.: 57424 Code: AS1210 Class 2A. Shell Design Pressure: 600 KPA/FV. Jacket Design Pressure: 600 KPA/FV. Shell Test Pressure: 900 KPA. Jacket Test Pressure: 900 KPA. Shell Nominal Capacity: 6300 Lt. Shell Total Capacity: 8215 Lt. Jacket Total Capacity: 735 Lt. Shell Design Temp.: 10-200 Deg C. Jacket Design Temp.: 10-200 Deg C.
M&E Equipment Traders is a family company operating from its large 23,000 square metre site servicing customers in the Food Processing, Chemical, Beverage, Pharmaceutical, Packaging, Electrical, Materials Handling and General Industries.
Our vast stock holding is an A-Z of New Equipment and Used Equipment for a host of industrial applications from Air Compressors, Boilers, Conveyor, Stainless Steel Tanks, Generators, Electric Motors, Pumps & Refrigeration equipment right through to anci
