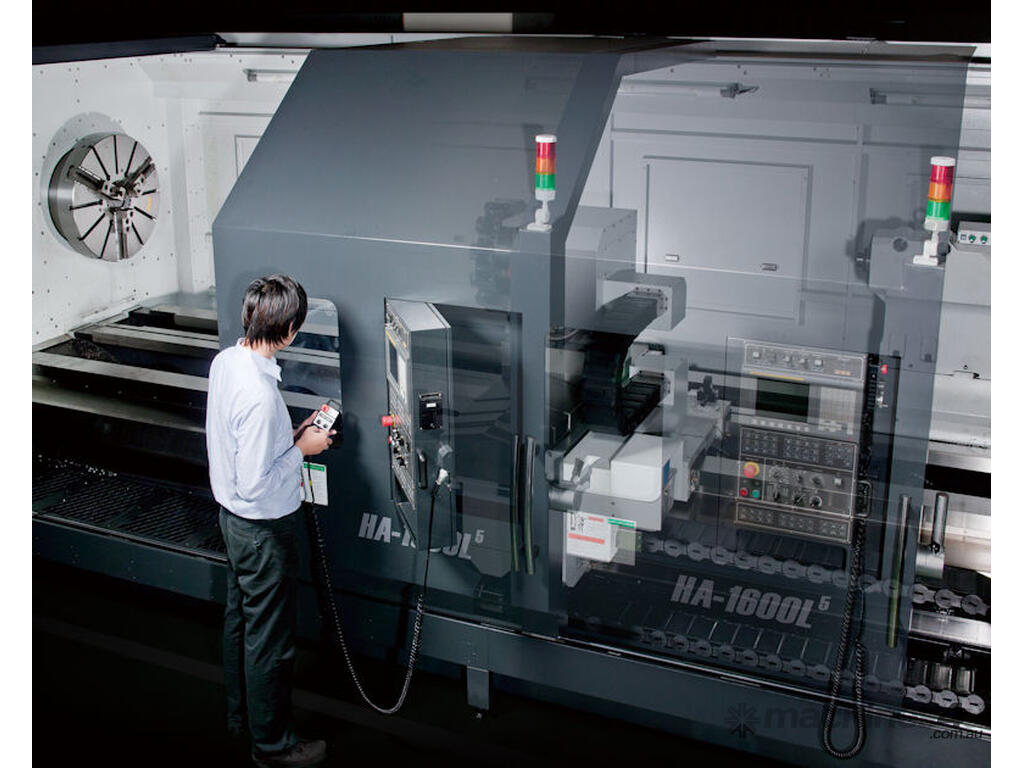

Goodway HA Series 5 Guideway CNC Lathe

HA Series 5 Guideway Heavy Duty CNC Lathe

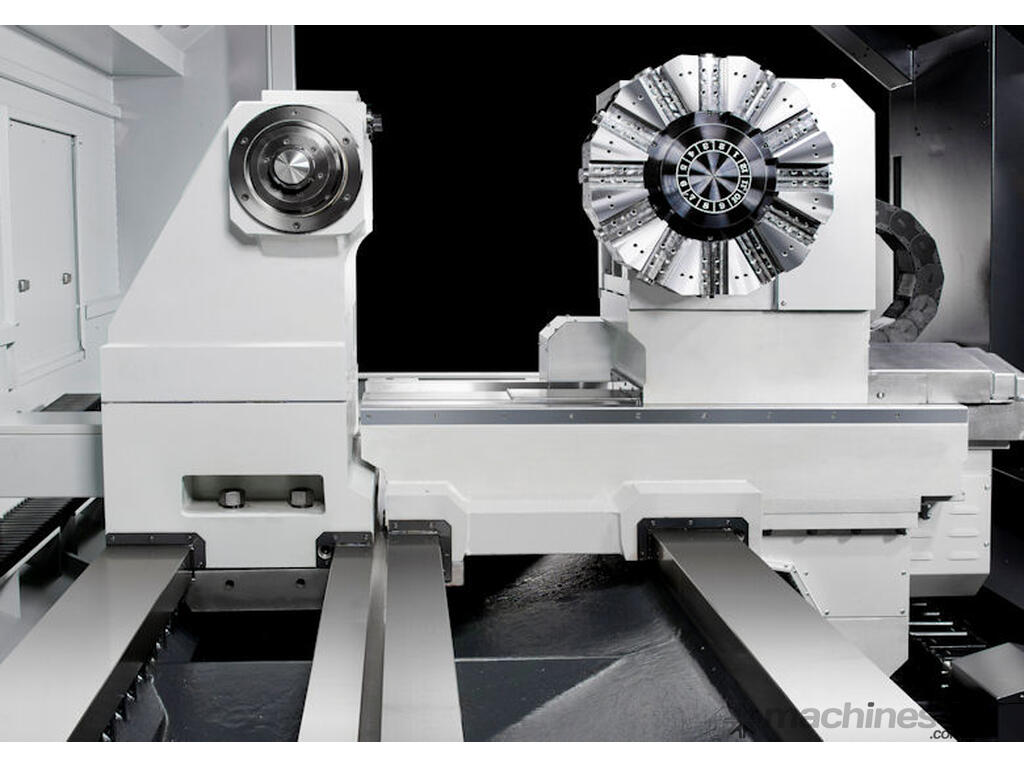

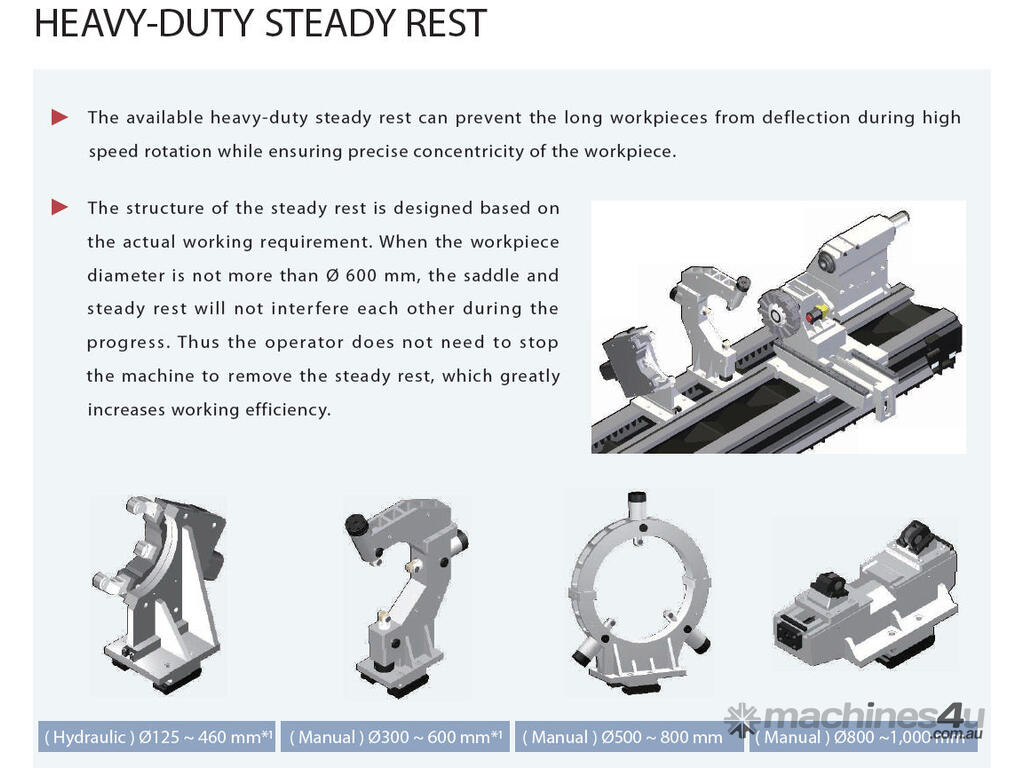

Exciting new addition to the Goodway line up, with a 5 guideway bed design the tailstock and steadies are mounted on the rear 2 slides and the carriage on the front 3 slides allowing the carriage to turn the full length of the bed and even past the tailstock aleviating the most common issues with flat bed CNC lathes. The HA Series can be tailored to large diameter heavy duty turning or oil country work (or a combination of both), offering swing over the bed from 1400 ~ 2000mm and spindle bores up to 520mm diameter it's all covered with 1 machine.

Specifications
Swing over bed (mm): 1400 / 1600 / 2000
Swing over carriage (mm): 1000 / 1100 / 1500
Max turning diameter (mm): 1100 / 1300 / 1700
Max turning length (mm): 2000 ~ 6000 (other lengths available on request)
Max workpiece weight (kg): 15,000 (with steady rest)
Spindle bore (mm): 205 / 260 / 320 / 420 / 520
Spindle speed (rpm): 800 / 600 / 500 / 300 / 250
Gearbox: 3 speed

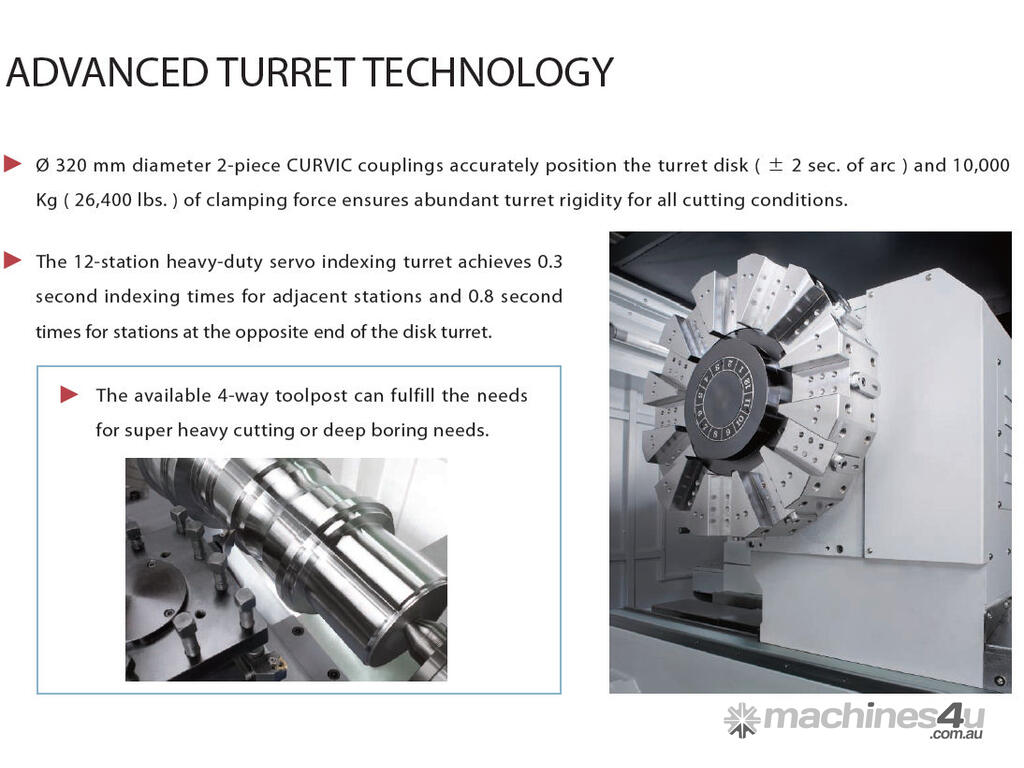

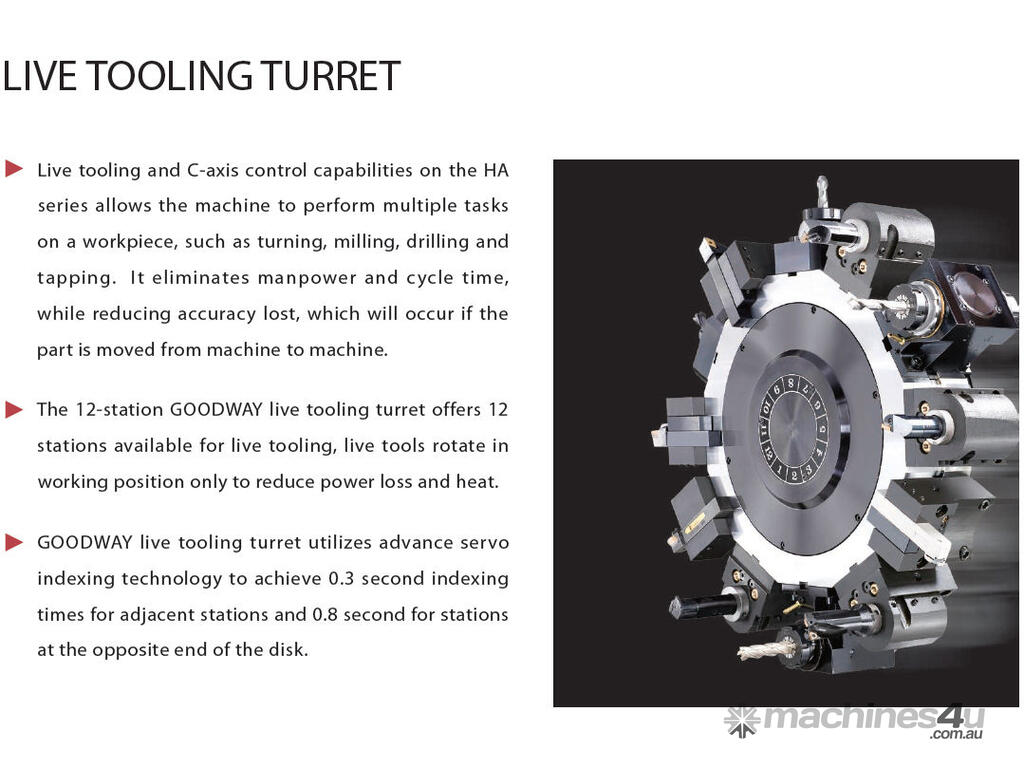

Tool turret: H4 or V12
Width of bed (mm): 1350
Motor (kW): 45
Machine weight (kg): 20000 ~ 32,000

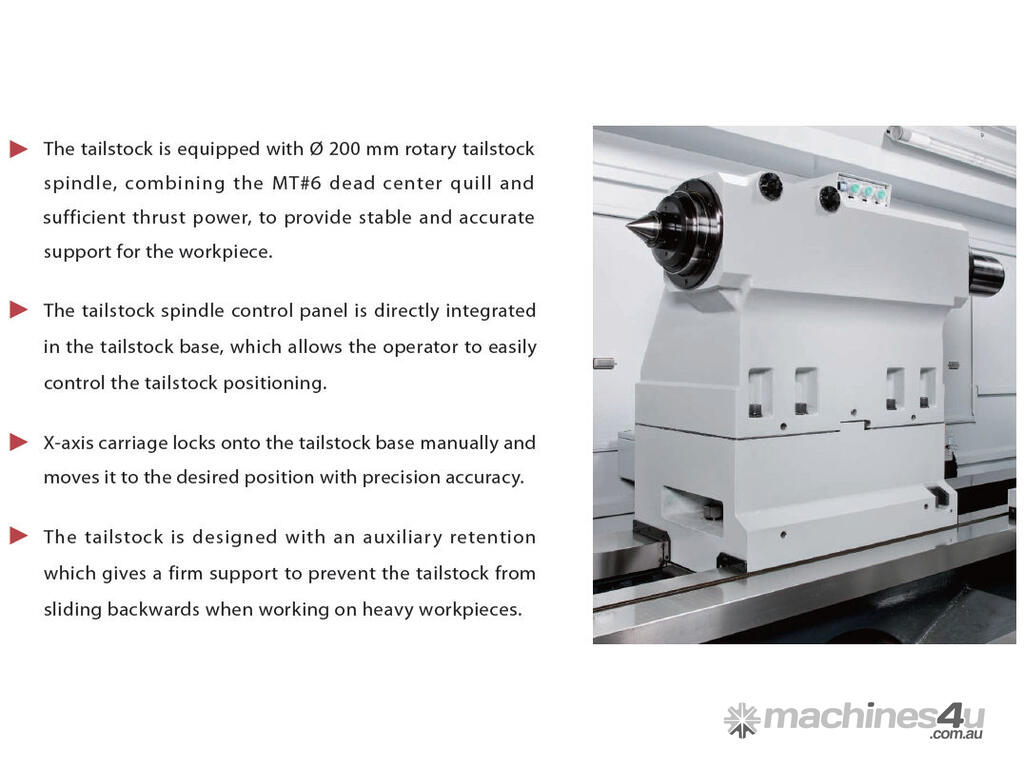

C/w Fanuc Control (Siemens conversational also available on request), chip Auger (front) and conveyor (rear), programmable tail stock quill, revolving tail stock quill.

Goodway’s are now one of the largest CNC Lathe manufacturers in the world and their recently opened state of the art manufacturing facility enables them to produce their range of CNC turning Centres in one the most modern plants in Taiwan, they are also one of the few Taiwanese machine tool manufacturers with their own sophisticated machine shop to produce critical components.

Goodway’s massive investment in new development areas over recent years has seen their range grow into new areas such as: Multi Tasking Machines, Swiss Type Lathes, Large Slant Bed Lathes up to Ø980mm turning diameter and CNC Vertical Lathes including a Ø5000mm vertical lathe currently in development.

Since 1975 Goodway Machine Corp has specialised in the development and manufacture of high precision turning centres, currently Goodway produce in excess of 2,000 CNC Lathes each year and have grown to be one of the largest CNC lathe manufacturers in the world. Their machines are now well known in over 50 countries for their exceptional performance, quality and value and with over 75 model variants ranging from Ø32 ~ Ø205mm bar capacity, Ø6” ~ Ø24” chuck size, turning lengths up to 6000mm and 2 ~ 9 axis configurations, Goodway has the capability to meet virtually any turn / mill application. There really is a solution for every turning requirement in the Goodway range of Turning Centres!
