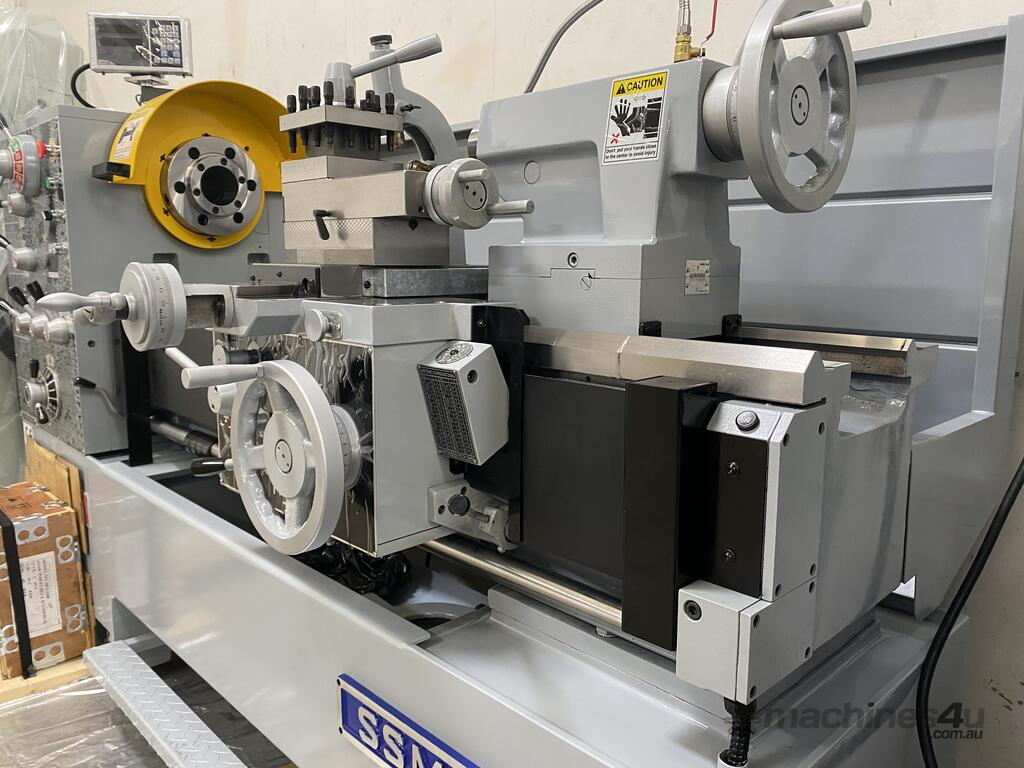

Gosan SSM 2040 Metal Lathe (Spindle bore 86mm) 1000mm between centres

Quality Taiwanese lathes with excellent safety and reliability.

High-quality, Taiwanese-built Gosan lathes are an excellent choice for metalworking professionals – with a wide range to meet individual requirements. They feature advanced safety features such as interlock chuck guards and electromagnetic braking – as well as excellent thread cutting capabilities.

Quality Taiwanese lathes with excellent safety and reliability
Spindle Bore = 86mm.
Swing = 510mm
Fagor 20iT 2 Axis Digital Read Out
10" Bison 3 Jaw Chuck
12" Direct mount 4 Jaw Chuck
16" Face plate

FEATURES
Heavy duty geared head; hardened and ground gears.
Spindle Bore = 86mm. 3-3/8inch hole through spindle.
Swing = 510mm
Swing over Gap = 730 mm
3-point supported spindle using 2 precision taper roller bearings and 1 ball bearing.

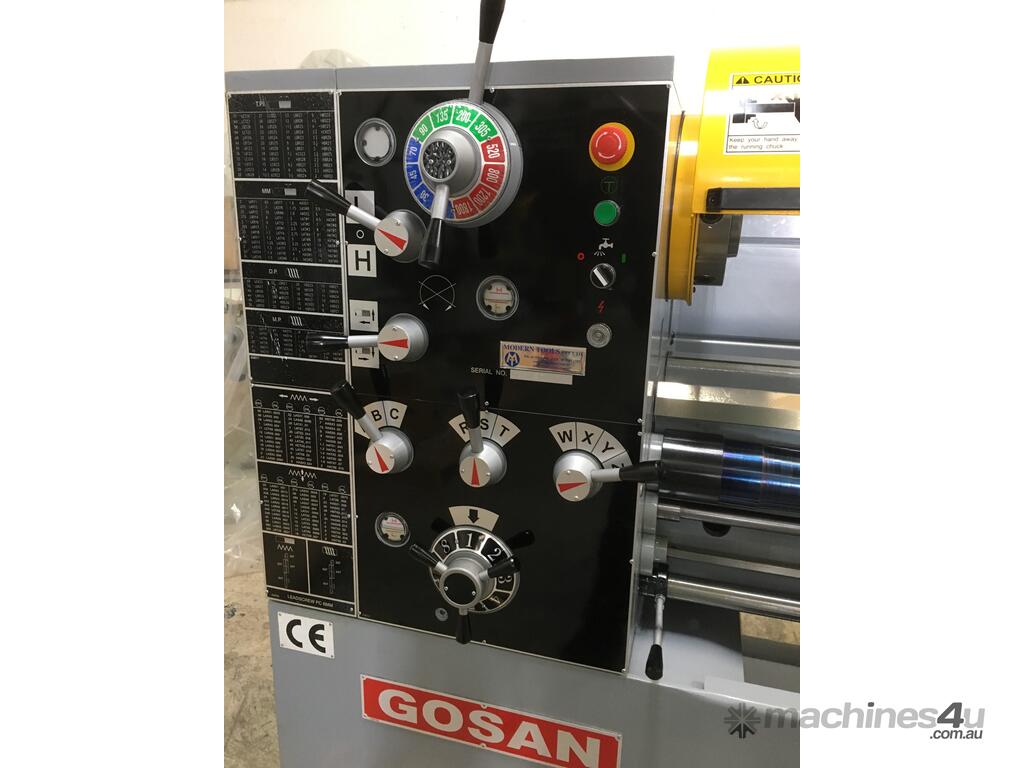

12 steps spindle speeds 20 – 1800 rpm. shift in geometric progression.

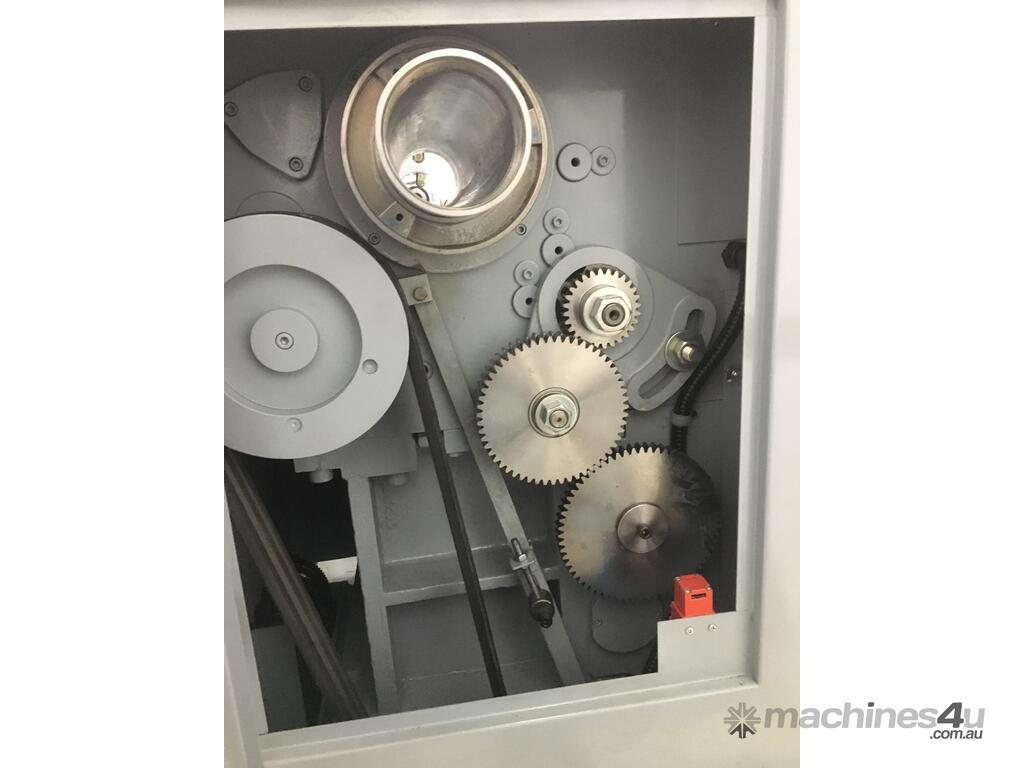

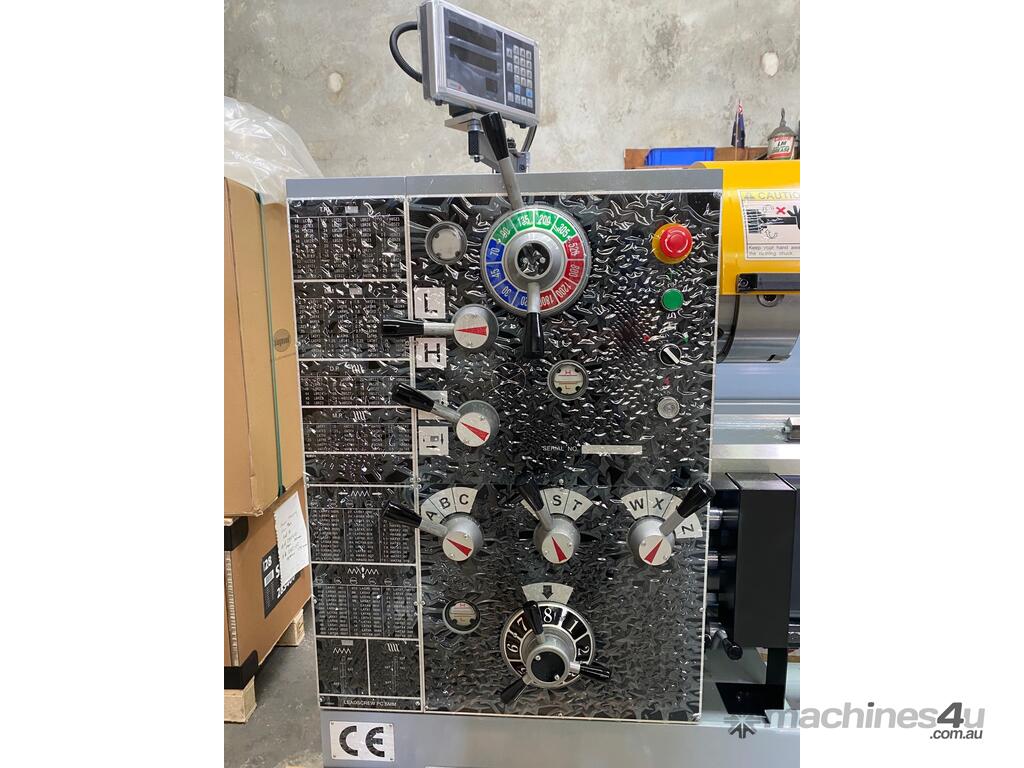

Quick-change universal gearbox for inch, metric, DP, MP, threading, and multiple thread.
10 HP Motor (7.5Kw)

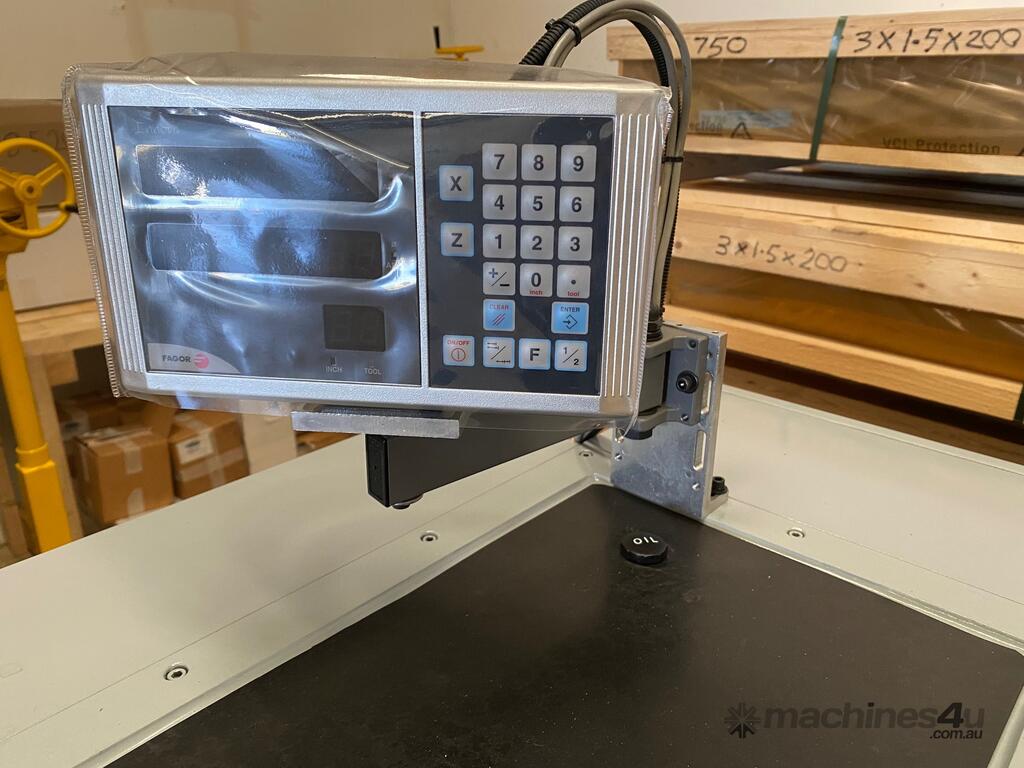

Fagor 20iT 2 Axis Digital Read Out

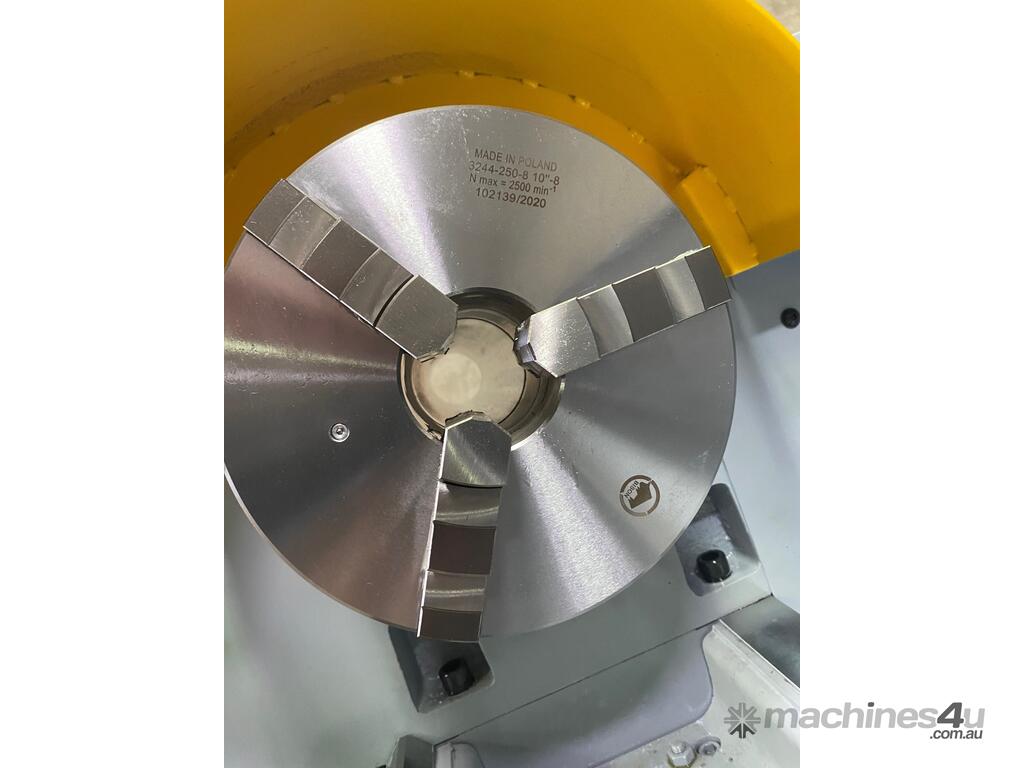

10" Bison 3 Jaw Chuck
12" Direct mount 4 Jaw Chuck
16" Face plate

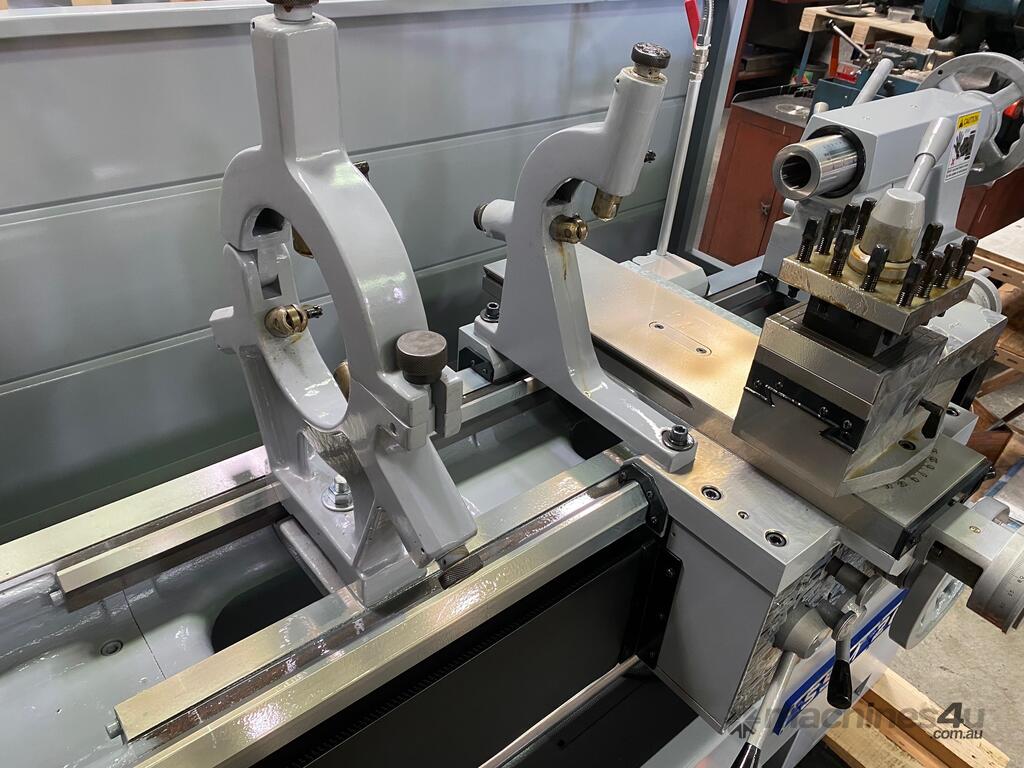

Follow Rest = Bearing Type
Fixed Rest = Bearing Type

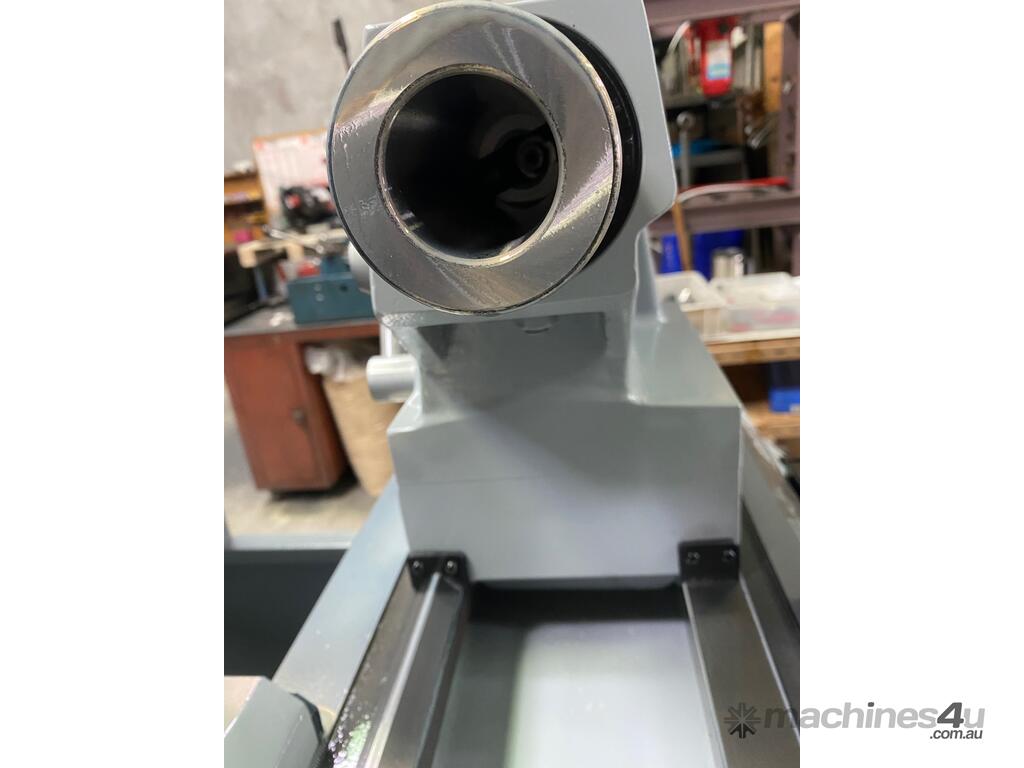

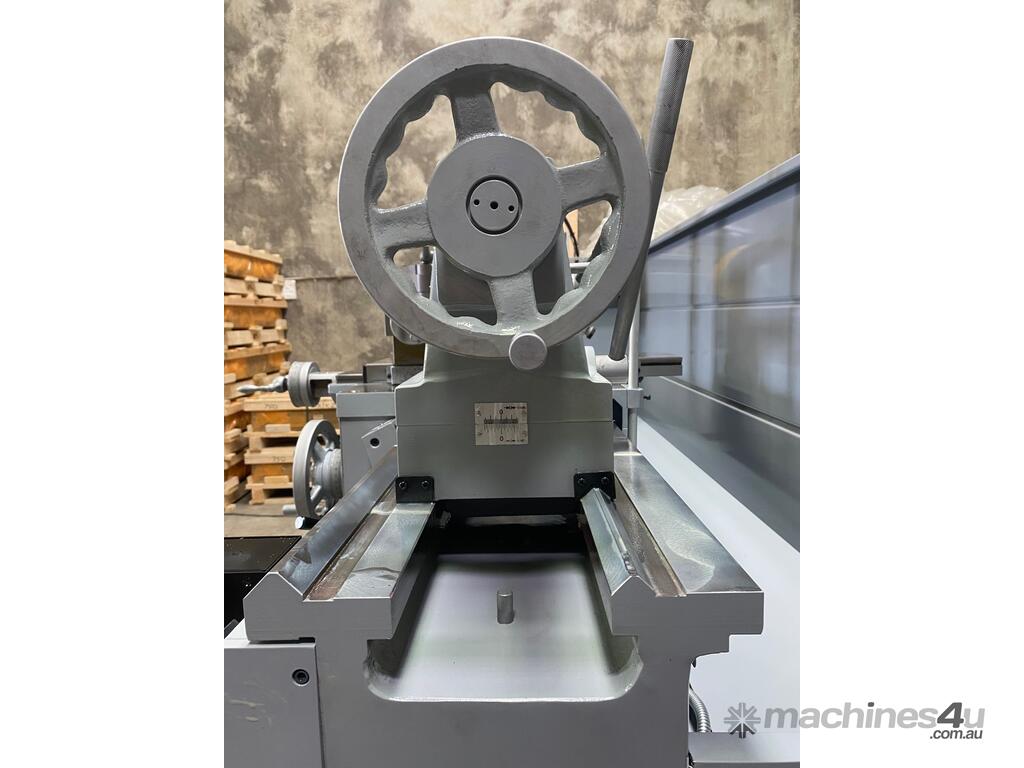

Tail Stock = 5 MT
Leadscrew Cover = Roller blind type

Reversable saddle whilst in operation
Overload safety protection
4 Position Auto Feed Stops
Foot brake with emergency stop
Forced spray lubrication system used for headstock.
One shot lubrication pump supply oil cross slide and bed-ways.

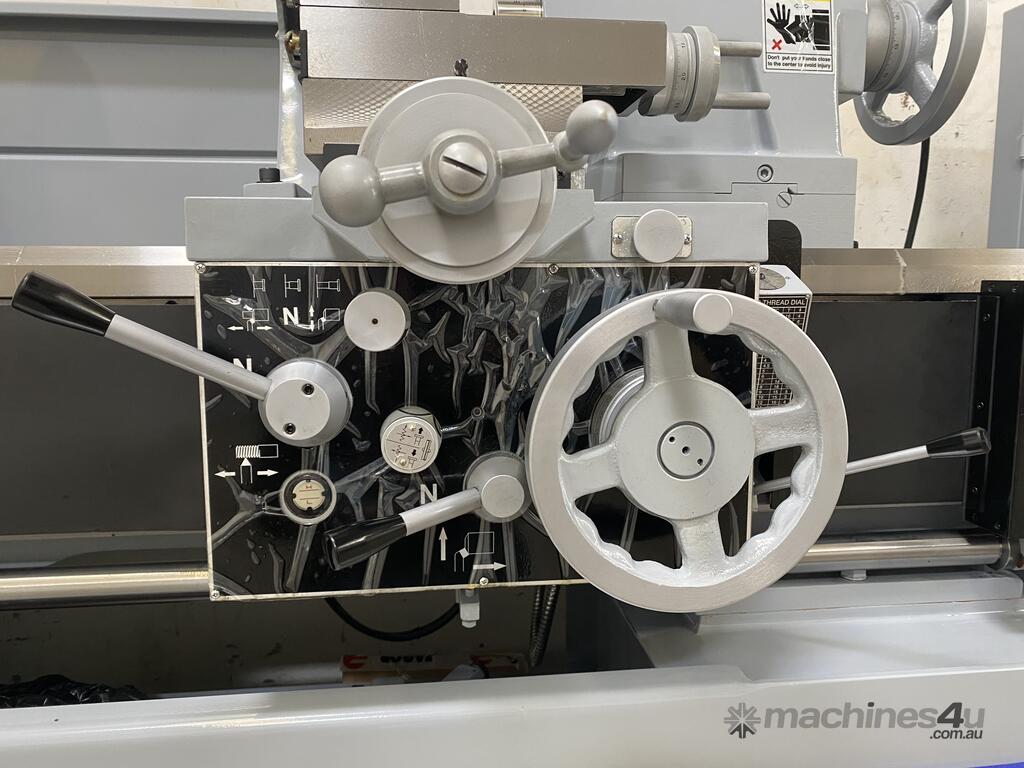

Adjustable overload clutch in apron to ensure proper cutting load.
Cross slide screw permanently immersed in oil and supported by thrust bearing.
Induction hardened and precision ground bed-way.
One-piece base for maximum rigidity.
