High-quality, Taiwanese-built Gosan lathes
Spindle Bore = 58mm
Swing = 434mm
Fagor 20iT 2 Axis Digital Read Out

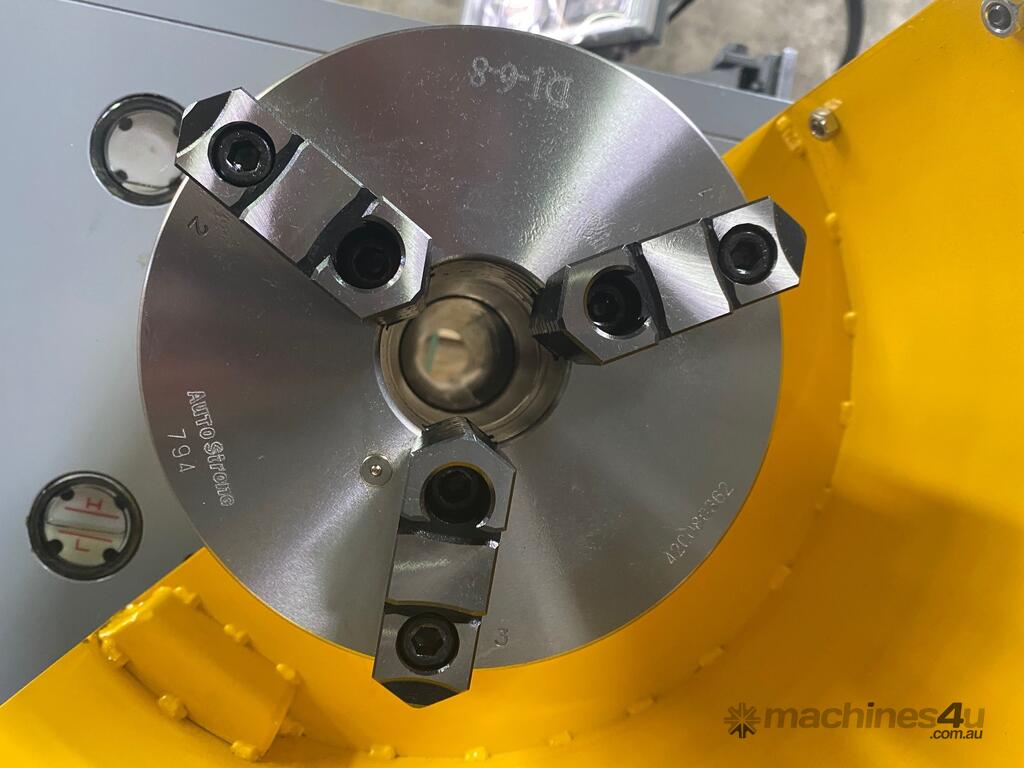

8" (200mm) Bison 3 Jaw Chuck
10" (250mm) Direct mount 4 Jaw Chuck

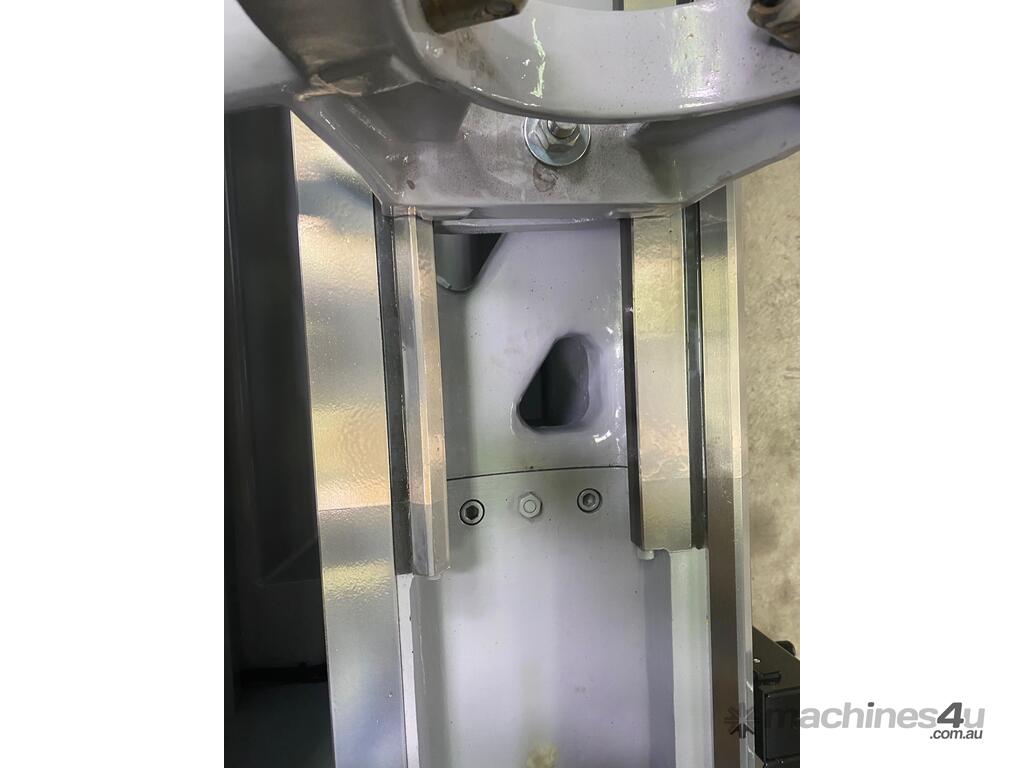

Swing over Gap = 630 mm
High-quality, Taiwanese-built Gosan lathes are an excellent choice for metalworking professionals – with a wide range to meet individual requirements. They feature advanced safety features such as interlock chuck guards and electromagnetic braking – as well as excellent thread cutting capabilities.
FEATURES
Heavy duty geared head; hardened and ground gears.
Spindle Bore = 58mm.
Swing = 434mm
Swing over Gap = 630 mm

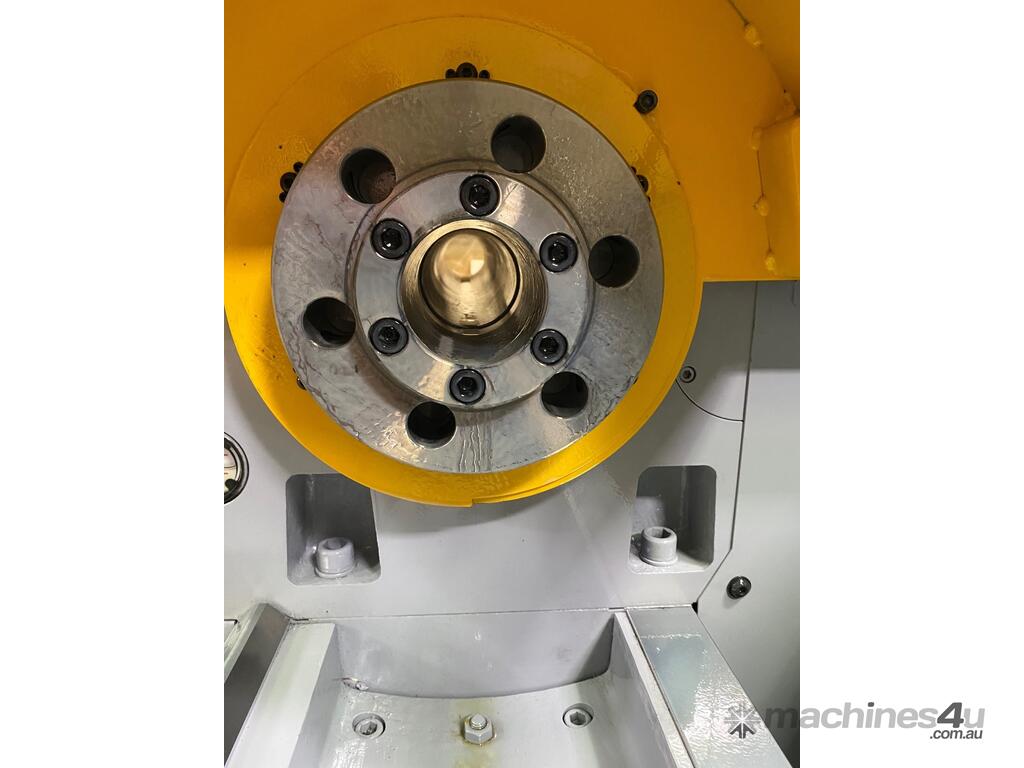

3-point supported spindle using 2 precision taper roller bearings and 1 ball bearing.
12 steps spindle speeds 20 – 2000 rpm. shift in geometric progression.

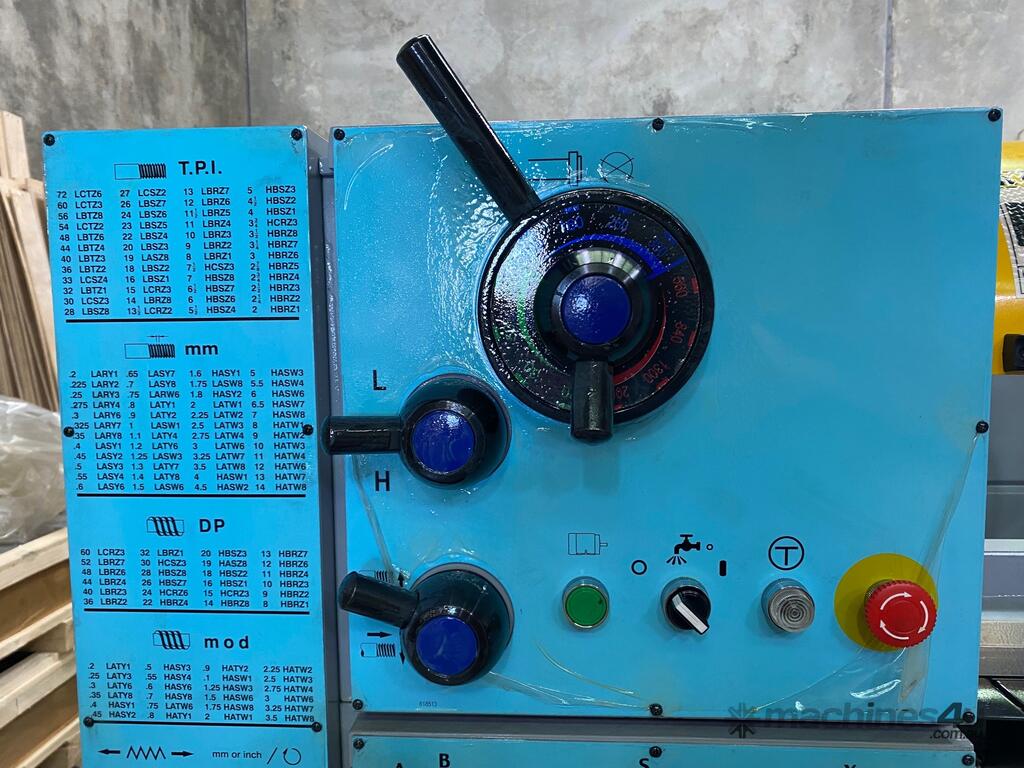

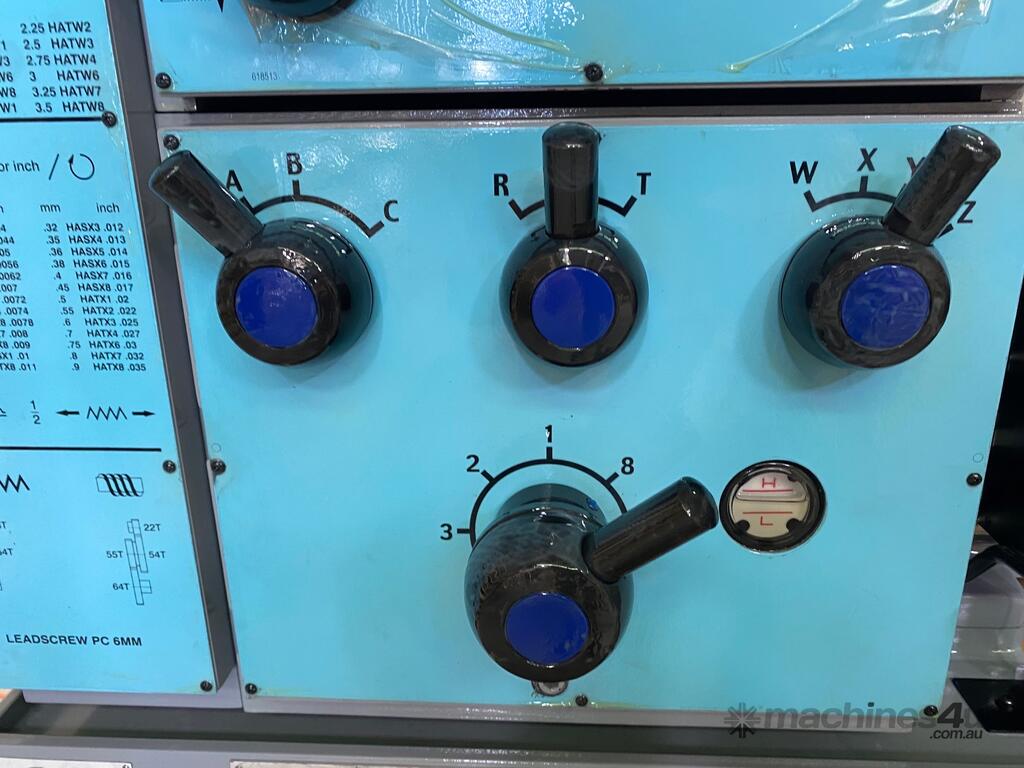

Quick-change universal gearbox for inch, metric, DP, MP, threading, and multiple thread.
7.5 HP Motor (5.7Kw)
Fagor 20iT 2 Axis Digital Read Out
8" (200mm) Bison 3 Jaw Chuck
10" (250mm) Direct mount 4 Jaw Chuck
14" Face plate

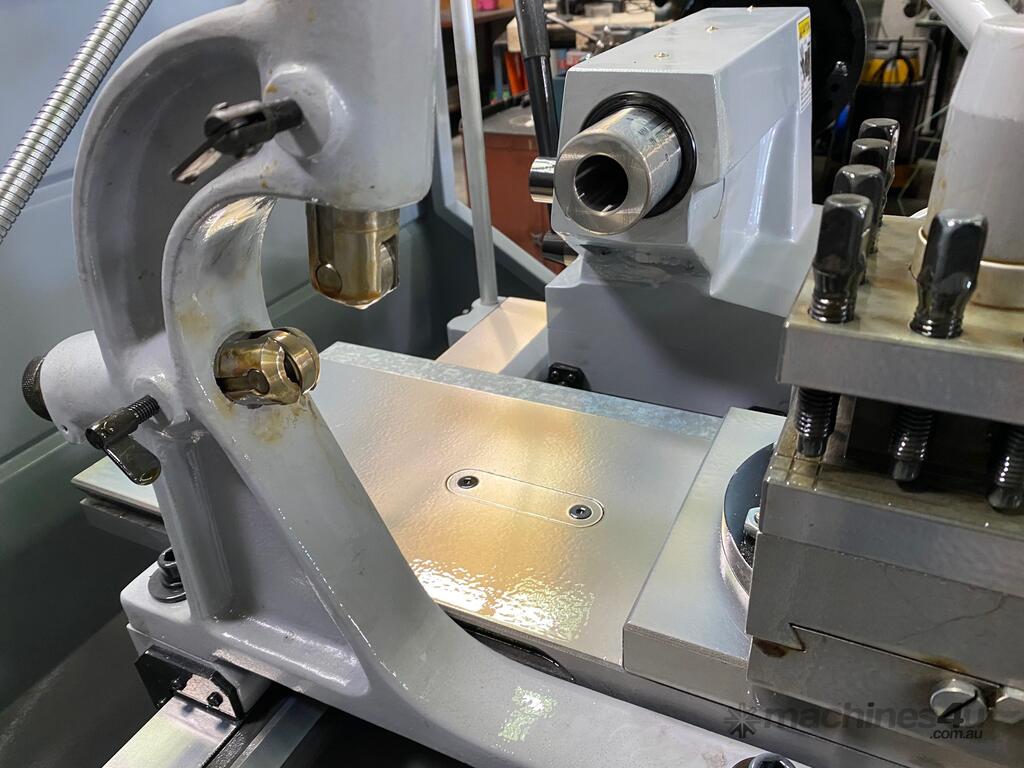

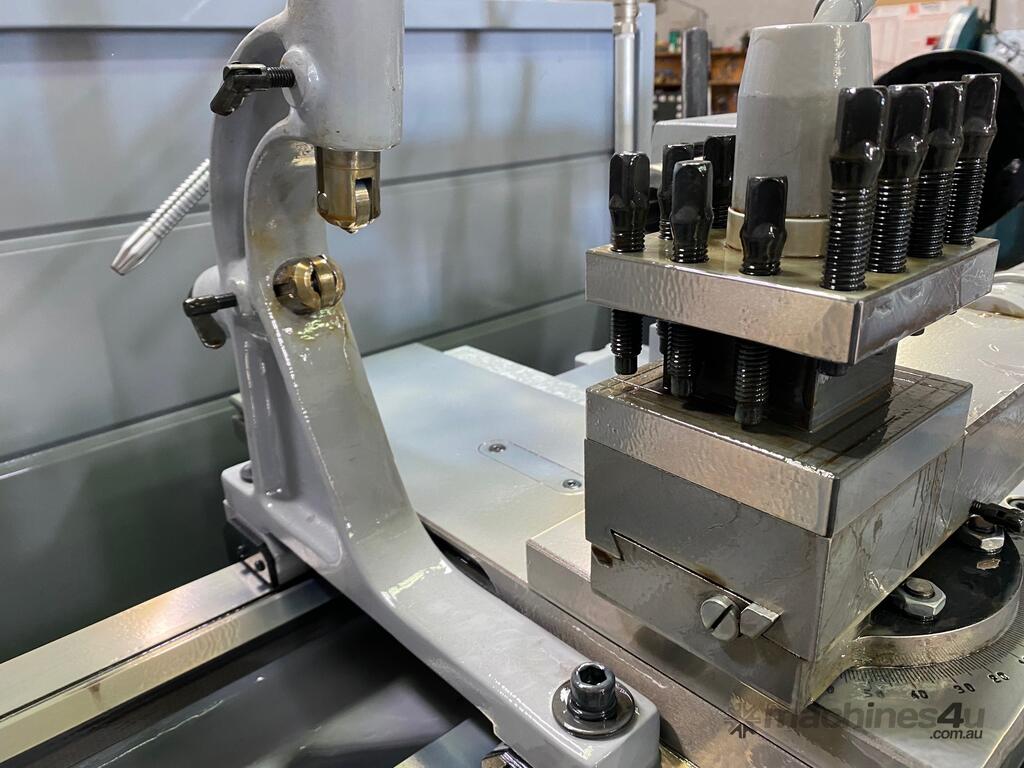

Follow Rest = Bearing Type

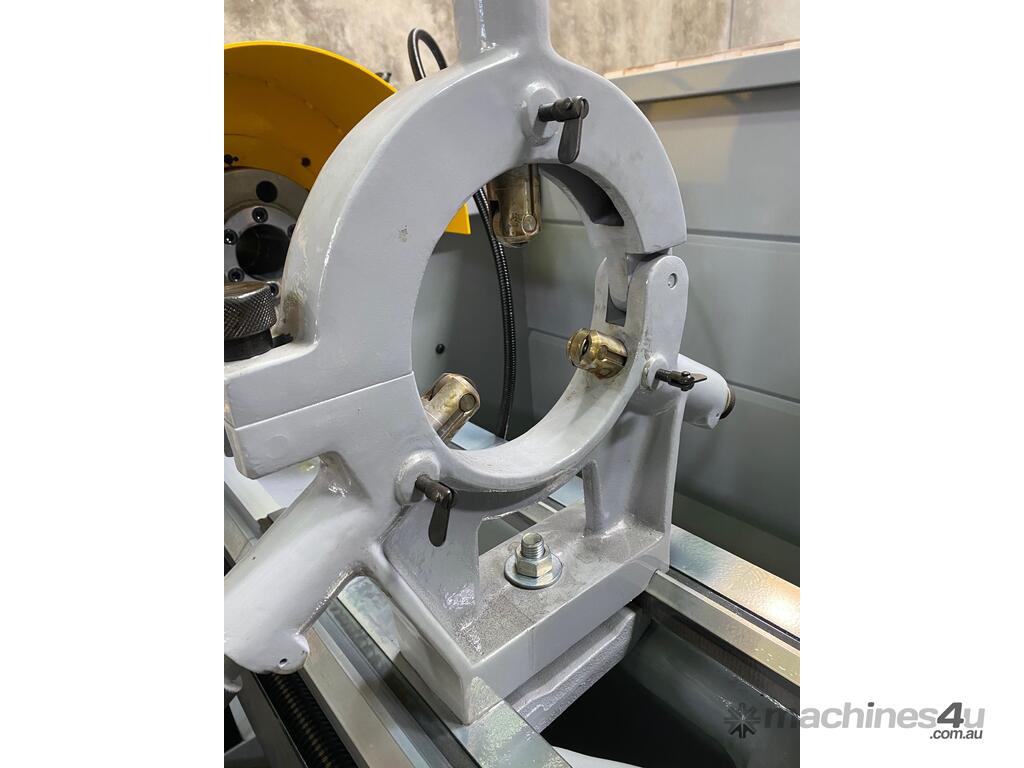

Fixed Rest = Bearing Type

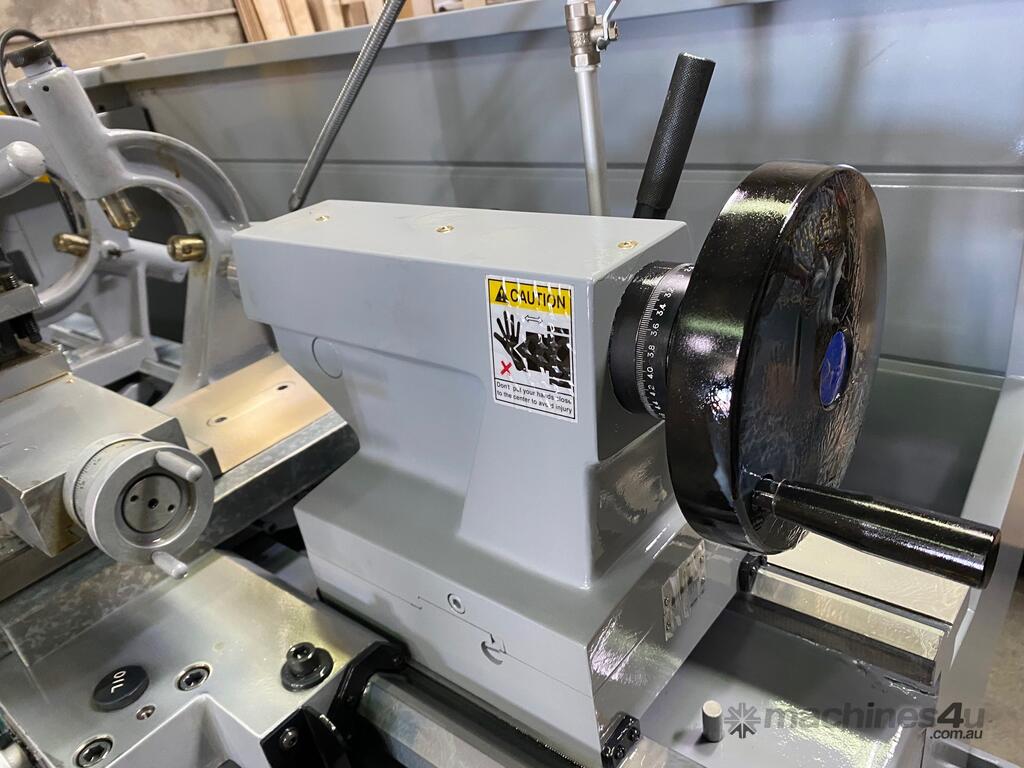

Tail Stock = 4 MT
Leadscrew Cover = Roller blind type

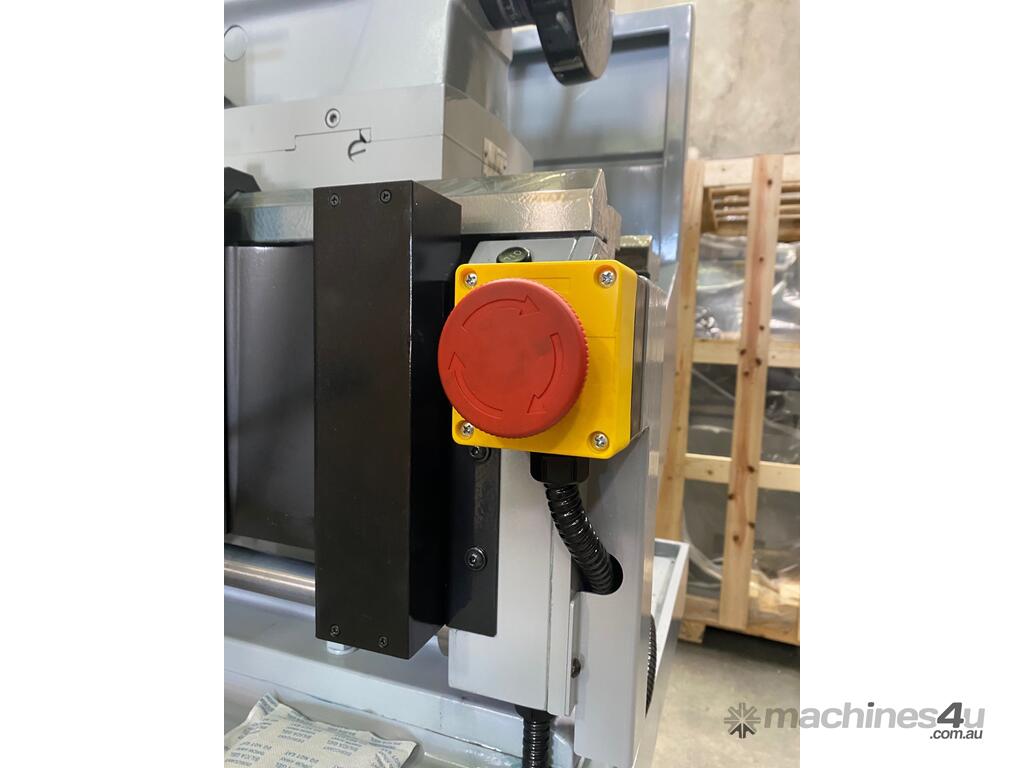

2 x "E" Stops One on Headstock One on Tailstock
Foot Brake Electro-magnetic brake
Overload Safety Protection on Saddle
Side Door Guard master interlock with key
Mains isolation lockable switch
Chuck Guard Tamper proof interlock type
Leadscrew cover - Roller blind type

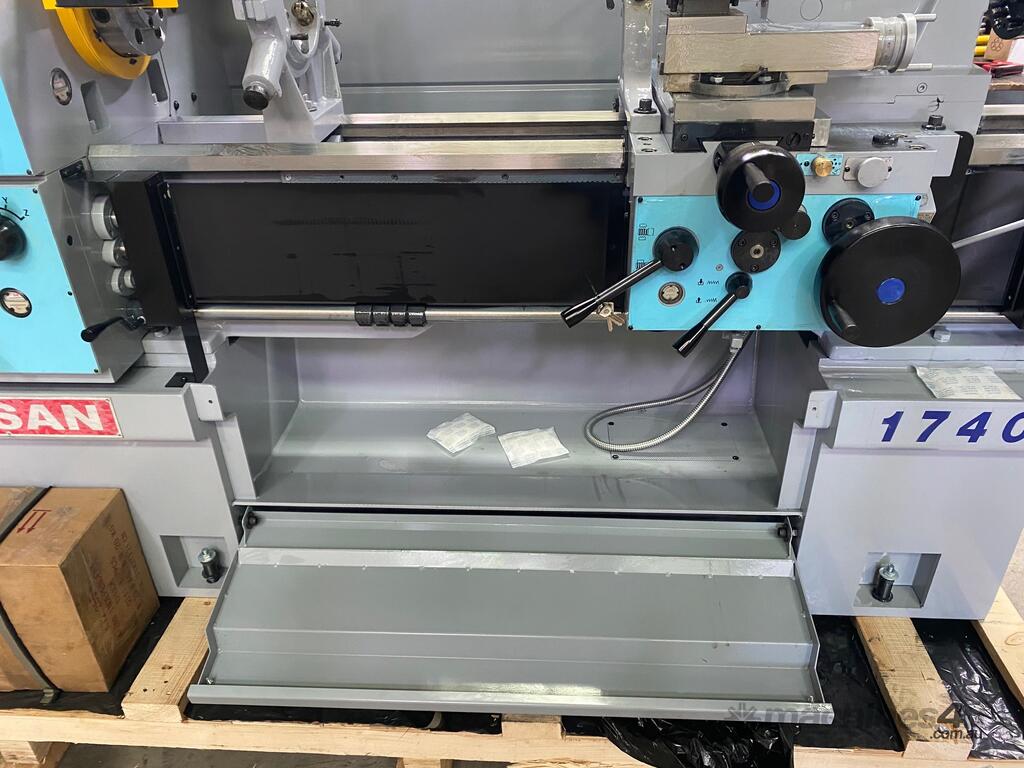

Front tray - for easy swarf cleaning
One shot lubrication pump supply oil cross slide and bed-ways.

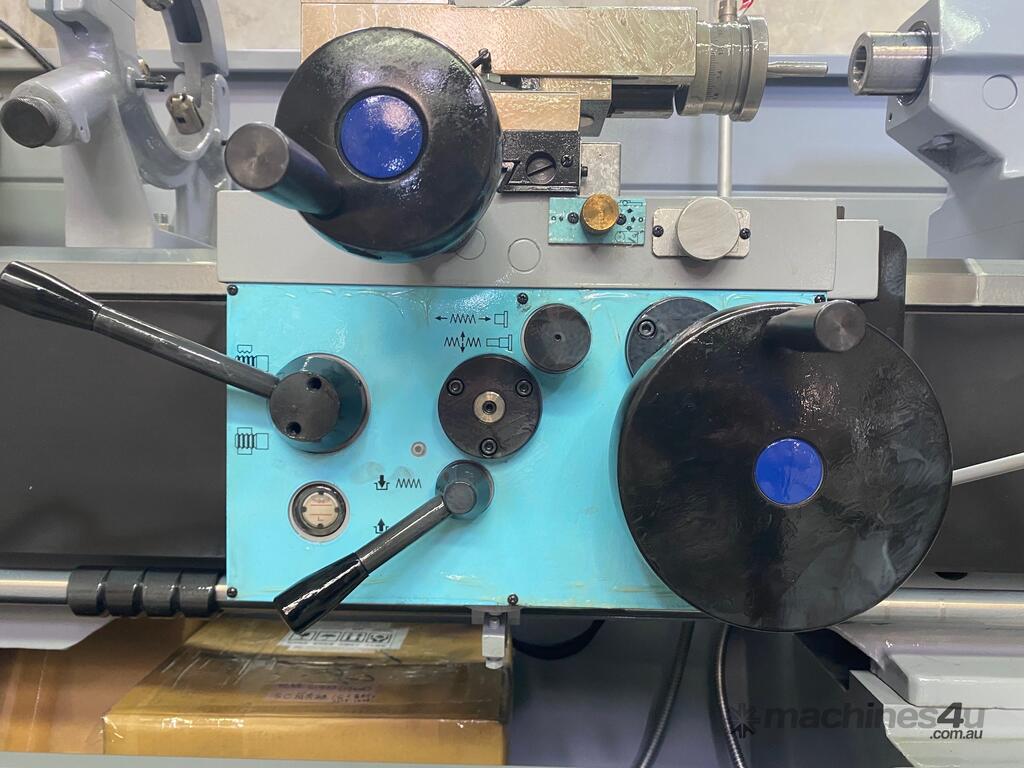

Adjustable overload clutch in apron to ensure proper cutting load.
Cross slide screw permanently immersed in oil and supported by thrust bearing.
