INCREDIBLE PRICE on our 3KW MAX Version.
PRICE INCLUDES DELIVERY, INSTALLATION & COMMISSIONING IN SYDNEY, MELBOURNE AND BRISBANE METRO AREAS. IN OTHER AREA AN EXTRA FEE MAY APPLY - 3 YEAR WARRANTY ON THE MACHINE AND 2 YEAR WARRANTY ON THE MAX FIBRE LASER SOURCE.

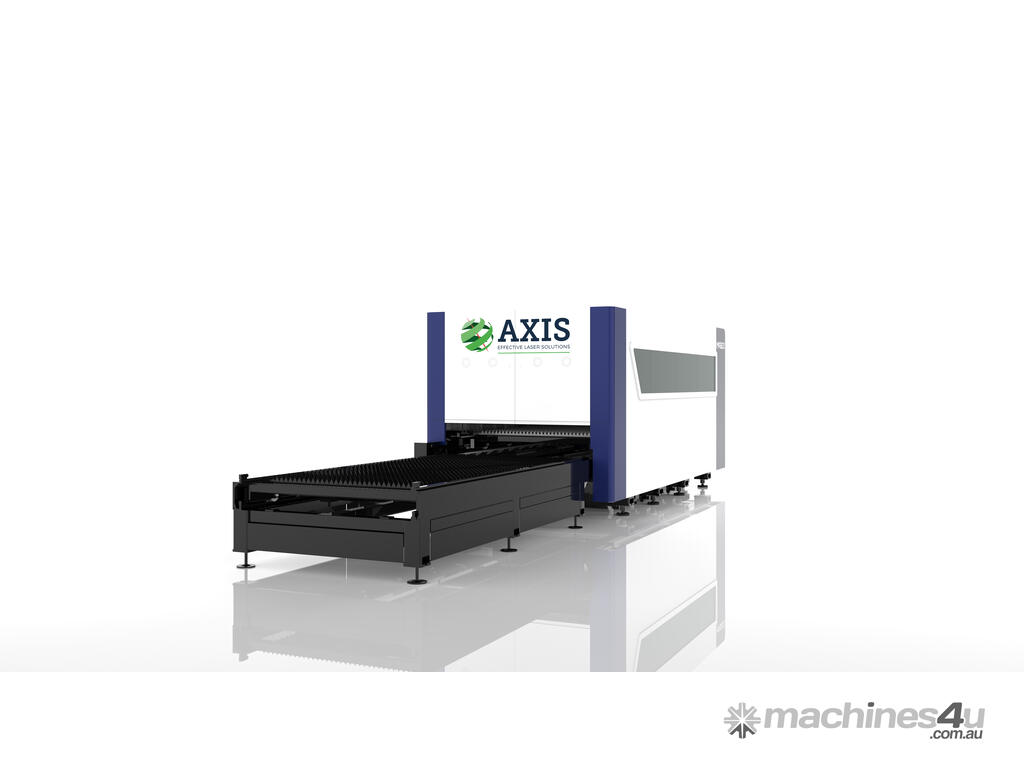

3000mm x 1500mm 3KW fiber laser laser cutting machine
This price is for the 3kW Max version with a 3000mm x 1500mm cutting area.
This is not just some cheap brand rebadged, this has been designed and built for Australian Standards.
AXIS Quality
AXIS Reliability

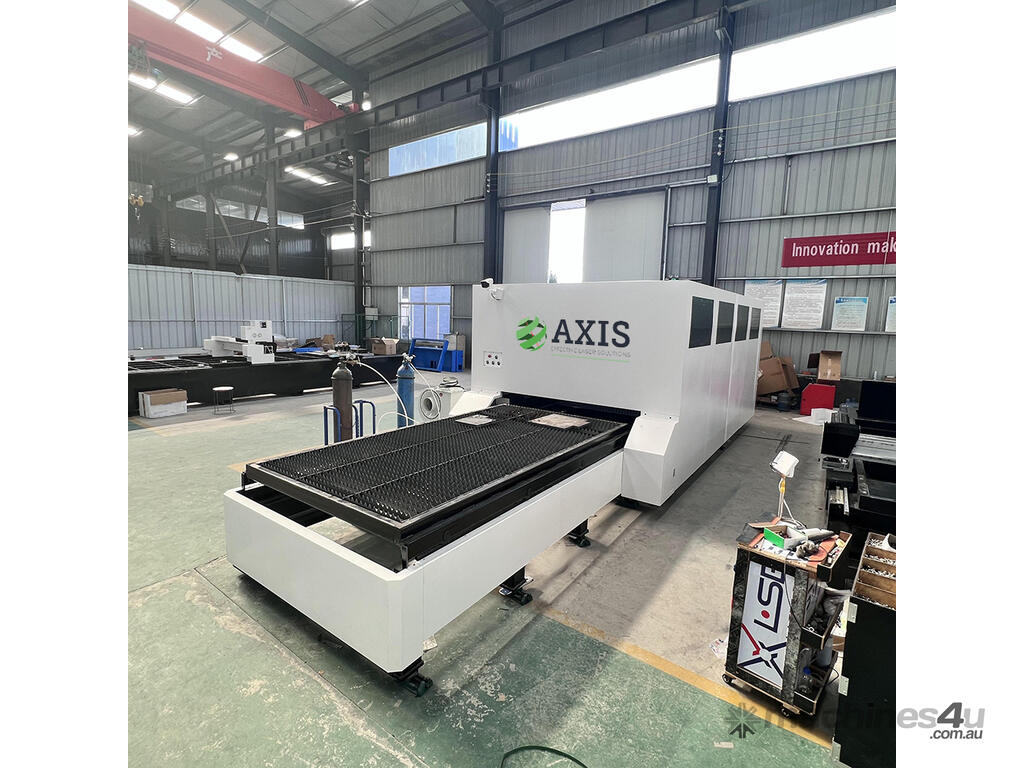

AS-FLXC laser cutting machine is a fully enclosed type structure, with an exchange table. Easy to load and unload. Equipped with fiber laser device, the laser power is from 1.5 kw to 6kw and has more advantages in cutting medium to thin carbon steel/stainless steel/aluminium plates.
The machine bed is welded by high-strength carbon structural steel with an annealing furnace 600deg high-temperature treatment for 24 hours, and ageing treatment and finishing after rough machining can ensure the complete release of welding stress and no deformation during long-term operation of the equipment.
Aerospace standards cast aluminium beam, with high accuracy, good toughness, corrosion resistance, anti-oxidation, and low density, and greatly increased processing speed.

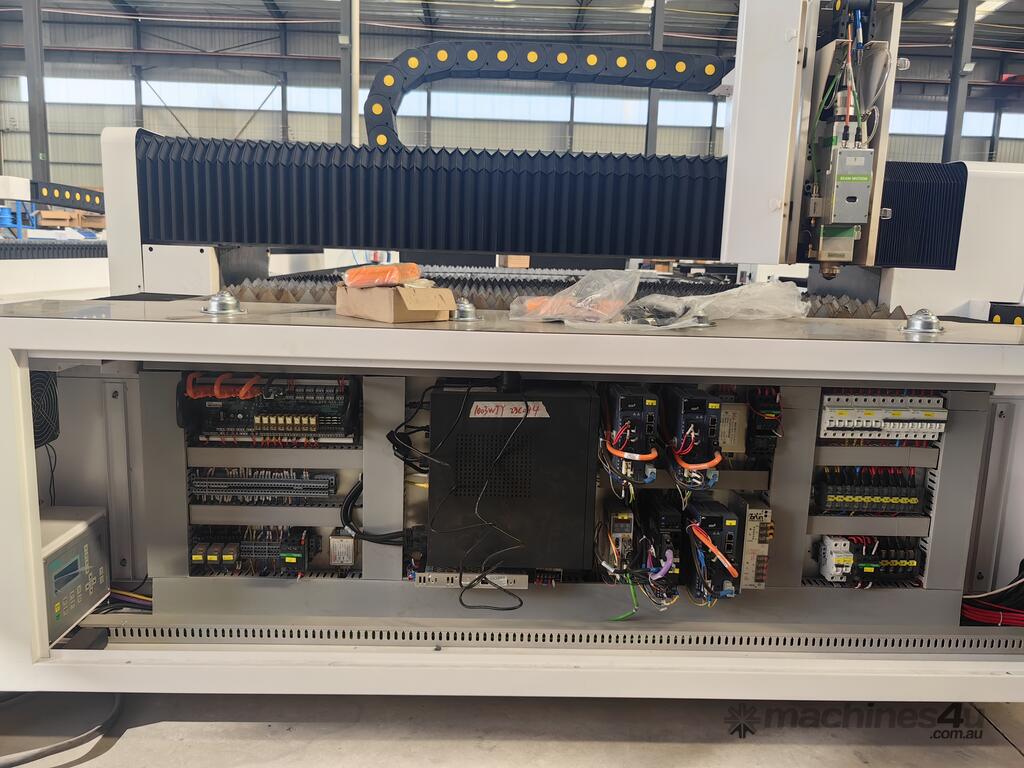

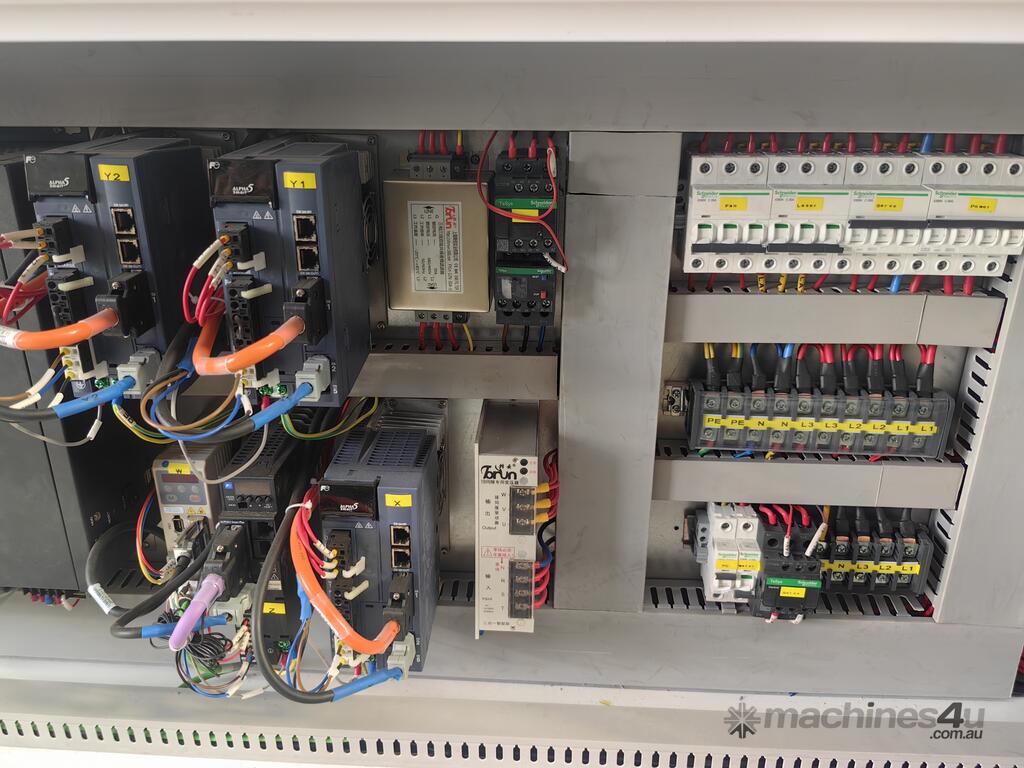

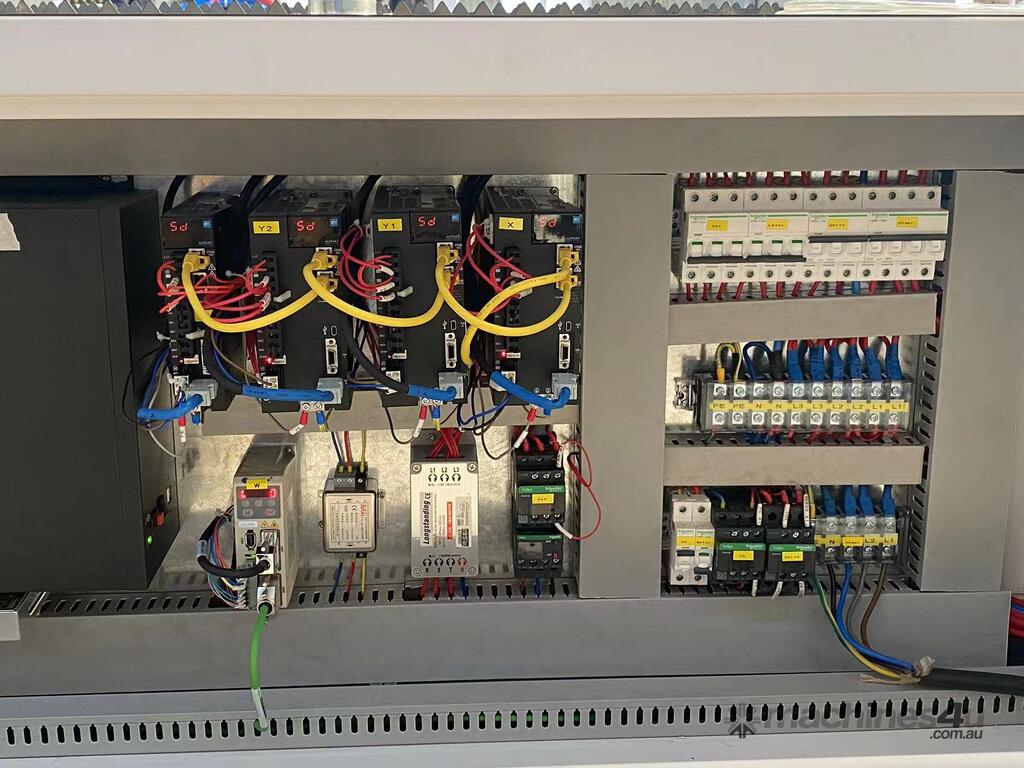

An intelligent visible control system, autofocus cutting head, high precision durable linear guide transmission parts, imported servo motor and reducer ensuring high stability and high cutting speed and accuracy.
Model Range: AS-FLXC
Power Range: 1kw-3kw MAX, IPG or Raycus
Machining area (length x width): 3000*1500/4000*1500/4000*2000/6000*1500/6000*2000mm
Positioning accuracy of X / Y axis: ±0.05mm/m
Repeated positioning precision of X / Y axis: ±0.02mm/m
Maximum cutting speed: 80m/min
Maximum acceleration: 0.8G
Rated voltage of power supply: 415V 3PH 50HZ
Total power protection level: IP54
1.5kw MAX, IPG or Raycus laser cutting ability
- Mild Steel up to 14mm
- Stainless Steel up to 4mm
- Aluminum up to 3mm
3kw MAX, IPG or Raycus laser cutting ability
- Mild Steel up to 16mm
- Stainless Steel up to 8mm
- Aluminum up to 6mm
6kw MAX, IPG or Raycus laser cutting ability
- Mild Steel up to 22mm
- Stainless Steel up to 16mm
- Aluminum up to 12mm
The machine is available in 1500w-4000w power with MAX, Raycus or IPG laser source. And machine bed sizes are available in 3000*1500mm, 4000*1500mm, 4000*2000mm, 6000*1500mm, 6000*2000mm etc. Please get in touch with PLASQUIP SMPS for more information on different power and machine size options.
OUR PRICE INCLUDES DELIVERY, INSTALLATION & COMMISSIONING IN SYDNEY, MELBOURNE AND BRISBANE METRO AREAS. IN OTHER AREA AN EXTRA FEE MAY APPLY
