Great New Fibre Laser MAXPHOTONICS - 3 YEAR FACTORY BACKED WARRANTY

INCREDIBLE PRICE FOR SHORT TIME ONLY.
INCLUDES
MAXTONICS LASER SOURCE
PROPORTIONAL CONTROL OF BOTH OXYGEN AND NITROGEN-CUTTING GASES
FREE DELIVERY SYDNEY - MELBOURNE - BRISBANE METRO AREAS

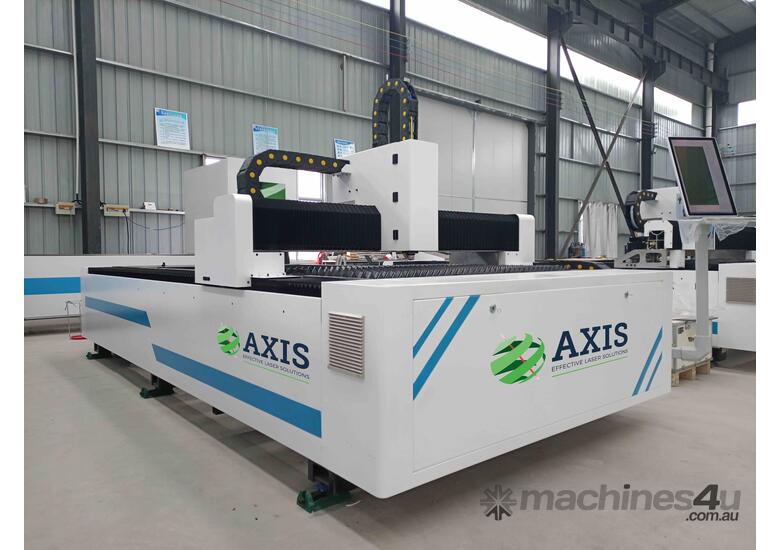

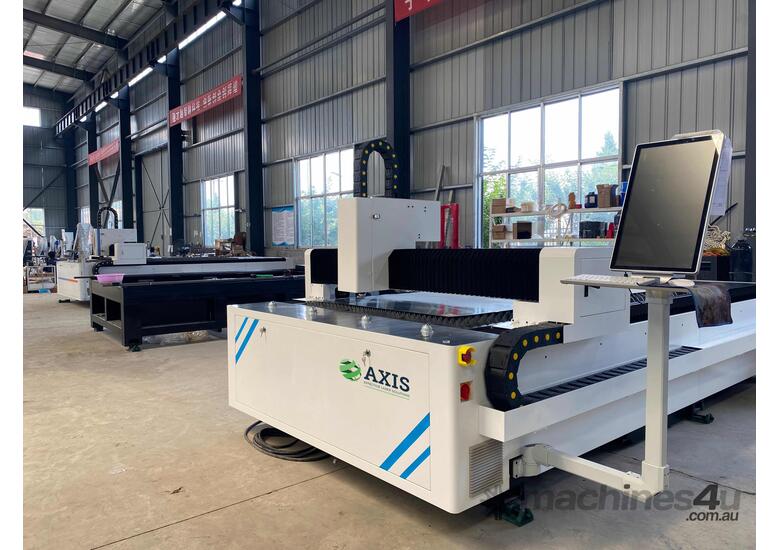

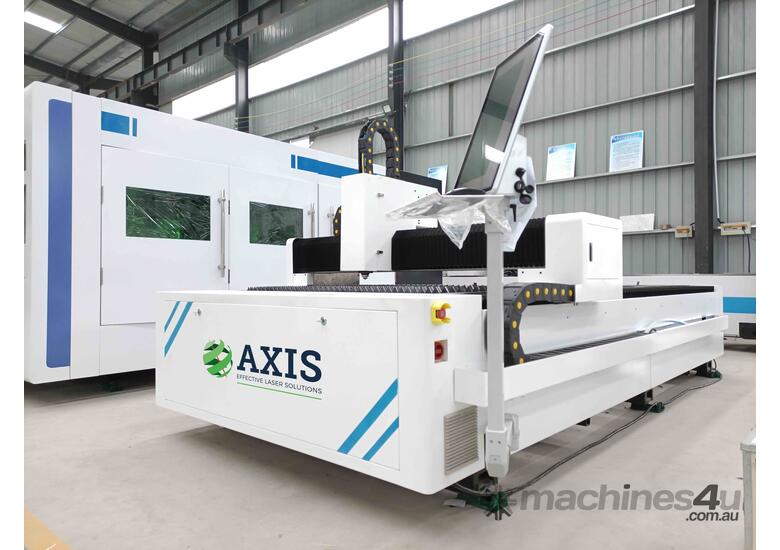

3000mm x 1500mm 1.5KW fibre laser laser cutting machine

This price is for the 1.5kW Max version which is especially made to handle the demands of cutting Aluminium and other highly reflective materials. This machine has a 3000mm x 1500mm cutting area.
This machine has proportional control of both the Nitrogen and Oxygen. Others may offer an Oxygen Proportional Control Valve but you are highly unlikely to have a Nitrogen Proportional Control Valve at this price point. With the Nitrogen Proportion Control valve this is the perfect machine for de-filming and cutting colourbond.

This is not just some cheap brand rebadged, this has been designed and built for Australian Standards.
AXIS Quality
AXIS Reliability

AS-FLXO laser cutting machine is an open-type structure, single platform. Easy to load and unload from the front, left and right sides. Equipped with a fibre laser device, the laser power is from 1.5 kW to 6kW and has more advantages in cutting medium to thin carbon steel/stainless steel/aluminium plates.

The machine bed is welded by high-strength carbon structural steel with an annealing furnace 600deg high-temperature treatment for 24 hours, and ageing treatment and finishing after rough machining can ensure the complete release of welding stress and no deformation during long-term operation of the equipment.

Aerospace standards cast aluminium beam, with high accuracy, good toughness, corrosion resistance, anti-oxidation, low density, and greatly increased processing speed.

The intelligent visible control system, autofocus cutting head, high precision durable linear guide transmission parts, imported servo motor and reducer ensure high stability and high cutting speed and accuracy.

Model Range: AS-FLXO
Power Range: 1kw-3kw MAX, IPG or Raycus
Machining area (length x width): 3000*1500/4000*1500/4000*2000/6000*1500/6000*2000mm
Positioning accuracy of X / Y axis: ±0.05mm/m
Repeated positioning precision of X / Y axis: ±0.02mm/m
Maximum cutting speed: 80m/min
Maximum acceleration: 0.8G
Rated voltage of power supply: 400V 3PH 50HZ
Total power protection level: IP54

1.5kw MAX, IPG or Raycus laser cutting ability
- Mild Steel up to 14mm
- Stainless Steel up to 4mm
- Aluminum up to 3mm

3kw MAX, IPG or Raycus laser cutting ability
- Mild Steel up to 16mm
- Stainless Steel up to 8mm
- Aluminum up to 6mm

6kw MAX, IPG or Raycus laser cutting ability
- Mild Steel up to 22mm
- Stainless Steel up to 16mm
- Aluminum up to 12mm

The machine is available in 1500w-4000w power with MAX, Raycus or IPG laser source. And machine bed sizes are available in 3000*1500mm, 4000*1500mm, 4000*2000mm, 6000*1500mm, 6000*2000mm etc. Please contact PLASQUIP SMPS for more information on different power and machine size options.
