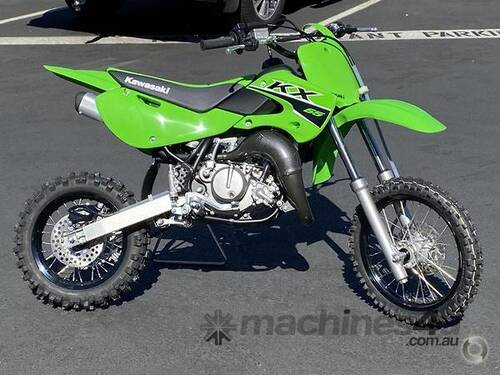

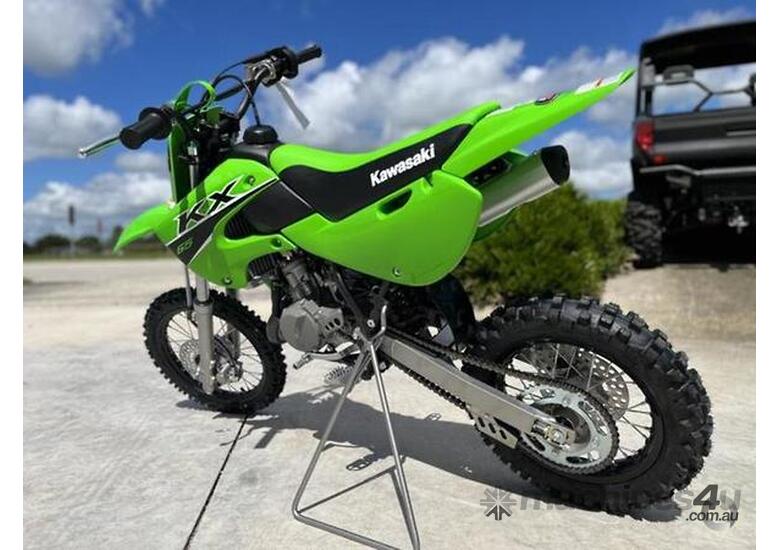

The KX65 motorcycle is the ideal dirt bike for introducing young racers to the competitive ranks of motocross. With a 64 cc engine, durable chassis and proven agility to turn lap after lap, the KX65 allows riders to gain experience and build skills on a dependable platform.
PRE ORDER YOUR 2024 MODEL NOW - ALL 2023 NOW SOLD OUT
FEATURING:
64 cc LIQUID-COOLED TWO-STROKE SINGLE
ADJUSTABLE Ø33 mm LEADING AXLE CONVENTIONAL FORK
ADJUSTABLE UNI TRAK REAR SUSPENSION
SPECIFICATIONS:
Details
Vehicle Type: Off Road Bike
Bike Type: Motocross
Series: KX
Model Code: KX65CRFNN
Configuration: 64.7cc, 2-stroke, Liquid-cooled, 2 valve, 1-cyl
LAMS Approved: No
Colours: Lime green
Country of Origin: JAPAN
Vehicle Class: Fun (61 - 80cc)
Engine
Engine Description: 65
Generic Engine Config: Single
Engine Config: Vertical
Engine Capacity: 64
Engine Type: Piston
Engine Stroke: 2
Bore: 44.5
Stroke: 41.6
Cam Type: Reed Valve
Cylinders: 1
Compression Ratio: 8.4:1
Induction System: Aspirated
Carburettor: Mikuni VM24SS; 4-petal reed valve
Throttle Bore: 24mm
Cooling: Liquid
Lubrication: Premix (2-stroke oil & petrol)
Exhaust Config: 1 Into 1
Exhaust Description: Black with Silver aluminium muffler
Start
Ignition: Digital
Starter: Kick
Electrics
Engine Voltage: 12
Charging Method: Alternator & Regulator-Rectifier
Spark Plug Description: NGK BR10EG
Fuel & Emissions
Fuel Type: Petrol
Recommended RON: 95
Fuel Tank Capacity: 3.8
Transmission
Primary Drive: 3.500 (77/22)
Generic Drive Type: Chain
Final Drive Ratio: 3.615 (47/13)
Generic Gear Type: Manual
Gear Number: 6
Gear Change Method: Left foot lever
1st Gear Ratio: 2.846
2nd Gear Ratio: 2.125
3rd Gear Ratio: 1.722
4th Gear Ratio: 1.428
5th Gear Ratio: 1.217
6th Gear Ratio: 1.083
Clutch Type: Wet, Multi-disc
Chassis & Suspension
Frame Material: High tensile steel; Tubular
Frame Design: Semi-double cradle
Rake (Caster Angle): 27.00
Trail: 60.0
Side Stand: Not Available
Front Suspension: Conventional telescopic fork, 4-way adjustable rebound damping; Leading axle
Front Suspension Travel: 210.0
Rear Suspension: Uni-Trak, Nitrogen charged shock absorber, Adjustable preload & 4-way rebound damping
Rear Suspension Travel: 240.0
Fork Diameter: 33.0
Swingarm Type: Dual Sided
Brakes
Front Brake Description: Single disc; Hydraulic
Front Brake Caliper(s): Single Piston
Front Brake Diameter: 180.0
ABS: Not Available
Wheels & Tyres
Wheel Type: Black alloy rims; Laced-spokes
Wheel Size Front: 1.4x14"
Wheel Size Rear: 1.6x12"
Rear Tyre: 80/100-12" (41M)
Front Tyre: 60/100-14" (30M)
Dimensions & Weights
Length: 1590
Width: 760
Height: 955
Wheelbase: 1120
Ground Clearance: 305.0
Wet / Operational Weight: 60.00
Seating Capacity: 1
Warranty & Servicing
Warranty in Months from First Registration: 12 Months
Convenience
Seating Position: Upright
