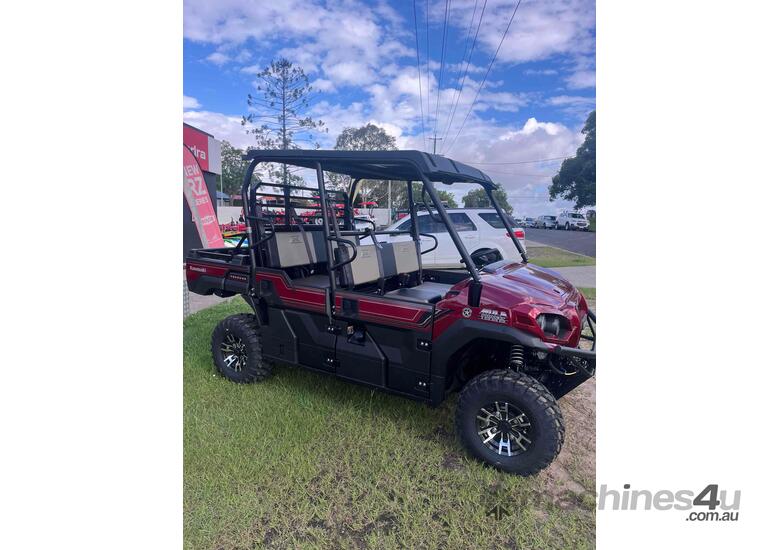

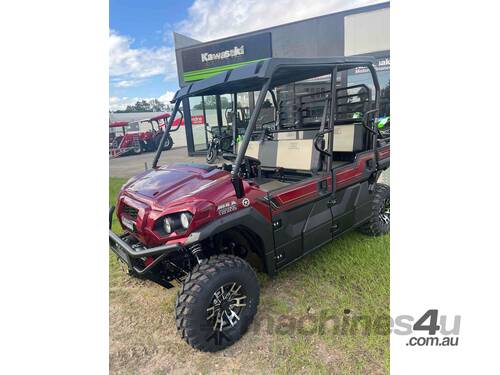

The MULE PRO-FXT 1000 models are full-sized, high-capacity side by sides that features our exclusive 3- to 6-passenger Trans Cab system. With a reliable 999 cc Kawasaki built engine, these dependable side by sides are ready to transport heavy loads or transport the entire crew without breaking a sweat. Work harder and smarter with the dependable help of the MULE PRO-FXT 1000.
FEATURING:
KAWASAKI-BUILT, LIQUID-COOLED 999 cc PARALLEL-TWIN ENGINE
MASSIVE GROUND CLEARANCE
LONG-TRAVEL DOUBLE-WISHBONE SUSPENSION
SERIOUS-LOOKING FRONT-END STYLING
IMPROVED MAINTENANCE (EASY ACCESS TO OIL FILTER, DIPSTICK AND AIR-CLEANER FILTER)
3- TO 6-PASSENGER TRANS CAB SYSTEM
Wide Range of Accessories Available at a discounted Price Prior to Delivery PLUS Get extended Warranty through our Stores
Smaller Version 812cc FXT Ranch Available from $30,072
SPECIFICATIONS:
Details
Vehicle Type: SxS & UTV
Bike Type: ATV
Series: Mule
Model Code: KAT1000CRFNN
Colours: Metallic Titanium
Ride Away Price: No
Country of Origin: JAPAN
Vehicle Class: Recreational Utility (501 - 10000cc)
Engine
Engine Description: 1000
Generic Engine Config: Inline
Engine Config: Parallel
Engine Capacity: 999
Engine Type: Piston
Engine Stroke: 4
Bore: 92.0
Stroke: 75.1
Cam Type: DOHC (Double Over Head Cam)
Cylinders: 2
Compression Ratio: 10.1:1
Induction System:Aspirated
Carburettor: EFI - Electronic Fuel Injection
Number of Throttle Bodies: 1
Throttle Bore: 38mm
Cooling: Liquid
Lubrication: Wet Sump; Forced Lubrication
Maximum Power: 52.0
Maximum Power RPM: 6500
Maximum Torque: 83
Maximum Torque RPM: 4500
Start
Ignition: Digital
Starter: Electric
Electrics
Engine Voltage: 12
Charging Method: Alternator & Regulator-Rectifier
Power Outlet (12V): Standard
LED Lighting: Yes
Fuel & Emissions
Fuel Type: Petrol
Fuel Tank Capacity: 30.0
Transmission
Transmission Description: Dual range (high/low)
Primary Drive: 3.28 ~ 0.70 (belt converter)
Generic Drive Type: Shaft
Final Drive Ratio: Final Reduction Ratio: Front 6.382 (31/17 x 35/10) Final Reduction Ratio: Rear 6.245 (31/21 x 55/13)
Driven Wheels: 2WD/4WD Selectable
Generic Gear Type: Automatic
Gear Type: CVT
Gear Number: 1
Gear Change Method: Right Hand Shift Lever
Reverse Gear: Standard
Chassis & Suspension
Frame Material: Tubular steel
Frame Design: Ladder
Rake (Caster Angle): 3.70
Trail: 20.0
Handlebar Description: LHD; Steering wheel
Side Stand: Not Available
Skid Plate: Standard
Front Suspension: Double wishbone; Dual shock absorbers
Front Suspension Travel: 279.0
Rear Suspension: Double wishbone; Dual shock absorbers; Self leveling
Rear Suspension Travel: 256.0
Brakes
Front Brake Description: Dual discs; Hydraulic
Front Brake Caliper(s): Double Piston
Front Brake Diameter: 212.0
Rear Brake Caliper(s): Single Piston
Park Brake: Standard
ABS: Not Available
Wheels & Tyres
Wheel Type: Cast aluminium
Wheel Size Front: 12"
Rear Tyre: 26x11-R12" 4PR
Front Tyre: 26x9-R12" 4PR
Dimensions & Weights
Length: 2450
Width: 1625
Height: 2055
Wheelbase: 2345
Ground Clearance: 295.0
Dry Weight: 858.0
Wet / Operational Weight: 892.0
Payload / Carry Weight: 453.0
Seat Height: 915
Seating Capacity: 6
Turning Radius: 4.8
Rear Cargo Bed Length: 560
Rear Cargo Bed Width: 1363
Rear Cargo Bed Depth: 279
Towing Capability: Standard
Trailer Payload: 907
Warranty & Servicing
Warranty in Months from First Registration: 36 Months (3 Years)
Safety & Security
Driver Restraint: Standard
Traction Control: Not Available
Convenience
Adjustable Seat: Standard
Roof: Optional
