H-1200 - Twin Column Gantry - Heavy Duty

H-1200 - Twin Column Gantry - Heavy Duty

Description
Our large gantry series combines a modern machine tool design with our manufacturers extensive experience in efficient, cost effective cutting of large work pieces.
Precision guided via dual ground guided cylinders, this ensures stability, reliability, performance & high accuracy.
Auto return, hydraulic blade tensioning and powered infeed table - all contribute to this heay build machine partnering you for processing of all heavy metal cutting applications.

Features

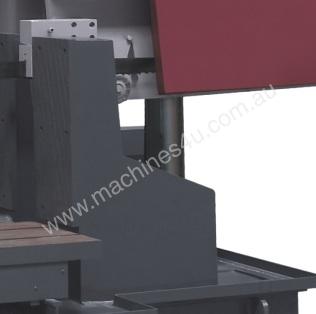

large double columns precision ground for additional support
power assisted work table
hydraulic blade tensioner

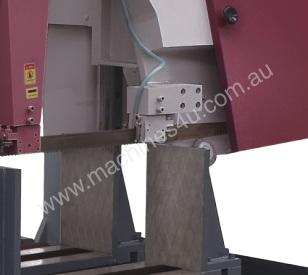

hydraulic vice clamping
variable hydraulic down feed & auto return

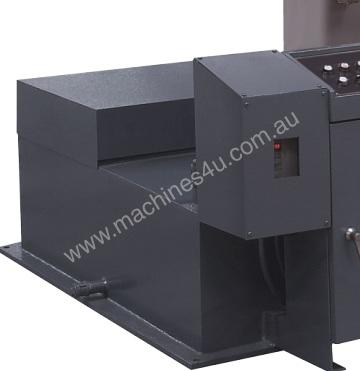

automatic chip conveyor

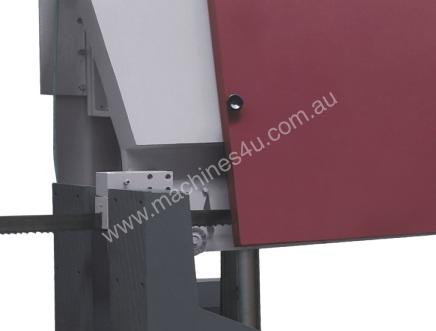

carbide & bearing blade guides
breakage sensor
powered brush cleaner

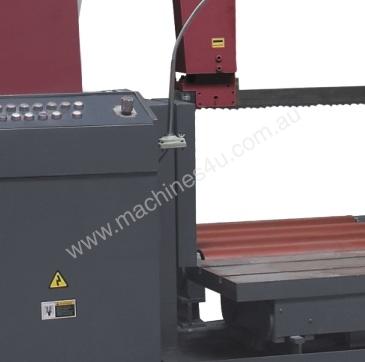

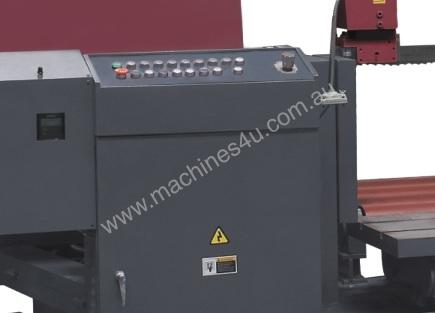

centralized control panel

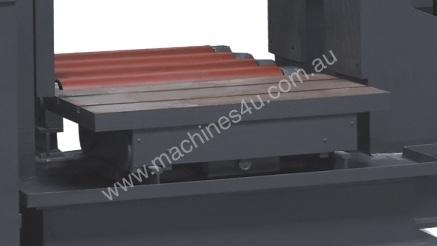

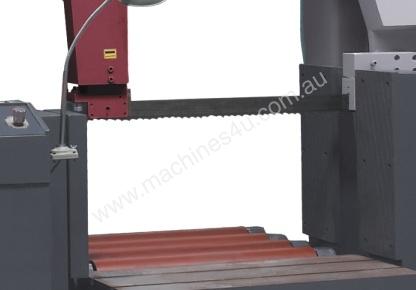

powered in feed roller table 1000mm in length
laser guide
coolant
halogen work light
one piece bi metal blade fitted
CE compliance
tool kit

TECHNICAL DATA
cutting capacities ø (w x h x t)

Round
90° (mm) 1200

Square
90° (mm) 1200 x 1200

RHS 90° (mm) 1200 x 1200

beam return (type) - Hydraulic

blade size (l x w x t) - (mm) 10800 x 67 x 1.6

speed range (m/min) - 15 ~ 80

motor power (kw/V) - 15.0 /

dimensions (l x w x h) (mm) 4950 x 2200 x 3150

weight (nt) (kg) - 12000

#######################################
Machines Can Be Demonstrated Under Power at 8 Capital Drive Dandenong, Vic.
Or See Videos or online
Otherwise call Us On And We Can Discuss Your Requirement
Asset Offer Full Sales Service, Parts & Accessories For Your Support!!!
#######################################

********************************************
Need more details? Can't find what you are looking for?
********************************************

We have many more items available than listed here.

Asset Plant Offer a wide range of coldsaws, bandsaws to cover all applications, including a wide range of blades, consumables and spare parts – Call Now!!!

Steelmaster Industrial's line of metal cutting Band Saws offers customers many choices to best fit their needs. With two styles to choose from horizontal band saw and vertical bandsaws, customers will always find the right saw at the right price. Our bandsaws are built using only the highest quality design and components that allows for some of the tightest cut tolerances and fastest cut times in the industry. The tight tolerances, and fast cut rates make these a real profit maker for any manufacturing setting. Steelmaster offer our bandsaws from the smaller hydraulic down feed horizontal models, through to the heavy industrial, twin column machines for the heavy industrial metalworker.

Steelmaster's line of Horizontal band saws includes saws that range from 180mm x 245mm maximum rectangle cutting capacity through to our heavy duty column range that will handle jobs up to 2000mm in diameter. We offer our range in manual, semi-automatic, and fully automatic operation. With over 20 models to choose from, finding the right Steelmaster horizontal bandsaw is easy. Looking to cut more intricate shapes and round radii? Try a vertical band saw range. Based on Capacity and throat depth Steelmaster Industrial's vertical bandsaws, are a must have in any metal fabrication shop.

Along with the perfect band saw, Steelmaster also offers metal cutting band saw blades for any application. It does not matter if you own a Steelmaster bandsaw, you can still own the same high quality band saw blades that we use on our own saws.
