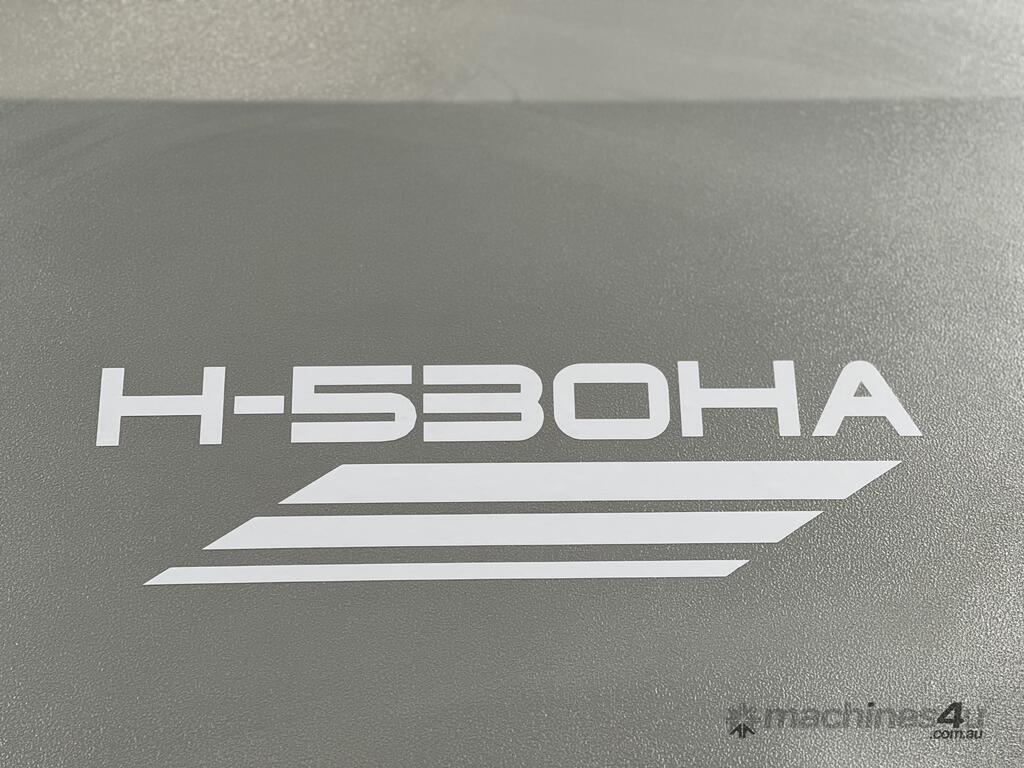

H-530HA Fully Automatic Column Bandsaw. 500mm Round & Square Capacity, Euro Model,

Name: H-530HA Fully Automatic Column Bandsaw 500mm Round Square Capacity Euro Model
Brand: steelmaster
SKU: 15-0377
Price: 42850 AUD
Availability: InStock

HOT DEAL

DANDENONG SOUTH, VIC - Delivers Nationally

Play Video

SAVE $2,000

WAS $43,850 Ex GST

NOW $41,850 Ex GST

($46,035 Inc. GST)

Confirm with seller if additional costs apply

Commercial Finance
Estimate

$145.78
Per Week

3.7% p.a.
Rate From

5 year term, 30% final payment. View disclaimer

View Instant Finance Quote

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

New

Category:

Automatic Bandsaws

Make:

STEELMASTER

Model:

H-530HA FULLY AUTOMATIC

No. in Stock

Year:

2024

Member Since: Sep 2012

Gold Member

Listings: 303

Sellers stock ID:

15-0377

Description

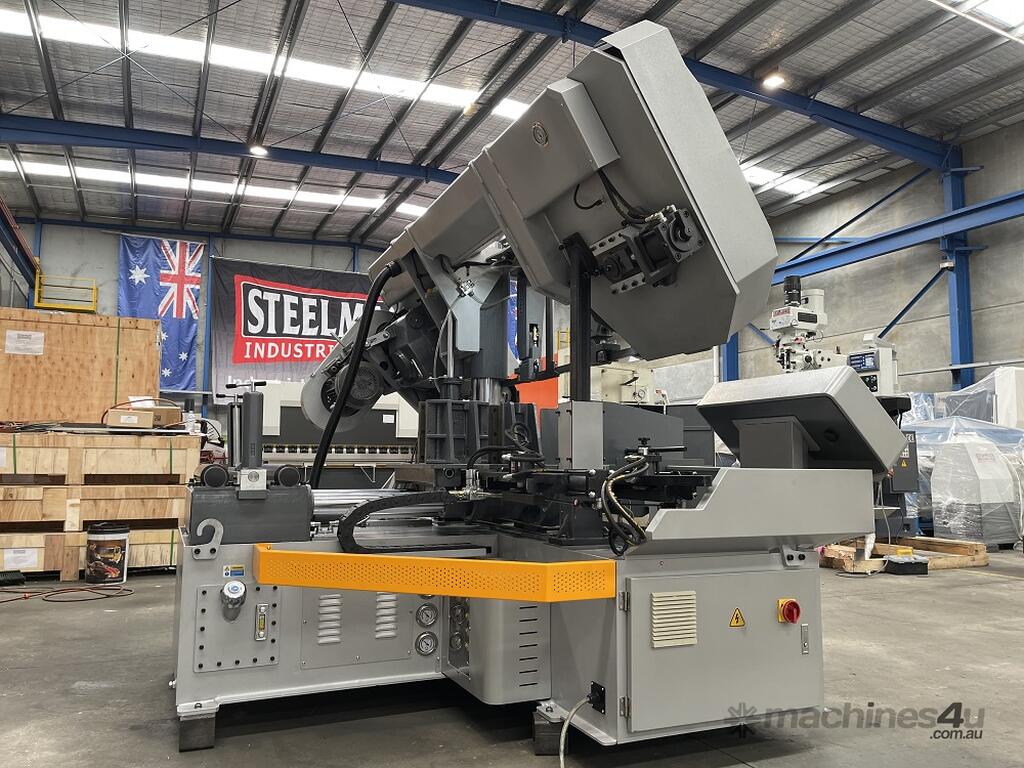

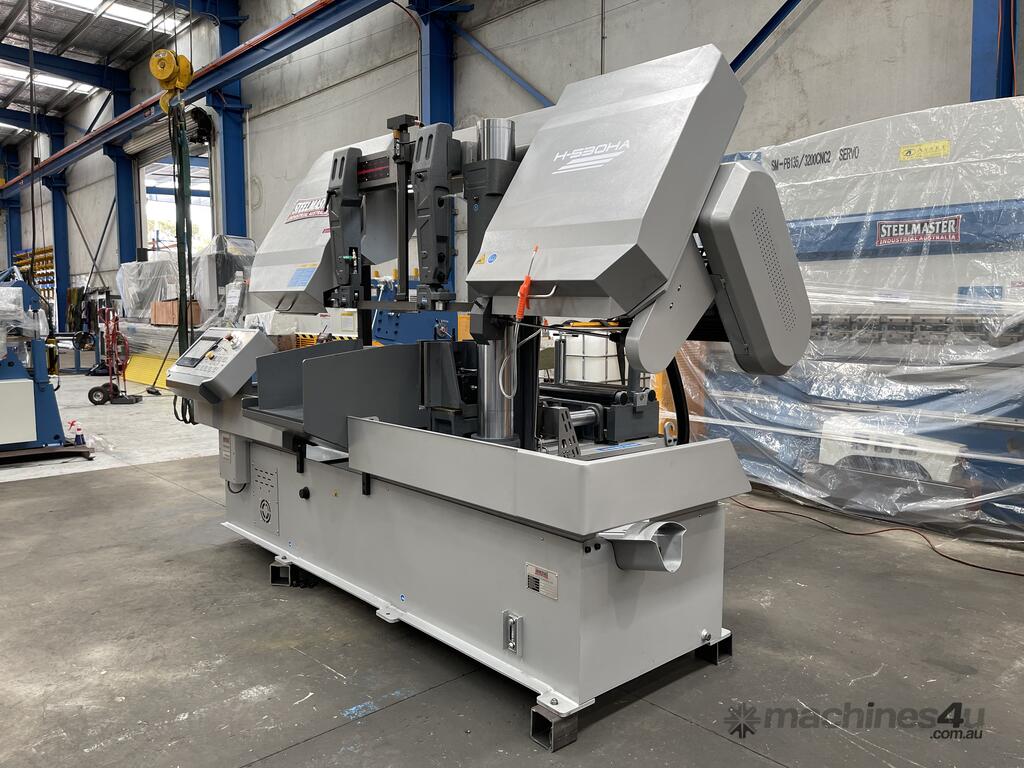

Steelmaster H-530HA Fully Automatic Column Bandsaw. 500mm Round & Square Capacity, Euro Model,
NC Operation, 2000mm Auto Roller Feed Table, Chip Conveyor, Hydraulic Blade Tensioner. Volt

Description
This Large Capacity Heavy Duty full featured automatic Column Bandsaw is so feature packed, we dont know where to start! Offering precision auto feed cutting capacity via linear guides, twin hydraulic vice, tungsten guides, NC controller, duarable 41mm blade, variable speed control and built-in coolant system. If you're looking for something in this size range, you'll have a tough time finding a better metal-cutting band saw with these features and at this price anywhere else.
Set and forget! Metalworking production shops should take a good look at this!

Features
- our STEELMASTER auto series offers you the all-in-one solution
- auto material feeding and auto beam return.
- heavy duty capacity capable of processing all types of material including packs at full automatic speed

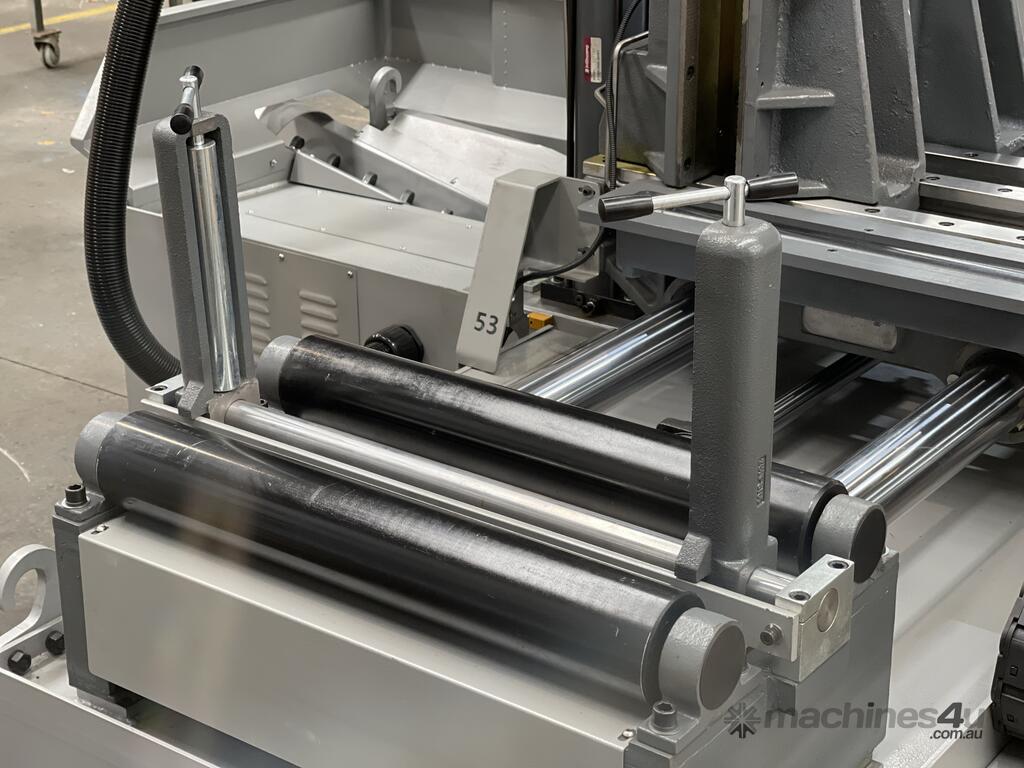

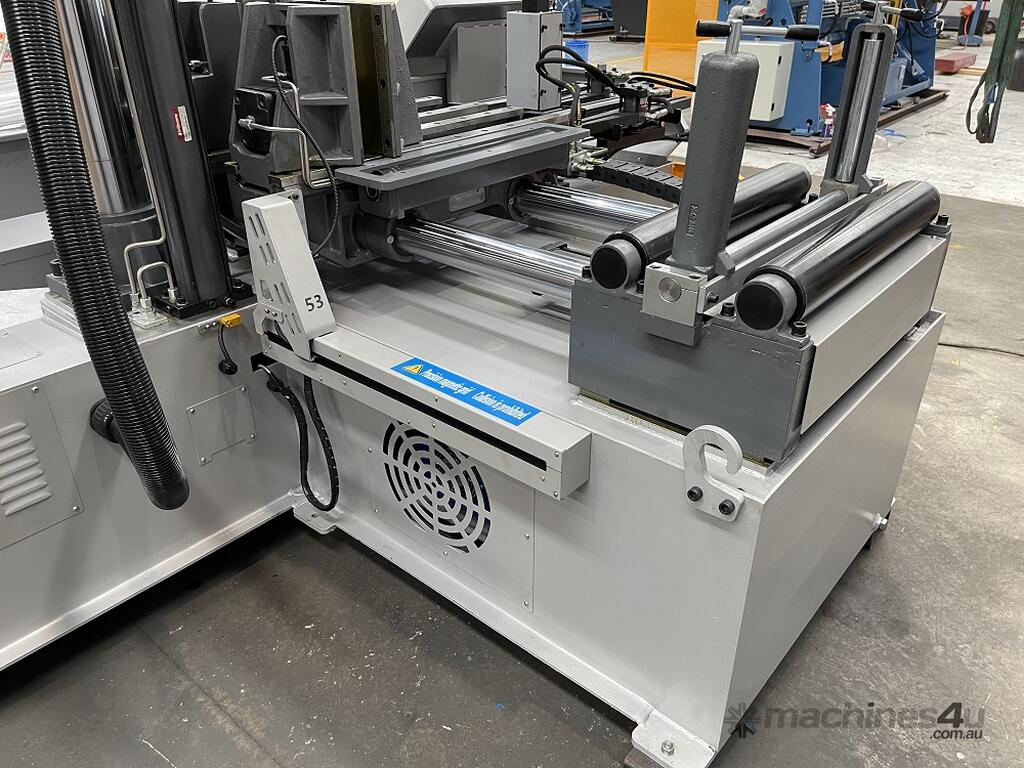

- 2000mm auto rollerfeed table

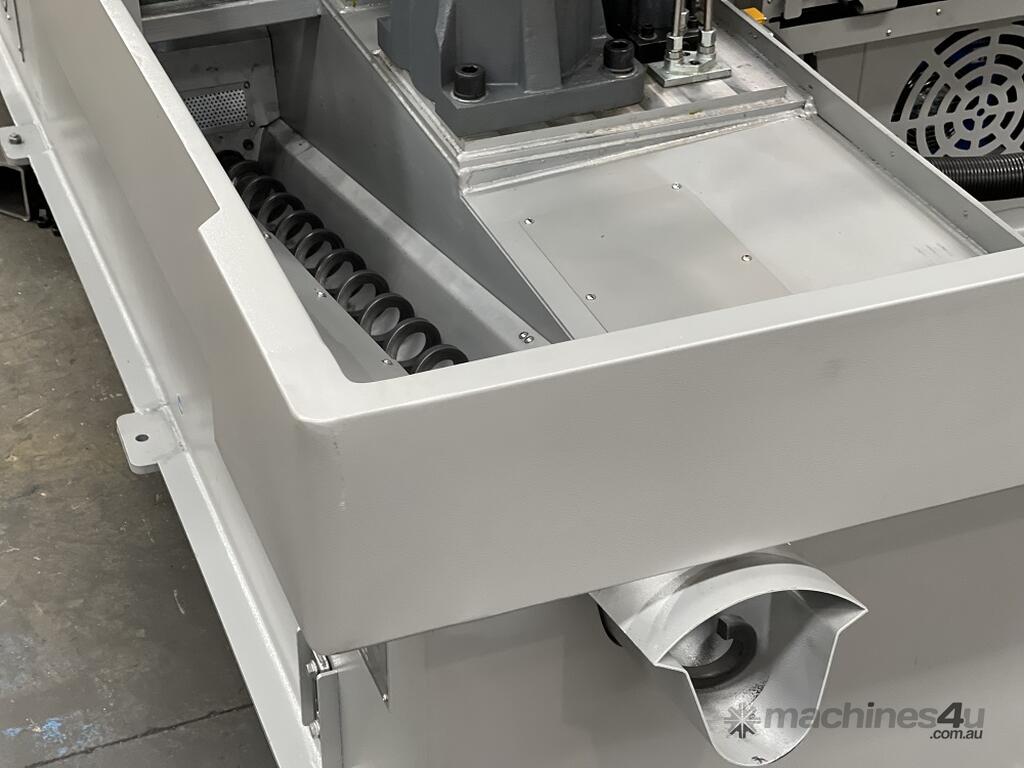

- chip conveyor
- vice pressure regulator and variable speed blade control system

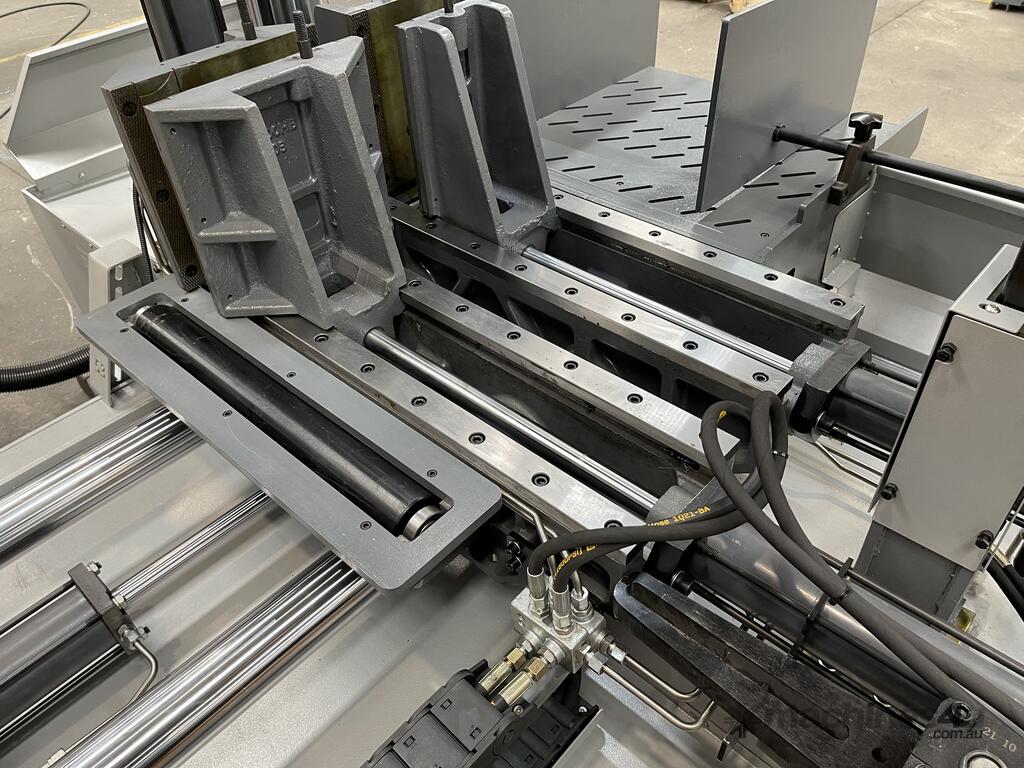

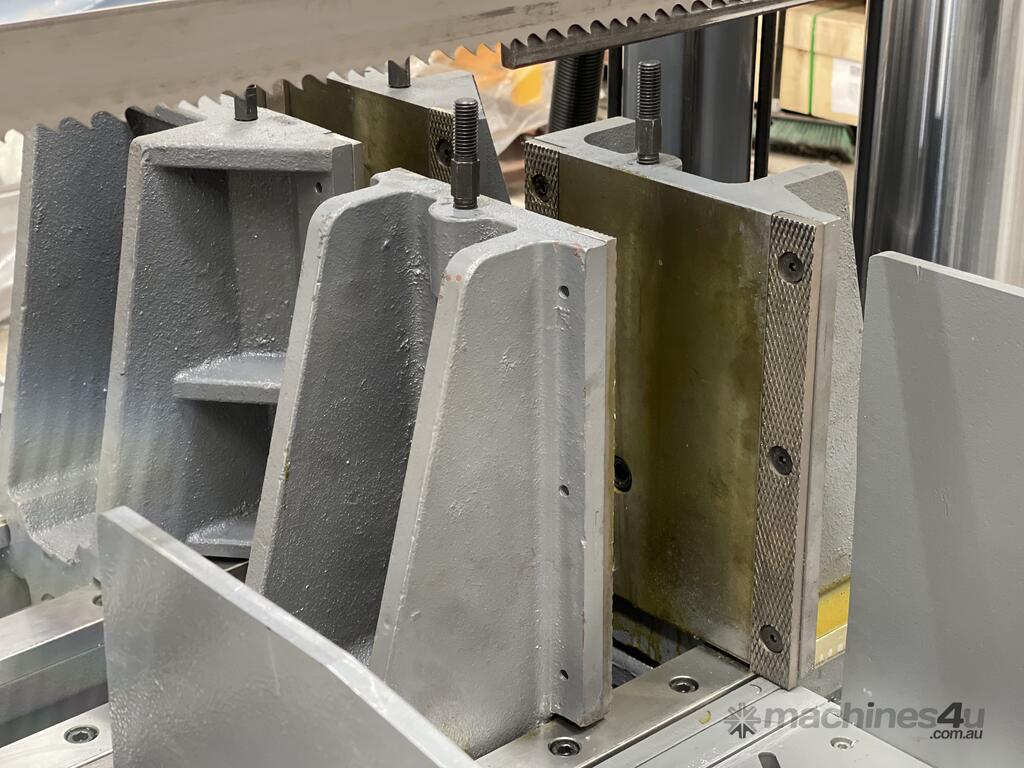

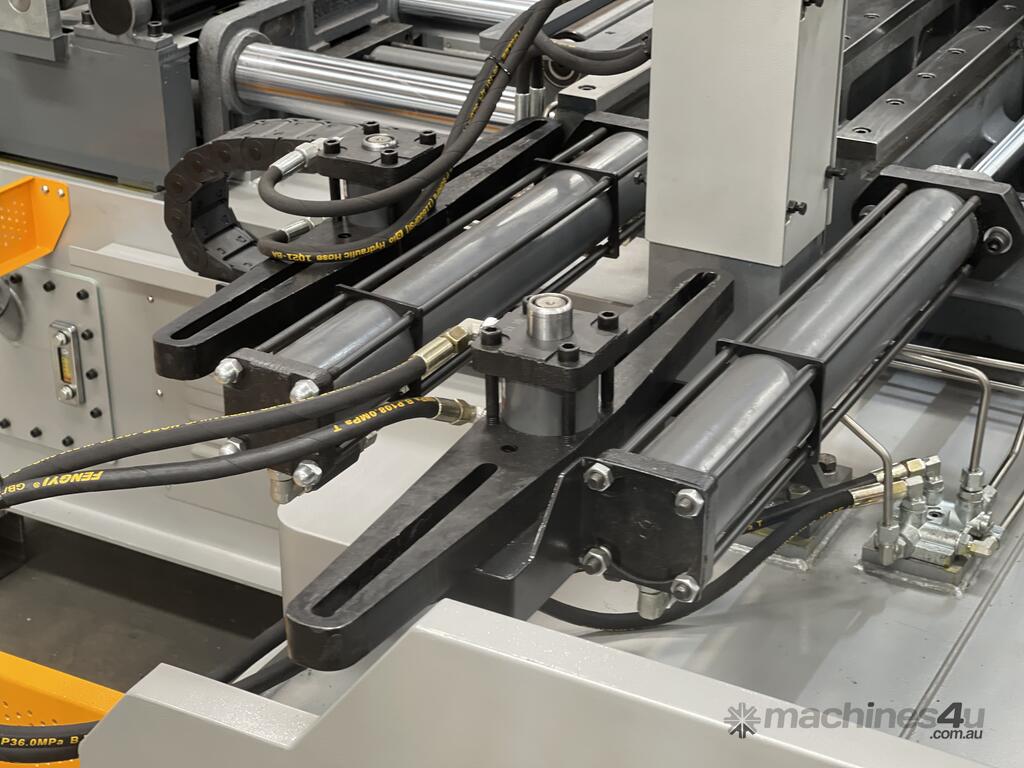

- twin hydraulic vice operation standard
- strong construction design
- heavy duty motors

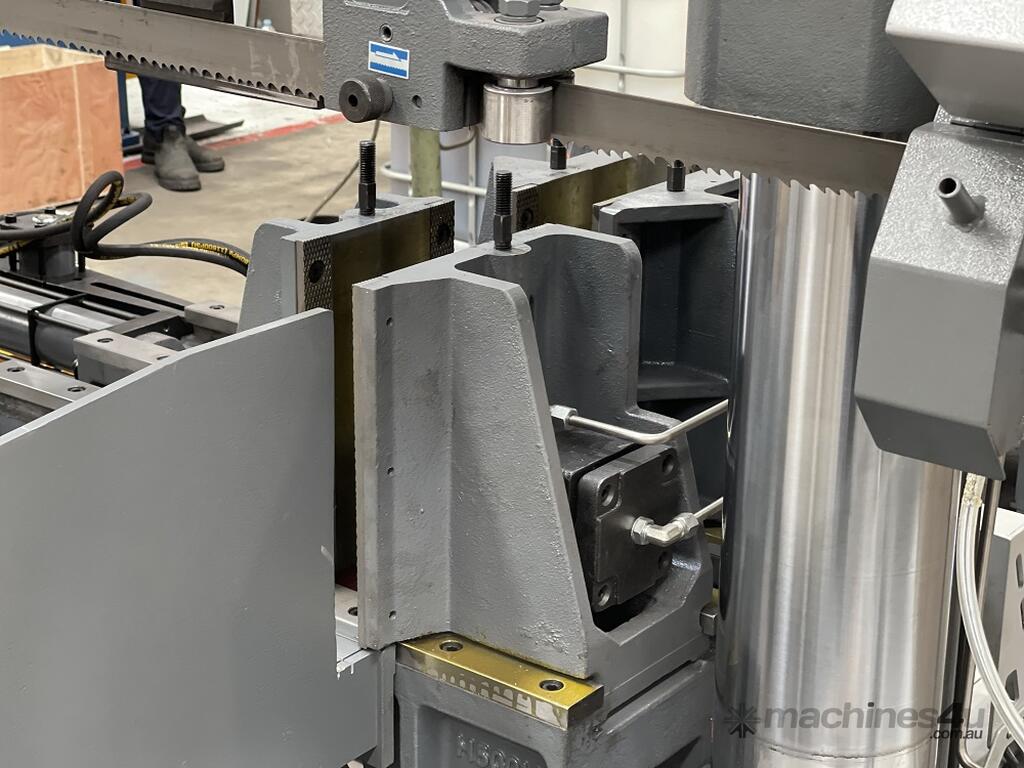

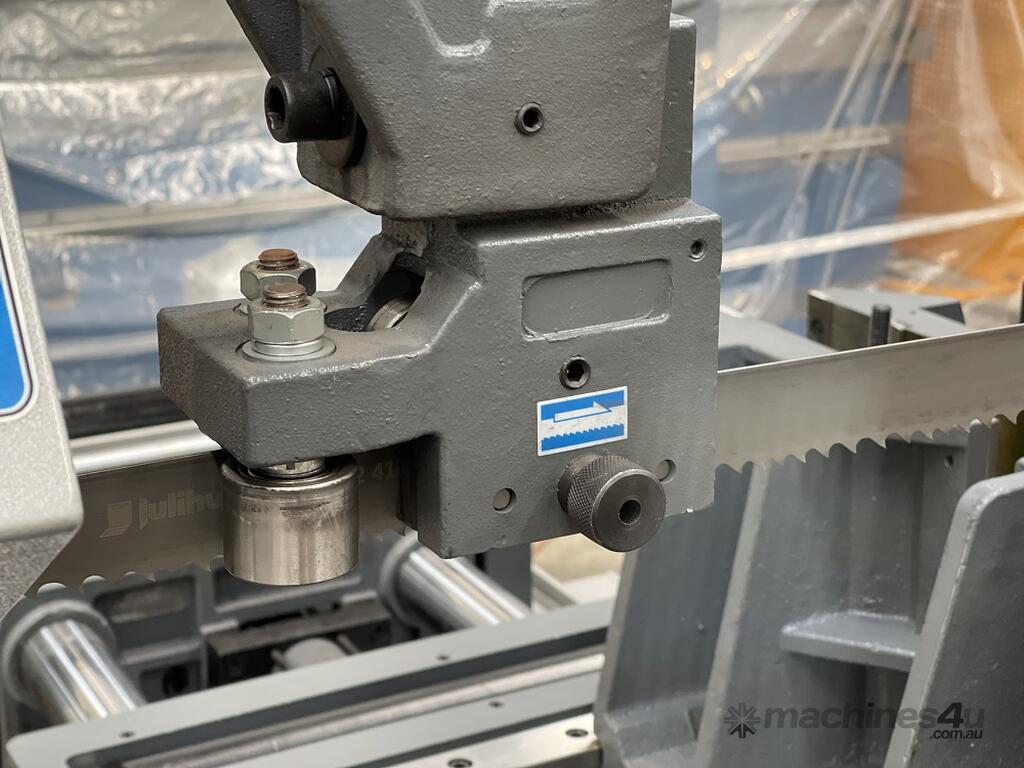

- tungsten carbide blade guides

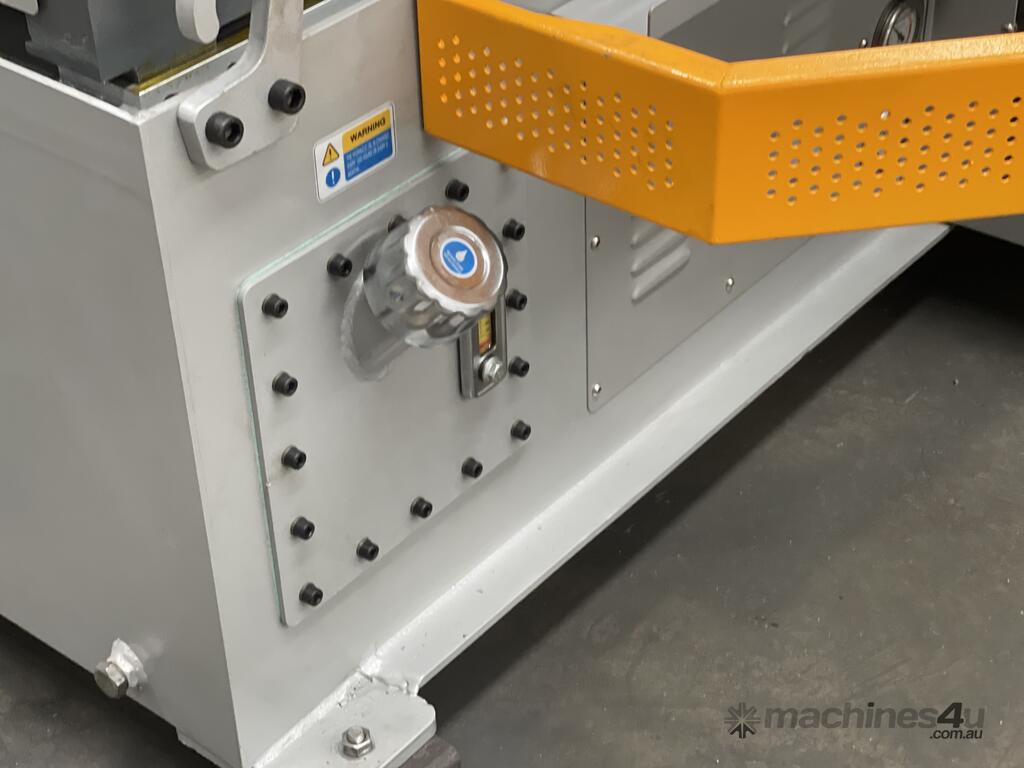

- coolant system for increased efficiency
- auto cut-off switch
- centralised control panel
- CE compliant

Technical Data Snap-Shot

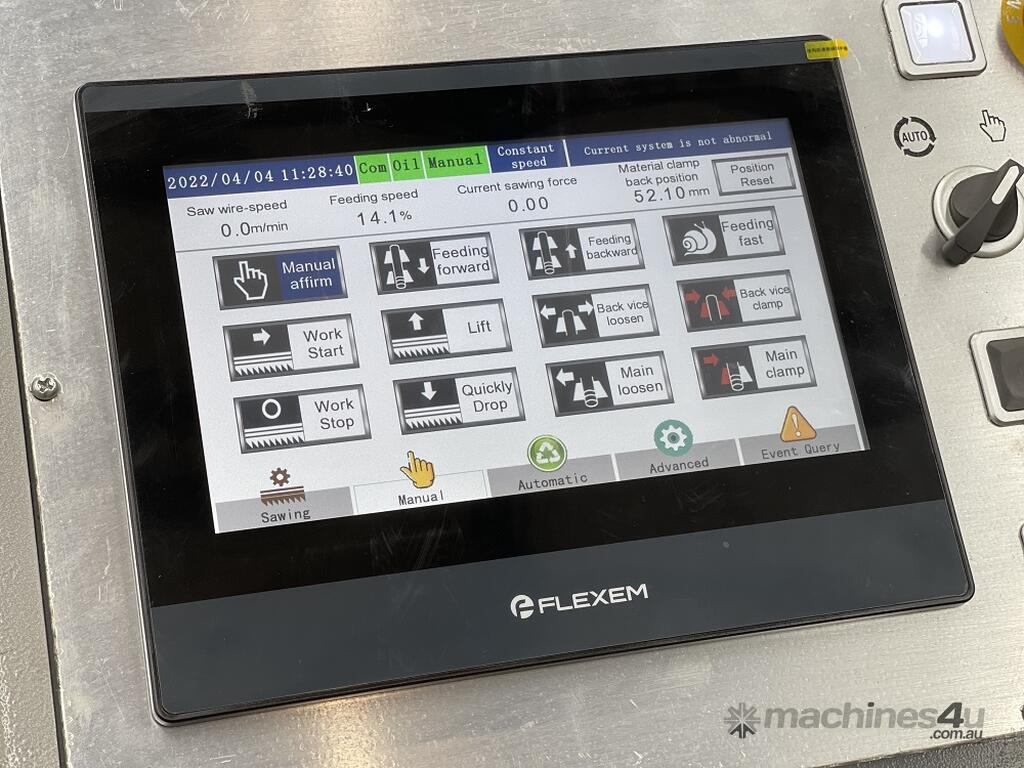

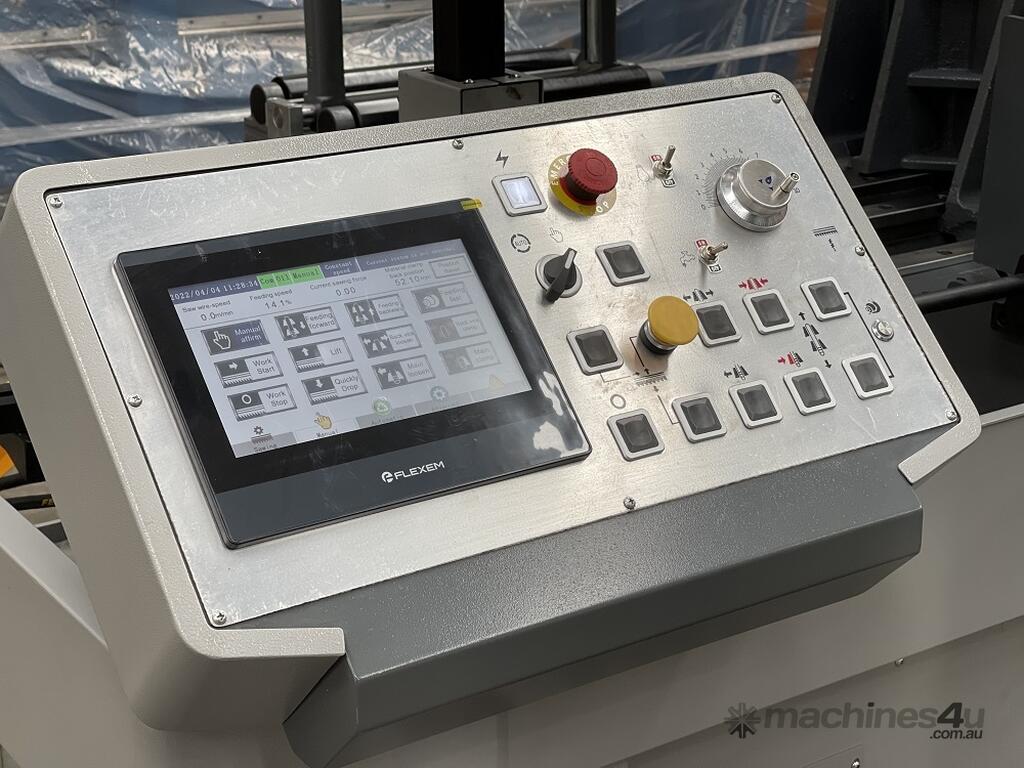

- Touch Screen NC programmable control
- 520mm x 500mm cutting capacity
- 535mm maximum jaw opening.
- 20 ~ 90 variable speed range
- 5700mm x 41mm x 1.3mm blade dimensions
- 500mm NC feeding increments
- infeed roller working height - 720mm
- shipping dimensions - 3100mm x 2100mm x 1900mm
- power - V 4Kw
- approx weight: 2800kg

Recommended Add On Accessories
- 15+1202 - 5700 x 41 x 3/4 Vari -Tooth Rontgen German Quality Bandsaw Blade.
- 15+1207 - 5700 x 41 x 4/6 Vari -Tooth Rontgen German Quality Bandsaw Blade..
- 15+1206 - 5700 x 41 x 5/7 Vari -Tooth Rontgen German Quality Bandsaw Blade..
- 15+0292 - Heavy Duty Roller Conveyor & Stands, 220mm Wide x 500mm Long.
- 15+0160 - Roller Conveyor Heavy Duty 2000mm Long x 620mm Wide with 280mm High side rollers Non-power feed.
- 15+0146 - Roller Conveyor Heavy Duty 2000mm Long x 620mm Wide with 280mm High side rollers Power feed.
- 15+0287 - Heavy Duty Roller Assembly 520mm Wide Complete with Bearing and Housing Assemblies - Sold Each
- 11+0707 – Alfra Rotabest - Magnetic Swarf Remover
- 15+0187 - Coolant Mineral Based XDP-1000 5Lt Drum Metalium - Soluble - 20:1 Mix
